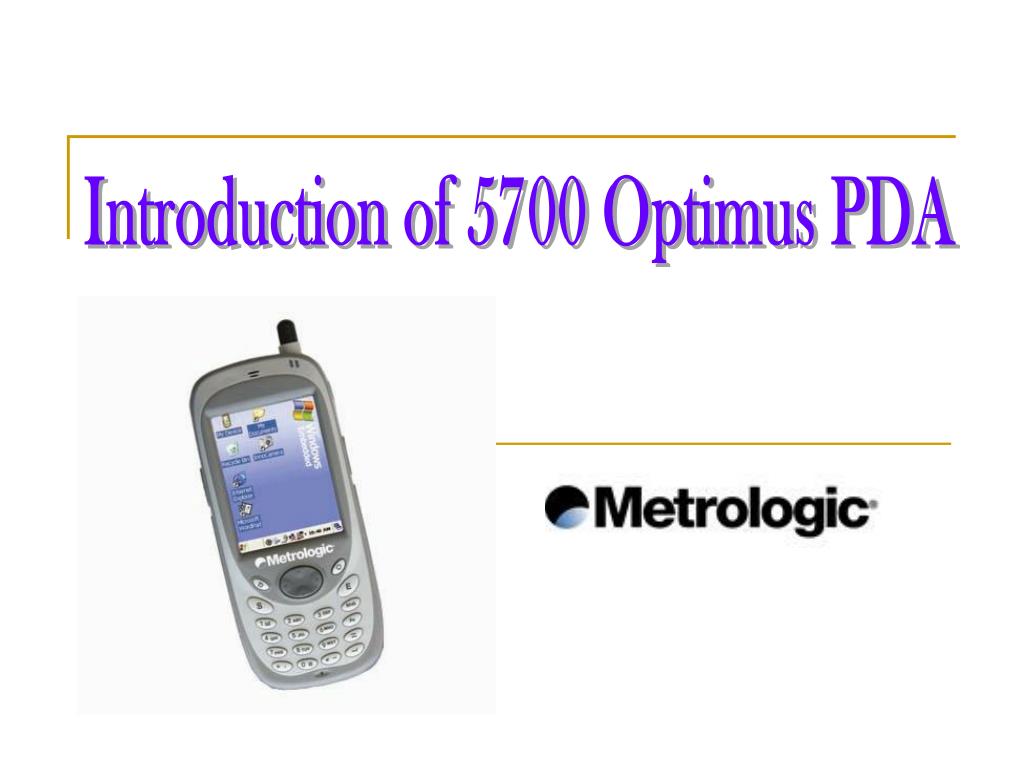

  1. Introduction of 5700 Optimus PDA

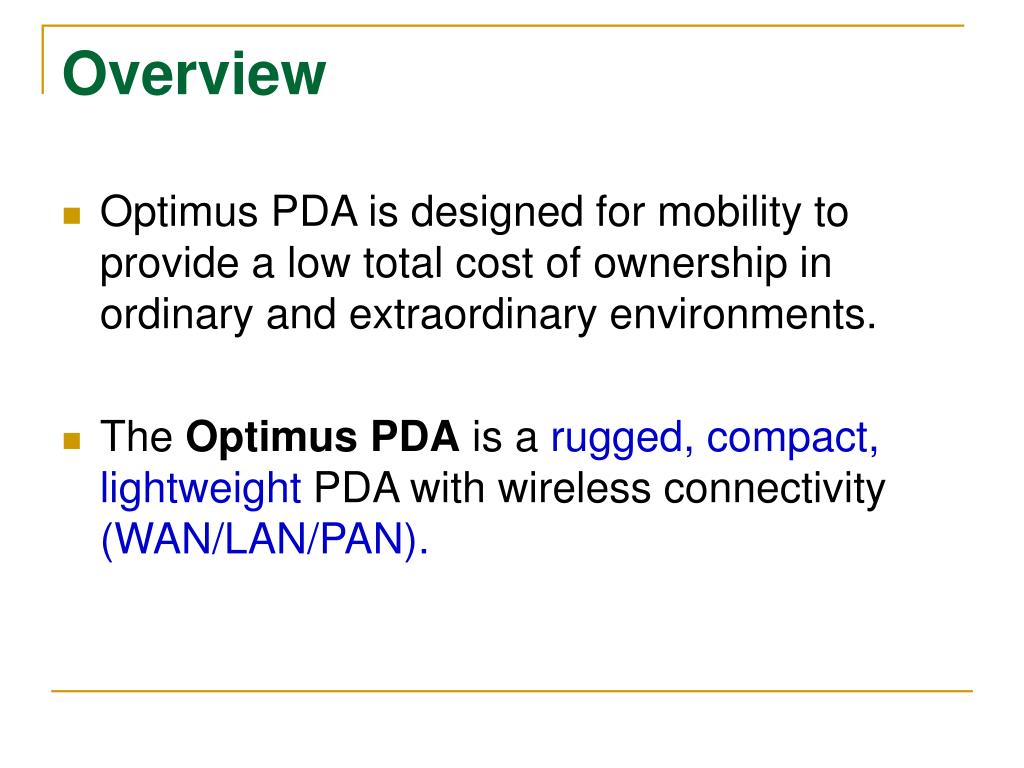

  2. Overview • Optimus PDA is designed for mobility to provide a low total cost of ownership in ordinary and extraordinary environments. • The Optimus PDAis a rugged, compact, lightweight PDA with wireless connectivity (WAN/LAN/PAN).

  3. The OptimusPDAdelivers everything your mobile task workers need to increase productivity and efficiency inside and outside your walls. • Field sales • Drivers delivering packages • Hospital workers check medication orders • Police officers issuing summons, etc

  4. Scanning Performance Form Factor Design Wireless Durability Computing Keys Features

  5. Wireless Options GSM / GPRS Wireless LAN Bluetooth IrDA

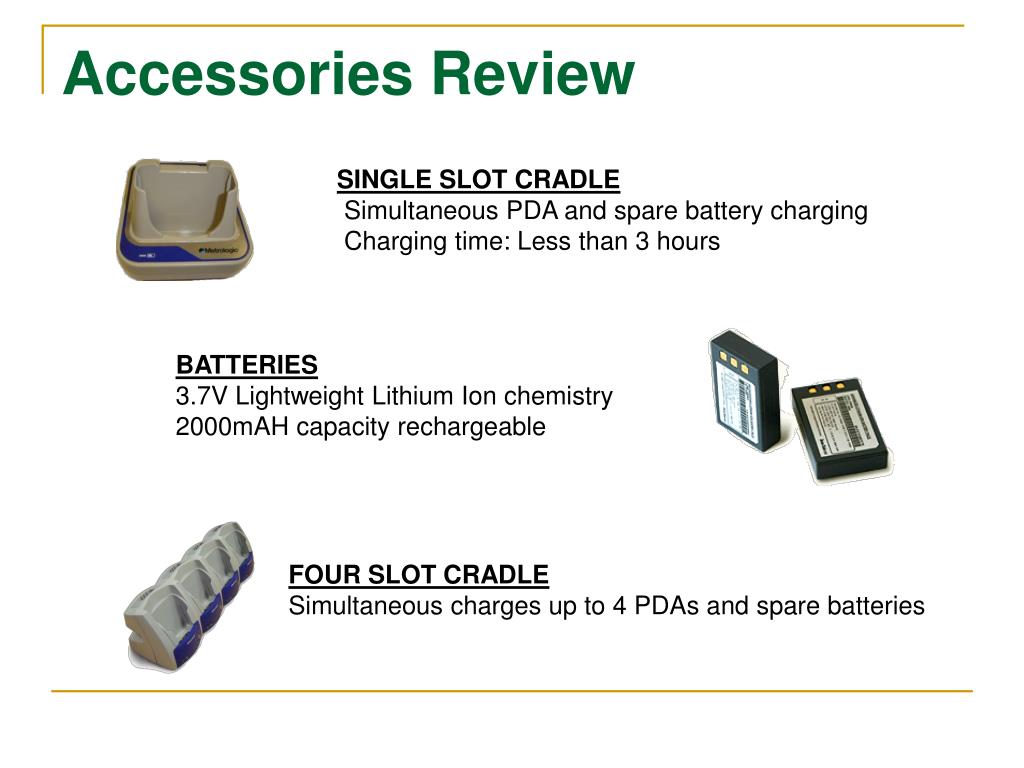

  6. Accessories Review SINGLE SLOT CRADLE Simultaneous PDA and spare battery charging Charging time: Less than 3 hours BATTERIES 3.7V Lightweight Lithium Ion chemistry 2000mAH capacity rechargeable FOUR SLOT CRADLE Simultaneous charges up to 4 PDAs and spare batteries

  7. TRIGGER HANDLE Gun style handle with scanning trigger Charge PDA simultaneously (power supply required) VEHICLE CRADLE In-vehicle PDA charging Cigar jack 12V/24V I/O: USB, RS232 or external GPS module option

  8. GPS Module (Bluetooth) • GPS receiver with Bluetooth connection to PDA • Built in patch antenna & Rechargeable Li-Ion battery • Includes Bluetooth, GPS and battery status LEDs GPS Module (USB) • GPS receiver with USB connectivity • Plugs directly into the Vehicle Cradle

  9. Handset Part Numbering Example: SP5701-11760 SP57 = OptPDA Camera 0 = No Cam 2 = 2M Pixel Scanner Type 0 = 1D Laser 1 = 1D CMOS 2 = 2D Imager N = No Scanner Flash ROM 1 = 128Mb 2 = 256Mb Colour 6 = Std grey Connective Host 006 = Batch (IR) 005 = BT 111 = WiFi 112 = BT/WiFi 114 = GSM-GPRS 115 = BT/GSM-GPRS 116 = WiFi/GSM-GPRS 117 = BT/WiFi/GSM-GPRS

  10. Kits Part Numbering Example: MK5701-11760C108 MK57 =OptPDA + Single cradle Power Supply A = No Power Supply B = US C = EU D = UK E = China F = Australia Cradle Connectivity to Host 00 = No cradle 08 = USB Only 39 = RS232 and USB Cradle 0 = No Cradle 1 = Cradle

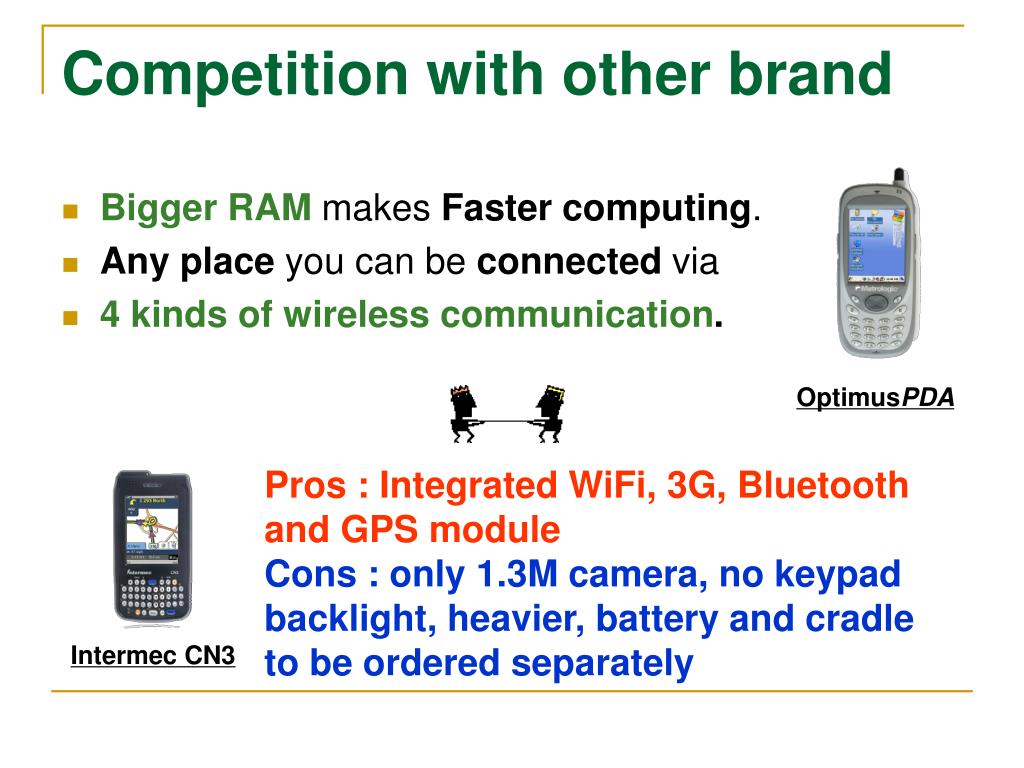

  11. Competition with other brand • Bigger RAM makes Faster computing. • Any place you can be connected via • 4 kinds of wireless communication. OptimusPDA Pros : Integrated WiFi, 3G, Bluetooth and GPS module Cons : only 1.3M camera, no keypad backlight, heavier, battery and cradle to be ordered separately Intermec CN3

  12. Pros: RFID Ready, Expandable system Cons: Smaller RAM size, Bigger Size PsionTeklogix Workabout Pros: Higher CPU, Later O/S Cons: Smaller RAM Symbol MC70

  13. Pros: 3.7” screen, Ethernet Cradle available Cons: only 64Mb RAM, 1M Camera, 1D Scanner only Casio IT-600 Pros: Smaller & lighter, alkaline compatible, direct charging Cons: smaller processor & memory, no GSM, camera or 2D Datalogic Memor

  14. Development Tools & SDK • Microsoft SDK for Window CE • Application Development Tools –Microsoft Visual Studio Coming soon…….. Metrologic SDK for OptimusPDA

  15. Metrologic Advantage • Optimus is the product family name • Its capitalise on the Metrologic strengths of robustness and knowledge of the scanner market • OptimusPDA sell as a KIT • No need to order 5+ different items! • OptimusPDA comes with carry accessories, battery,etc • Cradle includes power supply, line cord and connection cables • Individual items can still be ordered Metrologic Customers are unique • PDA configurations are flexible to suit customer needs!
