Presentation Transcript
Disulfide bonds l.jpg
Disulfide Bonds

  • Two cyteines in close proximity will form a covalent bond

  • Disulfide bond, disulfide bridge, or dicysteine bond.

  • Significantly stabilizes tertiary structure.

Protein Folding


Determining protein structure l.jpg
Determining Protein Structure

  • There are O(100,000) distinct proteins in the human proteome.

  • 3D structures have been determined for 14,000 proteins, from all organisms

    • Includes duplicates with different ligands bound, etc.

  • Coordinates are determined by X-ray crystallography

Protein Folding


X ray crystallography l.jpg

~0.5mm

X-Ray Crystallography

  • The crystal is a mosaic of millions of copies of the protein.

  • As much as 70% is solvent (water)!

  • May take months (and a “green” thumb) to grow.

Protein Folding


X ray diffraction l.jpg
X-Ray diffraction

  • Image is averagedover:

    • Space (many copies)

    • Time (of the diffractionexperiment)

Protein Folding

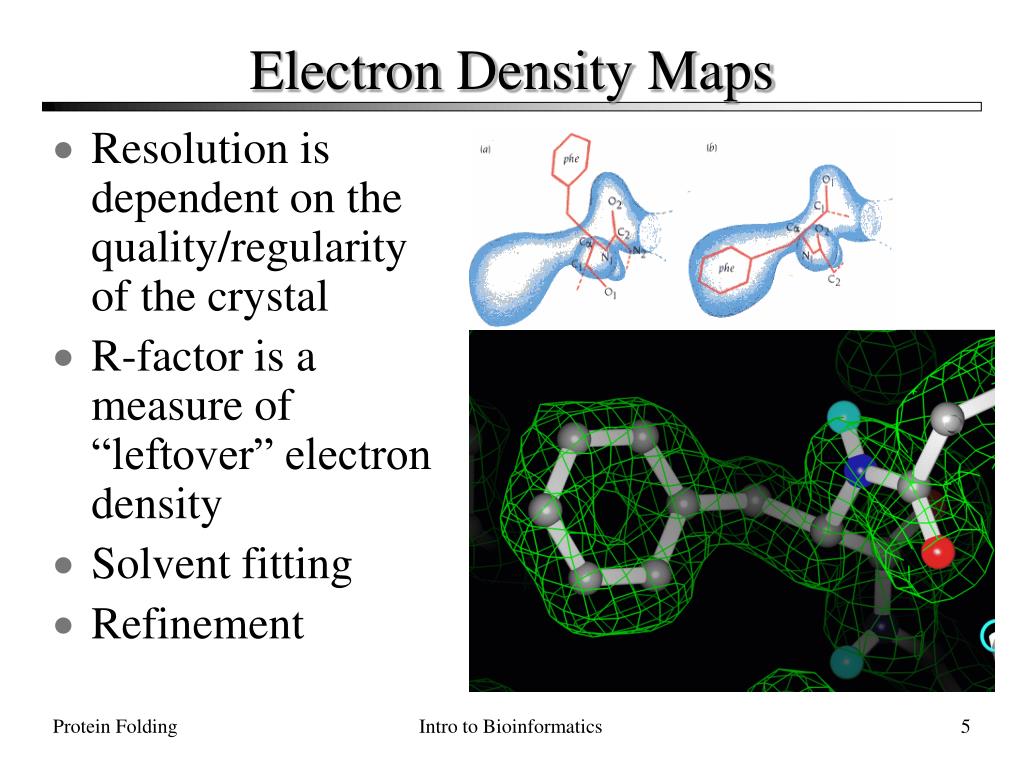

Electron density maps l.jpg
Electron Density Maps

  • Resolution is dependent on the quality/regularity of the crystal

  • R-factor is a measure of “leftover” electron density

  • Solvent fitting

  • Refinement

Protein Folding


The protein data bank l.jpg
The Protein Data Bank

  • http://www.rcsb.org/pdb/

ATOM 1 N ALA E 1 22.382 47.782 112.975 1.00 24.09 3APR 213

ATOM 2 CA ALA E 1 22.957 47.648 111.613 1.00 22.40 3APR 214

ATOM 3 C ALA E 1 23.572 46.251 111.545 1.00 21.32 3APR 215

ATOM 4 O ALA E 1 23.948 45.688 112.603 1.00 21.54 3APR 216

ATOM 5 CB ALA E 1 23.932 48.787 111.380 1.00 22.79 3APR 217

ATOM 6 N GLY E 2 23.656 45.723 110.336 1.00 19.17 3APR 218

ATOM 7 CA GLY E 2 24.216 44.393 110.087 1.00 17.35 3APR 219

ATOM 8 C GLY E 2 25.653 44.308 110.579 1.00 16.49 3APR 220

ATOM 9 O GLY E 2 26.258 45.296 110.994 1.00 15.35 3APR 221

ATOM 10 N VAL E 3 26.213 43.110 110.521 1.00 16.21 3APR 222

ATOM 11 CA VAL E 3 27.594 42.879 110.975 1.00 16.02 3APR 223

ATOM 12 C VAL E 3 28.569 43.613 110.055 1.00 15.69 3APR 224

ATOM 13 O VAL E 3 28.429 43.444 108.822 1.00 16.43 3APR 225

ATOM 14 CB VAL E 3 27.834 41.363 110.979 1.00 16.66 3APR 226

ATOM 15 CG1 VAL E 3 29.259 41.013 111.404 1.00 17.35 3APR 227

ATOM 16 CG2 VAL E 3 26.811 40.649 111.850 1.00 17.03 3APR 228

Protein Folding


A peek at protein function l.jpg
A Peek at Protein Function

  • Serine proteases – cleave other proteins

    • Catalytic Triad: ASP, HIS, SER

Protein Folding

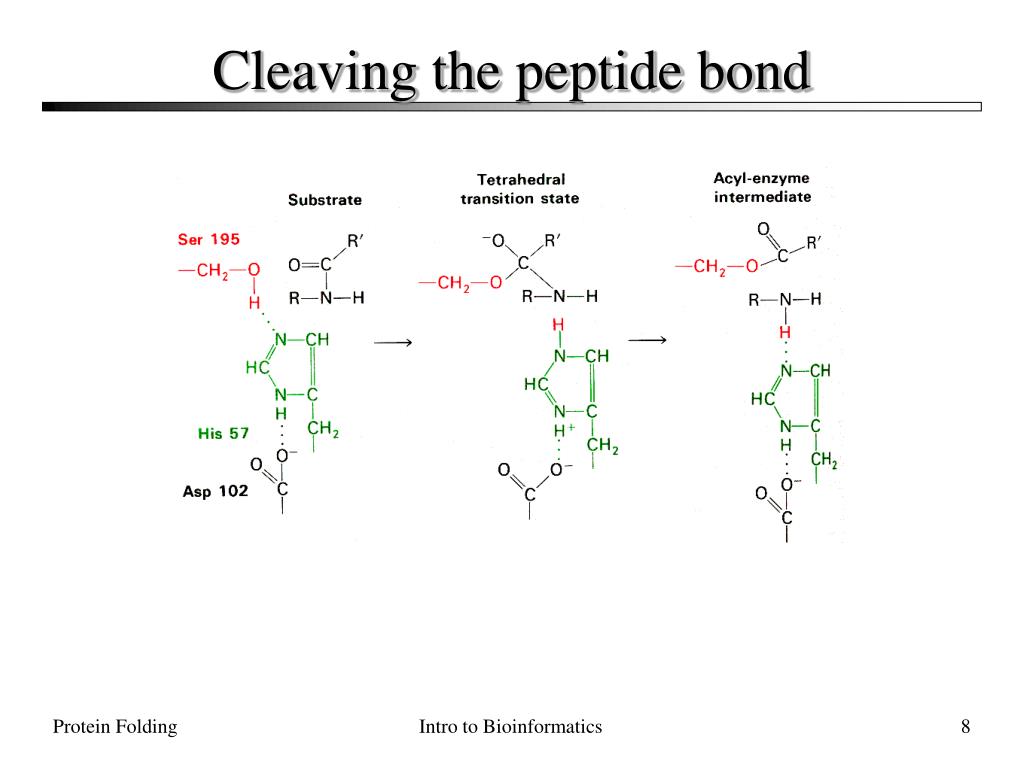

Cleaving the peptide bond l.jpg
Cleaving the peptide bond

Protein Folding


Three serine proteases l.jpg
Three Serine Proteases

  • Chymotrypsin – Cleaves the peptide bond on the carboxyl side of aromatic (ring) residues: Trp, Phe, Tyr; and large hydrophobic residues: Met.

  • Trypsin – Cleaves after Lys (K) or Arg (R)

    • Positive charge

  • Elastase – Cleaves after small residues: Gly, Ala, Ser, Cys

Protein Folding

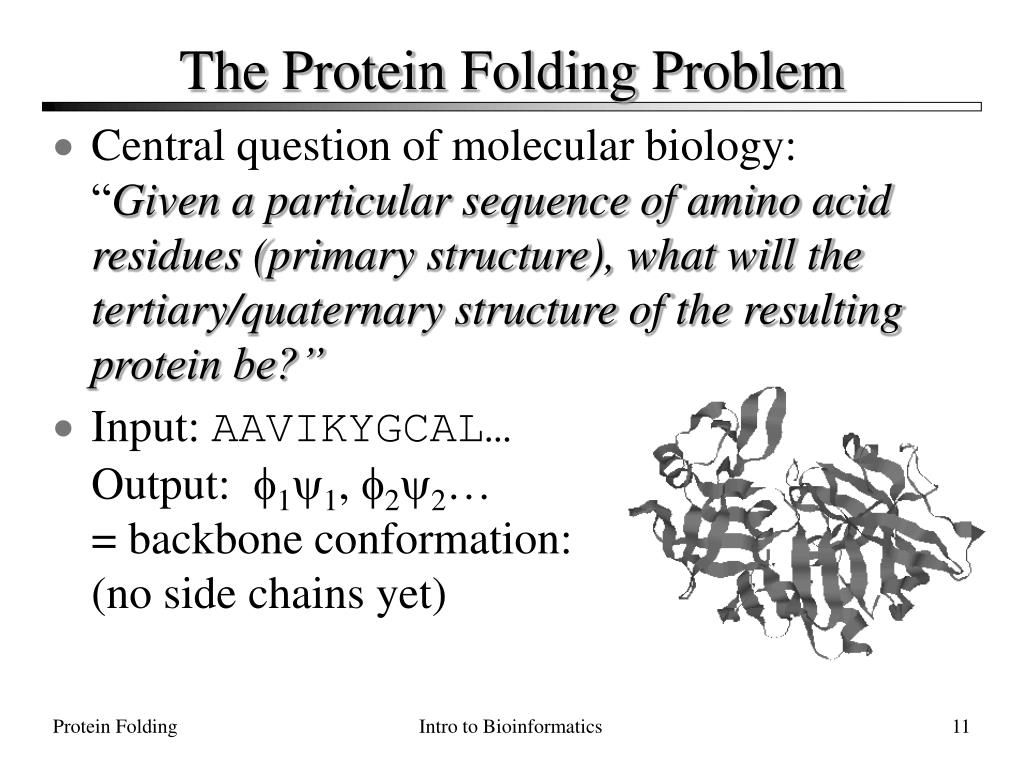

The protein folding problem l.jpg
The Protein Folding Problem

  • Central question of molecular biology:“Given a particular sequence of amino acid residues (primary structure), what will the tertiary/quaternary structure of the resulting protein be?”

  • Input: AAVIKYGCAL…Output: 11, 22…= backbone conformation:(no side chains yet)

Protein Folding


Protein folding biological perspective l.jpg
Protein Folding – Biological perspective

  • “Central dogma”: Sequence specifies structure

  • Denature – to “unfold” a protein back to random coil configuration

    • -mercaptoethanol – breaks disulfide bonds

    • Urea or guanidine hydrochloride – denaturant

    • Also heat or pH

  • Anfinsen’s experiments

    • Denatured ribonuclease

    • Spontaneously regained enzymatic activity

    • Evidence that it re-folded to native conformation

Protein Folding


Folding intermediates l.jpg
Folding intermediates

  • Levinthal’s paradox – Consider a 100 residue protein. If each residue can take only 3 positions, there are 3100 = 5  1047 possible conformations.

    • If it takes 10-13s to convert from 1 structure to another, exhaustive search would take 1.6  1027 years!

  • Folding must proceed by progressive stabilization of intermediates

    • Molten globules – most secondary structure formed, but much less compact than “native” conformation.

Protein Folding


Forces driving protein folding l.jpg
Forces driving protein folding

  • It is believed that hydrophobic collapse is a key driving force for protein folding

    • Hydrophobic core

    • Polar surface interacting with solvent

  • Minimum volume (no cavities)

  • Disulfide bond formation stabilizes

  • Hydrogen bonds

  • Polar and electrostatic interactions

Protein Folding


Folding help l.jpg
Folding help

  • Proteins are, in fact, only marginally stable

    • Native state is typically only 5 to 10 kcal/mole more stable than the unfolded form

  • Many proteins help in folding

    • Protein disulfide isomerase – catalyzes shuffling of disulfide bonds

    • Chaperones – break up aggregates and (in theory) unfold misfolded proteins

Protein Folding


The hydrophobic core l.jpg
The Hydrophobic Core

  • Hemoglobin A is the protein in red blood cells (erythrocytes) responsible for binding oxygen.

  • The mutation E6V in the  chain places a hydrophobic Val on the surface of hemoglobin

  • The resulting “sticky patch” causes hemoglobin S to agglutinate (stick together) and form fibers which deform the red blood cell and do not carry oxygen efficiently

  • Sickle cell anemia was the first identified molecular disease

Protein Folding


Sickle cell anemia l.jpg
Sickle Cell Anemia

Sequestering hydrophobic residues in the protein core protects proteins from hydrophobic agglutination.

Protein Folding


Computational problems in protein folding l.jpg
Computational Problems in Protein Folding

  • Two key questions:

    • Evaluation – how can we tell a correctly-folded protein from an incorrectly folded protein?

      • H-bonds, electrostatics, hydrophobic effect, etc.

      • Derive a function, see how well it does on “real” proteins

    • Optimization – once we get an evaluation function, can we optimize it?

      • Simulated annealing/monte carlo

      • EC

      • Heuristics

      • We’ll talk more about these methods later…

Protein Folding


Fold optimization l.jpg
Fold Optimization

  • Simple lattice models (HP-models)

    • Two types of residues: hydrophobic and polar

    • 2-D or 3-D lattice

    • The only force is hydrophobic collapse

    • Score = number of HH contacts

Protein Folding


Scoring lattice models l.jpg
Scoring Lattice Models

  • H/P model scoring: count noncovalent hydrophobic interactions.

  • Sometimes:

    • Penalize for buried polar or surface hydrophobic residues

Protein Folding


What can we do with lattice models l.jpg
What can we do with lattice models?

  • For smaller polypeptides, exhaustive search can be used

    • Looking at the “best” fold, even in such a simple model, can teach us interesting things about the protein folding process

  • For larger chains, other optimization and search methods must be used

    • Greedy, branch and bound

    • Evolutionary computing, simulated annealing

    • Graph theoretical methods

Protein Folding


Learning from lattice models l.jpg
Learning from Lattice Models

  • The “hydrophobic zipper” effect:

Ken Dill ~ 1997

Protein Folding


Representing a lattice model l.jpg
Representing a lattice model

  • Absolute directions

    • UURRDLDRRU

  • Relative directions

    • LFRFRRLLFFL

    • Advantage, we can’t have UD or RL in absolute

    • Only three directions: LRF

  • What about bumps? LFRRR

    • Bad score

    • Use a better representation

Protein Folding

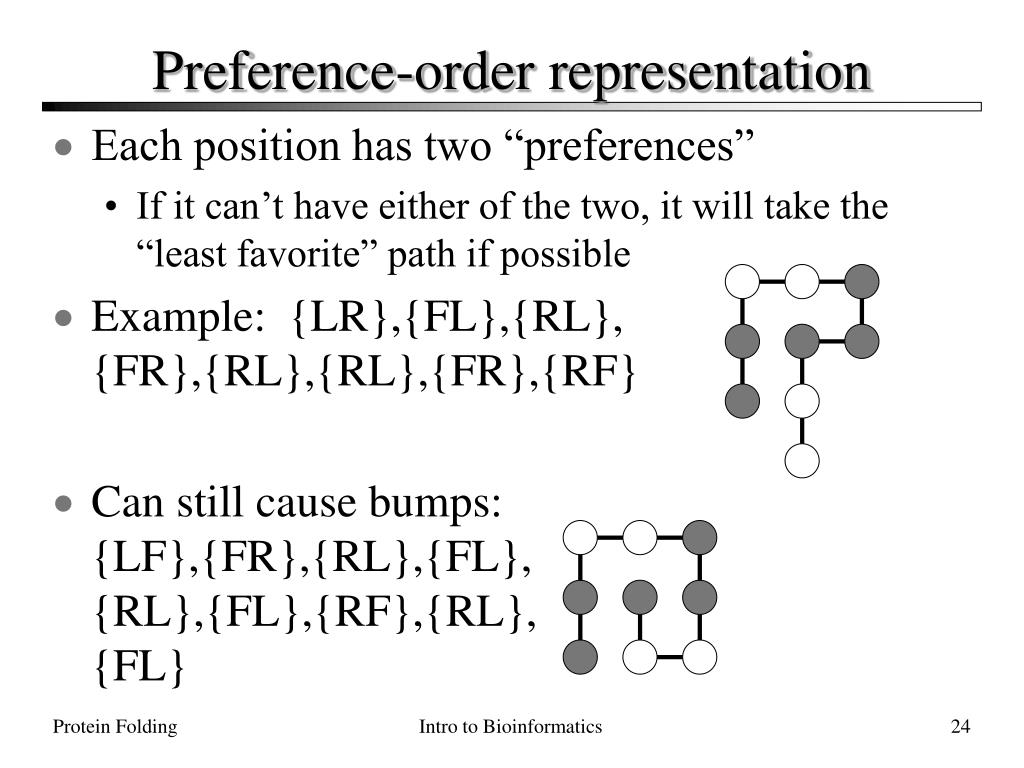

Preference order representation l.jpg
Preference-order representation

  • Each position has two “preferences”

    • If it can’t have either of the two, it will take the “least favorite” path if possible

  • Example: {LR},{FL},{RL},{FR},{RL},{RL},{FR},{RF}

  • Can still cause bumps:{LF},{FR},{RL},{FL},{RL},{FL},{RF},{RL},{FL}

Protein Folding


Decoding the representation l.jpg
“Decoding” the representation

  • The optimizer works on the representation, but to score, we have to “decode” into a structure that lets us check for bumps and score.

  • Example: How many bumps in: URDDLLDRURU?

  • We can do it on graph paper

    • Start at 0,0

    • Fill in the graph

  • In PERL we use a two-dimensional array

Protein Folding


A two dimensional array in perl l.jpg
A two-dimensional array in PERL

$configuration = “URDDLLDRURU”;

$sequence = “HPPHHPHPHHH”;

foreach $i (1..100) {

foreach $j (1..100) {

$grid[$i][$j] = “empty”;

}

}

$x = 0;

$y = 0;

@moves = split(//,$configuration);

@residues = split(//,$sequence);

Protein Folding


Setting up the grid l.jpg
Setting up the grid

foreach $move (@moves) {

$residue = shift(@residues);

if ($move = “U”) {

$y_position++;

}

if ($move = “R”) {

$x_position++;

}

etc…

if ($grid[$x][$y] ne “empty”) {

BUMP!

} else {

$grid[$x][$y] = $residue;

}

Protein Folding


More realistic models l.jpg
More realistic models

  • Higher resolution lattices (45° lattice, etc.)

  • Off-lattice models

    • Local moves

    • Optimization/search methods and / representations

      • Greedy search

      • Branch and bound

      • EC, Monte Carlo, simulated annealing, etc.

Protein Folding

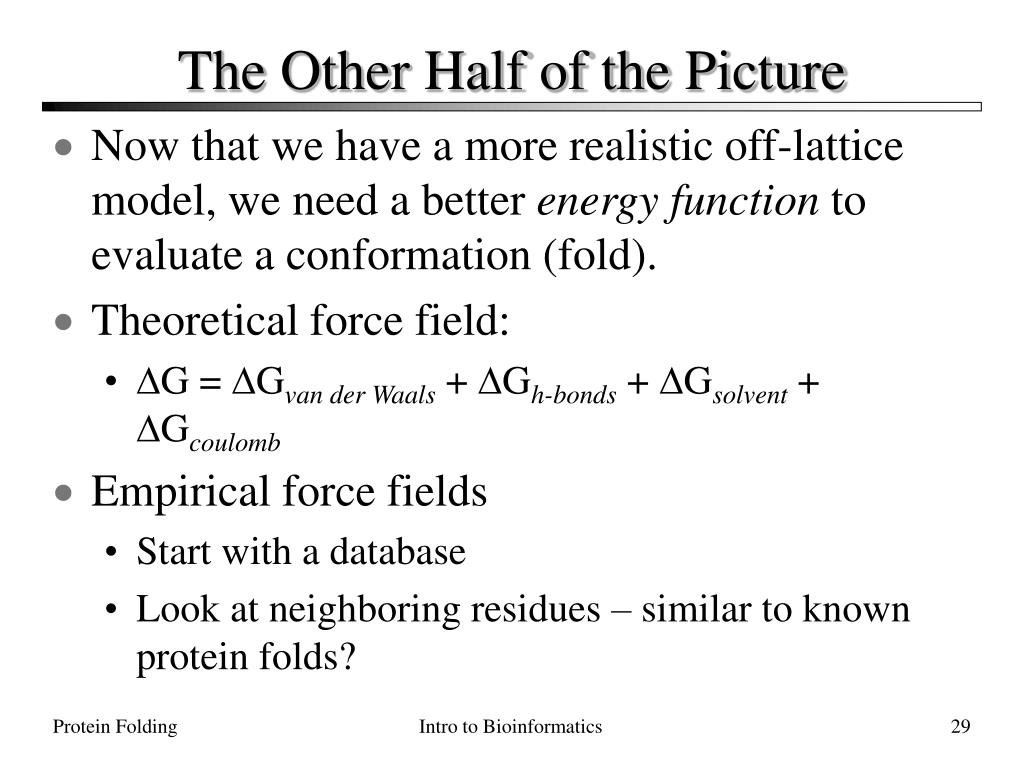

The other half of the picture l.jpg
The Other Half of the Picture

  • Now that we have a more realistic off-lattice model, we need a better energy function to evaluate a conformation (fold).

  • Theoretical force field:

    • G = Gvan der Waals + Gh-bonds + Gsolvent + Gcoulomb

  • Empirical force fields

    • Start with a database

    • Look at neighboring residues – similar to known protein folds?

Protein Folding


Threading fold recognition l.jpg
Threading: Fold recognition

  • Given:

    • Sequence: IVACIVSTEYDVMKAAR…

    • A database of molecular coordinates

  • Map the sequence onto each fold

  • Evaluate

    • Objective 1: improve scoring function

    • Objective 2: folding

Protein Folding


Secondary structure prediction l.jpg
Secondary Structure Prediction

AGVGTVPMTAYGNDIQYYGQVT…

A-VGIVPM-AYGQDIQY-GQVT…

AG-GIIP--AYGNELQ--GQVT…

AGVCTVPMTA---ELQYYG--T…

AGVGTVPMTAYGNDIQYYGQVT…

----hhhHHHHHHhhh--eeEE…

Protein Folding

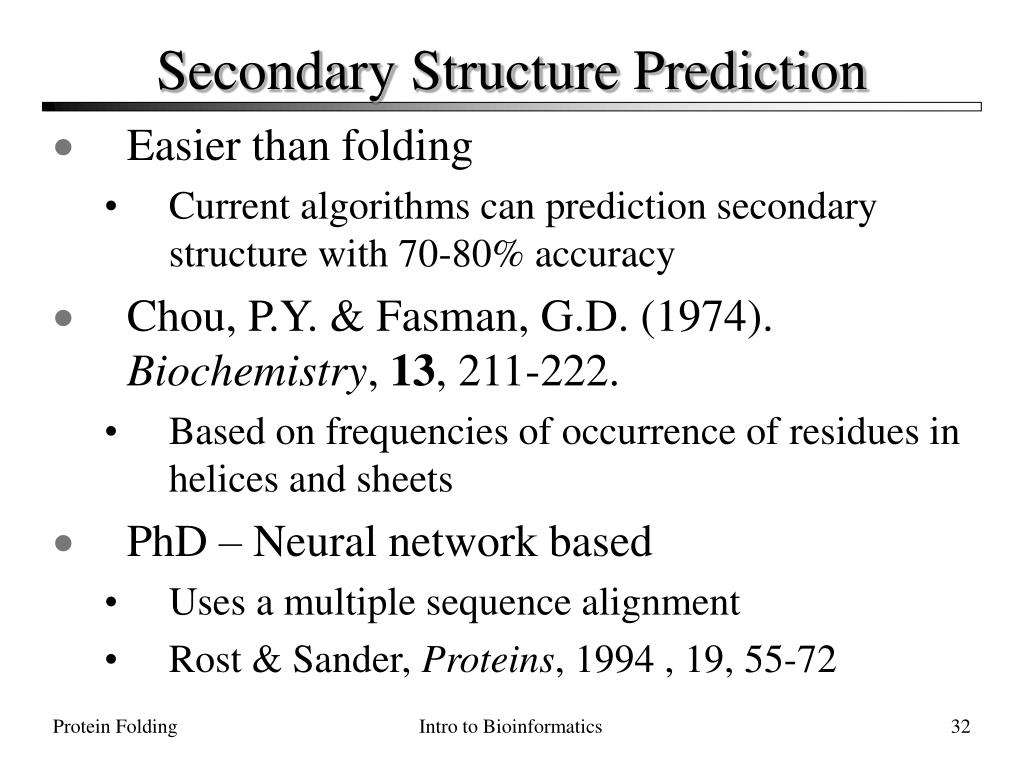

Secondary structure prediction32 l.jpg
Secondary Structure Prediction

  • Easier than folding

    • Current algorithms can prediction secondary structure with 70-80% accuracy

  • Chou, P.Y. & Fasman, G.D. (1974). Biochemistry, 13, 211-222.

    • Based on frequencies of occurrence of residues in helices and sheets

  • PhD – Neural network based

    • Uses a multiple sequence alignment

    • Rost & Sander, Proteins, 1994 , 19, 55-72

Protein Folding


Chou fasman parameters l.jpg
Chou-Fasman Parameters

Protein Folding


Chou fasman algorithm l.jpg
Chou-Fasman Algorithm

  • Identify -helices

    • 4 out of 6 contiguous amino acids that have P(a) > 100

    • Extend the region until 4 amino acids with P(a) < 100 found

    • Compute P(a) and P(b); If the region is >5 residues and P(a) > P(b) identify as a helix

  • Repeat for -sheets [use P(b)]

  • If an  and a  region overlap, the overlapping region is predicted according to P(a) and P(b)

Protein Folding


Chou fasman cont d l.jpg
Chou-Fasman, cont’d

  • Identify hairpin turns:

    • P(t) = f(i) of the residue  f(i+1) of the next residue  f(i+2) of the following residue  f(i+3) of the residue at position (i+3)

    • Predict a hairpin turn starting at positions where:

      • P(t) > 0.000075

      • The average P(turn) for the four residues > 100

      • P(a) < P(turn) > P(b) for the four residues

  • Accuracy  60-65%

Protein Folding


Chou fasman example l.jpg
Chou-Fasman Example

  • CAENKLDHVRGPTCILFMTWYNDGP

  • CAENKL – Potential helix (!C and !N)

    • Residues with P(a) < 100: RNCGPSTY

  • Extend: When we reach RGPT, we must stop

  • CAENKLDHV: P(a) = 972, P(b) = 843

  • Declare alpha helix

  • Identifying a hairpin turn

    • VRGP: P(t) = 0.000085

    • Average P(turn) = 113.25

      • Avg P(a) = 79.5, Avg P(b) = 98.25

  • Protein Folding


    ad
