Reading:- Intuitive Control of a Planar Biped Walking Robot

Jerry Pratt and Gill Pratt


Introduction l.jpg
Introduction

  • How is walking stabilised in “Intuitive Control” ?

  • What is Virtual Model Control ?

  • What is the “virtual toe point” ?


Intuitive control l.jpg
Intuitive Control

  • What is the main criticism of “intuitive controllers”

  • How can automatic learning techniques be used for “intuitive controllers” and what are the benefits of doing so ?


Control strategies l.jpg
Control Strategies

  • Discuss how height is stabilised in a biped.

  • Discuss how pitch is stabilised in a biped.

  • Discuss how speed is stabilised in a biped.

  • Discuss how the swing leg placement is controlled in a biped.

  • Discuss how the the support leg transitions are controlled in a biped


Biped kinematics l.jpg
Biped Kinematics

  • What does it mean to say that the “virtual toe point” is a commanded quantity, not a measured one ?

  • Derive the forward kinematic map from frame {A} to frame {B}

  • Derive the Jacobian ABJ.


Implementing virtual actuators l.jpg
Implementing Virtual Actuators

  • What will be the joint torques (t,a,k,h) required to produce a force of (fx, fz, f) on the robot at point B ?

  • Given that the joint torque t is zero derive a constraint equation for (fx, fz, f).

  • Derive the relationship between the remaining joint torques (a,k,h) and the virtual force applied to B for (fz, f).


Biped control l.jpg
Biped Control

  • The calculation of the virtual force does not include any terms for the robot mass and angular moments of inertia. How would you stop the robot falling ?


Dual leg implementation l.jpg
Dual Leg Implementation

  • How can the joint torque problem be solved in the double support phase ?

  • Are there any ways that this control can be improved ?


Spring flamingo implementation l.jpg

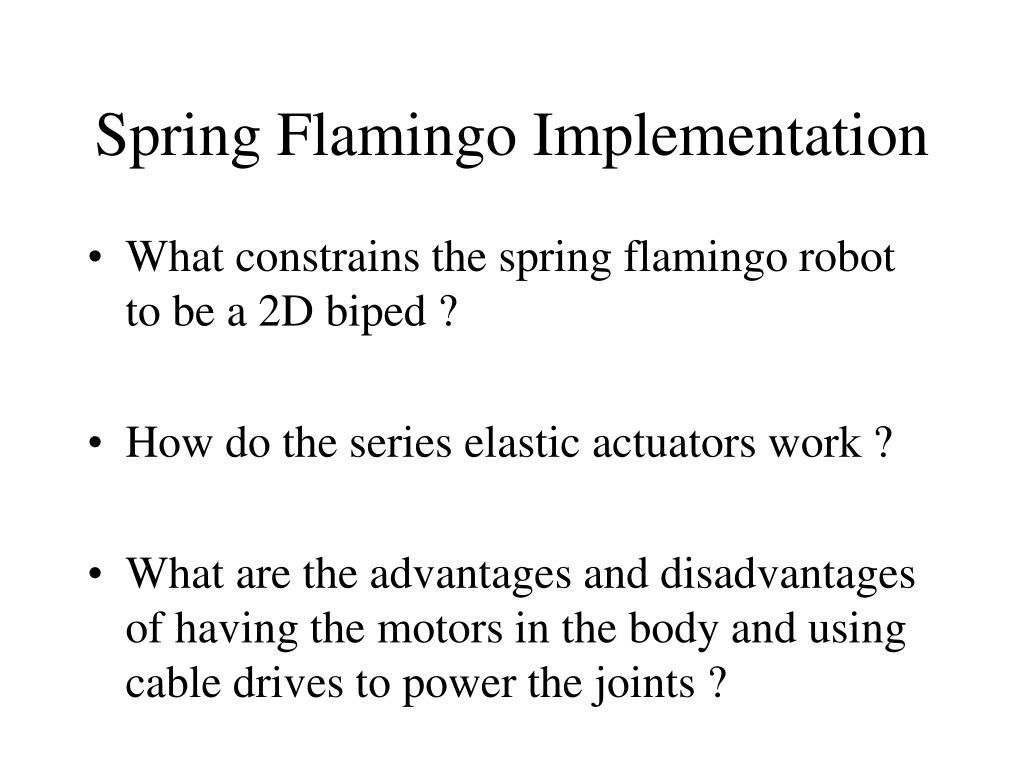

Spring Flamingo Implementation

  • What constrains the spring flamingo robot to be a 2D biped ?

  • How do the series elastic actuators work ?

  • What are the advantages and disadvantages of having the motors in the body and using cable drives to power the joints ?


Experimental results l.jpg
Experimental Results

  • Discuss the robustness properties of the spring flamingo robot and the walking control algorithm ?

  • How would the algorithms be extended for a 3D biped robot system ?


Simulation constructions set l.jpg
Simulation Constructions Set

  • Examine the Spring Flamingo and m2 simulations using the Yobotics Simulation Construction Set. (evaluation version available from www.Yobotics.com)

  • Discuss the merits and problems of developing controllers in simulation and then transferring them to real robot systems ?
