Presentation Transcript


Evaluating performance l.jpg

Evaluating Performance

COSC 201


Administrivia l.jpg

Administrivia

  • I’ve graded through lab 4

    • will email your grades when I finish lab 5

  • homework due tomorrow

    • I’ll post the HW answers once they’re turned in

  • Lab on Tuesday: Datapath

  • ALU and other Logisim examples from class are on the webpage

  • Appendix B is on the web page


Some questions l.jpg

Some questions:

  • How long does it take Google to look up “Tostitos”

  • How long does it take to factor a large prime number?

  • How long to sort an array?


Hard to isolate things l.jpg

Hard to isolate things

  • For all of these questions, we’re measuring other things

    • network

    • memory

    • hard disk

    • compiler

    • algorithms


We re measuring time l.jpg

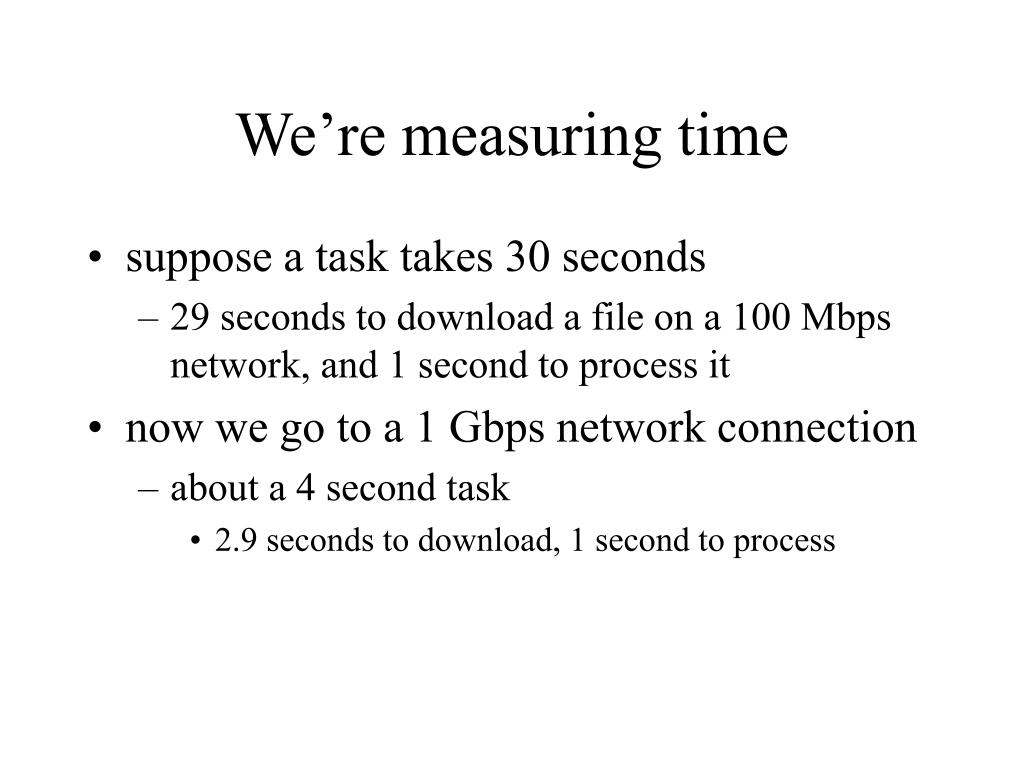

We’re measuring time

  • suppose a task takes 30 seconds

    • 29 seconds to download a file on a 100 Mbps network, and 1 second to process it

  • now we go to a 1 Gbps network connection

    • about a 4 second task

      • 2.9 seconds to download, 1 second to process


Wall clock time l.jpg

Wall-clock time

  • Simple way to measure

    • Lots of other variable affect wall-clock time

    • speed of the disk

    • network

    • how many users are on the machine

      • many linux workstations are multi-user


Multi user systems are shared l.jpg

Multi-user systems are shared

  • Examples:

    • mail server

    • blackboard / Marmoset

  • Each job gets a timeslice of about 10 ms

    • This is not a precise count

    • Processing resources are shared, but not perfectly evenly


Measure cpu time l.jpg

Measure CPU time

  • Time your job actually spends using the CPU

    • User time

  • Time the OS spends doing things that aren’t your job, or your job spends waiting for events, like data from disk

    • System time


Clocks l.jpg

Clocks

  • We’ve already seen that clocks regulate how things happen in a CPU

    • ticks, clocks, cycles, clock periods, clock ticks

  • 2 Ghz means 2 * 10^9 cycles per second

  • Many instructions take 1 cycle to complete

    • Some instructions take multiple cycles to complete


Tradeoffs l.jpg

Tradeoffs

  • Increasing the clock speed often means that some instructions that “barely fit” in a clock cycle will now require multiple cycles to complete

  • Sometimes this is good


Measuring clock time l.jpg

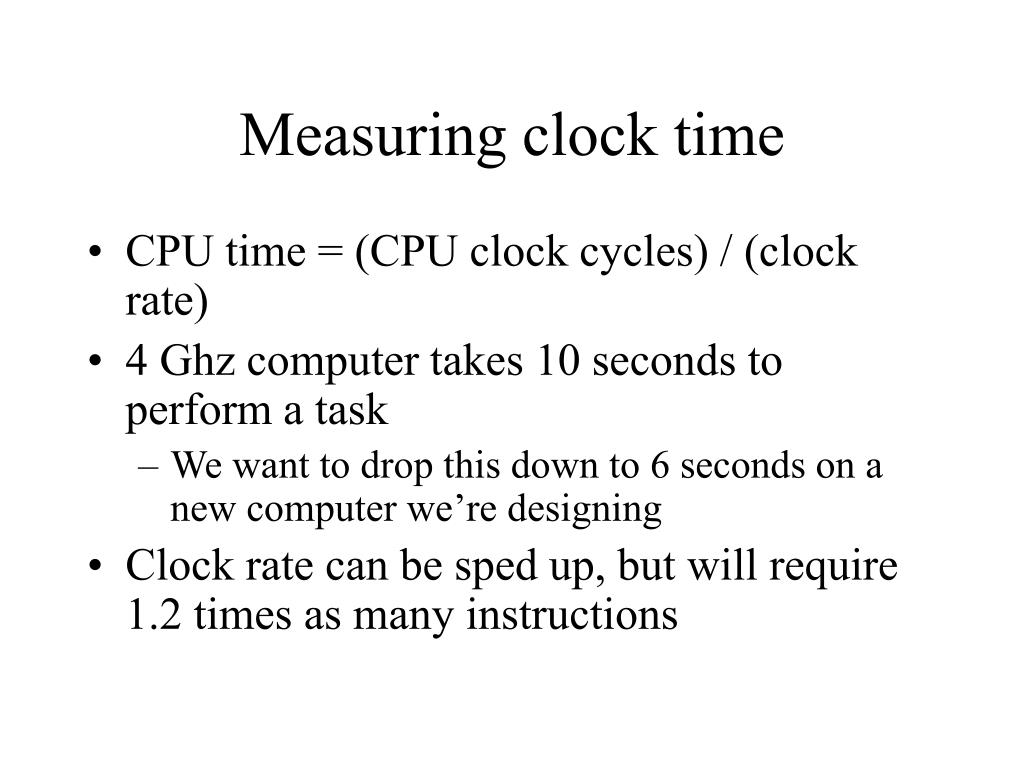

Measuring clock time

  • CPU time = (CPU clock cycles) / (clock rate)

  • 4 Ghz computer takes 10 seconds to perform a task

    • We want to drop this down to 6 seconds on a new computer we’re designing

  • Clock rate can be sped up, but will require 1.2 times as many instructions


Slide12 l.jpg

  • 10 seconds = (Cycles) / (4 Ghz)

  • 10 = X / 4 * 10^9

  • X = 40 * 10^9

  • 40 * 10^9 * 1.2 = 48 * 10^9

  • 6 seconds = 48 * 10^9 / X

  • 8 Ghz


Clock cycles per instruction l.jpg

Clock Cycles Per Instruction

  • abbreviated CPI

  • average number of cycles required for each instruction

    • Estimate for a particular workload

    • differs for each architecture

    • may differ for streams of instructions for different programs on the same architecture


What components affect performance l.jpg

What components affect performance?

  • Algorithm

    • Instruction count, CPI

  • Programming language

    • Instruction count, CPI

  • Compiler

    • Instruction count, CPI

  • Instruction set architecture

    • Instruction count, CPI, clock rate


We can t just measure instruction counts l.jpg

We can’t just measure instruction counts

  • Some instructions take multiple cycles

  • It may be more efficient to execute more instructions if those instructions each take fewer cycles


Performance means different things in different contexts l.jpg

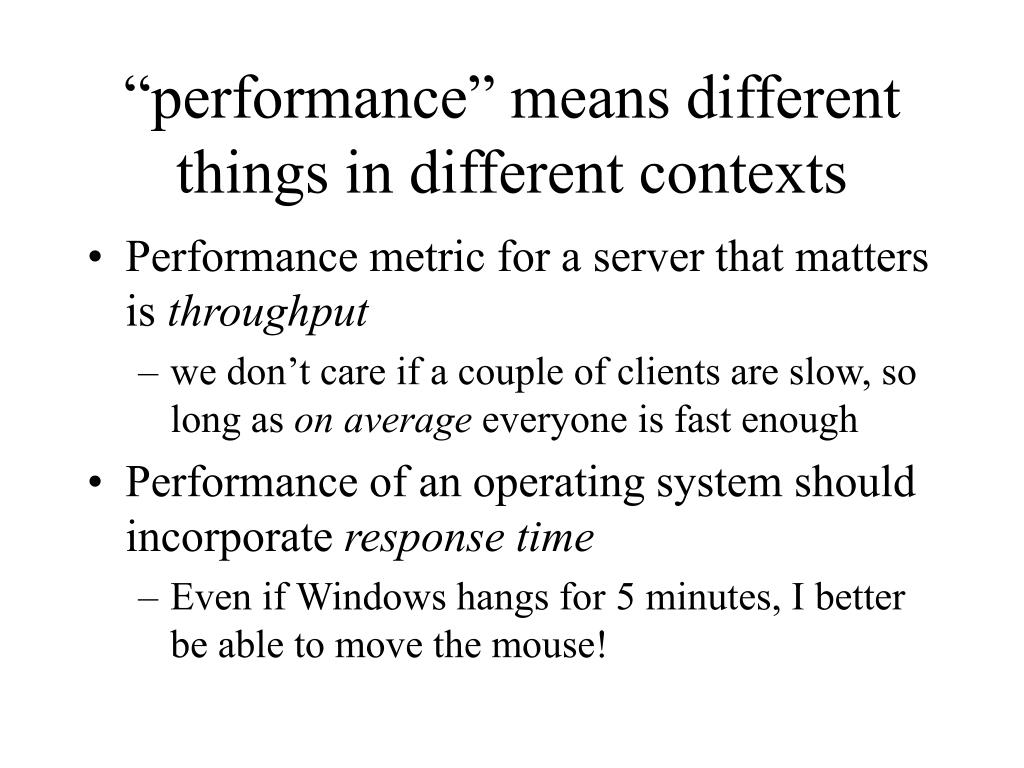

“performance” means different things in different contexts

  • Performance metric for a server that matters is throughput

    • we don’t care if a couple of clients are slow, so long as on average everyone is fast enough

  • Performance of an operating system should incorporate response time

    • Even if Windows hangs for 5 minutes, I better be able to move the mouse!


Performance in context cont l.jpg

“performance” in context, cont.

  • Performance metric that matters for air-traffic control system is the worst case

    • doesn’t matter if on average everything is great, we can’t have anything run slowly


Which computer is faster l.jpg

Which computer is faster?


Which computer is faster19 l.jpg

Which computer is faster?


Many ways to measure performance l.jpg

Many ways to measure performance

  • instruction counts

  • CPI

  • wall-clock time


Throughput vs response time l.jpg

Throughput vs Response Time

  • Faster CPUs vs more CPUs

  • A faster CPU usually decreases your response time

    • you can handle more instructions per unit of time

    • great for video games

  • Adding more CPUs increases throughput

    • Can perform multiple tasks at once

    • great for servers

      • like the late Marmoset…


Beware of benchmarks l.jpg

Beware of Benchmarks

  • small code segments that are easy to run and report results for

  • Advantages and disadvantages?


Benchmarks aren t real programs l.jpg

Benchmarks aren’t real programs

  • Useful when designing an architecture where there’s no existing compiler

    • easy to code up

    • easy to debug

  • Can give extremely misleading performance results


Should measure performance for real applications l.jpg

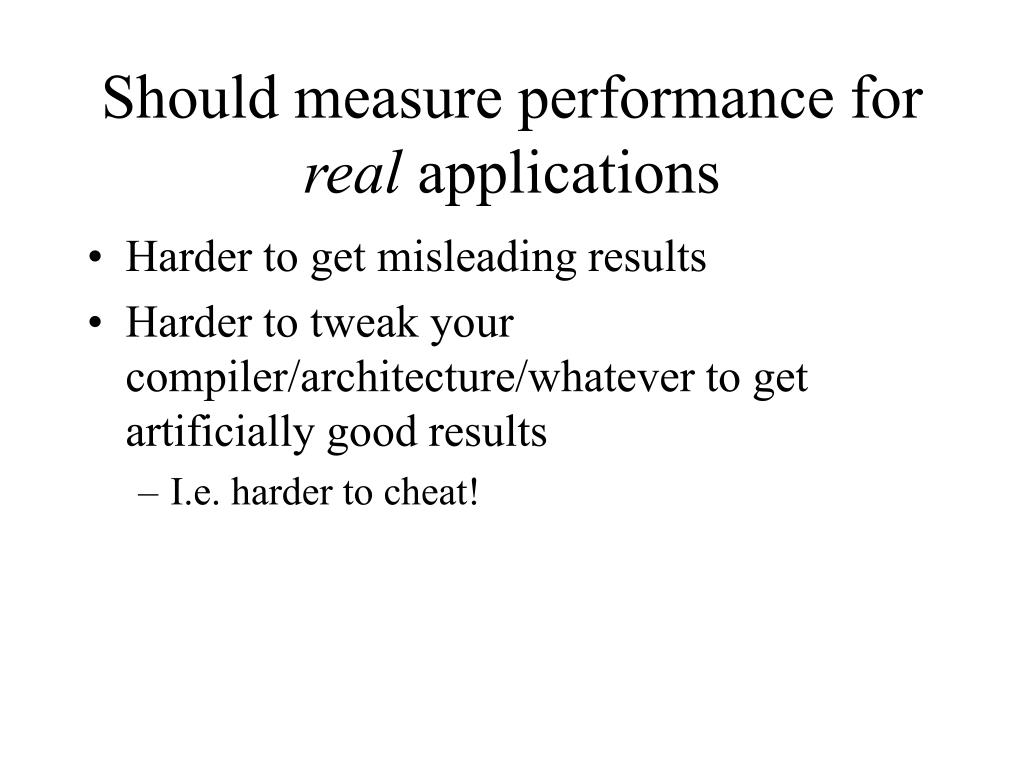

Should measure performance for real applications

  • Harder to get misleading results

  • Harder to tweak your compiler/architecture/whatever to get artificially good results

    • I.e. harder to cheat!


How would we measure the performance of l.jpg

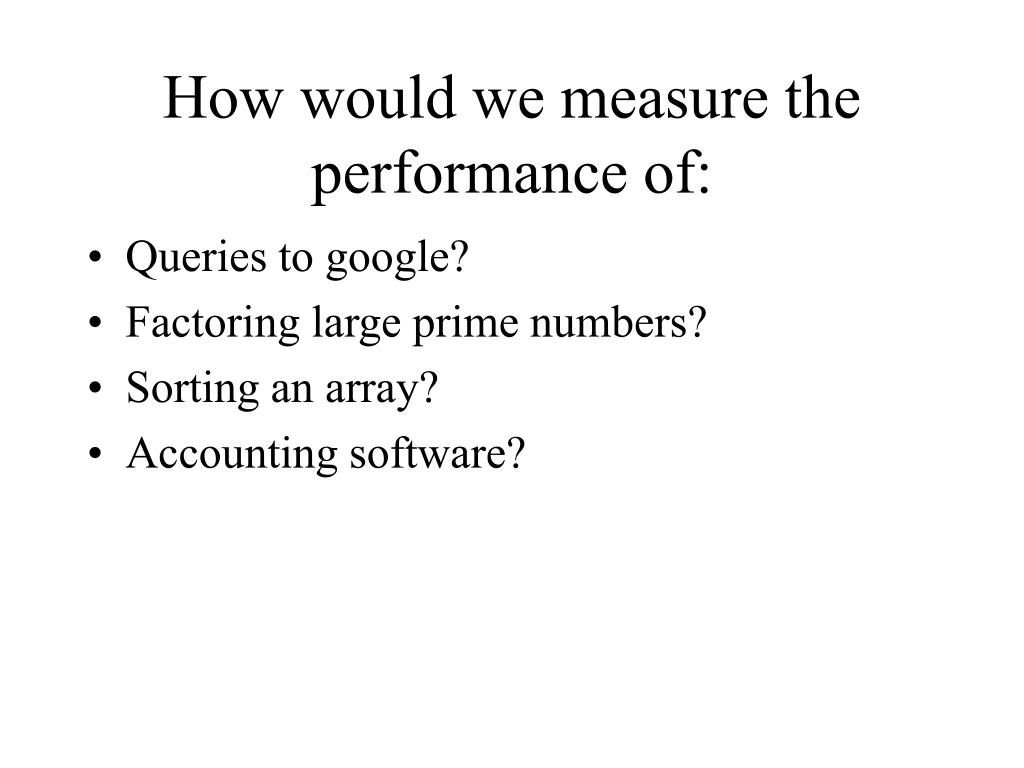

How would we measure the performance of:

  • Queries to google?

  • Factoring large prime numbers?

  • Sorting an array?

  • Accounting software?


  • Login
