Presentation Transcript


Xdaq real scale application scenarios l.jpg

XDAQ - Real Scale ApplicationScenarios

Johannes Gutleber and Luciano Orsini for the CMS TriDAS collaboration

CERNEuropean Organization for Nuclear ResarchDivision EP/CMD

http://cern.ch/xdaq

CHEP - March, 2003


Outline l.jpg

Outline

  • XDAQ

    • A software product line for DAQ

    • Description of the asset base

    • Re-usable application components (distributed event builder)

  • Real scale application scenarios

    • Tracker test setup

    • Muon chamber production and validation

    • Further application scenarios

  • Summary and conclusions


Software product lines l.jpg

Software Product Lines

A product line is a set of software-intensive systemssharing a common, managed set of features that satisfy the specific needs of a particular market segment or mission and that are developed from a common set of core assets in a prescribed way.

P. Clements and L. NorthopSoftware Product Lines, AW 2001

XDAQ is a sofware product line for data acquisition,

designed for the CMS experiment at CERN.


Scope of xdaq l.jpg

Scope of XDAQ

  • Environment for data acquisition applications

    • communication over multiple network technologies concurrently

      • e.g. input on Myrinet, output on TCP/IP over Ethernet

    • configuration (parametrization) and control

      • protocol and bookkeeping of information

    • cross-platform deployment

      • write once, use on every supported platform (Unix, RTOS)

    • high-level provision of system services

      • memory management, synchronized queues, tasks

    • built-in efficiency enablers

      • zero-copy and buffer loaning schemes usable by everyone

  • Aim at creating interoperable DAQ systems

    • ECAL, HCAL, Tracker, Muon local DAQs commonly managed

  • Gain a common understanding of the problem domain

    • terms, use-cases, priorities laid down in common documentation


Xdaq based daq systems l.jpg

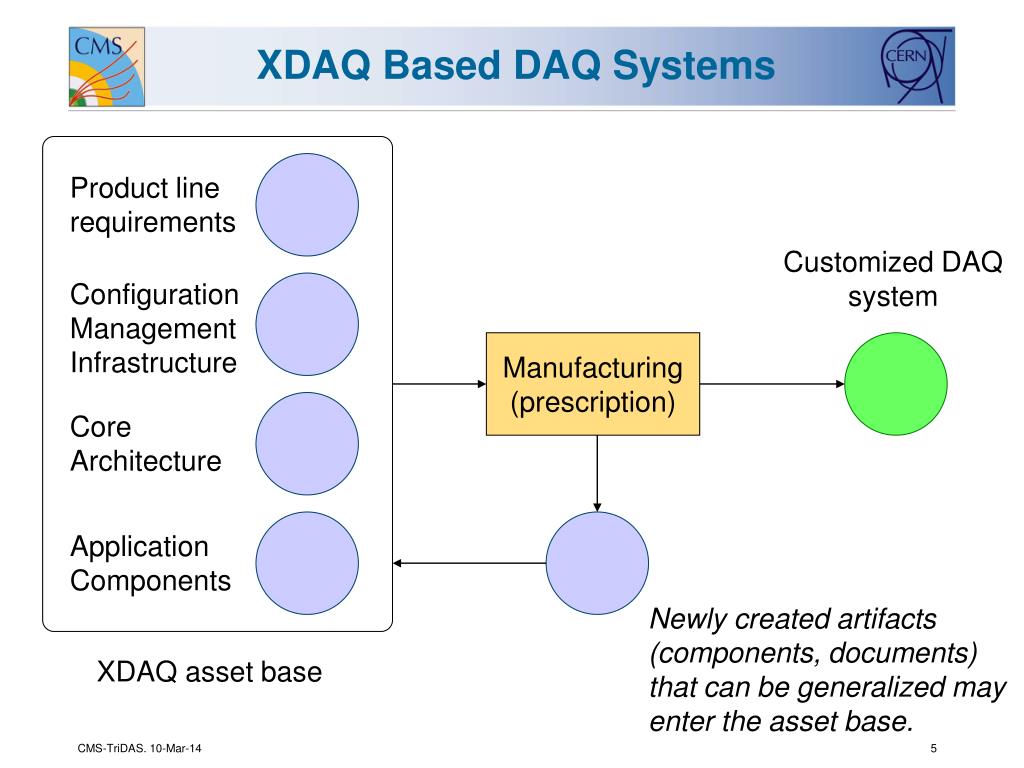

XDAQ Based DAQ Systems

Product linerequirements

Customized DAQsystem

ConfigurationManagementInfrastructure

Manufacturing(prescription)

CoreArchitecture

ApplicationComponents

Newly created artifacts(components, documents)that can be generalized mayenter the asset base.

XDAQ asset base


Xdaq asset base 1 l.jpg

XDAQ Asset Base (1)


Xdaq asset base 2 l.jpg

XDAQ Asset Base (2)


Distributed event builder l.jpg

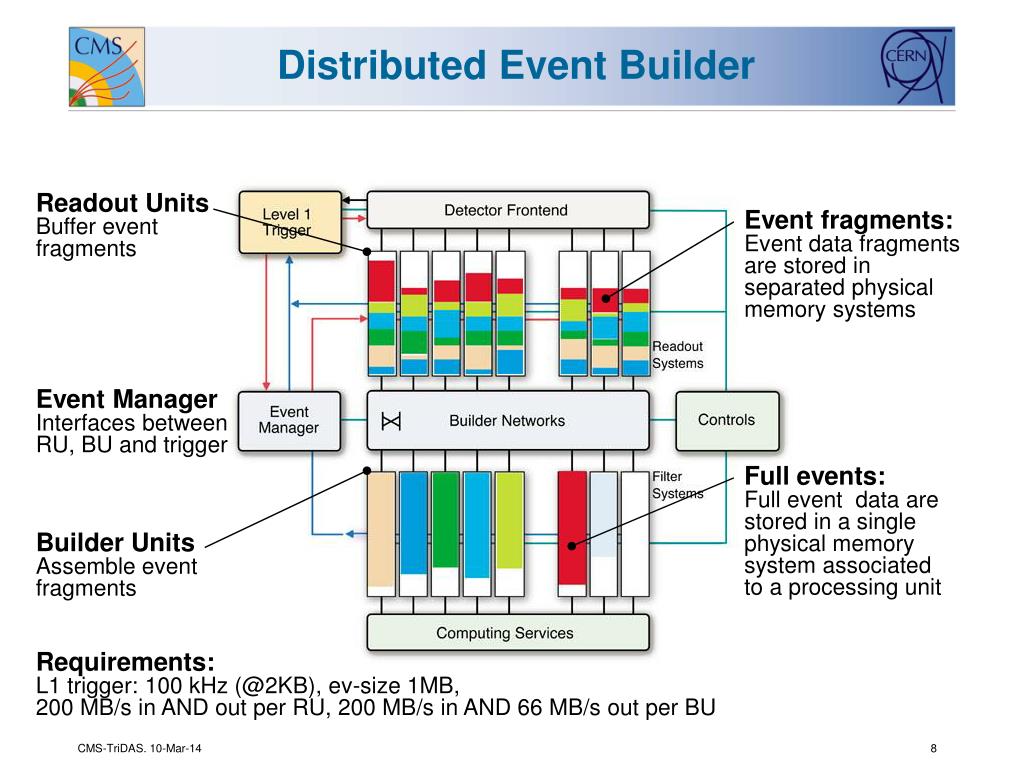

Distributed Event Builder

Readout Units

Buffer event

fragments

Event fragments:

Event data fragments are stored in separated physical memory systems

Event Manager

Interfaces between

RU, BU and trigger

Full events:

Full event data are

stored in a single

physical memory

system associated

to a processing unit

Builder Units

Assemble event

fragments

Requirements:

L1 trigger: 100 kHz (@2KB), ev-size 1MB,

200 MB/s in AND out per RU, 200 MB/s in AND 66 MB/s out per BU


Slide9 l.jpg

Event fragments:

Event data fragments are stored in separated physical memory systems

Readout Units

Buffer event

fragments

Event Manager

Interfaces between

RU, BU and trigger

Builder Units

Assemble event

fragments

Full events:

Full event data are

stored in a single

physical memory

system associated

to a processing unit


Xdaq cluster based systems l.jpg

XDAQ Cluster Based Systems

A cluster consists of a collection of interconnected whole computers. Each cluster node runs an XDAQ executive process, that at run-time, is extended with application components. They use the interfaces of the XDAQ executive for communication, configuration and memory management purposes.

Cluster

XDAQ nodes

Controller

Controller


Cluster configuration l.jpg

Cluster Configuration

Cluster Partition

Definitions

Application class name

Peer transport

Peer transport

Scripts (automized execution of commands in Tcl)

Host computer URL

Address

Application (default parameters, paths to other applications)

Transport (default parameters)

Module URL (URLs to locations of applications, transports)


Readout unit l.jpg

Readout Unit

  • Readout Unit (RU)Application component: buffers data fragments belonging to an event from readout electronics

  • interface to detector front-end

  • internal buffers for event fragments

  • interface to event manager for tagging read-out data

  • interface to builder unit to serve event data upon request

Peer transport (PT)TCP, Myrinet, …

XDAQ executive(one per host computer)


Builder unit l.jpg

Builder Unit

  • Builder Unit (RU)Application component: requests data fragments belonging to the sameevent from readout units, combines them and serves them to furtherprocessing components

  • interface to event manager for signalling availability of resources to build events

  • internal readout units to request event data

  • interface to data storage/filter unit services to serve requests for further processing

  • buffers for chaining event fragments from readout units to complete events

Peer transport (PT)TCP, Myrinet, …

XDAQ executive(one per host computer)


Event manager l.jpg

Event Manager

Peer transport (PT)TCP, Myrinet, …

XDAQ executive(one per host computer)

  • Event Manager (EVM)Application component: interacts with the trigger subsystem and obtainsinformation about events for identification purposes.

  • interface to trigger to provide credits and to receive trigger information

  • interface to builder units for accepting event readout requests

  • interface to readout units for providing tags for event data


Sample system configuration l.jpg

Sample System Configuration

4 readout units

custom readout

1 event manager

1 builder unit

customstorage

custom triggerinterface

Adding a builder unit to distributethe processing load is a matter ofediting the configuration only


Central daq demonstrator l.jpg

Central DAQ Demonstrator

2003 Equipment

(Tier-2 cluster at UCSD)

EVB 10x10:

At 16 kB 95 MB/s (75%)

2001 Equipment

EVB 32x32:

At 16 kB 75 MB/s (60%)

  • standard MTU (1500 B payload)

  • Linux2.4

See Wednesday plenary talk (F. Meijers): Studies for the CMS Event Builder


Case 1 cms tracker l.jpg

Case 1: CMS Tracker

AcronymImplementation

BCN (Builder Control Network)Fast Ethernet (I2O)BDN (Builder Data Network)Fast Ethernet (I2O)BU (Builder Unit)Intel based PC (Linux)DCS (Detector Control System)Custom (XDAQ based)DSN (DAQ Service Network)Ethernet (SOAP/HTTP)EVM (Event Manager)Intel based PC (Linux)FEC (Front-End Driver Controller)Intel based PC (Linux)FED (Front-End Driver)Custom PCI cardsFFN (Filter Farm Network)Fast Ethernet (I2O)FRL (Front-End Readout Link)PCI busFU (Filter Unit)Intel based PC (Linux)LTC (Local Trigger Controller)Custom PCI cardRCMS (Run Control/Monitor System)Java (xdaqWin, JAXM)RCN (Readout Control Network)Fast Ethernet (I2O)RU (Readout Unit)Intel based PC (Linux)

PropertyValue

Event rate500 Hz2000 events/spillEvent size20 kBThroughput (readout to storage)11 MB/s (initial)Operation time5 to 7 days uninterrupted


Lessons learned l.jpg

Lessons Learned

  • Customization and installation time of system: 4 FTE months

    • includes application development AND framework learning phase

  • Reduction of detector commissioning: 2 hours (30 hours before)

  • Demonstrated infrastructure support for flexibility

    • Initial small setup at PSI, Zurich

    • Scaled up installation for test setup at CERN

      • only task was re-configuration (30 minutes, editing of XML file)

  • Demonstrated stability

    • Uninterrupted run-phase lasts on average 7 days (600 Gbytes)

  • Demonstrated efficiency

    • Recent upgrade to Gigabit Ethernet

      • no modification in software

      • efficiency boost from 11 MB/s to > 70 MB/s acquisition throughput

  • Users positive feedback

    • Simple interface for controlling a complex, distributed system

    • Novices could operate and re-configure the system themselves


Case 2 cms muon chambers l.jpg

Case 2: CMS Muon Chambers

AcronymImplementation

BCN (Builder Control Network)Fast Ethernet (I2O)BDN (Builder Data Network)Fast Ethernet (I2O)BU (Builder Unit)Intel based PC (Linux)DSN (DAQ Service Network)Ethernet (SOAP/HTTP)EVM (Event Manager)Intel based PC (VxWorks)FED (Front-End Driver)Custom VME cardsFRL (Front-End Readout Link)VME busLTC (Local Trigger Controller)Custom PCI cardRCMS (Run Control/Monitor System)Java (CMS prototype)RCN (Readout Control Network)Fast Ethernet (I2O)RU (Readout Unit)Intel based PC (Linux) and VME PowerPC (VxWorks)

PropertyValue

Event rate10 kHzEvent sizex00 B - x0 KBThroughput (readout to storage)4 MB/sOperation timecontinuous (60% uptime initially)


Lessons learned20 l.jpg

Lessons Learned

  • Customization and installation time: 6 FTE months

    • similar to custom development, but

    • seamless integration with new system components (silicon beam telescope, combined RPC and muon chamber testing)

    • Transition to new processing hardware without SW modifications

    • Use of standard Web protocols for control allows independent development of complete run-control system

  • Multiplatform challenge

    • demonstrated Linux and VxWorks operation with single software

  • Memory management challenge

    • high variance event sizes - stable operation

    • Zero tolerance RTOS - no leakage, no fragmentation(inefficient use of non-virtual memory would result in unstable and inefficient operation)


Further application scenarios l.jpg

Further Application Scenarios

  • PRISMA and GASP

    • are two experiments whose DAQ systems have been put in place by INFN Legnaro (Italy) using early versions of the XDAQ architecture

    • The positive experience of these systems lead to the development of the XDAQ product line as we presented it today

  • CMS Global Trigger

    • entered XDAQ based developments in August 2002 for configuration, control and monitoring of FPGA loaded VME cards

    • a 1 week tutorial was sufficient to give an electrical engineering undergraduate student the basis for autonomous development

  • CMS ECAL

    • ECAL uses the XDAQ product line for developing crate controllers for configuring, controlling and monitoring the front-end devices.

    • This case led to improvements in the database access and hardware access components, as well as a joint preparation of user manuals.


Summary l.jpg

Summary

  • Provide product-line to subdetector groups

  • Main DAQ is just another product instance

  • Software used in larger context is better understood

    • Stability and fitting the requirements are key

  • investment of time and cost is predictable

  • Avoid repeating same mistakes in autonomously working groups

    • Concentrate on groups competences (readout, storage, …)


Conclusions l.jpg

Conclusions

Creating a new DAQ system is a process of assembly in a predetermined way rather than a programming task.

We strive towards coming to a uniform DAQ product-line for all CMS data acquisition application scenarios ranging from single CPU setups to the final systems comprising thousands of nodes.

http://cern.ch/xdaq
