Presentation Transcript


Intro to psychology l.jpg

Intro to Psychology

Neurophysiology, Neuroanatomy


The brain l.jpg

The Brain

The brain is a combination of two types of cells, glial cells and neurons

The brain consists of 100 billion neurons and 1012 total cells


Neurons l.jpg

Neurons

  • Cells in the brain that communicate with each other

  • Neurons are “born” early in life

  • Do not regenerate


Glial cells l.jpg

Glial Cells

  • Provide support for neurons

    • Structure support

    • Metabolic and nutritional support

  • Can replace themselves

  • Serve to clean up the brain, removes dead tissue and foreign objects

  • Play a large role in neural development

  • May even be communicating with neurons

  • Role is expanding with new research


Glia and neurons l.jpg

Glia and Neurons


Many different types of neurons l.jpg

Many different types of neurons

Pyramidal neuron

Purkinje neuron


Parts of the neuron l.jpg

Parts of the Neuron


Slide9 l.jpg

  • Neurons communicate in two ways

  • Electrical signal: within a neuron

  • Chemical signal: between neurons

  • Electrical signal is sent from one part of the neuron to the other: The signal travels from the dendrite through the cell body to the axon

    • Dendrites receive the signal from another neuron

    • Axons send the signal to other neurons

  • Chemical signal is sent from the axon of one neuron to the dendrite of another neuron


Properties of the neuron l.jpg

Properties of the Neuron

  • Neurons contain many ions and are charged

A- are large protein ions that always stay inside the cell

K+ is potassium. At rest it is mostly inside the cell

Cl- is chloride. It exists both inside and outside the cell

Na+ is sodium. It exists primarily outside the cell


Slide11 l.jpg

  • When the cell is at rest (i.e., not doing anything), it has a charge of -70 mV. This is called the resting potential.

  • Because of the cell properties, many forces are acting on the cell.

  • 1. Diffusion - substances tend to move from areas of high concentration to areas of low concentration.

  • 2. Like charges repel each other and opposite charges attract

  • Charges stay the way they are because of the cell membrane. It is selectively permeable. It does this by ion channels.


Slide13 l.jpg

  • Normally the membrane closes Na+ channels

  • However, if the membrane is given an electrical charge, it causes the membrane to lose some permeability

  • This opens the sodium channels

  • If this electrical charge is large enough, the flood gates will open

  • Change in charge is potentiated down the length of the neuron

  • This wave of charge is called the action potential


Sodium potassium pump l.jpg

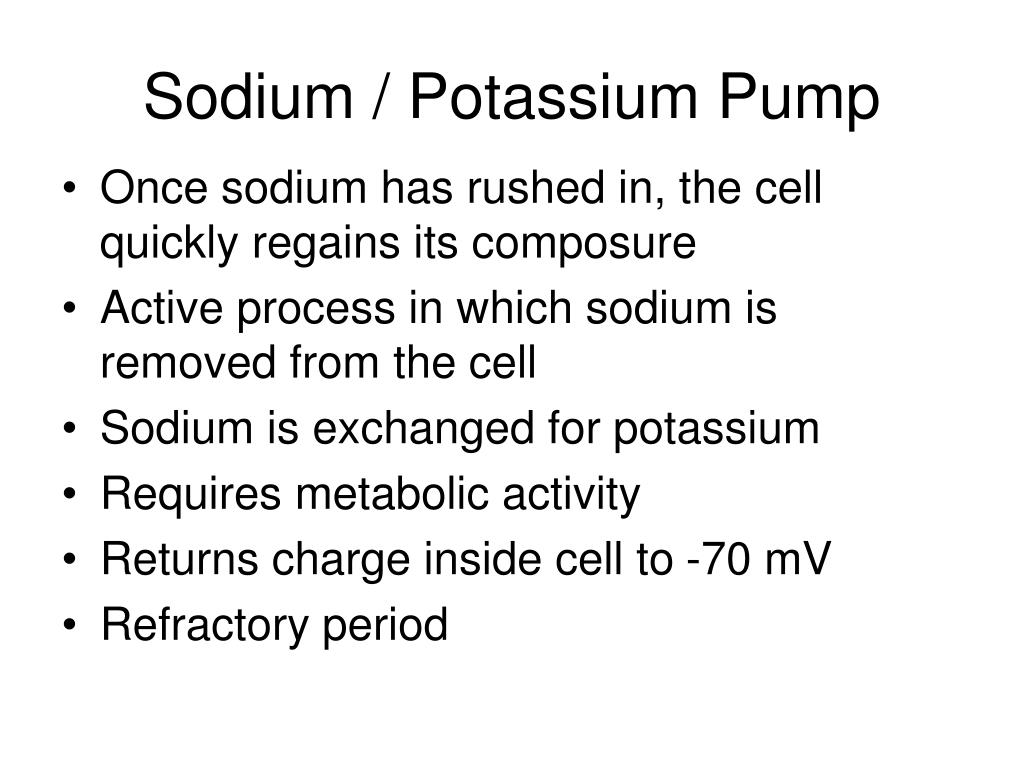

Sodium / Potassium Pump

  • Once sodium has rushed in, the cell quickly regains its composure

  • Active process in which sodium is removed from the cell

  • Sodium is exchanged for potassium

  • Requires metabolic activity

  • Returns charge inside cell to -70 mV

  • Refractory period


Communication between neurons l.jpg

Communication Between Neurons

  • When the action potential reaches the terminal button, it causes a release of chemicals called neurotransmitters

  • These neurotransmitters are dumped into the synapse, the space between the axon of one neuron and the dendrite of another


Slide18 l.jpg

  • Neurotransmitters come into contact with membrane of the other neuron

  • Receptors on the dendrite detect the neurotransmitter

  • NT binds to the receptor

  • This causes a temporary change in the membrane, allowing a little sodium inside the cell

  • This small charge is called the graded potential

  • This is passed on to the axon and it summates


Slide19 l.jpg

When the sum of the potentials reaches the base of the axon, a sufficient charge may be present to cause an action potential.


Slide20 l.jpg

  • Myelin – a layer of proteins that are wrapped around the axon.

  • Two functions: to protect the axon, and to speed up transmission

  • Without myelin, neural transmission is inefficient

  • Multiple Sclerosis – an autoimmune disorder in which the myelin is destroyed.

    • Fatigue, pain, motor disorders, cognitive disorders, etc.


Removal of neurotransmitter l.jpg

Removal of Neurotransmitter

  • After the NT is initially released, the chemical must be removed

  • This is done in a couple of different ways

    • Biochemical breakdown of the NT

    • Reuptake: NT is pulled back into the presynaptic button and packaged to be released again


Types of neurotransmitters l.jpg

Types of Neurotransmitters

  • Excitatory

    • Glutamate

    • Acetylcholine

  • Inhibitory – What does this mean?

    • GABA

    • Norepinephrine

  • Both

    • Dopamine

    • Serotonin


Effects of drugs l.jpg

Effects of Drugs

  • Psychopharmacology- the study of how drugs affect behavior

  • Nearly all drugs work by affecting neurotransmitter release


Effect of prozac l.jpg

Effect of Prozac

Prozac is an example of a SSRI – a selective serotonin reuptake inhibitor


Slide25 l.jpg

  • Alcohol

    • Activates GABA receptors

  • Nicotine

    • Activates acetylcholine receptors

    • Changes overall number of ACH receptors

  • Cocaine

    • Blocks reuptake of dopamine

    • Stimulates release of dopamine

    • Anesthetic effect on cells

  • Amphetamine / Methamphetamine

    • Similar to cocaine with no anesthetic effect


Slide26 l.jpg

  • Crack

    • Exactly like cocaine, just more efficient

  • Heroin

    • Activates opiate receptors

  • Marijuana

    • Activates cannabinoid receptors (similar to opiate)

  • Ecstasy (MDMA)

    • Selectively destroys neurons that release serotonin

    • Serotonin is dumped out when the cell dies


Divisions of the nervous system l.jpg

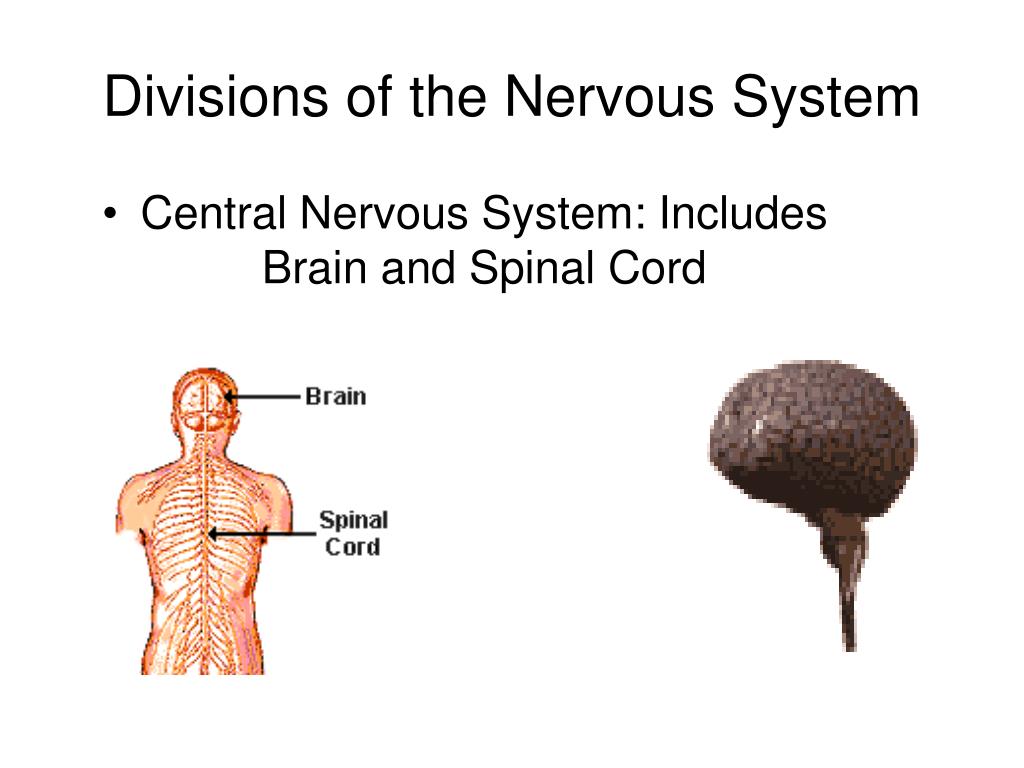

Divisions of the Nervous System

  • Central Nervous System: Includes Brain and Spinal Cord


Slide28 l.jpg

  • Peripheral Nervous System: All other neural tissue. Specifically, the periphery. This includes muscles, the skin, and even the organs

  • PNS broken down into two parts

  • Somatic nervous system: nerve fibers that send sensory information to the central nervous system AND motor nerve fibers that project to skeletal muscle.


Slide29 l.jpg

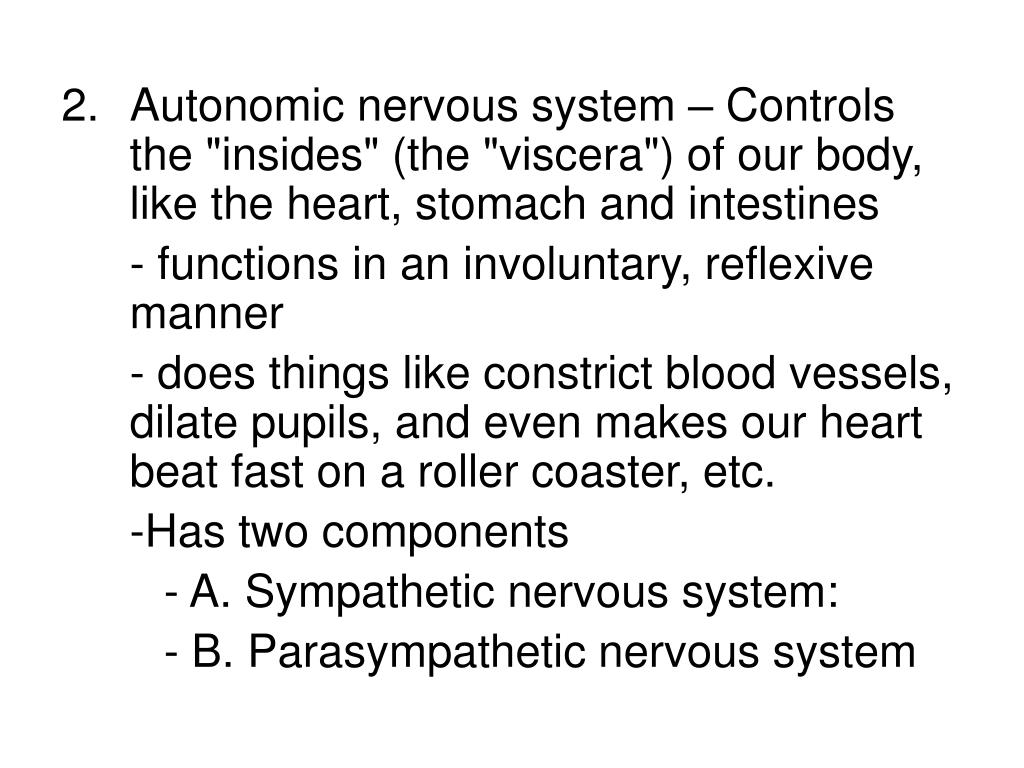

  • Autonomic nervous system – Controls the "insides" (the "viscera") of our body, like the heart, stomach and intestines

    - functions in an involuntary, reflexive manner

    - does things like constrict blood vessels, dilate pupils, and even makes our heart beat fast on a roller coaster, etc.

    -Has two components

    - A. Sympathetic nervous system:

    - B. Parasympathetic nervous system


Slide30 l.jpg

  • Sympathetic NS- Regulates “Fight or Flight”

    • Prepares the body during stressful situations

    • Increases heart beat, blood pressure, speeds breathing, slows digestive function

  • Parasympathetic NS – Regulates "rest and digest"

    • Keeps the body running calmly

    • Shuts down the sympathetic NS when the situation becomes less stressful


Parts of the cns l.jpg

Parts of the CNS

  • Spinal Cord: Two types of material, white matter (Axons) and grey matter (cell bodies)


Slide32 l.jpg

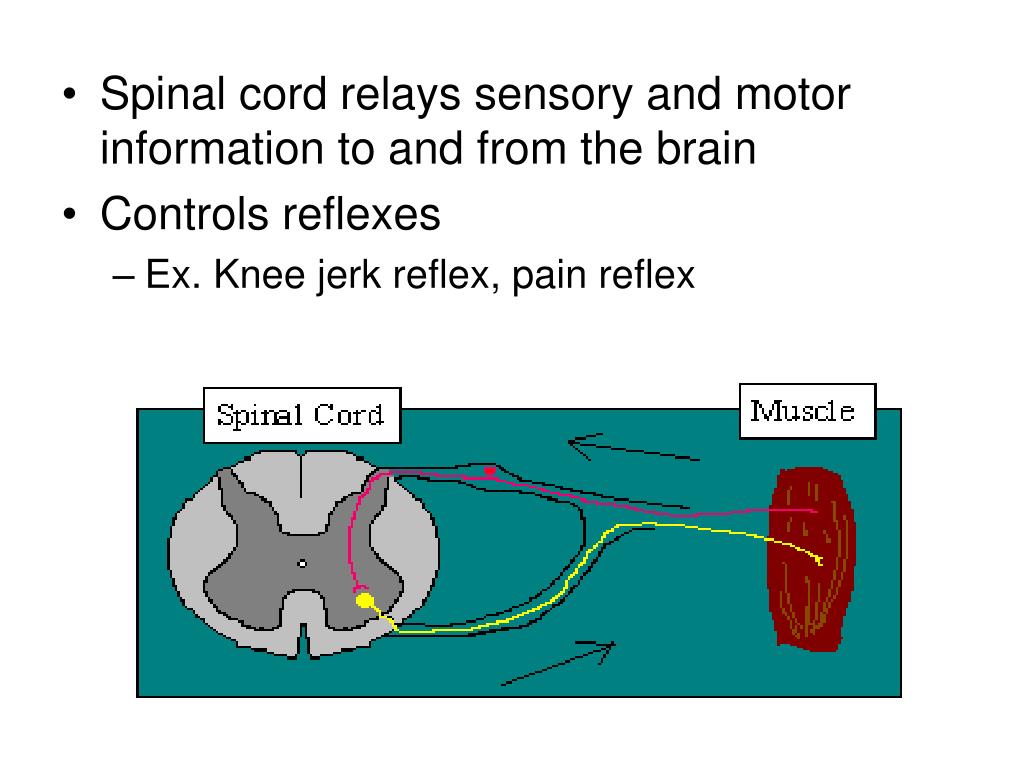

  • Spinal cord relays sensory and motor information to and from the brain

  • Controls reflexes

    • Ex. Knee jerk reflex, pain reflex


Slide33 l.jpg

  • Afferent neurons: neurons that send their signal TOWARDS the spinal cord

  • Efferent neurons: neurons that send their signal AWAY from the spinal cord

  • Reflex involves two neurons, one afferent and one efferent

  • Reflexive action takes place before it is sent to the brain

  • Allows for extremely efficient processing


Parts of the brain l.jpg

Parts of the Brain

  • 3 major divisions

    • Hindbrain: Cerebellum; Pons; Medulla

    • Forebrain: Cortex, amygdala, hippocampus, thalamus, hypothalamus

    • Midbrain


Hindbrain l.jpg

Hindbrain

  • Cerebellum: Extremely large area, millions of neurons

    • Responsible for coordination of movement

    • Plays a role in learning

  • Pons

    • Important for sleep and especially dreaming

  • Medulla

    • Controls all vital functions of the body including breathing and heart rate


Forebrain l.jpg

Forebrain

  • Thalamus

    • Primary relay station of the brain

    • Almost all sensory information passes through before going elsewhere

  • Hypothalamus

    • Regulates autonomic nervous system

    • Regulates hormones, “4 F’s”; Feeding, Fighting, Fleeing, and sexual behavior

  • Amygdala

    • Responsible for many aspects of emotion

    • Emotional learning


Slide37 l.jpg

  • Hippocampus

    • Especially important for learning and memory

    • Resolving conflict

  • Cerebral Cortex

    • Does just about everything

    • Many think that the cortex is what makes humans the way they are

    • Cortex is broken up into 4 lobes:

      • Frontal lobe: the front of the brain

      • Temporal lobe: side, the temples

      • Parietal lobe: kinda middle portion

      • Occipital Lobe: very back


Slide39 l.jpg

  • Frontal lobe

    • Important for planning

    • Thinking / decision making

    • Primary motor cortex: Generation of movement

    • Broca’s area: Production of Speech

  • Temporal lobe

    • Audition

    • Wernicke’s area: Language comprehension


Slide40 l.jpg

  • Parietal lobe

    • Somatosensory function (touch, vibration, pain)

    • Combination of all senses with vision

  • Occipital lobe

    • Vision: Primary visual cortex


Two halves of the brain l.jpg

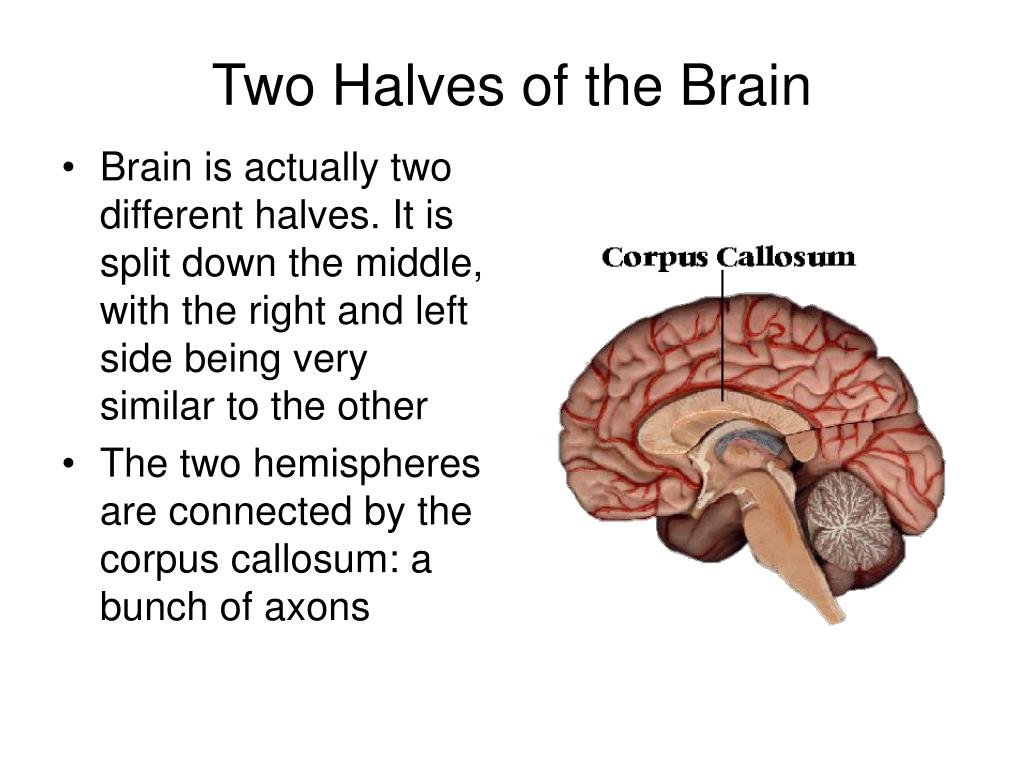

Two Halves of the Brain

  • Brain is actually two different halves. It is split down the middle, with the right and left side being very similar to the other

  • The two hemispheres are connected by the corpus callosum: a bunch of axons


Slide43 l.jpg

  • Each side of the brain controls the opposite side of the body.

    • Ex. Moving right arm controlled by the left side of the brain.

  • Systematic differences in right vs. left.

  • Most language and music on the left.

    • Somewhat different for left-handed people

  • The right hemisphere more involved with visual imagery and creativity.


Split brain patients l.jpg

Split-brain Patients

  • Sometimes the corpus callosum of a person is cut. It is often surgically cut in patients with severe epilepsy.

  • Allows for the study of the role of each hemisphere

  • Experiments have found crazy strange results


Studying the brain with animals l.jpg

Studying the Brain with Animals

  • Many techniques can be used to study the brain of animals

  • Lesioning of the brain

    • Electrical lesions- electricity is passed through an electrode until neurons die

    • Chemical lesions- inject chemicals like acid to kill neurons

  • Injection of drugs


Slide48 l.jpg

  • In Vitro analysis: “In the Lab” – brain tissue is removed, isolated, and studied on its own. Individual neurons can be studied

  • In Vivo analysis: “In the Living” – the brain is studied in an intact animal


Studying the brain of humans l.jpg

Studying the Brain of Humans

  • EEG: electroencephalogram – electrodes are placed on the scalp.

    • It records the electrical activity of neurons.

    • Problem: It records from thousands of neurons at a time; not very precise


Eeg printout l.jpg

EEG printout


Slide51 l.jpg

  • “CAT” scan: Computerized tomography

    • Computer enhanced 3-D X-Rays

    • Not much resolution, still life


Slide52 l.jpg

  • MRI: Magnetic resonance imaging – uses magnetic fields to get brain scans

    • Just get a picture


Slide53 l.jpg

  • PET scan: Positron Emission Tomography

    – patients are injected with radioactive glucose. The scanner tracks where the glucose moves to. This is used as an indicator of neural activity.

    - Has problems: very expensive, resolution is fairly low.


Slide56 l.jpg

  • Functional MRI (fMRI) – Registers changes in the metabolism of cells

    • Get 3-D picture of real time brain activity

    • Very expensive
