Presentation Transcript
Slope and aspect l.jpg
Slope and Aspect

  • Calculated from a grid of elevations (a digital elevation model)

  • Slope and aspect are calculated at each point in the grid, by comparing the point’s elevation to that of its neighbors

    • usually its eight neighbors

    • but the exact method varies

    • in a scientific study, it is important to know exactly what method is used when calculating slope, and exactly how slope is defined


Slope definitions l.jpg
Slope Definitions

  • Slope defined as an angle

  • … or rise over horizontal run

  • … or rise over actual run

  • various methods

    • important to know how your favorite GIS calculates slope



Slope and aspect4 l.jpg

1

2

3

4

5

6

7

8

9

Slope and Aspect

  • measured from an elevation or bathymetry raster

    • compare elevations of points in a 3x3 neighborhood

    • slope and aspect at one point estimated from elevations of it and surrounding 8 points

  • number points row by row, from top left from 1 to 9


Typical slope calculation l.jpg

1

2

3

4

5

6

7

8

9

Typical Slope Calculation

  • tan (slope) = sqrt (b2 + c2)

  • b = (z3 + 2z6 + z9 - z1 - 2z4 - z7) / 8D

  • c = (z1 + 2z2 + z3 - z7 - 2z8 - z9) / 8D

    • b denotes slope in the x direction

    • c denotes slope in the y direction

    • D is the spacing of points (30 m)

  • find the slope that fits best to the 9 elevations

  • minimizes the total of squared differences between point elevation and the fitted slope

  • weighting four closer neighbors higher


Aspect l.jpg

1

2

3

4

5

6

7

8

9

Aspect

  • tan (aspect) = b/c

  • Angle between vertical and direction of steepest slope

  • Measured clockwise

  • add 180 to aspect if c is positive, 360 to aspect if c is negative and b is positive


Spatial analysis transformations l.jpg

Spatial Analysis: “Transformations”

Longley et al., chs. 13 and 14


Transformations l.jpg
Transformations

  • Create new objects and attributes, based on simple rules

    • involving geometric construction or calculation

    • may also create new fields, from existing fields or from discrete objects


Transformations new data l.jpg
“ Transformations” - New Data

  • new objects and data sets from existing objects anddata sets

  • BUFFERING

  • POINT IN POLYGON

  • POLYGON OVERLAY

  • SPATIAL INTERPOLATION

  • DENSITY ESTIMATION


Buffering l.jpg
Buffering

  • buffering takes points, lines, or areas and creates areas

  • every location within the resulting area is either:

    • in/on the original object

    • within the defined buffer

      width of the original object


Applications l.jpg
Applications

  • find all areas of Siuslaw National Forest beyond 1 mile from a road

  • find all households within 1 mile of a proposed new freeway

    • and send them notification of proposal

  • find all liquor stores within 1 mile of a school

    • and notify them of a proposed change in the law


Variants l.jpg
Variants

  • vary the object's buffer width according to an attribute value

    • e.g. noise buffers depending on road traffic volume

  • vary the rate of spread according to a friction field

  • Thiessen polygons

    for point objects


Point in polygon l.jpg
Point-in-Polygon

  • Determine whether a given point lies inside or outside a given polygon

    • assign a set of points to a set of polygons

    • e.g., count numbers of accidents in counties

    • e.g., whose property does this phone pole lie in?

  • Algorithm

    • draw a line from the point to infinity

    • count intersections with the polygon boundary

    • inside if the count is odd

    • outside if the count is even


Point in poly algorithm l.jpg
Point-in-Poly Algorithm

  • inside if the count is odd

  • outside if the count is even

  • what if the point lies on the boundary?


Polygon overlay l.jpg
Polygon Overlay

  • Create polygons by overlaying existing polygons

  • how many polygons are created when two polygons are overlaid?

  • Discrete object

  • find overlaps between

    two polygons

  • creates a collection

    of polygons


Overlay issues l.jpg
Overlay Issues

  • in raster the values in each cell are combined -- binary, rating models??

  • major computing workload

    • Indexing

  • swamped by slivers

    • tolerance


Spatial interpolation gis l.jpg
Spatial Interpolation & GIS

  • to calculate some property of a surface at a given point

  • model all the REAL intricacies of a surface

  • to provide contours

  • highlight general spatial trend of data for decision-making


What s a wildlife manager to do l.jpg
What’s A Wildlife Manager to Do?

  • 23 animals assumed everywhere?

  • pitfalls of applying classical statistics to spatial data

  • give “spatial” characterization to the mean (23)

  • let’s interpolate!


Spatial interpolation l.jpg

X

X

Spatial Interpolation

  • need to estimate values at locations where there are no explicit data

  • estimates must be determined from surrounding values

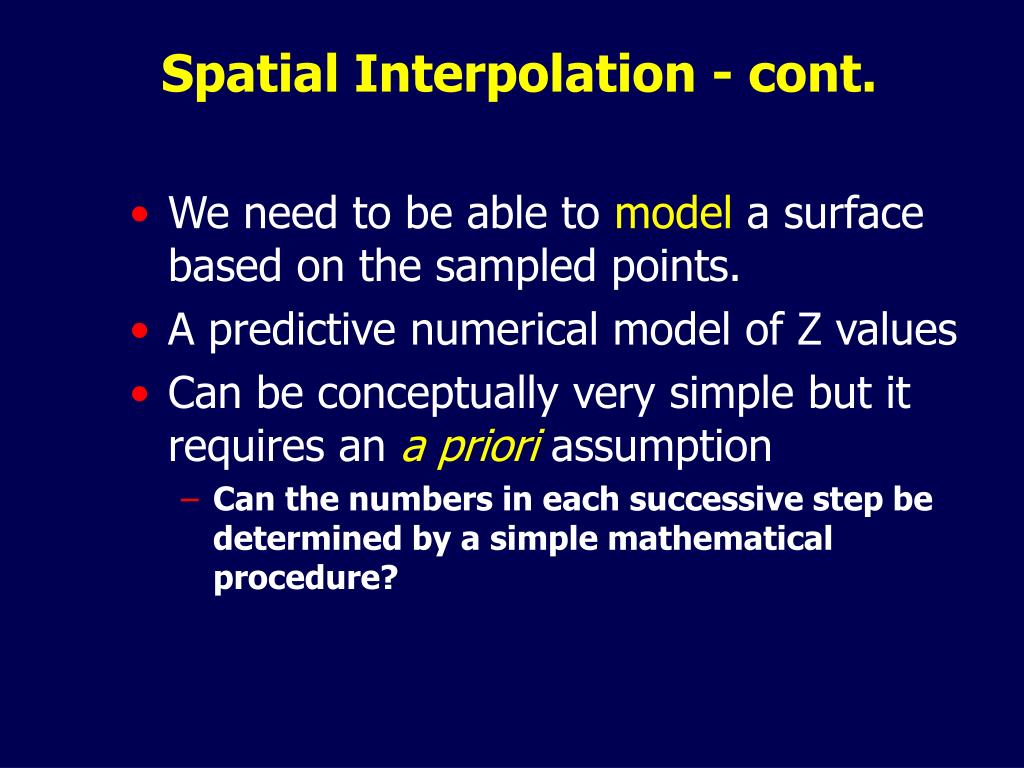

Spatial interpolation cont l.jpg
Spatial Interpolation - cont.

  • We need to be able to modela surface based on the sampled points.

  • A predictive numerical model of Z values

  • Can be conceptually very simple but it requires an a prioriassumption

    • Can the numbers in each successive step be determined by a simple mathematical procedure?


Linear interpolation l.jpg
Linear interpolation

  • a prioriassumption

  • Assigning values between known points

  • Create an isarithmic (contour map)



Nonlinear interpolation l.jpg
Nonlinear Interpolation

  • When things aren't so simple

  • Can’t assume linearity of features

  • Basic types:1. Trend surface analysis

    2. Minimum Curvature Spline

    3. Inverse Distance Weighted 4. Kriging
