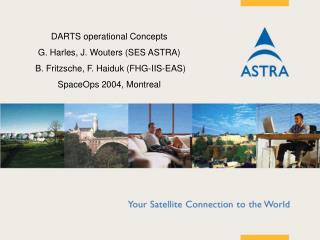

Slide1 l.jpg

DARTS operational Concepts

G. Harles, J. Wouters (SES ASTRA)

B. Fritzsche, F. Haiduk (FHG-IIS-EAS)

SpaceOps 2004, Montreal

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Overview l.jpg

1A

1E

1D

1F

1G

1C

1H

1B

Overview

  • DARTS ranging – how does it work

  • Operational Ranging Configurations

    • Single Station Ranging

    • Multi Station Ranging

    • Multi Station Pseudo Ranging

  • Multi station Pseudo ranging

    • Configurations, Context, Results

    • Residuals

  • Conclusion

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Darts ranging how does it work 1 4 l.jpg

DARTS ranging – how does it work (1/4)

  • DARTS = Digital Advanced Ranging using Transport Stream packets

    • Inserts ranging packets into DVB-S payload

    • Measures packet arrival time in uplink and downlink

    • Is highly accurate and reliable

    • Allows flexible configurations

  • DARTS can be used for

    • On-station satellite ranging

    • Timing and synchronization applications

  • Specific Features

    • No impact on satellite operations

    • Continuous and accurate measurement data

    • Always on system, fully automated

    • ASTRA Patent

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Darts ranging how does it work 2 4 l.jpg

DARTS ranging – how does it work (2/4)

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Darts ranging how does it work 3 4 l.jpg

DARTS ranging – how does it work (3/4)

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Darts ranging how does it work 4 4 l.jpg

DARTS ranging – how does it work (4/4)

  • Compact Device

  • User friendly installationand operation

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Operational configurations 1 3 l.jpg

Operational Configurations (1/3)

The SINGLE station tracking system

  • Distance and Azimuth / Elevation angle measurements are done from one single location.

  • Distancemeasurements can be done by

    • TONE Range system

    • Spread Spectrum Range system

    • DARTS Range system

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Operational configurations 2 3 l.jpg

Operational Configurations (2/3)

The MULTI Station tracking system

  • Most accurate system

  • Three or more range measurements from different locations

    • no angular measurements

    • accuracy depending on spatial separation and distance measurement

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Operational configurations 3 3 l.jpg

Operational Configurations (3/3)

The PSEUDO Range Station tracking system

  • Two or more range measurements, only one uplink and two or more downlinks

  • Accuracy depending on the spatial separation, distance measurement and synchronization

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 1 6 l.jpg

Performance Evaluation (1/6)

  • Pseudo Range Configuration:

    • BETZDORF-SEVILLA

    • BETZDORF -BERGEN

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 1 611 l.jpg

Performance Evaluation (1/6)

  • Pseudo Range Configuration:

    • BETZDORF-SEVILLA

    • BETZDORF -BERGEN

Compared to:

  • Multi Station Measurements: BETZDORF-SEVILLA-BERGEN

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 1 612 l.jpg

Performance Evaluation (1/6)

  • Pseudo Range Configuration:

    • BETZDORF-SEVILLA

    • BETZDORF -BERGEN

Compared to:

  • Multi Station Measurements: BETZDORF-SEVILLA-BERGEN

  • Mono Station Measurements: TONE Range & AZEL Mono-pulse, BETZDORF

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 2 6 l.jpg

Performance Evaluation (2/6)

Method:

  • Orbit determinations using tracking data of 2 full days

  • The orbit determination results have been compared to a best known reference orbit using:

    • A full 4 STATION Trilateration system

      • Betzdorf

      • Fucino

      • Bergen

      • Sevilla

  • The maximum resulting errors in NORMAL, RADIAL and TANGENTIAL direction are determined over 7 days

    Assumption:

  • All systems calibrated

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 3 6 l.jpg

Performance Evaluation (3/6)

Results:

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 4 6 l.jpg

Performance Evaluation (4/6)

TONE range and AZIMUTH / ELEVATION Residuals

Range residual between +5m and –5m

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 5 6 l.jpg

Performance Evaluation(5/6)

Spread Spectrum and DARTS Range Residuals

Range residual between +0.5m and –0.5m

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Performance evaluation 6 6 l.jpg

Performance Evaluation(6/6)

PSEUDO range Residuals

  • BTZ12/PSE#1 :Betzdorf -> Sevilla

  • SA#12/PSE#2 :Betzdorf -> Bergen

    Range residual between +8m and –8m

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Conclusions l.jpg

Conclusions

  • DARTS profits from ASTRA’s heritage of experience for precise, payload based, satellite ranging systems

    • Device accuracy:down to 5 cm

    • Single Station: cost-efficient - simple operation

    • Multi-station: replaces mono-pulse tracking antenna,

      3x better performance, 1:5 cost reduction, quick setup

  • Ranging and orbit determination solutions can be tailored to any operator’s needs

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Slide19 l.jpg

Contact:

Guy Harles

Tel.: +352 710725 574

guy.harles@ses-astra.com

Info.techcom@ses-astra.com

www. ses-astra.com

Thank You!

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Backup slides pseudo concept l.jpg

Backup Slides: Pseudo concept

Issues:

Synchronisation

clockA-clockB

 Cross device calibration

(ulA)+(dlB)

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004


Backup slides handling of delays l.jpg

Backup Slides: Handling of Delays

DARTS Operational Concepts SpaceOps 2004 May 18th, 2004
