Presentation Transcript
Mobile handsets a panoramic overview l.jpg

Mobile Handsets: A Panoramic Overview

Dong Xuan

Associate Professor

CSE Dept., The Ohio State University


Outline l.jpg
Outline

  • Introduction

  • Handset Architecture

  • Handset Operating Systems

  • Networking

  • Applications

  • Security Risks and Mitigation Strategies


What is a mobile handset l.jpg
What Is A Mobile Handset?

  • A mobile handset (handset) is an electronic device that provides services to users, e.g.:

    • Managing address book

    • Scheduling calendar

    • Cellular telephony

    • Accessing Internet, email

  • Handsets include smartphones and PDAs

Example handsets:

Apple iPhone, BlackBerry Storm, Palm TreoPro


Handsets your next computer l.jpg
Handsets: Your Next Computer?

  • Handsets’ small form factor, mobility have yielded meteoric sales [1]

    • 3.3 billion mobile phone subscriptions as of Jan. 2008

    • 2.7 billion subscriptions correspond to one person; some people have multiple phones!

  • Rapid replacement rate: young adults replace phones every 6 months in South Korea [1]

  • These statistics are just for phones

  • Your handset: your next computer? [2]



Handset architecture 1 l.jpg

Handsets use several hardware components:

Microprocessor

ROM

RAM

Digital signal processor

Radio module

Microphone and speaker

Hardware interfaces

LCD display

Handset Architecture (1)


Handset architecture 2 l.jpg
Handset Architecture (2)

  • Handsets store system data in electronically-erasable programmable read-only memory (EEPROM)

    • Service providers can reprogram phones without requiring physical access to memory chips

  • OS is stored in ROM (nonvolatile memory)

  • Most handsets also include subscriber identity module (SIM) cards


Handset microprocessors l.jpg
Handset Microprocessors

  • Handsets use embedded processors

    • Intel, ARM architectures dominate market. Examples include:

      • BlackBerry 8700, uses Intel PXA901 chip [4]

      • iPhone, uses Samsung ARM 1100 chip [5]

    • Low power use and code size are crucial [3]

    • Microprocessor vendors often package all the chip’s functionality in a single chip (package-on-package) for maximum flexibility


Example the iphone s cpu l.jpg
Example: The iPhone’s CPU

  • The iPhone: a real-world mobile handset [6–7]

    • Runs on Samsung S3C6400 chip, supports ARMv6 architecture

    • Very few details are known about the “ARM Core”, esp. given Apple’s secrecy

    • Highly modular architecture

  • Similar to Apple’s iPod Touch, which lacks telephony capability [8]

Source: [6]


Sim cards l.jpg
SIM Cards

  • They include their own microprocessor and 16 KB – 4 MB EEPROM

  • They come in two sizes

  • Their versatility arises from portability of information

    • SIM card identifies subscriber to network

    • Stores personal information, address books, messages, service-related information


Other memory cards l.jpg
Other Memory Cards

  • Some handsets include other peripheral memory cards:

    • Compact Flash

    • Multimedia Card

    • Secure Digital

  • Handsets synchronize with a computer

  • Nowadays, computers include slots of various sizes to hold these memory cards


Handset operating systems l.jpg

Currently, handsets run several OSes:

Symbian OS

iPhone OS (an embedded version of OS X)

Windows Mobile

BlackBerry OS

Google Android Platform (based on Linux)

With the exceptions of Symbian and Android, these OSes are proprietary [9–10]

Telecom carriers frequently “lock down” handset firmware, OSes to prevent user modifications

Handset Operating Systems


Handset os usage l.jpg
Handset OS Usage

  • According to British analysis firm Canalys, handset OS usage in 3Q 2008 had the following ranking (most to least): [11]

    • Symbian OS

    • iPhone OS

    • BlackBerry OS

    • Windows Mobile

    • Linux (Android, etc.)

    • Others

  • iPhone OS surged ahead of BlackBerry OS, but with new BlackBerries and Android phones, this ranking may easily change in the future [11]

  • We’ll now examine each OS individually

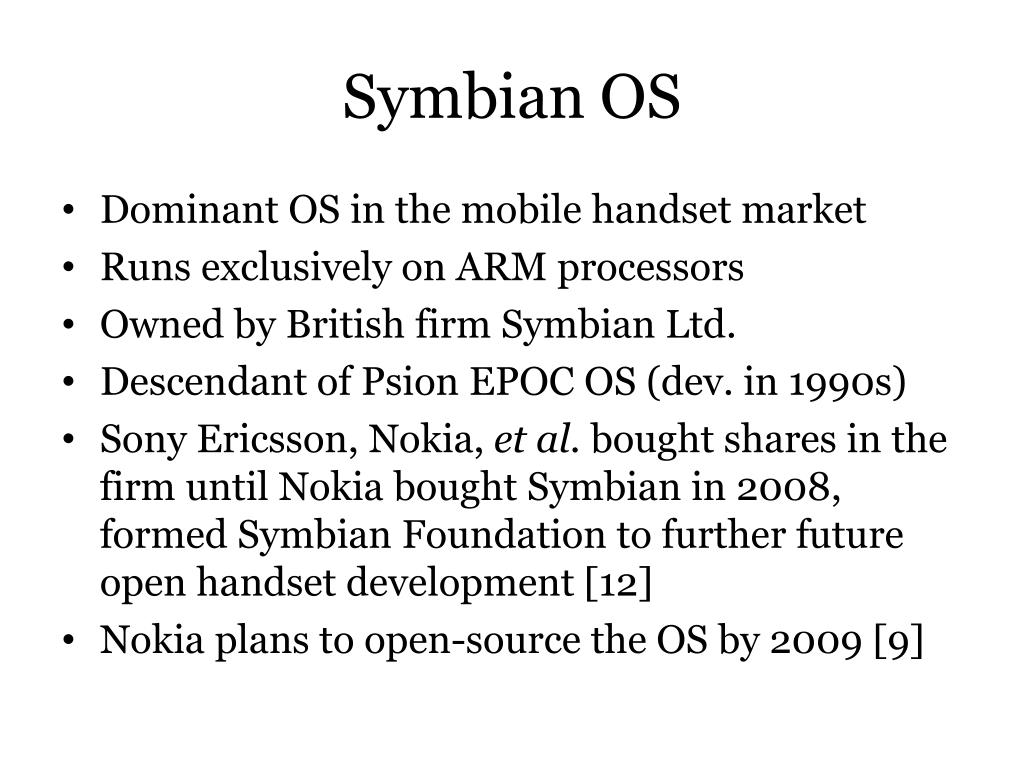

Symbian os l.jpg
Symbian OS

  • Dominant OS in the mobile handset market

  • Runs exclusively on ARM processors

  • Owned by British firm Symbian Ltd.

  • Descendant of Psion EPOC OS (dev. in 1990s)

  • Sony Ericsson, Nokia, et al. bought shares in the firm until Nokia bought Symbian in 2008, formed Symbian Foundation to further future open handset development [12]

  • Nokia plans to open-source the OS by 2009 [9]


Design of symbian os l.jpg
Design of Symbian OS

  • Based on Psion EPOC; desktop OS features include: [13]

    • “Bare-bones” microkernel (nanokernel)

    • Pre-emptive multitasking

    • Memory protection

  • Handset-centric design, can operate several months without reboot

  • Supports multiple UIs based on smartphone form factor (e.g., 320 × 240)


Symbian os devices l.jpg
Symbian OS Devices

  • Numerous handsets use Symbian OS; UIs largely based on manufacturer & device

    • Nokia S60: includes J2ME, std. UI (mostly Nokia phones)

    • Nokia S80: QWERTY keyboard, Web browser, enterprise office-doc. support (older Nokia Communicators)

    • Nokia S90: used only on Nokia 7710

    • UIQ: Sony Ericsson/Motorola GUI platform used primarily on those companies’ handsets

    • FOMA platform: closed-dev. software platform used by handsets on NTT DoCoMo’s network (Japan)


Symbian os v9 architecture l.jpg
Symbian OS v9 Architecture

Source: [15] (heavily modified)


Symbian os development l.jpg
Symbian OS Development

  • Native language is C++

    • Nokia provides free Eclipse-based Carbide.c++ development tools, Carbide.vs Visual Studio plugin

    • Mac & Linux development is possible

  • Can program in many other languages: C, Java, Ruby, Python, Perl, OPL, Visual Basic, Simkin

  • Applications needing any capabilities beyond bare minimum must be cryptographically signed (see http://www.symbiansigned.com)

  • Can also program in Adobe Flash Lite (mobile version of Flash)


Iphone os l.jpg
iPhone OS

  • Runs on both the iPhone and iPod Touch

  • Variation of Mach microkernel-based OS X that fits in 512 MB flash memory, runs on ARM architecture [21]

  • Four abstraction layers: Core OS, Core Services, Media, Cocoa Touch [22]

  • Core Animation and PowerVR MBX 3D hardware provide interface animations

  • 320 × 480 LCD display that supports multi-touch gestures


Iphone developer program l.jpg
iPhone Developer Program

  • iPhone Developer Program provides dev. tools, iPhone emulator, means to upload to App Store (SDK)

  • To download SDK, you must apply to be a member, pay fees

    • Standard Developer: $99

    • Enterprise Developer: $299

    • Exception: Apple’s free iPhone Developer University Program for higher-ed. institutions [23]

  • SDK only runs on Mac OS X Leopard on Intel-based Macs (go figure)

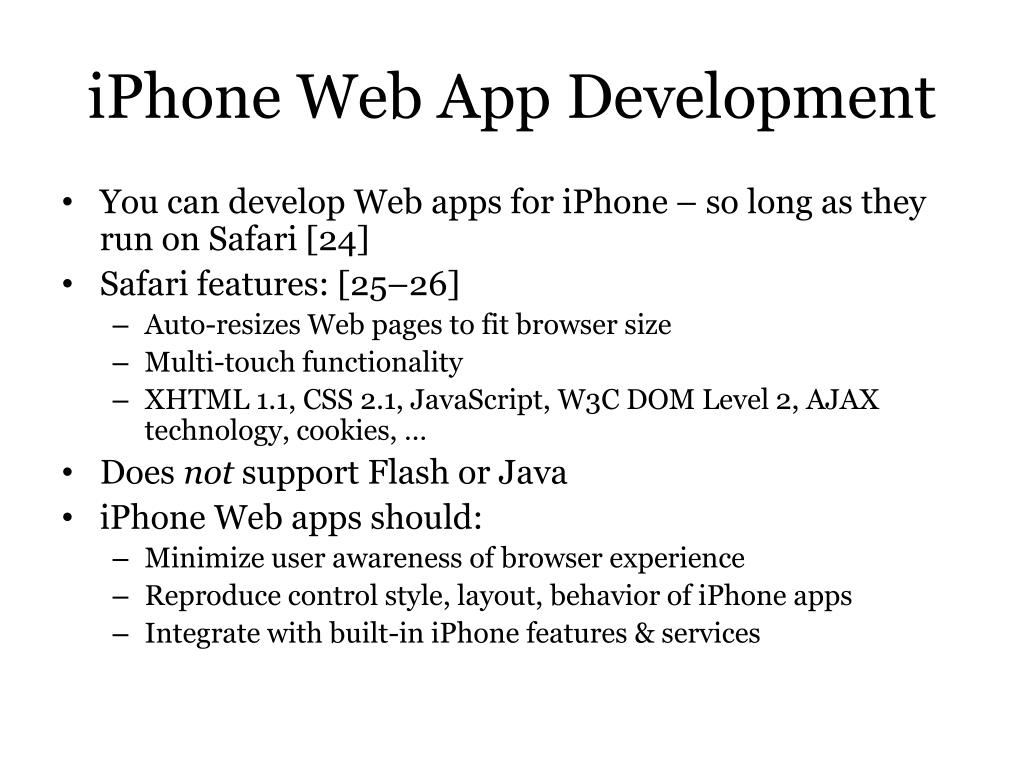

Iphone web app development l.jpg
iPhone Web App Development

  • You can develop Web apps for iPhone – so long as they run on Safari [24]

  • Safari features: [25–26]

    • Auto-resizes Web pages to fit browser size

    • Multi-touch functionality

    • XHTML 1.1, CSS 2.1, JavaScript, W3C DOM Level 2, AJAX technology, cookies, …

  • Does not support Flash or Java

  • iPhone Web apps should:

    • Minimize user awareness of browser experience

    • Reproduce control style, layout, behavior of iPhone apps

    • Integrate with built-in iPhone features & services


Blackberry os l.jpg
BlackBerry OS

  • BlackBerry OS is Research in Motion’s (RIM’s) proprietary OS for its BlackBerry handsets

  • Provides multitasking, heavily uses BlackBerry input devices, e.g., thumbwheel

  • Current OS 4 provides a subset of Java’s Mobile Information Device Profile (MIDP) 2.0

  • Developers can use these APIs, proprietary APIs to write software

  • All applications must be digitally signed so to “link” an app with the developer


Blackberry software l.jpg
BlackBerry Software

  • Email from BlackBerry service, MS Exchange, Domino, Yahoo, etc. can be “pushed” to the handset

  • Can view PDF, MS Word, Excel, PowerPoint attachments

  • BlackBerry Browser (only supports JavaScript)

  • Other online apps include:

    • BlackBerry Maps

    • Facebook services

    • Yahoo Messenger, Google Talk

  • Calendar, Address Book, and PIM Sync via USB

  • GPS

  • See http://www.blackberry.com for much more information about handset and desktop software


Blackberry wireless platform l.jpg
BlackBerry Wireless Platform

  • RIM provides standards-based platform and developer tools to develop and deploy custom wireless applications

    • HTML Web browser

    • Java Mobile Edition development tools

    • .NET applications

  • BlackBerry handsets support standard networking protocols and connect to any type of server application


Blackberry mobile data system l.jpg
BlackBerry Mobile Data System

  • BlackBerry Mobile Data System (MDS) supports MS Exchange, Lotus Domino, Novell GroupWire, and RIM’s own MDS systems for messaging applications


Blackberry mobile voice system l.jpg
BlackBerry Mobile Voice System

  • With this service, there’s only one business number BlackBerry users must remember

  • Calls are routed to a BlackBerry handset, regardless of whether the call is directed to an office or mobile phone [27]

  • Provides security and authentication through BlackBerry Enterprise Servers [28]

  • IT administrators can lock down handsets, route calls through their telecom infrastructure, etc. [27–28]


Blackberry internet services l.jpg
BlackBerry Internet Services

  • BlackBerry Internet Service leverages centrally-hosted wireless gateways, allowing users to access up to 10 supported email accounts, browse Internet

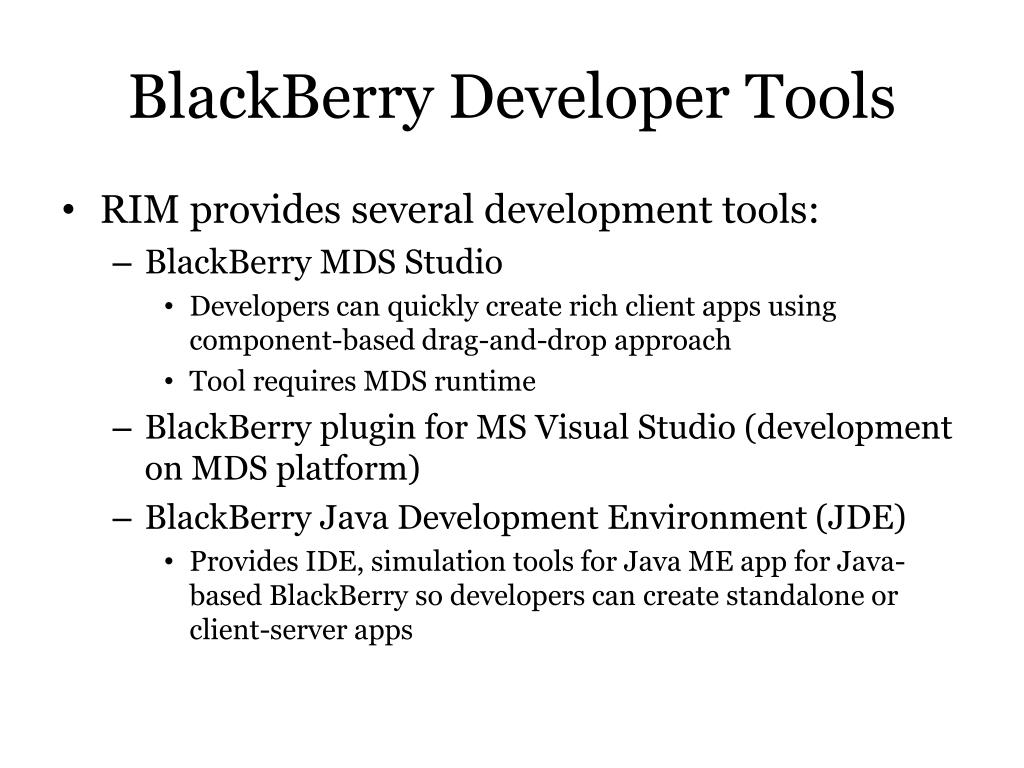

Blackberry developer tools l.jpg
BlackBerry Developer Tools

  • RIM provides several development tools:

    • BlackBerry MDS Studio

      • Developers can quickly create rich client apps using component-based drag-and-drop approach

      • Tool requires MDS runtime

    • BlackBerry plugin for MS Visual Studio (development on MDS platform)

    • BlackBerry Java Development Environment (JDE)

      • Provides IDE, simulation tools for Java ME app for Java-based BlackBerry so developers can create standalone or client-server apps


Windows mobile l.jpg
Windows Mobile

  • Windows Mobile is powered by Microsoft’s Windows CE embedded OS; Windows CE runs on x86, MIPS, ARM, Hitachi SuperH processors

  • Latest version, 6.1, includes Windows Live services, Exchange 2007 mail access

  • Designed to closely mimic desktop Windows:

    • Windows Mobile 6.1 includes mobile versions of Office applications, Outlook (w/HTML email), Internet Explorer, Windows Media Player

    • SQL Server 2005 included in ROM

    • .NET Compact Framework 2.0 included


Windows mobile development 1 l.jpg
Windows Mobile Development (1)

  • Native code is developed with MS Visual C++

  • Microsoft strongly recommends development with managed code [19]

    • Managed code is written in one of the .NET framework object-oriented languages

    • Compiled to MS Intermediate Language (MSIL) that all the languages share

    • At execution time, MSIL is compiled “just in time” to native object code

  • Contrast with Java:

    • Java code is compiled to Java bytecode

    • Java interpreter interprets bytecode, dynamically compiles frequently-accessed bytecode into native object code (HotSpot)

.NET Framework in Context. Source: [19]

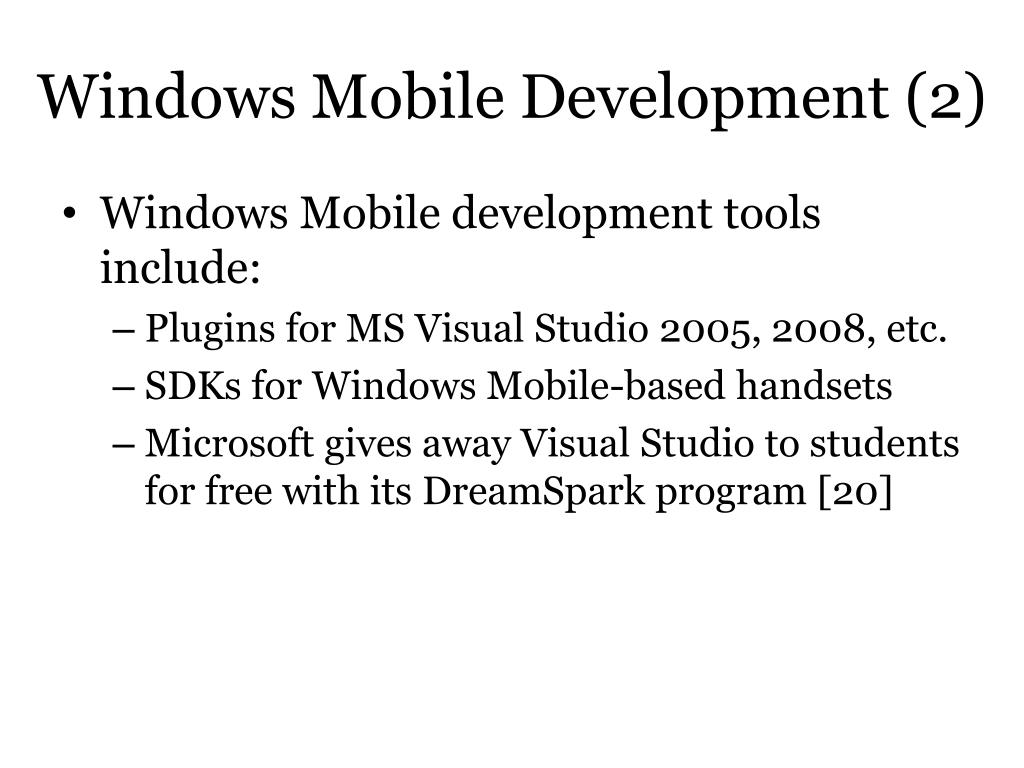

Windows mobile development 2 l.jpg
Windows Mobile Development (2)

  • Windows Mobile development tools include:

    • Plugins for MS Visual Studio 2005, 2008, etc.

    • SDKs for Windows Mobile-based handsets

    • Microsoft gives away Visual Studio to students for free with its DreamSpark program [20]


Android mobile handset platform l.jpg
Android Mobile Handset Platform

  • Android is a software development platform for mobile handsets that is based on Linux

  • Developed by Google and Open Handset Alliance (OHA) for different handset manufacturers

    • The Alliance includes T-Mobile, Sprint Nextel, Google, Intel, Samsung, Wind River Systems, et al. [29]

    • Its purpose is to build a fully free and open mobile handset platform to facilitate development of handsets, software, services [30]

  • First Android-based handset is T-Mobile G1 [31]

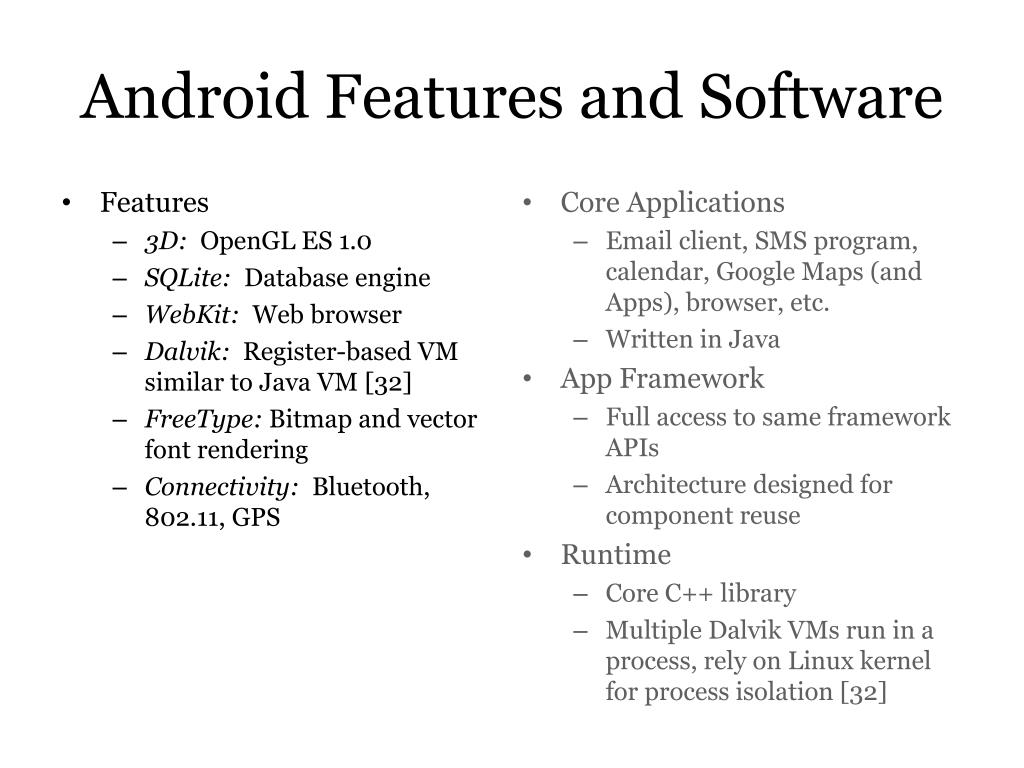

Android features and software l.jpg
Android Features and Software

  • Features

    • 3D: OpenGL ES 1.0

    • SQLite: Database engine

    • WebKit: Web browser

    • Dalvik: Register-based VM similar to Java VM [32]

    • FreeType: Bitmap and vector font rendering

    • Connectivity: Bluetooth, 802.11, GPS

  • Core Applications

    • Email client, SMS program, calendar, Google Maps (and Apps), browser, etc.

    • Written in Java

  • App Framework

    • Full access to same framework APIs

    • Architecture designed for component reuse

  • Runtime

    • Core C++ library

    • Multiple Dalvik VMs run in a process, rely on Linux kernel for process isolation [32]


Android sdk l.jpg
Android SDK

  • Android SDK provides required tools and APIs to develop apps on Android platform using Java

    • Android is licensed under the Apache open-source license

    • The Android Development Tools (ADT) Eclipse plugin eases development

    • Download the Android SDK at http://code.google.com/android/ and the Eclipse plugin at https://dl-ssl.google.com/android/eclipse


Palm os l.jpg
Palm OS

  • Palm OS originally designed by Palm Computing Inc. for Palm handsets, sold to Japanese firm ACCESS [16]

  • From Jan. 2004 – Jun. 2005, there has been no development on Palm OS past v6.1 [16]

  • ACCESS and Palm are working on new versions of the OS that are Linux-based [16]

    • ACCESS’ version is called the ACCESS Linux Platform

    • Palm’s version will be called Palm OS; should be available Q1 2009


Handset networking l.jpg

Handsets communicate with each other and with service providers via many networking technologies

There are two “classes” of these technologies:

Cellular telephony

Wireless networking

Most handsets support both, some also support physical connections such as USB

Handset Networking

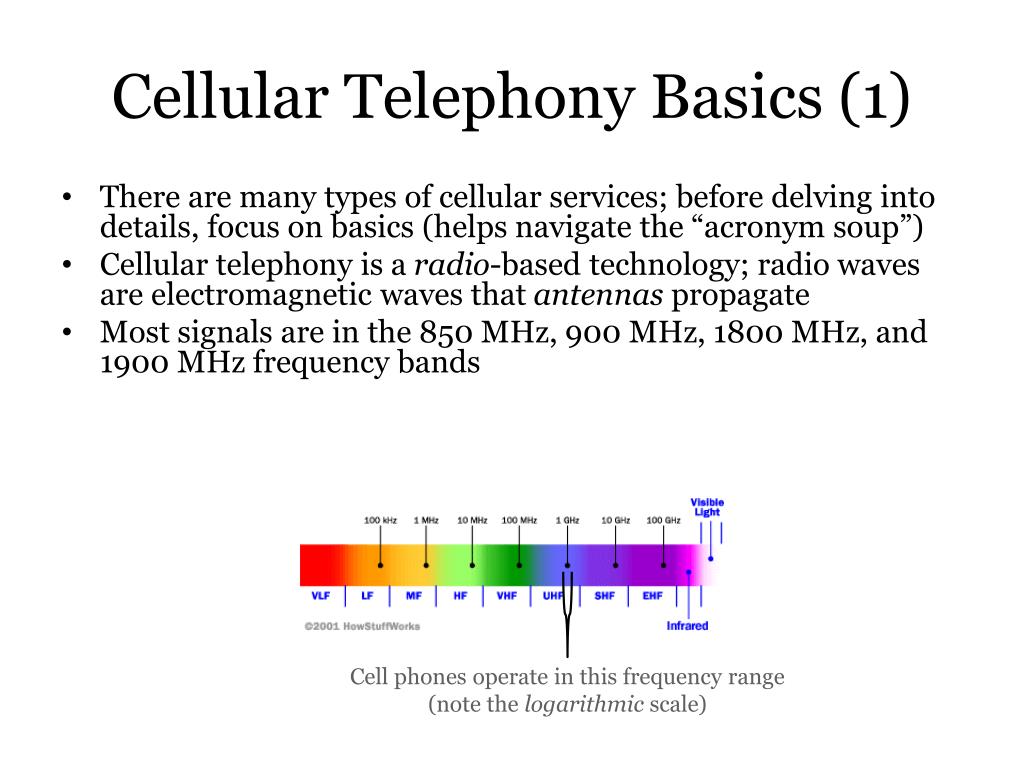

Cellular telephony basics 1 l.jpg
Cellular Telephony Basics (1) providers via many networking technologies

  • There are many types of cellular services; before delving into details, focus on basics (helps navigate the “acronym soup”)

  • Cellular telephony is a radio-based technology; radio waves are electromagnetic waves that antennas propagate

  • Most signals are in the 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz frequency bands

Cell phones operate in this frequency range (note the logarithmic scale)


Cellular telephony basics 2 l.jpg
Cellular Telephony Basics (2) providers via many networking technologies

  • Digital signal processors (DSPs) are key to radio reception in handsets

  • They transform signals from one form to another, e.g.:

    • Fourier transforms

    • Discrete cosine transform

Source: [3]

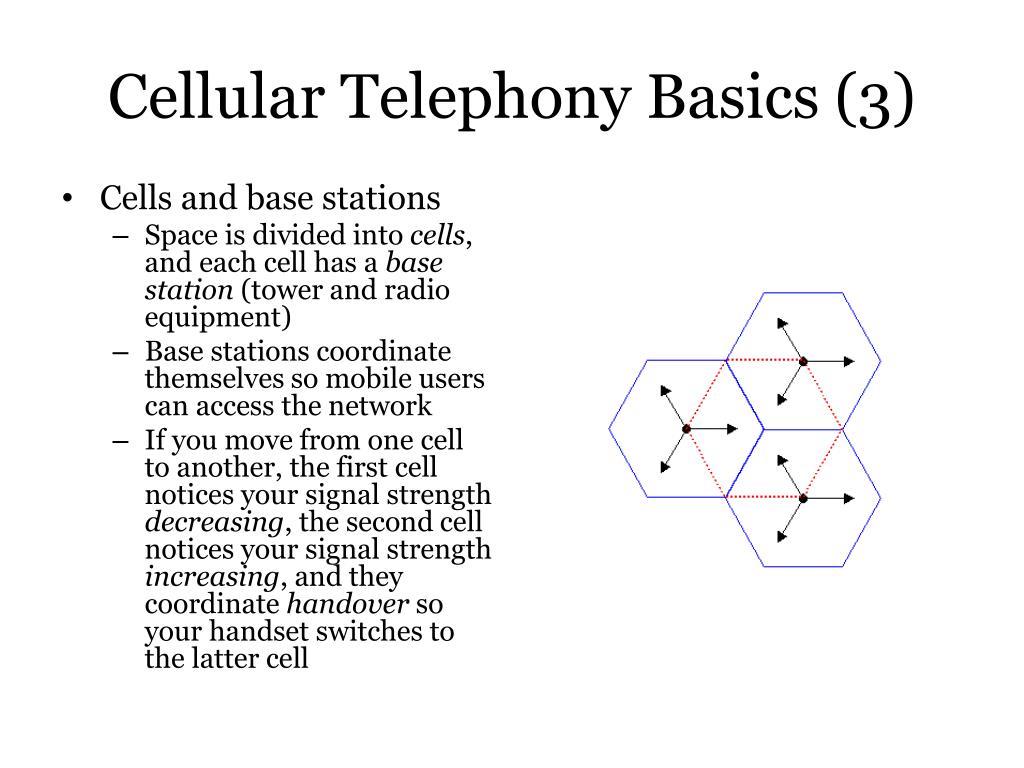

Cellular telephony basics 3 l.jpg
Cellular Telephony Basics (3) providers via many networking technologies

  • Cells and base stations

    • Space is divided into cells, and each cell has a base station (tower and radio equipment)

    • Base stations coordinate themselves so mobile users can access the network

    • If you move from one cell to another, the first cell notices your signal strength decreasing, the second cell notices your signal strength increasing, and they coordinate handover so your handset switches to the latter cell


Cellular telephony basics 4 l.jpg
Cellular Telephony Basics (4) providers via many networking technologies

  • Statistical multiplexing

    • Time Division Multiple Access (TDMA)

      • A 30 kHz-wide and 6.7 ms-long band is split into 3 time slots

      • Each conversation gets the radio 1/3 of the time; voice data is converted to digital information and compressed to use less transmission space

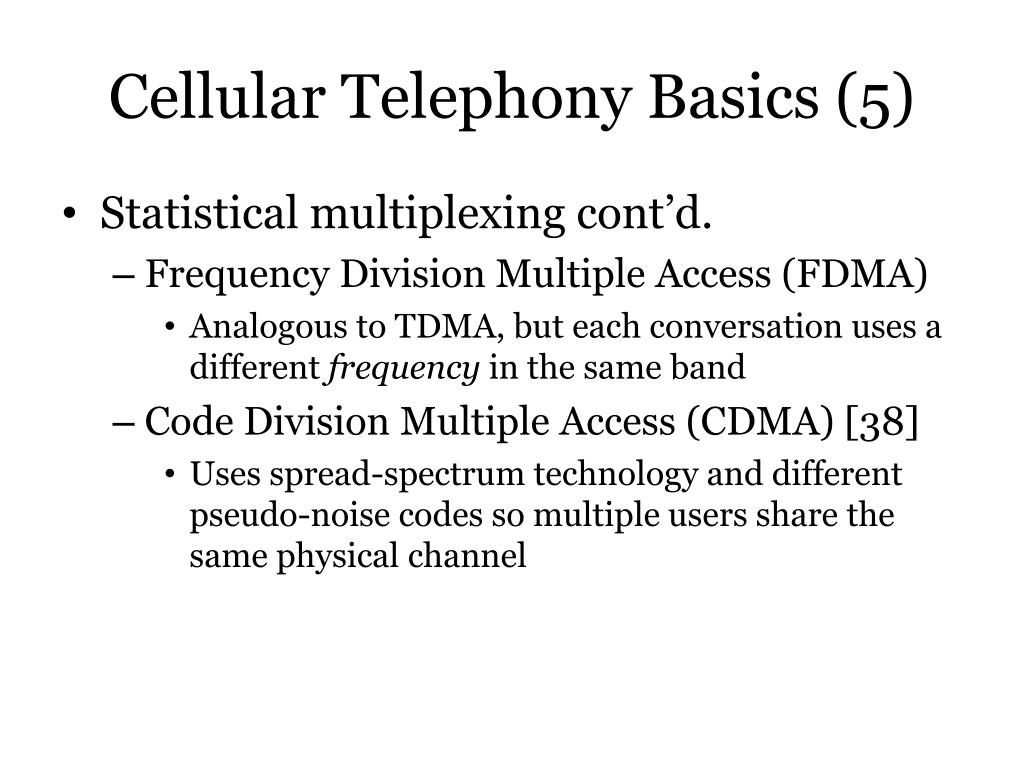

Cellular telephony basics 5 l.jpg
Cellular Telephony Basics (5) providers via many networking technologies

  • Statistical multiplexing cont’d.

    • Frequency Division Multiple Access (FDMA)

      • Analogous to TDMA, but each conversation uses a different frequency in the same band

    • Code Division Multiple Access (CDMA) [38]

      • Uses spread-spectrum technology and different pseudo-noise codes so multiple users share the same physical channel


Cellular telephony l.jpg
Cellular Telephony providers via many networking technologies

  • It is useful to think of cellular telephony in terms of generations: [33–37]

    • 0G: Briefcase-size mobile radio telephones

    • 1G: Analog cellular telephony

    • 2G: Digital cellular telephony

    • 3G: High-speed digital cellular telephony (including video telephony)

    • 4G: IP-based “anytime, anywhere” voice, data, and multimedia telephony at faster data rates than 3G (to be deployed in 2012–2015)

  • We will focus on 2G and 3G technologies


Cellular telephony 2g l.jpg
Cellular Telephony – 2G providers via many networking technologies

  • There are two main 2G technologies:

    • Global System for Mobile communications (GSM), which uses TDMA [39]

    • Interim Standard 95 (IS-95, aka cdmaOne™), which uses CDMA [40]

  • There are other TDMA networks such as PDC (Japan-only), iDEN (Nextel-only), and IS-136 (now converted to GSM)

  • We won’t worry about these


Gsm 1 l.jpg

Mobile Stations (MSes) – handsets providers via many networking technologies

Each handset has a SIM card

Base Station Subsystems (BSSes) – provide air link for MSes

A BSS consists of a Base Station Controller (BSC), which includes the TransCoder Unit (TCU) and the Base Transceiver System (BTS)

A BSC controls several BTSes, which is responsible for communication with the NSS and OSS

Network SubSystems (NSSes) – connect calls between network users

Composed of several Mobile Switching Centers (MSC) in conjunction with location registers (Home Location Registers – HLRs, Visitor Location Register – VLRs) and authentication centers (AUCs)

Operation SubSystems (OSSes) – provide network admins with remote network monitoring, mgmt. capabilities

Operations & Maintenance Center (OMC) provides network with remote monitoring, maintenance as well as alarms, event logging

GSM (1)

GSM network architecture includes the following subsystems:


Gsm 2 l.jpg
GSM (2) providers via many networking technologies

  • GSM network architecture is as follows:


Gsm 3 l.jpg
GSM (3) providers via many networking technologies

  • Short Message Service (SMS) [41]

    • 1985 GSM standard that allows messages of at most 160 chars. (incl. spaces) to be sent between handsets and other stations

    • Over 2.4 billion people use it; multi-billion $ industry

  • General Packet Radio Service (GPRS)

    • GSM upgrade that provides IP-based packet data transmission up to 114 kbps

    • Users can “simultaneously” make calls and send data

    • GPRS provides “always on” Internet access and the Multimedia Messaging Service (MMS) whereby users can send rich text, audio, video messages to each other [42]

    • Performance degrades as number of users increase

    • GPRS is an example of 2.5G telephony – 2G service similar to 3G


Gsm 4 l.jpg
GSM (4) providers via many networking technologies

  • Enhanced Data rate for GSM Evolution (EDGE) [43]

    • GSM revision that provides 3× GPRS’ data rate (max. 236.8 kbps); considered 3G tech.

    • Deployed on GSM networks starting in 2003

    • EDGE Evolution increases bit rates to (theoretical) max. of 1 Mbps, decreases latency from 200 ms to 100 ms


Is 95 cdma2000 and 3g l.jpg
IS-95, CDMA2000, and 3G providers via many networking technologies

  • Qualcomm developed IS-95 in the 1990s as first CDMA-based mobile standard [40]

  • Unlike GSM, which is open,Qualcomm owns patents on CDMA technology

  • CDMA2000, IS-95’s hybrid 2.5G/3G successor, is supplanting it [44]

  • The Telecommunications Industry Association owns the trademarks “cdmaOne” and “CDMA2000” in the U.S.

  • There are two competing 3G technologies: the Universal Mobile Telecommunications System (UMTS) and CDMA2000


Umts and hspa l.jpg
UMTS and HSPA providers via many networking technologies

  • The UMTS is an international standard designed to replace GSM (aka 3GSM) [45]

  • UMTS is a 3G standard and is being developed into a 4G standard

  • Its air interface is Wideband CDMA (W-CDMA), which was developed by NTT DoCoMo for Japan’s 3G wireless network [46]

  • W-CDMA has been deployed in Europe and Asia

  • In theory, High Speed Packet Access (HSPA) protocols extend UTMS’ performance to 14.4 Mbps and 5.76 Mbps downlink and uplink, respectively [47]

  • In practice, max speeds are 7.2 Mbps and 1.4 – 5.8 Mbps, respectively (depending on carrier)


Other handset networks l.jpg
Other Handset Networks providers via many networking technologies

  • Many handsets not only support cellular telephony, they support other networking technologies as well:

    • Wireless

      • Bluetooth (100 m max, 10 m for handsets)

      • IEEE 802.11 (longer range)

      • Infrared Data Association (IrDA)

    • Wired

      • USB, etc.


Bluetooth 1 l.jpg
Bluetooth (1) providers via many networking technologies

  • Bluetooth is a technology specification for small form factor, low-cost, short-range wireless links between mobile handsets, Internet connectivity

  • Max range is 100 m in 2.4 GHz frequency band (handsets: 10 m radios)

  • There is possible interference with IEEE 802.11b WLANs operating in this band

  • Max bandwidth is 3 Mbps for Bluetooth 2.x with Enhanced Data Rate


Bluetooth 2 l.jpg
Bluetooth (2) providers via many networking technologies

  • Link Types

    • Synchronous Connection-Oriented (SCO)

      • Useful for circuit-switched services, e.g., voice, where low delay and high QoS are required

      • Offered channels are symmetric and synchronous

    • Asynchronous Connection-Less (ACL)

      • More efficient for data transfer, other async. services

      • Link offers packet switching, transmission (Xmission) slots granted by polling access scheme

      • A piconet is a collection of up to 8 Bluetooth units where one is a master that controls Xmission, hopping scheme, others are slaves

        • Master tells slave, “I want to send,” and slave receives

        • Slaves can send on slots only when they agree with master

    • One connection can have several links of either type, but there’s a 3 voice call limit within a piconet


Bluetooth 3 l.jpg
Bluetooth (3) providers via many networking technologies

  • Piconets and scatternets

    • One device can be connected in two or more piconets, which is termed a scatternet

      • But a device can only be a master to one piconet at a time

      • In order for device to be part of scatternet, support for hold, park, or sniff mode is needed

    • Master/slave roles are not necessarily fixed and can be changed during connection

    • Master/slave switch needed in scatternet


Bluetooth 4 l.jpg
Bluetooth (4) providers via many networking technologies

  • Piconets and scatternets, cont’d.

    • a) Point-to-point connection between two devices

    • b) Point-to-multipoint connection between a master and three slaves

    • c) Scatternet consisting of three piconets


Bluetooth 5 l.jpg
Bluetooth (5) providers via many networking technologies

  • Bluetooth uses adaptive frequency hopping (AFQ) that detects other devices in the frequency spectrum and “hops” among 79 channels 1 MHz apart to reduce interference [48]


Bluetooth 6 l.jpg
Bluetooth (6) providers via many networking technologies

  • Connections established via page messages; if recipient address is unknown, master’s inquiry message is needed (that gives access code, asks for slave’s Bluetooth address and system clock)

  • Units are in standby mode before connections are made

  • Page message is sent on 16 frequencies 128 times; if no response, message is sent on 16 different frequencies 128 times

  • Max. connection time is 2.56 seconds


Bluetooth 7 l.jpg
Bluetooth (7) providers via many networking technologies

  • Bluetooth Special Interest Group (SIG) has defined numerous usage models for the technology that describe primary Bluetooth applications & intended devices

  • Profiles define the protocols & protocol features that support a usage model

  • See [49] for more information


Ieee 802 11 networks l.jpg
IEEE 802.11 Networks providers via many networking technologies

  • The IEEE 802.11 standards specify how electronic devices communicate with each other in wireless fidelity (Wi-Fi) networks

  • Many handsets can communicate with each other this way

  • There are many 802.11 standards [53]; we’ll only look at 802.11b, 802.11g, and WiMax here

  • Other 802.11 standards provide greater security, which we’ll discuss later


Ieee 802 11 wimax specs l.jpg
IEEE 802.11 & WiMax Specs. providers via many networking technologies

  • 802.11b (1999): [51, 53]

    • Operates in the 2.4 GHz frequency band

    • Provides max 11 Mbps data rate

    • 38 m indoor range

  • 802.11g (2003): [51, 53]

    • Operates in either 2.4 GHz or 5 GHz frequency bands

    • Provides max 54 Mbps data rate

    • 38 m indoor range

  • WiMax (802.16): [52]

    • Operates in 2.3 GHz, 2.5 – 2.6 GHz frequency bands

    • Provides max 40 Mbps data rate now, 300 Mbps later

    • 3 km cell range


Slide61 l.jpg
IrDA providers via many networking technologies

  • The Infrared Data Association (IrDA) provides protocols to transfer data between handsets, other devices using infrared light [54]

    • Similar in principle to a remote control

    • Data rate is 16 Mbps now, 300 – 500 Mbps later

    • Range is 1 m, communicating devices must have a “line of sight”

    • Deployed in over 500 million devices


Wired networks usb l.jpg
Wired Networks: USB providers via many networking technologies

  • The Universal Serial Bus (USB) is a ubiquitous standard for transferring data between computers (including handsets!) [55]

    • By definition, data is transferred one bit at a time

    • USB 1.1 (1998): max 1.5 Mbps (low-speed), 12 Mbps (full-speed)

    • USB 2.0 (2000): max 480 Mbps

    • USB 3.0 (to be released in 2009 – 2010): max 5 Gbps


Handset applications l.jpg

Many handset applications mirror those of computers, providers via many networking technologiese.g., managing one’s schedule, Web browsing, etc.

But handsets’ mobility is opening up new markets

Global mobile gaming market value expected to reach €2.6 billion ($3.27 billion) in 2012

Global mobile advertising market value expected to reach €1.77 billion ($2.23 billion) in 2012

Also, handsets make mobile and location-based services possible, which we’ll discuss next

Handset Applications


Mobile location based services l.jpg
Mobile & Location-based Services providers via many networking technologies

  • Carnegie Mellon University’s (CMU’s) Human Computer Interaction Institute has developed several such services that we’ll examine

    • Mobile social computing

      • inTouch: Coordination for families, small groups

      • Whisper Mobile: Coordinating groups for social events

    • Large-scale mobile collaboration

      • Hitchhiking: estimating places’ busyness

    • Mobile data

      • GurunGo: Linking desktop, mobile devices

    • Usable privacy and security

      • Contextual instant messaging

      • People Finder

      • CMU’s Grey resource-control system

    • Memory support

      • Memory karaoke


Mobile social computing l.jpg
Mobile Social Computing providers via many networking technologies

  • Mobile social computing

    • inTouch: Coordination for families, small groups

    • Whisper Mobile: Coordinating groups for social events

  • Large-scale mobile collaboration

    • Hitchhiking: estimating places’ busyness

  • Mobile data

    • GurunGo: Linking desktop, mobile devices

  • Usable privacy and security

    • Contextual instant messaging

    • CMU’s Grey resource-control system


Intouch 1 l.jpg
inTouch (1) providers via many networking technologies

The inTouch service helps coordinate with others while mobile

Target Users:

  • Small to medium groups of people

  • Fluid & demanding schedule

  • Many responsibilities

    Examples:

  • Dual-career families

  • Work groups

  • Ad hoc (e.g., conferences)

Mobility

Messaging

Awareness


Intouch 2 l.jpg

Daniel providers via many networking technologies

inTouch (2)

inTouch use case: Suppose Vanessa is running late picking up her son Daniel. She can send him a text message telling him that she’ll be 15 minutes late.


Whisper mobile 1 l.jpg
Whisper Mobile (1) providers via many networking technologies

Motivation: Easily find, share, and coordinate friends for social events


Whisper mobile 2 l.jpg
Whisper Mobile (2) providers via many networking technologies

  • Creating an event is straightforward

    • Minimal text input

    • Use location, audio, camera to do so

  • Then link it with inTouch

(a)

(b)

(c)

(d)

(e)


Large scale mobile collaboration l.jpg
Large-Scale Mobile Collaboration providers via many networking technologies

  • Mobile social computing

    • inTouch: Coordination for families, small groups

    • Whisper Mobile: Coordinating groups for social events

  • Large-scale mobile collaboration

    • Hitchhiking: estimating places’ busyness

  • Mobile data

    • GurunGo: Linking desktop, mobile devices

  • Usable privacy and security

    • Contextual instant messaging

    • CMU’s Grey resource-control system


Hitchhiking 1 l.jpg
Hitchhiking (1) providers via many networking technologies

  • Many location-based services focus on “where you are”

  • Hitchhiking looks at places’ busyness, e.g.,

    • “Is the café busy?”

    • “How long are the airport lines?”

  • Approach: estimate number of people in a place by counting number of handsets there and upload number and location to servers (anonymized for privacy)

  • Locations can be viewed on a map, e.g., Microsoft’s SensorMap


Hitchhiking 2 l.jpg
Hitchhiking (2) providers via many networking technologies


Mobile data l.jpg
Mobile Data providers via many networking technologies

  • Mobile social computing

    • inTouch: Coordination for families, small groups

    • Whisper Mobile: Coordinating groups for social events

  • Large-scale mobile collaboration

    • Hitchhiking: estimating places’ busyness

  • Mobile data

    • GurunGo: Linking desktop, mobile devices

  • Usable privacy and security

    • Contextual instant messaging

    • CMU’s Grey resource-control system


Gurungo 1 l.jpg
GurunGo (1) providers via many networking technologies

  • Goal: Easily access useful info while mobile

  • Motivations:

    • People print out online maps rather than copy them to handset (easier, small mobile form factor)

    • People browse the Web differently on desktops and handsets

  • GurunGo allows people to explicitly copy info to handsets, implicitly copy maps to handsets and generate speech-based directions


Gurungo 2 l.jpg
GurunGo (2) providers via many networking technologies

Example of speech-based directions:


Usable privacy and security l.jpg
Usable Privacy and Security providers via many networking technologies

  • Mobile social computing

    • inTouch: Coordination for families, small groups

    • Whisper Mobile: Coordinating groups for social events

  • Large-scale mobile collaboration

    • Hitchhiking: estimating places’ busyness

  • Mobile data

    • GurunGo: Linking desktop, mobile devices

  • Usable privacy and security

    • Contextual instant messaging

    • CMU’s Grey resource-control system


Contextual instant messaging l.jpg
Contextual Instant Messaging providers via many networking technologies

  • CMU developed a custom AIM client, bot that people can query “howbusyis screenname”

  • Robot respects user-specified privacy settings

    • Users can create groups, put screen names in them

    • Users can specify what each group can see

  • System generates audit logs for security


Grey resource control l.jpg
Grey Resource Control providers via many networking technologies

  • CMU developed a distributed handset-based resource control system

    • Resources include office doors, electronic files, etc.

  • Flexible, end user-specified policies:

    • Proactive: Manually create policy before request, e.g., “Alice can always enter my office”

    • Reactive: Generates policy based on request, e.g., “Can I enter your office?”

  • CMU connected Grey with Bluetooth-enabled office doors

  • There were security and usability issues with the system


A large scale mobile app l.jpg
A Large-Scale Mobile App providers via many networking technologies

Gawker Stalker – people spotting celebrities in New York City


Handset security issues 1 l.jpg

People store a wealth of information on their handsets and don’t think about securing them!

Naturally, this makes handsets targets for miscreants – whether they’re “script kiddies” or Mafia cybercriminals – due to what’s stored on them:

Incoming, outgoing, missed calls

SMS (text) and MMS messages

E-mail

Instant-messaging (IM) logs

Multimedia, e.g., pictures, music, videos

Personal calendars

Address books

Clearly, handset security is a vitally important challenge

Handset Security Issues (1)


Handset malware history 1 l.jpg
Handset Malware History (1) don’t think about securing them!

  • Hackers are already attacking handsets

    • Most well-known case: a 17-year-old broke into Paris Hilton’s Sidekick handset [58]

    • Less well-known: worms, viruses, and Trojans have targeted handsets since 2004

      • 2004: [59]

        • Cabir worm released by “29A,” targets Symbian phones via Bluetooth

        • Duts virus, released by same group, targets Windows Mobile phones

        • Brador Trojan released by same group, opens backdoor on Windows Mobile [63]


Handset malware history 2 l.jpg
Handset Malware History (2) don’t think about securing them!

  • 2005: [60]

    • CommWarrior worm released; replicates via Bluetooth, MMS messages to all contacts in address book

    • Doomboot Trojan released; claims to be “Doom 2” video game, installs Cabir and CommWarrior

  • 2006: [59–60]

    • RedBrowser Trojan released; claims to be a Java program, secretly sends premium-rate SMS messages to a Russian phone number

    • FlexiSpy spyware released; sends log of phone calls, copies of SMS/MMS messages to Internet server for third party to view

  • 2008: [61]

    • First iPhone Trojan released

  • Of course, other mobile malware has been released; some malware completely disables the handset

  • There is also the possibility of mobile botnets [62]


  • Key handset security problems l.jpg
    Key Handset Security Problems don’t think about securing them!

    • “At this point, mobile device capability is far ahead of security.” – Prof. Patrick Traynor, Georgia Tech (emphasis added) [62]

    • Handset information can be stolen [63]

      • Transient information: Enhanced 911 can provide user location information

      • Static information: “BlueSnarfing” attacks (connection without owner’s knowledge), cracking Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA) [64]

    • Theft of service attacks, e.g., premium-rate calls/SMS messages [63]

    • Denial-of-service attacks [63]

      • Flooding attacks overload the handset radio with garbage

      • Power-draining attacks attempt to drain the battery

    • Botnets and DoS attacks against networks are likely in the future [62]

    • Cybercriminals make 10× as much as security researchers! [69]


    Mitigation strategies l.jpg
    Mitigation Strategies don’t think about securing them!

    • Handset manufacturers, OS & software vendors, and researchers have worked to counter threats

      • Symbian OS requires apps to be cryptographically signed in order for them to run without user approval

      • Some handset manufacturers have joined the Trusted Computing Group (TCG) and added hardware to thwart malware tampering with the device [60]

      • The iPhone runs each application in a “sandbox” to prevent malware from running on the device [68]

      • Heterogeneous handset OSes make massive malware outbreaks difficult

      • Vendors like McAfee, Symantec, and Trend Micro sell security software for handsets; F-Secure has bundled its software with Hong Kong provider CSL’s handsets [65]

      • Researchers have worked on modeling malware propagation on networks, detecting power-draining attacks, etc. [66–67]


    The challenges ahead l.jpg
    The Challenges Ahead don’t think about securing them!

    • “[Because] the mobile communications field is evolving so quickly, it presents a unique opportunity to design security properly—an opportunity we missed with the PC.” – Prof. Patrick Traynor [62]

    • Since most people buy a new handset every 2 years, it’s vital to ensure the security of handset hardware, OSes, applications, and networks while maintaining usability [62]

    • One suggested approach is to give handsets a “hard” power-off switch so they don’t have power when turned off [63]]

    • Academic research will play a key role in this, as will user education to counter social engineering

    • Given the sensitivity of information stored on handsets, cybercriminals may well find effective ways to use them to continue their nefarious acts, e.g., bot herding, data theft, etc., even with different operating systems, power constraints, and carriers

    • Though we may not hear news of handset attacks as often as those against (Windows) PCs, we cannot fall into a false sense of security


    Questions l.jpg
    Questions? don’t think about securing them!

    Thank you!


    References 1 l.jpg
    References (1) don’t think about securing them!

    • T. T. Ahonen, “When there is a mobile phone for half the planet: Understanding the biggest technology”, 16 Jan. 2008, http://communities-dominate.blogs.com/ brands/2008/01/when-there-is-a.html

    • A. Wolfe, “Is the Smartphone Your Next Computer?”, InformationWeek, 4 Oct. 2008, http://www.informationweek.com/news/personal_tech/smartphones/ showArticle.jhtml?articleID=210605369

    • J. L. Hennessy and D. A. Patterson, Computer Architecture: A Quantitative Approach, 4th ed., Elsevier, 2007

    • Research in Motion, “BlackBerry 8700c Technical Specifications”, http://www.blackberry.com/products/pdfs/blackberry8700c_ent.pdf

    • R. Block, “iPhone processor found: 620MHz ARM CPU”, Engadget, 1 Jul. 2007, http://www.engadget.com/2007/07/01/iphone-processor-found-620mhz-arm/

    • Samsung Semiconductor, “Product Technical Brief: S3C6400, Jun. 2007”, http://www.samsung.com/global/system/business/semiconductor/product/2007/8/21/661267ptb_s3c6400_rev15.pdf

    • Wikipedia, “iPhone”, updated 15 Nov. 2008, http://en.wikipedia.org/wiki/Iphone

    • Wikipedia, “iPod Touch”, updated 14 Nov. 2008, http://en.wikipedia.org/wiki/ Ipod_touch


    References 2 l.jpg
    References (2) don’t think about securing them!

    • N. Cubrilovic, “Symbian Goes Open Source – Courtesy of Nokia”, TechCrunchIT, 24 Jun. 2008, http://www.techcrunchit.com/2008/06/24/symbian-goes-open-source-courtesy-of-nokia/

    • “Android – An Open Handset Alliance Project”, http://code.google.com/android/

    • Canalys, “Global smart phone shipments rise 28%: Nokia retains lead, but Apple moves into number two position”, 6 Nov. 2008, Press Release, http://canalys.com/pr/2008/r2008112.htm

    • Nokia, “Nokia to acquire Symbian Limited to enable evolution of the leading open mobile platform”, 24 Jun. 2008, Press Release, http://www.nokia.com/A4136001?newsid=1230415

    • Wikipedia, “Symbian OS”, updated 13 Nov. 2008, http://en.wikipedia.org/wiki/ Symbian_os

    • Symbian Ltd., “Symbian OS”, http://www.symbian.com/symbianos/

    • B. Morris, “Symbian OS Architecture Overview”, Wireless Developer Forum UK ’06, Symbian Software Ltd., http://developer.symbian.com/wiki/download/attachments/1376/Ben_Morris.ppt?version=1

    • Wikipedia, “Palm OS”, updated 3 Nov. 2008, http://en.wikipedia.org/wiki/ Palm_os


    References 3 l.jpg
    References (3) don’t think about securing them!

    • Wikipedia, “Windows Mobile”, updated 13 Nov. 2008, http://en.wikipedia.org/ wiki/Windows_mobile

    • Wikipedia, “Windows CE”, updated 12 Nov. 2008, http://en.wikipedia.org/wiki/ Windows_CE

    • Microsoft Corp., “.NET Framework Conceptual Overview”, MSDN, 2008, http://msdn.microsoft.com/en-us/library/zw4w595w(printer).aspx

    • Microsoft Corp., “Microsoft Gives Students Access to Technical Software at No Charge to Inspire Success and Make a Difference”, 18 Feb. 2008, Press Release, http://www.microsoft.com/Presspass/press/2008/feb08/02-18GSDPR.mspx

    • K. Haslem, “Macworld Expo: Optimised OS X sits on ‘versatile’ Flash”, 12 Jan. 2007, Macworld, http://www.macworld.co.uk/ipod-itunes/news/ index.cfm?newsid=16927

    • Wikipedia, “iPhone OS”, updated 16 Nov. 2008, http://en.wikipedia.org/wiki/ IPhone_OS

    • Apple Inc., “iPhone Developer University Program”, 2008, http://developer.apple.com/iphone/program/university.html

    • Apple Inc., “Apple Developer Connection – Web Apps Dev Center”, 2008, http://developer.apple.com/webapps/


    References 4 l.jpg
    References (4) don’t think about securing them!

    • Apple Inc., “Apple – iPhone – Features – Safari”, 2008, http://www.apple.com/iphone/features/safari.html

    • Apple Inc., “Safari 3.1 Product Overview”, Jun. 2008, http://images.apple.com/safari/docs/Safari_Product_Overview20080602.pdf

    • Research in Motion, “BlackBerry Mobile Voice System”, 2008, http://na.blackberry.com/eng/services/blackberry_mvs/

    • A. Succo, “RIM exec sees BlackBerry product as shaping telephony”, 22 May 2008, InfoWorld, http://www.infoworld.com/news/feeds/08/05/22/RIM-exec-sees-BlackBerry-product-as-shaping-telephony.html

    • Open Handset Alliance, “Members”, http://www.openhandsetalliance.com/ oha_members.html

    • Open Handset Alliance, “Overview”, http://www.openhandsetalliance.com/ oha_overview.html

    • Wikipedia, “Android (mobile device platform)”, updated 16 Nov. 2008, http://en.wikipedia.org/wiki/Android_(mobile_device_platform)

    • Google Inc., “What Is Android?”, 2008, http://code.google.com/android/what-is-android.html#runtime


    References 5 l.jpg
    References (5) don’t think about securing them!

    • Wikipedia, “Mobile radio telephone”, updated 6 Jul. 2008, http://en.wikipedia.org/wiki/0G

    • Wikipedia, “1G”, updated 6 Aug. 2008, http://en.wikipedia.org/wiki/1G

    • Wikipedia, “2G”, updated 18 Nov. 2008, http://en.wikipedia.org/wiki/2G

    • Wikipedia, “3G”, updated 19 Nov. 2008, http://en.wikipedia.org/wiki/3G

    • Wikipedia, “4G”, updated 11 Nov. 2008, http://en.wikipedia.org/wiki/4G

    • Wikipedia, “Code division multiple access”, updated 30 Oct. 2008, http://en.wikipedia.org/wiki/Code_division_multiple_access

    • Wikipedia, “GSM”, updated 14 Nov. 2008, http://en.wikipedia.org/wiki/GSM

    • Wikipedia, “IS-95”, updated 10 Oct. 2008, http://en.wikipedia.org/wiki/IS-95

    • Wikipedia, “Short message service”, updated 19 Nov. 2008, http://en.wikipedia.org/wiki/Short_message_service

    • Wikipedia, “Multimedia messaging service”, updated 3 Nov. 2008, http://en.wikipedia.org/wiki/Multimedia_Messaging_Service

    • Wikipedia, “Enhanced Data Rates for GSM Evolution”, updated 19 Nov. 2008, http://en.wikipedia.org/ wiki/Enhanced_Data_Rates_for_GSM_Evolution

    • Wikipedia, “CDMA2000”, updated 17 Nov. 2008, http://en.wikipedia.org/wiki/ CDMA2000


    References 6 l.jpg
    References (6) don’t think about securing them!

    • Wikipedia, “Universal Mobile Telecommunications System”, updated 18 Nov. 2008, http://en.wikipedia.org/wiki/Universal_Mobile_Telecommunications_System

    • Wikipedia, “W-CDMA (UTMS)”, updated 19 Oct. 2008, http://en.wikipedia.org/ wiki/W-CDMA_(UMTS)

    • Wikipedia, “High Speed Packet Access”, updated 15 Oct. 2008, http://en.wikipedia.org/wiki/High_Speed_Packet_Access

    • Bluetooth SIG, “Basics”, 2008, http://www.bluetooth.com/Bluetooth/ Technology/Basics.htm

    • Bluetooth SIG, “Profiles Overview”, 2008, http://www.bluetooth.com/Bluetooth/ Technology/Works/Profiles_Overview.htm

    • Wikipedia, “Wi-Fi”, updated 18 Nov. 2008, http://en.wikipedia.org/wiki/Wi-fi

    • Wikipedia, “Wi-Fi technical information”, updated 31 Oct. 2008, http://en.wikipedia.org/wiki/Wi-Fi_Technical_Information

    • WiMax Forum, “Frequently Asked Questions”, http://www.wimaxforum.org/ documents/faq/

    • Wikipedia, “IEEE 802.11”, updated 16 Nov. 2008, http://en.wikipedia.org/wiki/ 802.11

    • Infrared Data Association, “Welcome to IrDA”, http://www.irda.org/ displaycommon.cfm?an=1&subarticlenbr=14


    References 7 l.jpg
    References (7) don’t think about securing them!

    • Wikipedia, “Universal Serial Bus”, updated 19 Nov. 2008, http://en.wikipedia.org/wiki/Usb

    • Screen Digest, “iPhone breathes new life into mobile gaming market”, 31 Jul. 2008, Press Release, http://www.screendigest.com/press/releases/ pr_31_07_2008/view.html

    • Screen Digest, “Mobile media advertising opportunities: The market for advertising”, 2 May 2008, http://www.screendigest.com/reports/ 08mobilemediaadvert/pdf/08chinacabletv-pdf/view.html

    • B. Krebs, “Teen Pleads Guilty to Hacking Paris Hilton’s Phone”, Washington Post,13 Sep. 2005, http://www.washingtonpost.com/wp-dyn/content/article/2005/ 09/13/AR2005091301423_pf.html

    • D. Emm, “Mobile malware – new avenues”, Network Security, 2006:11, Nov. 2006, pp. 4–6

    • M. Hypponen, “Malware Goes Mobile”, Scientific American, Nov. 2006, pp. 70–77, http://www.cs.virginia.edu/~robins/Malware_Goes_Mobile.pdf

    • PandaLabs, “PandaLabs Quarterly Report: January–March 2008”, http://pandalabs.pandasecurity.com/blogs/images/PandaLabs/2008/04/01/Quarterly_Report_PandaLabs_Q1_2008.pdf

    • Georgia Tech Information Security Center, “Emerging Cyber Threats Report for 2009”, http://www.gtiscsecuritysummit.com/pdf/CyberThreatsReport2009.pdf


    References 8 l.jpg
    References (8) don’t think about securing them!

    • D. Dagon et al., “Mobile Phones as Computing Devices: The Viruses are Coming!”, IEEE Pervasive Computing, Oct. – Dec. 2004, pp. 11–15

    • G. Fleishman, “Battered, but not broken: understanding the WPA crack”, Ars Technica, 6 Nov. 2008, http://arstechnica.com/articles/paedia/wpa-cracked.ars

    • “CSL Unveils Mobile Security Service”, China Tech News, 31 Mar. 2008, http://www.chinatechnews.com/2008/03/31/6562-csl-unveils-mobile-security-service/

    • C. Fleizach et al., “Can You Infect Me Now? Malware Propagation in Mobile Phone Networks”, Proc. of ACM Workshop on Recurring Malcode (WORM ’07), Alexandria, VA, USA, 2 Nov. 2007, pp. 61–68.

    • H. Kim et al., “Detecting Energy-Greedy Anomalies and Mobile Malware Variants”, Proc. of the 6th Int’l Conf. on Mobile Systems, Applications, and Services (MobiSys ’08), Breckenridge, CO, USA, 17–20 Jun. 2008, pp. 239–252.

    • E. Sadun, “Programming with Safety Scissors and Glitter Glue”, Inside iPhone, 10 Oct. 2008, http://blogs.oreilly.com/iphone/2008/10/programming-with-safety-scisso.html

    • T. Claburn, “The Cybercrime Economy”, InformationWeek, 9 Apr. 2008, http://www.informationweek.com/blog/main/archives/2008/04/the_cyber_crime.html


    ad
