Hydronic Balancing

Using Automatic Balancing Valves to Dynamically Balance Hydronic Systems

Sean Kalman – Hays Fluid Controls


Agenda l.jpg

Agenda

  • Methods of Hydronic Balancing

  • How Automatic Flow Control Works

  • Automatic Flow Control Saves Money

  • Where to Apply Automatic Flow Control Valves

  • Selecting an Automatic Flow Control Valve

Automatic Balancing Valves


Methods of hydronic balancing l.jpg

Methods of Hydronic Balancing

Automatic Balancing Valves


How automatic flow control works l.jpg

How Automatic Flow Control Works

  • When the Differential Pressure increases, the diaphragm presses up to and flexes against the orifice plate. This limits the area for the water to flow through.

  • When Differential Pressure decreases, the diaphragm relaxes, and increases the area for the water to flow through.

Flow

Automatic Balancing Valves


Automatic flow control valves save money l.jpg

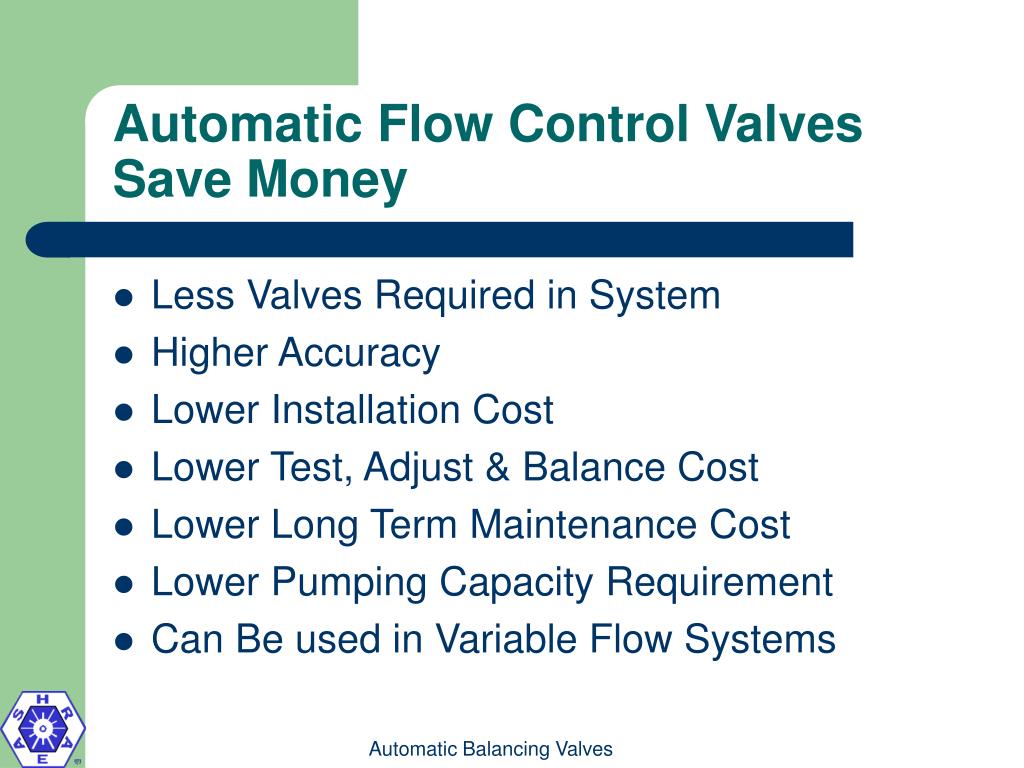

Automatic Flow Control Valves Save Money

  • Less Valves Required in System

  • Higher Accuracy

  • Lower Installation Cost

  • Lower Test, Adjust & Balance Cost

  • Lower Long Term Maintenance Cost

  • Lower Pumping Capacity Requirement

  • Can Be used in Variable Flow Systems

Automatic Balancing Valves


Typical manual balancing system l.jpg

Typical Manual Balancing System

  • Circuit Balance Valves required at all terminal units as well as riser.

  • System to be rebalanced when new terminal unit brought on line.

Automatic Balancing Valves


Automatic flow control system l.jpg

Automatic Flow Control System

  • Automatic Flow Control Valves only required at terminal units.

  • No system rebalance needed when new terminal unit brought on line. AFCV dynamically adjust to maintain flow.

  • No AFCV required on riser.

AFCV offers unmatched flexibility for your design.

Automatic Balancing Valves


Automatic is accurate l.jpg

Automatic Is Accurate

  • Most manual valves give somewhere between ±15% to ±25%

  • Automatic valves increase your accuracy to ±10% as a general rule

Automatic Balancing Valves


Lower installation cost l.jpg

Lower Installation Cost

5 Components1 Package4 Connections

17 Components21 Connections

Automatic Balancing Valves


Less valves required with afcv l.jpg

Less Valves Required with AFCV

In this manual system, 26 manually adjusted flow control valves are required. In the same system using automatic valves, only 18 valves are required.

Automatic Balancing Valves


Less valves required with afcv11 l.jpg

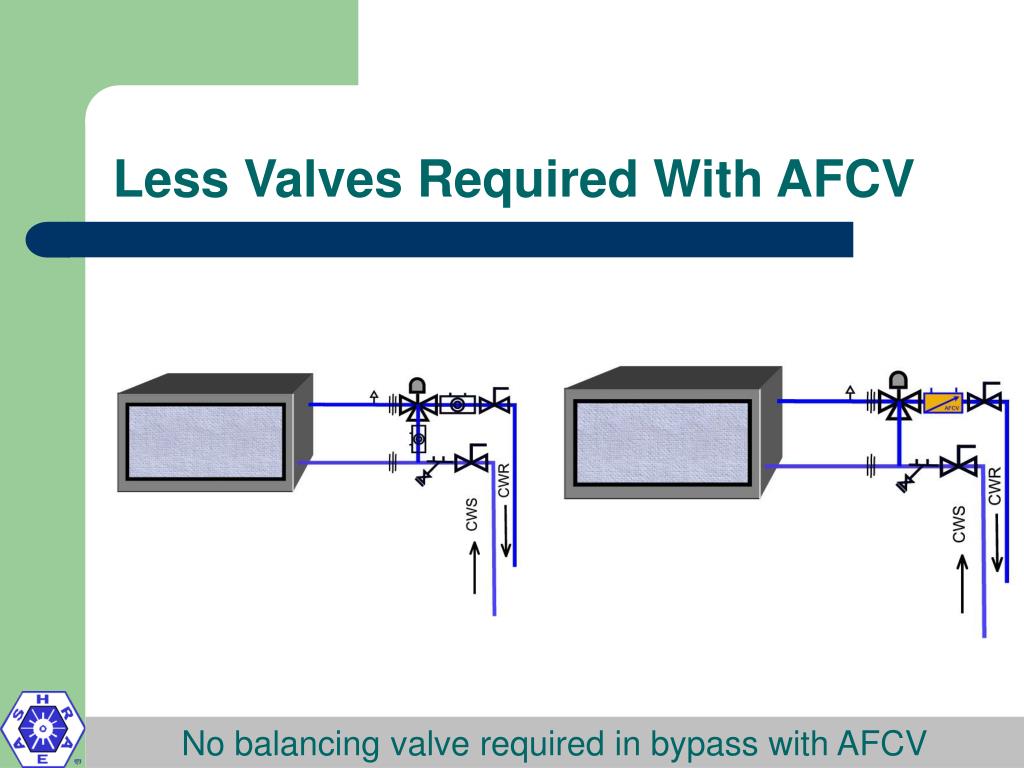

Less Valves Required With AFCV

No balancing valve required in bypass with AFCV

Automatic Balancing Valves


Lower tab cost l.jpg

Lower TAB Cost

Because AFCV are pressure independent, they are balanced from the time the pump is turned on. Thus, only flow verification is needed, saving as much as 60% over outdated manually adjusted valves.

1.5 Hrs to manually balance 1 coil.

$50 / Hour LaborX1.5 Hrs$75 Per CoilX100 Coils$7500 Balancing Cost

.5 Hrs to verify flow on AFCV.

$50 / Hour LaborX.5 Hrs$25 Per CoilX100 Coils$2500 Balancing Cost

Automatic Balancing Valves


Less energy consumed with afcv l.jpg

Less Energy Consumed With AFCV

  • When your building load changes, AFCV can dynamically change to maintain your flow requirements.

  • When the ΔP decreases, the valves open to maintain a constant flow rate.

  • When the ΔP increases, the valves close slightly to maintain a constant flow rate.

  • Manually adjusted valves cannot adjust to the changing ΔP to maintain a constant flow rate. If ΔP increases, so does the flow, if ΔP decreases, so does the flow.

Automatic Balancing Valves


Less energy consumed with afcv14 l.jpg

Less Energy Consumed With AFCV

Application:

In an office building on a Spring day, the building may not be calling for less chilled water than what it was designed for. Except for a cafeteria which is at 100% capacity. By using AFCV, you can reduce your pump speed to meet only the chilled water need you have. With manually adjusted valves you do not have that luxury. In turn, reducing your pumping cost and saving money.

Automatic Balancing Valves


Less energy consumed with afcv15 l.jpg

Less Energy Consumed With AFCV

Automatic Balancing Valves


Less energy consumed with afcv16 l.jpg

Less Energy Consumed With AFCV

Automatic Balancing Valves


Afcv with variable speed pumps l.jpg

AFCV With Variable Speed Pumps

  • Automatic Can accommodate changes in system.

  • Only AFCV can change to maintain exact flow rate.

  • For use with 2 position valves is excellent application.

Automatic Balancing Valves


Afcv with variable flow systems l.jpg

AFCV With Variable Flow Systems

  • Control Valve has complete authority except when fully open and flow is beyond design.

  • Prevents “Overflow” of coil.

  • Aids in preventing valve cavitation.

  • Aids in preventing premature erosion of control valve body.

Many engineers have suggested that AFCV is not suited for variable flow systems. Here are some reasons they are perfect for the job:

Automatic Balancing Valves


Cost savings with afcv l.jpg

Cost Savings With AFCV

27 Circuit Setters = $729Installation Labor = $675TAB Labor = $2,025Total Installed Cost = $3,429

18 AFCV = $954Installation Labor = $450TAB Labor = $450Total Installed Cost = $1,854

In this example, we saved $1575 first cost alone.

Automatic Balancing Valves


Where to use automatic flow control valves l.jpg

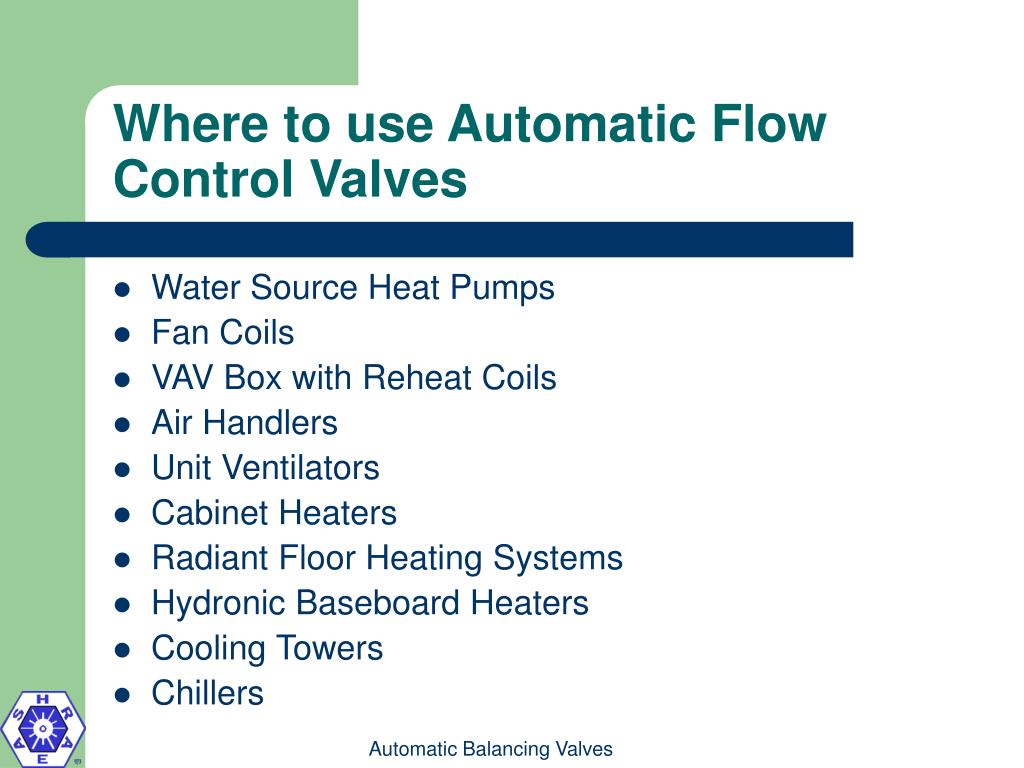

Where to use Automatic Flow Control Valves

  • Water Source Heat Pumps

  • Fan Coils

  • VAV Box with Reheat Coils

  • Air Handlers

  • Unit Ventilators

  • Cabinet Heaters

  • Radiant Floor Heating Systems

  • Hydronic Baseboard Heaters

  • Cooling Towers

  • Chillers

Automatic Balancing Valves


Automatic flow control placement l.jpg

Automatic Flow Control Placement

  • In most applications, it is best to place the AFCV on the return side of a coil. This ensures that your water tube is full and providing maximum heat transfer.

  • Supply side will work, but is not ideal as too much air or turbulence may occur.

Automatic Balancing Valves


Automatic flow control placement22 l.jpg

Automatic Flow Control Placement

In an closed loop system, the AFCV can be on the return side or the supply side of the coils. The best practice is still to have your AFCV on the return side.

In an open system, the AFCV must be on the return side of the coils to ensure that the tubes are flooded and ensure maximum heat transfer.

Automatic Balancing Valves


Afcv for all applications l.jpg

AFCV For All Applications

  • A small inline valve will work in tight spaces

  • A multipurpose valve provides unlimited options.

  • Larger valves accommodate high flow rates.

Automatic Balancing Valves


Choosing the right afcv l.jpg

Choosing The Right AFCV

Choosing the right AFCV is very important. Here are some items to consider when choosing an AFCV:

  • Operating Range:AFCV have a PSID range that they will operate within. Make sure the one you choose meets your needs.

  • Flow Rates Available:Most AFCV manufacturers provide several flow rates to choose from. Some have a better selection than others. Make sure you are getting the flow rate you need.

  • Hassle Free Operation:Ask the manufacturer if there are maintainance isssues with their valves. Will you have clogging problems or noise problems?

Automatic Balancing Valves


Automatic flow control valves l.jpg

Valve Selection

SATISFIEDCUSTOMER

Installation

No Callbacks

Balance

Comfort

Automatic Flow Control Valves

Automatic Balancing Valves


Conclusion l.jpg

Conclusion

  • AFCV are a good application in all types of systems.

  • AFCV saves money on both installation and operation of system

  • AFCV are best option for balancing of Hydronic HVAC systems.

Automatic Balancing Valves
