Presentation Transcript
Ferret data server fds l.jpg

Ferret Data Server (FDS)

Ferret as an OPeNDAP server


Based on anagram l.jpg
Based on Anagram

  • Eases server development

  • provides reusable components for

    • responding to OPeNDAP API

    • managing back end process space

    • error handling

    • abuse filtering


Fds features l.jpg
FDS Features

  • OPeNDAP API

  • Abuse filters

  • XML based configuration files

  • Ferret journal scripts can be used to synthesize datasets

  • URL syntax for server side calculations

  • FDS documentation

    http://ferret.pmel.noaa.gov/FDS/

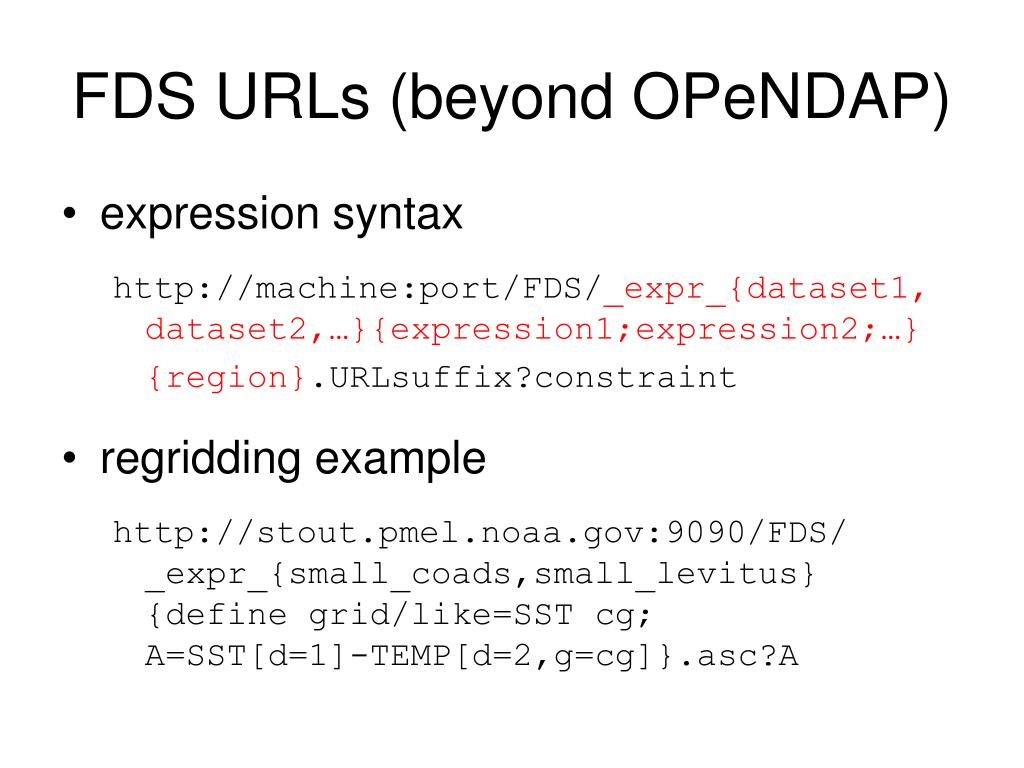

Fds urls beyond opendap l.jpg
FDS URLs (beyond OPeNDAP)

  • expression syntax

    http://machine:port/FDS/_expr_{dataset1,dataset2,…}{expression1;expression2;…} {region}.URLsuffix?constraint

  • regridding example

    http://stout.pmel.noaa.gov:9090/FDS/_expr_{small_coads,small_levitus}{define grid/like=SST cg;A=SST[d=1]-TEMP[d=2,g=cg]}.asc?A

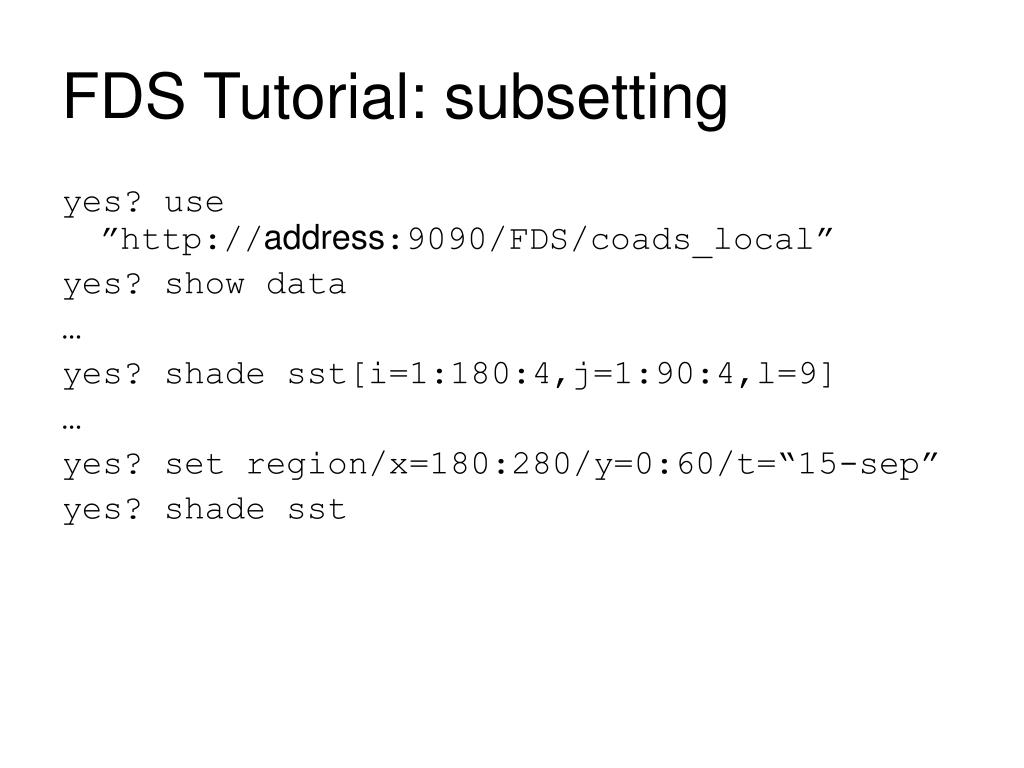

Fds tutorial subsetting l.jpg
FDS Tutorial: subsetting

yes? use”http://address:9090/FDS/coads_local”

yes? show data

yes? shade sst[i=1:180:4,j=1:90:4,l=9]

yes? set region/x=180:280/y=0:60/t=“15-sep”

yes? shade sst

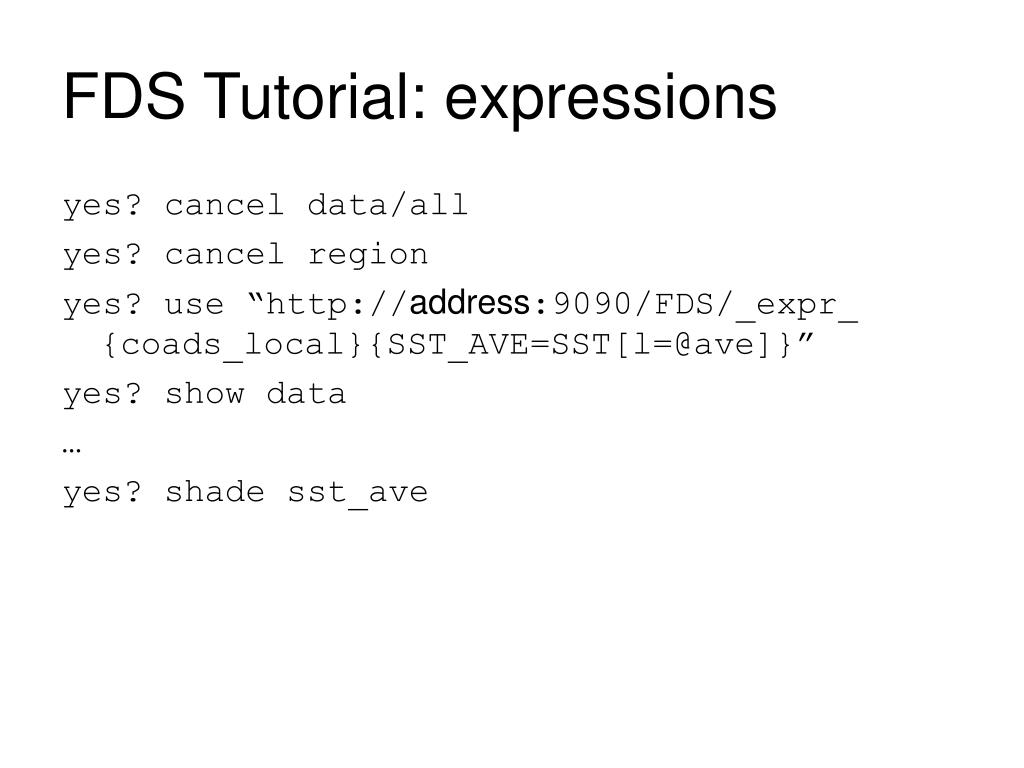

Fds tutorial expressions l.jpg
FDS Tutorial: expressions

yes? cancel data/all

yes? cancel region

yes? use “http://address:9090/FDS/_expr_{coads_local}{SST_AVE=SST[[email protected]]}”

yes? show data

yes? shade sst_ave


Fds tutorial regridding l.jpg
FDS Tutorial: regridding

  • Browser access

    http://address:9090/FDS/_expr_{small_coads,small_levitus}{define grid/like=SST cg;A=SST[d=1]-TEMP[d=2,g=cg]}.info?A

  • Ferret access

    yes? use “http://address:9090/FDS/_expr_{small_coads,small_levitus}{define grid/like=SST cg;A=SST[d=1]-TEMP[d=2,g=cg]}”

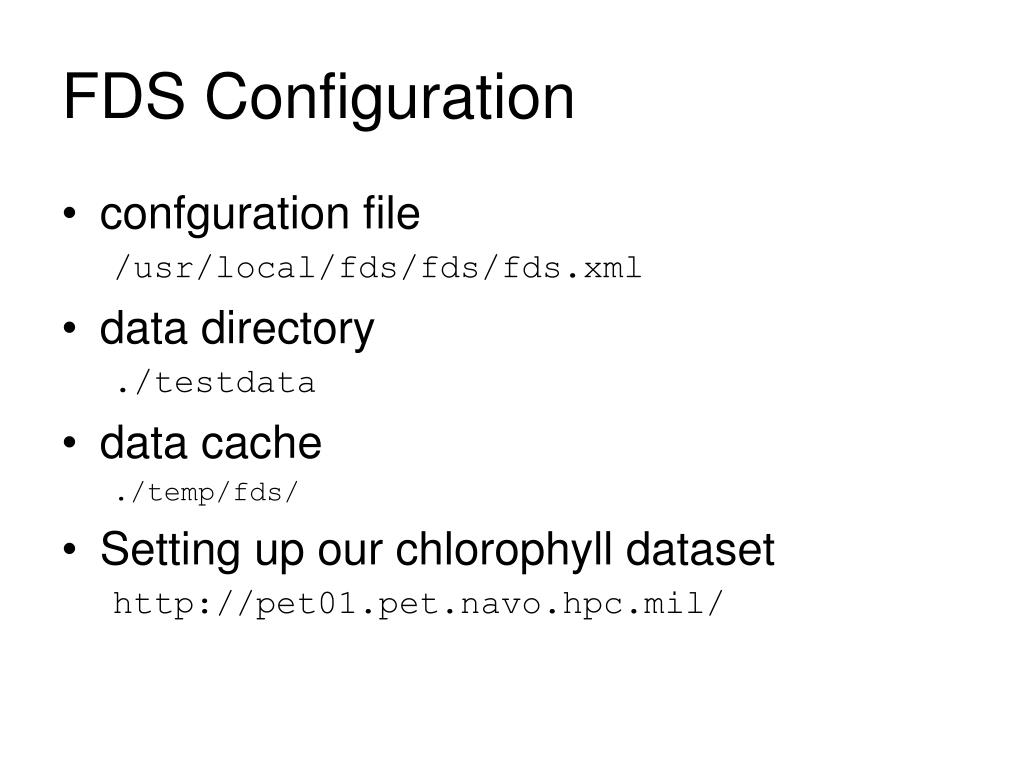

Fds configuration l.jpg
FDS Configuration

  • confguration file

    /usr/local/fds/fds/fds.xml

  • data directory

    ./testdata

  • data cache

    ./temp/fds/

  • Setting up our chlorophyll dataset

    http://pet01.pet.navo.hpc.mil/
