Chapter 10 – Electrical, Antenna Structure and RF Safety Practices

  • Open and Short Circuits

  • Electrical Safety

  • Grounding

  • RF Environmental Safety Practices

  • RF Awareness Guidelines

  • Maximum Permissible Exposure (MPE) Limits

  • Limiting RF Exposure


Normal open and short circuits l.jpg
Normal, Open and Short Circuits Practices

  • Normal Circuit

    • When normal current is flowing through the circuit

  • Open Circuit

    • When the current flow is interrupted by switch or fuse

    • Circuit break presents an extremely high resistance.

  • Short Circuit

    • When the current flowing through the circuit is following a “shorter” low resistance path between the power source terminals.

    • Allows high current to flow in the circuit


Normal open and short circuits3 l.jpg

SW Practices

SW

+

+

R

R

E

E

I=E/R

I=0

Normal Circuit

Open Circuit

Normal, Open and Short Circuits

SW

Short circuit is a very low resistance path across voltage source.

Current can be very high and possibly result in a fire.

A fuse in the circuit can protect against a short circuit condition by forming an open circuit.

+

R

E

I

Short Circuit


Fuses l.jpg
Fuses Practices

  • A device made of metal that will heat up and melts when a certain amount of current flows in a circuit.

  • A fuse creates an open circuit when blown.

  • A fuse should never be used in the neutral or ground line of a ac power circuit.

  • In a mobile installation, fuses should be installed in both negative and positive supply leads as close to the battery as possible.


Electrical safety guidelines l.jpg
Electrical Safety Guidelines Practices

  • A main station power switch should be used to turn off all equipment at once.

  • Never operate equipment without proper shields installed over all circuit components.

    • A safety interlock can be used to automatically turn off power when a shield or cover is removed.

  • High voltage power capacitors may remain charged even if power has been turned off.

    • Should be manually discharged before servicing equipment.


Electrical safety guidelines cont d l.jpg
Electrical Safety Guidelines (Cont’d) Practices

  • Electrical codes require three-wire power cords and plugs on many tools and appliances.

    • The “hot” wire is usually black.

    • The “neutral” wire is usually white.

    • The frame/ground wire is usually green or bare wire.

  • Do not install higher current capacity fuses in an existing circuit.


Electrical safety guidelines cont d7 l.jpg
Electrical Safety Guidelines (Cont’d) Practices

  • Antenna/tower safety

    • Always wear a safety belt in good condition, a helmet and safety glasses when climbing a tower.

    • Do not stand under a tower when someone is climbing

    • Keep antennas and towers away from electrical power lines.

  • Always respect electricity

    • As little as 100 mA of current can be fatal.

    • The minimum voltage that can be dangerous to humans is 30 volts.


Antenna and tower installation l.jpg

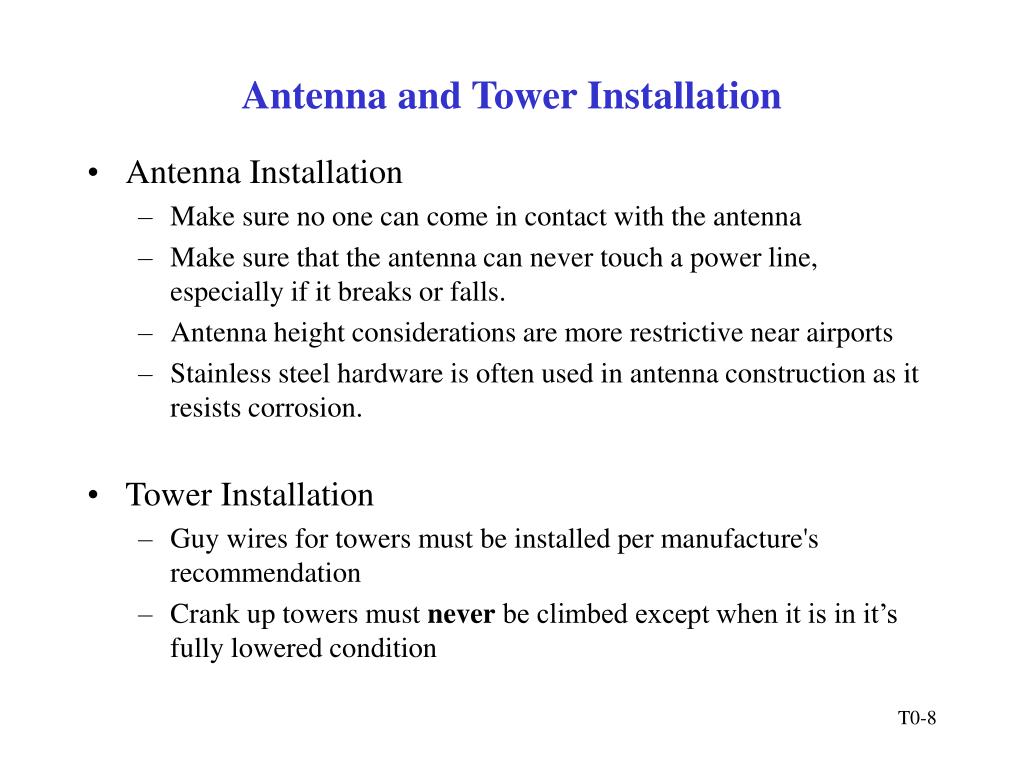

Antenna and Tower Installation Practices

  • Antenna Installation

    • Make sure no one can come in contact with the antenna

    • Make sure that the antenna can never touch a power line, especially if it breaks or falls.

    • Antenna height considerations are more restrictive near airports

    • Stainless steel hardware is often used in antenna construction as it resists corrosion.

  • Tower Installation

    • Guy wires for towers must be installed per manufacture's recommendation

    • Crank up towers must never be climbed except when it is in it’s fully lowered condition


Grounding l.jpg
Grounding Practices

  • All station equipment should be connected to a good ground.

    • The best ground is provided by ground rods located near the station.

    • All rods must be connected together to form a single grounding system.

  • All antennas, feed lines and rotor cables should be grounded for effective lightning protection

    • The best protection is to disconnect all cables and ground the cables.


Grounding10 l.jpg
Grounding Practices


Rf environmental safety practices l.jpg
RF Environmental Safety Practices Practices

While Amateur radio is a safe activity, there has been considerable discussion and concern in recent years about the possible hazards of electro-magnetic radiation (EMR) including both RF energy and power frequency (50-60 Hz) electromagnetic fields.


Rf environmental safety practices12 l.jpg
RF Environmental Safety Practices Practices

  • RF Energy

    • RF energy is electric and magnetic energy between 3 kHz and 300 GHz.

    • RF and 60 Hz fields are nonionizing radiation. X-rays, gamma rays and some ultraviolet radiation are classified as ionizing radiation.

  • Thermal Effects

    • RF exposure limits for the human body is frequency dependent.

    • Amateur RF exposure for SSB and CW operations is reduced due to low transmission duty cycles.


Rf awareness guidelines l.jpg
RF Awareness Guidelines Practices

  • Confine antenna radiation to the radiating elements. Provide a single, good station ground, and eliminate radiation from transmission lines. Use good coaxial cable, not open-wire lines or end-fed antennas that come directly into the transmitter area.

  • No person should near any transmitting antenna while it is in use. This is especially true for mobile or ground mounted vertical antennas. Avoid transmitting with more than 25 watts in a VHF mobile installation unless it is possible to first measure the RF fields inside the vehicle. At the 1 KW level, both HF and VHF directional antennas should be at least 35 ft above inhabited areas. Avoid using indoor and attic-mounted antennas if at all possible.


Rf awareness guidelines cont d l.jpg
RF Awareness Guidelines (Cont’d) Practices

  • Don’t operate high-power amplifiers with the covers removed, especially at VHF/UHF frequencies.

  • Never look into the open end of an activated UHF/SHF length of microwave waveguide or point it toward anyone. Never point a high-gain, narrow-bandwidth antenna toward people. Use caution if aiming an EME array toward the horizon.

  • When using hand-held transceivers, keep the antenna away from your head and use the lowest power necessary to maintain communications. Use a separate microphone and hold the rig as far away as possible.


Rf awareness guidelines cont d15 l.jpg
RF Awareness Guidelines (Cont’d) Practices

  • Don’t work on antennas that have RF energy applied.

  • Don’t stand or sit close to a power supply or linear amplifier when the ac power is turned on. Stay at least 24 inches away from power transformers, electrical fans and of other sources of high-level 60 Hz magnetic fields.


Fcc rf exposure regulations l.jpg
FCC RF Exposure Regulations Practices

  • Maximum Permissible Exposure (MPE)

    • Regulations control exposure to RF fields, not the strength of RF fields.

    • All radio stations must comply with the MPE requirements.

    • MPE limits are specified in:

      • Maximum electric field (Volts/meter)

      • Maximum magnetic field (Amperes/meter)

      • Power density (mWatt/cm2)

    • If multiple MPE limits are specified for a given frequency and a station exceeds a single limit, then the station is not in compliance.


Limits to maximum permissible exposure mpe l.jpg
Limits to Maximum Permissible Exposure (MPE) Practices

  • Notes:

  • f = frequency in MHz

  • Power density is plane wave equivalent power density.


Mpe power density limits l.jpg
MPE Power Density Limits Practices

Controlled

Uncontrolled

HF

VHF

UHF

.3 to 3

3 to 30

30 to 300

300 to 1500

1500 to 100000


Fcc rf exposure regulations19 l.jpg
FCC RF Exposure Regulations Practices

  • Environments

    • A controlled environment is one in which the people who are being exposed are aware of the exposure and can take steps to minimize that exposure.

      • FCC has determined that amateur operators and members of their families fall into this environment category.

    • An uncontrolled environment is one in which the people being exposed are not normally aware of the exposure.

      • The uncontrolled environment limits are more stringent than the controlled environment limits.


Fcc rf exposure regulations20 l.jpg
FCC RF Exposure Regulations Practices

  • Station Evaluations

    • FCC requires that certain amateur stations be evaluated for MPE compliance.

    • FCC Office of Engineering and Technology (OET) Bulletin 65 and the Amateur Supplement to that Bulletin contains tables to assist in MPE compliance evaluations.

    • Power density levels in the FCC tables can be adjusted for the duty cycle of the operating environment being used.

      • Averaged over 6 minutes for a controlled environment.

      • Averaged over 30 minutes for an uncontrolled environment.


Fcc rf exposure regulations21 l.jpg
FCC RF Exposure Regulations Practices

  • Categorical Exemptions

    • FCC has exempted certain stations from the MPE evaluation requirement:

      • If the transmitter output PEP is less than or equal to limits specified in Section 97.13(c).

        • Exemption includes a VHF transceiver of 50 watts or less.

      • Certain repeater stations.

      • Hand-held radios and mobile radios using a push-to-talk button.


Power thresholds for routine evaluations l.jpg
Power Thresholds for Routine Evaluations Practices

97.13(c)

* Transmitter power = Peak-envelope power input to antenna.


Routine station evaluations l.jpg
Routine Station Evaluations Practices

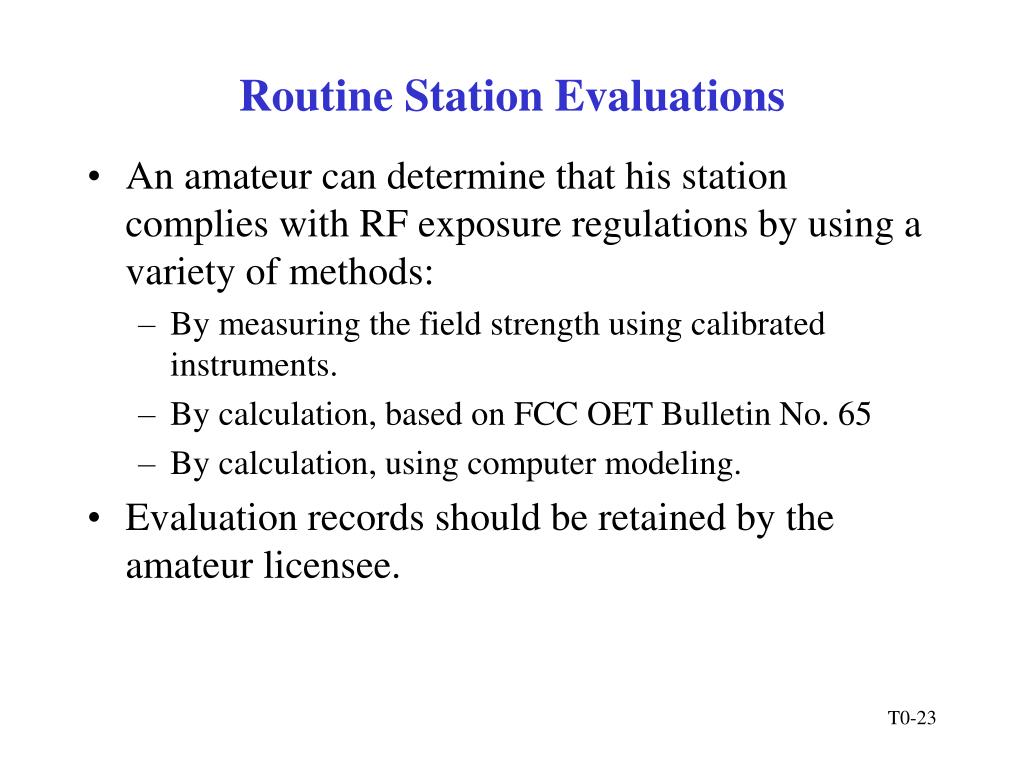

  • An amateur can determine that his station complies with RF exposure regulations by using a variety of methods:

    • By measuring the field strength using calibrated instruments.

    • By calculation, based on FCC OET Bulletin No. 65

    • By calculation, using computer modeling.

  • Evaluation records should be retained by the amateur licensee.



Field strengths around your antenna l.jpg
Field Strengths Around Your Antenna Practices

  • Field strengths around an antenna can be determined by direct measurement, using calibrated instruments, or by calculations using either tables or computer software.

  • For analysis purposes, the area around an antenna is divided into the following regions:

    • Reactive near field

      • Considered to be within a half wavelength of antenna

    • Radiating near field

      • Field strength varies as inverse square of distance

    • Radiating far field


Field strengths around your antenna26 l.jpg
Field Strengths Around Your Antenna Practices

Dipole

Antenna

Far Radiating Field

Reactive

Field

L

Near Radiating Field


Limiting rf exposure l.jpg
Limiting RF Exposure Practices

  • Reduce transmitter power

  • Raise your antenna higher in the air and farther away from your neighbor’s property line

    • Half-wavelength dipole antennas generally generate a stronger RF field directly under the antenna that other types of antennas.

  • Do not aim your antenna in a direction where people are likely to be located.

  • Select an operating frequency with a higher MPE limit.


Limiting rf exposure cont d l.jpg
Limiting RF Exposure (Cont’d) Practices

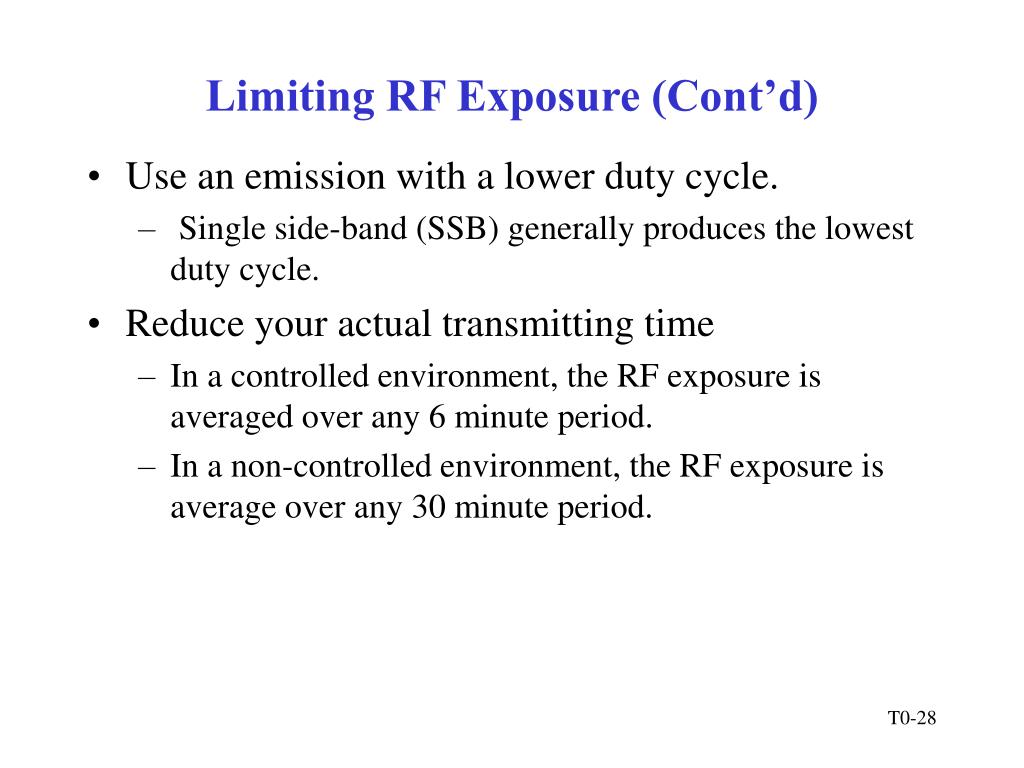

  • Use an emission with a lower duty cycle.

    • Single side-band (SSB) generally produces the lowest duty cycle.

  • Reduce your actual transmitting time

    • In a controlled environment, the RF exposure is averaged over any 6 minute period.

    • In a non-controlled environment, the RF exposure is average over any 30 minute period.
