Presentation Transcript


The mathematics of star trek l.jpg
The Mathematics of Star Trek

Lecture 11: Extra-Solar Planets


Outline l.jpg
Outline

  • Finding Extra-Solar Planets

  • The Two-Body Model

  • A Celestial Cubic

  • Example-51-Pegasi


Finding extra solar planets l.jpg
Finding Extra-Solar Planets

  • Recent discoveries of planets orbiting stars rely on a type of problem known as an inverse problem.

  • In the paper “A Celestial Cubic”, Charles Groetsch shows how the orbital radius and mass of an unseen planet circling a star can be obtained from the star’s spectral shift data, via the solution of a cubic equation!


The two body model l.jpg
The Two-Body Model

  • Assume a far-off star of mass M is orbited by a single planet of mass m<M, with a circular orbit of radius R.

  • The star and planet orbit a common center of mass (c.o.m.).

  • To an observer on Earth, the star will appear to wobble.

    • Think of a hammer thrower spinning around—the thrower is the star and the hammer is the planet!


The two body model cont l.jpg
The Two-Body Model (cont.)

  • On earth, we see this wobble as a Doppler shift in the wavelength of the light from the star.

    • As the star moves towards us, the light shifts towards the blue end of the spectrum.

    • As the star moves away from us, the light shifts towards the red end of the spectrum.

  • The magnitude of these shifts determine the radial velocity of the star relative to Earth.

  • The time between successive peaks in the wavelength shifts gives the orbital period T of the star and planet about their center of mass.


The two body model cont6 l.jpg
The Two-Body Model (cont.)

  • For our model, we assume the following:

    • The star orbits the center of mass in a circle of radius r with uniform linear speedv.

    • The Earth lies in the orbital plane of the star-planet system.

    • The distance D from the Earth to the center of mass of the star-planet system is much greater than r (D >> r).


The two body model cont7 l.jpg
The Two-Body Model (cont.)

  • Recall from trigonometry that v =  r, where  is the angular speed.

  • Also recall that  =/t, where  is the angle in radians traced out in t seconds by the star as it orbits around the center of mass.

D

c.o.m.

Earth

r

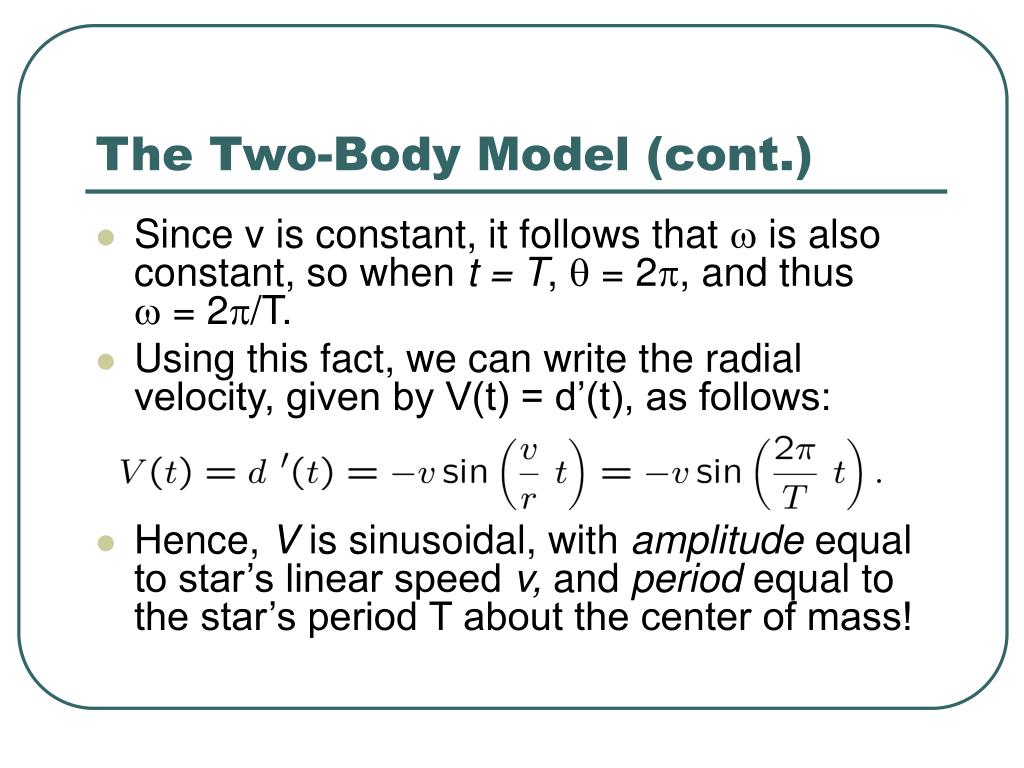

The two body model cont8 l.jpg
The Two-Body Model (cont.)

  • Since v is constant, it follows that  is also constant, so when t = T,  = 2, and thus  = 2/T.

  • Using this fact, we can write the radial velocity, given by V(t) = d’(t), as follows:

  • Hence, V is sinusoidal, with amplitude equal to star’s linear speed v, and period equal to the star’s period T about the center of mass!


The two body model cont9 l.jpg
The Two-Body Model (cont.)

  • Measuring wavelength shifts in the star’s light over time, a graph for V(t) can be found, from which we can get values for v and T.

  • Then, knowing v and T, we can find the orbital radius r of the star about the center of mass:

  • Finally, the mass M of the star can be found by direct observation of the star’s luminosity.


The celestial cubic l.jpg
The Celestial Cubic

  • At this point, we know M, v, T, and r.

  • We still want to find the radius R of the planet’s orbit about its star and the mass m of the planet.

  • From physics, the centripetal force on the star rotating around the c.o.m. is equal to the gravitational force between the planet and star.


The celestial cubic cont l.jpg
The Celestial Cubic (cont.)

  • The centripetal force is given by

  • Parameterizing the star’s orbit about the center of mass, we find the planet’s position vector to be:


The celestial cubic cont12 l.jpg
The Celestial Cubic (cont.)

  • Differentiating twice, we see that the acceleration of the star is given by:

    so the magnitude of the centripetal force on the star is

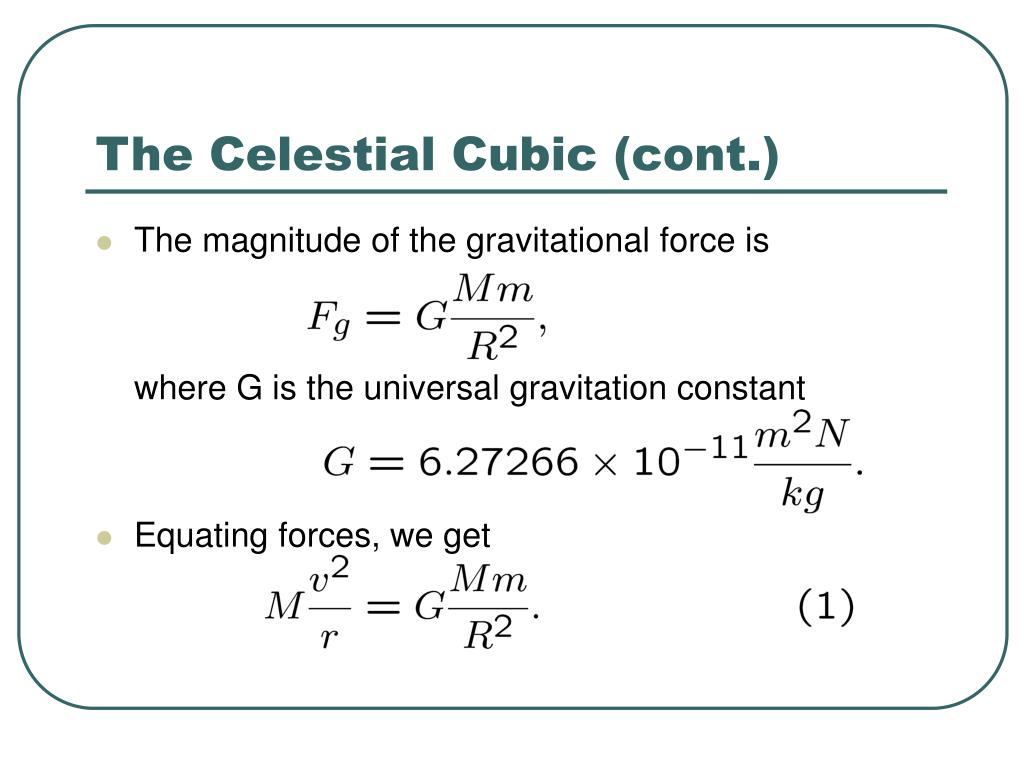

The celestial cubic cont13 l.jpg
The Celestial Cubic (cont.)

  • The magnitude of the gravitational force is

    where G is the universal gravitation constant

  • Equating forces, we get

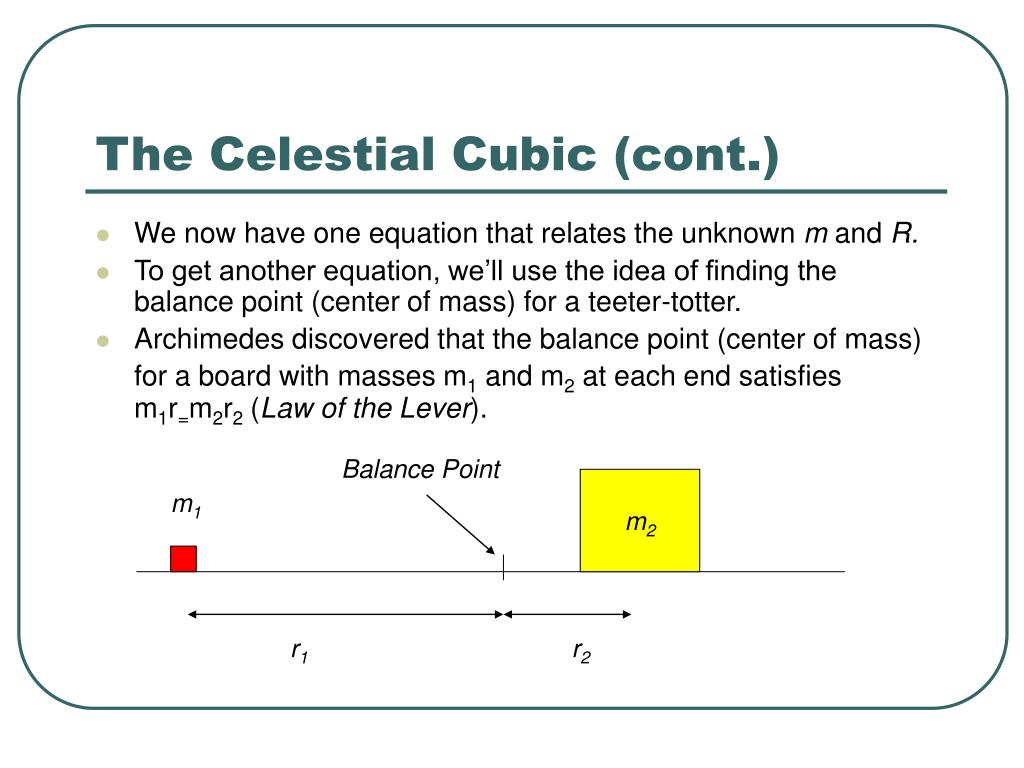

The celestial cubic cont14 l.jpg
The Celestial Cubic (cont.)

  • We now have one equation that relates the unknown m and R.

  • To get another equation, we’ll use the idea of finding the balance point (center of mass) for a teeter-totter.

  • Archimedes discovered that the balance point (center of mass) for a board with masses m1 and m2 at each end satisfiesm1r=m2r2 (Law of the Lever).

Balance Point

m2

m1

r1

r2


The celestial cubic cont15 l.jpg
The Celestial Cubic (cont.)

c.o.m.

r

R-r

  • Thinking of the planet and star as masses on a teeter-totter, the Law of the Lever implies,

  • Solving (2) for R and substituting into (1), we find



The celestial cubic cont17 l.jpg
The Celestial Cubic (cont.)

  • Dividing (3) by M2, and setting

    and

    we find that x and  satisfy the following cubic equation:


Example 51 pegasi l.jpg

Measured wavelength shifts of light from the star 51-Pegasi show that

v = 53 m/s,

T = 4.15 days, and

M = 1.99 x 1030 kg.

Use Mathematica to find r, , x, and m by finding the roots of (4) directly.

Example-51-Pegasi


Example 51 pegasi cont l.jpg
Example-51-Pegasi (cont.) show that

  • Repeat, using a fixed-point method to solve the following equation which is equivalent to (4):

  • Groetsch argues that equation (4) can be solved by iteration of (5), via

  • Try this with Mathematica and compare to the solution above.


References l.jpg
References show that

  • C.W. Groetsch, “A Celestial Cubic”, Mathematics Magazine, Vol. 74, No. 2, April 2001, pp. 145 - 152.

  • C.P. McKeague, Trigonometry (2cd ed), Harcourt Brace, 1988.

  • J. Stewart, Calculus: Early Transcendentals (5th ed), Brooks - Cole, 2003.

  • http://zebu.uoregon.edu/51peg.html
