Presentation Transcript
Slide1 l.jpg

Broad Area Maritime Unmanned Aircraft System (BAMS UAS) Overview presented toNew Horizon’s Forum PanelUnmanned Air Systems: The Next Generations 7 January 2010

CAPT Bob Dishman

Program Manager, PMA-262


Uas family of systems interoperable affordable commonality in software parts training interfaces l.jpg
UAS Family of SystemsInteroperable, Affordable, Commonality in: Software – Parts – Training – Interfaces

2007

2015

2025

PENETRATING

NAVY UCAS

NAVY UCAS DEMO

USN

FY11

USN

PERSISTENT

BAMS-D

AI

BAMS

USN

USN

VTUAV

VUAS AOA

USMC

TIER 3

TACTICAL

USN

SHADOW

PIONEER

FY08

USN / USMC

USMC

TIER 2

SMALL

TACTICAL

ISR SERVICES

TIER II / STUAS

FY12

USN / USMC

USN / USMC

RAVEN B

DRAGON EYE

  • Enablers:

  • Open / Scalable Systems

  • Standardized Interfaces

  • Total Force Strategy

TIER 1

USMC

USMC

INCREASING REACH, C2 INTEGRATION, & COMPLEXITY

INCREASING PERFORMANCE, PAYLOAD, VEHICLE SIZE

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-983

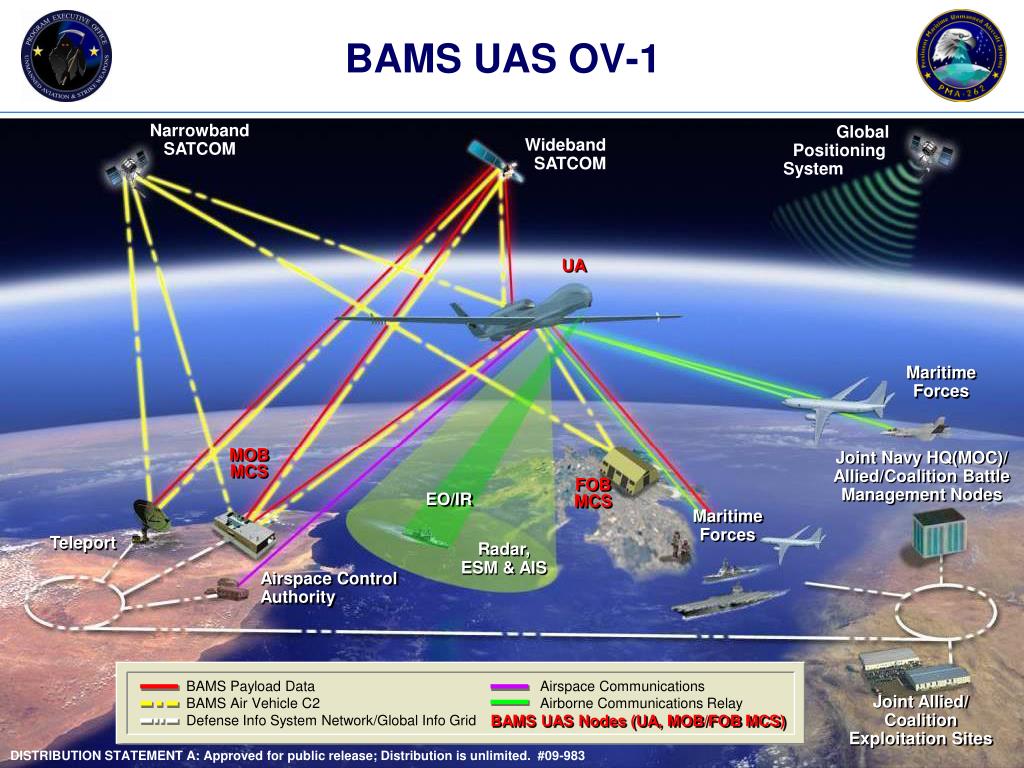

Bams uas ov 1 l.jpg
BAMS UAS OV-1

Narrowband

SATCOM

Global

Positioning

System

Wideband

SATCOM

UA

Maritime Forces

MOBMCS

Joint Navy HQ(MOC)/ Allied/Coalition Battle Management Nodes

FOBMCS

EO/IR

Maritime Forces

Teleport

Radar, ESM & AIS

Airspace Control Authority

BAMS Payload Data

BAMS Air Vehicle C2

Defense Info System Network/Global Info Grid

Airspace Communications

Airborne Communications Relay

Joint Allied/Coalition Exploitation Sites

BAMS UAS Nodes (UA, MOB/FOB MCS)

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-983


Maritime patrol reconnaissance force family of systems concept l.jpg
Maritime Patrol & Reconnaissance Force Family of Systems Concept

  • P-8A

  • Persistent ASW (Core)

  • ASUW

Many configurations on aging platforms

Three platforms

  • P-3

  • Broad Area ASW

  • ASuW

  • Maritime ISR

  • Littoral ISR

  • BAMS UAS

  • Persistent ISR (Core)

  • Airborne Data Relay

  • EP-3

  • SIGINT

  • Real time fusion

  • Direct threat warning

  • EPX (EP-3 Recap)

  • Information Operations (Core)

  • Maritime Multi-INT ISR

Smaller, more netted, more effective force

MPR Family of Systems fills a critical capability gap for Navy Fleet assets that support tactical users

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-983


Bams uas air vehicle configuration l.jpg
BAMS UASAir Vehicle Configuration

Metallic Fuselage

  • Advanced Mission Management System (AMMS)

  • Onboard Server

  • Data Correlation

  • Payload, Bandwidth Control

Rolls-Royce AE3007H

  • 23+ Million hrs

  • 8,730 lb Thrust (SL)

Automatic Identification System (AIS)

Graphite

Empennage

IFF Antenna

Graphite Wing

WB Satcom

9” CDL Dish Antenna(Port and Starboard)

MTS-B EO/IR Sensor

  • 360° Field of Regard

  • Auto-Target Tracking

  • Hi Res EO/IR at Multiple FOVs

  • Multi-Mode Color Video

De-icing

Hail and Bird Strike Resistance

Hard Points

  • 2,400 lb Total

Space, Weight & Power

  • Merlin ESM

  • 360° FOR

Global Hawk RQ-4N

Due Regard Radar

  • Safe Separation

  • Multi-Function Active Sensor (MFAS) Maritime Radar

    • 360° X-Band 2D AESA Radar

    • Maritime and Air/Ground Modes

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-1002


World wide presence l.jpg
World Wide Presence

Over 55,000 annual flight hours

1.2 Million hours of Persistent Maritime ISR delivered to the Fleet!

IOC: One forward based unit with sufficient assets, technical data,

training systems, and enough spares and support equipment to

support one persistent ISR orbit

FOC: Full operating capability supports continuous orbits for worldwide

access from five simultaneous theaters

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-983


Managing the processing exploitation and dissemination ped of data l.jpg
Managing the Processing, Exploitation and Dissemination (PED) of Data

Sensor data from UA

Teleport

Sensor data from UA

BAMS UA

Worldwide

Wideband SATCOM

CDL / Link-16

Main Operating Base (MOB)

MPRA

DCGS-N

Afloat Nodes

Mission Control System

(MCS)

CSG/ESG

DISA

First Pass Analysis from MCS

GIG

POP

GCCS-M, AIS, Chat, VoIP

DCGS-N

Enterprise Node

SIPRNET

Exploitation Sites

Sensor data to Exploitation Sites

(e.g. NMIC, MOC/MIOCs, NGA, DCGS FoS, FIOC)

DCGS Family of

Systems (Air Force, Army, Marines, SOF, DCGS-IC)

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-1061


Bams uas airspace domain l.jpg
BAMS UAS Airspace Domain (PED) of Data

  • Oceanic/Littoral

  • Primary Mission Area

    • ICAO civil procedures

    • Due Regard operations

  • U.S./Foreign NAS

  • Transit to/from primary mission area

    • Civil Airspace

    • Military Airspace

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #09-1002


Bams uas airspace integration requirements overview l.jpg

BAMS UAS is required to operate in global, civil and military air traffic management environments

Civil

CNS/ATM

Equipage

RNP-4

RVSM

ADS-B/TCAS

Procedures (ICAO Annex 2 & 11)

Ops approval – FAA COA

Due Regard

Collision avoidance obtained through layers of protection

Pilot-in-the-loop

Cooperative/Uncooperative sensors

Ops approval – Navy

Future?

Autonomous Airborne Sense & Avoid

BAMS UAS Airspace Integration Requirements Overview

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #08-1192


Summary l.jpg
Summary military air traffic management environments

  • BAMS UAS program will deliver a persistent maritime ISR capability never before available to the Fleet and warfighter

  • PED: Networks are the lifeblood of any unmanned system

    • Challenges:

      • Getting the right data to the right customer at the right time

      • Manpower

      • Bandwidth

      • Automation/Data Fusion

  • Integrating UAS operations into civil airspace worldwide is a key enabler to realizing the full potential of future unmanned systems

DISTRIBUTION STATEMENT A: Approved for public release; Distribution is unlimited. #10-002


Slide11 l.jpg

QUESTIONS? military air traffic management environments

CAPT Bob Dishman, USN [email protected]
