Types of Fire Sprinkler Heads

Pendent Sprinklers have deflectors below the sprinklers, while upright sprinklers are mounted with deflectors above the sprinklers. Many industries use pendent sprinklers in areas with finished ceilings, and upright sprinklers are used in areas without finished ceilings.<br>Visit: http://www.ranjitmarketing.com/Fire-Fighting-Products/sprinklers<br>

RanjitMarketing
Download Presentation

Types of Fire Sprinkler Heads

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

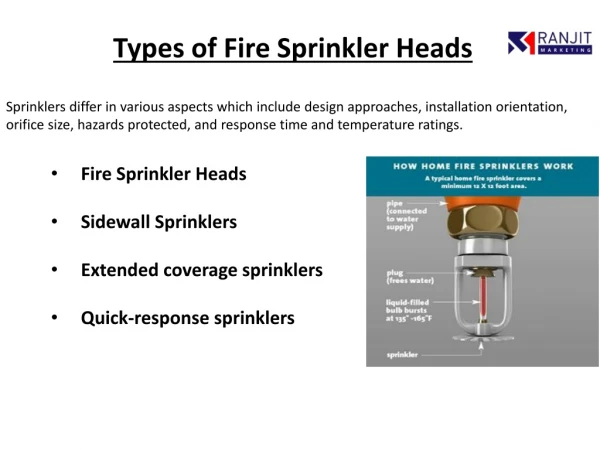

  1. Sprinklers differ in various aspects which include design approaches, installation orientation, orifice size, hazards protected, and response time and temperature ratings. Types of Fire Sprinkler Heads • Fire Sprinkler Heads • Sidewall Sprinklers • Extended coverage sprinklers • Quick-response sprinklers

  2. Pendant/Upright Sprinklers Pendent Sprinklers have deflectors below the sprinklers, while upright sprinklers are mounted with deflectors above the sprinklers. Many industries use pendent sprinklers in areas with finished ceilings, and upright sprinklers are used in areas without finished ceilings. Concealed pendent and recessed pendent sprinklers are also there. Recessed pendent sprinklers body is partially fitted in ceiling surface while concealed sprinklers body is completely hidden above a cover plate.

  3. Sidewall Sprinklers Sidewall sprinklers are usually employed when sprinkler fitting in the ceiling is not feasible due to section geometry or some other issues. These sprinklers have different design specifications than standard spray sprinklers and are projected horizontally from the wall. The major concerns are the difficult concealing piping in the walls and limited space that can be preserved by sidewall sprinklers.

  4. Extended Coverage Sprinklers You hardly get time to spend with your family. Due to home cleaning task or cooking, you are unable to take out time for your children and family. For all these tasks you can hire professionals for cleaning your home and you will get sufficient time to enjoy.

  5. Quick-Response Sprinklers In quick response sprinkler, the thermal operating portion operates quicker than the one in a standard sprinkler, allowing water discharge earlier before the fire grows. The main benefits of fire sprinklers are property protection and an increase in the level of life safety and a reduction in hydraulic requirements. For standard light risks, quick-response sprinklers got extensively specified as their drawbacks are minimal.

  6. We are an ISO 9001 company, established in March 2012. Ranjit Marketing resell and trade different types of valves & fire fighting extinguishers. Visit: Ranjit Marketing ADDRESS DELHI OFFICE: B-73, Fateh Nagar, Jail Road, New Delhi-110018 8506905100, 7838241205
