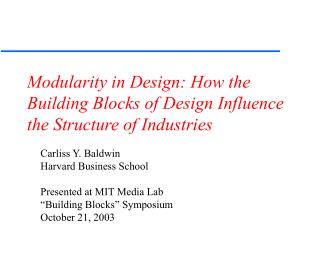

Modularity in design how the building blocks of design influence the structure of industries l.jpg

Modularity in Design: How the Building Blocks of Design Influence the Structure of Industries

Carliss Y. Baldwin

Harvard Business School

Presented at MIT Media Lab

“Building Blocks” Symposium

October 21, 2003


Three points l.jpg
Three Points Influence the Structure of Industries

  • Modularity in Design is a financial force

    • that can change the structure of an industry.

  • Value and Cost of Modularity

    • it can increase financial value,

    • but it is NOT free.

  • What is Modularity in Design?

    • How to map it, measure it.

Slide 2 © Carliss Y. Baldwin and Kim B. Clark, 2003


The market value of the computer industry by sector 1950 1996 in constant 1996 us dollars l.jpg
The Market Value of the Computer Industry Influence the Structure of IndustriesBy sector, 1950-1996 in constant 1996 US dollars

Slide 3 © Carliss Y. Baldwin and Kim B. Clark, 2003


The market value of the computer industry by sector 1950 1996 in constant 1996 us dollars4 l.jpg
The Market Value of the Computer Industry Influence the Structure of IndustriesBy sector, 1950-1996 in constant 1996 US dollars

Slide 4 © Carliss Y. Baldwin and Kim B. Clark, 2003


Modularity is powerful but l.jpg
Modularity is powerful, but… Influence the Structure of Industries

  • NOT always a good thing.

  • I advocate—

    • rigorous mapping, measurement, and analysis of modularity

    • Not blind adoption

  • Its virtues:

    • Makes complexity managable

    • Enables parallel work

    • “Welcomes experimentation”

    • —> Creates Options

Slide 5 © Carliss Y. Baldwin and Kim B. Clark, 2003


Types of modularity l.jpg
Types of Modularity Influence the Structure of Industries

  • Modular in Design

    • Modern computers

    • Eclectic Furniture (not “modular” furniture)

    • Recipes in a cookbook

  • Modular in Production

    • Engines and Chassis

    • Hardware and software

    • NOT chips, NOT a cookbook

  • Modular in Use

    • “Modular” furniture, bedding

    • Suits and ties

    • Recipes in a cookbook

Slide 6 © Carliss Y. Baldwin and Kim B. Clark, 2003


Modularity in design creates design options l.jpg
Modularity-in-Design Creates Design Options Influence the Structure of Industries

Split options, decentralize decisions,fragment control Evolution

Slide 7 © Carliss Y. Baldwin and Kim B. Clark, 2003


Design options are valuable l.jpg

Design Options are Valuable Influence the Structure of Industries

How Valuable?

Ask a financial economist…


What is the value of l.jpg
What is the value of… Influence the Structure of Industries

  • Splitting a design into J modular building blocks…and

  • Running multiple experiments (K of them) on each of the modules… and

  • Choosing the “best of breed” of each module… and

  • Combining the best modular building blocks to arrive at the system?

Slide 9 © Carliss Y. Baldwin and Kim B. Clark, 2003


Robert c merton l.jpg
Robert C. Merton Influence the Structure of Industries

  • “Theory of Rational Option Pricing”,

    • Written for— MIT PhD thesis, 1971;

    • Published in— Bell Journal of Economics and Management Science, 1973;

    • Awarded— Nobel Prize in Economics, 1997

  • “A portfolio of options is worth more than the option on a portfolio.”

Slide 10 © Carliss Y. Baldwin and Kim B. Clark, 2003


What is the value of11 l.jpg

Splitting Influence the Structure of Industries a design into J modular building blocks…and

Running multiple experiments (K of them) on each of the modules… and

Choosing the “best of breed” of each module… and

Combining the best modules to arrive at the system?

Going from one big indivisible block….

To many smaller building blocks

Where each building block is a (little) option

That gets recombined with others in a (large) portfolio

What is the value of…

Slide 11 © Carliss Y. Baldwin and Kim B. Clark, 2003


Slide12 l.jpg

Slide 11 Influence the Structure of Industries

© Carliss Y. Baldwin and Kim B. Clark, 2001


The value of splitting and substitution l.jpg
The Value of Splitting and Substitution Influence the Structure of Industries

Slide 13 © Carliss Y. Baldwin and Kim B. Clark, 2003


When and if it arrives l.jpg
When and if it arrives… Influence the Structure of Industries

Modularity in design is

compelling, surprising and dangerous…

Slide 14 © Carliss Y. Baldwin and Kim B. Clark, 2003


The market value of the computer industry by sector 1950 1996 in constant 1996 us dollars15 l.jpg
The Market Value of the Computer Industry Influence the Structure of IndustriesBy sector, 1950-1996 in constant 1996 US dollars

Slide 15 © Carliss Y. Baldwin and Kim B. Clark, 2003


Ibm system 360 l.jpg
IBM System/360 Influence the Structure of Industries

  • The first modular computer design

  • IBM did not understand the option value it had created

  • Did not increase its inhouse product R&D

  • Result: Many engineers left

    • to join “plug-compatible peripheral” companies

  • San Jose labs —> Silicon Valley

    “Compelling, surprising, dangerous”

Slide 16 © Carliss Y. Baldwin and Kim B. Clark, 2003


What is modularity l.jpg

What is Modularity? Influence the Structure of Industries

We can “see it” via a

Design Structure Matrix (DSM) Map


Slide18 l.jpg

Design Structure Matrix Map of a Laptop Computer Influence the Structure of Industries

Slide 18 © Carliss Y. Baldwin and Kim B. Clark, 2003


Slide19 l.jpg

Design Structure Matrix Map of a Modular System Influence the Structure of Industries

Slide 19 © Carliss Y. Baldwin and Kim B. Clark, 2003


A modularization splitting of a complex design goes from map a to map b l.jpg

A “modularization” (splitting) of a complex design goes from Map A to Map B

Via Design Rules, which specify

Architecture, Interfaces and Module Tests, that provide

Encapsulation and Information Hiding.


The costs of modularity l.jpg

The Costs of Modularity from Map A to Map B


Slide22 l.jpg

Every important cross-module interdependency must be addressed via a design rule.

This is costly

Costs eat up the option value

Modularization may not pay

Slide 22 © Carliss Y. Baldwin and Kim B. Clark, 2003


Experiments are also costly thus each module has a unique value profile l.jpg
Experiments are also costly, thus each module has a unique “value profile”.

Value Profile of a Sun Microsystems Workstation circa 1992

Slide 23 © Carliss Y. Baldwin and Kim B. Clark, 2003


The perils of modularity l.jpg

The Perils of Modularity “value profile”.


Ibm personal computer l.jpg
IBM Personal Computer “value profile”.

  • Highly modular architecture

  • IBM outsourced hardware and software

  • Controlled one high-level chip (BIOS) and the manufacturing process

    Then

  • Compaq reverse-engineered the BIOS chip

  • Taiwanese lowered manufacturing costs

    By 1990 IBM was seeking to exit the unprofitable PC marketplace!

Slide 25 © Carliss Y. Baldwin and Kim B. Clark, 2003


Compaq vs dell l.jpg
Compaq vs. Dell “value profile”.

  • Dell did to Compaq what Compaq did to IBM…

  • Dell created an equally good machine, and

  • Used process modularity to reduce its production, logistics and distribution costs and increase ROIC

    • Negative Net Working Capital

    • Direct sales, no dealers

      By 1990 Compaq was seeking to exit the unprofitable PC marketplace!

Slide 26 © Carliss Y. Baldwin and Kim B. Clark, 2003


Modularity in design is not good or bad it is important and it is costly and dangerous to ignore l.jpg

“Modularity-in-design is not good or bad. It is important and it is costly. And dangerous to ignore.”


Just remember compelling surprising dangerous l.jpg

Just remember— and it is costly. And dangerous to ignore.”“Compelling, surprising, dangerous…”


Thank you l.jpg

Thank you! and it is costly. And dangerous to ignore.”
