Presentation Transcript
Slide1 l.jpg
MIDI

  • One choice for adding sounds to multimedia applications is the use of digital audio soundfiles

    • This can become very memory intensive, however, for large soundfiles

    • For example, a stereo 16 bit/sample 22 kHz soundfile requires > 5 mbytes per minute of audio

  • As an alternative to the use of soundfiles, MIDI files have been considered


Slide2 l.jpg
MIDI

  • MIDI (Musical Instrument Digital Interface) is a standardized control language and hardware specification

    • allows suitably equipped electronic musical instruments and devices to communicate real-time and nonreal-time performance and control data

  • MIDI data is communicated digitally through a production system as a string of MIDI messages


Slide3 l.jpg
MIDI

  • The messages are transmitted (in a serial fashion) through a single MIDI line at 31.25 K bits/second

  • Usually, MIDI instruments and devices are linked together in a daisy-chain fashion

  • The following slide shows an example


Slide5 l.jpg
MIDI

  • MIDI messages are bytes that are interpreted by the MIDI devices

    • The messages are used to convey a series of instructions to one or all of the MIDI devices within the system.

  • The messages can be divided into two types:

    • Channel messages are messages assigned to a specific MIDI channel

    • System messages address all devices in a system, without regard to channel assignment


Midi messages l.jpg
MIDI Messages

  • The following is a typical 3 byte MIDI Note On message: (10010101) (01000000) (01011010)

  • This message is interpreted as follows.

    • The first byte is the status byte while the second and third are data bytes

    • The most significant bit of the byte determines which type of byte it is

    • The next three bits of the status byte code the Note On message

    • The four least significant bits give the channel to which this message is directed

      • In the case, channel #5. (Note that we can have up to 16 channels addressed through a single MIDI cable)



Midi channel messages l.jpg
MIDI Channel Messages

  • Whenever a MIDI device is instructed to respond to a specific channel number, it will ignore any message not directed to that channel

    • On the other hand, if a message is transmitted to that channel, the device will respond to the message (within the device’s capability limits).

  • The 7 bits (not including the MSB) of the first data byte code the note # that should be turned on - here, it is 64

  • The 7 bits of the second data byte indicate the attack velocity (volume level of the note) - here, it is 90


Midi channel voice messages l.jpg
MIDI Channel Voice Messages

  • Channel voice messages are used to transmit real-time performance data throughout a connected MIDI system

  • There are seven channel voice messages:

    • Note On

    • Note Off

    • Polyphonic Key Pressure

    • Channel Pressure

    • Program Change

    • Control Change

    • Pitch Bend Change


Midi channel voice messages10 l.jpg
MIDI Channel Voice Messages

  • A Note On message indicates the beginnning of a MIDI note

  • The message consists of three bytes of information: MIDI channel number; MIDI note number; Attack velocity value

    • In general, MIDI note 60 is assigned to middle C key, and notes 21-108 correspond to the 88 keys of an extended keyboard controller

  • The final byte indicates the velocity at which the key was pressed

    • Higher velocities lead to louder notes

    • Not all instruments interpret all attack velocities, and some do not respond dynamically at all


Midi channel voice messages11 l.jpg
MIDI Channel Voice Messages

  • A Note Off message indicates the end of a MIDI note

    • If the instrument being played has a release (or decay) phase, it will begin that phase when the message is received

    • The release velocity byte indicates the speed at which the key was released

      • Few instruments generate or respond to release velocity

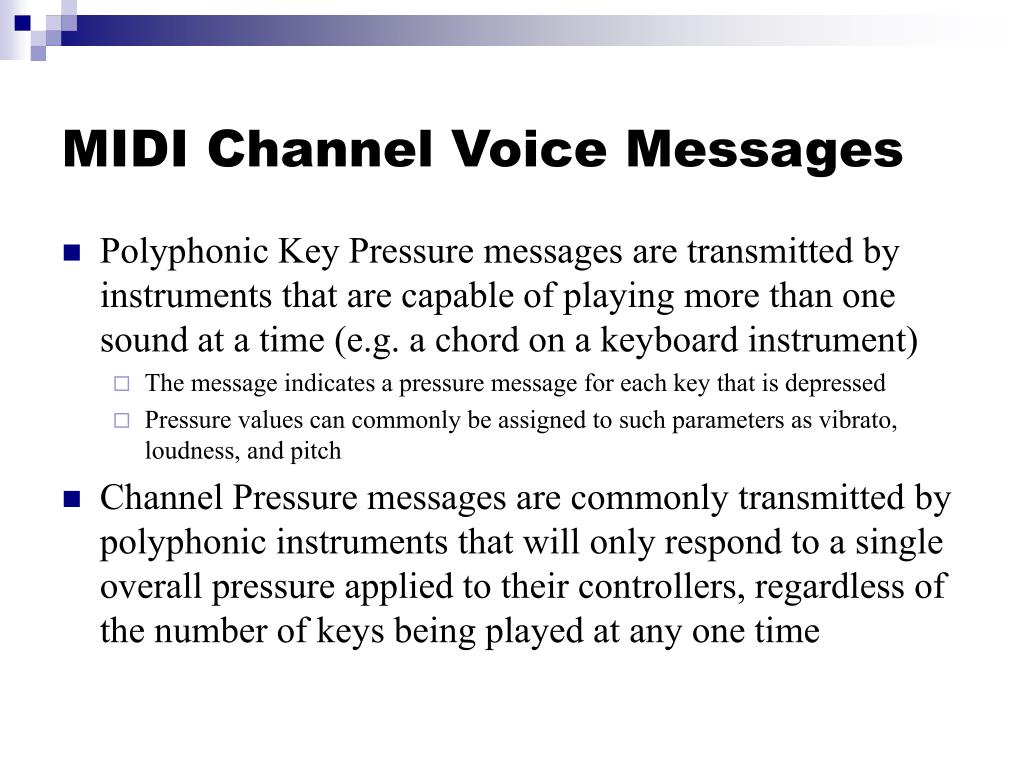

Midi channel voice messages12 l.jpg
MIDI Channel Voice Messages

  • Polyphonic Key Pressure messages are transmitted by instruments that are capable of playing more than one sound at a time (e.g. a chord on a keyboard instrument)

    • The message indicates a pressure message for each key that is depressed

    • Pressure values can commonly be assigned to such parameters as vibrato, loudness, and pitch

  • Channel Pressure messages are commonly transmitted by polyphonic instruments that will only respond to a single overall pressure applied to their controllers, regardless of the number of keys being played at any one time

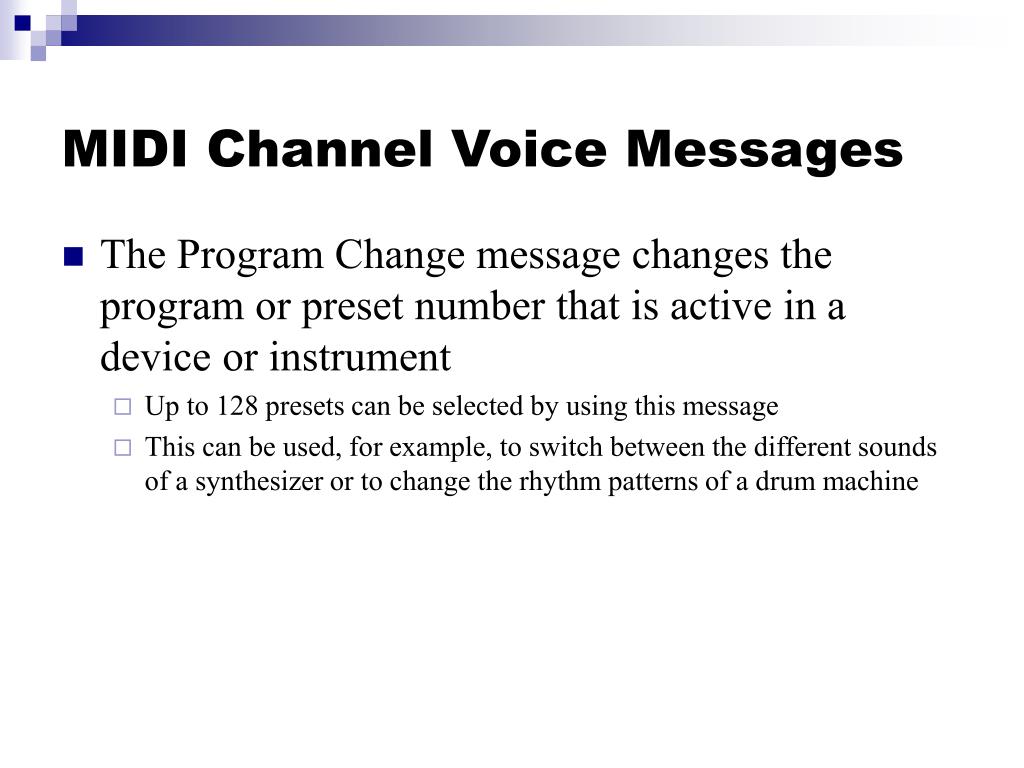

Midi channel voice messages13 l.jpg
MIDI Channel Voice Messages

  • The Program Change message changes the program or preset number that is active in a device or instrument

    • Up to 128 presets can be selected by using this message

    • This can be used, for example, to switch between the different sounds of a synthesizer or to change the rhythm patterns of a drum machine

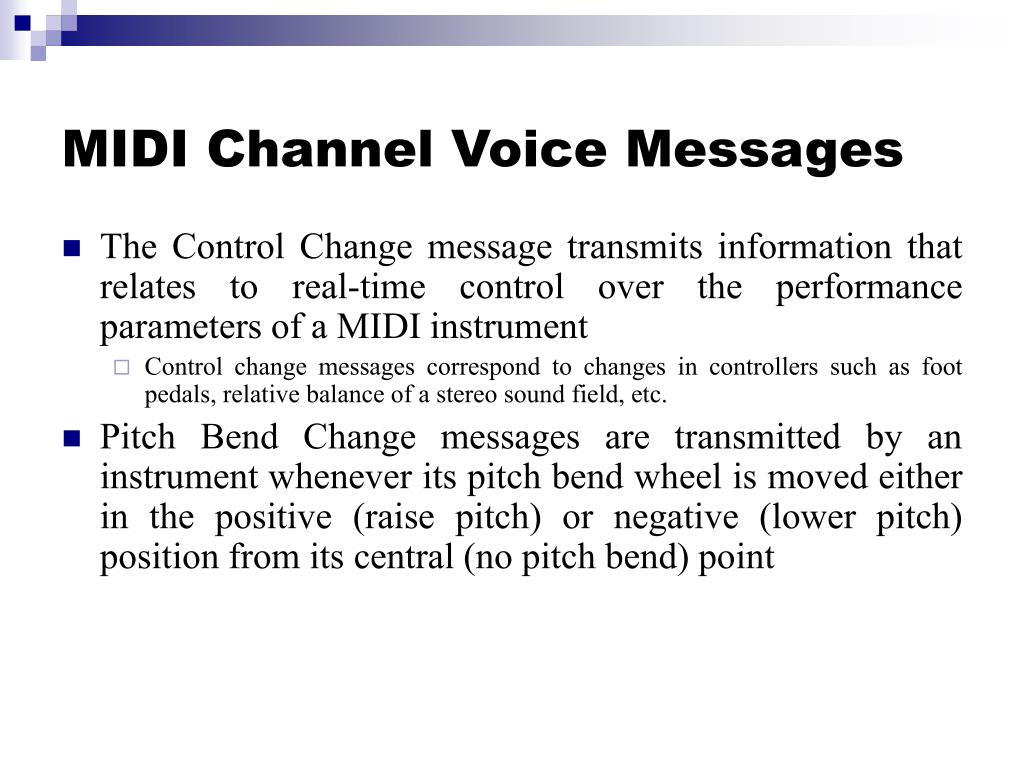

Midi channel voice messages14 l.jpg
MIDI Channel Voice Messages

  • The Control Change message transmits information that relates to real-time control over the performance parameters of a MIDI instrument

    • Control change messages correspond to changes in controllers such as foot pedals, relative balance of a stereo sound field, etc.

  • Pitch Bend Change messages are transmitted by an instrument whenever its pitch bend wheel is moved either in the positive (raise pitch) or negative (lower pitch) position from its central (no pitch bend) point


Midi channel mode messages l.jpg
MIDI Channel Mode Messages

  • Controller numbers 121-127 are reserved for Channel Mode messages. These include:

    • Reset all controllers

    • Local control

    • All Notes Off

    • MIDI Mode messages


General midi l.jpg
General MIDI

  • The basic instrument sounds that are reproduced by almost any electronic music setup will invariably change from one setup to the next

  • This lack of conformity has brought about a single set of standardized MIDI patch settings that have come to be known as General MIDI

    • This standardized series of sound settings has been defined so that common and popular instrument sounds are mapped to various program change numbers


General midi17 l.jpg
General MIDI

Program # Instrument Group

1-8 Piano

9-16 Chromatic Percussion

17-24 Organ

25-32 Guitar

33-40 Bass

41-48 Strings

49-56 Ensemble

57-64 Brass

65-72 Reed


General midi18 l.jpg
General MIDI

Program # Instrument Group

73-80 Pipe

81-88 Synth Lead

89-96 Synth Pad

97-104 Synth Effects

105-112 Ethnic

113-120 Percussive

121-128 Sound Effects
