Stream data management system prototypes l.jpg

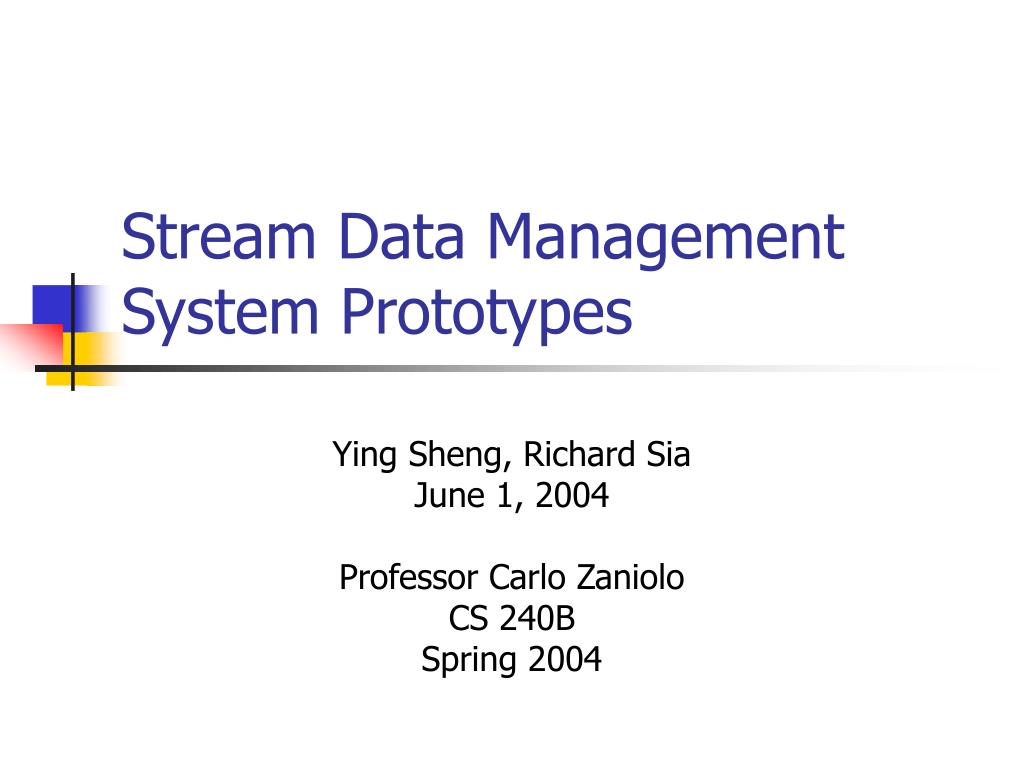

Stream Data Management System Prototypes

Ying Sheng, Richard Sia

June 1, 2004

Professor Carlo Zaniolo

CS 240B

Spring 2004


Outline l.jpg
Outline

  • Motivation of DSMS

  • Aurora (Brown, Brandeis, MIT)

    • Model

    • Operator Scheduling

    • Storage/Memory Management

    • QoS issue

  • STREAM (Stanford)

    • System Architecture

    • Query Language

    • Query Plans and Execution

    • Performance Issues

    • Approximation Techniques

    • STREAM Interface

  • Conclusion


Motivation l.jpg
Motivation

  • HADP  DAHP

  • Continuous data and static queries

    • Monitoring using sensor

      • Military

      • Traffic

      • Environment

    • Financial analysis

    • Object tracking



Aurora model l.jpg
Aurora – Model

  • General Purpose DSMS

  • Continuous stream data comes

  • Flow through a set of operators

  • Output to application or materialized


Aurora model6 l.jpg
Aurora – Model

  • Components

    • Storage manager

    • Scheduler

    • Load Shedder

    • Router

    • QoS Monitor

    • GUI


Aurora model7 l.jpg
Aurora – Model

  • 3 kinds of query supported

    • Continuous

    • View

    • Ad-Hoc Query


Aurora model8 l.jpg
Aurora – Model

  • 8 primitive operators (Box)

    • Windowed

      • Slide

      • Tumble

      • Latch

      • Resample

    • Non-windowed

      • Filter

      • Map

      • GroupBy

      • Join


Aurora operator optimization l.jpg
Aurora – Operator Optimization

  • Each operator associated with

    • Selectivity: s(b), sel(b)

    • Computation time: c(b), cost(b)

  • General Optimization Techniques

    • Pushing projection upstream

    • Combining boxes

    • Reordering boxes


Aurora operator optimization10 l.jpg
Aurora – Operator Optimization

  • Case 1 : cost of ab

    • c(a) + s(a)c(b)

  • Case 2: cost of ba

    • c(b) + s(b)c(a)

  • Criteria for switching box position

    • c(a)+s(a)c(b) > c(b)+s(b)c(a)

a

b

b

a


Aurora operator scheduling l.jpg
Aurora – Operator Scheduling

  • Scheduling by OS

    • One thread per box, shift the job to OS

    • Easier to program

  • Aurora Scheduler

    • Single thread for the scheduler

    • The scheduler pick a box with highest priority and call the box to consume tuples from queue

    • Allow finer control of resource

  • Scalable !



Aurora operator scheduling13 l.jpg
Aurora – Operator Scheduling

  • Problem: which box to execute next?

  • Min-Cost (MC)

    • Reduce computation cost

  • Min-Latency (ML)

    • Return result as soon as possible

  • Min-Memory (MM)

    • Reduce memory usage of queue


Aurora operator scheduling14 l.jpg
Aurora – Operator Scheduling

  • Example

b4

b2

streams

application

b5

b3

b1

b6

Downstream


Aurora operator scheduling15 l.jpg
Aurora – Operator Scheduling

  • Min-Cost

    • Objective: avoid overhead of calling boxes

  • Min-Latency

    • Prefer box which can produce tuples in the output at a shorter period of time

  • Min-Memory

    • Give preference to box which will consume more tuples with less computation time

    • Similar to “Chain Operator Scheduling”

  • More at:Operator Scheduling in a Data Stream Manager, VLDB 2003


Aurora storage memory management l.jpg
Aurora – Storage/Memory Management

  • Manage the queue in front of each box

    • 2 boxes sharing the same queue

    • windowed operator

  • The initial queue size is 128 KB

  • Queues are managed as a circular queue

    • If overflow, double the queue size, or vice versa


Aurora storage memory management17 l.jpg
Aurora – Storage/Memory Management

  • Swap in/out between memory / disk based on priority of boxes using it

  • Work with Operator Scheduler to exchange box priority and buffer-state information

  • Connection Point Management

    • A B-tree indexed on timestamp is built to support random access of tuples by ad-hoc query



Aurora qos issue l.jpg
Aurora – QoS Issue

  • Different queries/applications have different QoS requirement

    • Stock market monitoring

    • Average temperature of a set of sensor

  • QoS Graph


Latency based qos graph l.jpg
Latency-based QoS Graph

Critical Point

QoS

cost(D(b))

est(b)

0

time

eol(b)

latency(b)

b

D(b)


Aurora qos driven scheduling l.jpg
Aurora – QoS-driven Scheduling

  • Assign priority to each box based on

    • priority (b) = [utility (b), est (b)]

    • utility (b) = gradient (eol (b))

      • How is the QoS degrading by the time the tuple leave the system when we process it now.

    • est (b)

      • How soon it will exhibit another performance degradation if we don’t process it now.

  • Performance

    • 200 queries/application, each with 5 boxes

    • Round robin - 0.43

    • QoS driven scheduling – 0.85


Aurora current status l.jpg
Aurora – Current Status

  • Main components of a DSMS are introduced

    • Operator scheduler

    • Memory/storage management

    • QoS concept in stress environment

    • Load shedding

  • Implemented in C++, with Java-based GUI

    • Dependent on a few software/library

  • More?

    • Distributed architecture – Aurora*

    • Fault tolerance or disaster recovery ?



Stream introduction l.jpg
STREAM – Introduction

  • General-purpose prototype DSMS

  • Supports data streams and stored relations

  • Declarative language for registering continuous queries

  • Flexible query plans and execution strategies

  • Aggressive sharing of state and computation among queries


Stream introduction25 l.jpg
STREAM – Introduction

  • Designed to cope with

    • Stream rates that may be high, variable, bursty

    • Continuous query loads that may be high, volatile

  • Primary coping techniques

    • Graceful approximation as necessary

    • Careful resource allocation and use

    • Continuous self-monitoring and reoptimization


Stream system architecture l.jpg

Streamed

Result

Stored

Result

Register

Query

Input streams

Archive

STREAM – System Architecture

DSMS

Scratch Store

Stored

Relations


Stream query language l.jpg
STREAM – Query Language

  • Continuous Query Language – CQL

    • Extends SQL with

      • Streams as new data type

        • Stream: Unbounded bag of pairs <tuple, timestamp>

        • Relation: time-varying bags of tuples

      • Continuous instead of one-time semantics

      • Three classes of operators

        • Relation-to-relation

        • Stream-to-relation

        • Relation-to-stream


Stream cql operators l.jpg
STREAM – CQL Operators

  • Relation-to-relation

    • SQL constructs

  • Stream-to-relation

    • Tuple-based sliding window: [Rows N], [Rows Unbounded]

    • Time-based sliding window: [Range ω], [Now]

    • Partitioned sliding window: [Partition By A1,…Ak Rows N]

  • Relation-to-stream

    • Istream: insert stream

    • Dstream: delete stream

    • Rstream: relation stream


Stream example query 1 l.jpg
STREAM – Example Query 1

  • Two example streams:

    Orders (orderID, customer, cost)

    Fulfillments (orderID, clerk)

  • Total cost of orders fulfilled over the last day by clerk “Sue” for customer “Joe”:

    Select Sum(O.cost)

    From Orders O, Fulfillments F [Range 1 Day]

    Where O.orderID = F.orderID And F.clerk = “Sue” And O.customer = “Joe”


Stream example query 2 l.jpg
STREAM – Example Query 2

  • Using a 10% sample of the Fulfillments stream, take the 5 most recent fulfillments for each clerk and return the maximum cost:

    Select F.clerk, Max(O.cost)

    From Orders O, Fulfillments F [Partition By clerk Rows 5] 10% Sample

    Where O.orderID = F.orderID

    Group By F.clerk


Stream simplified query 2 l.jpg
STREAM – Simplified Query 2

  • Result is a relation, updated as stream elements arrive:

    Select F.clerk, Max(O.cost)

    From O, F [Rows 100]

    Where O.orderID = F.orderID

    Group By F.clerk


Stream simplified query 232 l.jpg

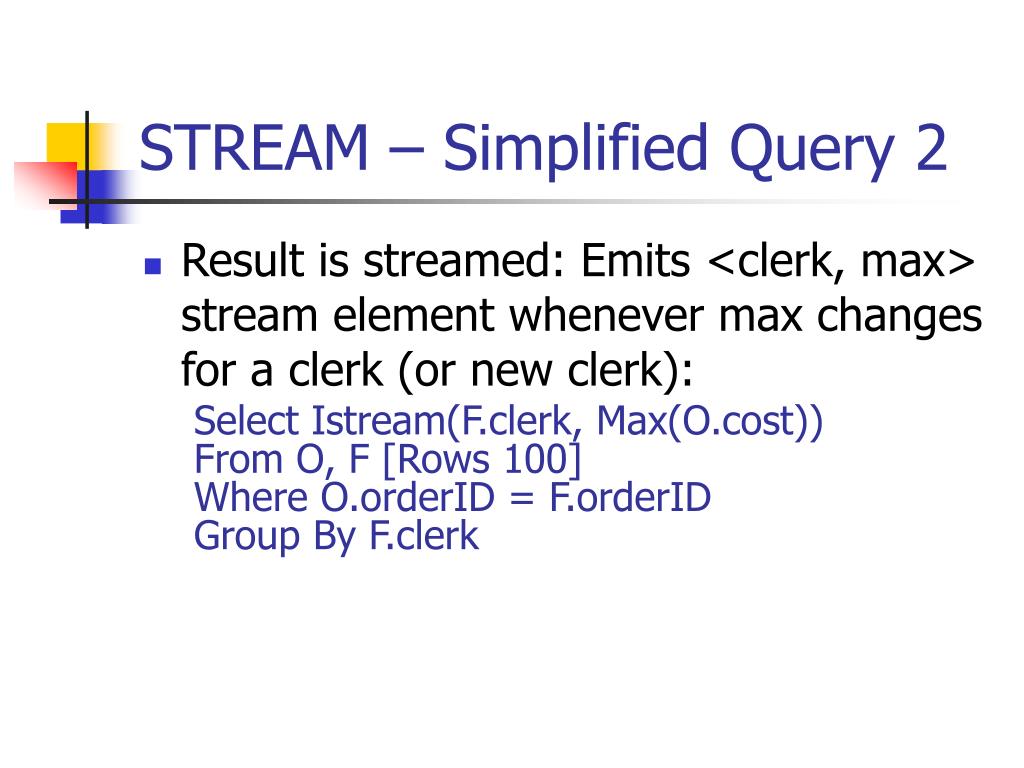

STREAM – Simplified Query 2

  • Result is streamed: Emits <clerk, max> stream element whenever max changes for a clerk (or new clerk):

    Select Istream(F.clerk, Max(O.cost))

    From O, F [Rows 100]

    Where O.orderID = F.orderID

    Group By F.clerk


Stream example query 3 l.jpg
STREAM – Example Query 3

  • Relation: CurPrice(stock, price)

  • Average price over last day for each stock:

    Select stock, Avg(price)

    From Istream(CurPrice) [Range 1 Day]

    Group By stock

  • Istream provides history of CurPrice

  • Window on history (back to relation), group and aggregate


Stream query plans and execution l.jpg
STREAM – Query plans and Execution

  • When a continuous query is registered, generate a query plan

    • New plan merged with existing plans

    • Users can also create & manipulate plans directly

  • Plans composed of three main components:

    • Operators

      • Flag: insertion(+), deletion (-)

      • Elements: tuple-timestamp-flag tuples

      • Streams: only + elements

      • Relations: both + and - elements

    • Queues

      • Enforce nondecreasing timestamps (“heartbeats”)

      • Mechanisms for buffering tuples

    • States (Synopses)

  • Global scheduler for plan execution


Stream states l.jpg

State1

State2

STREAM – States

  • States (Synopses)

    • Summarize elements seen so far (exact or approximate) for operators requiring history

    • To implement windows

  • Example: synopsis join

    • Sliding-window join

    • Approximation of full join


Stream simple query plan l.jpg
STREAM – Simple Query Plan

Select *

From S1 [Rows 1000],

S2 [Range 2 Minutes]

Where S1.A = S2.A

And S1.A > 10


Stream performance issues l.jpg
STREAM – Performance Issues

  • Synopsis Sharing

    • Eliminate data redundancy

  • Exploiting Constraints

    • Selectively discard data to reduce state

  • Operator Scheduling

    • Reduce queue sizes


Stream synopsis sharing l.jpg
STREAM – Synopsis Sharing

  • Eliminate redundancy by

    • replacing the nearly identical synopses with light weight stubs

    • a single store to hold the actual tuples

  • Store tracks the progress of each stub, presents the appropriate view to each stub.

  • The store contains the union of its corresponding stubs


Stream synopsis sharing39 l.jpg
STREAM – Synopsis Sharing

Select *

From S1 [Rows 1000],

S2 [Range 2 Minutes]

Where S1.A = S2.A

And S1.A > 10

Select A, Max(B)

From S1 [Rows 200]

Group By A


Stream exploiting constraints l.jpg

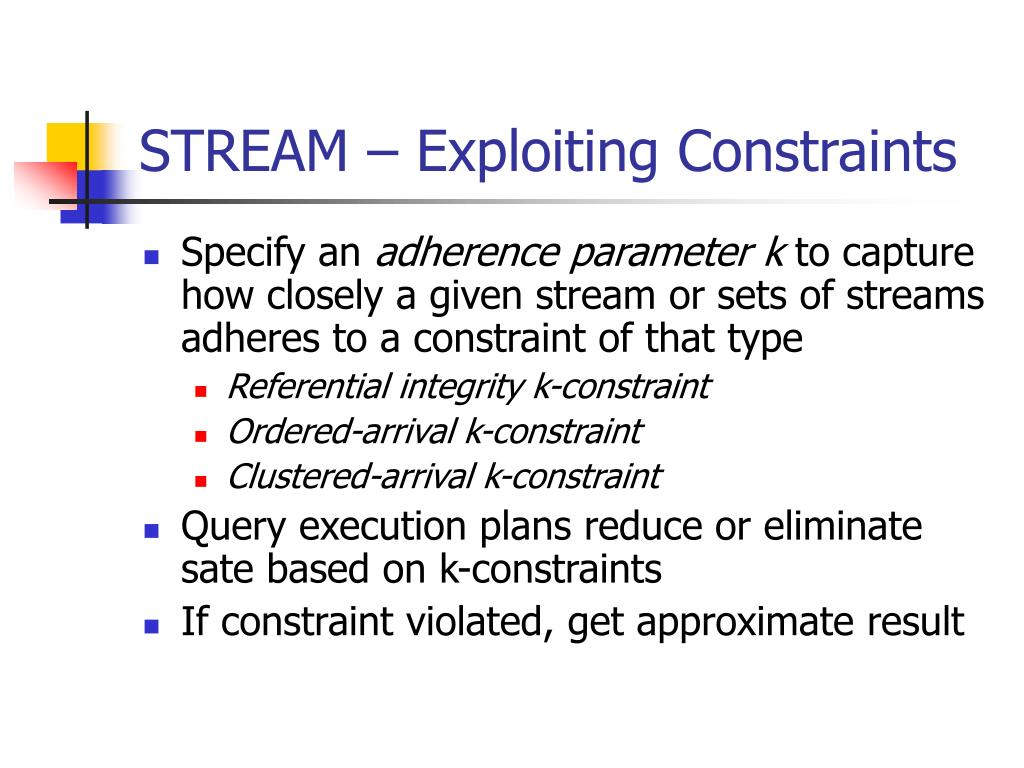

STREAM – Exploiting Constraints

  • Specify an adherence parameter k to capture how closely a given stream or sets of streams adheres to a constraint of that type

    • Referential integrity k-constraint

    • Ordered-arrival k-constraint

    • Clustered-arrival k-constraint

  • Query execution plans reduce or eliminate sate based on k-constraints

  • If constraint violated, get approximate result


Stream operator scheduling l.jpg

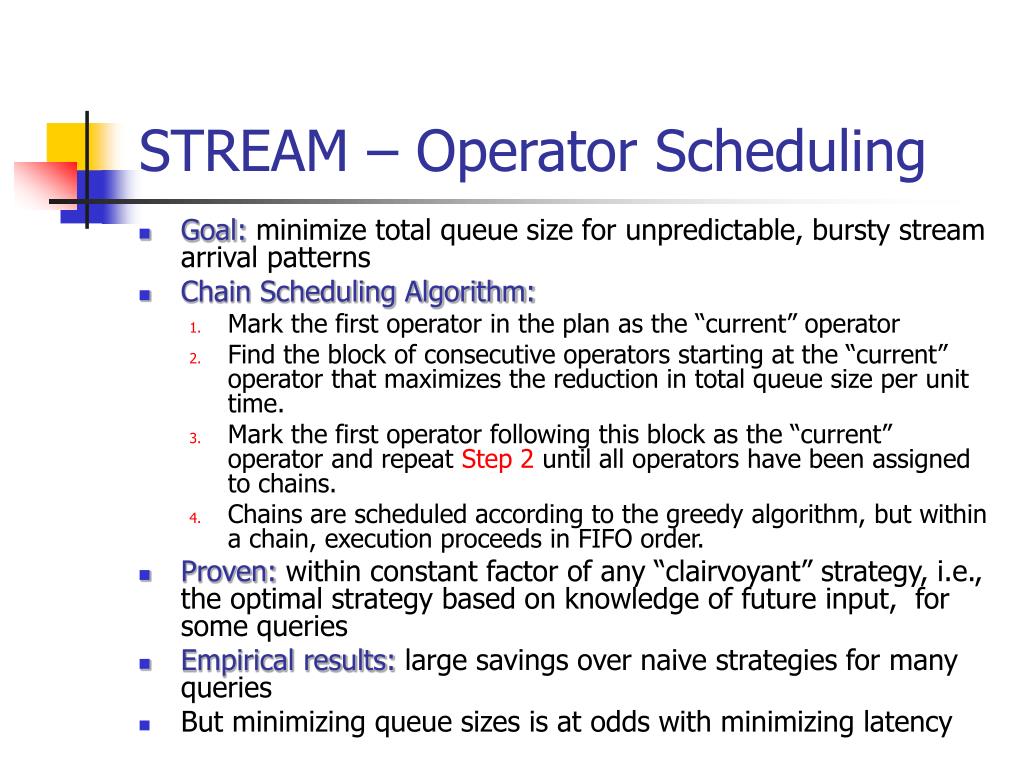

STREAM – Operator Scheduling

  • Goal: minimize total queue size for unpredictable, bursty stream arrival patterns

  • Chain Scheduling Algorithm:

    • Mark the first operator in the plan as the “current” operator

    • Find the block of consecutive operators starting at the “current” operator that maximizes the reduction in total queue size per unit time.

    • Mark the first operator following this block as the “current” operator and repeat Step 2 until all operators have been assigned to chains.

    • Chains are scheduled according to the greedy algorithm, but within a chain, execution proceeds in FIFO order.

  • Proven: within constant factor of any “clairvoyant” strategy, i.e., the optimal strategy based on knowledge of future input, for some queries

  • Empirical results: large savings over naive strategies for many queries

  • But minimizing queue sizes is at odds with minimizing latency


Stream approximation l.jpg
STREAM – Approximation

  • CPU-Limited Approximation

    • Insufficient CPU time to process each stream element due to the high data arrival rate.

    • load-shedding

      • sampling operators

      • Approximate by probabilistically dropping elements before they are processed

  • Memory-Limited Approximation

    • The total state required for all registered queries exceeds available memory.

    • The system selectively shrinks or discards synopses.


Stream query interface l.jpg
STREAM – Query Interface

  • View the structure of query plans the their component entities.

  • View the detailed properties of each entity.

  • Dynamically adjust entity properties.

  • View monitoring graphs that display time-varying entity properties plotted dynamically against time.

    • Queue sizes, throughput, overall memory usage, and join selectivity.



Stream current status l.jpg
STREAM – Current Status

  • Version 1.0 up and running

  • Includes a new monitoring and adaptive query processing infrastructure – StreaMon

    • Executor runs query plans to produce results.

    • Profiler collects and maintains statistics about stream and plan characteristics.

    • Reoptimizer ensures that the plans and memory structures are the most efficient for current characteristics.

  • Web demo available at http://shark.stanford.edu:8080/

  • Future Directions:

    • Distributed Stream Processing

    • Crash Recovery

    • Improved Approximation

    • Classification of Applications


Conclusion l.jpg
Conclusion

  • Ideal DSMS

    • Well defined and flexible query language

    • User-friendly interface

    • Scalable

      • Operator scheduling

      • Storage management

      • Synopsis sharing

      • Approximation

    • Quality assurance

    • Fault tolerant


References l.jpg
References

  • R. Motwani et al., “Query Processing, Approximation, and Resource Management in a Data Stream Management System”, in proceedings of the 1st CIDR Conference, 2003.

  • S. Madden et al., “Continuously Adaptive Continuous Queries over Streams”, in proceedings of SIGMOD Conference, 2002

  • D. Carney et al., “Monitoring Streams - A New Class of Data Management Applications”, in Proceedings of VLDB conference, 2002.

  • D. Carney et al., “Operator Scheduling in a Data Stream Manager”, in Proceedings of VLDB conference, 2003

  • Stanford STREAM Project Website: http://www-db.stanford.edu/stream/index.html

  • Aurora Project Website: http://www.cs.brown.edu/research/aurora



ad
