Quality of Service-Driven Requirements Analyses for Component Composition: A Two-Level Grammar++ Approach

Shih-Hsi Liu1, Fei Cao1, Barrett R. Bryant1, Jeff Gray1, Rajeev R. Raje2, Andrew M. Olson2, and Mikhail Auguston3

Software Composition and Modeling Laboratory

Department of Computer and Information Sciences

1 University of Alabama at Birmingham

2 Indiana University Purdue University Indianapolis

3 Naval Postgraduate School


Outline l.jpg
Outline Component Composition: A Two-Level Grammar++ Approach

  • Introduction

  • Problem Statements

  • Proposed Solution

  • Conclusion

  • Future Work


Introduction l.jpg
Introduction Component Composition: A Two-Level Grammar++ Approach

  • Objective: construct a Distributed Real-time and Embedded (DRE) system by composing black box components that satisfies functional and non-functional requirements

  • Component Based Software Engineering (CBSE) and Software Product Line (SPL) concepts:

    reusability, changeability, productivity, expeditiousness

  • DRE systems: system resource sensitive (QoS sensitive)

    - QoS sensitive: decides the correctness of functionalities and margins of Quality of Service (QoS) satisfaction


Problem statements 1 2 l.jpg
Problem Statements (1/2) Component Composition: A Two-Level Grammar++ Approach

QoS transcends functional properties in DRE systems – reduces

the CBSE + SPL virtues and new problems arise in the requirements

and design phases:

  • Component Perspective Problem

    - numerous QoS properties require evaluation for a DRE system

    - tangling between functional and non-functional concerns: component perspective composition for QoS-sensitive systems

  • Abundant Alternative Problem

    - generated based on different composition decisions and permutations of selected components

    - different QoS margins generated from various alternatives affect correctness of functionalities (e.g., hard real-time) and magnitude of performance (e.g., soft real-time)


Problem statements 2 2 l.jpg
Problem Statements (2/2) Component Composition: A Two-Level Grammar++ Approach

  • The Composition Semantics Problem

    - Composition regarding QoS parameters: degrade or upgrade QoS parameters (glue/wrapper code)

    - Problem:

    (a) No well-defined semantics for composition

    regarding QoS Parameters

    (b) Difficult to evaluate QoS parameters


Proposed solution a grammatical qos driven approach 1 7 l.jpg
Proposed Solution – A Grammatical QoS-Driven Approach (1/7)

  • Motivation of the proposed solution:

    (a) Separation of concerns concept

    - paths: a sequence of components that determines how or how well functional tasks perform in terms of application-specific and functionality-determined information

    - Functional path: how

    - QoS systemic path: how well

    (b) Context Free Grammar (CFG) concept

    - components are operands

    - composition semantics regarding QoS are operators

    - production rules are composition decision

    - a syntax tree is an alternative of SPL


Proposed solution 2 7 l.jpg
Proposed Solution (2/7) (1/7)

  • A Grammatical Concept: Two-Level Grammar++

    - The 1st CFG: define a set of parameters

    The 2nd CFG: define a set of function definitions

    - Define syntax and semantics of a programming language

    The 1st CFG: define the syntax by production rules

    The 2nd CFG: define the semantics of the production rules

  • A QoS-Driven Concept: A TLG++ Class defines a QoS Parameter

    - The 1st CFG: define the selected components for the QoS systemic path

    - The 2nd CFG: define the composition semantics regarding the QoS parameter

  • An Inference Concept: Jess Rule Engine

    - The 2nd CFG: define the queries for verifying pre-conditions and post-conditions of composition



Proposed solution 4 7 l.jpg

1 Security (1/7) C1 C2 D1

2 D1  C3 D2 | C4 D3

3 D2  C4 C5 | C5 C6

4 D3  C5 D4 | C5 C7

5 D4  C3 C7

1 Signal  C1 C2 E1

2 E1  C3 E2 | C4 E3 | C5 E4

3 E2  C6 C7

4 E3  C3 C5 E5 | C3 C6

5 E4  C4 C6 C7

6 E5  C7

1 CPU  C1 F1 | C2 F2

2 F1  C2 C4 F3 | C3 C4 F4

3 F2  C5 C6 F5 | C5 | C6 F6

4 F3  C7 C6

5 F4  C2 C5

6 F5  C3 C7

7 F6  C1 C4

Proposed Solution (4/7)


Proposed solution 5 7 cascading scenario l.jpg
Proposed Solution (5/7): Cascading Scenario (1/7)

class Security_1 implements Serializable

2 QoSPath :: Comp_1 Comp_2.

3//…other parameter definition

4 Query_1 := semantics of queryComponent with Comp_1; //verifies the pre-condition

5 Query_2 := semantics of queryComponent with Comp_2; //verifies the pre-condition

6 Query_3 :=if Query_1 && Query_2,then semantics of minimum with

7 Comp_1 and Comp_2,else False, end if;

8 Query_4 := semantics of queryPattern with QoSValue; //verifies the post-cond. of Comp_1

9 //and Comp_2, see if it is out of range

10 if Query_4,then MyRete semantics of UpdatePattern, else “Composition False”, end if.

11 //if Query_4 true, the composed pattern is assured. Update the pattern to the knowledge base

12 semantics of queryComponent with Component :

13 //…the semantics of the query for pre-conditions

14 semantics of minimum with Component1 and Component2 :

15 //…the semantics of the component composition

16 semantics of queryPattern with Double :

17 //…the semantics of the query for post-conditions

18 semantics of UpdatePattern :

19 //…the semantics that updates the verified composed pattern into the knowledge base

end class


Proposed solution 6 7 cascading scenario l.jpg
Proposed Solution (6/7): Cascading Scenario (1/7)

class Security_2 implements Serializable.

2 QoSPath :: Comp_3 ; Comp_4. //…Comp_3 OR Comp_4 as alternatives

3 //…other parameter definition

4 semantics of ProductLine_1 with Component1 : //semantics for Comp_3 OR Comp_4

5 Query_1 := semantics of queryComponent with Component1;//verify the pre-condition

6 if Query_1,then semantics of addition with Security_1 and Component1, else False, end if;

7 Query_2 := Rete semantics of queryPattern with QoSValue;

8 if Query_2,then Rete semantics of UpdateFact,

9 Rete semantics of UpdatePattern, else “Composition False”, end if.

10 //…verify the post-condition

11 semantics of addition with Component1 and Component2 :

12//…semantics of addition

13 //…semantics of queryPattern, UpDateFact and UpdatePattern are ignored here.

end class



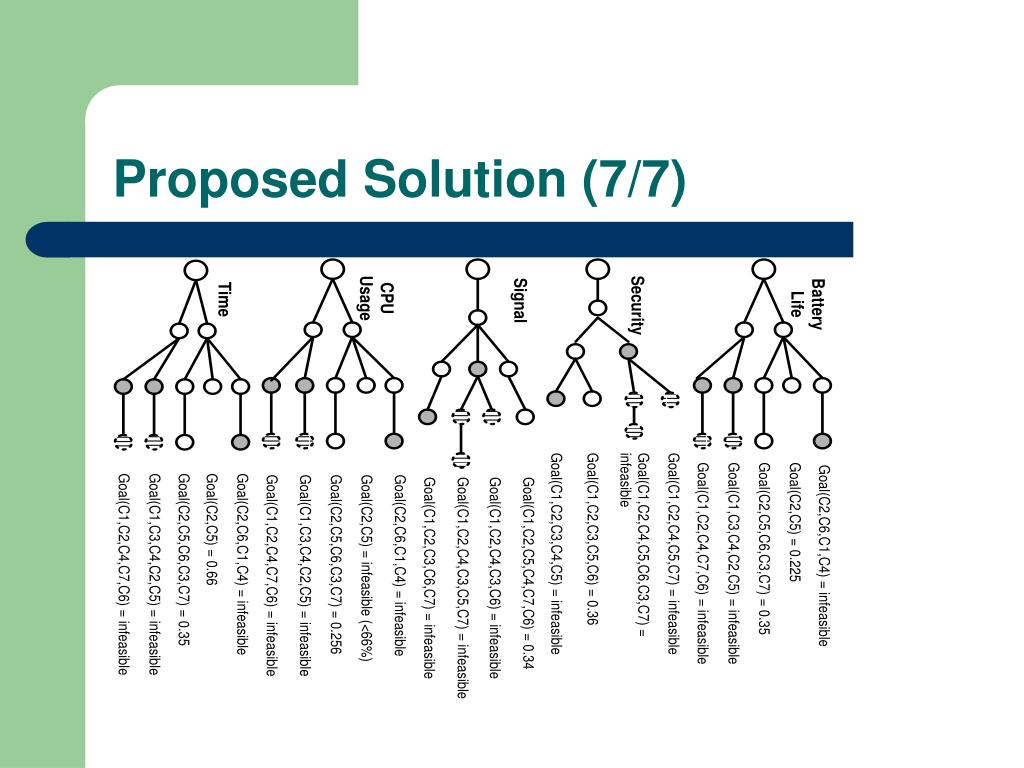

Conclusion l.jpg

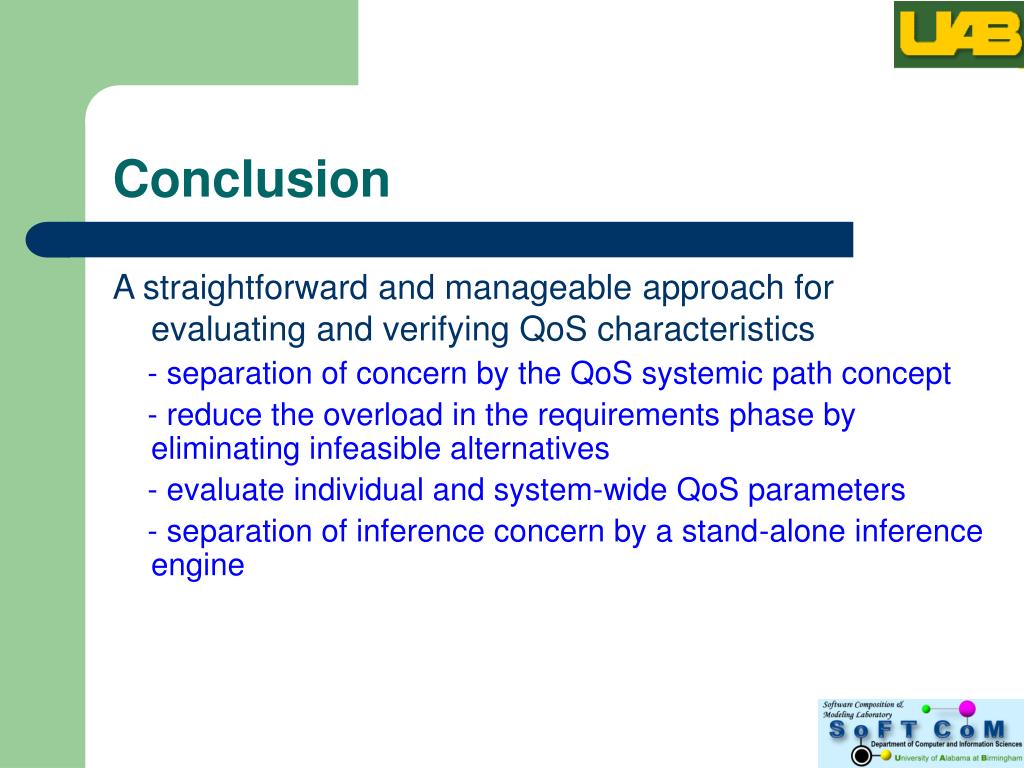

Conclusion (1/7)

A straightforward and manageable approach for evaluating and verifying QoS characteristics

- separation of concern by the QoS systemic path concept

- reduce the overload in the requirements phase by eliminating infeasible alternatives

- evaluate individual and system-wide QoS parameters

- separation of inference concern by a stand-alone inference engine


Future work l.jpg
Future Work (1/7)

  • A component selection procedure for QoS systemic paths

  • Integrate T-Clipse and Jess: current Jess queries defined in TLG++ is unreadable

  • A better goal metric: current goal is coarse-grained

  • Grammar reproduction concept: add mutation and crossover for the 1st CFG: increase the diversity of design space

  • Toward domain analysis for software product line:

    commonality and variability analysis at the QoS systemic path abstraction layer


Questions l.jpg
Questions? (1/7)

  • More research information

    http://www.cis.uab.edu/liush

  • Acknowledgements

    This research was supported in part by U. S. Office of Naval Research award N00014-01-1-0746
