Presentation Transcript
Normal forms through bcnf l.jpg

Normal Forms through BCNF

CPSC 356 Database

Ellen Walker

Hiram College

(Includes figures from Database Systems by Connolly & Begg, © Addison Wesley 2002)


Unnormalized form l.jpg
Unnormalized Form

  • A table that includes one or more repeating groups.


First normal form 1nf l.jpg
First Normal Form (1NF)

  • Each row, column intersection must have a single value

    • No composite attributes

    • No multivalued attributes

  • Put the table into 1NF by repeating student names for each repeating group.



Example fds and candidate key l.jpg
Example: FDs and Candidate Key

  • Functional Dependencies

    • StudentClass -> RoomNo, Prof

    • Prof -> RoomNo

  • Candidate Key

    • Since StudentName cannot be determined from anything else, it must be part of the key. StudentClass gives the rest.

    • StudentName, StudentClass -> all attributes


Second normal form 2nf l.jpg
Second Normal Form (2NF)

  • Every non primary key is fully functionally dependent on the primary key

  • Full Functional Dependency

    • Attribute B depends on A, but not on any subset of A

  • In other words, the primary key determines every other attribute, but no subset of the primary key determines any other attribute!


Example is not 2nf l.jpg
Example is not 2NF

  • Primary key is StudentName, StudentClass

    • StudentName must be included because it can’t be derived from anything else

    • StudentClass distinguishes tuples of the same student

  • RoomNo and Prof are not Fully Functionally Dependent on primary key

    • StudentClass -> RoomNo, Prof


Going to 2nf l.jpg
Going to 2NF

  • Split the relation into (at least) 2 relations

    • One relation has the subset of the primary key and all attributes that depend on it

    • The other relation has the rest of the attributes and an appropriate foreign key

  • In our example:

    • CourseInfo (StudentClass, RoomNo, Prof)

    • Student(StudentName, StudentClass)


Notation for functional dependency l.jpg
Notation for functional dependency

  • First row is the relational schema

  • Additional row for each dependency

    • “down arrow” for left side

    • “up arrow” for right side

    • Example goes here

  • For 2NF, no dependency has down arrow for only part of the primary key.

  • Non-key dependencies don’t matter, e.g. Prof->Room



Third normal form 3nf l.jpg

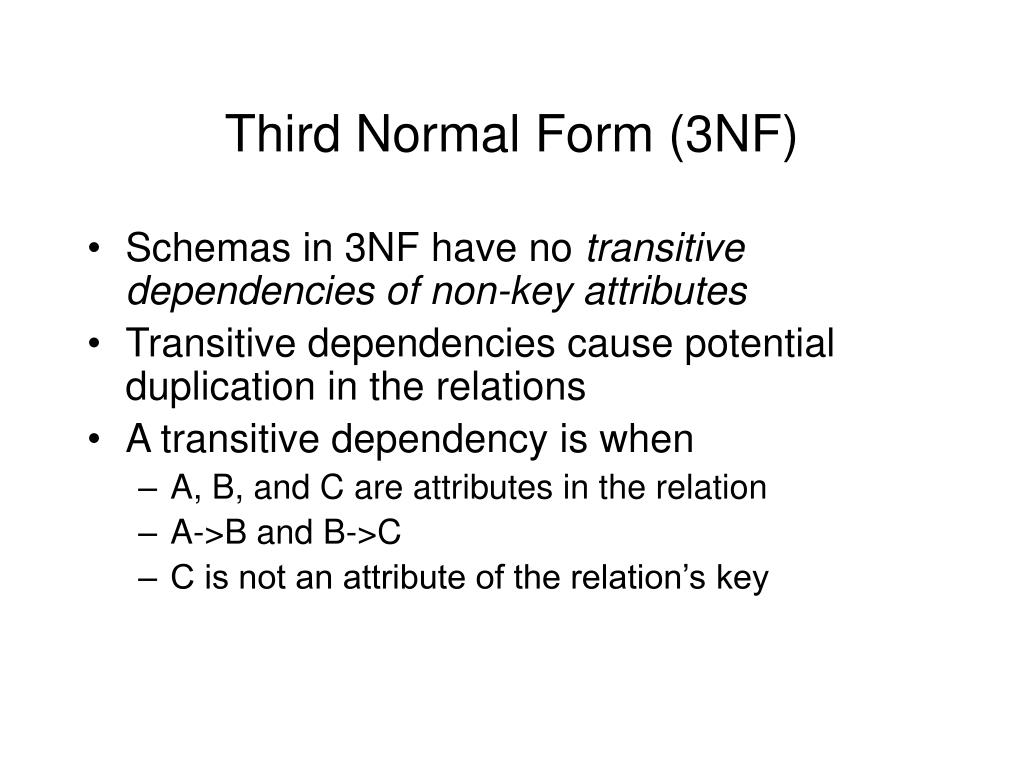

Third Normal Form (3NF)

  • Schemas in 3NF have no transitive dependencies of non-key attributes

  • Transitive dependencies cause potential duplication in the relations

  • A transitive dependency is when

    • A, B, and C are attributes in the relation

    • A->B and B->C

    • C is not an attribute of the relation’s key


Recognizing transitive dependencies l.jpg
Recognizing Transitive Dependencies

  • If any attribute has both a down-arrow and an up-arrow (staffNo in example 13.8), then there is a transitive dependency.

  • If the attribute is part of the relation’s key, the transitive dependency does not violate 3NF

  • Any dependency between 2 non-keys will be transitive! (key->non-key1; non-key1-> non-key2)

  • Therefore, assuming that every Prof has a favorite Room, we have

    • StudentCourse->Prof, Prof->RoomNo


From 2nf to 3nf l.jpg
From 2NF to 3NF

  • Recognize transitive dependencies

  • Remove attributes involved in transitive dependency to their own relation, leaving only a “foreign key” behind.

  • Example:

    • CourseInfo (StudentClass, Prof)

    • Student(StudentName, StudentClass)

    • FavoriteRoom(Prof, RoomNo)


Summary of normal forms l.jpg
Summary of Normal Forms

Every attribute depends on

  • the key,

  • The whole key,

  • And nothing but the key!

    Condition 1 describes the definition of key

    Condition 2 describes 2NF

    Condition 3 describes 3NF (or BCNF)


Boyce codd normal form bcnf l.jpg
Boyce Codd Normal Form (BCNF)

  • A relation is in BCNF if and only if every determinant is a candidate key

  • A determinant is a set of attributes on which some other attribute is fully functionally dependent.

  • Schemas that are 3NF but not BCNF are rare. They require

    • Two or more composite candidate keys

    • Candidate keys share at least one attribute


Bcnf vs 3nf l.jpg

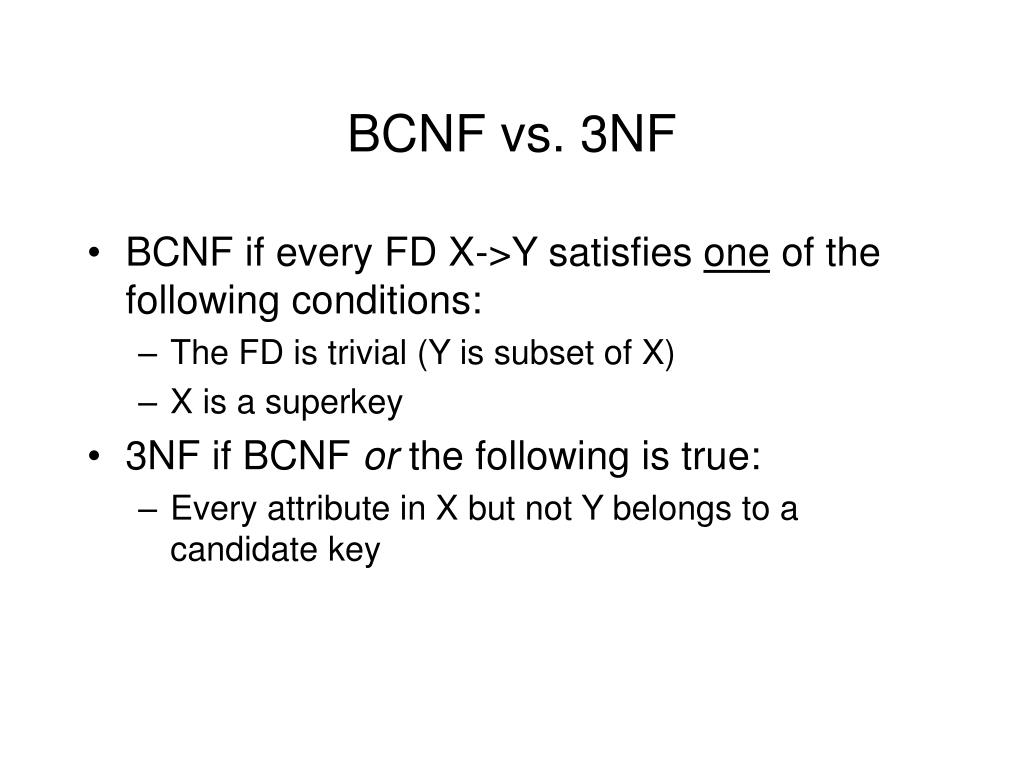

BCNF vs. 3NF

  • BCNF if every FD X->Y satisfies one of the following conditions:

    • The FD is trivial (Y is subset of X)

    • X is a superkey

  • 3NF if BCNF or the following is true:

    • Every attribute in X but not Y belongs to a candidate key


Bcnf can lose dependencies l.jpg
BCNF Can Lose Dependencies

  • When putting a relation into BCNF, it is possible that a functional dependency will not be preserved, because the related attributes will be split into separate relations.

  • Tradeoff:

    • 3NF preserves all dependencies

    • BCNF prevents all redundancies


Example find 3nf is it bnf l.jpg
Example: Find 3NF, Is it BNF?

Student, Course, Semester -> Prof

Prof, Semester -> Course (Prof teaches 1 course / sem)

Course, Semester, Time -> Prof

Prof, Semester, Time -> Room, Course

Prof, Semester, Course, Time -> Room (redundant!)



Find candidate keys l.jpg
Find Candidate Keys

  • Student, Semester, and Time have no up-arrow (cannot be determined by other attributes), so must be part of a candidate key

  • Candidate keys:

    • Student, Course, Semester, Time

    • Student, Prof, Semester, Time


Remove partial dependencies l.jpg
Remove Partial Dependencies

  • Course depends only on Prof & Semester

    • R1: {Prof, Semester, Course}

  • Room depends only on Prof, Semester and course;

    • R2: {Prof, Semester, Room, Time}

  • Original with Room and Course removed

    • R3: {Student, Prof, Semester, Time}



Dependency analysis l.jpg
Dependency Analysis

  • No transitive dependencies

    • This is good news. We are in 3NF

  • Some dependencies are “broken”

    • They do not connect attributes of a single relation

    • This is “non-dependency-preserving”

  • If we join back the relations we created will we get the same information?

    • Yes, in this case

    • No, in general


Algorithm to get 3nf l.jpg

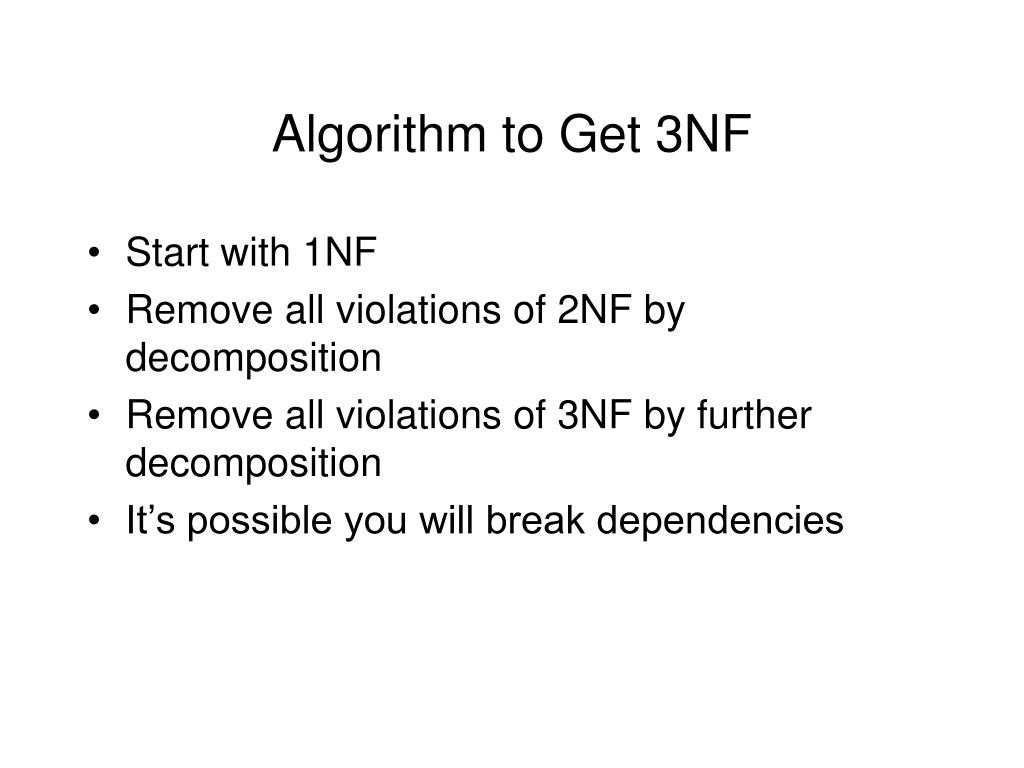

Algorithm to Get 3NF

  • Start with 1NF

  • Remove all violations of 2NF by decomposition

  • Remove all violations of 3NF by further decomposition

  • It’s possible you will break dependencies


Dependency preserving 3nf l.jpg
Dependency Preserving 3NF

  • First, massage the dependencies into a standard form (minimal cover):

    • Every right side is a single attribute

    • No attributes are redundant

    • No dependencies are redundant

  • Next, create a relation for each of the revised dependencies (guaranteed 3NF because only one dependency per relation)

  • Finally, create one more relation for the primary key, if it’s not already included in one of the others.


Another algorithm to get 3nf l.jpg
Another Algorithm to get 3NF

  • Find minimal cover of FDs

    • Every FD has one attribute on right

    • No FD can be derived from other FDs in the set

  • Combine FDs with same attributes on the left

  • Create a relation for each remaining FD

  • If no relation contains the original superkey for all attributes, construct one relation with just the superkey

  • This set is guaranteed to be 3NF and equivalent to the original relation


Finding minimal cover l.jpg
Finding Minimal Cover

  • Split up the dependencies with multiple right sides

    • X->Y,Z becomes X->Y, X-> Z

  • Check for redundant attributes on left side

    • Compute closure of each set that leaves out one attribute. If it includes the right side, remove the extra attribute.

  • Check for redundant dependencies

    • For each dependency, compute the closure of the set on the left side against all the other dependencies except the one you’re testing. If you find the attribute on the right side in the closure, you can leave that dependency out.


Example single right sides l.jpg
Example: Single Right Sides

T1. Student, Course, Semester -> Prof

T2. Prof, Semester -> Course

T3. Course, Semester, Time -> Prof

T4. Prof, Semester, Time -> Room, Course

T5. Prof, Semester, Course, Time -> Room

T4 is split:

T4a. Prof, Semester, Time -> Room

T4b. Prof, Semester, Time -> Course


Example finding redundant attributes l.jpg
Example: Finding Redundant Attributes

  • Consider T1: Student, Course, Sem -> Prof

    • {Student, Course}+ = {Student, Course}

    • {Student, Sem}+ = {Student, Sem}

    • {Course, Sem}+ = {Course, Sem}

  • Since Prof cannot be derived without all 3 attributes, T1 has no redundant attributes

  • T2 and T3 and T4a are similar (no redundant attributes)

  • T2 is T4b with Time removed; obviously Time is redundant and T4b can be removed from the set.


Example redundant attributes in t5 l.jpg
Example: Redundant Attributes in T5

  • T5: Prof, Semester, Course, Time -> Room

  • {Prof, Semester, Time}+ = {Prof, Semester, Time, Course, Room}

    • Prof, Semester, Time -> Room by T4a

    • Therefore, Course is redundant in T5

    • Removing Course from T5 makes it the same as T4a


Example after redundant attribute removal l.jpg
Example After Redundant Attribute Removal

T1. Student, Course, Semester -> Prof

T2. Prof, Semester -> Course

T3. Course, Semester, Time -> Prof

T4a. Prof, Semester, Time -> Room


Example remove redundant dependencies l.jpg
Example: Remove Redundant Dependencies

T1. Student, Course, Semester -> Prof

//Not redundant (see next slide)

T2. Prof, Semester -> Course//Course cannot be derived any other way

T3. Course, Semester, Time -> Prof

//Not redundant (see next slide)

T4a. Prof, Semester, Time -> Room

//Room cannot be derived any other way


Show t1 is not redundant l.jpg

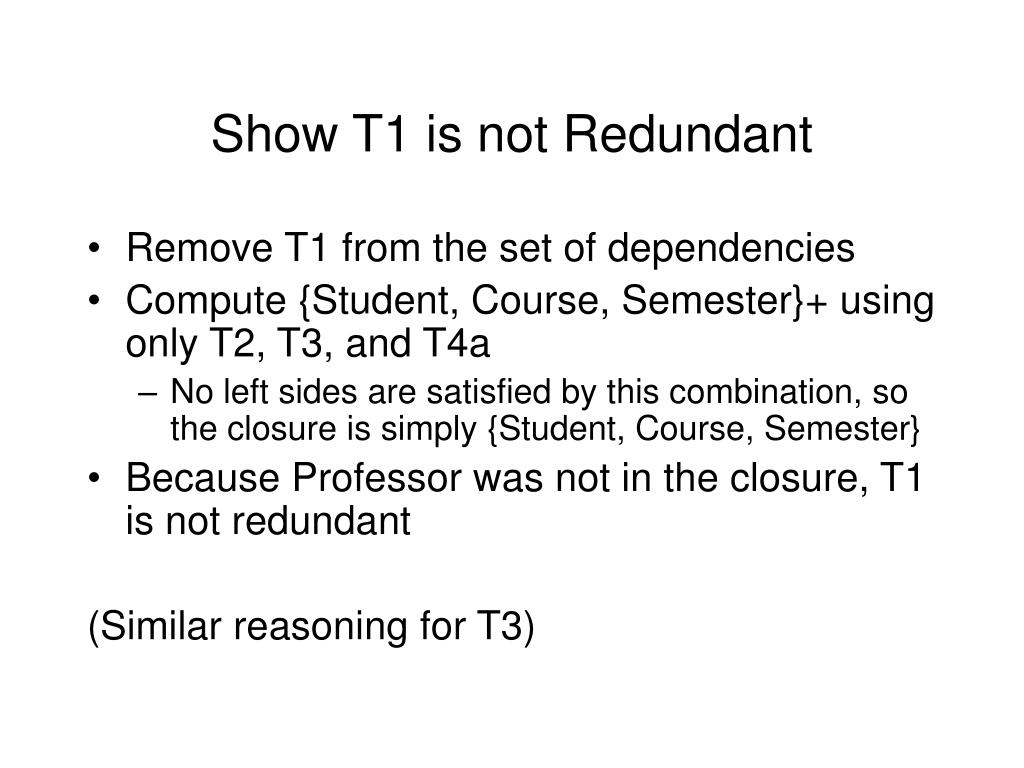

Show T1 is not Redundant

  • Remove T1 from the set of dependencies

  • Compute {Student, Course, Semester}+ using only T2, T3, and T4a

    • No left sides are satisfied by this combination, so the closure is simply {Student, Course, Semester}

  • Because Professor was not in the closure, T1 is not redundant

    (Similar reasoning for T3)


Creating the relations l.jpg
Creating the Relations

  • Each relation has all (and only) the attributes mentioned in one dependency;

    R1 = { Student, Course, Semester, Prof }

    R2 = { Prof, Semester, Course }

    R3 = { Course, Semester, Time, Prof }

    R4 = { Prof, Semester, Time, Room }

    Since none of these contains a key for the whole relation, we add

    R5 = { Student,Course,Semester,Time }


Evaluating the result l.jpg
Evaluating the Result

  • Every functional dependency from the closure affects exactly one relation in the schema

    • No dependencies are lost (this is dependency preserving)

  • At most one non-key attribute per relation, so a transitive dependency would have to lead back to a key attribute (as in R3)

  • Therefore, our result is in 3NF and dependency preserving.


Result is not bcnf l.jpg
Result is Not BCNF

  • The result is not BCNF because of the extra dependency in R3:

    • CourseSemesterTime Prof

    • Prof, Semester -> Course

    • It’s ok to have this dependency for 3NF, but not for BCNF.
