Bonding to surfaces. Two classifications distinguished by the magnitude of their enthalpies of adsorption Physisorption: long-range but weak van der Waals-type interactions with negligible exchange of electrons and enthalpies~ D H cond (- D H AD <35 kJ/mol)

Download Presentation

Bonding to surfaces

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Bonding to surfaces l.jpg

Bonding to surfaces

  • Two classifications distinguished by the magnitude of their enthalpies of adsorption

    • Physisorption: long-range but weak van der Waals-type interactions with negligible exchange of electrons and enthalpies~DHcond (-DHAD<35 kJ/mol)

    • Chemisorption: formation of a chemical bond (covalent, ionic, metallic) with exchange of electrons and –DHAD>35 kJ/mol

      Enthalpy of chemisorption depends strongly on surface coverage (interactions)

      Spectroscopic techniques (see later) are used to confirm chemisorption

      (IR or XPS for example)


Adsorption kinetics l.jpg

Adsorption kinetics

Probability of molecule being associatively adsorbed may defined in terms of a sticking probability, s.

We can write:

Thus the greater the number of vacant sites, the greater is s.

However, s is often not a linear function of θ. Invoke the precursor state


Precursor state l.jpg

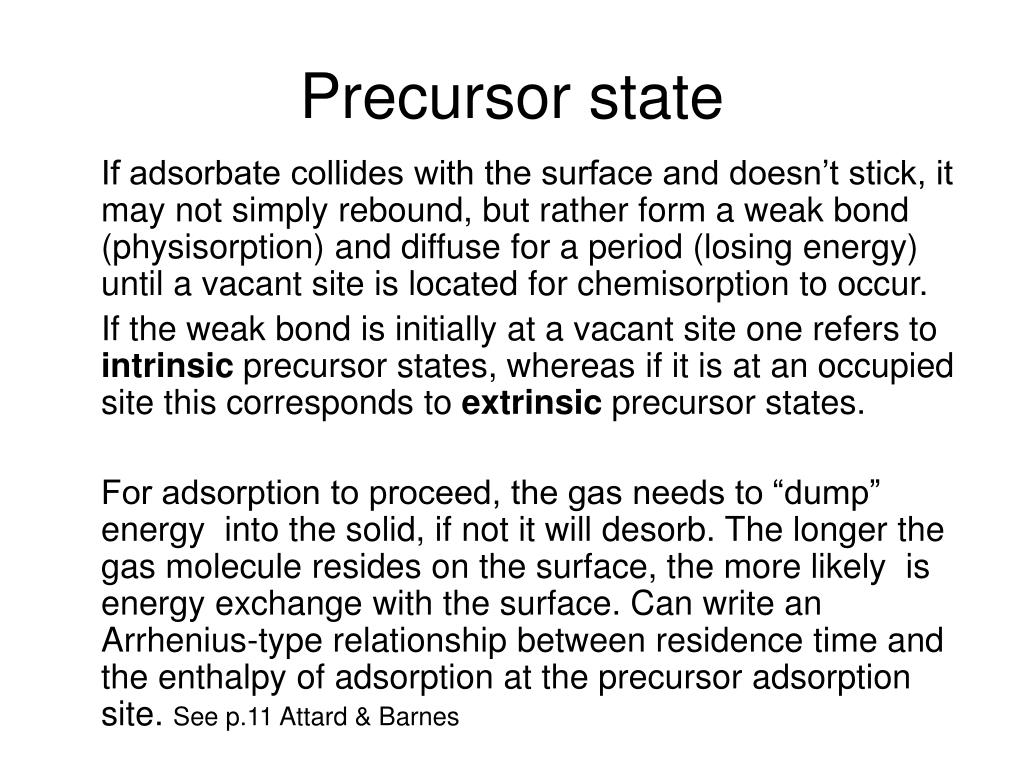

Precursor state

If adsorbate collides with the surface and doesn’t stick, it may not simply rebound, but rather form a weak bond (physisorption) and diffuse for a period (losing energy) until a vacant site is located for chemisorption to occur.

If the weak bond is initially at a vacant site one refers to intrinsic precursor states, whereas if it is at an occupied site this corresponds to extrinsic precursor states.

For adsorption to proceed, the gas needs to “dump” energy into the solid, if not it will desorb. The longer the gas molecule resides on the surface, the more likely is energy exchange with the surface. Can write an Arrhenius-type relationship between residence time and the enthalpy of adsorption at the precursor adsorption site. See p.11 Attard & Barnes


Slide4 l.jpg

repulsive Coulombic interactions

Pauli repulsion

attractive van der Waals interactions

Lennard-Jones Potential

physisorption

-DHads < 35 kJmol-1

potential energy

0

z

DHads


Potential energy profiles l.jpg

Potential energy profiles

Not activatedActivated


Potential energy profiles6 l.jpg

Potential energy profiles

For an introduction to PE curves for adsorption see section 2.4 of:

http://www.chem.qmw.ac.uk/surfaces/scc/


Mo diagram for chemisorption l.jpg

MO diagram for chemisorption

σ orbitals

σ* orbitals

σ*

1s

1s

σ

Free molecule

Metal

Adsorbed molecule


Slide8 l.jpg

Adsorption and Reaction at Surfaces


Surface structure l.jpg

Surface structure


Surface defects l.jpg

Surface defects


Surface science l.jpg

Surface science

In order to ensure reproducible results between experiments precise definition of the chemical and structural state of the surface:well-defined surfaces required.

Review 2nd and 3rd year lectures from D. Cunningham on naming crystal and solid structures


Overview l.jpg

Overview


Close packed solids l.jpg

Close-packed solids

ABAABC


Close packed solids14 l.jpg

Close-packed solids

http://www.chem.qmw.ac.uk/surfaces/scc/

hcpccp (fcc)

bcc


Slide15 l.jpg

Miller indices


Slide16 l.jpg

Miller indices

Identify the intercepts on the x- , y- and z- axes

x = a (at the point (a,0,0) )

parallel to the y- and z-axes

Intercepts :    a , , 

Specify the intercepts in fractional co-ordinates

In the case of a cubic unit cell each co-ordinate will simply be divided by the cubic cell constant a

a/a , /a, /a    i.e.    1 ,  , 

Take the reciprocals of the fractional intercepts

yielding

Miller Indices :   (100)


Try these l.jpg

Try these


And this l.jpg

And this


Miller indices l.jpg

Miller indices

Atkins & dePaula p. 700


Fcc 100 l.jpg

fcc (100)

http://www.chem.qmw.ac.uk/surfaces/scc/

Rotate 45o

CN=8 for surface layer (12 for bulk)


Fcc 110 l.jpg

fcc(110)

http://www.chem.qmw.ac.uk/surfaces/scc/

Rotate 45o

CN=7 for surface layer (12 for bulk)


Fcc 111 l.jpg

fcc(111)

http://www.chem.qmw.ac.uk/surfaces/scc/

Rotate 45o

CN=9 for surface layer (12 for bulk)


Surface energetics l.jpg

Surface energetics

  • The most stable solid surfaces are those with :

    a high surface atom density

    surface atoms of high coordination number

    expect

    fcc (111) > fcc (100) > fcc (110)


Intersection of surfaces l.jpg

Intersection of surfaces


Surface relaxation l.jpg

Surface relaxation


Surface relaxation26 l.jpg

Surface relaxation


Surface reconstruction l.jpg

Surface reconstruction
