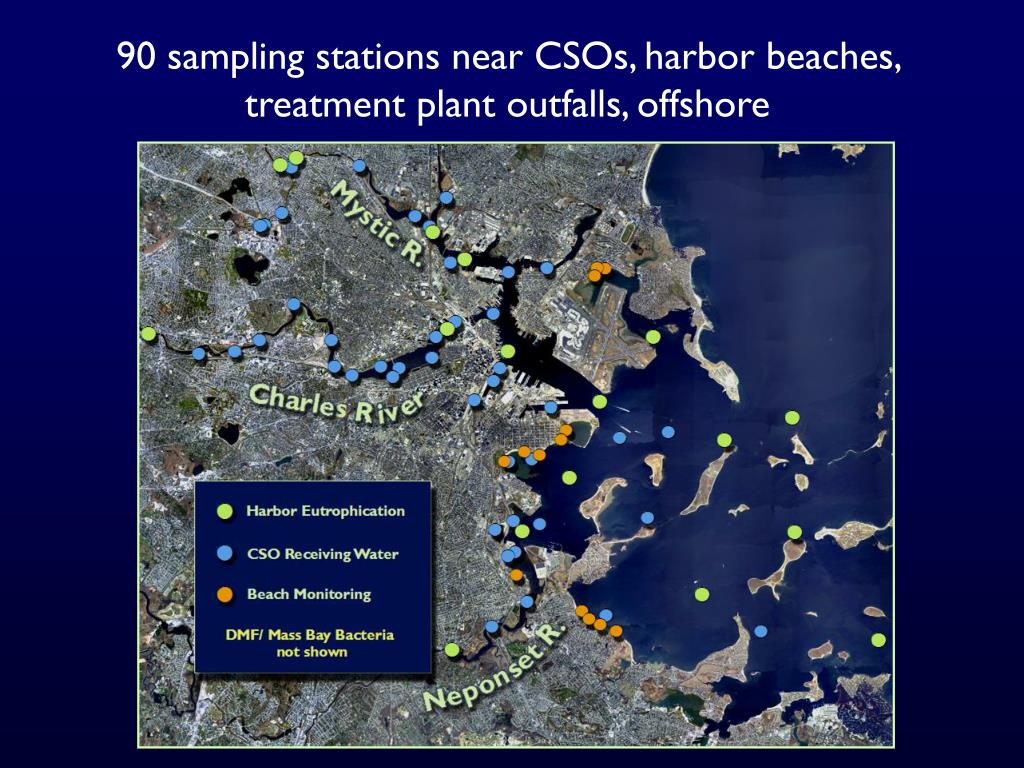

Spatial and temporal patterns of sewage indicator bacteria in Boston Harbor and its tributary rivers. Kelly Coughlin Environmental Quality, MWRA. 90 sampling stations near CSOs, harbor beaches, treatment plant outfalls, offshore. Mass Bay Bacteria Monitoring.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about 'Spatial and temporal patterns ' - Pat_Xavi

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

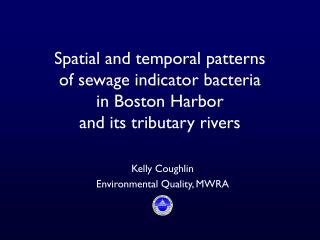

Slide1 l.jpg

Spatial and temporal patterns of sewage indicator bacteria in Boston Harbor and its tributary rivers

Kelly Coughlin

Environmental Quality, MWRA

Mass bay bacteria monitoring l.jpg
Mass Bay Bacteria Monitoring plant outfalls, offshore

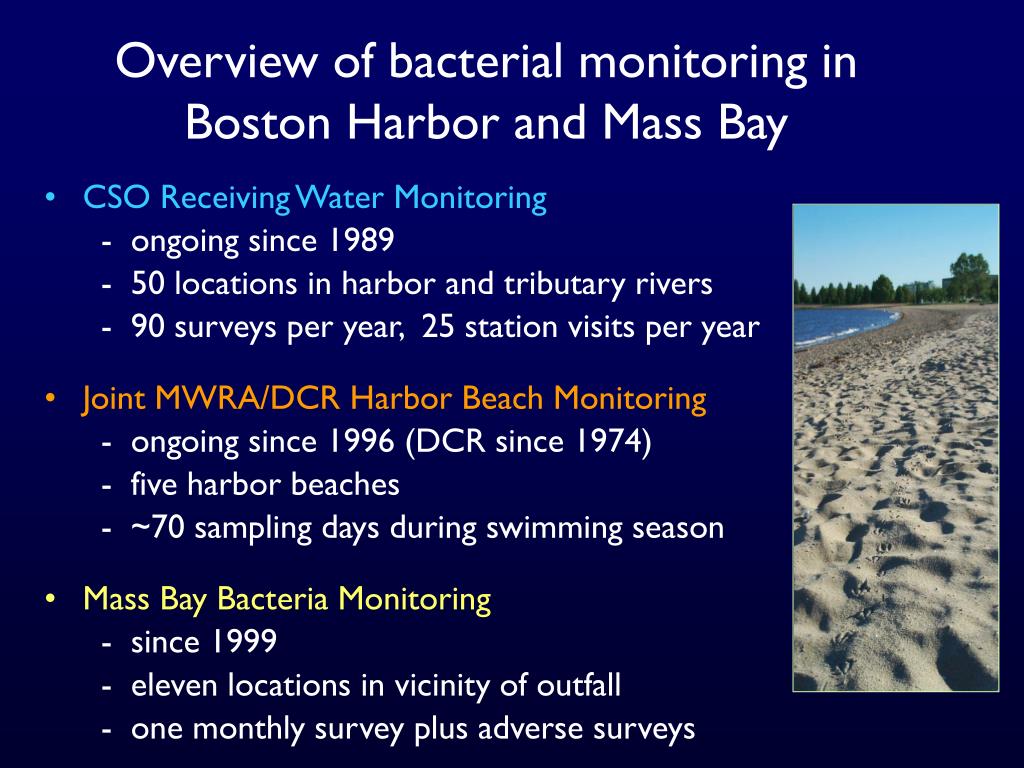

Overview of bacterial monitoring in boston harbor and mass bay l.jpg
Overview of bacterial monitoring in Boston Harbor and Mass Bay

  • CSO Receiving Water Monitoring

    - ongoing since 1989

    - 50 locations in harbor and tributary rivers

    - 90 surveys per year, 25 station visits per year

  • Joint MWRA/DCR Harbor Beach Monitoring

    - ongoing since 1996 (DCR since 1974)

    - five harbor beaches

    - ~70 sampling days during swimming season

  • Mass Bay Bacteria Monitoring

    - since 1999

    - eleven locations in vicinity of outfall

    - one monthly survey plus adverse surveys

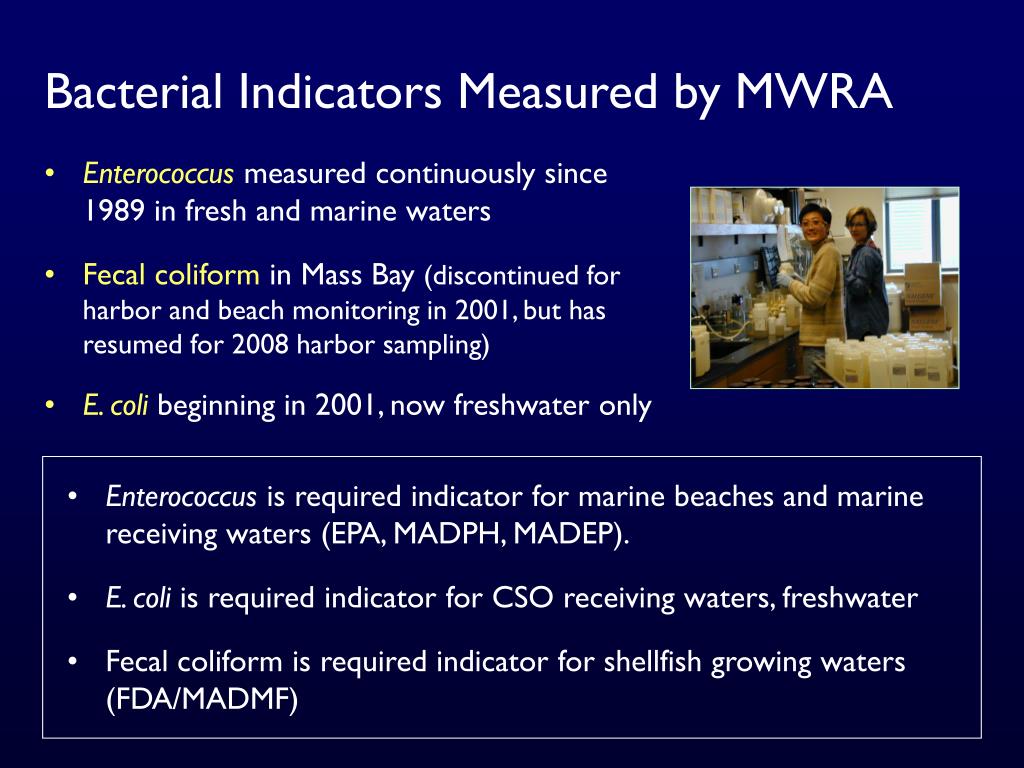

Bacterial indicators measured by mwra l.jpg
Bacterial Indicators Measured by MWRA Bay

  • Enterococcus measured continuously since 1989 in fresh and marine waters

  • Fecal coliform in Mass Bay (discontinued for harbor and beach monitoring in 2001, but has resumed for 2008 harbor sampling)

  • E. coli beginning in 2001, now freshwater only

  • Enterococcus is required indicator for marine beaches and marine receiving waters (EPA, MADPH, MADEP).

  • E. coli is required indicator for CSO receiving waters, freshwater

  • Fecal coliform is required indicator for shellfish growing waters (FDA/MADMF)

Harbor tributary rivers l.jpg

Dotted line is swimming standard, Bay

33 counts/100 mL


Harbor Tributary Rivers

( Note different scale )

Inner harbor embayments l.jpg

Dotted line is swimming standard, Bay

35 counts/100 mL


Inner Harbor & Embayments

Former harbor outfalls before and after closure l.jpg
Former Harbor Outfalls BayBefore and after closure









Dotted line is swimming standard, 35 counts/100 mL Enterococcus

Wet weather enterococcus 1987 1991 l.jpg
Wet weather BayEnterococcus, 1987-1991

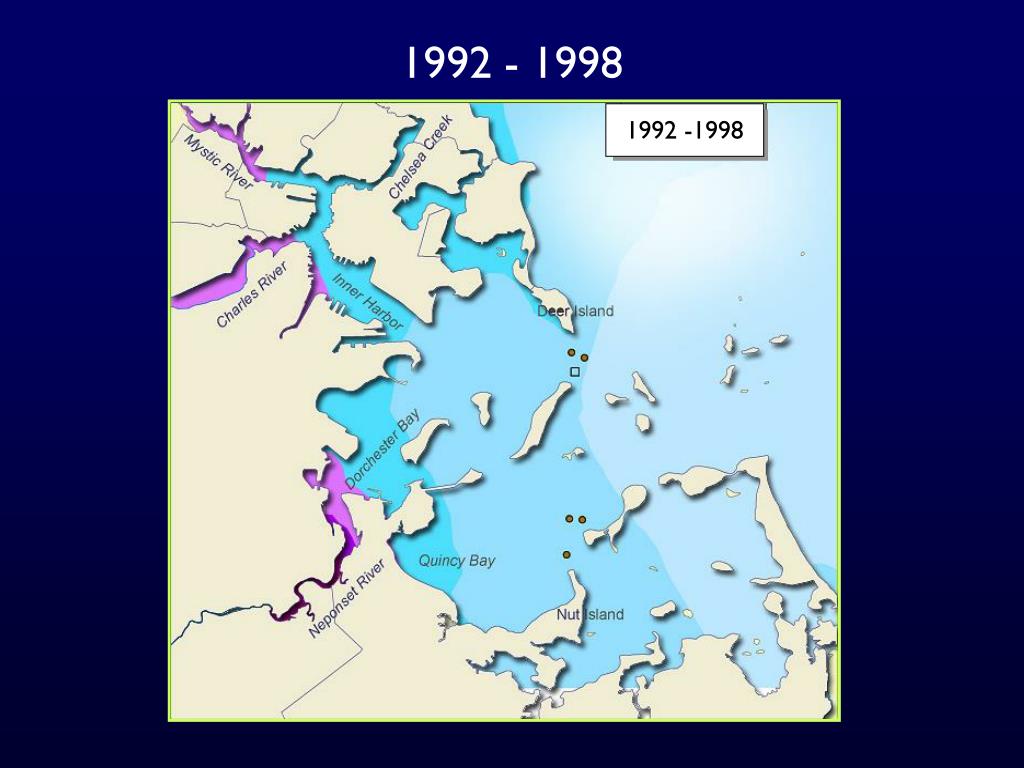

1992 1998 l.jpg
1992 - 1998 Bay

1992 -1998

Slide11 l.jpg

1999 - 2007 Bay

1999 - 2007

Harbor beach monitoring l.jpg
Harbor Beach Monitoring Bay

MWRA assists Mass. Dept. of Conservation and Recreation (DCR) with daily beach monitoring at four beaches:

  • Constitution Beach in East Boston

  • Carson Beach and Pleasure Bay Beach in South Boston

  • Tenean Beach in Dorchester

  • Wollaston Beach in Quincy

Harbor beach water quality l.jpg
Harbor beach water quality Bay

% exceedences of Enterococcus single sample limit at harbor beaches, 1987 - 2007

Wet weather impacts on harbor beaches are variable l.jpg
Wet weather impacts Bayon harbor beaches are variable

% Enterococcus exceedences at Wollaston, all locations combined

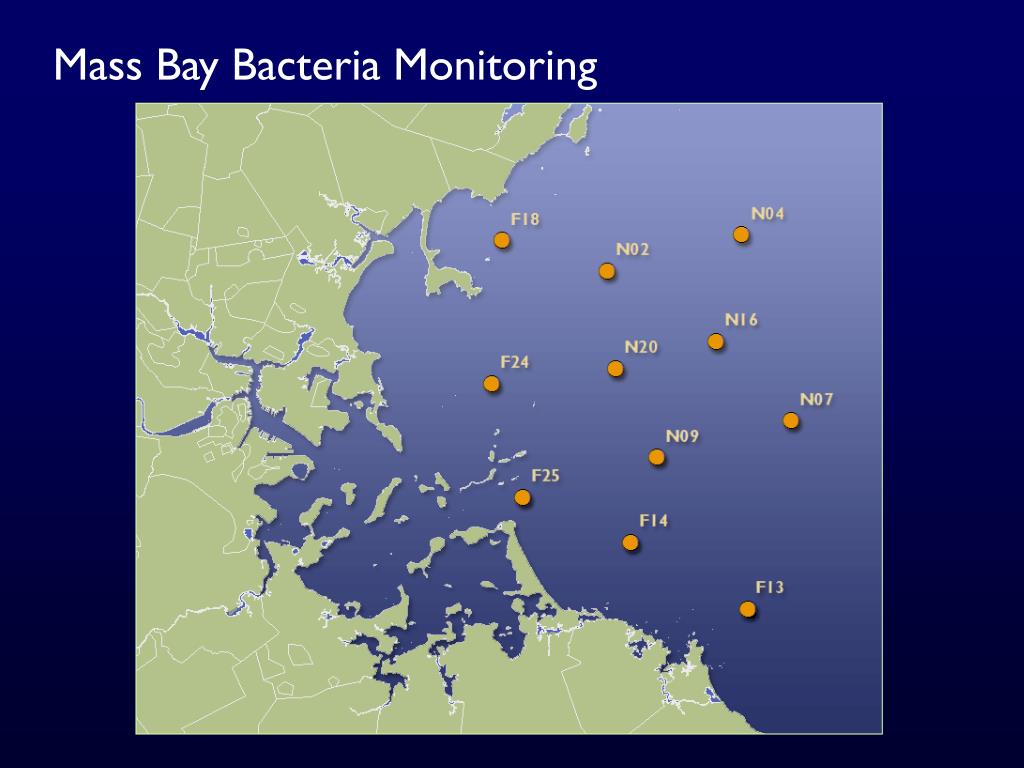

Mass bay bacteria monitoring16 l.jpg
Mass Bay Bacteria Monitoring Bay

  • 31 of 1179 samples collected since 2000 have exceeded the unrestricted shellfishing standard of 14 counts/100 mL

  • 2 Enterococcus samples have exceeded the single sample swimming standard of 104 counts/100 mL

Summary of long term trends l.jpg
Summary of Long Term Trends Bay

  • CSO Receiving Water: dramatic improvements in tributary rivers, less change for locations further from shore; wet weather continues to affect water quality

  • Harbor Beaches: little improvement in water quality over time, postings primarily triggered by wet weather events

  • Mass Bay: vast majority of samples meet shellfishing and swimming standards, though exceedences do occasionally occur

Acknowledgements l.jpg
Acknowledgements Bay

  • Keary Berger, John Wladkowski, Christopher Dorman, the harbor field team at DITP Central Lab

  • Laura Ducott, Microbiology, DITP Central Lab
