Reactive power injection strategies for wind energy regarding its statistical nature l.jpg

Reactive power injection strategies for wind energy regarding its statistical nature

Joaquín Mur M.P. Comech

[email protected]@unizar.es


I introduction presentation layout l.jpg

Wind site resource

Turbine power curve

Farm power curve

Farm electric model

Nearby wind farms

Limits on reactive power

Reactive Power Policy

Constant power factor

Automatic voltage control

Scheduled Reactive control

Reactive power under centralized control

Effect on power losses

Uncertainty Analysis

Conclusions

I. Introduction: presentation layout


Ii wind site resource weibull distribution l.jpg

II. Wind site resource (Weibull distribution)

Chart for shape parameter = 2

Solid red => wind speed = 5 m/s

Dashed pink=>wind speed = 5,5 m/s

Dark blue => wind speed = 6 m/s

Light blue => wind speed = 6,5 m/s

Dotted green=>wind speed = 7 m/s

Yellow => wind speed = 7,5 m/s


Iii wind turbine iec 61400 12 1 l.jpg

III. Wind turbine (IEC 61400-12-1)

Power curve measured at a pitch regulated turbine (from IEC 61400-12-1)


Iii snapshoot of turbines in a farm l.jpg

III. Snapshoot of turbines in a farm

Power curve measured at a pitch regulated turbine (from IEC 61400-12-1)


Iv wind farm curve iec 61400 12 3 l.jpg

IV. Wind farm curve (IEC 61400-12-3)

Declared (calculated) wind farm power curve by directional sector (from IEC 61400-12-3, annex C)


Iv wind farm 4 parameters adjusted curve l.jpg

IV. Wind farm (4 parameters adjusted curve)

woff

wf is the farm mean efficiency factor(referred to “unperturbated wind” of the site).

w25%

w75%

woff


Iv farm power distribution l.jpg

IV. Farm power distribution


Iv farm power distribution9 l.jpg

IV. Farm power distribution

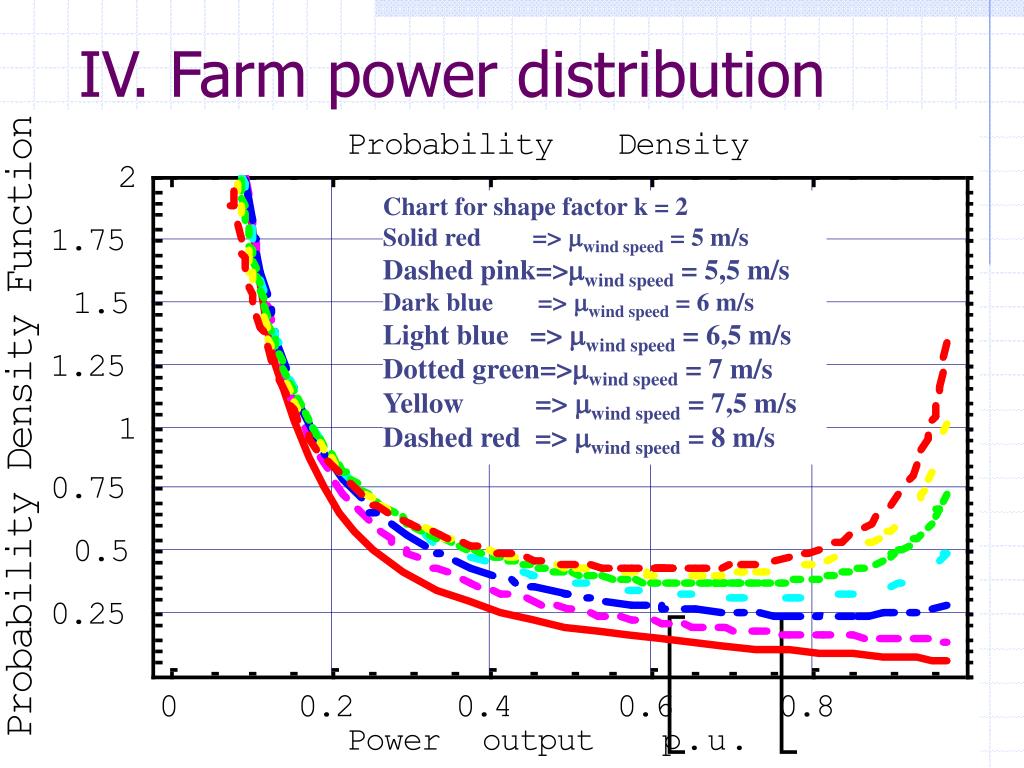

Chart for shape factor k = 2

Solid red => wind speed = 5 m/s

Dashed pink=>wind speed = 5,5 m/s

Dark blue => wind speed = 6 m/s

Light blue => wind speed = 6,5 m/s

Dotted green=>wind speed = 7 m/s

Yellow => wind speed = 7,5 m/s

Dashed red => wind speed = 8 m/s


V model of the wind farm with one medium voltage circuit l.jpg

V. Model of the wind farm with one medium voltage circuit


V model of the wind farm with several medium voltage circuits l.jpg

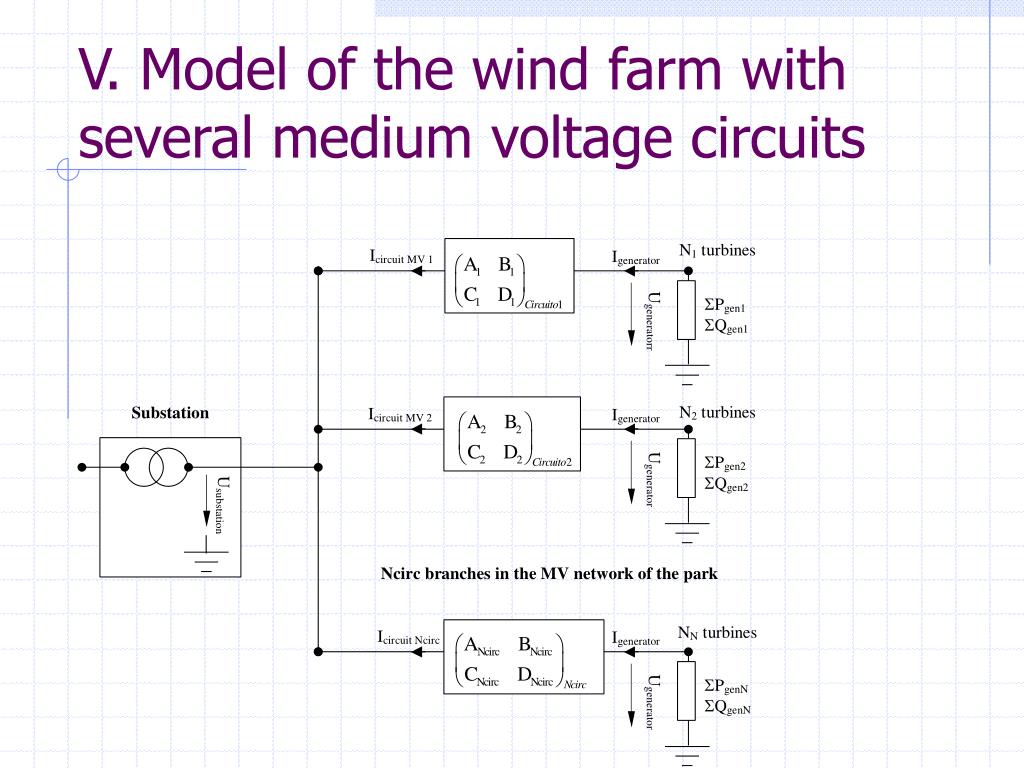

V. Model of the wind farm with several medium voltage circuits


V approximated equivalent model of the wind farm l.jpg

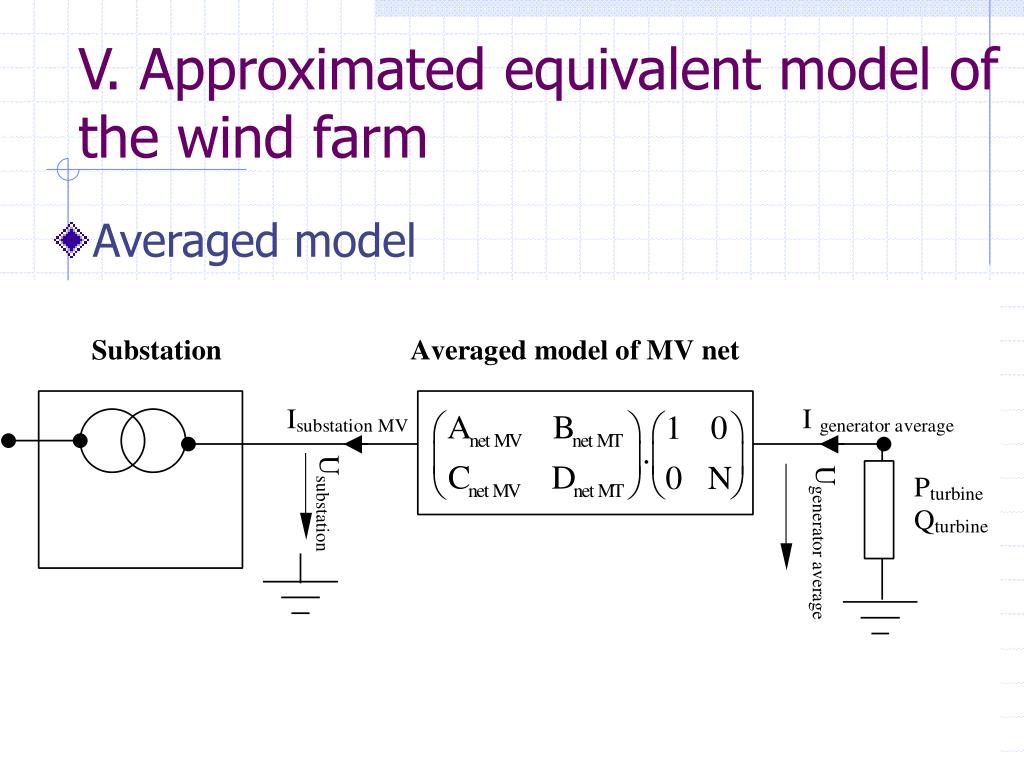

V. Approximated equivalent model of the wind farm

  • Averaged model


V fourth pole model parameters of the farm l.jpg

V. Fourth pole model & parameters of the farm


Vi power of nearby farms l.jpg

Nearby wind farms are supposed to be closely correlated  a linear regression can be precise enough

VI. Power of nearby farms

  • Pi and Pj are the average power output in park “j” (estimated farm) and “i” (reference farm);

  • rijis the experimental correlation coefficient;

  • si and sjare the standard deviation of power in farms i and j.

  • Qi and Qj must be estimated based on each farm reactive control


Vii limits on reactive power l.jpg

VII. Limits on reactive power

  • Limits provided by the turbine manufacturer.

    • Second edition of IEC 61400-21 will include a section devoted to the reactive power capability and the ability to participate in an automatic voltage control scheme.

  • Allowable voltage at the turbines.

    • The wind turbine that is electrically farer from PCC will suffer the greatest voltage deviations of the wind farm.

    • Voltage at turbines is dependent on UPCC

  • Current limit in series elements (lines, transformers, etc) and grid bottlenecks.

    • Slow thermal dynamics, grid congestion…

    • Usually, some degree of overload is allowed.


Vii voltage at electrically farer turbine l.jpg

VII. Voltage at electrically farer turbine

  • Estimation of parameters from power flows:


Vii loci of allowable power l.jpg

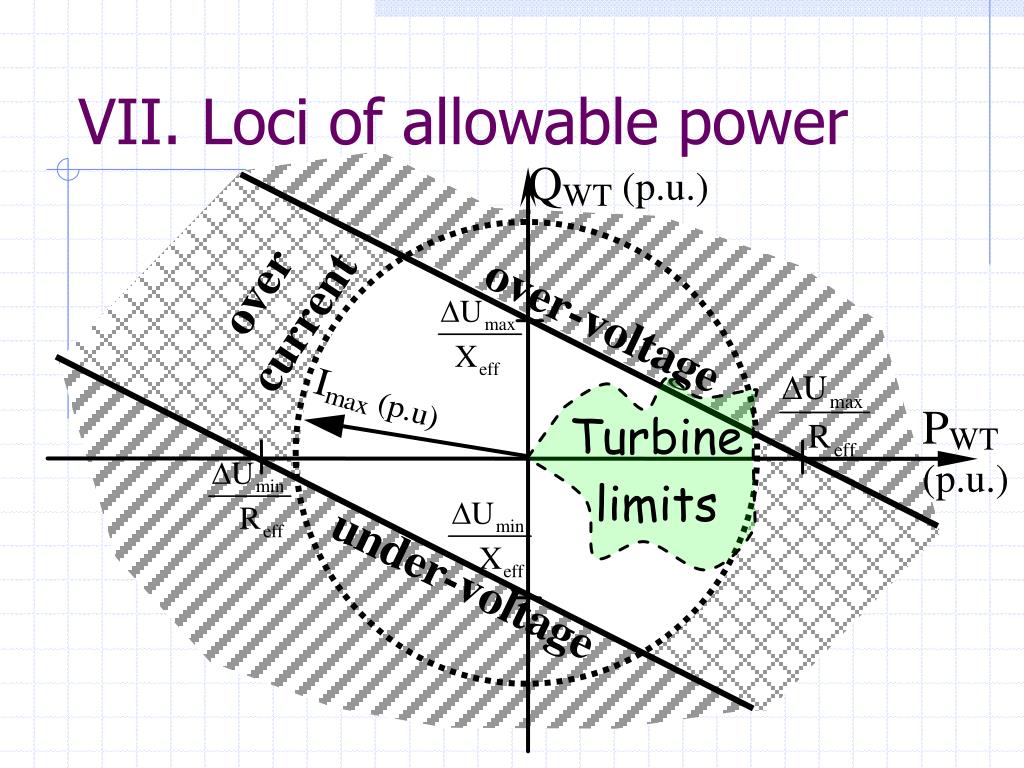

VII. Loci of allowable power


Viii reactive power policy l.jpg

Centralized control: stabilize voltage, power losses, balance reactive power flows…

Constant power factor regulation

Automatic voltage control

Scheduled reactive control

Current model in Spain, power factor depending on hours

Improvement if weekdays and holidays would be considered

Improvement if target is based on reactive power, not on power factor

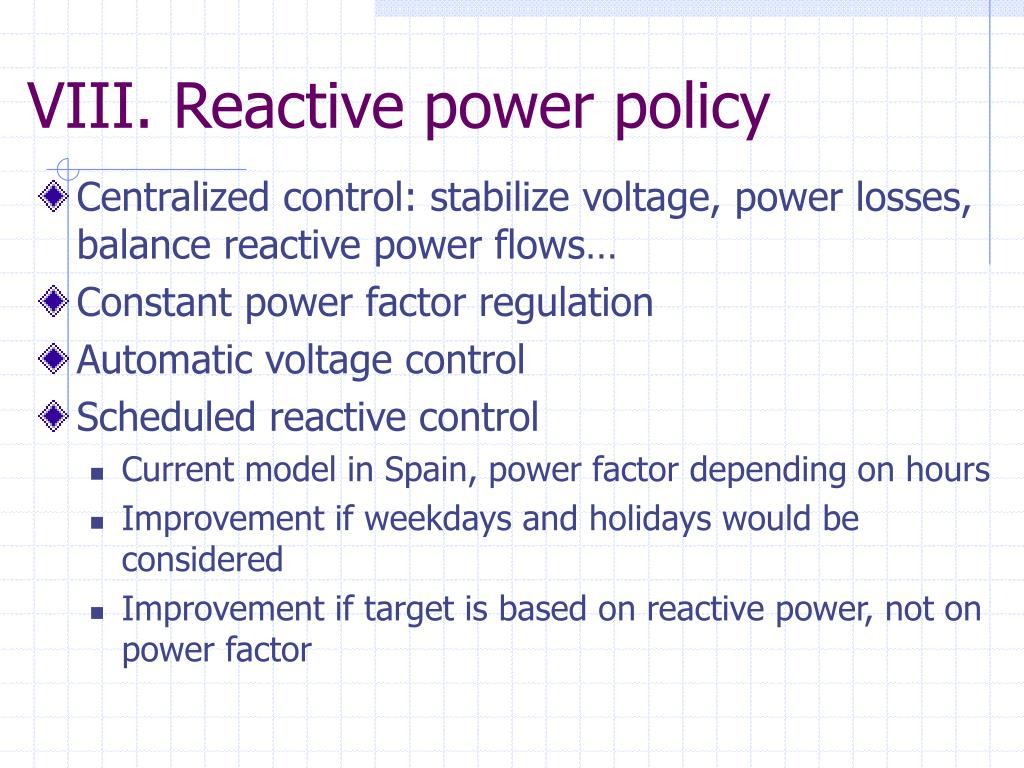

VIII. Reactive power policy


Viii voltage deviation due to scheduled power factor spain l.jpg

Medium hours

12 h/day

(unity power factor)

Valley hours

8 h/day

Peak hours

4 h/day

(Capacitive behaviour)

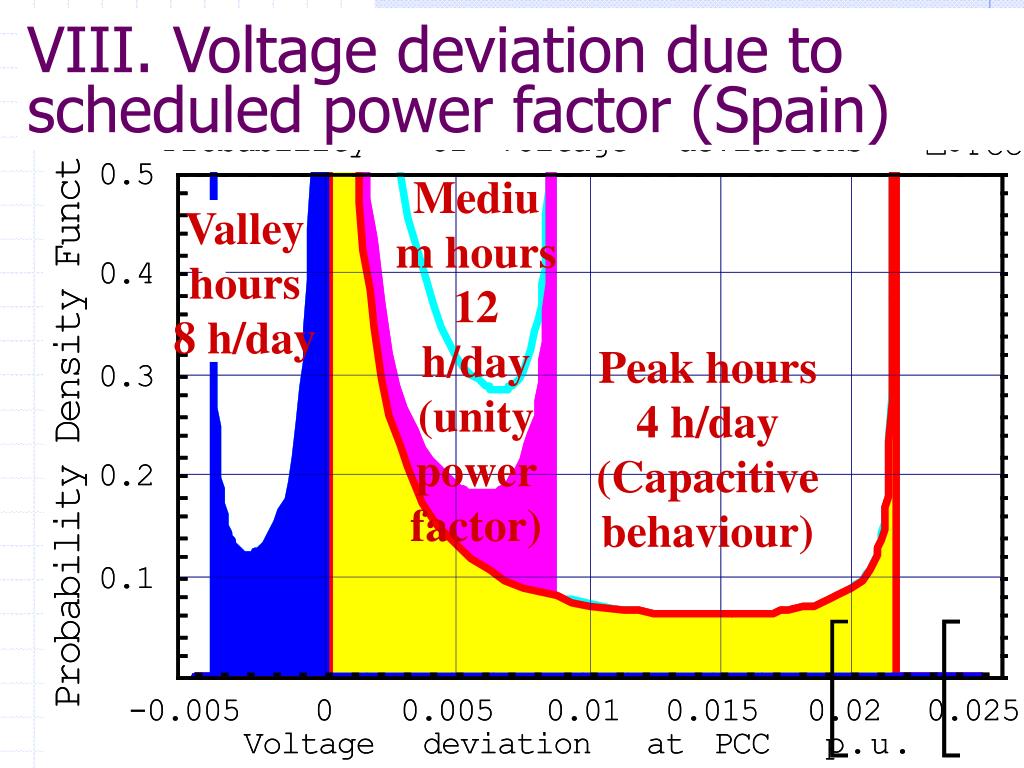

VIII. Voltage deviation due to scheduled power factor (Spain)


Viii reactive power injection due to scheduled power factor spain l.jpg

VIII. Reactive power injection due to scheduled power factor (Spain)

Peak hours

4 h/day

(Capacitive behaviour)

Valley hours

8 h/day


Viii reactive power under centralized control l.jpg

VIII. Reactive power under centralized control

  • Simplistic example of realizable reactive power at a wind turbine


Viii availability of reactive power injection for the example l.jpg

VIII. Availability of reactive power INJECTION for the example

  • Probability of being able to INJECT capacitive power up to Qwt

Chart for shape parameter = 2

Solid red => wind speed = 5 m/s

Dashed pink=>wind speed = 5,5 m/s

Dark blue => wind speed = 6 m/s

Light blue => wind speed = 6,5 m/s

Dotted green=>wind speed = 7 m/s

Yellow => wind speed = 7,5 m/s


Viii availability of reactive power absorption for the example l.jpg

VIII. Availability of reactive power ABSORPTION for the example

  • Probability of being able to ABSORB inductive power up to Qwt

Chart for shape parameter = 2

Solid red => wind speed = 5 m/s

Dashed pink=>wind speed = 5,5 m/s

Dark blue => wind speed = 6 m/s

Light blue => wind speed = 6,5 m/s

Dotted green=>wind speed = 7 m/s

Yellow => wind speed = 7,5 m/s


Ix effect on power losses l.jpg

IX. Effect on power losses

  • Parameters aP, aQ, bP and bQ can be obtained from power flow runs

  • An analogue relationship can be established for losses on reactive power


X uncertainty of the results l.jpg

X. Uncertainty of the results

The main source of errors are:

  • Adjustment of wind resource to a Weibull distribution.

  • The uncertainty of the farm power curve.

  • Simplistic model of the power curve with only two or four parameters.

  • Approximations done in the model of the grid (for example, considering U0 constant).

  • Availability of turbines and network.


Conclusions l.jpg

Conclusions

  • This work shows a statistical model of wind farms and a methodology for adjusting its parameters. This model has been used to assess the grid impact of a wind farm reactive power during normal operation.

  • Several reactive power control strategies are analyzed.

  • The uncertainty of the final data due to the approximations made is studied. The accuracy can be increased if non-parametric models of farm power curve and wind resource is employed.


Questions l.jpg

Questions?
