Presentation Transcript
Slide1 l.jpg

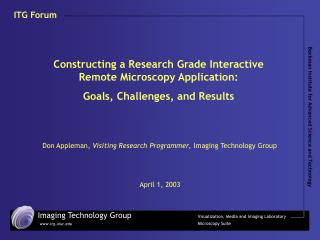

ITG Forum

Constructing a Research Grade Interactive Remote Microscopy Application:

Goals, Challenges, and Results

Don Appleman, Visiting Research Programmer, Imaging Technology Group

April 1, 2003


Slide2 l.jpg

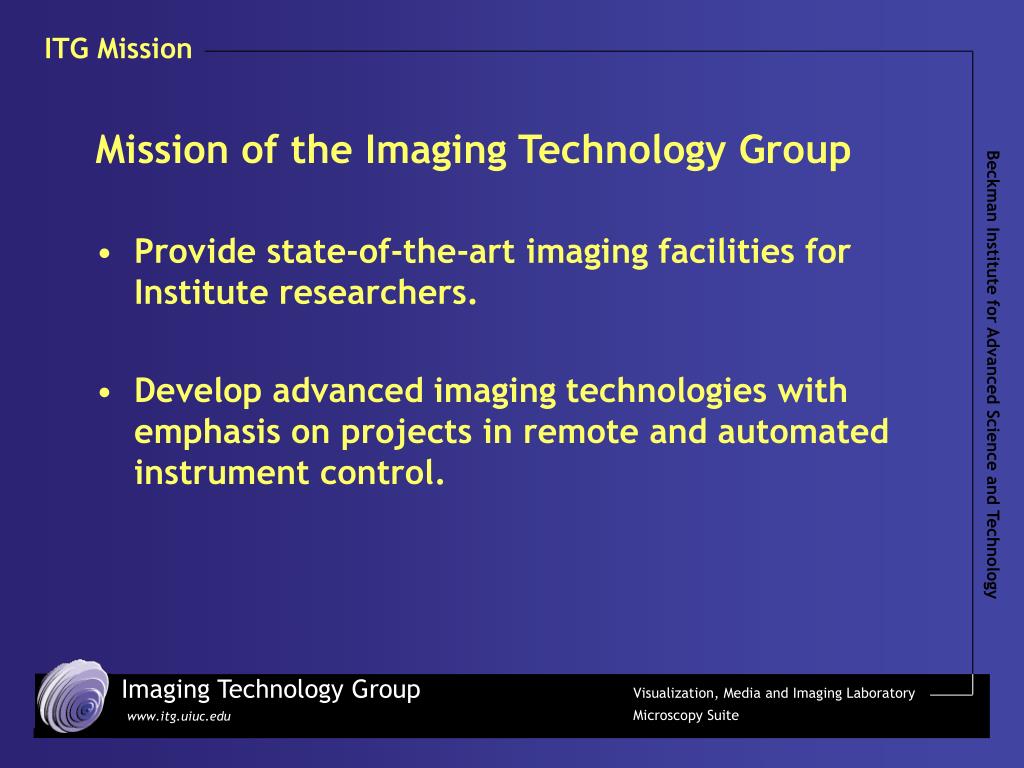

ITG Mission

Mission of the Imaging Technology Group

  • Provide state-of-the-art imaging facilities for Institute researchers.

  • Develop advanced imaging technologies with emphasis on projects in remote and automated instrument control.


Slide3 l.jpg

Remote Instrumentation

Remote access to imaging instrumentation

Why?

  • Unique and/or expensive instrumentation

  • Distributed expertise

  • Outreach; Education; Training of professional researchers and engineers


Slide4 l.jpg

What is Bugscope?

What is Bugscope?

  • Web-based access to an Environmental Scanning Electron Microscope (ESEM) for K-12 classrooms to image “bugs”.

  • Schools in 33 states have used the ESEM over the Internet in more than 120 sessions using the current software.


Slide5 l.jpg

Current Technology

Initial Implementation

  • Separate Controller & Observer software

  • Chat Window for conversing with microscopist

  • Java applets or CGI interface to microscope server software

  • Still images only



Slide7 l.jpg

Current Technology

Drawbacks

  • Still images only

  • Time to acquire image is long

    This results in the following problems …

  • Difficulty navigating across the sample

  • Difficulty focusing

  • Loss of concentration on the task at hand


Slide8 l.jpg

Current Technology

Current Project

  • The current project is a remote instrumentation project funded by NASA.

  • NASA is interested in the remote operation of complex scientific equipment over long distances in real time.

  • The project goal is to enhance the Bugscope software, known as the Interactive Remote Microscopy Application (IRMA), to the point where it qualifies as a research-grade interface.


Slide9 l.jpg

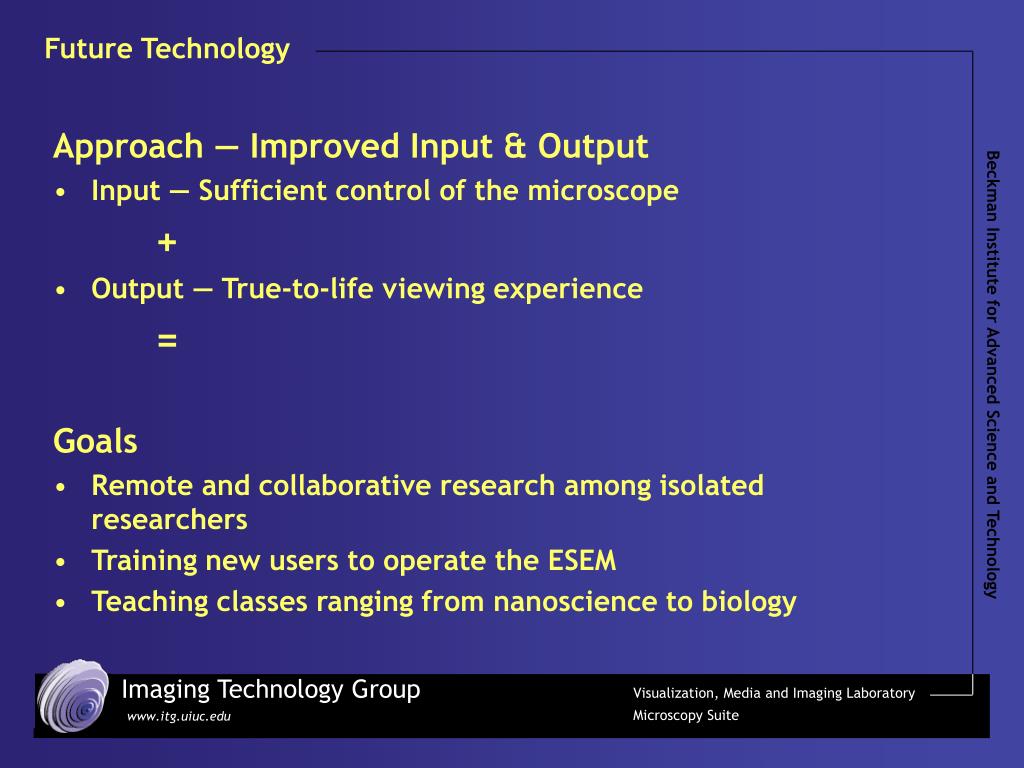

Future Technology

Approach — Improved Input & Output

  • Input — Sufficient control of the microscope

    +

  • Output — True-to-life viewing experience

    =

    Goals

  • Remote and collaborative research among isolated researchers

  • Training new users to operate the ESEM

  • Teaching classes ranging from nanoscience to biology


Slide10 l.jpg

Future Technology

Proposal

  • Add streaming video to Bugscope


Slide11 l.jpg

Future Technology

Proposal

  • Add streaming video to Bugscope

    Challenges

  • Bandwidth requirements

  • Image quality

  • Image latency

  • Image size


Slide12 l.jpg

Streaming Video

For a given bandwidth capacity, pick any two

  • Image quality

    Fidelity of the reconstructed image to the original source

  • Image latency

    Delay in real-time between acquisition of the image and display of the image to the remote user

  • Image size

    The size of the image displayed to the remote user


Slide13 l.jpg

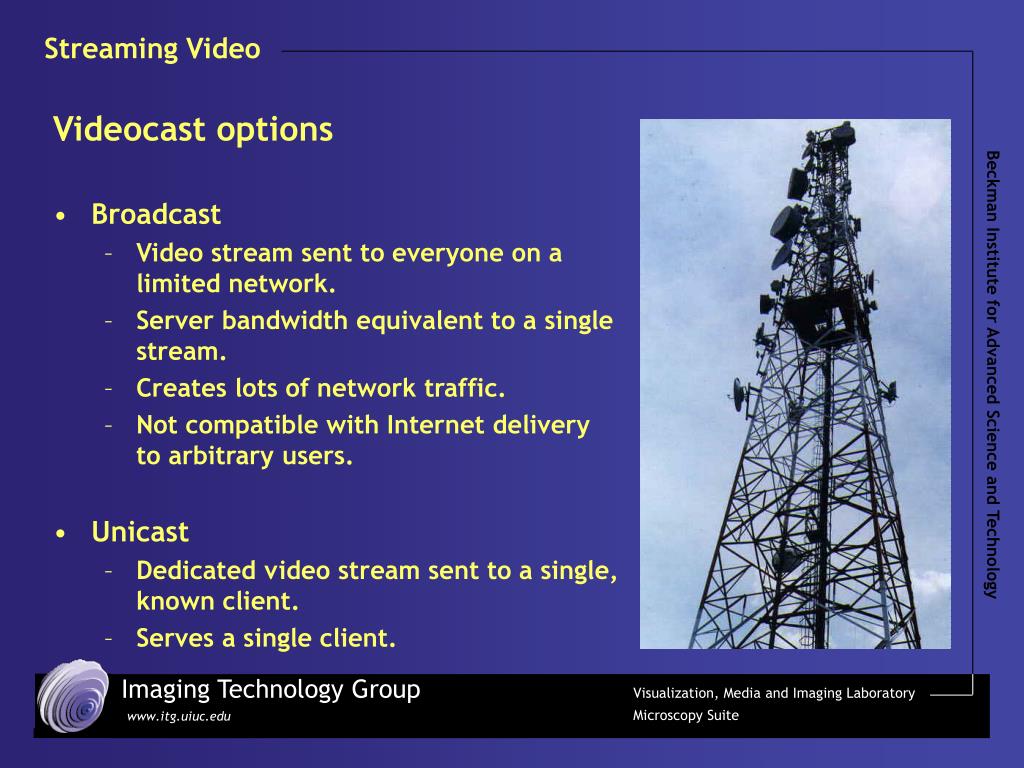

Streaming Video

Videocast options

  • Broadcast

    • Video stream sent to everyone on a limited network.

    • Server bandwidth equivalent to a single stream.

    • Creates lots of network traffic.

    • Not compatible with Internet delivery to arbitrary users.

  • Unicast

    • Dedicated video stream sent to a single, known client.

    • Serves a single client.


Slide14 l.jpg

Streaming Video

Videocast options, cont’d

  • Multi-unicast

    • Multiple dedicated video streams sent to multiple clients.

    • Server bandwidth multiplied by number of simultaneous users.

    • Client bandwidth multiplied by number of simultaneous users on given Internet feed (classroom full of students).

  • Multicast

    • Video stream sent to abstract address, replicated by routers.

    • Server bandwidth equivalent to a single stream.

    • Client bandwidth equivalent to a single stream for Internet feed.

    • Requires properly configured, compatible routers.


Slide15 l.jpg

Streaming Video

Videocast solution

Hybrid Video Server

  • Initiate multicast

  • Listen for client connections

  • Inform clients of the active multicast address

  • If the client reports that it cannot see the multicast

    • Start a dedicated unicast to client address

    • Inform client of unicast address:port

    • Monitor client status


Slide16 l.jpg

Streaming Video

Project-specific Advantages

  • No audio

  • Monochromatic source

    The solution

  • H263 video-conferencing video format

  • Video server written in Java (using Java Media Framework)

  • Java applet video client (adjunct to extant software)


Slide17 l.jpg

Streaming Video

Project-specific Results, low bandwidth

  • Video stream bandwidth ~100Kbps

  • Image quality acceptable (some quality lost, still image needed for actual study); good enough for fine focus control using current interface

  • Image latency less than or equal to 500 ms

  • Image size 352x288

  • Video frame rate ~15 frames per second (variable bit rate)


Slide18 l.jpg

Streaming Video

Project-specific Results, high bandwidth

  • Video stream bandwidth ~3Mbps

  • Image quality very good (JPEG quality 0.8, still image usually not needed for actual study)

  • Image latency less than or equal to 500 ms

  • Image size 640x480

  • Video frame rate ~15 frames per second (variable bit rate)


Slide19 l.jpg

Beyond Video

A new, more complete and more natural user interface.

Expose the majority of the controls accessible when using the ESEM directly.


Slide20 l.jpg

Beyond Video

New controls

  • Beam on/off, kV, and spot size

  • Scan mode (Slow scan 1, 2, 3, or TV mode)

  • Filters (Live, Integrate 1, Average 4)

  • Detectors (Secondary electron, Backscatter electron, CCD camera)

    Improved controls

  • New Navigation, Focus, and Measurement Tools


Slide21 l.jpg

Beyond Video

Not all controls can be included

  • Cannot change specimens

  • Cannot activate vacuum

  • Cannot operate manual tilt mechanism

    An operator is required to prepare and mount the specimen, and to activate the vacuum.


Slide22 l.jpg

Navigation Tool

ESEM Navigation

Click anywhere relative to the green overlay circle, and the stage will move in that direction.

In “TV” mode, click & hold moves smoothly in given direction.


Slide23 l.jpg

Navigation Tool

  • Bugscope Navigation

  • Control+click on Observer to center image on selected location

  • Controller stage control

  • Controller presets


Slide24 l.jpg

Navigation Tool

Proposed Navigation

  • Click & hold over video window to move as if in “TV” mode on ESEM

  • Keyboard or other control to move by ½ screen in any direction

  • Control+click on video display to center image on selected location


Slide25 l.jpg

Focus Tool

ESEM Focus

Click & drag right mouse button left/right to increase/decrease focus distance.

Control+click & drag right mouse button left/right or up/down to adjust stigmator x,y.


Slide26 l.jpg

Focus Tool

  • Bugscope Focus

  • Coarse control +/- to adjust focus by 1mm

  • Fine control to adjust by 0.1mm to 0.9mm

  • ESEM Auto Focus (slow, can be unreliable)


Slide27 l.jpg

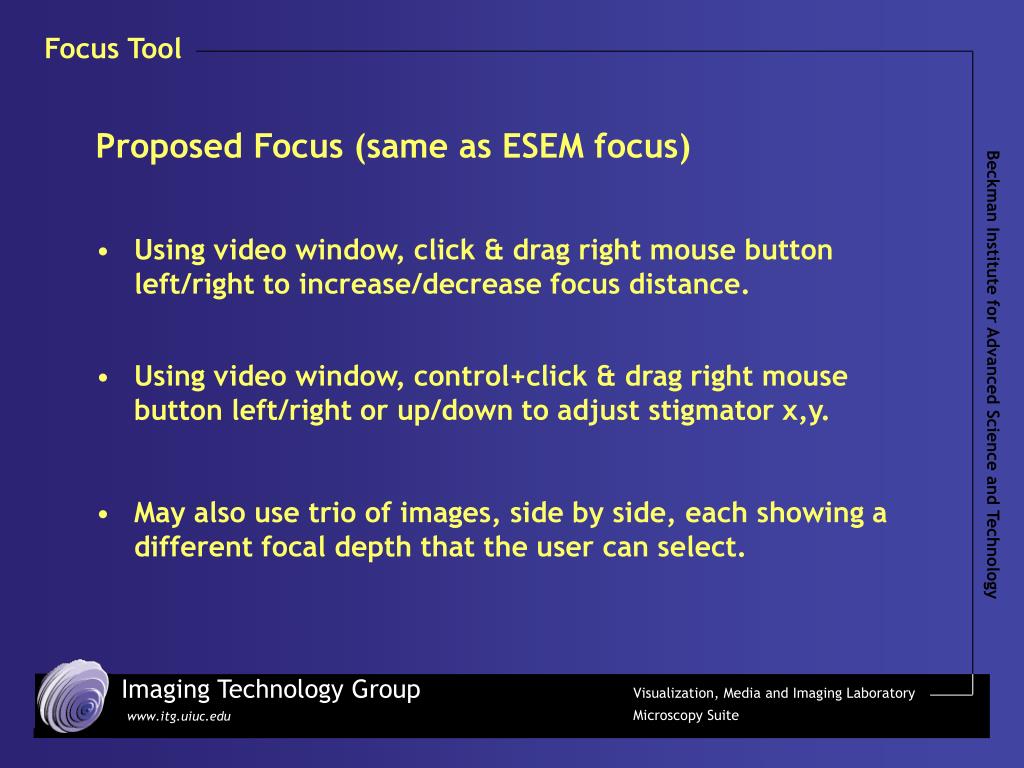

Focus Tool

Proposed Focus (same as ESEM focus)

  • Using video window, click & drag right mouse button left/right to increase/decrease focus distance.

  • Using video window, control+click & drag right mouse button left/right or up/down to adjust stigmator x,y.

  • May also use trio of images, side by side, each showing a different focal depth that the user can select.


Slide28 l.jpg

User Base

Varying user base

  • Educational Outreach (Bugscope)

    • Bandwidth limited (usually)

    • Little or no experience operating a real ESEM

    • Not fully accountable

    • Chat with professional required

  • Professional Researchers

    • Lots of bandwidth (usually)

    • May have experience operating a real ESEM

    • Higher level of accountability

    • Professional assistance unneeded


Slide29 l.jpg

User Base

Varying user base, solution

Configurable control set

  • For educational outreach, eliminate controls that are confusing, hard to use, or which might damage the equipment.

    Configurable video server

  • Configure to use available bandwidth


Slide30 l.jpg

Conclusions

Conclusions:

  • With the addition of streaming video to Bugscope, the issue of realism for the output of the IRMA software has been addressed.

  • Once we complete the enhancements to the input interface of the Controller, IRMA will be a true, research-ready option for usage of the ESEM.

  • With the requirement that an operator be present to prepare and mount the specimens, and to operate the vacuum controls, IRMA will remain limited.

  • As a proof-of-concept of remote instrumentation capabilities, the completed project is a success.


References l.jpg
References

The Bugscope web site

http://bugscope.beckman.uiuc.edu

Technical reports

http://bugscope.beckman.uiuc.edu/publications/index.htm
