Presentation Transcript


Chapter 9 chemical quantities in reactions l.jpg

A ceramic brake disc in a sports car withstands temperature of 1400°C.

Chapter 9 Chemical Quantities in Reactions

9.3

Limiting Reactants


Limiting reactant l.jpg
Limiting Reactant of 1400

A limiting reactant in a chemical reaction is the

substance that

  • is used up first

  • stops the reaction

  • limits the amount of product that can form


Reacting amounts l.jpg
Reacting Amounts of 1400

In a table setting, there are 1 fork, 1 knife, and 1 spoon.

How many table settings are possible from 6 forks, 4 spoons, and 7 knives?

What is the limiting item?


Reacting amounts4 l.jpg
Reacting Amounts of 1400

Four table settings are possible.

Initially Used Extra

forks 6 42

spoons 4 4 0

knives 7 4 3

The limiting item is the spoon.


Example of everyday limiting reactant l.jpg
Example of Everyday Limiting Reactant of 1400

How many peanut butter sandwiches can be made from 8 slices of bread and 1 jar of peanut butter?

With 8 slices of bread, only 4 sandwiches can be made. The bread is the limiting reactant.


Example of everyday limiting reactant6 l.jpg
Example of Everyday Limiting Reactant of 1400

How many peanut butter sandwiches can be made from 8 slices of bread and 1 tablespoon of peanut butter?

With 1 tablespoon of peanut butter, only 1 sandwich can be made. The peanut butter is the limiting item.


Limiting reactants l.jpg
Limiting Reactants of 1400

When 4.00 mol of H2 is mixed with 2.00 mol of Cl2, how many moles of HCl can form?

H2(g) + Cl2(g)  2HCl (g)

4.00 mol 2.00 mol ??? Mol


Limiting reactants using moles l.jpg
Limiting Reactants Using Moles of 1400

Calculate the moles of product from each reactant, H2 and Cl2.

moles of HCl from moles of H2

4.00 mol H2 x 2 mol HCl = 8.00 mol of HCl

1 mol H2 (not possible)

moles of HCl from moles of Cl2

2.00 mol Cl2 x 2 mol HCl = 4.00 mol of HCl

1 mol Cl2 (smaller number)

The limiting reactant is Cl2 because it produces the smaller number of moles of HCl.




Limiting reactants using mass l.jpg
Limiting Reactants Using Mass of 1400

Calculate the mass of water produced when

8.00 g of H2 and 24.0 g of O2 react?

2H2(g) + O2(g) 2H2O(l)


Limiting reactants using mass12 l.jpg
Limiting Reactants Using Mass of 1400

STEP 1 Use molar mass to convert the grams of each reactant to moles.

Given 8.00 g of H2 and 24.0 g of O2

Need grams of H2O

8.00 g H2 x 1 mol H2 = 3.97 mol of H2

2.016 g H2

24.0 g O2 x 1 mol O2 = 0.750 mol of O2

32.00 g O2


Limiting reactants using mass continued l.jpg
Limiting Reactants Using Mass (continued) of 1400

STEP 2Write mole-mole factors using the coefficients in the equation.

1 mol of O2 = 2 mol of H2O

1 mol O2 and 2 mol H2O

2 mol H2O 1 mol O2

2 mol of H2 = 2 mol of H2O

2 mol H2 and 2 mol H2O

2 mol H2O2 mol H2

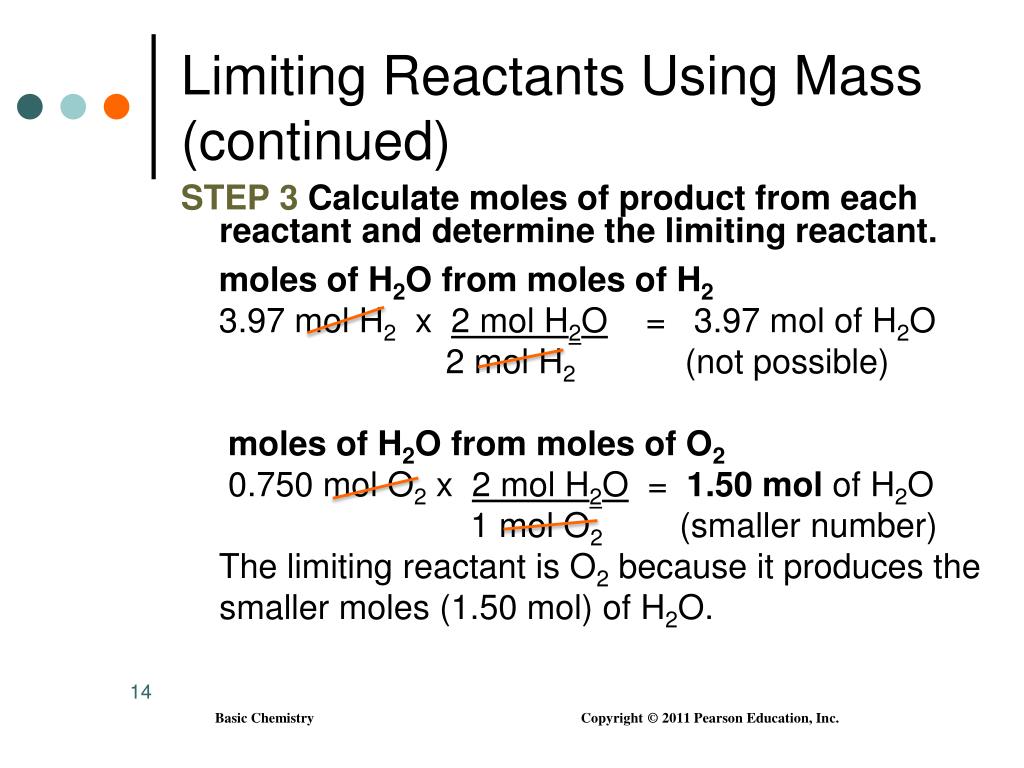

Limiting reactants using mass continued14 l.jpg
Limiting Reactants Using Mass (continued) of 1400

STEP 3 Calculate moles of product from each reactant and determine the limiting reactant.

moles of H2O from moles of H2

3.97 mol H2 x 2 mol H2O = 3.97 mol of H2O

2 mol H2 (not possible)

moles of H2O from moles of O2

0.750 mol O2 x 2 mol H2O = 1.50 mol of H2O

1 mol O2 (smaller number)

The limiting reactant is O2 because it produces the smaller moles (1.50 mol) of H2O.

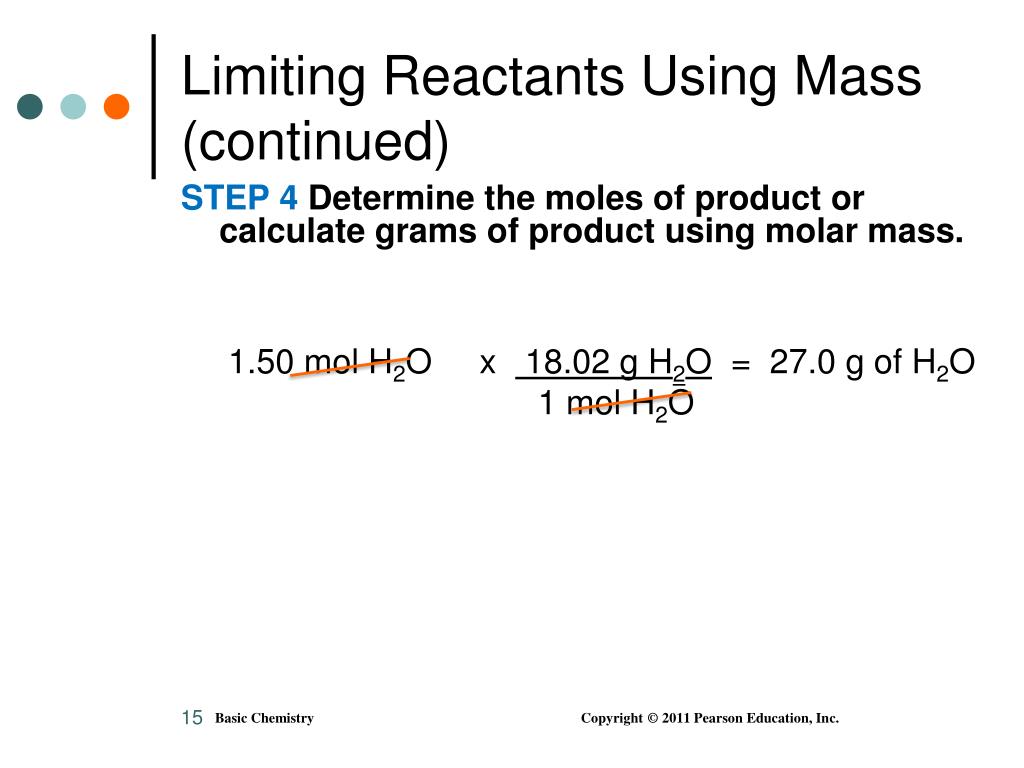

Limiting reactants using mass continued15 l.jpg
Limiting Reactants Using Mass (continued) of 1400

STEP 4 Determine the moles of product or calculate grams of product using molar mass.

1.50 mol H2O x 18.02 g H2O = 27.0 g of H2O

1 mol H2O
