Presentation Transcript

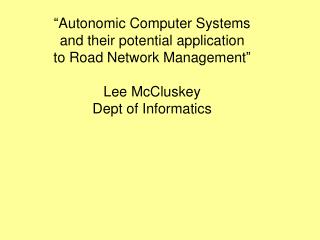

Slide1 l.jpg

“Autonomic Computer Systems and their potential application to Road Network Management”

Lee McCluskey

Dept of Informatics


Future current problem with complexity of systems l.jpg
Future / current problem with application to Road Network Management”complexity of systems

jpeg from an address to “The 3rd IEEE International Conference on Autonomic Computing” by David Bartlett


Future current problem with complexity of systems3 l.jpg
Future / current problem with application to Road Network Management”complexity of systems

  • As (computer) systems are getting more complex, they are getting much harder to manage, in particular to ..

    • Maintain

    • Fix

    • Configure / Re-configure

    • Secure

      Initial requirements drift, environments change.


Autonomic nervous systems l.jpg
Autonomic Nervous Systems application to Road Network Management”

  • Human breathing, heartbeat, temperature, immune system, repair mechanisms are all to a great extent controlled by our body without our conscious management

  • When we are anxious, frightened, ill, injured etc all these bodily functions have evolved to react appropriately.


Autonomic computing l.jpg
Autonomic Computing application to Road Network Management”

  • Apparently the term was coined by IBM in 2001, now there is an international conference (“ICAC” 2004,5,6,7)

  • AC/ICAC have attracted a very wide range of computing research and approaches, largely from the artificial intelligence community

  • Aim to make complex systems self-managing, ie

    • Self healing

    • Self maintaining

    • Self configuring

      and thus deal with the problems outlined above.

  • Up until recently, research into individual autonomic properties was tackled piecemeal. Some systems (eg computer operating systems ..) have some elements of these features already


Capabilities required for ac l.jpg
Capabilities required for AC application to Road Network Management”

The computer system may needs to be able to:

  • Self-Evaluate: detect and identify problems (security breaches, SLA shortfalls, bugs)

  • Learn: tune, auto-debug, change code, seek new knowledge / services when required

  • Plan: creating strategies/schedules for dealing with problems

    These generally require the system to have an explicit set of requirements /SLAs (so can evaluate) and the semantics of components of the system


A web approach to ac l.jpg
A web approach to AC .. application to Road Network Management”

Nowadays the field of SOA emphasises the idea of putting components together to create systems .. EG

  • Systems are made up of compositions of web services

  • Web services are marked up with semantics (eg using OWL-S)

  • Requirements are like ‘goals’ that compositions of web services must achieve, they are configured automatically by automated planning programs

  • As new services come on stream, or services are unavailable, or are retired, self-maintenance means replacing old with new but equivalent semantics.

  • If more than evolution is required, self-configuration is down to re-planning, where a new solution is constructed from primitive web services.

    (cf PhD student Faisal Mustafa who is looking into this)


A lot my research has really been ac l.jpg
A lot my research has really been AC! application to Road Network Management”

See my website http://scom.hud.ac.uk/scomtlm/ for details

FAROAS 1992-4

Create formalisation of functional requirements (the CPS), automate the solution / code writing – code “self-maintenance”

IMPRESS 1996-9

Use “training data” to test the CPS-generated code, learning processes both find the requirements that are to blame for errors, and invent a requirements fix to satisfy the training data. A new program is automatically derived – auto-bug fixing and “self-learning”

PLANFORM 2000-3

Produce platform to ease the process of automated planning – “self-management”


Ac application road network management l.jpg
AC application: Road Network Management application to Road Network Management”

  • Complex data gathering, knowledge extraction, planning and control application

  • Critical to congestion control, incident management, road use optimisation


Road network management l.jpg
Road Network Management application to Road Network Management”

many systems for data gathering (various types of traffic detectors, cctv)

many ways to influence and control: traffic lights, variable speed limits, variable message signs, local radio, satnav (near future?)

System control involves forming and executing a strategy to control and hence optimise the network


Road network management current situation l.jpg
Road Network Management: Current Situation application to Road Network Management”

Main problems:

  • Road management experts scarce

  • Many different systems, not interoperable

  • Systems for different areas (HA,Urban)

  • Usual problems of maintenance, configuration

  • Road management experts scarce

    However:

    Data services becoming standardised

    Road strategies semi-formalised

    Some ‘intelligent’ systems exist but on a small scale


A solution with ac properties l.jpg
A Solution with AC properties application to Road Network Management”

Autonomic Properties

Persistent Knowledge

Domain Model

configure

learn

Declarative Description of

Plan Outlines

Policies

Requirements

Network Characteristics and

Geometries

Actions – Network Affecting

Actions – Info Gathering

maintain

Plan construction,

plan tuning

RNMS

Real Time

Network Information

manage

heal,

repair

Transient

Knowledge

‘plug-in’

service

semantics

Available Data

Services

ROAD

NETWORK


Road network management some of the functions of our ac approach l.jpg
Road Network Management: application to Road Network Management”Some of the functions of our AC approach

  • Self–healing/ repairing: (Information fusion)

  • Self-management (of the Road Network)

  • Self-maintenance (of Domain Model eg when a new road is inserted, or a new service becomes available)

  • Self-configuration (eg new Road Network)


Road network management some of the benefits of our ac approach l.jpg
Road Network Management: application to Road Network Management”Some of the benefits of our AC approach

  • Enforce an application-independent declarative semantics for plans, policies, network geometries, information services etc. Service providers can ‘plug-in’ to this, and new services can be ‘plugged-in’..

  • A great deal of s/w maintenance will amount to knowledge editing

  • Planners and solvers will improve automatically as the knowledge/services available improves

  • Real time information will rely on a minimum of network sensors


Slide15 l.jpg

More detailed system architecture application to Road Network Management”


Summary l.jpg
Summary application to Road Network Management”

  • Computer systems are becoming too complex to manage efficiently

  • AC brings together R and D into giving (computer) systems self management properties - using AI techniques such as planning and learning

  • We have identified an application which AC would benefit

    • Self management of the overall system

    • Self maintenance, configuration, and repair of some of the embedded system components
