Presentation Transcript

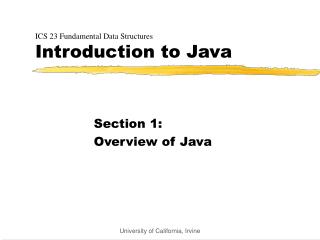

Ics 23 fundamental data structures introduction to java l.jpg

ICS 23 Fundamental Data StructuresIntroduction to Java

Section 1:

Overview of Java

University of California, Irvine

Java introduction l.jpg
Java Introduction

  • Visual Café for editing, executing, debugging Java

    • You should learn this on your own during Lab Z.

  • Applications and applets

    • Applets run within a web browser where a java virtual machine is installed.

    • Applications: stand-alone programs executed from Visual Café, or command prompt

    • C:> java myApplication

    • We will only implement applications in ICS 23.

  • Assume you know C++

University of California, Irvine

Why java l.jpg
Why Java?

  • Platform Independent

    • write once, run anywhere (in theory)

  • Object-Oriented

    • Everything must be in class

  • Easy to Learn

    • a lot like C++

University of California, Irvine

Why is java platform independent l.jpg
Why is Java platform independent?

  • Ordinary (C / C++) Program

    Your source code -> (compiler) -> Executable File (native machine code)

  • Java Program

    Your source code -> (compiler) -> Java bytecode (platform independent) -> (Interpreter)

University of California, Irvine

Java and class files l.jpg
.java and .class files

  • Java source code is in .java files

  • Each .java file can define one or more classes: class Cat { . . . }

  • When a .java file is compiled, one or more .class files are created

  • The .class files are executed by the program java

University of California, Irvine

Similarities between java and c l.jpg
Similarities between Java and C++

  • Operators: + - * / += -= *= /= | & ^ ! || && ++ --

  • Function declaration: void func(int x){}

  • flow control: if else for while do return switch { }

  • classes: class Cat { . . . }

  • object creation: Cat felix = new Cat();

  • array reference syntax: cats[10] = felix;

  • member reference syntax:

    • felix.meow(); //member function

    • Color c = felix.eyeColor; //variable

University of California, Irvine

Java is not c 1 l.jpg
Java is not C++ 1

  • No explicit pointer type variables, all references to objects are done by using implicit references.

    • Cat * felix; // C++

    • Cat felix; // Java

  • No & for dereferencing a pointer type or specifying reference for variable or function arguments.

    • &felix; *felix // C++, not Java

    • In Java, all objects are manipulated by reference, so there is no need for & syntax.

University of California, Irvine

Java is not c 2 l.jpg
Java is not C++ 2

  • All executable code is in a class

    • no global variables

    • no non-class functions

  • Automatic garbage collection.

    • Classes have constructors but no destructors.

    • When all references to a class no longer exist, the class can be “garbage collected” -- the memory it occupies is returned to the free pool

    • first Cat object can now be garbage collected

Cat f = new Cat(); // object allocated

f = new Cat(); // another obj. allocated

University of California, Irvine

Java is not c 3 l.jpg
Java is not C++ 3

  • No multiple inheritance.

  • No operator overloading.

    • One exception: operator + for string concatenation.

    • String s = “I studied “ + hours + “ hours”;

  • No preprocessor.

    • No #define, #include, and #ifdef ...

  • No default parameter values.

University of California, Irvine

A simple java application l.jpg
A Simple Java Application


public class FirstSample


public static void main(String [] args)


System.out.println(“Hello, World!”);



University of California, Irvine

Useful java programming hints l.jpg
Useful Java Programming Hints

  • Observe good programming styles from C/C++.

  • Each file can contain at most one class declared as public.

  • The name of the public class matches the name of the file.

    • public class MyClass should be in file “MyClass.java”.

  • Java is case sensitive. Double check the case.

University of California, Irvine

Arrays l.jpg

  • Array Declaration:

    • int [] numbers; or int numbers [];

  • Array Creation:

    • numbers = new int [2]

    • int [] numbers = {3, 2, 1};

    • Dog[] pound = new Dog[3];

    • pound[0] = new Dog(“Rex”, Dog.Collie);

  • Array length:

    • int num = numbers.length;

University of California, Irvine

Strings l.jpg

  • String is a (special) Java class.

  • String Creation:

    String greeting = “Hello”;

  • String Concatenation:

    String greeting1 = “He”;

    String greeting2 = “llo”;

    String greeting = greeting1 + greeting2;

  • Substring:

    String greeting = “Hello”;

    String s = greeting.substring(0, 4); //Hell

University of California, Irvine

Strings cont d l.jpg
Strings (cont’d)

  • Testing for Equality

    • .equals() tests for same contents

    • == operator tests for same memory location

      String a = “Hello”, b = “He” + “llo”;

      String c = a;

      if (a.equals(b))

      System.out.println(“Same contents.”);

      if (a != b)

      System.out.println(“Different address.”);

      if (a == c)

      System.out.println(“Same address.”);

University of California, Irvine

Interface a kind of class l.jpg
Interface - a kind of class

  • An interface defines a set of functions that a class will implement.

  • An interface can be considered as a purely abstract class with abstract methods.

  • Provides “add-on” features to a class.

  • Eliminates the need for multiple inheritance.

University of California, Irvine

Interface declaration l.jpg
Interface Declaration

interface Drivable{

boolean startEngine();

void stopEngine();


class Automobile implements Drivable{

public boolean startEngine(){/*do something here*/}

public void stopEngine(){/*do something. here*/}

// …


//somewhere in your program

Automobile auto = new Automobile();

Drivable vehicle; //Declare a variable of Drivable

vehicle = auto;


University of California, Irvine

Notes on using interfaces l.jpg
Notes on Using Interfaces

  • A class can implement one or more interfaces.

  • If a class implements an interface, it must implement all the methods defined in the interface.

  • An interface can extend another interface.

    interface Container extends Comparable

University of California, Irvine

Modifier keyword static l.jpg
Modifier Keyword static

  • Methods, variables and nested classes can be declared static.

  • Static methods, variables or nested classes belong to the (enclosing) class as a whole, not any particular class instance.

  • Static methods or variables are accessed by:



    Math.PI //in java.lang package

    System.out // in java.lang package

    Math.pow(3, 2);

University of California, Irvine

Modifier keyword abstract l.jpg
Modifier Keyword abstract

  • An abstract method is a prototype subclasses must implement.

    abstract void eat (String name); // Java

    virtual void eat (String name) = 0; // C++

  • A class that contains one or more abstract methods must be explicitly declared as an abstract class:

    abstract class animal{

    // . . .

    abstract void eat (String name);


  • A class can be declared as abstract even though it has no abstract methods. An abstract class cannot be instantiated.

University of California, Irvine

Exception handling l.jpg
Exception Handling

  • An exception indicates an unusual or error condition.

  • Exception handling in Java separates the normal control flow from error handling flow.

University of California, Irvine

Catch an exception l.jpg
Catch an Exception

// This static method converts String to int

java.lang.Integer.parseInt(String s)

throws NumberFormatException

// my program:

int x = 0;

try {

x = java.lang.Integer.parseInt(inputString);


catch(NumberFormatException nfe)

{ System.out.println(“Darn, “ + nfe)); x = -1; }

// do something with x

University of California, Irvine

Hierarchy of throwable class l.jpg
Hierarchy of Throwable class




|--(abnormal condition, not caught)



|--(normal error, not caught)

|--(various exceptions that must be caught)

University of California, Irvine
