Presentation Transcript

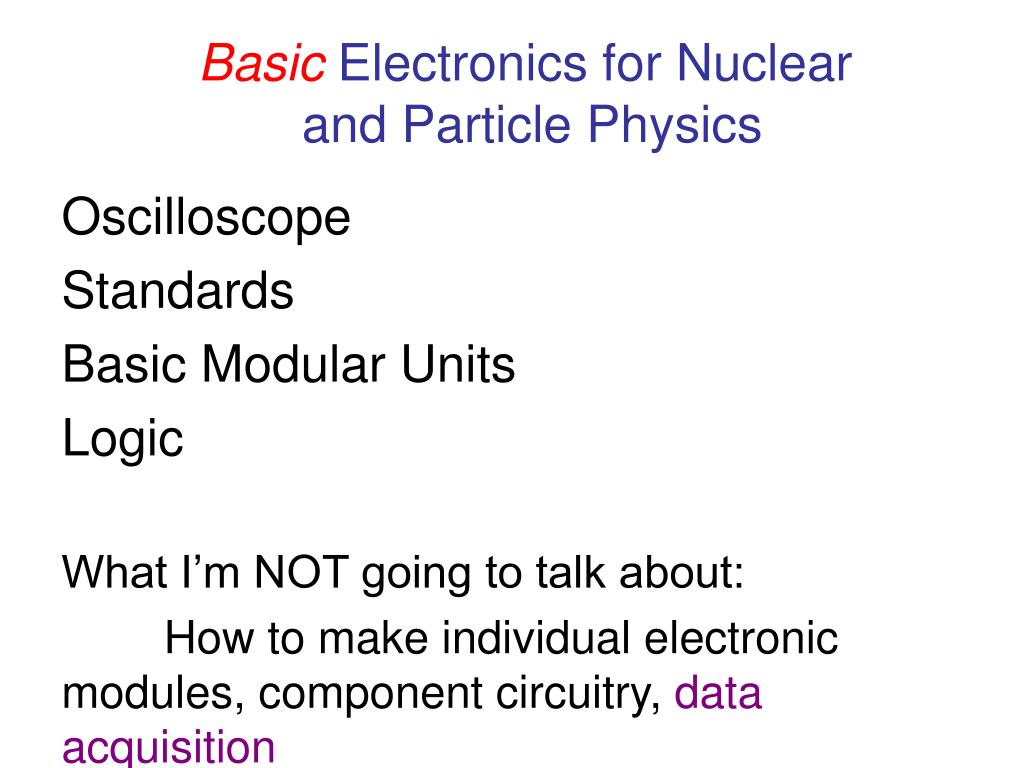

Slide1 l.jpg

BasicElectronics for Nuclear

and Particle Physics

Oscilloscope

Standards

Basic Modular Units

Logic

What I’m NOT going to talk about:

How to make individual electronic modules, component circuitry, data acquisition


Slide2 l.jpg

Basic (Analog) Oscilloscope

Deflection voltage electrodes

Electron gun

Electron beam

Focusing coil

Phosphor-coated inner side of the screen.


Digital oscilloscope l.jpg
Digital Oscilloscope

  • The vertical input, instead of driving the vertical amplifier, is digitized by an analog to digital converter and sent to an LCD flat panel (or other) display

  • Memory, computer interface

  • Brighter and bigger display, with color

  • Peak detection and other software



Connections l.jpg
Connections

  • BNC

    • For coaxial cable Whatsit?

    • 50 and 75 ohm versions

  • LEMO

    • miniature push-pull coaxial, with a 50 ohm impedance (to replace BNC)

  • HV - should be on red cable

  • Ribbon

  • Cable - careful of impedance!


Standardized electronics l.jpg
Standardized Electronics

  • NIM, CAMAC, VME, Fastbus, PCI….

  • encompass a wide range of mechanical and electrical definitions - provides cost and convenience advantages

  • flexibility and interchangeability

    • Easily configurable

    • Update with a few modules

  • Example: CAMAC modules are exactly half the width of the minimum NIM module width. Power plug adapters are available from several manufacturers to permit NIM modules to slide into a CAMAC crate and derive their power from the CAMAC power supply.


Nim standard see for instance http www esd fnal gov esd catalog intro intronim htm l.jpg
NIM Standard (see, for instance) http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Nuclear Instruments and Methods - 1964 (DOE/ER-0457)

  • Common “backplane” power distribution, detachable supply delivering +6 V, -6 V, +12 V, -12 V, +24 V, and -24 V

  • No computer interface

  • height of 8.75” (1.35” single, 2.70” double width)

Plug in standardized modules!


Camac standard computer automated measurement and control l.jpg
CAMAC Standard (Computer Automated Measurement And Control) http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Provides a scheme to allow a wide range of modular instruments to be interfaced to a standardized backplane called a DATAWAY, which interfaces with a computer

  • Primary application is data acquisition, may also be used for remotely programmable trigger and logic applications

  • Number of stations, module size, voltages, etc. defined in standard

  • Individual crates are controlled by slave or intelligent controllers.

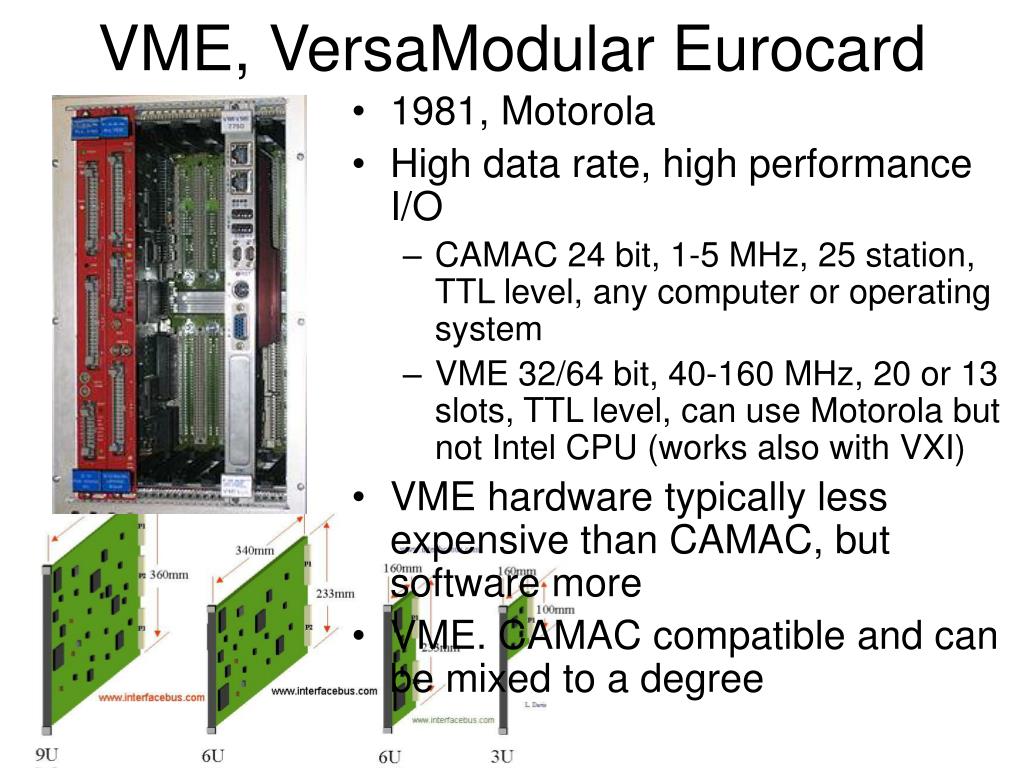

Vme versamodular eurocard l.jpg
VME, VersaModular Eurocard http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • 1981, Motorola

  • High data rate, high performance I/O

    • CAMAC 24 bit, 1-5 MHz, 25 station, TTL level, any computer or operating system

    • VME 32/64 bit, 40-160 MHz, 20 or 13 slots, TTL level, can use Motorola but not Intel CPU (works also with VXI)

  • VME hardware typically less expensive than CAMAC, but software more

  • VME. CAMAC compatible and can be mixed to a degree


Ok let s put some modules in l.jpg
OK, let’s put some modules in… http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm


Amplifier l.jpg
Amplifier http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • CAMAC

  • NIM

Why do these look so different?


Discriminator l.jpg
Discriminator http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm


Scaler l.jpg
Scaler http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Counter / Timer

  • NIM

  • ECL

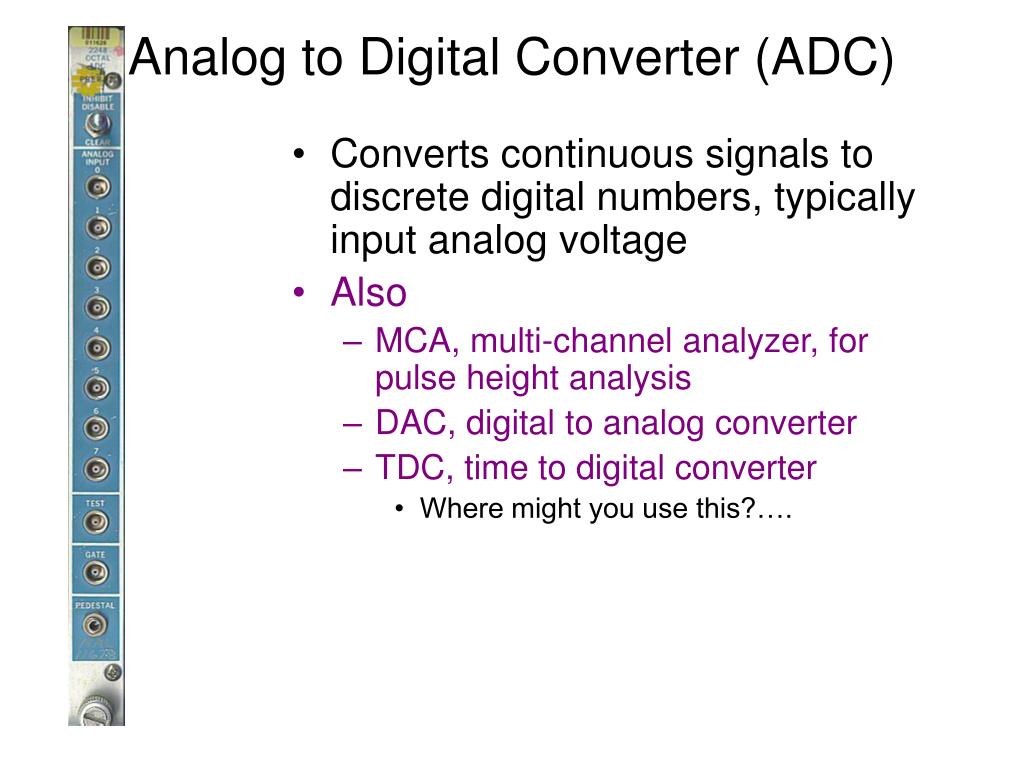

Analog to digital converter adc l.jpg
Analog to Digital Converter (ADC) http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Converts continuous signals to discrete digital numbers, typically input analog voltage

  • Also

    • MCA, multi-channel analyzer, for pulse height analysis

    • DAC, digital to analog converter

    • TDC, time to digital converter

      • Where might you use this?….

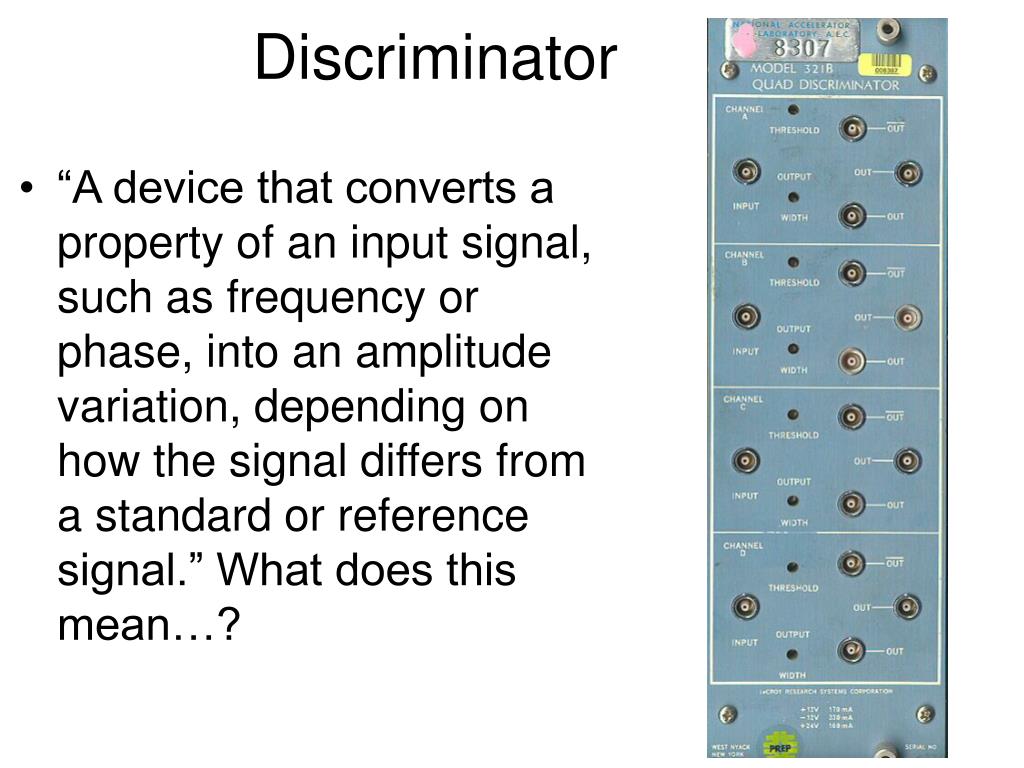

Discriminator16 l.jpg
Discriminator http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • “A device that converts a property of an input signal, such as frequency or phase, into an amplitude variation, depending on how the signal differs from a standard or reference signal.” What does this mean…?


Fan in fan out l.jpg
Fan In / Fan Out http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

Logic Fan In / Fan Out


Logic unit l.jpg
Logic Unit http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm


Gate delay generator l.jpg
Gate / Delay Generator http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Provides precise delays for triggering, syncing, delaying and gating events

  • Gating allows regions of interest to be processed and stored while ignoring the bulk of unwanted data

  • Can also delay by….?……

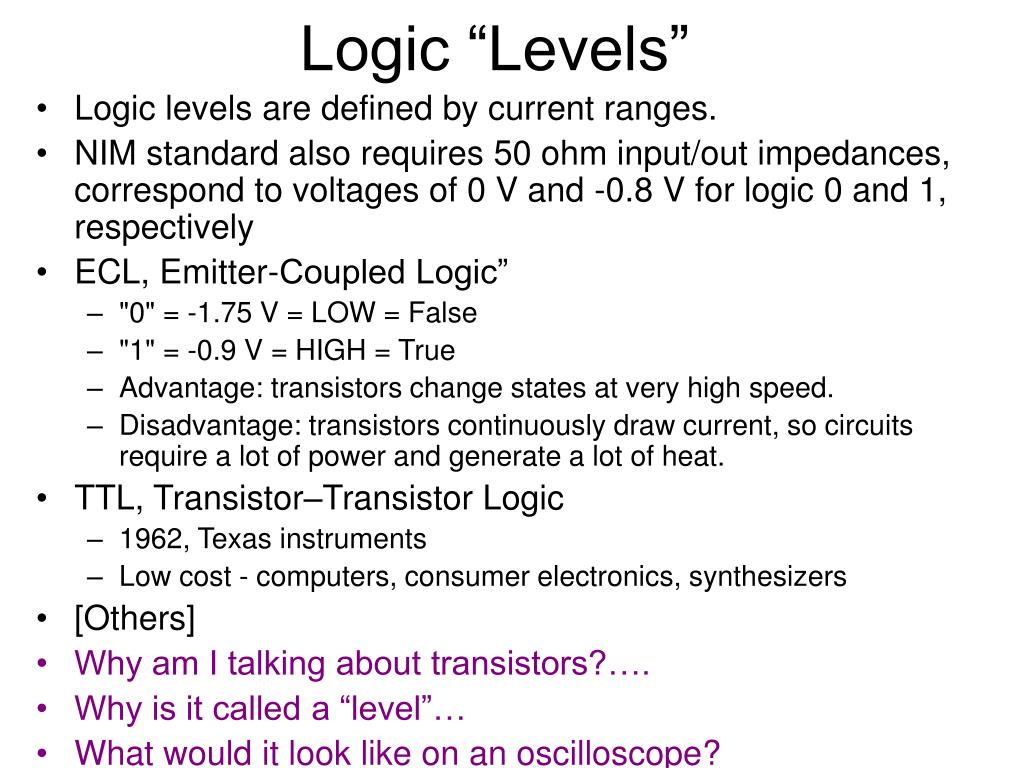

Logic levels l.jpg
Logic “Levels” http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Logic levels are defined by current ranges.

  • NIM standard also requires 50 ohm input/out impedances, correspond to voltages of 0 V and -0.8 V for logic 0 and 1, respectively

  • ECL, Emitter-Coupled Logic”

    • "0" = -1.75 V = LOW = False

    • "1" = -0.9 V = HIGH = True

    • Advantage: transistors change states at very high speed.

    • Disadvantage: transistors continuously draw current, so circuits require a lot of power and generate a lot of heat.

  • TTL, Transistor–Transistor Logic

    • 1962, Texas instruments

    • Low cost - computers, consumer electronics, synthesizers

  • [Others]

  • Why am I talking about transistors?….

  • Why is it called a “level”…

  • What would it look like on an oscilloscope?


Let s put this all together trigger logic l.jpg
Let’s put this all together….trigger logic http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

JLab Hall C HMS Spectrometer


Slide22 l.jpg

HMS http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm


Lots more l.jpg
Lots more… http://www-esd.fnal.gov/esd/catalog/intro/intronim.htm

  • Variations on ALL of the above

  • Waveform digitizers, qVts, pulse height analyzers, coincidence units, mean timers,……..

  • But, you’ve got the basics!

  • READ Tektronix XYZ's of Analog and Digital Oscilloscopes Basic Concepts - can find on web and download!

  • Web Search and find out about all the modules and standards presented today - get familiar

  • THERE WILL BE A LAB……..
