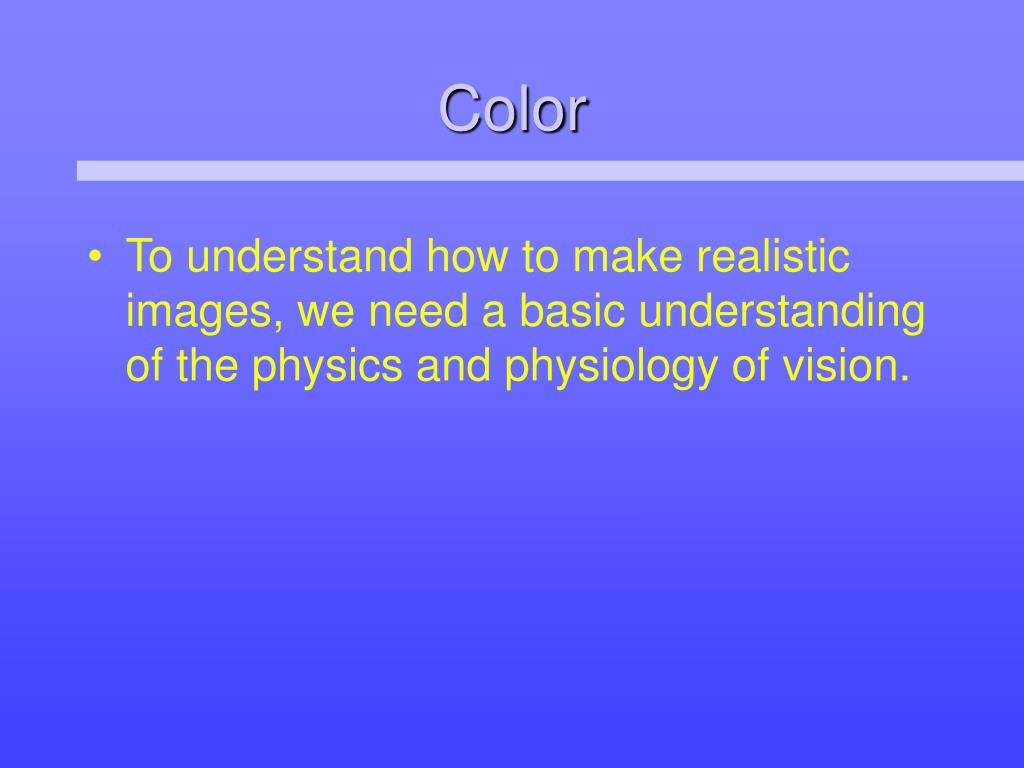

  • To understand how to make realistic images, we need a basic understanding of the physics and physiology of vision.


Basics of color l.jpg

Basics Of Color

  • Elements of color:


Basics of color3 l.jpg

Basics of Color

  • Physics:

    • Illumination

      • Electromagnetic spectra

    • Reflection

      • Material properties

      • Surface geometry and microgeometry (i.e., polished versus matte versus brushed)

  • Perception

    • Physiology and neurophysiology

    • Perceptual psychology


Physiology of vision l.jpg

Physiology of Vision

  • The eye:

  • The retina

    • Rods

    • Cones

      • Color!


Physiology of vision5 l.jpg

Physiology of Vision

  • The center of the retina is a densely packed region called the fovea.

    • Cones much denser here than the periphery


Physiology of vision cones l.jpg

Physiology of Vision: Cones

  • Three types of cones:

    • L or R, most sensitive to red light (610 nm)

    • M or G, most sensitive to green light (560 nm)

    • S or B, most sensitive to blue light (430 nm)

    • Color blindness results from missing cone type(s)


Physiology of vision the retina l.jpg

Physiology of Vision: The Retina

  • Strangely, rods and cones are at the back of the retina, behind a mostly-transparent neural structure that collects their response.

  • http://www.trueorigin.org/retina.asp


Perception metamers l.jpg

Perception: Metamers

  • A given perceptual sensation of color derives from the stimulus of all three cone types

  • Identical perceptions of color can thus be caused by very different spectra


Perception other gotchas l.jpg

Perception: Other Gotchas

  • Color perception is also difficult because:

    • It varies from person to person

    • It is affected by adaptation (stare at a light bulb… don’t)

    • It is affected by surrounding color:


Perception relative intensity l.jpg

Perception: Relative Intensity

We are not good at judging absolute intensity

  • Let’s illuminate pixels with white light on scale of 0 - 1.0

  • Intensity difference of neighboring colored rectangles with intensities:

    • 0.10 -> 0.11 (10% change)

    • 0.50 -> 0.55 (10% change)

      will look the same

  • We perceive relative intensities, not absolute


  • Dynamic ranges l.jpg

    Dynamic Ranges

    Dynamic RangeMax # of Display(max / min illum)PerceivedIntensities (r=1.01)

    • CRT:50-200400-530

    • Photo (print)100465

    • Photo (slide)1000700

    • B/W printout100465

    • Color printout50400

    • Newspaper10234


    How well do we see color l.jpg

    How well do we see color?

    • What color do we see the best?

      • Yellow-green at 550 nm

    • What color do we see the worst?

      • Blue at 440 nm

    • Can perceive color differences of 10 nm at extremes (violet and red) and 2 nm between blue and yellow


    How well do we see color13 l.jpg

    How well do we see color?

    • 128 fully saturated hues can be distinguished

    • Cannot perceive hue differences with less saturated light.

    • Sensitivity to changes in saturation for a fixed hue and brightness ranges from 16 to 23 depending on hue.


    Combining colors l.jpg

    Combining Colors

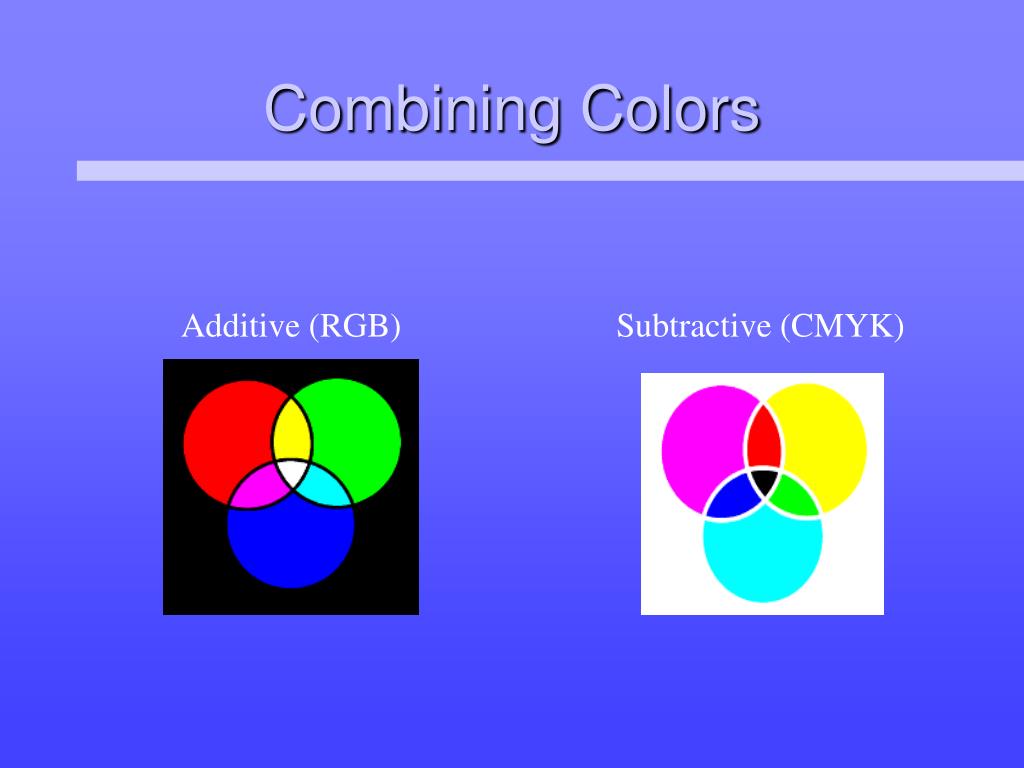

    Additive (RGB)

    Subtractive (CMYK)


    Color spaces l.jpg

    Color Spaces

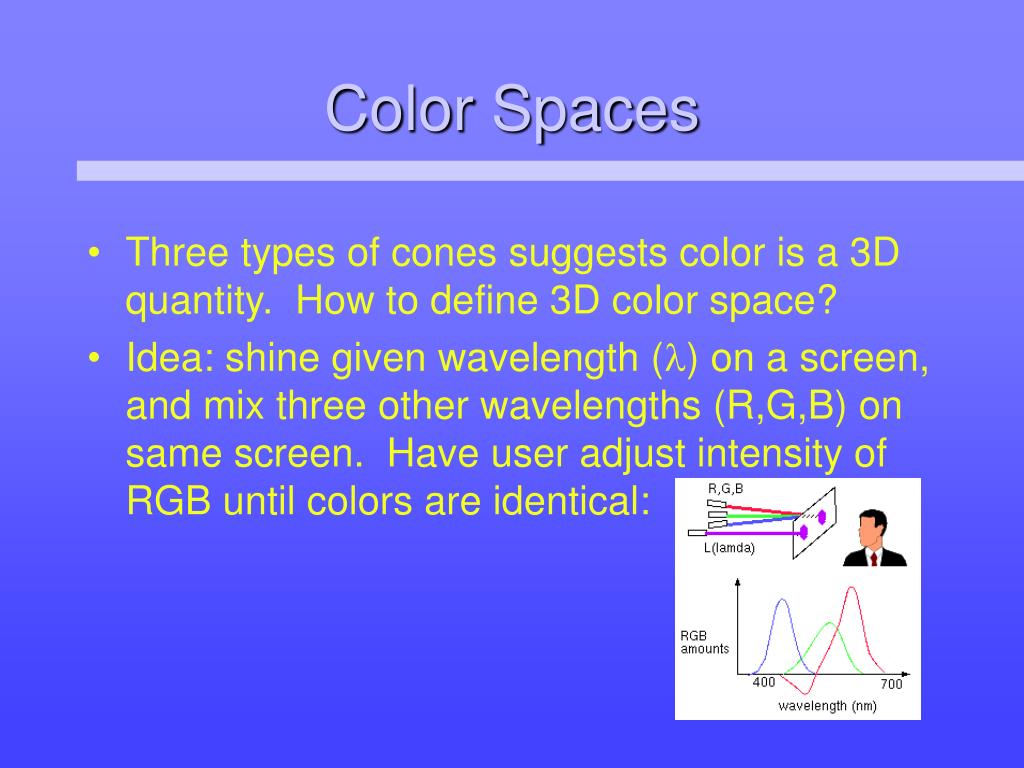

    • Three types of cones suggests color is a 3D quantity. How to define 3D color space?

    • Idea: shine given wavelength () on a screen, and mix three other wavelengths (R,G,B) on same screen. Have user adjust intensity of RGB until colors are identical:


    Cie color space l.jpg

    CIE Color Space

    • The CIE(Commission Internationale d’Eclairage) came up with three hypothetical lights X, Y, and Z with these spectra:

    • Idea: any wavelength  can be matched perceptually by positivecombinations of X,Y,Z

    • Note that:

      • X ~ R

      • Y ~ G

      • Z ~ B


    Cie color space17 l.jpg

    CIE Color Space

    • The gamut of all colors perceivable is thus a three-dimensional shape in X,Y,Z

    • Color = X’X + Y’Y + Z’Z


    Cie chromaticity diagram 1931 l.jpg

    CIE Chromaticity Diagram (1931)

    • For simplicity, we often project to the 2D plane X’+Y’+Z’=1

      • X’ = X’ / (X’+Y’+Z’)

      • Y’ = Y’ / (X’+Y’+Z’)

      • Z’ = 1 – X’ – Y’


    Lab space l.jpg

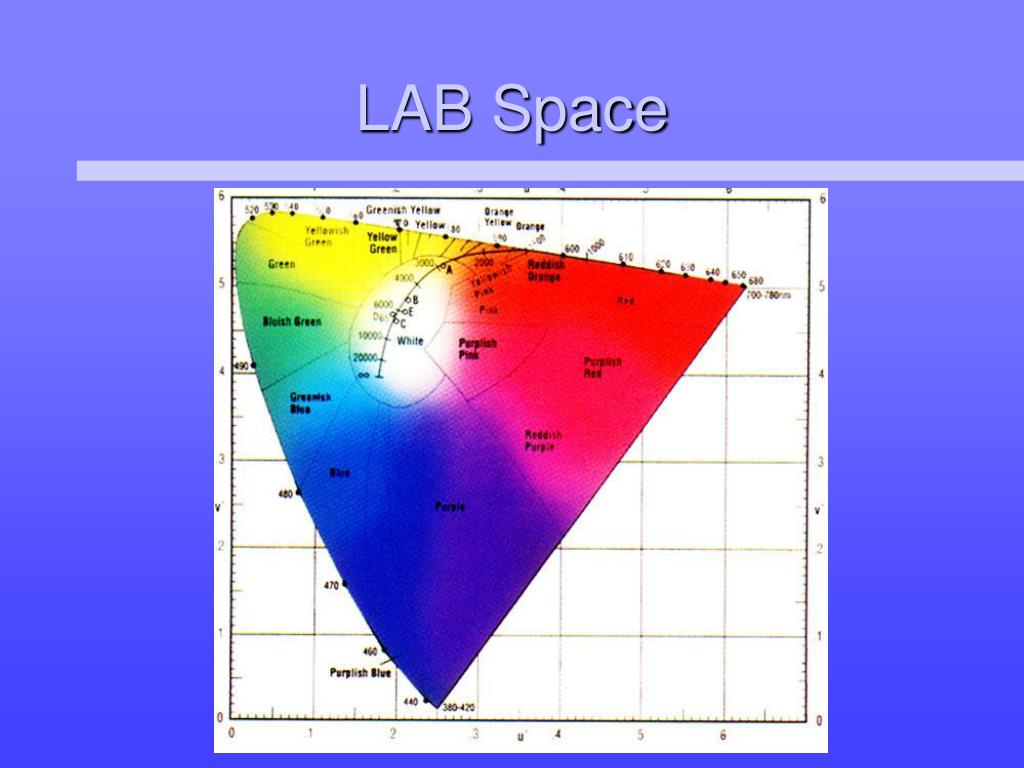

    LAB Space


    Device color gamuts l.jpg

    Device Color Gamuts

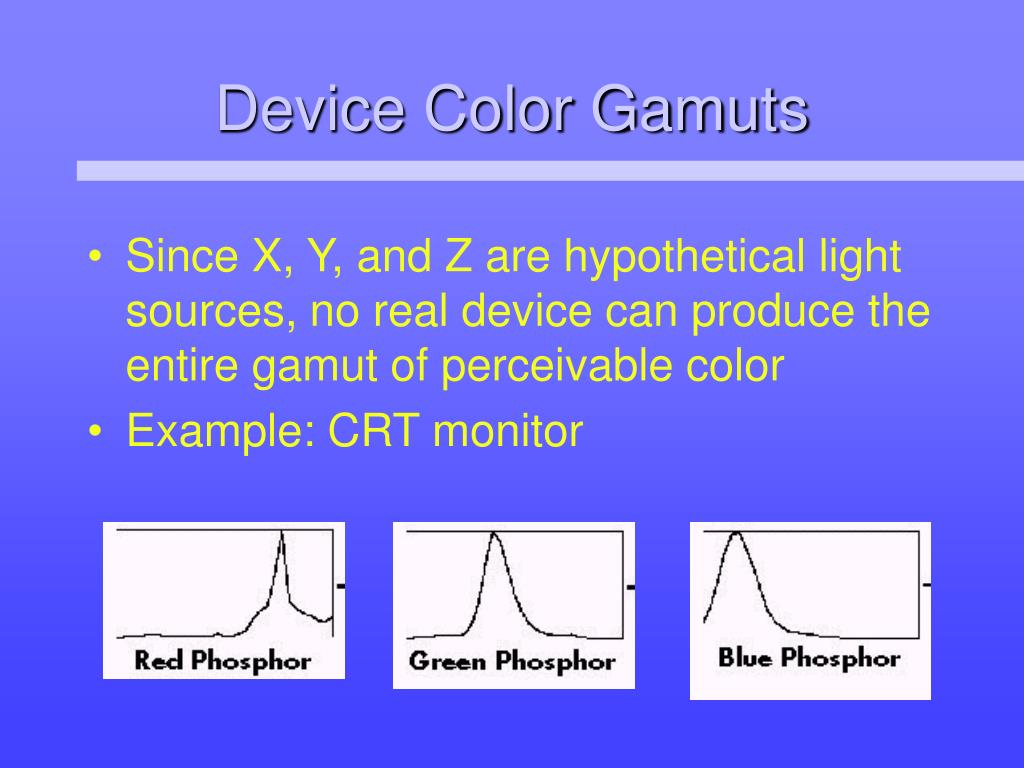

    • Since X, Y, and Z are hypothetical light sources, no real device can produce the entire gamut of perceivable color

    • Example: CRT monitor


    Rgb color space l.jpg

    RGB Color Space

    • Define colors with (r, g, b) amounts of red, green, and blue


    Device color gamuts22 l.jpg

    Device Color Gamuts

    • The RGB color cube sits within CIE color space something like this:


    Device color gamuts23 l.jpg

    Device Color Gamuts

    • We can use the CIE chromaticity diagram to compare the gamuts of various devices:

    • Note, for example, that a color printercannot reproduceall shades availableon a color monitor


    Hsv color space l.jpg

    HSV Color Space

    Value

    • A more intuitive color space

      • H = Hue

      • S = Saturation

      • V = Value (or brightness)

    Saturation

    Hue


    Hsi and hsl l.jpg

    HSI and HSL


    Cmyk space l.jpg

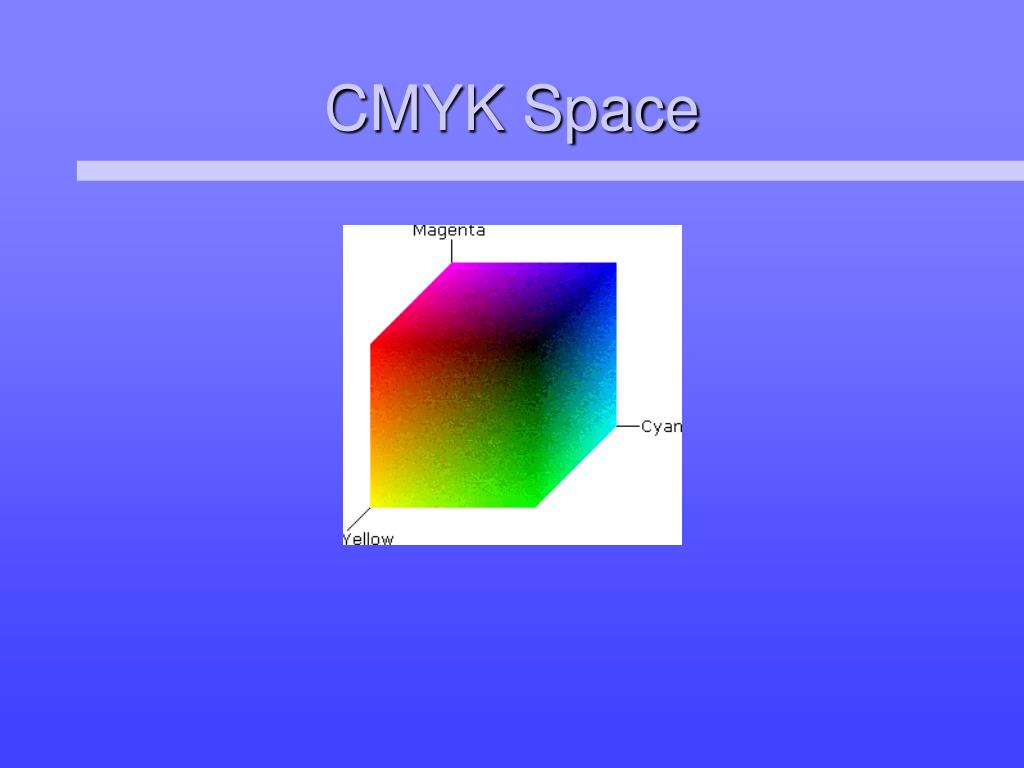

    CMYK Space


    Color wheels l.jpg

    Color Wheels


    The color wheel l.jpg

    The color wheel fits together like a puzzle - each color in a specific place.

    The Color Wheel


    Primary colors l.jpg

    Primary Colors

    Primary colors are not mixed from other elements and they generate all other colors.

    • Red

    • Yellow

    • Blue


    Secondary colors l.jpg

    Secondary Colors

    By mixing two primary colors, a secondary color is created.

    • Red + Yellow = Orange

    • Yellow+ Blue = Green

    • Blue+ Red = Purple


    Intermediate colors l.jpg

    Intermediate Colors

    Intermediate, or Tertiary, colors are created by mixing a primary and a secondary.

    • blue-green

    • blue-purple

    • red-purple

    • red-orange

    • yellow-orange

    • yellow-green


    Neutral colors l.jpg

    Neutral Colors

    The principles of color mixing let us describe a variety of colors, but there are still many colors to explore. The neutral colors contain equal parts of each of the three primary colors. Black, white, gray and sometimes brown are considered "neutral”.


    Slide33 l.jpg

    Color Values

    Color values are the lights and darks of a color you create by using black and white (‘neutrals”) with a color. This makes hundreds of more colors from the basic 12 colors of the wheel.

    • white + color = tint

    • color + black = shade


    Tints l.jpg

    Tints

    Tints are lightened colors. Always begin with white and add a bit of color to the white until the desired tint is obtained. This is an example of a value scale for the tints of blue.


    Shades l.jpg

    Shades

    Shades are darkened colors. Always begin with the color and add just a bit of black at a time to get the desired shade of a color. This is an example of a value scale for the shades of blue.


    Slide36 l.jpg

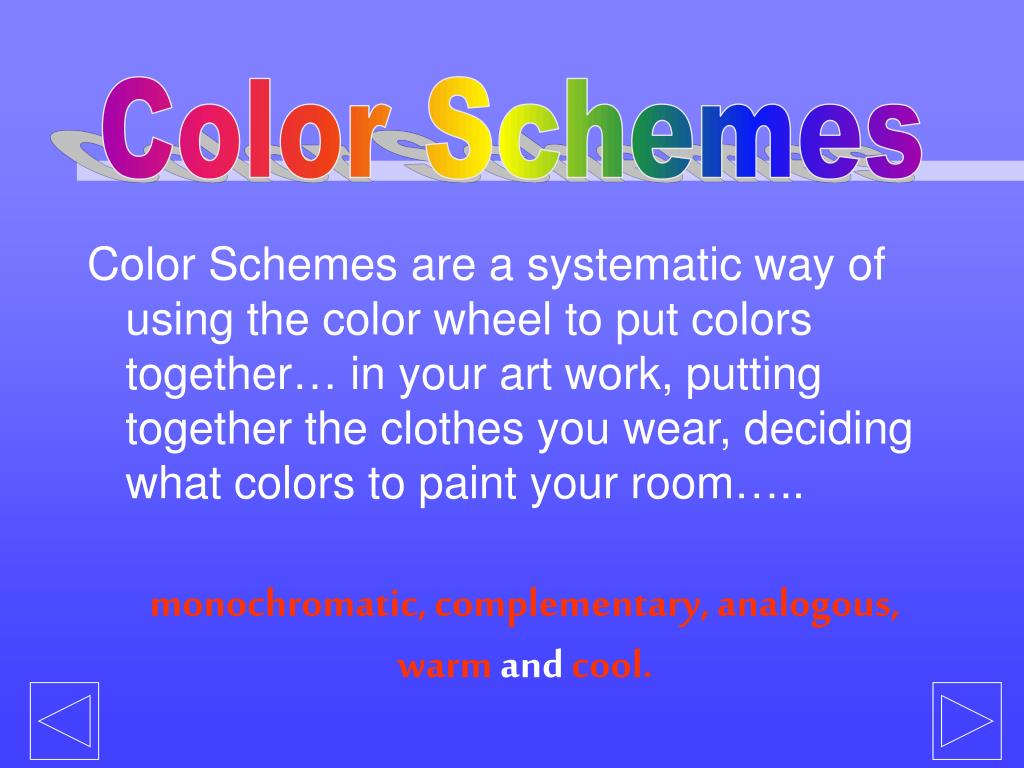

    Color Schemes

    Color Schemes are a systematic way of using the color wheel to put colors together… in your art work, putting together the clothes you wear, deciding what colors to paint your room…..

    monochromatic, complementary, analogous, warm and cool.


    Monochromatic l.jpg

    Monochromatic

    “Mono” means “one”, “chroma” means “color”… monochromatic color schemes have only one color and its values. The following slide shows a painting done in a monochromatic color scheme.


    Slide38 l.jpg

    This non-objective painting has a monochromatic color scheme - blue and the values (tints and shades) of blue.


    Complementary l.jpg

    Complementary

    Complementary colors are opposite on the color wheel provided a high contrast - if you want to be noticed wear complementary colors!


    Slide40 l.jpg

    This painting has complementary colors and their values - blues and oranges.


    Analogous l.jpg

    Analogous

    The analogous color scheme is 3-5 colors adjacent to each other on the color wheel. This combination of colors provides very little contrast.


    Slide42 l.jpg

    Analogous colors are illustrated here: yellow, yellow-green, green and blue-green.


    Slide43 l.jpg

    Warm

    Warm colors are found on the right side of the color wheel. They are colors found in fire and the sun. Warm colors make objects look closer in a painting or drawing.


    Slide44 l.jpg

    This is an illustration of the use of warm colors - reds, oranges and yellows.


    Slide45 l.jpg

    Cool

    Cool colors are found on the left side of the color wheel. They are the colors found in snow and ice and tend to recede in a composition.


    Slide46 l.jpg

    Note the cool color scheme in this painting (greens, purples and blues).
