Presentation Transcript


Weather forecasting chapter 13 l.jpg

Weather ForecastingChapter 13


Methods of forecasting l.jpg

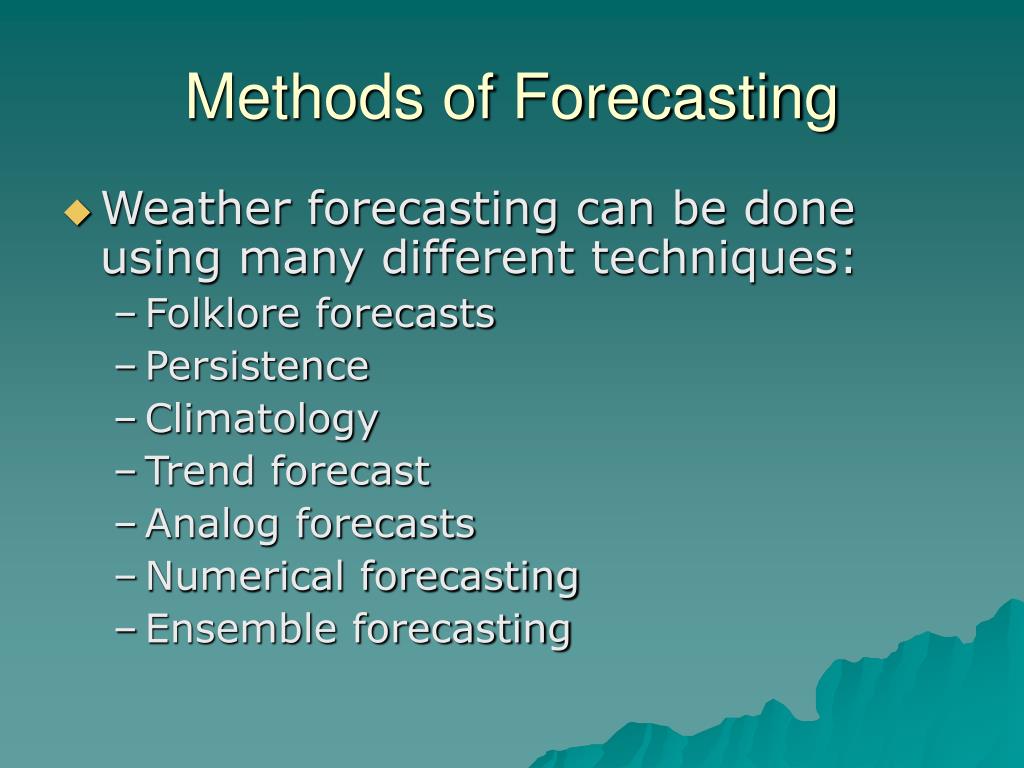

Methods of Forecasting

  • Weather forecasting can be done using many different techniques:

    • Folklore forecasts

    • Persistence

    • Climatology

    • Trend forecast

    • Analog forecasts

    • Numerical forecasting

    • Ensemble forecasting


Folklore forecasts l.jpg

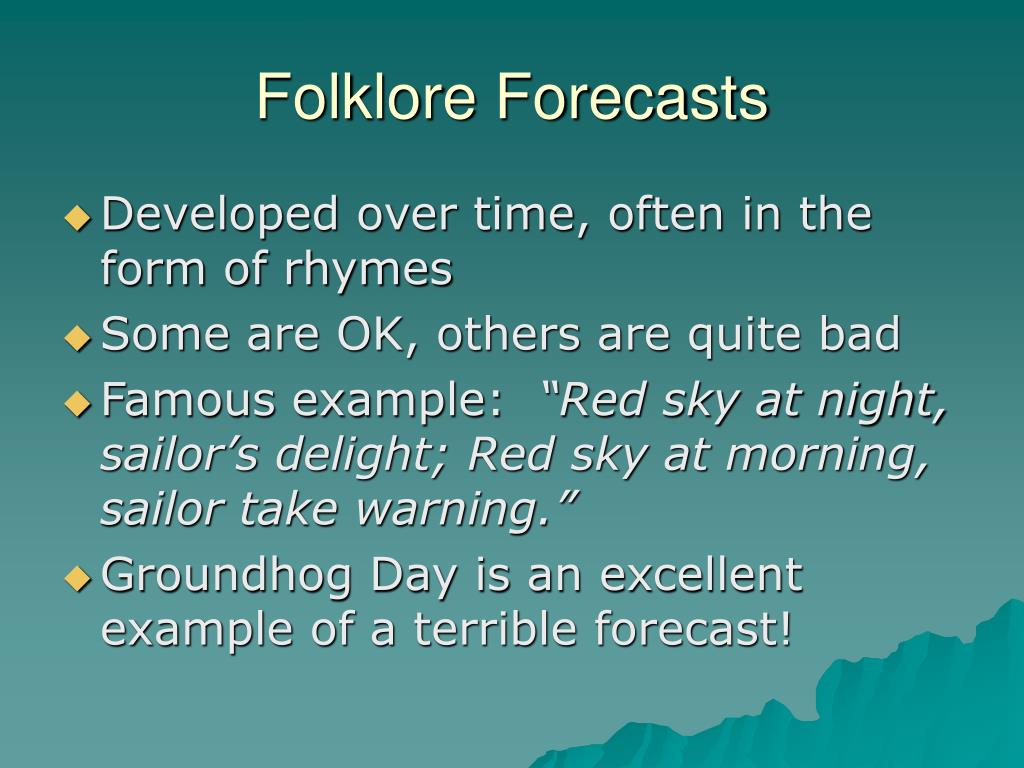

Folklore Forecasts

  • Developed over time, often in the form of rhymes

  • Some are OK, others are quite bad

  • Famous example: “Red sky at night, sailor’s delight; Red sky at morning, sailor take warning.”

  • Groundhog Day is an excellent example of a terrible forecast!


Persistence forecast l.jpg

Persistence Forecast

  • Quite simply, the weather we are having now will be the weather we have later

  • Accuracy will depend largely on the weather patterns and your location

    • Don’t use this if frequent changes in the weather are common (like Chicago)

    • Works best in the tropics

    • Works OK if the weather pattern is “blocked” (not much change in the weather possible for days or weeks)


Climatology forecast l.jpg

Climatology Forecast

  • The long-term average weather conditions are used to predict the weather for a given day

  • While weather does change a lot, climatology can be accurate fairly often

  • Obviously won’t work well if one is facing record-setting weather conditions


Trend forecast l.jpg

Trend Forecast

  • The weather will change, but assumes that the weather-changing patterns will continue at the present rate

  • For example, one can forecast the arrival of a cold front using its present speed

  • Works best if the time period is short

  • “Nowcasting” – forecasting for a brief period in the future (several hours)

  • Accuracy drops as time increases


Analog forecast l.jpg

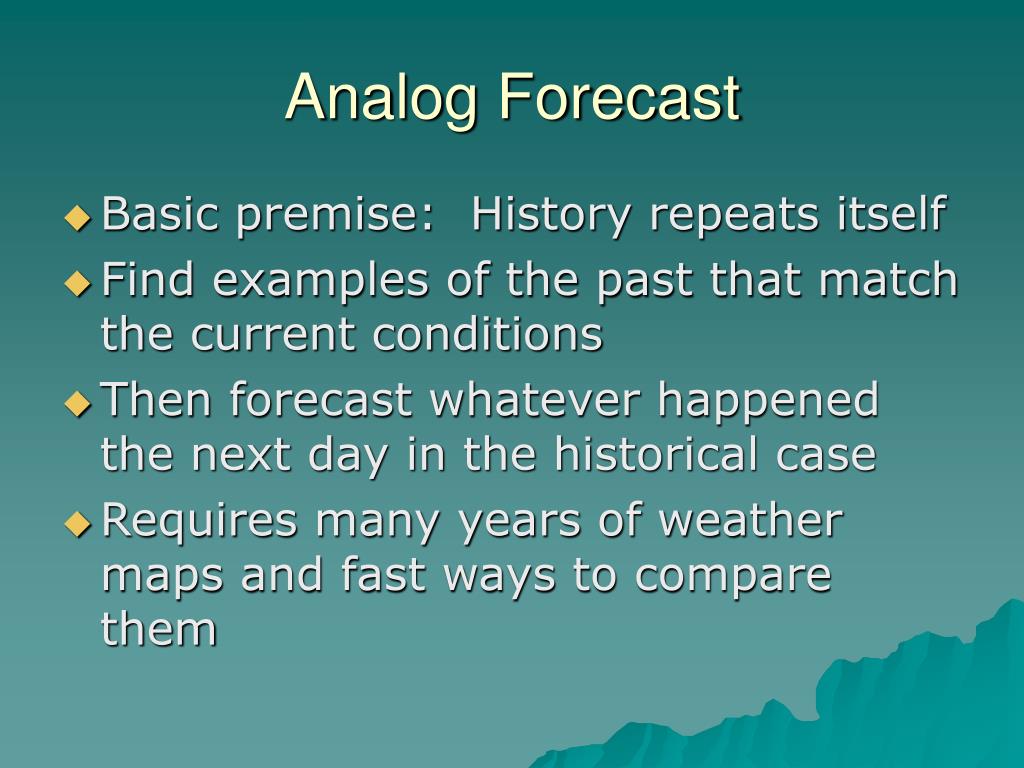

Analog Forecast

  • Basic premise: History repeats itself

  • Find examples of the past that match the current conditions

  • Then forecast whatever happened the next day in the historical case

  • Requires many years of weather maps and fast ways to compare them


Weather types l.jpg

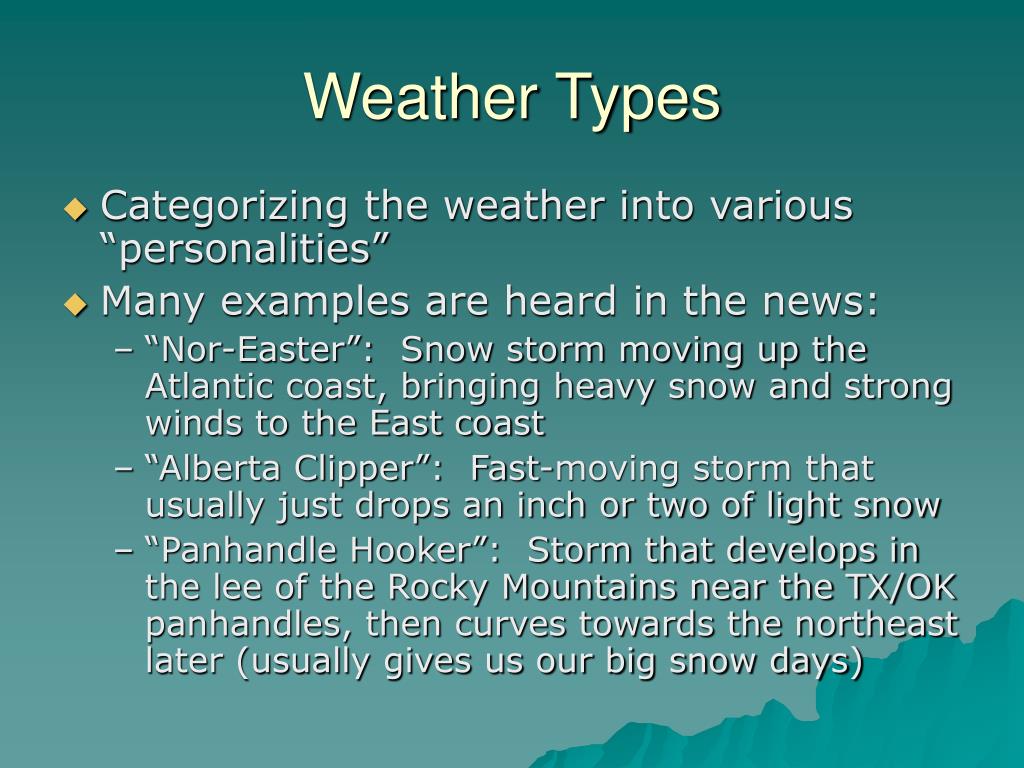

Weather Types

  • Categorizing the weather into various “personalities”

  • Many examples are heard in the news:

    • “Nor-Easter”: Snow storm moving up the Atlantic coast, bringing heavy snow and strong winds to the East coast

    • “Alberta Clipper”: Fast-moving storm that usually just drops an inch or two of light snow

    • “Panhandle Hooker”: Storm that develops in the lee of the Rocky Mountains near the TX/OK panhandles, then curves towards the northeast later (usually gives us our big snow days)


Numerical forecasting l.jpg

Numerical Forecasting

  • Forecasting the weather using computers requires two basic ingredients to produce accurate forecasts:

    • Initial Conditions: The current conditions of the atmosphere over a wide area

    • Primitive Equations: Mathematical equations that can be solved by computer to forecast into time

  • Numerical modeling is the technique of approximating tough real-world problems with numbers

  • The numerical formulas used are called a model

  • This is impossible to use without supercomputers


Numerical weather prediction process l.jpg

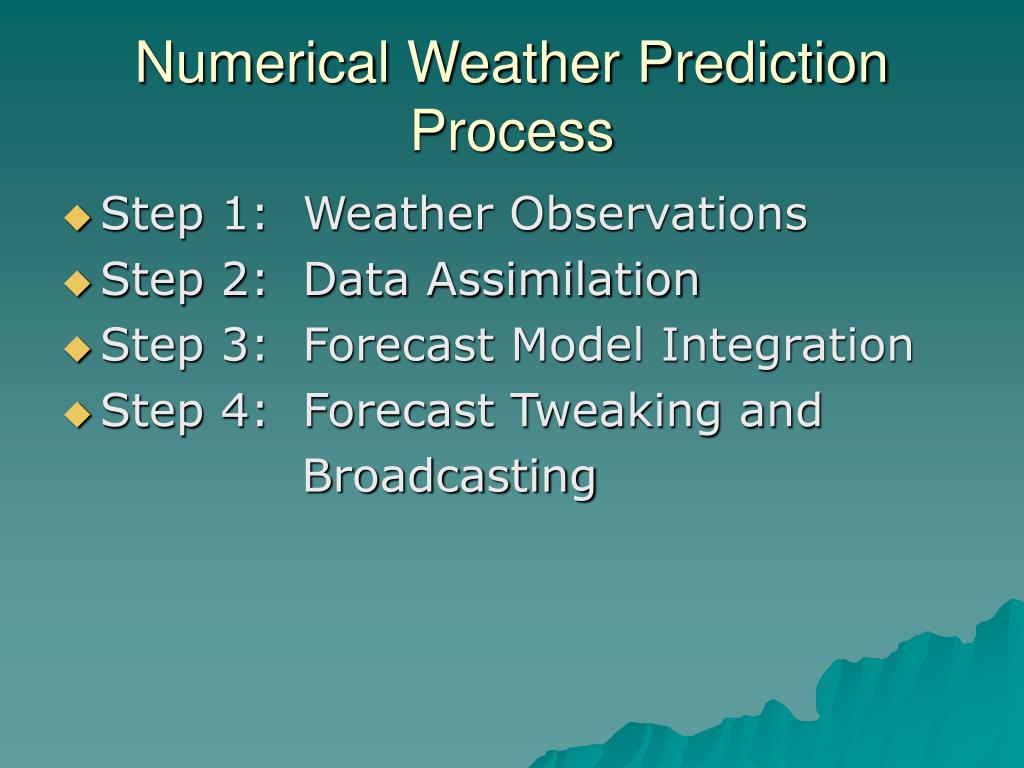

Numerical Weather Prediction Process

  • Step 1: Weather Observations

  • Step 2: Data Assimilation

  • Step 3: Forecast Model Integration

  • Step 4: Forecast Tweaking and

    Broadcasting


Weather observations l.jpg

Weather Observations

  • A numerical forecast is only as accurate as the observations that go into the forecast at the beginning

  • Garbage in = Garbage out

  • Surface weather observations, radiosonde data, and satellites

  • Vast and continuous data-collection process is overseen by the World Meteorological Organization (WMO)

  • In the US, the National Centers for Environmental Prediction (NCEP) gets the data and runs the computer models


Grids and gridpoints l.jpg

Grids and Gridpoints

  • Models work by dividing the atmosphere up into three-dimensional boxes called grids

  • The point in the middle is called the gridpoint

  • All the mathematical equations are solved at each gridpoint

  • Then, the model is stepped forward in time and the equations are run again

  • The distance between one point and another is called grid spacing

  • Models that use this technique are called gridpoint models


Data assimilation initialization l.jpg

Data Assimilation & Initialization

  • Weather observations now must be inserted into each gridpoint

  • Because an actual observation probably doesn’t exist at every gridpoint, interpolation (fitting the data) must be performed

  • Data initialization: Filtering the data to remove noise and to make the data more smooth

  • The chore of interpolating and initializing the data is called data assimilation


Slide14 l.jpg

Fig. 13.9


Slide15 l.jpg

Fig. 13.10


Slide16 l.jpg

Fig. 13.11


Forecast model integration l.jpg

Forecast Model Integration

  • Millions of calculations are performed at a given time

  • Integration – solving equations in space and time, then using the result to further calculate changes later on

  • To forecast 24 hours globally, it takes 1 trillion calculations

  • To get the results back quickly, supercomputers must be used

  • The physical distance between the gridpoints is very important

  • The smaller the grid spacing, the easier it is for the model to observe and predict small phenomena

  • Resolution – the grid spacing of a model (fine vs. coarse)

  • The more resolution, the more calculations must be performed in each time step


Slide18 l.jpg

Fig. 13.13


Numerical models today l.jpg

Numerical Models Today

  • Various numerical models are used today

  • Each model has a different resolution, different ways to handle things it can not see or predict, and different equations used in the computations

  • Therefore, models often differ with each other

  • Forecast “tweaking” and broadcasting of the forecast makes use of many different models, knowing their biases, to put a forecast together


Slide20 l.jpg

Fig. 13.21


Slide21 l.jpg

Fig. 13.15


What makes bad forecasts l.jpg

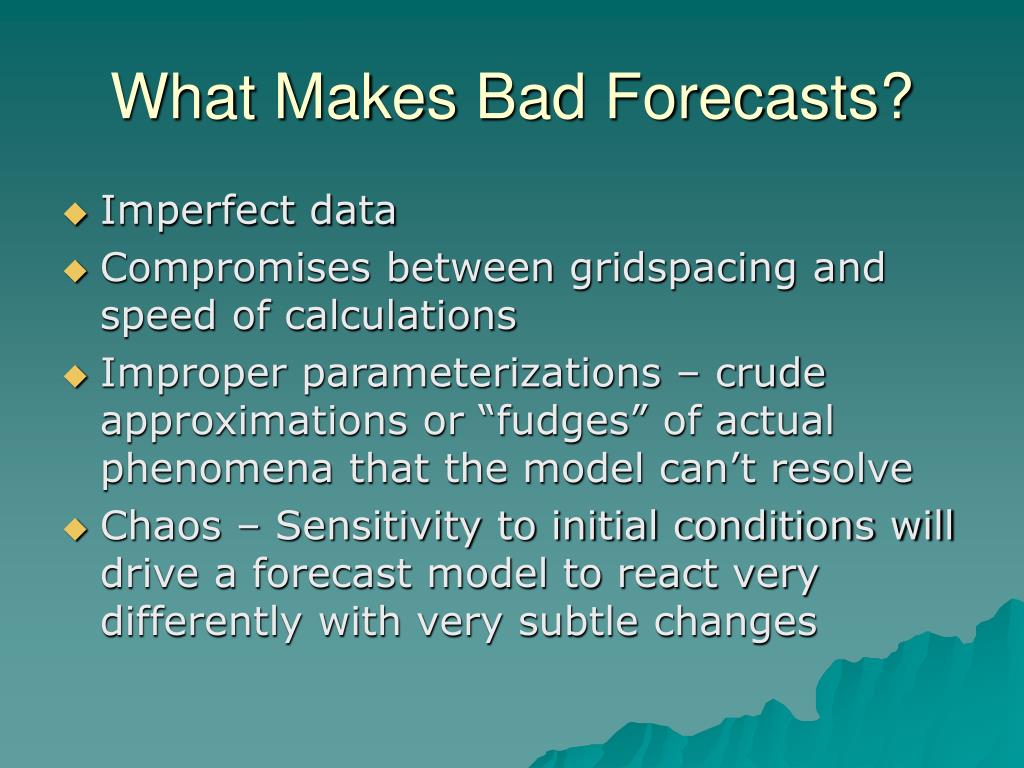

What Makes Bad Forecasts?

  • Imperfect data

  • Compromises between gridspacing and speed of calculations

  • Improper parameterizations – crude approximations or “fudges” of actual phenomena that the model can’t resolve

  • Chaos – Sensitivity to initial conditions will drive a forecast model to react very differently with very subtle changes


Ensemble forecasts l.jpg

Ensemble Forecasts

  • Confidence in a numerical model’s output can be gained by looking at ensemble forecasts

  • First, the forecast is calculated by the model

  • Then, the model is run again by changing some variables only slightly

  • This is done over and over again, changing the initial values every time

  • If the model still produces the same forecast, then the outcome can be judged as fairly certain

  • If the model produces widely different forecasts after each run, then a particular outcome is in doubt

  • “Spaghetti plots” = ensemble forecast

  • All output is displayed on the same image. If the output varies widely, a lot of lines will be all over the place


Current results l.jpg

Current Results

  • Numerical weather prediction is getting better – the “Storm of the Century” in 1993 was handled well

  • There are still some bad forecasts too, however

  • There is a two-week limit in numerical forecasting before chaos sets in

  • 36-hour forecasts are quite accurate

  • 72-hour forecasts are as good as 36-hour forecasts were back in the mid-1970s
