Presentation Transcript
Dicots and stackguard two current approaches to tolerating malicious code l.jpg

DICOTS and StackGuard: Two current approaches to tolerating maliciouscode

Carl Landwehr

Mitretek Systems, Inc.

7525 Colshire Dr.

McLean, VA 22102

[email protected]

(703)610-1576


Dicots data integrity for cots databases l.jpg
DICOTS: maliciousData Integrity for COTS Databases

  • Research project at Naval Research Lab

  • Based on Integrity Cluster concept (J. McDermott)

  • Developed and prototyped by B. Montrose and L. Day


Slide3 l.jpg

Malicious code embedded in COTS products may compromise the integrity of this data.

Easter Eggs

1

Internet Explorer

Excel 97

Select About from help menu

Open a New Sheet

Ctrl-drag “e” graphic onto Earth

Press the F5 key

2

Type X97:L97

Release Ctrl Key

Ctrl-drag “e” again to push text out of the way

Press Enter then Tab

Hold Ctrl-Shift while you click on the Chart Wizard Button in the toolbar

Press “unlock” button

Return “e” to Earth

What is the Threat?


Slide4 l.jpg

Technical Approach integrity of this data.

Ammunition

Sybase DB

9mm Cart. 4

Hellfire Missile 8

Scud Missile 7

Ammunition

Oracle DB

DICOTS

Majority Vote

Mismatch in Informix DB

Ammunition

Informix DB

Diverse & Redundant Databases with a Trustworthy Voter


Slide5 l.jpg

Supporting Research integrity of this data.

Integrity Cluster: diverse, redundant data-storing components accessed and controlled exclusively by an Integrity Controller.

Integrity Cluster Criticisms

The Integrity Controller replicates transactions to all of its attached data storages in a one-copy serializable fashion.

Data integrity is verified by comparing replicas.

Maintaining at least three redundant replicas at one site is impractical.

Remedy: DICOTS can be made to work with existing distributed databases.

Performance cost (from serialization) is intuitively high.

Remedy: measure the actual performance, assess, seek speed-ups

Integrity Clusters


Slide6 l.jpg

Technical Approach integrity of this data.

Ammunition

Sybase DB

Ammunition

Oracle DB

DICOTS

Ammunition

Informix DB

Consistency Among Replicas


Slide7 l.jpg

Technical Solution integrity of this data.

Open Database Connectivity

Sybase ODBC Driver

Sybase DB

COTS ODBC Software

Client Host

Vendor provides ODBC driver designed to run directly on DBMS

Practical implementation of DICOTS requires network between client and database server

Sybase Host


Slide8 l.jpg

Custom ODBC Driver integrity of this data.

Custom ODBC Driver

Custom ODBC Driver

Client Host

Client Host

Client Host

ODBC Proxy Interface

ODBC Proxy Interface

ODBC Proxy Interface

COTS ODBC Software

Oracle ODBC Driver

Sybase ODBC Driver

Informix ODBC Driver

COTS ODBC Software

COTS ODBC Software

Oracle DB

Sybase DB

DICOTS

Informix DB

Oracle Host

Informix Host

Sybase Host

DICOTS Operation

  • DICOTS implements custom ODBC driver as DLL

  • Application generates std database calls; DLL packages data, initiates TCP/IP connection, and transfers to proxy

  • Proxy polls incoming links round robin

  • When transaction found, it accepts and initiates it at all three back ends

  • Proxy waits for all backends to finish

    • If data returned, proxy votes it and reports failure if appropriate (note format issues)

  • Then accept another transaction


Dicots preliminary results l.jpg
DICOTS preliminary results integrity of this data.

  • Feasible to construct the architecture

  • Partial set of ODBC API implemented

  • Some compatibility issues encountered

  • Benchmarking in progress

  • Initial evidence: retrieval times considerably longer than update

  • Current implementation represents baseline, near worst case


Stackguard tolerating stack smashing attacks l.jpg
StackGuard: integrity of this data.Tolerating Stack Smashing Attacks

  • Stack Smashing Attacks are Legion

  • Vulnerabilities attributable to buffer overflow/stack smashing attacks in CERT advisories since 1997:

    • 1997: 14 of 28

    • 1998: 7 of 12

    • 1999: 5 of 12 (to Oct 1)

      Effective countermeasure to stack smashing could eliminate many actual attacks

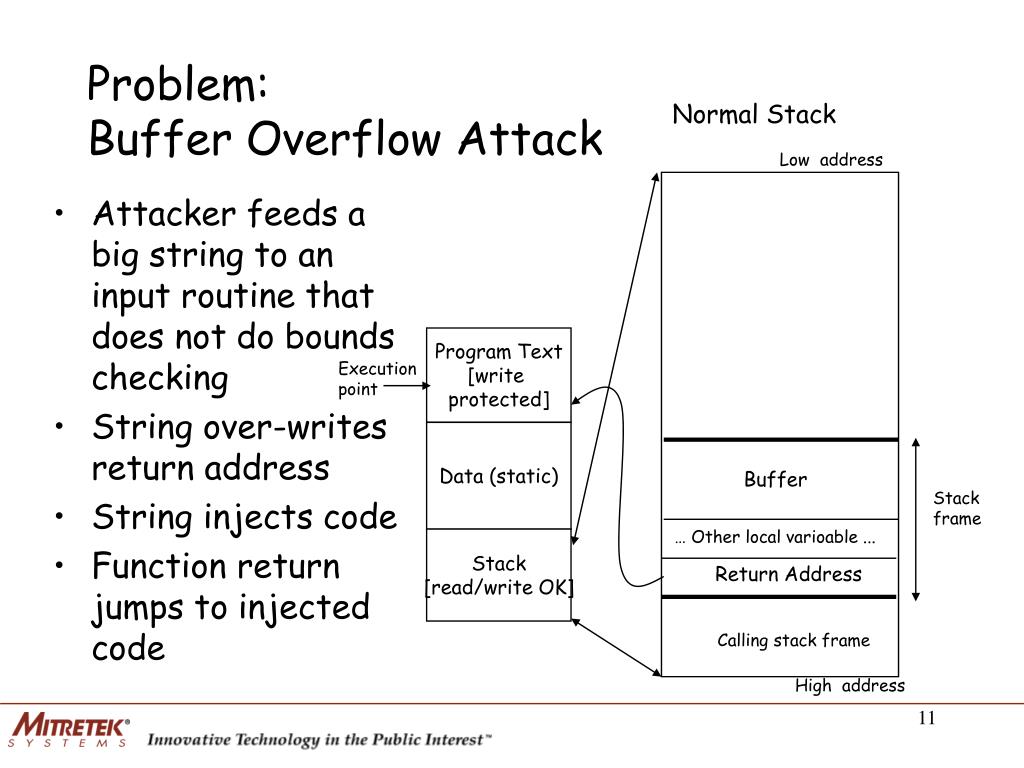

Problem buffer overflow attack l.jpg

Execution integrity of this data.

point

Program Text

[write

protected]

Data (static)

Stack

[read/write OK]

Problem:Buffer Overflow Attack

Normal Stack

Low address

  • Attacker feeds a big string to an input routine that does not do bounds checking

  • String over-writes return address

  • String injects code

  • Function return jumps to injected code

Buffer

Stack

frame

… Other local varioable ...

Return Address

Calling stack frame

High address


After a successful attack l.jpg

Program Text integrity of this data.

[write

protected]

Data (static)

Stack

[read/write OK]

After a Successful Attack

Smashed Stack

Low address

  • Return address points into buffer

  • Buffer contains attack code

  • Executing return invokes attack code

Attack code

Stack

frame

… Other variable ...

Return Address

High address


Problems for the attacker l.jpg
Problems for the attacker integrity of this data.

  • Hacker must find: program that runs with system privileges (e.g., root privilege) and fails to check the length of its input

  • Hacker needs to know:

    • Address of the start of the buffer within the stack, to set up return address properly

    • Distance between start of buffer and the return address in the stack, to write a string long enough to rewrite the return address

    • The actual attack code (binary instructions) to create a new process [exec(“sh”)]

  • Hacker must be able to enter entire attack string as single string input (typically, no embedded nulls)

    • May have to specialize machine instruction to avoid nulls in attack code


Attacker tricks l.jpg
Attacker tricks integrity of this data.

Low address

  • By starting the attack code with NOPs, the rewritten return address only need be approximate

  • By writing the guessed return address several times, the guessed displacement from buffer start to return address need only be approximate

NOP

...

NOP

Attack Code

Return Address

Return Address

Return Address

High address


Stack guard solution detect stack smashing as it happens crispin cowan calton pu oregon grad inst l.jpg
Stack integrity of this data.Guard Solution: Detect Stack Smashing As it HappensCrispin Cowan, Calton Pu, Oregon Grad Inst.

  • StackGuard is a compiler that emits robust bug tolerant code

    • Stack smashing vulnerabilities are not repaired, nor are the attacks prevented

  • Instead, program detects attack in progress

    • Stack smash corrupts running function’s activation record

    • StackGuard code generator detects corruption before return, preventing attacker from getting control


Stack guard 1 defend programs with a stack integrity check l.jpg
Stack integrity of this data.Guard 1:Defend Programs with a Stack Integrity Check

Normal Stack

Low address

  • Stack smash goes through

    • Attack code injected

    • Return address altered

  • But Stack smash also smashes the Canary

    • Function checks for Canary before returning

    • If Canary smashed, program halts instead of yielding control to the attacker

Buffer

Stack

frame

Other local variables ...

Canary

Return Address

Calling stack frame

High address


Canary integrity l.jpg
Canary Integrity integrity of this data.

  • Problem:

    • attacker customizes attack string so that string over-write replaces proper canary word

  • Original solution: random canaries

    • Choose random canary values at exec() time

  • Requires lookup on each function call and return

    • Slow

    • Can’t be used with shared libraries


Faster better canary integrity stack guard 1 1 l.jpg
Faster, Better Canary Integrity: integrity of this data.StackGuard 1.1

  • New solution: “terminator” canary

    • canary word is Null, CR, LF, and -1

    • I.e. the common termination symbols for C string functions

  • Hard for attacker to embed a termination symbol in the attack string

  • Improvement: static canary lookup

    • Faster

    • Can be used with shared libraries


What this solution requires l.jpg
What this solution requires integrity of this data.

  • Recompile vulnerable programs with StackGuard compiler

    • Changes call sequence to add canary to stack

    • Changes return sequence to check canary before returning

      • If canary intact, return normally

      • If canary not intact, abort the process

  • Programs not recompiled by Stackguard are not protected, but not affected (no compatibility issue)


How good is the protection l.jpg
How good is the protection? integrity of this data.

  • Possible to rewrite return address randomly in some situations, but much more difficult; virtually impossible for this kind of attack

  • Overhead for StackGuard 1.1 (fixed canary) is barely measurable (time and space)


References l.jpg
References integrity of this data.

McDermott, J. and Froscher, J. “Practical Defenses Against Storage Jamming,” in Proceedings of the 20th National Information Systems Security Conference, Baltimore, MD, October 1997, pp. 162-173

McDermott, J. Integrity Clusters. Submitted for publication, Journal of Computer Security, 1999

Aleph One. Smashing Stacks for Fun and Profit. Phrack V. 7, issue. 49.

Http://www.reality.sgi.com/nate/machines/security/P49-14-Aleph-One

Cowan, Crispin, Calton Pu, et. Al. StackGuard Automatic Adaptive Detection and Prevention of Buffer Overflow Attacks. Proceedings 7th USENIX Conf. Available at http://www.cse.ogi.edu/DISC/projects/immunix/StackGuard/
