Benzene and Aromatic Compounds

  • Benzene (C6H6) is the simplest aromatic hydrocarbon (or arene).

  • Benzene has four degrees of unsaturation, making it a highly unsaturated hydrocarbon.

  • Whereas unsaturated hydrocarbons such as alkenes, alkynes and dienes readily undergo addition reactions, benzene does not.


Slide2 l.jpg

  • Proposed structures of benzene must account for its high degree of unsaturation and its lack of reactivity towards electrophilic addition.

  • August Kekulé proposed that benzene was a rapidly equilibrating mixture of two compounds, each containing a six-membered ring with three alternating  bonds.

  • In the Kekulé description, the bond between any two carbon atoms is sometimes a single bond and sometimes a double bond.


Slide3 l.jpg

  • Although benzene is still drawn as a six-membered ring with alternating  bonds, in reality there is no equilibrium between the two different kinds of benzene molecules.

  • Current descriptions of benzene are based on resonance and electron delocalization due to orbital overlap.

  • In the nineteenth century, many other compounds having properties similar to those of benzene were isolated from natural sources. Since these compounds possessed strong and characteristic odors, they were called aromatic compounds. It should be noted, however, that it is their chemical properties, and not their odor, that make them special.


Slide4 l.jpg

The Kekulé structures satisfy the first two criteria but not the third, because having three alternating  bonds means that benzene should have three short double bonds alternating with three longer single bonds.


Slide5 l.jpg

  • The resonance description of benzene consists of two equivalent Lewis structures, each with three double bonds that alternate with three single bonds.

  • The true structure of benzene is a resonance hybrid of the two Lewis structures, with the dashed lines of the hybrid indicating the position of the  bonds.

  • We will use one of the two Lewis structures and not the hybrid in drawing benzene. This will make it easier to keep track of the electron pairs in the  bonds (the  electrons).


Slide6 l.jpg

  • Because each equivalent Lewis structures, each with three double bonds that alternate with three single bonds.  bond has two electrons, benzene has six  electrons.


Slide7 l.jpg

  • In benzene, the actual bond length (1.39 equivalent Lewis structures, each with three double bonds that alternate with three single bonds. Å) is intermediate between the carbon—carbon single bond (1.53 Å) and the carbon—carbon double bond (1.34 Å).


Slide8 l.jpg

Draw all possible resonance structures for biphenyl? equivalent Lewis structures, each with three double bonds that alternate with three single bonds.


Slide9 l.jpg

What orbitals are used to form the indicated bonds, and of those which is the shortest?

Csp2-Csp2

Cp-Cp

Csp2-Csp3

shortest

Csp2-Hs

Csp2-Csp2

Cp-Cp

Csp2-Csp2


Slide10 l.jpg

Nomenclature of Benzene Derivatives those which is the shortest?

  • To name a benzene ring with one substituent, name the substituent and add the word benzene.

  • Many monosubstituted benzenes have common names which you must also learn.


Slide11 l.jpg

ortho-dibromobenzene

or

o-dibromobenzene

or 1,2-dibromobenzene

meta-dibromobenzene

or

m-dibromobenzene

or 1,3-dibromobenzene

para-dibromobenzene

or

p-dibromobenzene

or 1,4-dibromobenzene


Slide12 l.jpg


Slide13 l.jpg

  • For three or more substituents on a benzene ring: alphabetize the names of the substituents preceding the word benzene.

  • Number to give the lowest possible numbers around the ring.

  • Alphabetize the substituent names.

  • When substituents are part of common roots, name the molecule as a derivative of that monosubstituted benzene. The substituent that comprises the common root is located at C1.


Slide14 l.jpg

  • A benzene substituent is called a alphabetize the names of the substituents preceding the word benzene.phenyl group, and it can be abbreviated in a structure as “Ph-”.

  • Therefore, benzene can be represented as PhH, and phenol would be PhOH.


Slide15 l.jpg

  • The alphabetize the names of the substituents preceding the word benzene.benzyl group, another common substituent that contains a benzene ring, differs from a phenyl group.

  • Substituents derived from other substituted aromatic rings are collectively known as aryl groups.


Slide16 l.jpg

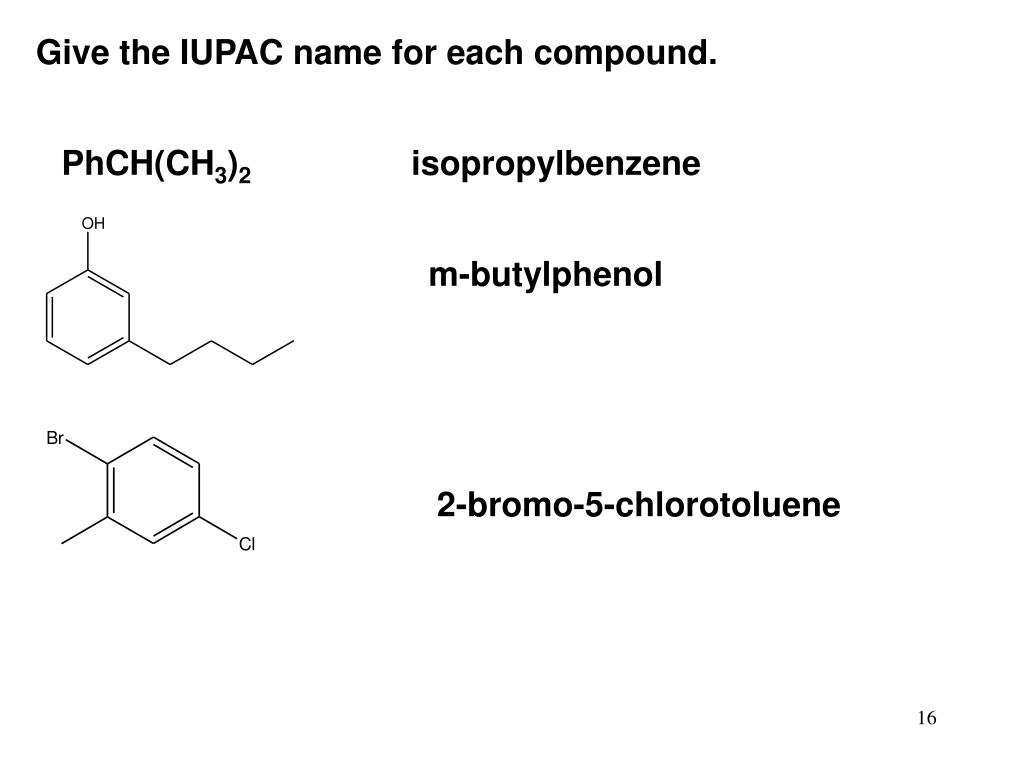

Give the IUPAC name for each compound. alphabetize the names of the substituents preceding the word benzene.

PhCH(CH3)2

isopropylbenzene

m-butylphenol

2-bromo-5-chlorotoluene


Slide17 l.jpg

Which structure matches the given name? alphabetize the names of the substituents preceding the word benzene.

o-dichlorobenzene


Slide18 l.jpg

4-chloro-1,2-diethylbenzene alphabetize the names of the substituents preceding the word benzene.


Slide19 l.jpg

Spectroscopic Properties of Benzene alphabetize the names of the substituents preceding the word benzene.


Slide20 l.jpg

Figure 17.2 alphabetize the names of the substituents preceding the word benzene.

13C NMR absorptions

of the three isomeric

dibromobenzenes


Slide21 l.jpg

Give the structure of the compound, C alphabetize the names of the substituents preceding the word benzene.10H14O2, with an IR absorption at 3150-2850 cm-1. Also has +1H NMR peaks:

1.4 ppm (triplet 6H)

4.0 ppm (quartet 4H)

6.8 ppm (singlet 4H)

2(10)+2-14=8/2=4

IR absorption tells that there are sp2 and sp3 C-H bonds

6.8 ppm tells us its aromatic but with only one type of proton, what does this tell us?

So aromatic plus 4 DOUS equals benzene ring.

So where would the substituents have to be?

We know we get a doublet of doublets when benzene is para substituted but with two different groups.

When the substituents are the same what do you get?


Slide22 l.jpg

One type of proton due to symmetry. So we know that we have a benzen ring with para subsituents that are the same.

So this leaves us 4 Cs and 2 Os. And we have a quartet and a triplet up field for nonaromatic protons, so that tells us that we could have an ethyl group present without any effect from the ring so we must have an ether.


Slide23 l.jpg

Stability of Benzene a benzen ring with para subsituents that are the same.

  • Consider the heats of hydrogenation of cyclohexene, 1,3-cyclohexadiene and benzene, all of which give cyclohexane when treated with excess hydrogen in the presence of a metal catalyst.


Slide24 l.jpg

Figure 17.6 compares the hypothetical and observed heats of hydrogenation for benzene.

Figure 17.6

A comparison between the

observed and hypothetical

heats of hydrogenation

for benzene

The huge difference between the hypothetical and observed heats of hydrogenation for benzene cannot be explained solely on the basis of resonance and conjugation.


Slide25 l.jpg

  • The low heat of hydrogenation of benzene means that benzene is especially stable—even more so than conjugated polyenes. This unusual stability is characteristic of aromatic compounds.

  • Benzene’s unusual behavior is not limited to hydrogenation. Benzene does not undergo addition reactions typical of other highly unsaturated compounds, including conjugated dienes.

  • Benzene does not react with Br2 to yield an addition product. Instead, in the presence of a Lewis acid, bromine substitutes for a hydrogen atom, yielding a product that retains the benzene ring.


Slide26 l.jpg

The Criteria for Aromaticity—H is especially stable—even more so than conjugated polyenes. This unusual stability is characteristic of aromatic compounds.ückel’s Rule

Four structural criteria must be satisfied for a compound to be aromatic.

[1] A molecule must be cyclic.

To be aromatic, each p orbital must overlap with p orbitals on adjacent atoms.


Slide27 l.jpg

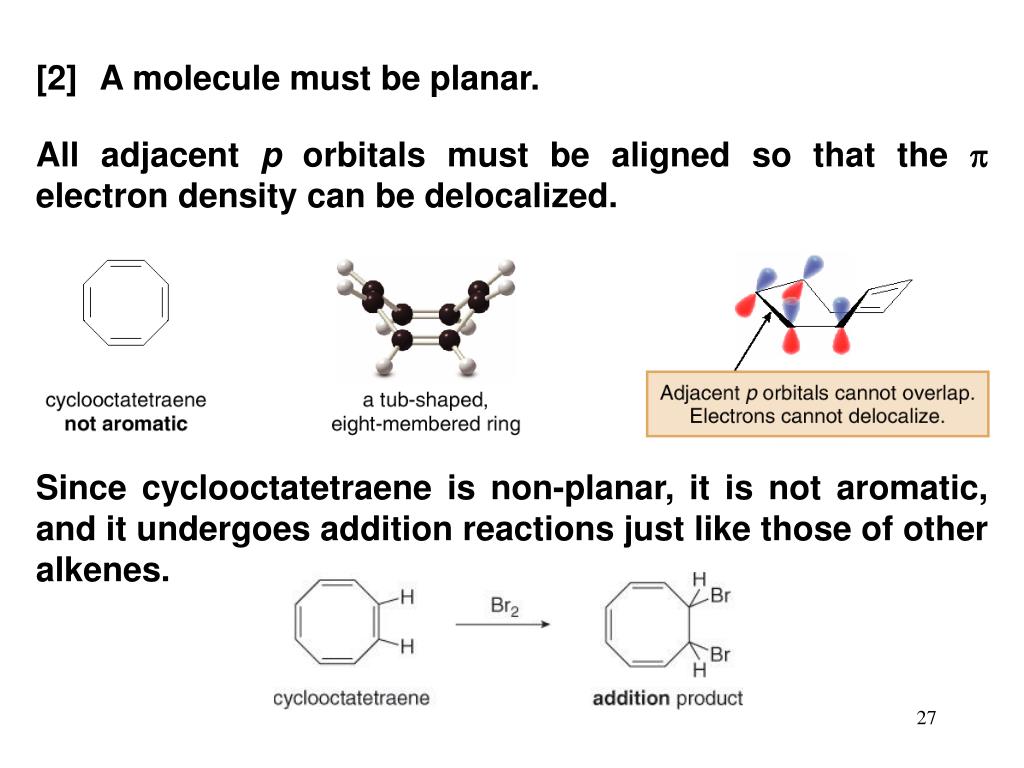

[2] A molecule must be planar. is especially stable—even more so than conjugated polyenes. This unusual stability is characteristic of aromatic compounds.

All adjacent p orbitals must be aligned so that the  electron density can be delocalized.

Since cyclooctatetraene is non-planar, it is not aromatic, and it undergoes addition reactions just like those of other alkenes.


Slide28 l.jpg

[3] A molecule must be completely conjugated. is especially stable—even more so than conjugated polyenes. This unusual stability is characteristic of aromatic compounds.

Aromatic compounds must have a p orbital on every atom.


Slide29 l.jpg

[4] A molecule must satisfy is especially stable—even more so than conjugated polyenes. This unusual stability is characteristic of aromatic compounds.Hückel’s rule, and contain

a particular number of  electrons.

Hückel's rule:

Benzene is aromatic and especially stable because it contains 6  electrons. Cyclobutadiene is antiaromatic and especially unstable because it contains 4  electrons.


Slide30 l.jpg

Note that H is especially stable—even more so than conjugated polyenes. This unusual stability is characteristic of aromatic compounds.ückel’s rule refers to the number of  electrons, not the number of atoms in a particular ring.


Slide31 l.jpg

Considering aromaticity, a compound can be classified in one of three ways:

  • Aromatic—A cyclic, planar, completely conjugated compound with 4n + 2  electrons.

  • Antiaromatic—A cyclic, planar, completely conjugated compound with 4n  electrons.

  • Not aromatic (nonaromatic)—A compound that lacks one (or more) of the following requirements for aromaticity: being cyclic, planar, and completely conjugated.


Slide32 l.jpg

Note the relationship between each compound type and a similar open-chained molecule having the same number of  electrons.


Slide33 l.jpg

  • 1 similar open-chained molecule having the same number of  electrons.H NMR spectroscopy readily indicates whether a compound is aromatic.

  • The protons on sp2 hybridized carbons in aromatic hydrocarbons are highly deshielded and absorb at 6.5-8 ppm, whereas hydrocarbons that are not aromatic absorb at 4.5-6 ppm.


Slide34 l.jpg

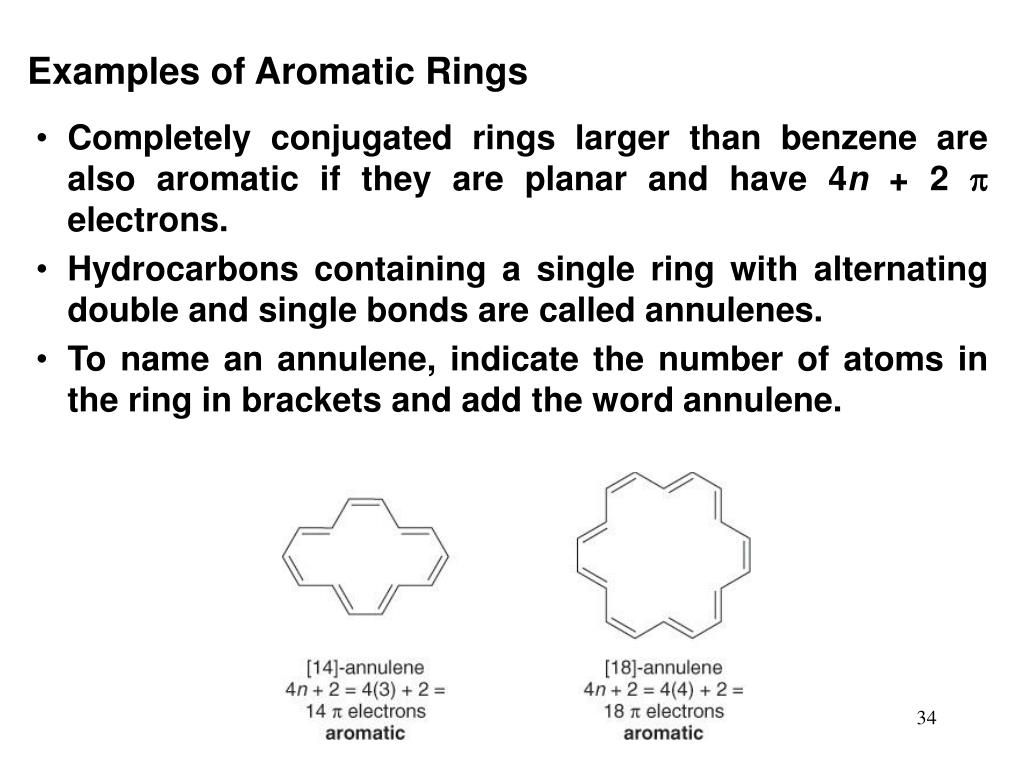

Examples of Aromatic Rings similar open-chained molecule having the same number of  electrons.

  • Completely conjugated rings larger than benzene are also aromatic if they are planar and have 4n + 2  electrons.

  • Hydrocarbons containing a single ring with alternating double and single bonds are called annulenes.

  • To name an annulene, indicate the number of atoms in the ring in brackets and add the word annulene.


Slide35 l.jpg

  • [10]-Annulene similar open-chained molecule having the same number of  electrons. has 10  electrons, which satisfies Hückel's rule, but a planar molecule would place the two H atoms inside the ring too close to each other. Thus, the ring puckers to relieve this strain.

  • Since [10]-annulene is not planar, the 10  electrons can’t delocalize over the entire ring and it is not aromatic.


Slide36 l.jpg

  • As the number of fused rings increases, the number of resonance structures increases. Naphthalene is a hybrid of three resonance structures whereas benzene is a hybrid of two.


Slide37 l.jpg

What is the correct name for this compound? single bonds can be fused together to form polycyclic aromatic hydrocarbons (PAHs).

A) 3-Nitrotoluene

B) 4-Nitromethylbenzene

C) p-Nitrotoluene

D) (4,1)-Methylnitrobenzene

C) p-Nitrotoluene


Slide38 l.jpg

What is the correct name for this compound? single bonds can be fused together to form polycyclic aromatic hydrocarbons (PAHs).

A) 3,5-difluoroanisole

B) Difluoromethoxybenzene

C) 1,5-difluoro-3-methoxybenzene

D) 1,3-difluoro-5-methyl-O-benzene

3,5-difluoroanisole


Slide39 l.jpg

  • What is the correct name for this compound? single bonds can be fused together to form polycyclic aromatic hydrocarbons (PAHs).

  • 4-bromo-m-xylene.

  • B) 1-bromo-2,4-dimethylbenzene.

  • C) p-bromo-m-methyltoluene.

  • D) o-bromo-m-methyltoluene.

B) 1-bromo-2,4-dimethylbenzene.


Slide41 l.jpg

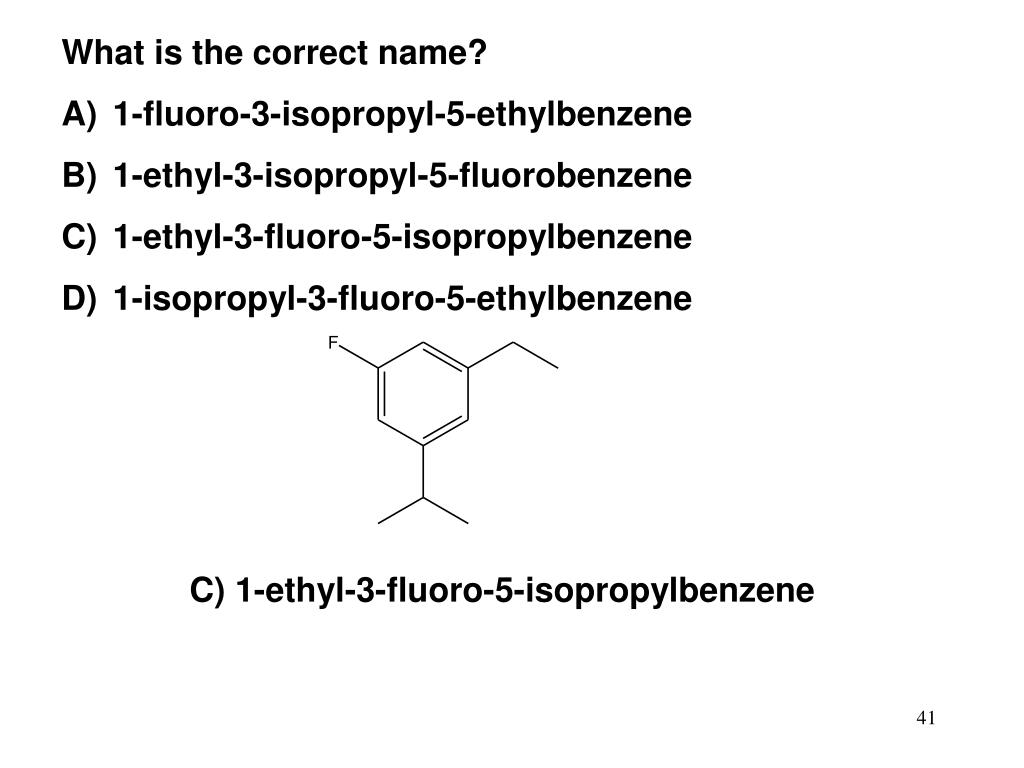

  • What is the correct name? single bonds can be fused together to form polycyclic aromatic hydrocarbons (PAHs).

  • 1-fluoro-3-isopropyl-5-ethylbenzene

  • 1-ethyl-3-isopropyl-5-fluorobenzene

  • 1-ethyl-3-fluoro-5-isopropylbenzene

  • 1-isopropyl-3-fluoro-5-ethylbenzene

C) 1-ethyl-3-fluoro-5-isopropylbenzene


Slide42 l.jpg

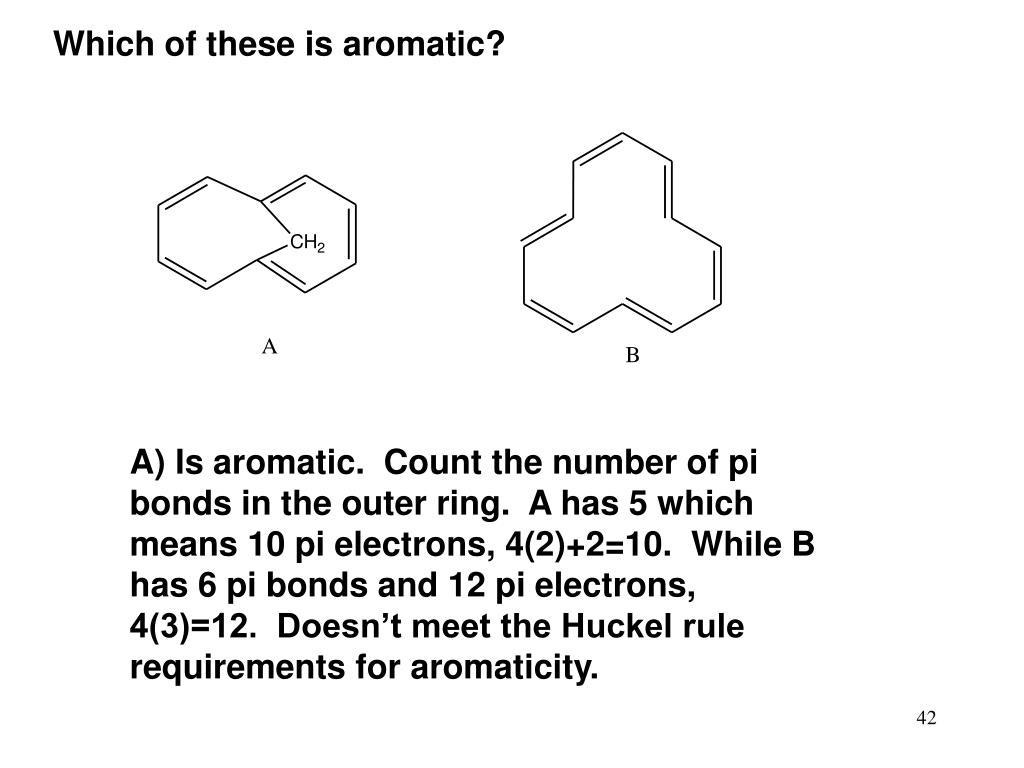

Which of these is aromatic? single bonds can be fused together to form polycyclic aromatic hydrocarbons (PAHs).

A) Is aromatic. Count the number of pi bonds in the outer ring. A has 5 which means 10 pi electrons, 4(2)+2=10. While B has 6 pi bonds and 12 pi electrons, 4(3)=12. Doesn’t meet the Huckel rule requirements for aromaticity.


Slide43 l.jpg

Is this compound aromatic or antiaromatic? single bonds can be fused together to form polycyclic aromatic hydrocarbons (PAHs).

Antiaromatic – cyclic, planar, conjugated , but does not meet Huckel’s rule.

4 doulbe bonds and 2 triple bonds so 4(2) + 2(4)=16 pi electons. 4n+2 or 4n? 4(4)=16


Slide44 l.jpg

Indicate which of the following are aromatic and antiaromatic?

C is aromatic 4(3)+2=14

A is antiaromatic 4(2)=8


Slide45 l.jpg


Slide46 l.jpg

  • Pyrrole be aromatic. is another example of an aromatic heterocycle. It contains a five-membered ring with two  bonds and one nitrogen atom.

  • Pyrrole has a p orbital on every adjacent atom, so it is completely conjugated.

  • Pyrrole has six  electrons—four from the  bonds and two from the lone pair.

  • Pyrrole is cyclic, planar, completely conjugated, and has 4n + 2  electrons, so it is aromatic.


Slide47 l.jpg

  • Histamine be aromatic. is a biologically active amine formed in many tissues. It is an aromatic heterocycle with two N atoms—one which is similar to the N atom of pyridine, and the other which is similar to the N atom of pyrrole.


Slide48 l.jpg

Both negatively and positively charged ions can be aromatic if they possess all the necessary elements.

We can draw five equivalent resonance structures for the cyclopentadienyl anion.


Slide49 l.jpg

  • Having the “right” number of electrons is necessary for a species to be unusually stable by virtue of aromaticity.

  • Thus, although five resonance structures can also be drawn for the cyclopentadienyl cation and radical, only the cyclopentadienyl anion has 6  electrons, a number that satisfies Hückel’s rule.


Slide50 l.jpg

  • The a species to be unusually stable by virtue of aromaticity. tropylium cation is a planar carbocation with three double bonds and a positive charge contained in a seven-membered ring.

  • Because the tropylium cation has three  bonds and no other nonbonded electron pairs, it contains six  electrons, thereby satisfying Hückel’s rule.


Slide51 l.jpg

Which of the following is aromatic? a species to be unusually stable by virtue of aromaticity.

C is aromatic 10 pi electrons, 4(2)+2=10 and completely conjugated b/c lone pair is in a p orbital.

Which are antiaromatic?


Slide52 l.jpg

Which of these is antiaromatic? a species to be unusually stable by virtue of aromaticity.

B 8 pi electrons 4(2)=8

C and D as well, 8 and 4 respectively


Slide53 l.jpg

The Basis of H a species to be unusually stable by virtue of aromaticity. ückel’s Rule

  • Why does the number of  electrons determine whether a compound is aromatic?

  • The basis of aromaticity can be better understood by considering orbitals and bonding.


Slide54 l.jpg

  • Thus far, we have used “valence bond theory” to explain how bonds between atoms are formed.

  • Valence bond theory is inadequate for describing systems with many adjacent p orbitals that overlap, as is the case in aromatic compounds.

  • Molecular orbital (MO) theory permits a better explanation of bonding in aromatic systems.

  • MO theory describes bonds as the mathematical combination of atomic orbitals that form a new set of orbitals called molecular orbitals (MOs).

  • A molecular orbital occupies a region of space in a molecule where electrons are likely to be found.


Slide55 l.jpg

  • When forming molecular orbitals from atomic orbitals, keep in mind that a set of n atomic orbitals forms n molecular orbitals.

  • If two atomic orbitals combine, two molecular orbitals are formed.

  • Recall that aromaticity is based on p orbital overlap.

  • Also note that the two lobes of each p orbital are opposite in phase, with a node of electron density at the nucleus.

  • When two p orbitals combine, two molecular orbitals should form.


Slide56 l.jpg

  • The combination of two in mind that a set of p orbitals can be constructive—that is, with like phases interacting—or destructive, that is, with opposite phases interacting.

  • When two p orbitals of similar phase overlap side-by-side, a  bonding molecular orbital results.

  • When two p orbitals of opposite phase overlap side-by-side, a * antibonding orbital results.


Slide57 l.jpg

Figure 17.8

Combination of two p orbitals

to form πand π* molecular

orbitals


Slide58 l.jpg

  • The molecular orbital description of benzene is much more complex than the two MOs formed in Figure 17.8.

  • Since each of the six carbon atoms of benzene has a p orbital, six atomic p orbitals combine to form six  molecular orbitals as shown in Figure 17.9.

    • The six MOs are labeled 1- 6, with 1 being the lowest energy and 6 being the highest.

  • The most important features of the six benzene MOs are as follows:

    • The larger the number of bonding interactions, the lower in energy the MO.

    • The larger the number of nodes, the higher in energy the MO.


Slide59 l.jpg

  • The most important features of the six benzene MOs (continued):

    • The larger the number of bonding interactions, the lower in energy the MO.

    • The larger the number of nodes, the higher in energy the MO.

    • Three MOs are lower in energy than the starting p orbitals, making them bonding MOs, whereas three MOs are higher in energy than the starting p orbitals, making them antibonding MOs.

    • Two pairs of MOs with the same energy are called degenerate orbitals.

    • The highest energy orbital that contains electrons is called the highest occupied molecular orbital (HOMO).

    • The lowest energy orbital that does not contain electrons is called the lowest unoccupied molecular orbital (LUMO).


Slide60 l.jpg

Consider benzene. Since each of the six carbon atoms in benzene has a p orbital, six atomic p orbitals combine to form six  MOs.

Figure 17.9

The six molecular orbitals

of benzene

To fill the MOs, the six electrons are added, two to an orbital. The six electrons completely fill the bonding MOs, leaving the anti-bonding MOs empty. All bonding MOs (and HOMOs) are completely filled in aromatic compounds. No  electrons occupy antibonding MOs.



Slide62 l.jpg

  • This method works for all monocyclic completely conjugated systems regardless of ring size.

  • The total number of MOs always equals the number of vertices of the polygon.

  • The inscribed polygon method is consistent with Hückel's 4n + 2 rule—there is always one lowest energy bonding MO that can hold two  electrons and the other bonding MOs come in degenerate pairs that can hold a total of four  electrons.


Slide63 l.jpg

Figure 17.10 systems regardless of ring size.

Using the inscribed polygon

method for five- and seven-

membered rings


Slide64 l.jpg

Figure 17.11

MO patterns for cyclic,

completely conjugated systems


ad
