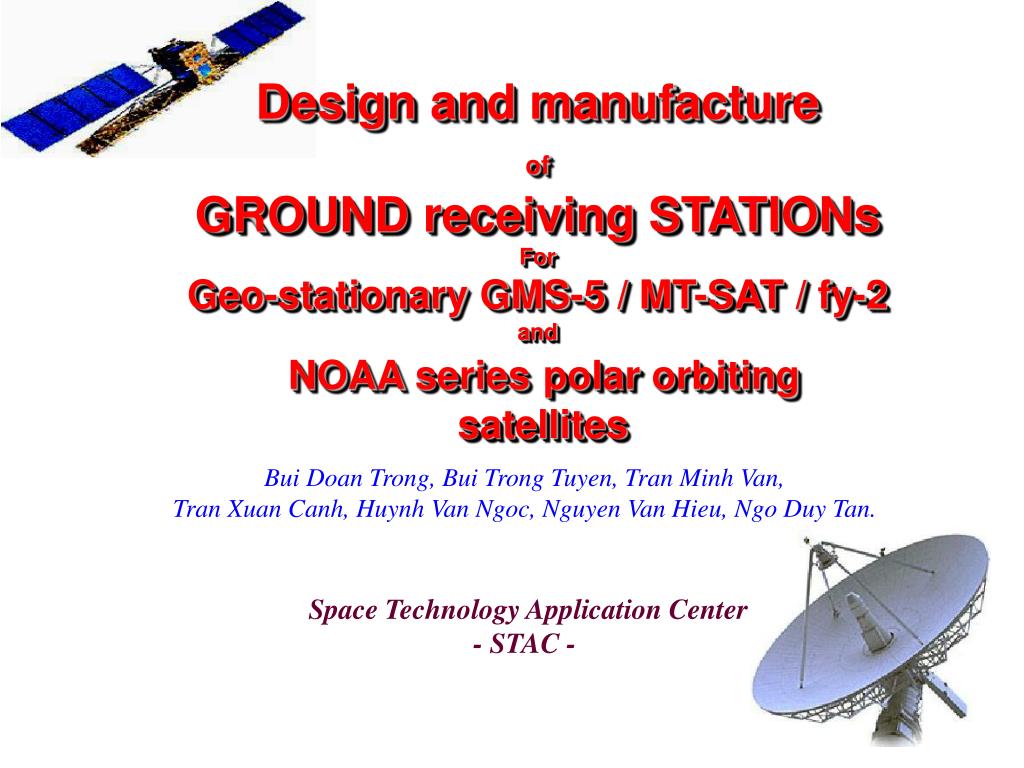

  1. Design and manufactureofGROUND receiving STATIONs For Geo-stationary GMS-5 / MT-SAT / fy-2 and NOAA seriespolar orbiting satellites Bui Doan Trong, Bui Trong Tuyen, Tran Minh Van, Tran Xuan Canh, Huynh Van Ngoc, Nguyen Van Hieu, Ngo Duy Tan. Space Technology Application Center - STAC -

  2. introduction • Space Technology and its application including Satellite Remote Sensing have developed rapidly and reached great progresses. • Nowadays, the use of satellite data plays very important role in natural resources and environmental monitoring especially in natural disaster prediction and mitigation.

  3. Natural disasters caused great losses: For the last 2 decades of the 20th century: • 3 million people dead, 1 billion lives affected. • 400 billion USD of property loss.

  4. In Vietnam: • 1954-1999: Vietnam suffered from appx. 200 typhoons. • Average of 250 people dead per year. • 1996, 1997 and 2000: thousands people dead and missing, billions of USD of property loss .

  5. Objectives The systems, HRS-200 & HRS-201, designed and manufactured by STAC meets the following requirements: • HRS-200: receive high resolution data from the GMS-5/FY-2/MT-SAT geo satellites • HRS-201: receive high resolution data from the NOAA polar satellite series: NOAA 12, 14, 16, 17. • Technical and functional specifications satisfy users’ tasks and well adapt to Vietnam practical conditions. • Easy operation, utilization, testing and maintenance. • Flexible structure, compatible with common standards. • Users take controls over the application, develop and integrate other professional modules. • Lower cost compared to equivalent imported ones.

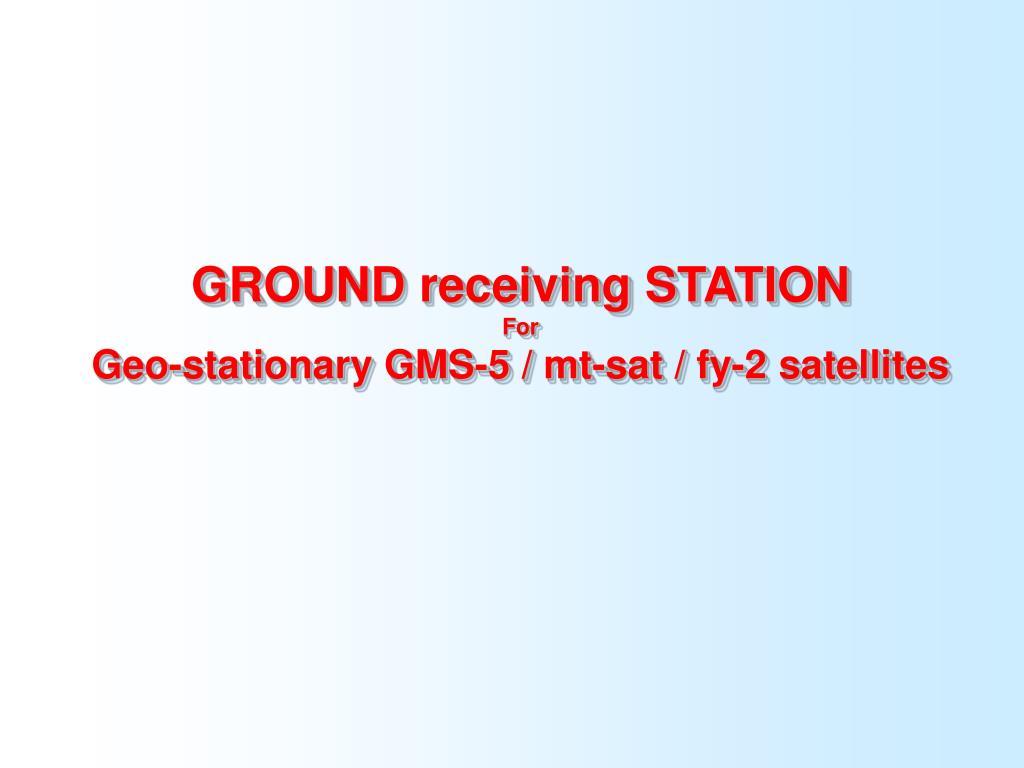

  6. GROUND receiving STATION For Geo-stationary GMS-5 / mt-sat / fy-2 satellites

  7. GMS-5 Satellite • Launched in the spring of 1995. • Became the operational Japanese geo-synchronous weather satellite in June 1995 and operated well so far. • Stationed at 140 deg. E longitude and 35.800 km elevation above the Equator.

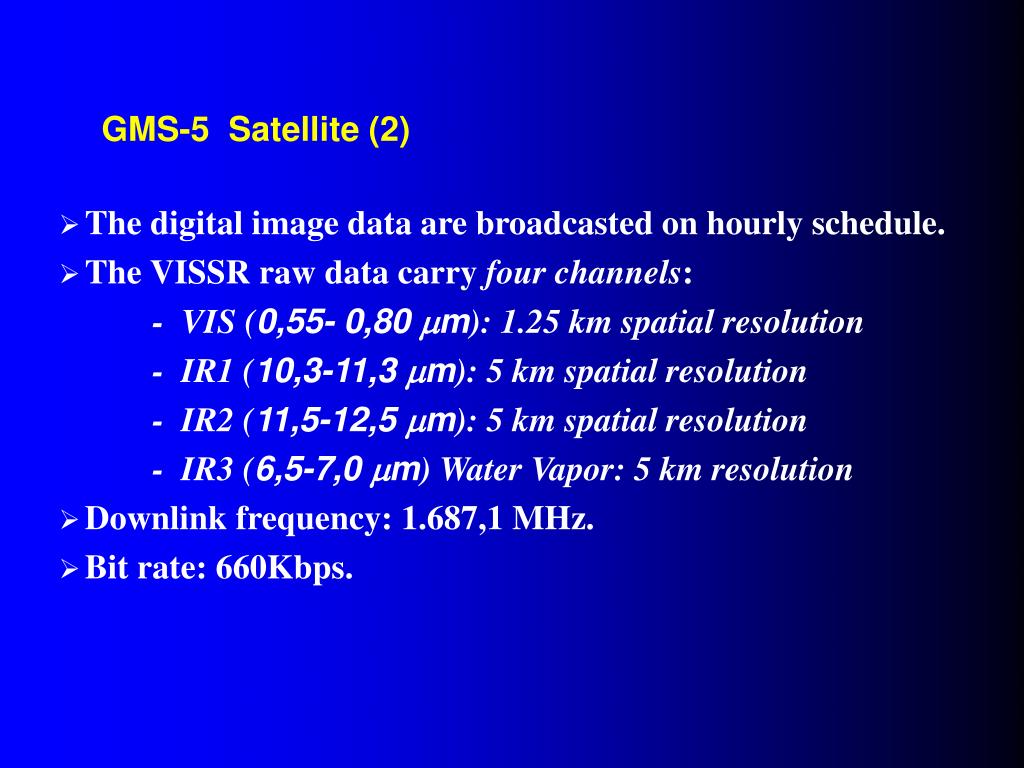

  8. GMS-5 Satellite (2) • The digital image data are broadcasted on hourly schedule. • The VISSR raw data carry four channels: - VIS (0,55- 0,80 m): 1.25 km spatial resolution - IR1 (10,3-11,3 m): 5 km spatial resolution - IR2 (11,5-12,5 m): 5 km spatial resolution - IR3 (6,5-7,0 m) Water Vapor: 5 km resolution • Downlink frequency: 1.687,1 MHz. • Bit rate: 660Kbps.

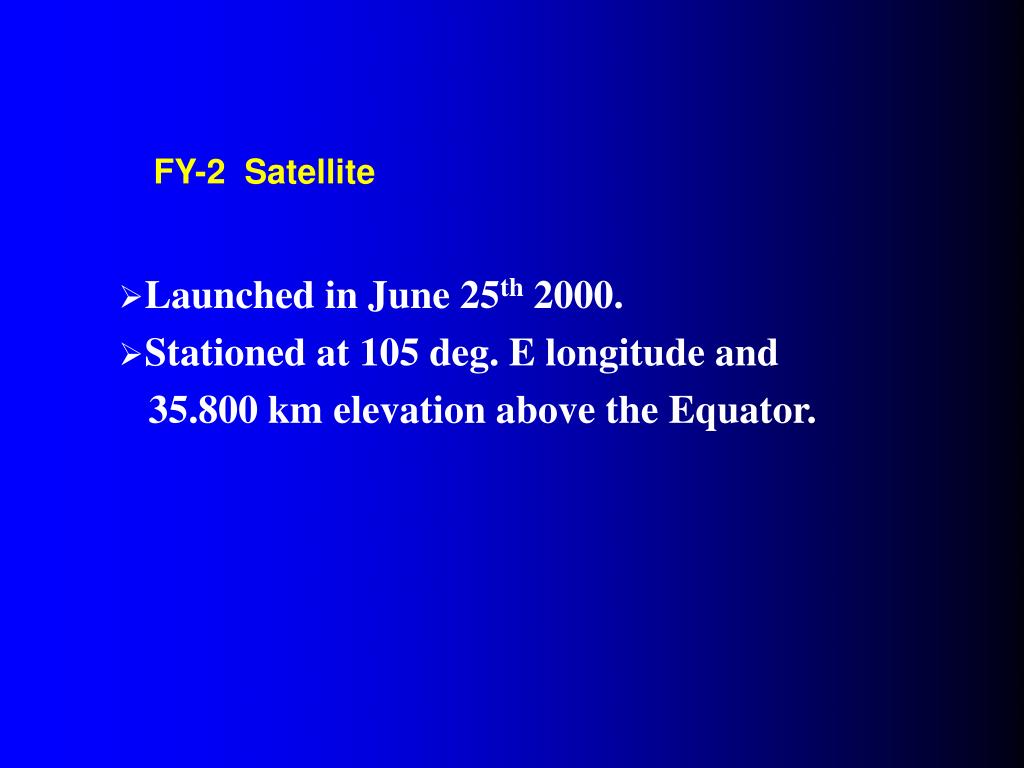

  9. FY-2 Satellite • Launched in June 25th 2000. • Stationed at 105 deg. E longitude and 35.800 km elevation above the Equator.

  10. FY-2 Satellite (2) • As the same as GMS-5 satellite, the digital image of FY-2B are broadcasted on hourly schedule. • FY-2’s VISSR raw data carries three channels: - VIS (0,5-1,05 m) : 1,25 km spatial resolution. - IR (10,5-12,5m): 5 km spatial resolution. - Water Vapor (6,2-7,6m): 5 km resolution. • Downlink frequency: 1.687,5MHz. • Bit rate: 660Kbps.

  11. HRS-200 hardware The hardware consists of: • Antenna. • LNA (Low Noise Amplifier). • Receiver and Demodulator. • Bit /Frame Synchronizers and Decoders. • PC Ingestor. LAN (Local Area Network) may be established to enhance the system’s performance (option).

  12. The block diagram of HRS-200

  13. Antenna • Type: parabolic & fixed. • Diameter: 3,2 meters. • Polarization: linearity. • Gain: 32,5 dB. • Impedance : 50 Ohm.

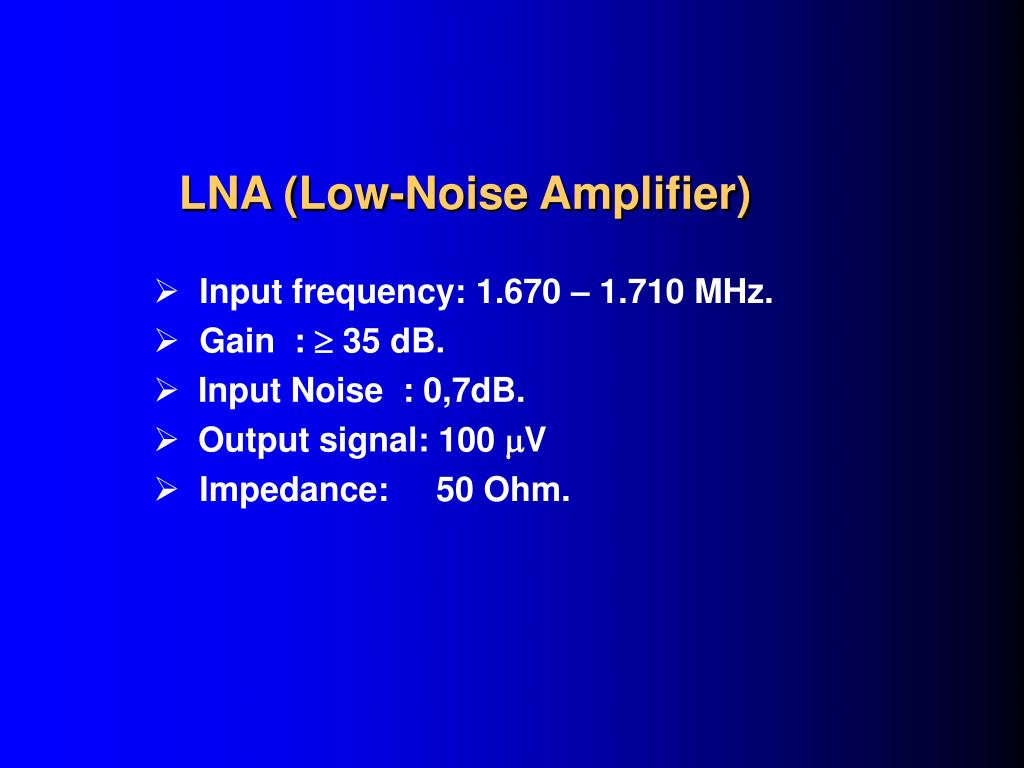

  14. LNA (Low-Noise Amplifier) • Input frequency: 1.670 – 1.710 MHz. • Gain :  35 dB. • Input Noise : 0,7dB. • Output signal: 100V • Impedance: 50 Ohm.

  15. Receiver

  16. Down-Converter I and IF Amplifier I • Input frequency : 1.687,1 MHz. • Bandwidth : 30 MHz. • Input level : 100 V. • Output level : 3,5 mV. • Output Frequency: 150,9 MHz

  17. Down-Converter II and IF Amplifier II • Frequency : 150,9 MHz. • Input level : 3,5 mV. • Output level : 3 V. • Output frequency: 9,6  1 MHz.

  18. Phase Demodulator • Input frequency : 9,6 MHz • Demodulation: BPSK (Binary Phase Shift Keying). • Bit rate: 660Kbps. • BER (Bit Error Ratio): 10-6. • Output level: TTL.

  19. Bit Synchronizer and NRZ-M decoder + Clock signal recovery. + NRZ-M (Non Return to Zero) decoding. + Bit rate : 660 Kbps.

  20. Frame Synchronizer and PN-code decoder • Frame synchronization signal detection. • PN (Pseudo-Random Noise) decoding. • Serial to parallel conversion.

  21. PC Ingestor module (1) • Input signal: + 8 bit data. + Byte clock signal. + Frame synchronization. • Address decoding. • RAM buffering.

  22. RAM1 buffer Frame Synchr-onizer 8-bit parallel data Switching System byte clock Interface Frame Sync. Address PC RAM2 buffer PC Ingestor module (2)

  23. Pictures on HRS-200 designed and manufactured by STAC

  24. The parabolic antenna (3.2m diameter)

  25. HRS-200 system

  26. GMS-5 images received by HRS-200

  27. Full-disk image (IR2 image at 11:36 local time November, 14th, 2001)

  28. Vietnam (VIS image at 12:12 local time March, 19th, 2002)

  29. Vietnam (composite image at 11:00 local time November, 10th, 2001)

  30. FY-2 images received by HRS-200

  31. Full-disk image (IR channel at 16:30 local time September, 18th, 2000)

  32. Vietnam (VIS image at 14:29 local time September, 16th, 2000)

  33. Composite image (at 14:29 local time September, 16th, 2000)

  34. GROUND receiving STATION For NOAA series Of POLAR orbiting satellites

  35. NOAA satellite technical specifications Frequency: NOAA 12: 1698.0 MHz NOAA 14: 1707.0 MHz NOAA 16: 1698.0 MHZ NOAA 17: 1707.0 MHz

  36. NOAA satellite technical specifications (Cont’d) • Period: 102 minutes • Spectral characteristics: 5 channels (1 visible and 4 infra-red channels) Channel Wavelength (m) 1 0.58 – 0.68 2 0.725 – 1.00 3 3.55 – 3.93 4 10.50 – 11.50 5 11.50 – 12.50

  37. HRS-201 hardware The hardware consists of: • Tracking antenna and controller. • LNA (Low Noise Amplifier). • Amplifier and down converter I. • IF amp. and down converter II. • Phase Demodulator. • Bit /Frame Synchronizers and Decoders. • PC Ingestor. LAN (Local Area Network) is optional.

  38. IF Amp. And Converter II Phase Demodulator Amplifier and Down-Converter I Bit Synchronizer Frame Synchronizer PC Ingestor Satellite tracking-antenna controller The block diagram of HRS-201 NOAA 12, 14, 16, 17 LNA

  39. Antenna • Type: parabolic, adjustable azimuth and elevation. • Diameter: 1,5 meters. • Polarization: helical. • Frequency range: 1670 – 1710 MHz • Gain: 25 dB. • Impedance : 50 Ohm.

  40. LNA (Low-Noise Amplifier) • RF Input: 1670 – 1710 MHz. • Gain : 33 dB. • Noise : < 0,5dB.

  41. Amplifier and down converter I • RF input: 1670 – 1710 MHz. • RF output : 68 MHz. • Gain : > 30 dB.

  42. IF amplifier and Down-Converter II • Input frequency : 68 MHz. • Bandwidth : > 2 MHz. • Output frequency: 20 MHz

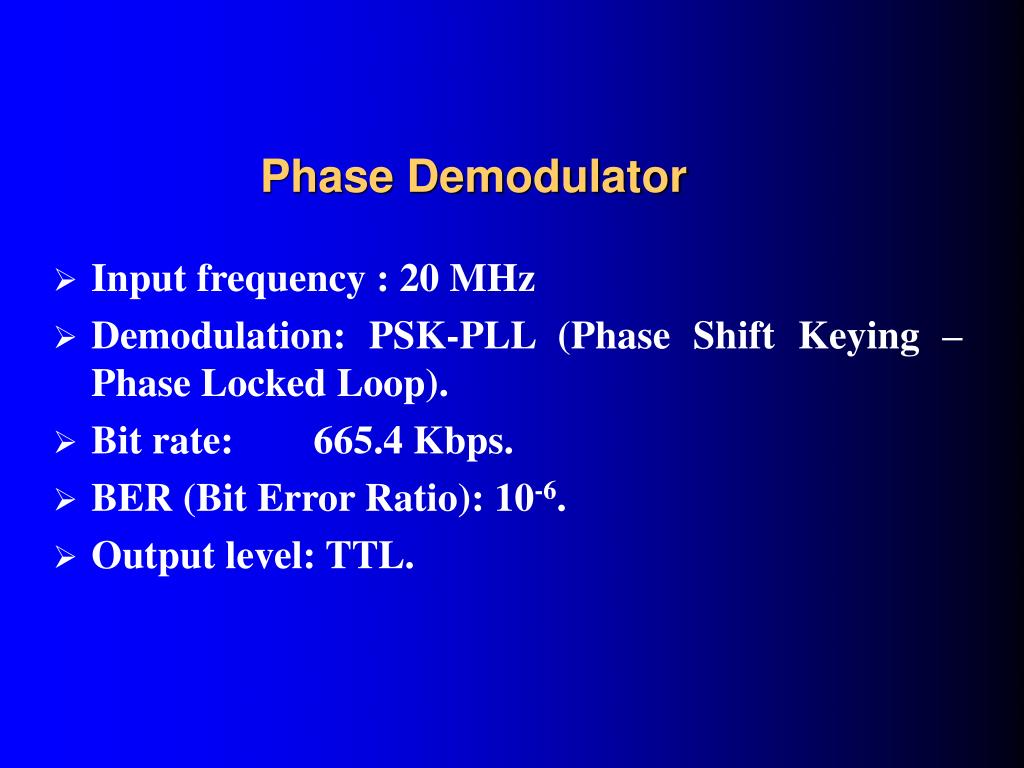

  43. Phase Demodulator • Input frequency : 20 MHz • Demodulation: PSK-PLL (Phase Shift Keying – Phase Locked Loop). • Bit rate: 665.4 Kbps. • BER (Bit Error Ratio): 10-6. • Output level: TTL.

  44. Bit Synchronizer and Manchester decoder + Clock recovery. + Manchester decoding. + Bit rate : 665.4 Kbps.

  45. Frame Synchronizer • Frame synchronization detection. • Serial to parallel conversion.

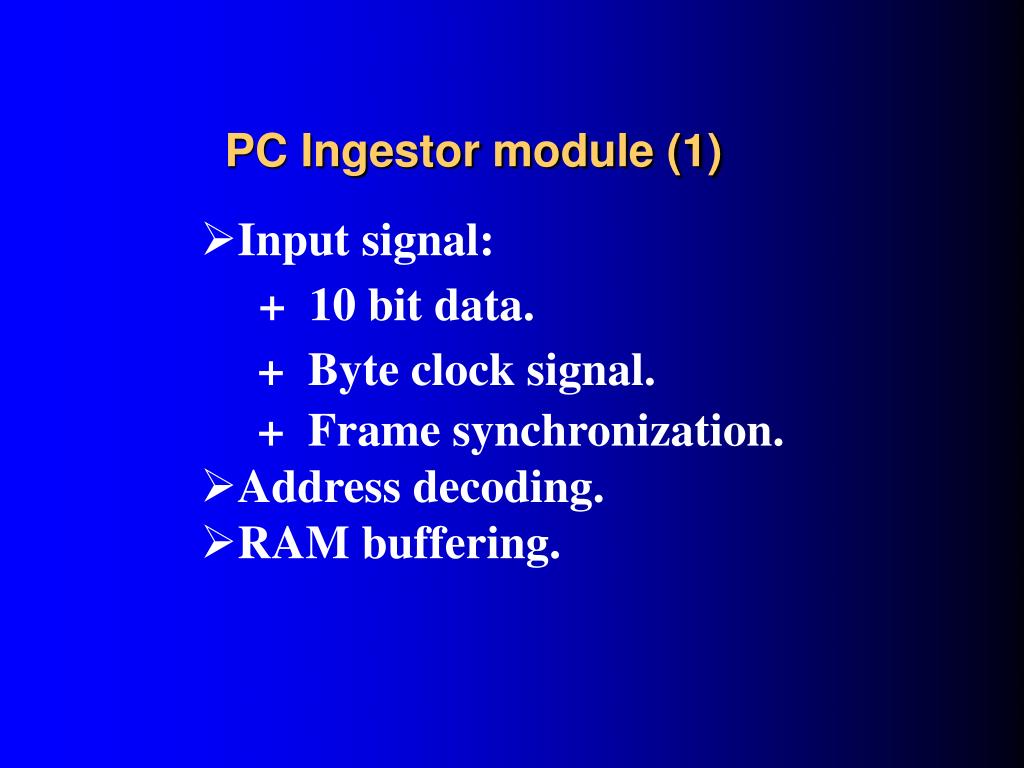

  46. PC Ingestor module (1) • Input signal: + 10 bit data. + Byte clock signal. + Frame synchronization. • Address decoding. • RAM buffering.

  47. RAM1 buffer Frame Synchr-onizer 8-bit parallel data Switching System byte clock Interface Frame Sync. Address PC RAM2 buffer PC Ingestor module (2)

  48. Antenna controller • Adjust azimuth and elevation angles to track the NOAA satellite orbits. • Interfaced to PC through serial port.

  49. HRS-201 system

  50. Antenna system (Rotator mounted at the bottom of the disk)
