Presentation Transcript


Slide1 l.jpg

Retrieval System in E.coli.

This system is often called post replication repair (or recombination repair). If there is a lesion in DNA (like pyrimidine dimer) which hasn’t been corrected, during replication, replicase won’t be able to make a complementary strand to the lesion on one strand. Replication will restart further downstream of the damaged parent strand.


Slide3 l.jpg

NB one daughter strand is OK. The gap on the damaged daughter is filled by first stealing the strand from the good daughter. There is now a gap opposite a good copy and a good strand opposite the damaged base. Excision repair can now repair the problems.

It is the rec genes that perform this function. If a cell is excision- (uvr-) then if it is made RecA-, it cannot replicate its DNA properly.

Note the uvr and Rec functions are not independent.


Slide4 l.jpg

The SOS System.

RecA is involved in a cellular response to a comparatively large amount of damage, eg UV irradiation. They function partly to shut down some cellular processes to prevent damage to DNA or replication. The expression of many genes is involved. The response is basically an increased capacity to repair DNA by producing components of both long-patch excision systems and Rec recombination repair pathways. Cell division is inhibited.


Slide5 l.jpg

  • RecA is activated by damage. A number of damaging effects can activate RecA, possibly a molecule released from damaged DNA. ssDNA and ATP is also required. The response is rapid.

  • Activated RecA cleaves lexA gene. lexA is a repressor of synthesis of many genes. Activated RecA causes lexA to autocatalytically cleave (itself).


Slide6 l.jpg

Activation of the SOS system

Fig 14.32 in two parts.


Slide7 l.jpg

LexA is also a repressor for RecA synthesis so its level goes up 50 fold from 1200 molecules/cel when it is cleavedl.

uvrB is one of the repair genes that is expressed. This, like other SOS induced genes has 2 promoters, so in presence lexA there is still a basal level of expression. LexA binds to SOS box.

The SOS pathway increases the levels of RecA and LexA (Does active RecA act as an enhancer of expression of LexA?).


Slide8 l.jpg

The induction of RecA is required for its direct role in recombination repair and to cleave all of the LexA.

Once the inducing signal is removed, RecA can no longer cleave LexA, as it is being expressed at a high level and so quickly shuts down gene expression.

RecA cleaves UmuD, activating it and so the error prone repair system (long patch repair). RecA induces sulA which inhibits cell division.


Slide9 l.jpg

Eukaryotic Systems.

Eukaryotic systems are harder to study. Can be studied by studying cell lines. Often rescuing mutation sensitive mutants to map the genes involved. A number of RAD genes (Radiation sensitive) have been found.

Rad3 group excision repair.

Rad6 group post replication repair.

Rad52 group recombination-like mechanisms.

By complementation of yeast mutants, human genes have been identified related to RAD3 and RAD10 (similar to E. coli UvrC).


Slide10 l.jpg

Transcriptionally active genes are repaired preferentially. This involves a couple of subunits of a transcription factor TFIIH.

Xeroderma pimentosum (XP) a disease where the sufferer is extremely sensitive to UV. It is a failure in excision repair, cannot remove pyrimidine dimers. Six genes have been mapped with homology to RAD3.


Slide11 l.jpg

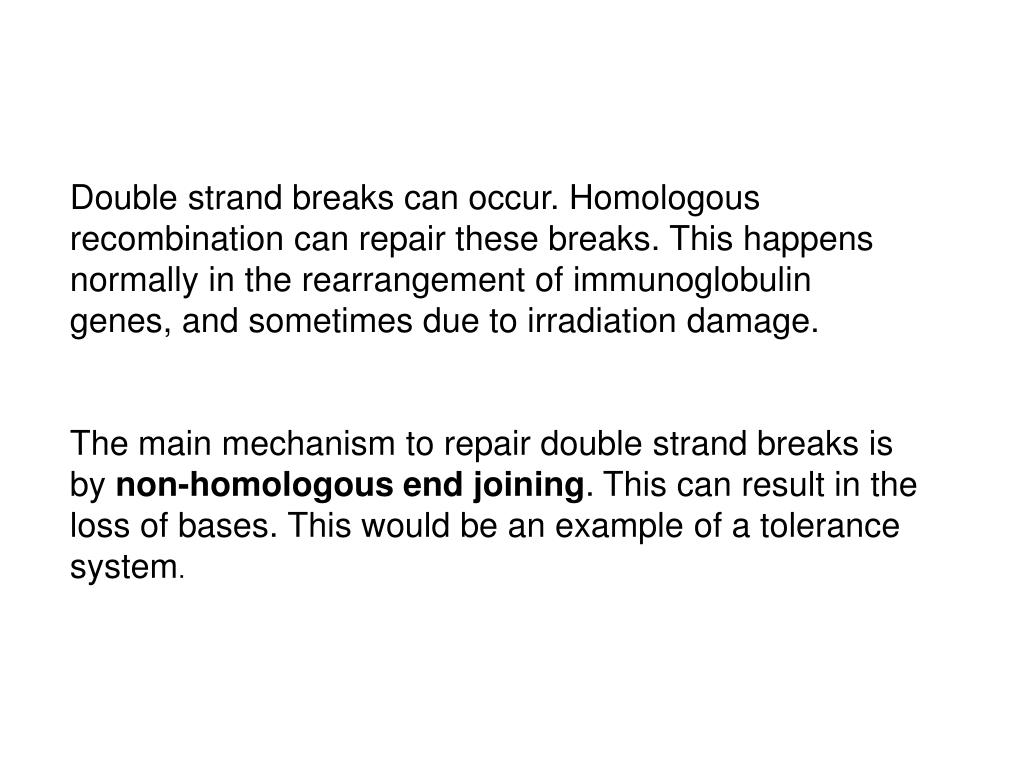

Double strand breaks can occur. Homologous recombination can repair these breaks. This happens normally in the rearrangement of immunoglobulin genes, and sometimes due to irradiation damage.

The main mechanism to repair double strand breaks is by non-homologous end joining. This can result in the loss of bases. This would be an example of a tolerance system.


Slide12 l.jpg

Repair of double-strand breaks by end-joining of nonhomologous DNAs (dark and light blue), that is, DNAs with dissimilar sequences at their ends.


Slide13 l.jpg

Repair of double-strand breaks by end-joining of nonhomologous DNAs. These DNAs could be cut fragments from a single gene, or DNAs cut from different chromosomes. A complex of two proteins, Ku (70 + 80 dimer) and DNA-dependent protein kinase, binds to the ends of a double-strand break. After formation of a synapse in which the broken ends overlap, Ku unwinds the ends, by chance revealing short homologous sequences in the two DNAs, which base-pair to yield a region of microhomology.


Slide14 l.jpg

The unpaired single-stranded 5′ ends are removed by mechanisms that are not well understood, and the two double-stranded molecules ligated together. As a result, the double-strand break is repaired, but several base pairs at the site of the break are removed. This can of course introduce mutations into coding genes. The majority in eukaryotes will not cause mutations as most of the DNA is non-coding.


Slide15 l.jpg

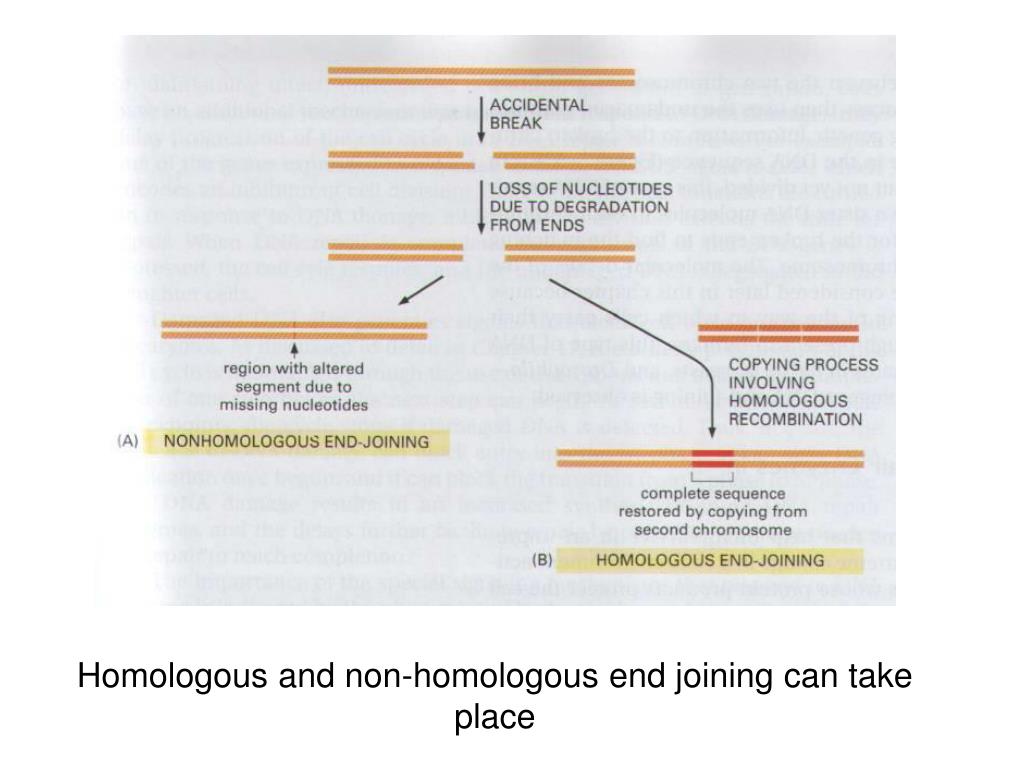

Homologous and non-homologous end joining can take place


Slide16 l.jpg

Most eukaryotic cells are diploid. Homologous end joining can take place. This transfers intact genetic information from the intact chromosome to the site of the break. This requires recombination proteins and regions of DNA sequence match. In cells that have replicated but not divided this can repair exactly. This system is found more in prokaryotes and lower eukaryotes.


Slide17 l.jpg

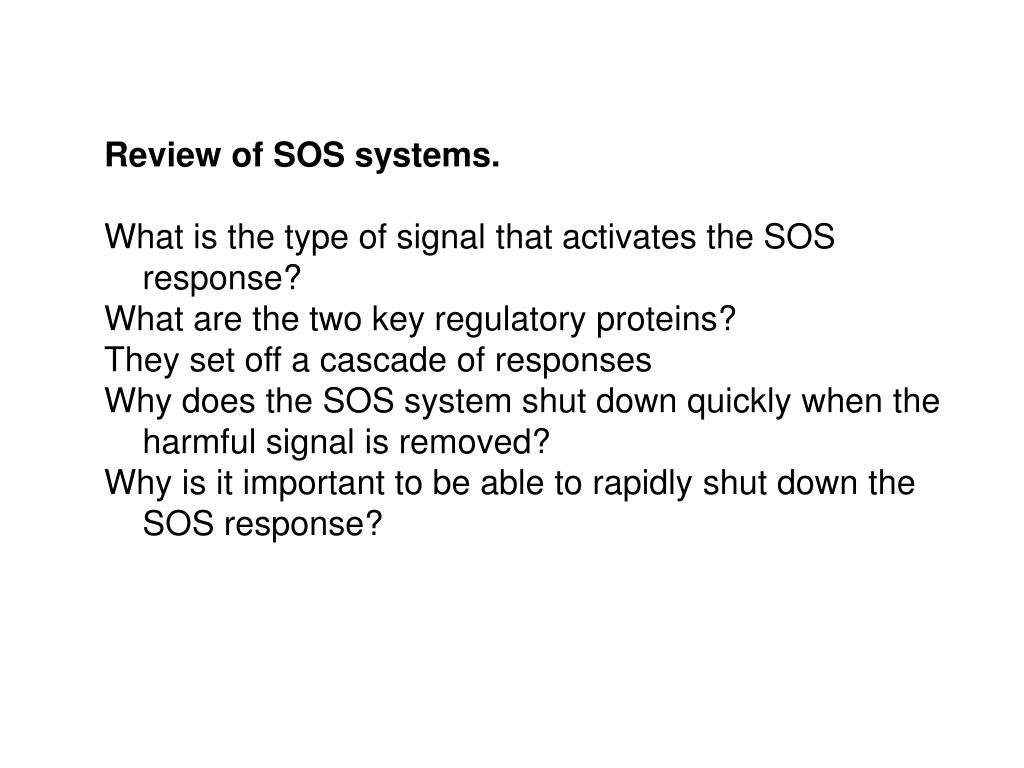

  • Review of SOS systems.

  • What is the type of signal that activates the SOS response?

  • What are the two key regulatory proteins?

  • They set off a cascade of responses

  • Why does the SOS system shut down quickly when the harmful signal is removed?

  • Why is it important to be able to rapidly shut down the SOS response?


Slide18 l.jpg

Retrieval Systems in E.coli.

1Why is this called post replication repair? At what point in the cell cycle does it take place?

2What is required and what process is used to start the repair?

3How is the repair completed?


Slide19 l.jpg

  • Review of Non-homologous end joining

    • What are the proteins that are involved?

    • What is needed to get the DNA strands to join?

    • Why might this cause a problem?

    • Why might this not be so serious for higher eukaryotes?


Slide21 l.jpg

Human Hereditary Diseases Associated with DNA-Repair Defects


Slide22 l.jpg

Summary of repair processes in E. coli


Slide24 l.jpg

The consequences of mutations in DNA repair genes in E. coli.

In general mutants in any repair gene will have a higher frequency of mutation. Called mutator phenotype (Hence mut genes). They become very sensitive to any mutagenic agent, eg UV.

dam- mutants show increased spontaeous mutations as replication errors cannot be repaired. Also MutS, H or L.

Uvr-RecA- mutants abolishes all repair and recombination. When the nucleus replicates, there are many fragments of DNA due to the inability to replace thymidine dimers or repair the damage post replication.
