  1. Organization of theUpper Limb Robert S. Staron, Ph.D. August Immersion

  2. Grant’s Atlas 8th ed Grant’s Atlas of Anatomy 8th ed

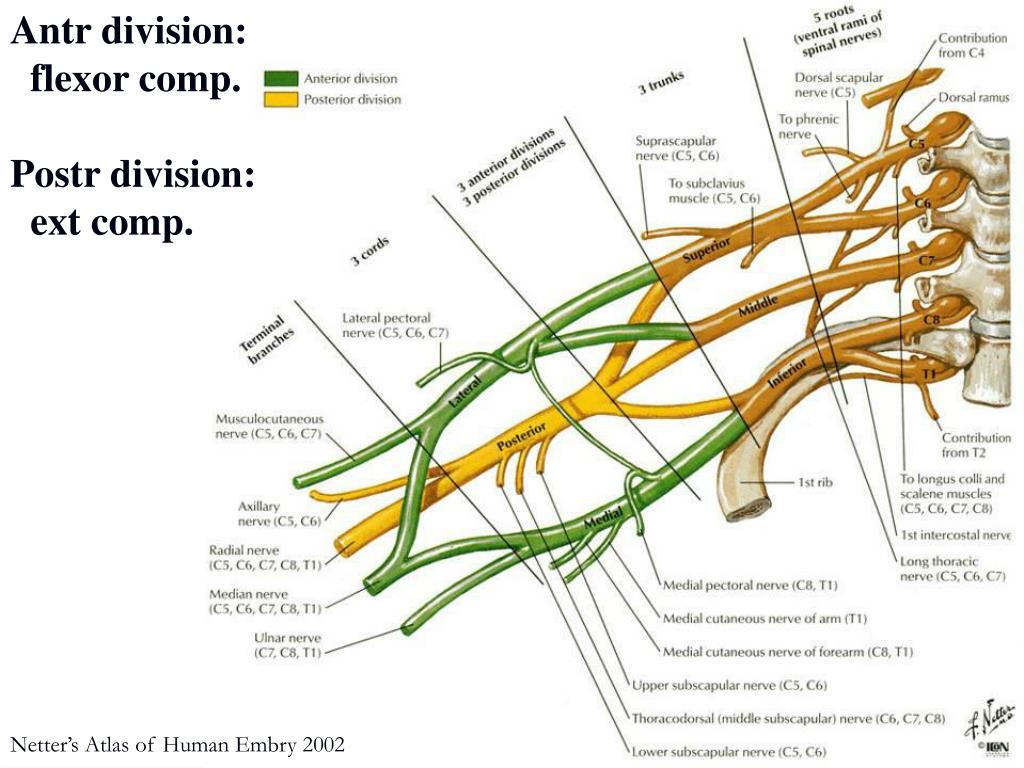

  3. Antr division: flexor comp. Postr division: ext comp. Netter’s Atlas of Human Embry 2002

  4. Origin of Limb Muscles Dorsal muscle mass forms extensors and supinators in upper limb, extensors and abductors in lower limb. Ventral muscle mass forms flexors and pronators in upper limb and flexors and adductors in lower limb. Morphogenesis guided by CT, not myoblasts Split into individual muscles, cell death involved Carlson l999 Human Embryology Larsen 1993

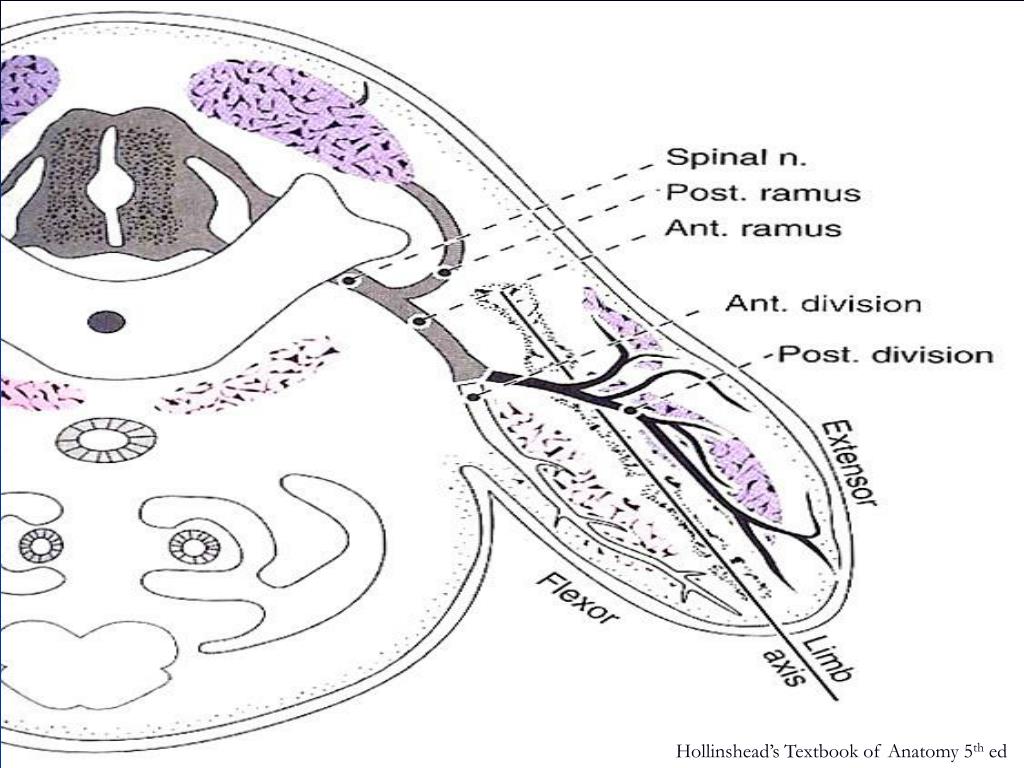

  5. Hollinshead’s Textbook of Anatomy 5th ed

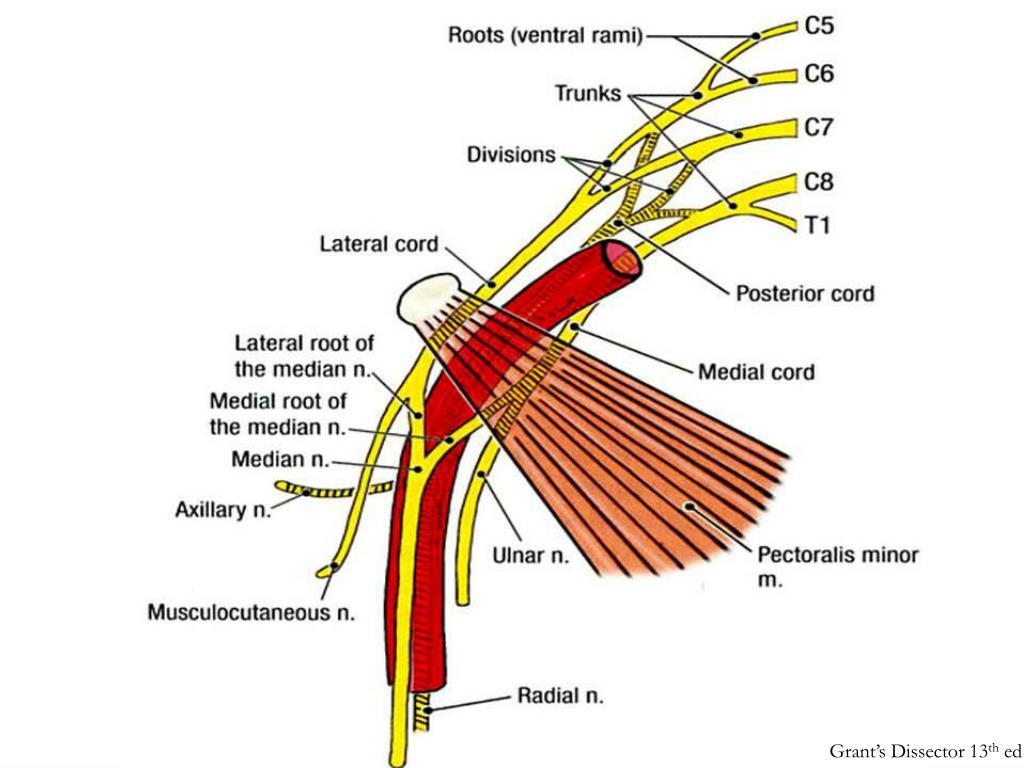

  6. Grant’s Dissector 13th ed

  7. Brachial Plexus Netter’s Atlas 2nd ed

  8. trapezius m. latissimus dorsi m. levator scapulae m. rhomboideus major m. rhomboideus minor m. serratus anterior m. infraspinatus m. supraspinatus m. subscapularis m. teres minor m. teres major m. deltoid m. Extrinsic shoulder mm. Intrinsic shoulder mm. Anterior thorax mm. 1) pectoralis major and minor mm. 2)subclavius m.

  9. Netter’s Atlas of Human Anatomy 2nd ed

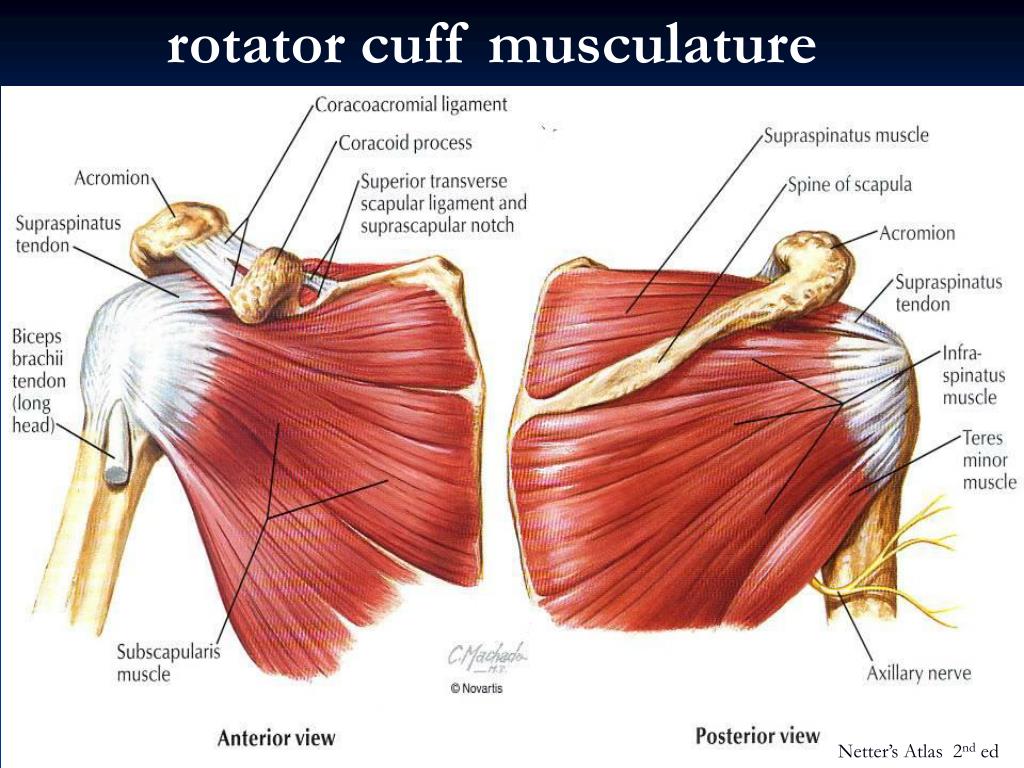

  10. rotator cuff musculature Netter’s Atlas 2nd ed

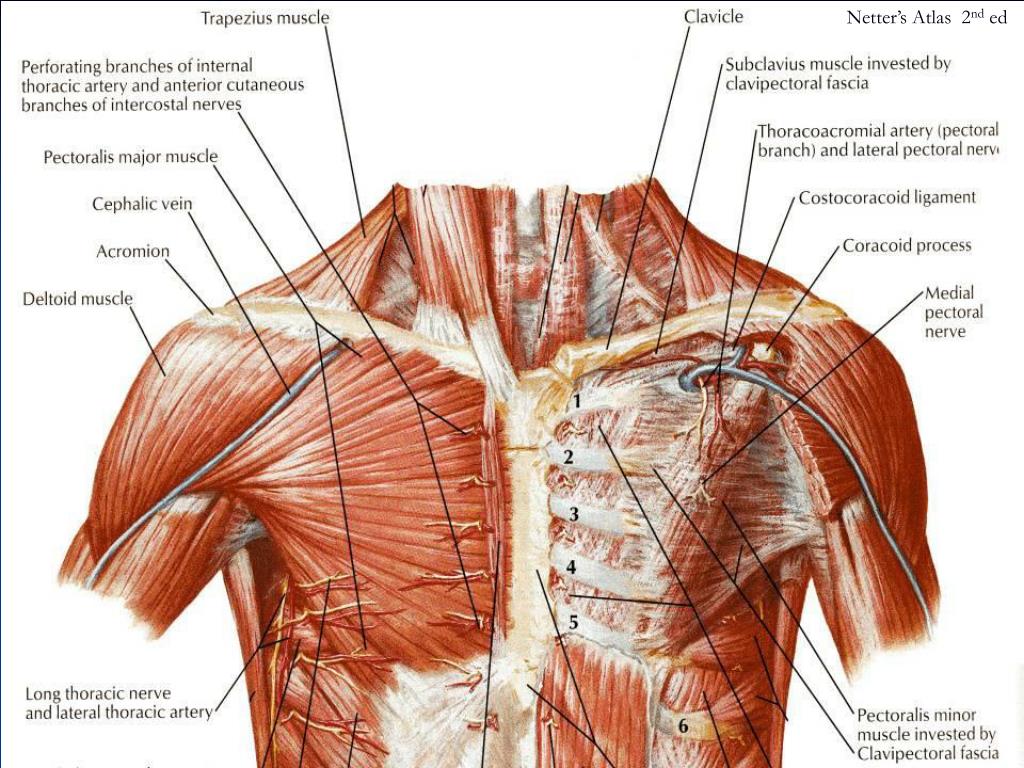

  11. Netter’s Atlas 2nd ed

  12. Grant’s Dissector 13th ed

  13. biceps brachii m. long head short head brachialis m. coracobrachialis m. triceps brachii m. lateral head medial head long head anconeus m. brachium antr compartment postr compartment

  14. musculocutaneous n. (C5-C7) biceps brachii m. brachialis m. coracobrachialis m. Netter’s Atlas of Human Anatomy 2nd ed

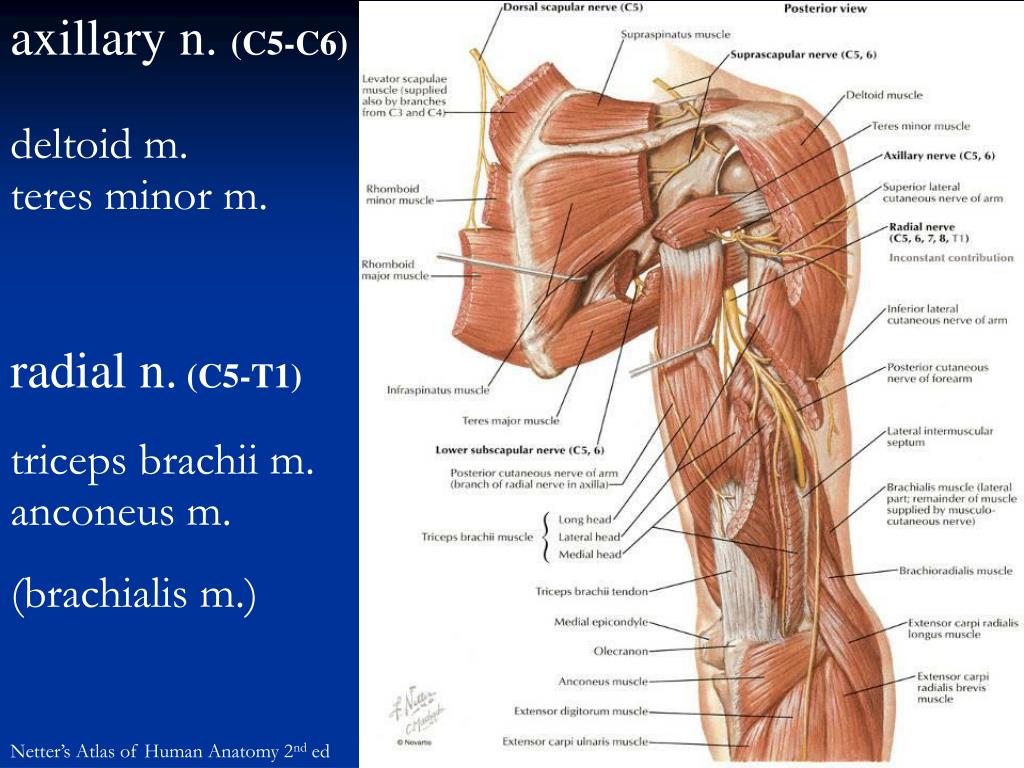

  15. axillary n. (C5-C6) deltoid m. teres minor m. radial n.(C5-T1) triceps brachii m. anconeus m. (brachialis m.) Netter’s Atlas of Human Anatomy 2nd ed

  16. Grant’s Dissector 13th ed

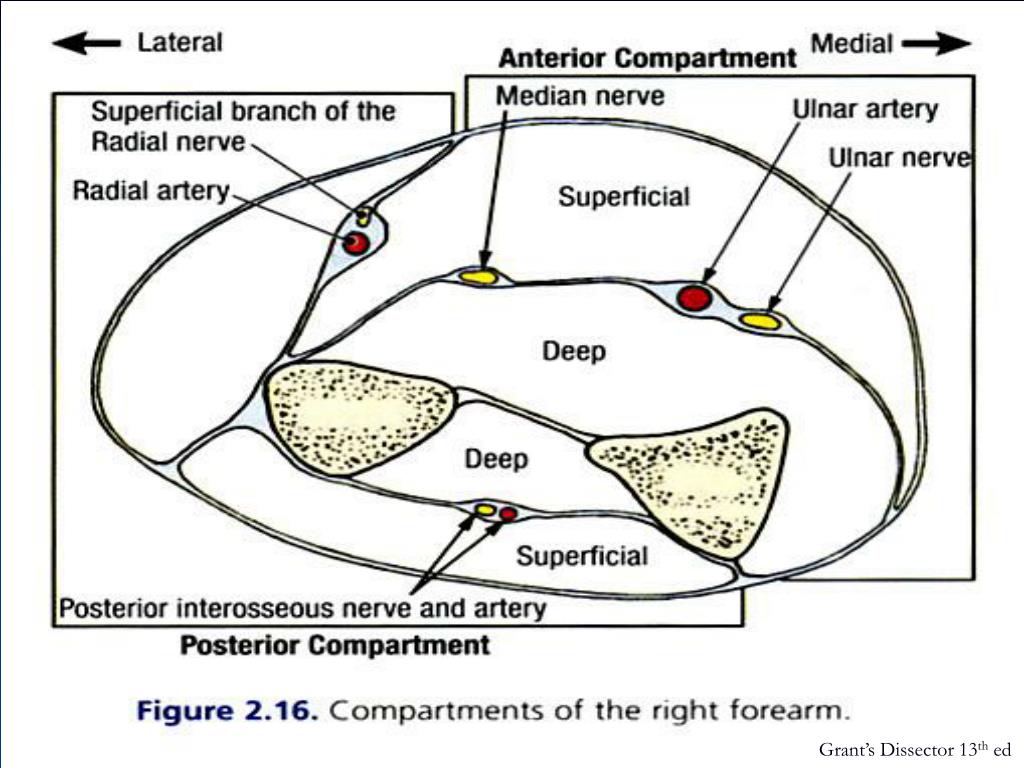

  17. Grant’s Dissector 13th ed

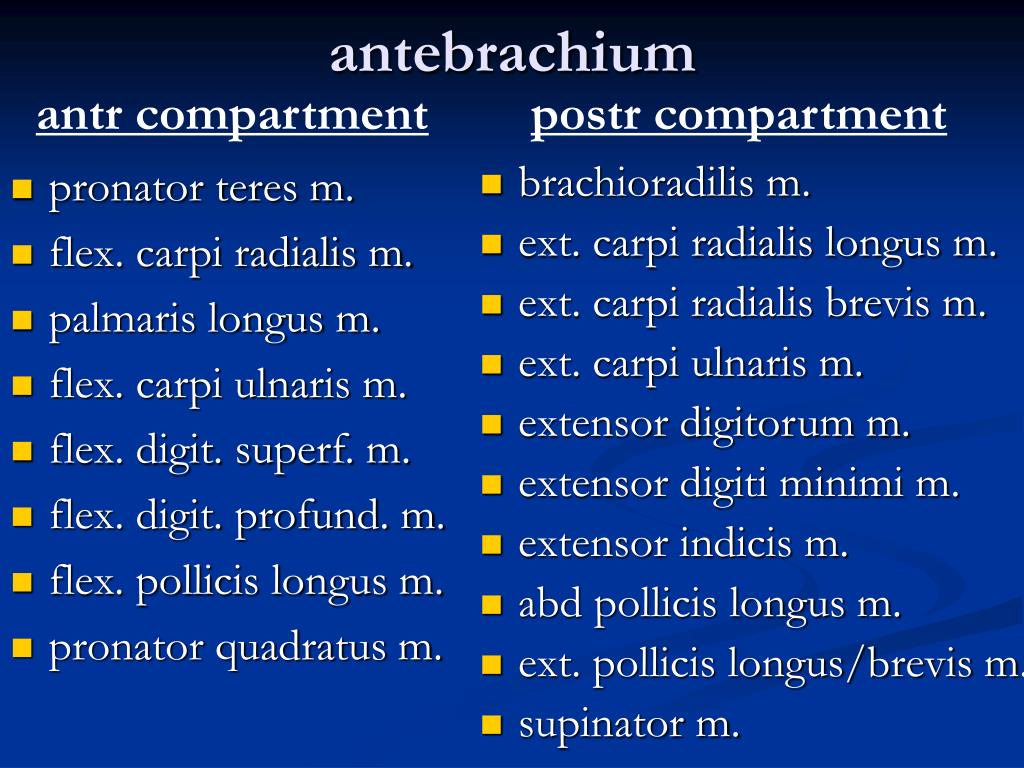

  18. pronator teres m. flex. carpi radialis m. palmaris longus m. flex. carpi ulnaris m. flex. digit. superf. m. flex. digit. profund. m. flex. pollicis longus m. pronator quadratus m. brachioradilis m. ext. carpi radialis longus m. ext. carpi radialis brevis m. ext. carpi ulnaris m. extensor digitorum m. extensor digiti minimi m. extensor indicis m. abd pollicis longus m. ext. pollicis longus/brevis m. supinator m. antebrachium antr compartment postr compartment

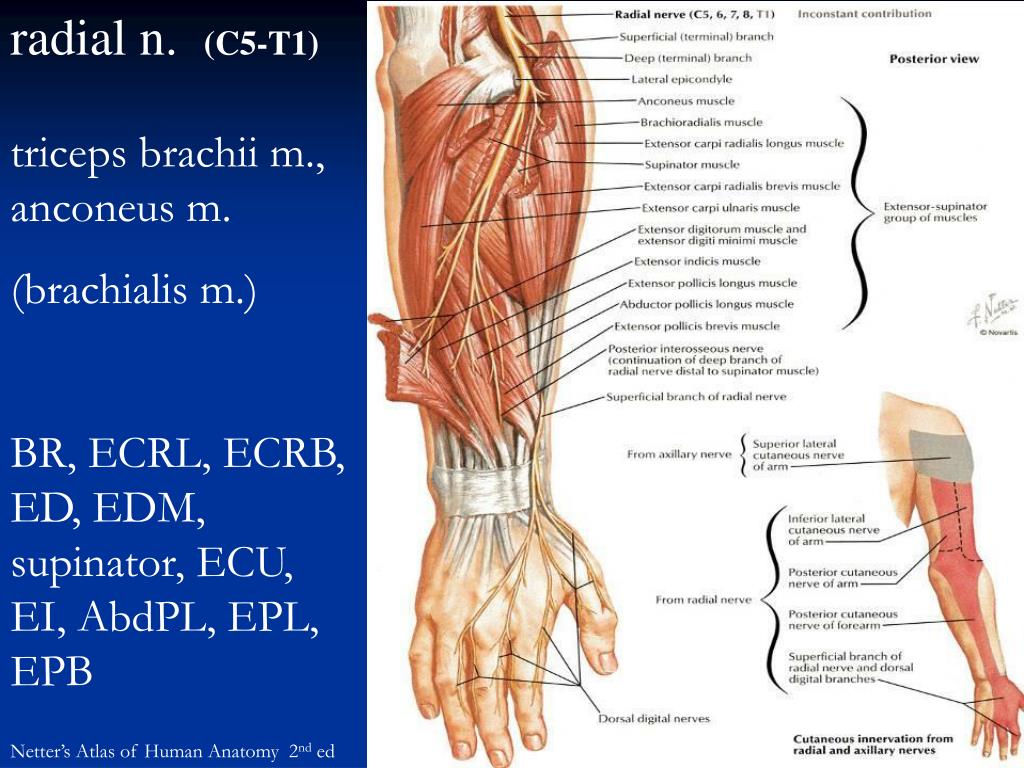

  19. radial n. (C5-T1) triceps brachii m., anconeus m. (brachialis m.) BR, ECRL, ECRB, ED, EDM, supinator, ECU, EI, AbdPL, EPL, EPB Netter’s Atlas of Human Anatomy 2nd ed

  20. ulnar n. (C7-T1) flex carpi ulnaris m. medial ½ FDP + 14 intrinsic hand muscles Netter’s Atlas of Human Anatomy 2nd ed

  21. median n. (C5-T1) PT, FCR, PL, FDS, lat ½ FDP, FPL, PQ + 5 intrinsic hand muscles Netter’s Atlas of Human Anatomy 2nd ed

  22. Grant’s Atlas of Anatomy 11th ed

  23. intrinsic hand muscles • 7 interosseii mm. (4 dorsal/3 palmar) • 4 lumbrical mm. (1, 2, 3, 4) • palmaris brevis m. • adductor pollicis m. • three thenar mm. (OP, abd.PB, FPB) • three hypothenar mm. (ODM, abd.DM, FDMB)

  24. intrinsic hand muscles • 7 interosseii mm. (4 dorsal/3 palmar) • 4 lumbrical mm. (1, 2, 3, 4) • palmaris brevis m. • adductor pollicis m. • three thenar mm. (OP, abd.PB, FPB) • three hypothenar mm. (ODM, abd.DM, FDMB) (median n.) (ulnar n.)

  25. upper limb - cutaneous innervation Netter’s Atlas of Human Anatomy 2nd ed

  26. upper limb – dermatome pattern Netter’s Atlas of Human Anatomy 2nd ed
