Presentation Transcript
Phytoextraction of polluted soils with heavy metals using plant bacterium associations l.jpg

Phytoextraction of polluted soils with heavy metals using plant-bacterium associations

Fernández-Santander A, Casillas JL, Sotelo C and Romero C.

Departamento de Química y Medio Ambiente

Universidad Europea de Madrid

Villaviciosa de Odón, 28670 Madrid


Introduction l.jpg

Introduction plant-bacterium associations


Heavy metal pollution l.jpg

Introduction plant-bacterium associations

Heavy metal pollution

- Problem of the industrial societies

- Long-term persistance in the environment

- Highly toxic, for instance, Cr (VI) is mutagenic and carcinogenic (Losi et al., 1994)


How do toxic metals species remove from contaminated soils l.jpg

Introduction plant-bacterium associations

How do toxic metals species remove from contaminated soils?

- Physical elimination and carriage to rubbish dump

- Metal immobilization to soil

- Washing soil

All of them are expensive and pollutant


Some organisms have achieved to survive in heavy metals polluted environments l.jpg

Introduction plant-bacterium associations

Some organisms have achieved to survive in heavy metals polluted environments

- Some bacterium: isolated from contaminated soils, waters and sediments (Valls and Lorenzo, 2002)

- Some plants: characterized by highly efficient uptake and high tolerance (Cunningham and Ow, 1996)

Very useful for phytoremediation


What is phytoremediation l.jpg

Introduction plant-bacterium associations

What is phytoremediation?

- A natural way to decontaminate polluted soils and waters

- It uses living plants to extract heavy metals from contaminated soils and waters.

- It is cheaper and less pollutant


Objective l.jpg

Introduction plant-bacterium associations

Objective

Hirschfeldia incana

(hyperaccumulating plant)

Pseudomonas maltophilia

(heavy metal resistant bacterium)

AssociationPseudomonas maltophilia in the plant rizosphere

Phytoextraction when they grow in Zn contaminated soils


Materials and methods l.jpg

Materials and methods plant-bacterium associations


Slide9 l.jpg

Materials and methods plant-bacterium associations

Isolation of Zinc resistant microorganismsand determination of maximum resistant level

- From sludges samples

- Samples were grown in TSA plus increasing levels of Zn2+

- Incubation: 37ºC 48 h

-Identification: Gram staining and biochemical analysis (API micromethod)


Slide10 l.jpg

Materials and methods plant-bacterium associations

MICs (Minimal inhibitory concentrations)

1 ml

Each erlenmeyer flasks was inoculated with 1 ml

Culture grown 37 ºC 24 h (0.5 mM Zn2+)

Erlenmeyer flaskswith 50 ml de TSA plus different concentrations of Zn2+ were incubated with shaking at 37ºC for 24 h

-Bacterial growth was monitored by optical density measuring (OD660 nm)


Slide11 l.jpg

Materials and methods plant-bacterium associations

Establishment of plant-bacterium associations

Selection of hyperaccumulating plant

Hirschfeldia incana

They were seeded individually in flowerpot with 150 g of soil.They grew until 30 cm height.

It grows in a great variety of climatic conditions of the Iberian Peninsula.


Slide12 l.jpg

Materials and methods plant-bacterium associations

Establishment of plant-bacterium associations

Selection of heavy metal resistant bacterium

- Bacterium cultures were grown 24 h in TSA medium plus 0.5 mM Zn2+.

- Cultures were centrifuged and bacterium were suspended in hidroponic solution.

- Each plant was watered with this solution: 108 UFC/g soil.


Slide13 l.jpg

Materials and methods plant-bacterium associations

Capacity of Zn acumulation from plant-bacterium associations

- Each plant was watered 7 days with a non-metal water at room temperature.

- Later, they were watered with an increasing Zn2+ solution two times per week for eight weeks

- 5 repetitions for each one of them were made.

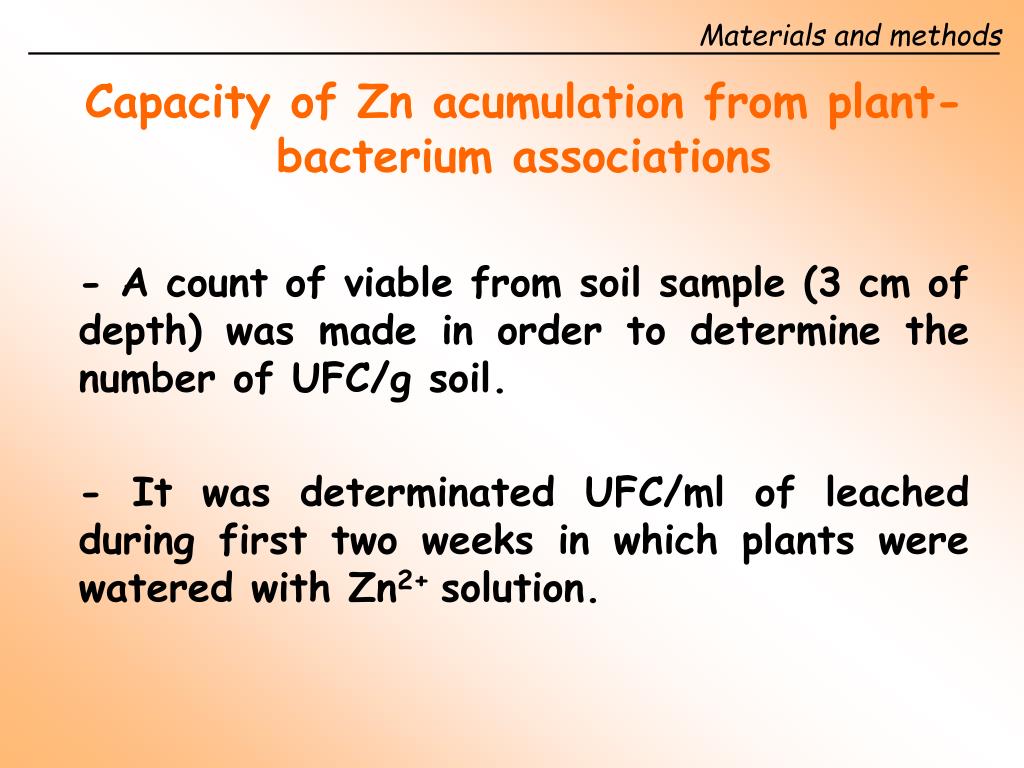

Slide14 l.jpg

Materials and methods plant-bacterium associations

Capacity of Zn acumulation from plant-bacterium associations

- A count of viable from soil sample (3 cm of depth) was made in order to determine the number of UFC/g soil.

- It was determinated UFC/ml of leached during first two weeks in which plants were watered with Zn2+ solution.


Slide15 l.jpg

Materials and methods plant-bacterium associations

Chemical analysis

Root and shoot were dried and weighted.

Zn2+ contents of each samples (soils and plants) were extracted using modified nitric acid method (EPA 3500).

Zn2+ concentrations were quantified using Atomic Absorption Spectrophotometry and expressed as µg Zn/g dry weight of plant tissue or soil.


Slide16 l.jpg

Results and discussion plant-bacterium associations


Slide17 l.jpg

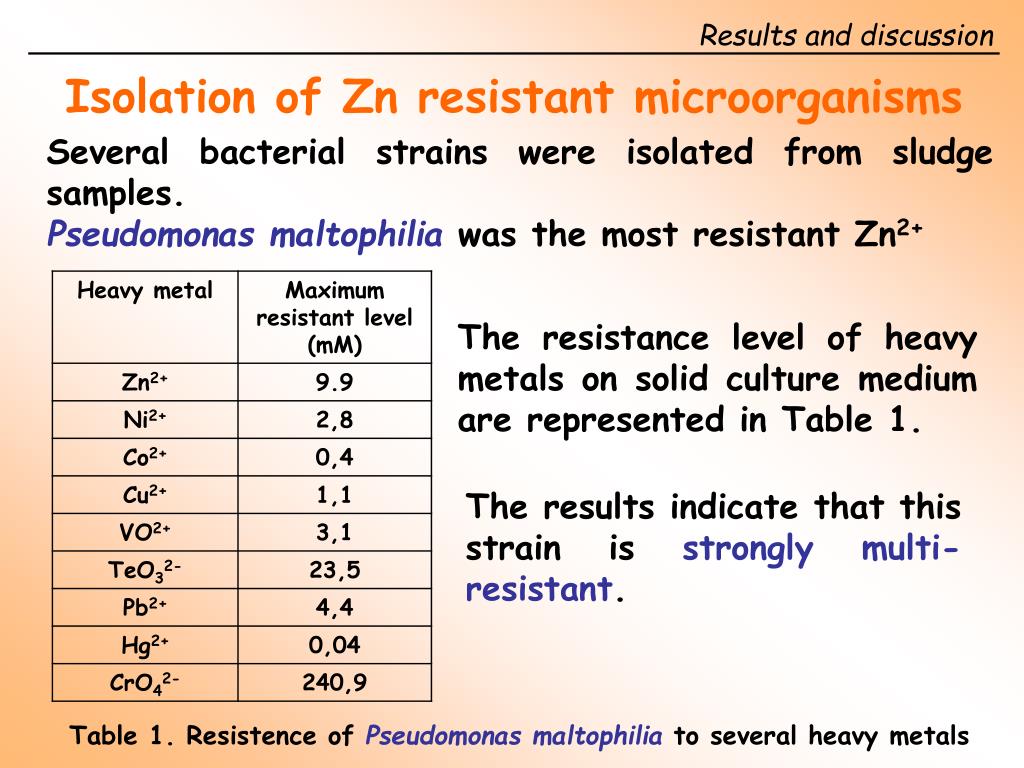

Results and discussion plant-bacterium associations

Isolation of Zn resistant microorganisms

Several bacterial strains were isolated from sludge samples.

Pseudomonas maltophiliawas the most resistant Zn2+

The resistance level of heavy metals on solid culture medium are represented in Table 1.

The results indicate that this strain is strongly multi-resistant.

Table 1. Resistence of Pseudomonas maltophilia to several heavy metals


Slide18 l.jpg

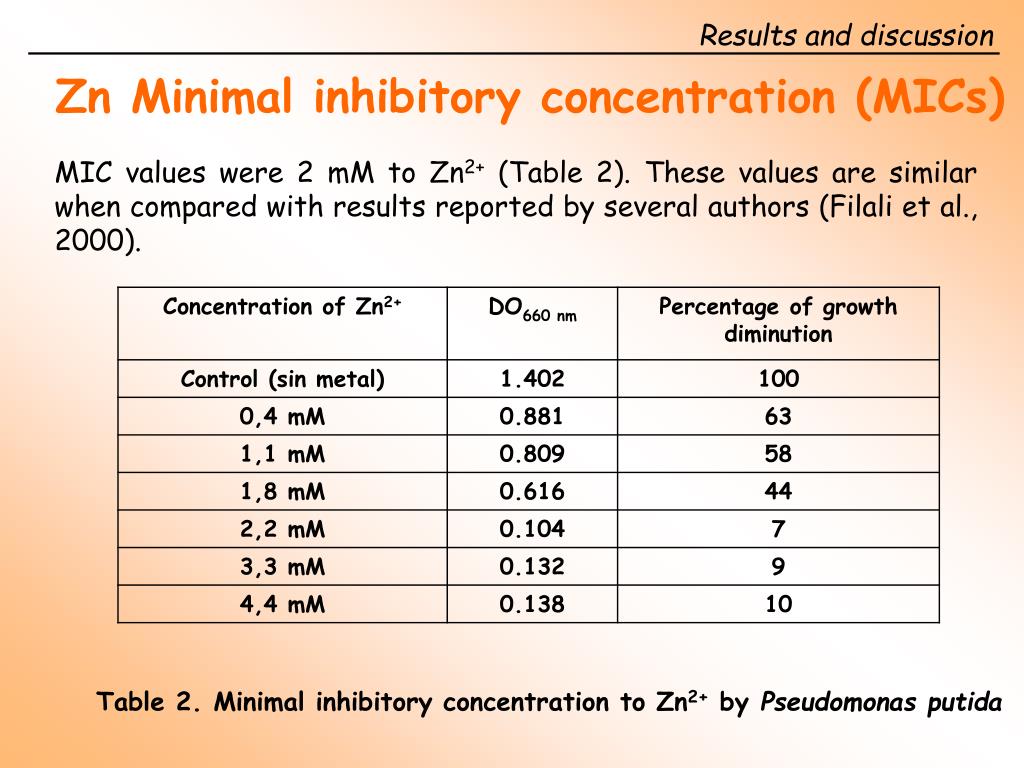

Results and discussion plant-bacterium associations

Zn Minimal inhibitory concentration (MICs)

MIC values were 2 mM to Zn2+ (Table 2). These values are similar when compared with results reported by several authors (Filali et al., 2000).

Table 2. Minimal inhibitory concentration to Zn2+ by Pseudomonas putida


Slide19 l.jpg

Results and discussion plant-bacterium associations

Cr Minimal inhibitory concentration (MICs)

MIC values were 4 mM to Cr2+ (Table 2). These values are higher when compared with results reported by several authors (Viti et al., 2003)

Table 3. Minimal inhibitory concentration to Cr2+ by Pseudomonas putida


Slide20 l.jpg

Results and discussion plant-bacterium associations

Phytoextraction capacity by associations Hirschfeldia incana and Pseudomonas maltophilia

The value of UFC/g of soil was 106 before establishing the associations plant-bacterium

The values of UFC/g of soil in the associations plant-bacterium (table 4) indicate that the number of bacteria stays throughout the time during in which the plants are watered with the dissolution of Zn.

The number of released bacterium in the leached was not significant (3x103UFC/ml)

Table 4. UFC/g of soil in the associations plant-bacterium.


Slide21 l.jpg

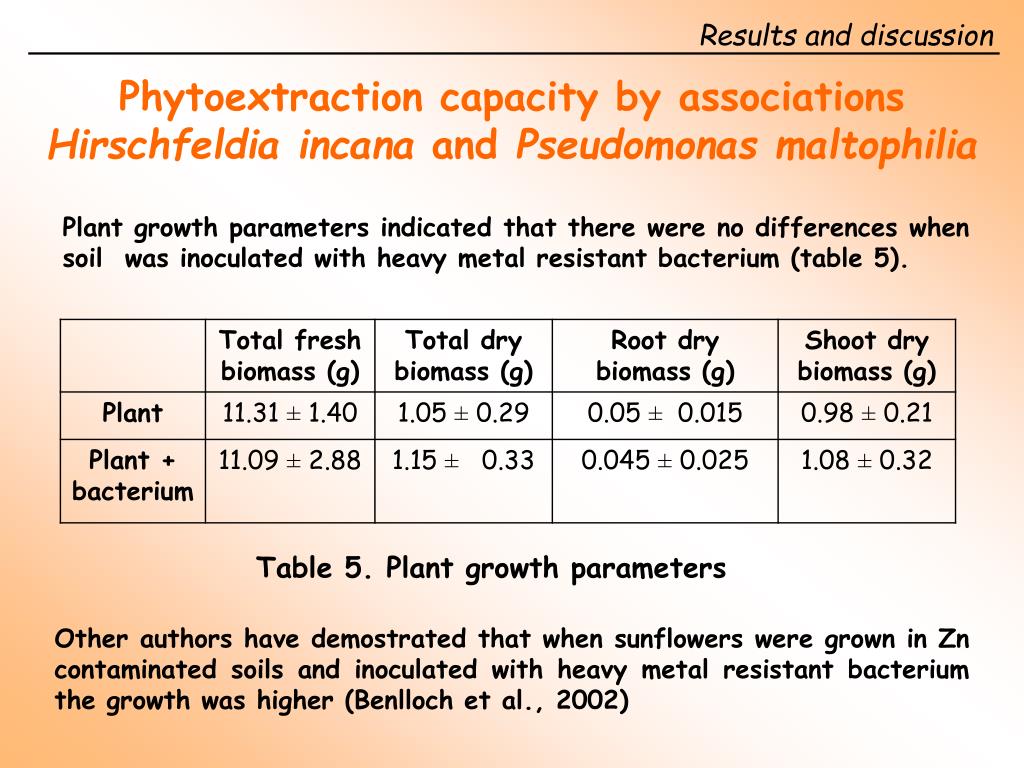

Results and discussion plant-bacterium associations

Phytoextraction capacity by associations Hirschfeldia incana and Pseudomonas maltophilia

Plant growth parameters indicated that there were no differences when soil was inoculated with heavy metal resistant bacterium (table 5).

Table 5. Plant growth parameters

Other authors have demostrated that when sunflowers were grown in Zn contaminated soils and inoculated with heavy metal resistant bacterium the growth was higher (Benlloch et al., 2002)


Slide22 l.jpg

Results and discussion plant-bacterium associations

Phytoextraction capacity by plant and plant-bacterium associations

Table 6. Zn2+ concentracion in soil and plant and plant-bacterium associations


Slide23 l.jpg

Results and discussion plant-bacterium associations

Phytoextraction capacity by plant

The analytical system had a 85% recovery efficiency and detection limit of 1 ppm.

Plant acumulated 0.02% Zn2+ of their dry weight: 99% heavy metal was acumulated in the shoot.

Similar results are found by other authors in other Zn hyperacumulating plant as Thlaspi caerulenscens (Cunningham and Ow, 1996).

Studies with other heavy metals indicated similar acumulate rates, for instance, Ipoemoea alpina with Cu (Cunningham and Ow, 1996) and Silene with Pb (Verklei et al., 1991).


Slide24 l.jpg

Results and discussion plant-bacterium associations

Phytoextraction rate by plant-bacterium associations

Plant-bacterium associations acumulated 0.016% Zn2+ of their dry weighth: 99% heavy metal was acumulated in the shoot.

There were not significant differences in the acumulating heavy metal rate between plant and plant-bacterium associations.

The introduction of bacterium in the soil did not modify phytoextraction capacity plant.

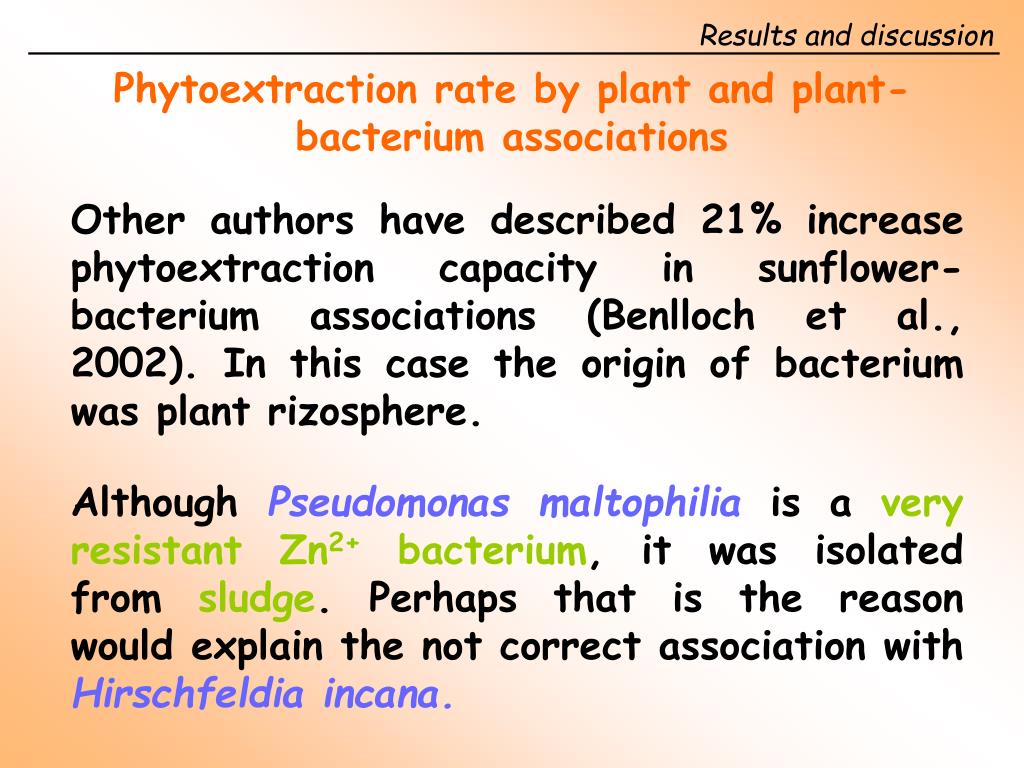

Slide25 l.jpg

Results and discussion plant-bacterium associations

Phytoextraction rate by plant and plant-bacterium associations

Other authors have described 21% increase phytoextraction capacity in sunflower-bacterium associations (Benlloch et al., 2002). In this case the origin of bacterium was plant rizosphere.

Although Pseudomonas maltophilia is a very resistant Zn2+ bacterium, it was isolated from sludge. Perhaps that is the reason would explain the not correct association with Hirschfeldia incana.


Slide26 l.jpg

References plant-bacterium associations

-Benlloch M., Sancho E., Tena M. 2002. Fitorremediación de suelos contaminados del área de Aznalcollar. Servicio Publicaciones Universidad de Córdoba.

-Cunningham S.D., Ow. 1996. Promises of phytoremediation. Plant Physiol 110:715-719

-Filali B.K., Taoufik J., Zeroual Y., Dzairi, F.Z., Talbi, M., Blaghen, M. Waste water bacterial isolated resistant to heavy metals and antibiotics. 2000. Current Microbiology 41:151-156.

-Losi ME, Amrhein C., Frankenberger WTJ. 1994. Environmental biochemistry of chromium. Rev Environ Contam Toxicol 136:91-131.

-Valls M., Lorenzo de V. 2002. Exploiting the genetic and biochemical capacities of bacteria for the remediation of heavy metal pollution. FEMS Microbiology Reviews 26: 327-338.

-Viti C., Pace A., Giovannetti L. 2003. Characterization of Cr(VI)-Resistant Bacteria Isolated from Chromium-Contaminated Soil by Tannery Activity. Current Microbiology 46:1-5.

-Verklei, J.A.C., Lolkema, P.C., de Neeling, A.L. y Harmens, H. (1991)Heavy-metal resistance in higher plants: biochemical and genetics aspects. In Ecological Responses to Environmental Stresses, ed. J. Rozema and J.A.C. Verkleij, 8-19. London: Kluwer Academic.
