Presentation Transcript
Linux l.jpg
Linux

  • A freely distributable version of UNIX originally developed by Linus Torvalds at Univ. Helsinki Finland

  • Originally try to be a better minix than Minix.

  • 10/5/91 release 0.02, can run bash and gcc.

  • Kernel designed from scratch, with task switching code in assembly, follows by code in C.(FreeBSD ported from BSD UNIX)

  • Use Gnu tools to develop related system code.

  • Most Network daemons and utilities ported from BSD.

  • Can run X Windows, TCP/IP, Emacs, mail, news,...

C. Edward Chow


Why linux is so popular l.jpg
Why Linux is so popular?

  • Freeware, open design group, with source code available for Application/OS/IO/network software developers, kernel hackers, multimedia authors.

  • Low cost: a few dollars (for CD) or free through Internet download for the complete programming environment, on cheap pc hardware.

  • Support many different peripherals (disk drive, sound card, Ethernet card, modem, CPU).

  • Users participate in a very successful coordinated document project LDP, e.g. write how-to documents.

  • Used in research vessel, web server, routing device,hospital DB, US marine corp mission.

C. Edward Chow


Linux system features l.jpg
Linux System Features

  • Multitasking, multi-user operating system

  • compatible with IEEE POSIX.1,System and BSD features.

  • csh, bash, pty, national/customized keyboard support using dynamically loadable drivers, virtual console.

  • support various file systems, ext2,msdos, iso9660, nfs, ntfs(only read access with required kernel modification), proc, xenix, bpfs (OS2), minix, …

  • can access other file systems good for dual boot situation.

  • TCP/IP, Ethernet drivers, PPP, SLIP, PLIP

  • NFS, ftp, telnet, nntp, smtp, …

  • demand-paged loaded executable, paging

C. Edward Chow


Basic commands and utilites l.jpg
Basic Commands and Utilites

  • ls, awk, tr, sed, bc, …

  • text editor: vi, ex, pico, jove, emac

  • text/word processing: tex, groff, xfig,

  • gcc (c and c++), FORTRAN, pascal, LISP, scheme

  • perl, Tcl/Tk (shell like command processing for developing simple X windows applications.)

  • gdb, gprof, make, imake

  • rcs

  • telnet, rloign, rsh, finger, pine, rn, tin, ping, ...

C. Edward Chow


X window system l.jpg
X Window System

  • Linux uses X window system for graphics display and desk top environment.

  • XFree86, a port of X11R6 for 386-based UNIX.

  • www.xfree86.org posts more recent addition of video drivers.

  • support various video hardware at VGA, SVGA, XGA resolutions for both CRT adn non-interlace LCD

  • Xconfigurator GUI can be used to facilitate the configuration.

  • xterm, xclock, xman,

  • GNOME and KDE desk top environments. Support multiple virtual windows.

  • You can also use fvmgr which minics the desk top environment of Microsoft window systems.

  • need more memory to run (8MB at least)

  • other commerical pkg available (Metro-X)

C. Edward Chow

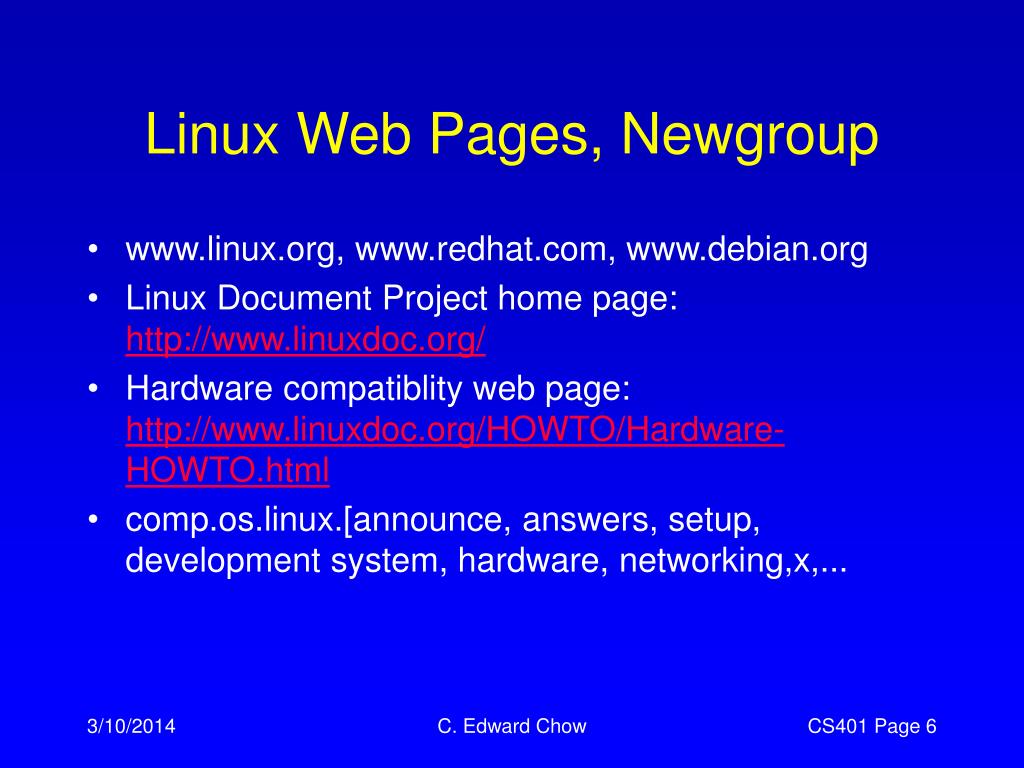

Linux web pages newgroup l.jpg
Linux Web Pages, Newgroup

  • www.linux.org, www.redhat.com, www.debian.org

  • Linux Document Project home page: http://www.linuxdoc.org/

  • Hardware compatiblity web page: http://www.linuxdoc.org/HOWTO/Hardware-HOWTO.html

  • comp.os.linux.[announce, answers, setup, development system, hardware, networking,x,...

C. Edward Chow


Various distribution of linux http www linux org dist index html l.jpg
Various Distribution of Linuxhttp://www.linux.org/dist/index.html

  • developers have taken the Linux source code and created a variety of different Linux distributionsthat have slightly different functionality:

    • Installation Programs/Tools

    • Package Management Systems

    • Different ways to organize directories for include files, libraries and configuration files.

    • (Graphic) Administration Tools

    • Port to other platforms (Alpha, Sparc)

    • Device/Hardware support

  • Redhat 6.2, Slackware Linux 7.1.0, Debian 2.2

  • CD-ROM distributor: infomagic, linuxmall

C. Edward Chow


Install linux step 1 l.jpg
Install Linux: Step 1

  • Collect info (vendor/model/version) of

    • hard drive (IDE, SCSI)

    • CD-ROM (make sure to buy one supported)

    • Ethernet Card (e.g., 3com, Intel, HP10/100VG AnyLAN)

    • Mouse (PS/2, 2buttons or 3buttons)

    • Video chip set (e.g., Chips and Tech. 65550 PCI)

    • VRAM: size (e.g., 2MB)

    • Monitor: resolution, horizontal/vertical frequency, pixel depth.

  • Newer installation programs try to detect hardware types and choose the corresponding drivers. They are much better now.

  • Check Hardware Compatible List HowTo Document.

C. Edward Chow


Install linux step 2 l.jpg
Install Linux: Step 2

  • Give network administrator the domain names (bilbo, frodo, viva, vinci) of the new Linux PC and ask for

    • assigning IP address (viva: 128.198.192.192, vinci:128.198.192.193)(bilbo: 128.198.192.182, frodo: 128.198.192.183)

    • creating DNS entries in local DNS server (primary DNS server ccnuccs: 128.198.1.250; secondary DNS server 128.198.161.248; 128.198.1.117 as 3rd choice)

  • Find out the IP address and net mask of the gateway of the LAN segment which connects the Linux PC. (128.198.192.1, 255.255.248.0)

  • The IP address and the net mask 255.255.248.0 define the subnet address.

  • Find out the IP address(es) of the DNS name server(s)

C. Edward Chow


Step 3 disk partitions l.jpg
Step 3: Disk Partitions

  • Partition disk you could dual boot with WinNT/2000/Win98/OS2

  • Create different partitions

    • swap partition: virtual memory swapping (size of mem, 64MB)

    • root partition: to be mounted as /(root directory) 50-100MThis needs to be in the one of first two drives & under cylinder 1024

    • /usr partition: 200-500MB depends on packages

    • /home partition: user home directory

    • /tmp partition: for temporary files (server use a lot)

    • /var partition: system logs

    • /usr/src: for source code (linux, utilities)

    • /usr/local : for software not available in distribution(those strings with yellow marks are mounting pt.)

  • It is much easier and flexible by just creating swap partition and the root partition /. All system/user data share the same root partition.

C. Edward Chow


Step3a disk partition l.jpg
Step3a: Disk Partition

  • IDE drives, by convention, are given /dev/hd[L] as device names. L is the letter assigned to disks in the system, starting with a.

  • For SCSI drive, related dev names are /dev/sd[L]

  • For management purpose, a hard drive is divided into disk partitions. There are two types of disk partitions in a PC hard drive: primary and extended. Within an extended partitions you can have more logical partitions.

  • Partitions are identified by /dev/hda[n] or /dev/sda[n] where n is the partition ID.

  • Most disks allow 3 primary partitions and one extended partition.

  • Leave primary partition (/dev/hda1) for Win32, create an extended partition (/dev/hda2) for Linux.Note that root partition need to be under cylinder1024

  • From the extended partition, create logic partitions for each of the linux partitions (/dev/hda5-9)

C. Edward Chow


Step 3b relocate adjust partitions l.jpg
Step 3b: Relocate/Adjust Partitions

  • To keep the content of the original window partition and create space for the new partition for Linux.

    • Use partition magic™ to relocate/adjust disk partitions.

    • Use freeware fips program, available in CD’s dosutils directory for relocate disk partition. Read documents in fipsdoc subdir.

    • There is a DOS fdisk utility can be used to partition the disk.

C. Edward Chow


Step 4 make boot and supplemental floppies l.jpg
Step 4: Make boot and supplemental floppies

  • need a formated 1.44MB 3.5” diskette (If you have PC Card interface, you need additional diskette.)

  • On PC running window system, change to the cd-rom drive under MS-DOS prompt.

  • cd dosutil

  • Type rawrite.exe

  • Enter ..\images\boot.img and a: for creating boot floppy.

  • If you use PC Card, you need a supplemental floppy. Put the second diskette and Enter supp.img and a: for creating supplemental diskette, containing PC Card driver.

  • You can also use autoboot.exe in dosutil directory to install without boot floppy, or setup machine to boot Linux from CD-ROM.

C. Edward Chow


Step 5 starting installation l.jpg
Step 5: Starting installation

  • Insert boot floppy, reboot machineor setup bios to boot from CD-ROM. (our PC is setup to boot from CD-ROM.)

  • When boot: prompt appear, press enterfor GUI mode installation, or type text to start the text mode installation. GUI mode installation may not work on some hardware.

  • Watch Linux kernel detects hardware devices

  • If cdrom is not detected, you may type

  • boot: linux hdc=cdrom (enter)

  • There will several dialog boxes to ask for info.

  • Use tab to switch among choices

  • Use arrow keys to select options within a choice.

  • Use enter key to confirm the choice.

C. Edward Chow


Select installation method language keyboard mouse configuration installation type option l.jpg
Select Installation Method, Language, Keyboard/Mouse Configuration, installation type option

  • If you use boot floppy, Select installation method: from CD-ROM, NFS, FTP, or SMB shared volume image from Win32 system.

  • Select the default English as language selection,

  • Select the default choices as keyboard selection,

  • Select “custom”

  • In text mode, you select “install customer system” by pressing down arrow key three times and hit tab for OK button, then hit enter to confirm.

C. Edward Chow


Step 6 linux disk partition l.jpg
Step 6: Linux Disk Partition Configuration, installation type option

  • You will then be asked to use druid or fdisk.

  • Select druid and presented with a list of the disk/partitions in /dev/hda[n] or /dev/sda[n].

  • Click delete to delete the existing partitions.

  • After delete exiting partitions, Use druid to create linux swap and root partitions and set their file system type.

  • Create swap partition by

    • skip the mount point; enter 128 (MB) for size; select the linux swap file type; confirm the creation.

  • create the root partition

    • Enter / as mount point; enter 2800 for size; check the “grow to fill” option; confirm the creation of root partition. The root partition size will adjust to ~2951 MB.

  • By default Linux create Linux native type (ext2 file system).

C. Edward Chow


Step6a suggested disk partitions l.jpg
Step6a: Suggested Disk Partitions Configuration, installation type option

  • We have a 3079MB Drive in each of two PCs.

  • First create the linux swap partition. No mount point string is given.

  • Then create a linux native partition, give 2800 as size and check the option to “Grow to fill disk”. Enter / as mount point.

  • Here are suggested Disk Partitions for our exercise

C. Edward Chow


Step 7 file system configuration l.jpg
Step 7: File System Configuration Configuration, installation type option

  • Choose the root partition /dev/hda1 for formatting.

  • If you would like to keep the data of older partitions such those for win32, you should not choose to format them.

  • If you know the disk is ok and you do not have check the “Check for bad blocks while formatting” option. It will speed up the formatting.

C. Edward Chow


Configure loader network options l.jpg
Configure Loader/ Network options Configuration, installation type option

  • Install LILO (the LInux LOader). Select the first option: on the Master Boot Record (MBR).

  • For dual boot you may want choose to install LILO on the first sector of the root partition and avoid compete with the Window NT loader on MBR. (See slide 21)

  • Network Configuration: unchecked DHCP. We would like to give web server static/permanent IP address.

  • Enter the IP address 128.198.192.182 for bilbo, 183 for frodo

  • Enter the netmask 255.255.248.0

  • The network address/broadcast address will be generated.

  • Enter bilbo or frodo as host name

  • Enter 128.198.192.1 as gateways.

  • Enter DNS info we collect at Step 2.

C. Edward Chow


Set time zone and accounts l.jpg
Set Time Zone and Accounts Configuration, installation type option

  • Select “Mountain Time Zone”

  • Check the “Use Daylight Saving time” and “System Clock use UTC”.

  • Set a root password, cs401linux, and create a user account with your login name.

  • Choose “Enable MD5 passwords”, “Enable Shadow passwords”.

  • Do not check the “Enable NIS” option.

C. Edward Chow

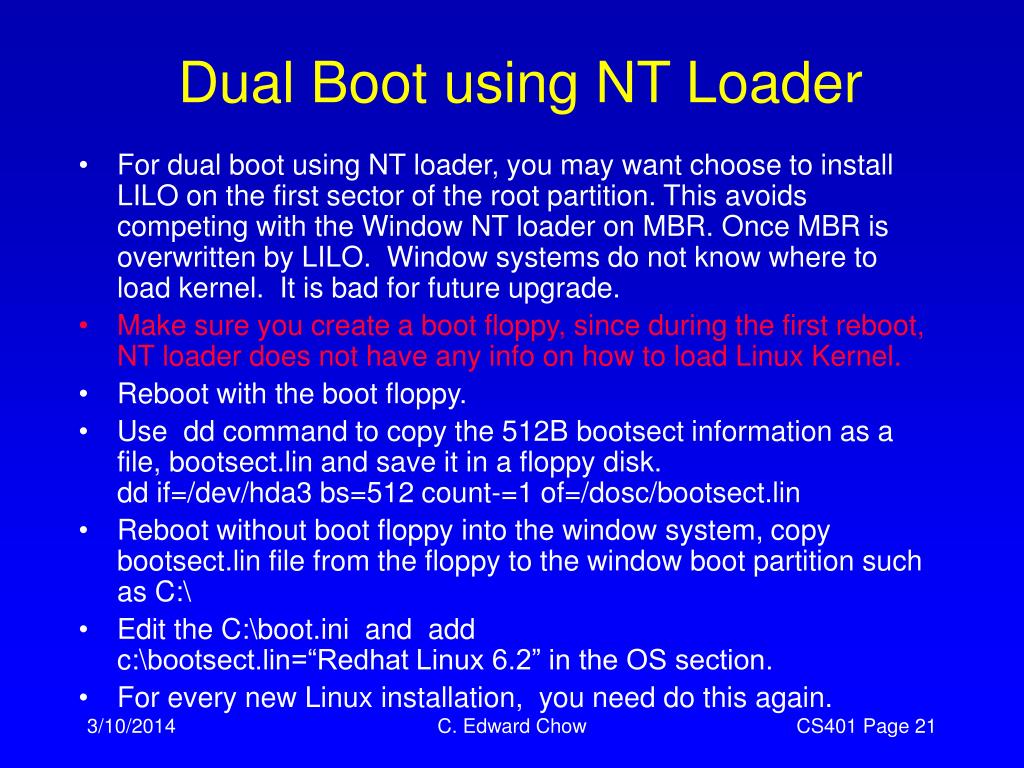

Dual boot using nt loader l.jpg
Dual Boot using NT Loader Configuration, installation type option

  • For dual boot using NT loader, you may want choose to install LILO on the first sector of the root partition. This avoids competing with the Window NT loader on MBR. Once MBR is overwritten by LILO. Window systems do not know where to load kernel. It is bad for future upgrade.

  • Make sure you create a boot floppy, since during the first reboot, NT loader does not have any info on how to load Linux Kernel.

  • Reboot with the boot floppy.

  • Use dd command to copy the 512B bootsect information as a file, bootsect.lin and save it in a floppy disk.dd if=/dev/hda3 bs=512 count-=1 of=/dosc/bootsect.lin

  • Reboot without boot floppy into the window system, copy bootsect.lin file from the floppy to the window boot partition such as C:\

  • Edit the C:\boot.ini and add c:\bootsect.lin=“Redhat Linux 6.2” in the OS section.

  • For every new Linux installation, you need do this again.

C. Edward Chow


Step 8 select packages l.jpg
Step 8: Select Packages Configuration, installation type option

Select packages (by pressing space bar)

  • Click on the list of packages you need: NFS, SMB, ftp, web, DNS, SQL, network management workstation, Development, Kernel Development, Clustering, and Utilities.

  • Some packages such as the Emacs, X development, X multimedia support, require a lot of storages

C. Edward Chow


X windows monitor setup l.jpg
X Windows/Monitor Setup Configuration, installation type option

Monitor Setup

  • Then you will be presented with a long list of the monitors. Choose HP and HP D2807A Ultra VGA 1280 17-in.

  • The system will detect S3 Trio64 driver.

  • Select “Test this configuration”.

  • The screen will then flash a few times when prompt window asks for “can you see the screen” select yes.

  • If you did not find it, choose Custom to specify the horizontal and veritical sync range. Choose lowest frequencies that work. Too high a range value could damage monitor.

  • For notebook pc, you may choose the LCD choices such as

  • Non-interlaced SVGA [email protected] or XGA.

  • The screen will then flash a few time while the configuration program probe you video card and suggest color depth and resolution. Choose the “use default setting”.

C. Edward Chow


Step 9 create file system on partitions and install packages l.jpg
Step 9: Create file system on partitions and install packages

  • It will go through each partition and create ext2 file systems. (may take about 4 min.)

  • Then software modules of selected packages will be shown being installed with the total #, completed #, and remaining # of software packages and their estimated times.

  • There will be about 426 packages and 601MB.

  • It should take about 15 min to install all these packages.

  • You will then be asked to create boot disk. If you use NT loader for dual boot, make sure you create one.

  • Make sure you remove the CD and boot disk.

C. Edward Chow

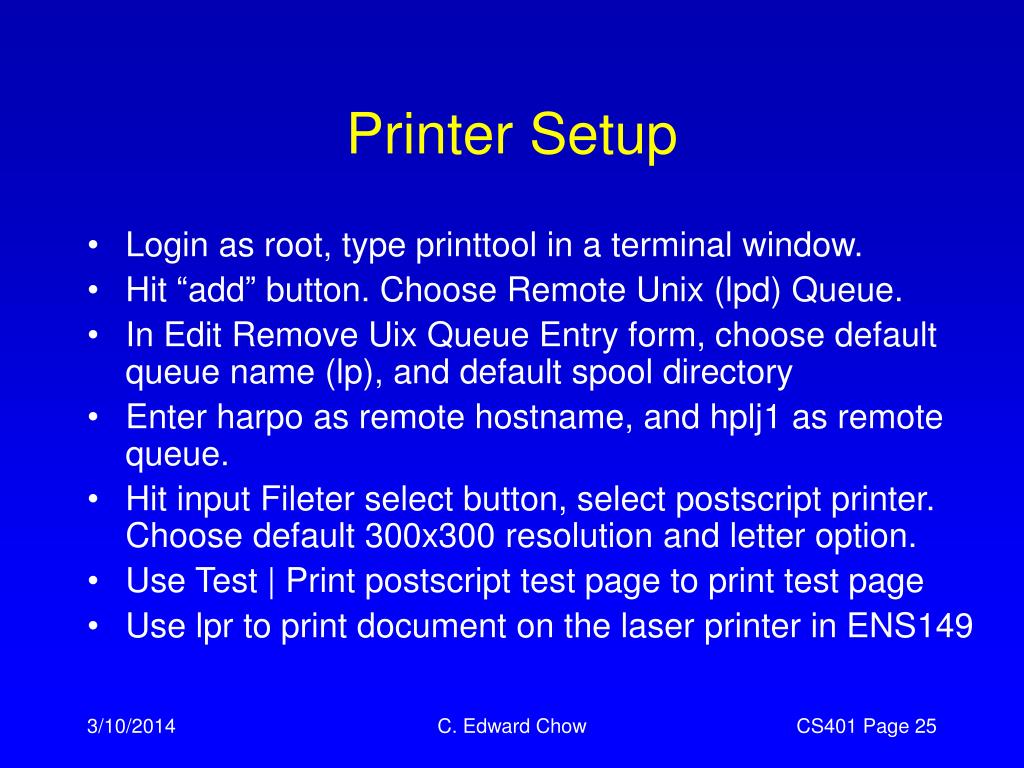

Printer setup l.jpg
Printer Setup packages

  • Login as root, type printtool in a terminal window.

  • Hit “add” button. Choose Remote Unix (lpd) Queue.

  • In Edit Remove Uix Queue Entry form, choose default queue name (lp), and default spool directory

  • Enter harpo as remote hostname, and hplj1 as remote queue.

  • Hit input Fileter select button, select postscript printer. Choose default 300x300 resolution and letter option.

  • Use Test | Print postscript test page to print test page

  • Use lpr to print document on the laser printer in ENS149

C. Edward Chow

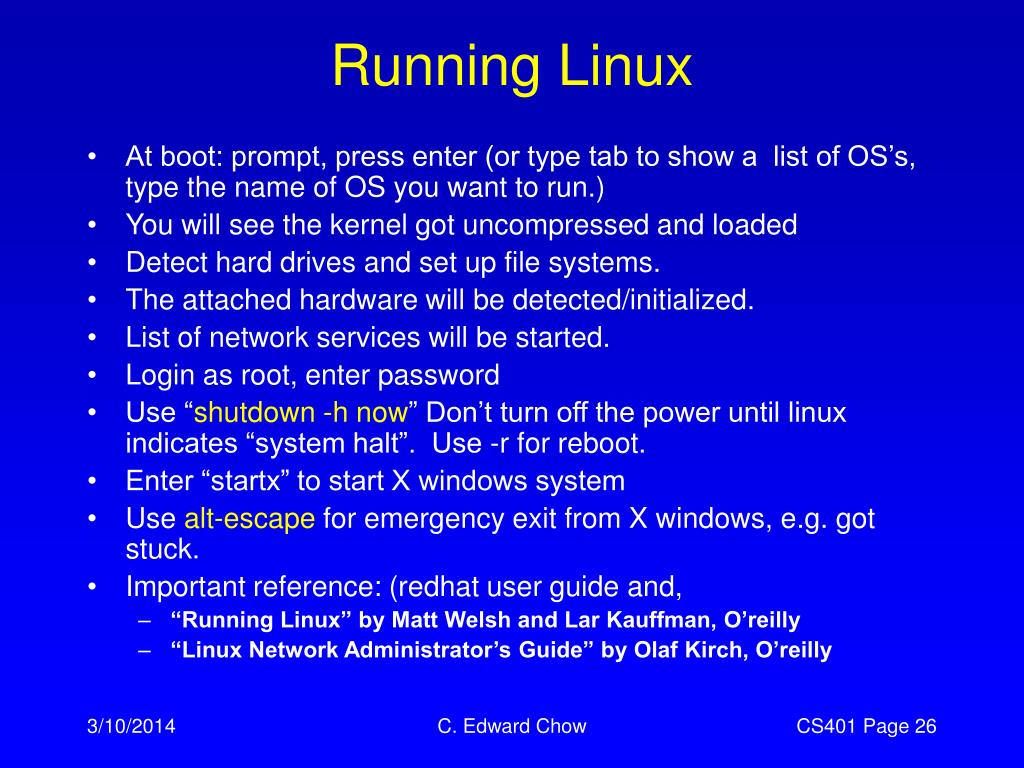

Running linux l.jpg
Running Linux packages

  • At boot: prompt, press enter (or type tab to show a list of OS’s, type the name of OS you want to run.)

  • You will see the kernel got uncompressed and loaded

  • Detect hard drives and set up file systems.

  • The attached hardware will be detected/initialized.

  • List of network services will be started.

  • Login as root, enter password

  • Use “shutdown -h now” Don’t turn off the power until linux indicates “system halt”. Use -r for reboot.

  • Enter “startx” to start X windows system

  • Use alt-escape for emergency exit from X windows, e.g. got stuck.

  • Important reference: (redhat user guide and,

    • “Running Linux” by Matt Welsh and Lar Kauffman, O’reilly

    • “Linux Network Administrator’s Guide” by Olaf Kirch, O’reilly

C. Edward Chow


Set up and use linuxconf l.jpg
Set UP and Use Linuxconf packages

  • As root user, type “Linuxconf” to configure network interface.

  • Select the basic host info and adaptor 1.

  • Enter bilbo.uccs.edu in Primary name+domain

  • Select adaptor 2, enter viva.uccs.edu with IP address 128.198.192.192 or vinci with 128.198.192.193.

  • Select DNS entry on the left pane.

  • Enter uccs.edu as default domain and search domain 1 (opt).

  • Select MISC-Linuxconf network access

  • Check enable network access and log access.

  • Enter 128.198.0.0 as network or host. This restricts net access.

  • Choose to accept and act/changes; Exit linxuconf

  • Test the network connection by typing “ping 128.198.1.250”.

  • Note that when network access is turned on. Linuxconf can be accessed as http://bilbo.uccs.edu:98/ This allows remote system management.

C. Edward Chow


Security and upgrade patches l.jpg
Security and Upgrade Patches packages

  • Security advisaries (patches) and upgrade packages are available at http://www.redhat.com/support/errata/rh62-errata-security.html.

  • Download those RPM packages from redhat or other mirror sites http://www.redhat.com/mirrors.html such as ftp://ftp.eecs.umich.edu/pub/linux/redhat/redhat/updates/6.2/i386/

  • Save them in usr/src/redhat/RPMS

  • Execute rpm –Uvh *.rpm for upgrading the packages.

C. Edward Chow


Apache web server l.jpg
Apache Web Server packages

  • The Apache web server should be up and running!

  • Go to other machine with a browser and try http://bilbo/ or use the local Netscape browser with http://localhost.

  • Default home page is in /home/httpd/html/index.html

  • All CGI programs, icons, html pages are stored in default directory /home/httpd.

  • The configuration files are in /etc/httpd/conf

  • Log files in /var/log/httpd

  • You are now ready to practice the exercises in “Apache: the definitive guide.”

C. Edward Chow


Hw 2 linux apache installation l.jpg
HW#2: Linux/Apache Installation packages

  • Install Rehat Linux 6.2 on Bilbo or Frodo.

  • Make brief note on the steps and interactions during the installation.

  • Choose “customize” installation instead of default server or workstation installation.

  • Create swap and root partitions as suggested in the handout.

  • In step 8, check the specific packages: web, ftp, sql, nfs.

  • Edit /home/httpd/conf/httpd.conf with ServerName bilbo<frodo> and start web server with “/usr/sbin/httpd”

  • Ftp your personal web page and images files to the machine.

  • Make a cgi-bin directory in /home/httpd/cgi-bin/<yourlogin>.

  • Copy ~chow/public_html/cgi-bin/chow/sessionvar.pl

  • Make sure all paths are readable or executable.

  • From the browser on other machines in the lab, make hard copies of the default web page, your personal web page, and the result of the sessionvar.pl. Submit your brief installation note with those hard copies as your hw2.

C. Edward Chow


ad
