Gordon bell microsoft research gbell@microsoft com www research microsoft com gbell l.jpg

Media Center meets MyLifeBits to go home"The PC is going to be the place where you store the information … really the center of control“ - Bill Gates CES 1/2001UC/Berkeley 20 November 2002

Gordon Bell

Microsoft Research

[email protected]

www.research.microsoft.com/~gbell


Converging mylifebits home a v with media center l.jpg
Converging MyLifeBits, Home A/V with Media Center

MyLifeBits is an “on-going” project following CyberAll to “cyberize” and now be able to USE all of bits!

  • Memory recall of books, CDs, communication, papers, photos, video, TV and saved TV (unless I’ll be incarcerated)

  • Photos of physical object collections

  • Elimination of all physical stores & objects

  • Content and use: ambiance, entertainment, communication, interaction using Media Center for music, photos, TV & saved TV, videos

  • Telephone and other conversations and messages

    To understand and utilize the 1 TByte PC:need, utility, cost, feasibility, problems & tools.


Work in progress plasma panel goes here l.jpg
Work in progress(Plasma panel goes here.)

HP Media Center goes here.


Gbell small home network hub for wired and wireless data security catv and telephony no free lunch l.jpg

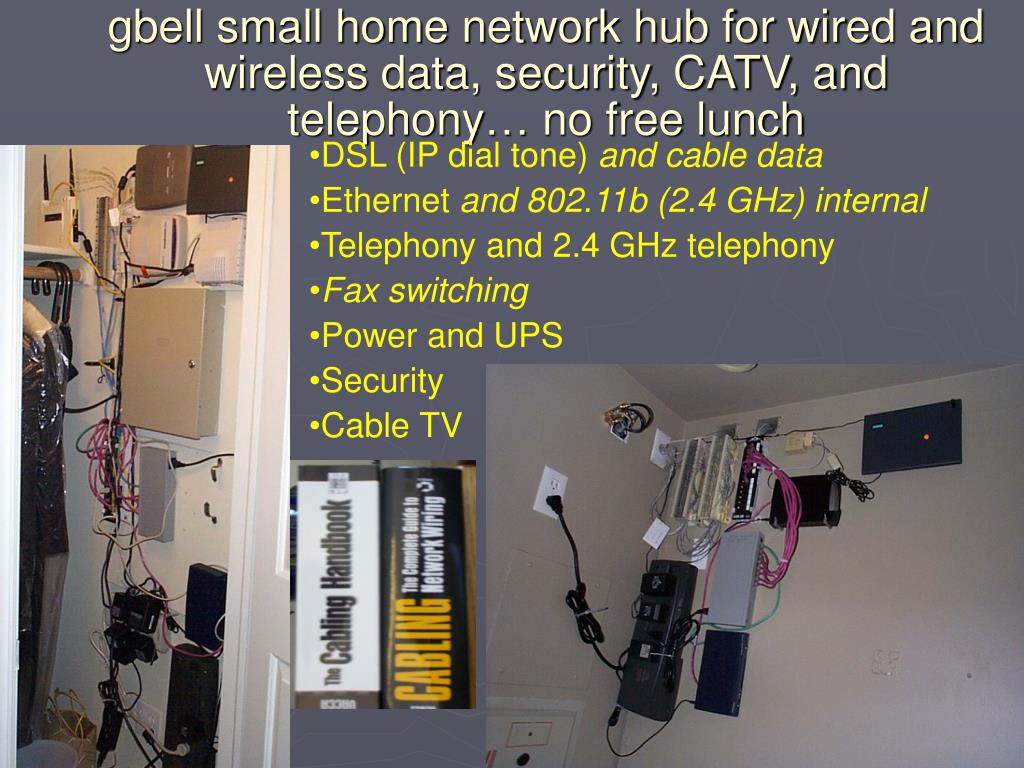

gbell small home network hub for wired and wireless data, security, CATV, and telephony… no free lunch

  • DSL (IP dial tone) and cable data

  • Ethernet and 802.11b (2.4 GHz) internal

  • Telephony and 2.4 GHz telephony

  • Fax switching

  • Power and UPS

  • Security

  • Cable TV


Slide5 l.jpg

L security, CATV, and telephony… no free lunchegacy

Legacy

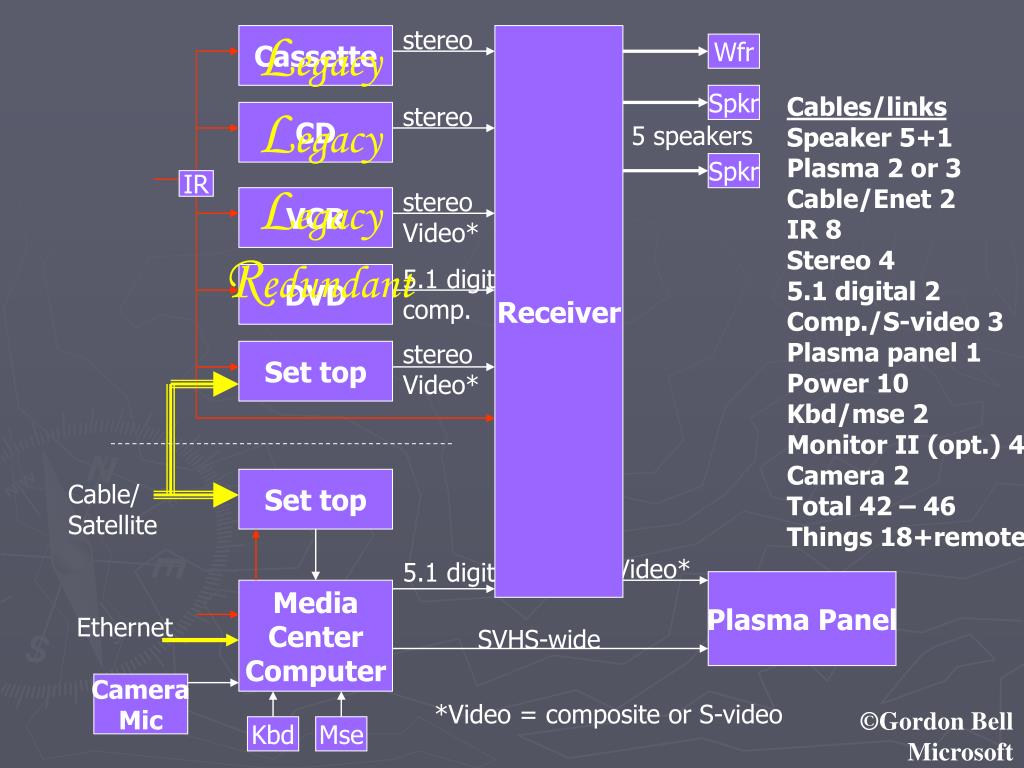

Legacy

Redundant

stereo

Cassette

Receiver

Wfr

Spkr

Cables/links

Speaker 5+1

Plasma 2 or 3

Cable/Enet 2

IR 8

Stereo 4

5.1 digital 2

Comp./S-video 3

Plasma panel 1

Power 10

Kbd/mse 2

Monitor II (opt.) 4

Camera 2

Total 42 – 46

Things 18+remotes

stereo

CD

5 speakers

Spkr

IR

stereo

Video*

VCR

5.1 digital

comp.

DVD

stereo

Video*

Set top

Set top

Cable/

Satellite

Video*

5.1 digital

Plasma Panel

Media

Center

Computer

Ethernet

SVHS-wide

Camera

Mic

*Video = composite or S-video

Kbd

Mse


The home digital multimedia network l.jpg

The Home security, CATV, and telephony… no free lunchDigital Multimedia Network

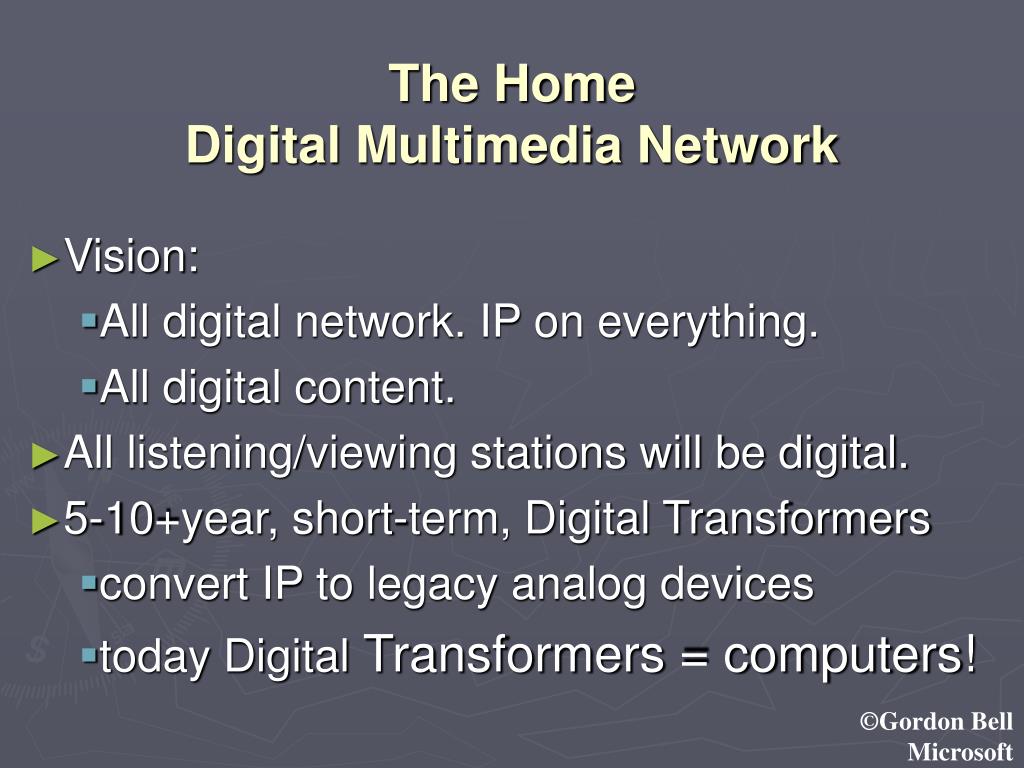

Vision:

All digital network. IP on everything.

All digital content.

All listening/viewing stations will be digital.

5-10+year, short-term, Digital Transformers

convert IP to legacy analog devices

today Digital Transformers = computers!


Slide7 l.jpg

Gaming 2-channel intercom network security, CATV, and telephony… no free lunch

Security

camera

US West

Phone System

TCI Cable

Phones

Jake’s Room

PC

Chris’s Room

PC

Den PC

Bonus Room

PC

Intercom to

next door

Theater Room

Gaming PC

Rec Room

Gaming PC

Bonus Room

Gaming PC

Family Room

Gaming PC

Data Network

Brianv’s Home

Fiber to next

door house

Den Color

Printer

Bonus Room

Laser Printer

NT Server

w/BackOffice

Den Laser

Printer

Phast

Processor

Fax

200 DVD

Jukebox

AM/F M

Receiver

To Theater

System

Smart

Light

Switches

To CATV Outlets

around house

Room

Keypads

Sound

System

CH 93

CH 94

Audio

Zones

600 CD

Jukebox

CD/DVD

Catalog

CH 92

Intercom

Zones

Modulaors

Spliters

CATV

Phast

Controller

CH 90

DSS

Sprinker

Valves

Caller ID

CH 91

Moisture

Sensors

VMail

Thermostats

8 analog lines

64 pair

phone cable

Radiant

Heat Valves

Garage door

openers

Garage door

sensors

4 VMail lines

PBX

Security

System

20 digital lines

Sensors in

House


Opportunities and impediments l.jpg
Opportunities and Impediments security, CATV, and telephony… no free lunch

  • Converged content 1, 2 or 3 networks?

    • An all digital cable network

  • In home networking

  • The A/V experience with/without computers

  • Add the media center Mbox

  • DRM


Cyberspace a spiraling quest in 3d real space l.jpg
Cyberspace: A spiraling quest in 3D real space security, CATV, and telephony… no free lunch

Storage & computation

Content

Cyberization

Communication


Cyberspace a network of networks of l.jpg
Cyberspace: security, CATV, and telephony… no free lunchA Network of ... Networks of ...

Motes

Continent

Body

Region/

Intranet

Car

Home

Campus

World


Cyberspace one two or three networks l.jpg

Data security, CATV, and telephony… no free lunch

Telephony

Television

Cyberspace: one, two or three networks?


The colliding worlds of tv telephony datacom a k a computing internet l.jpg

Games security, CATV, and telephony… no free lunch

Television

world

Telephony

world

VCR

CDs

Wire-

less

Cable

Cable

phone

Broad-

cast

LECs

Long

Dist.

LECs

TV

The Colliding?? Worlds of TV, Telephony & Datacom a.k.a. Computing & Internet

DBS

Cable

I’net

PBX

ITV?

I’net

Phone

The

Internet

LAN

PBX

Sat.

RADIO

RADIO

Pvt.

WANs

clients/

servers

Wire-

less

LANs

Datacom

world


Connected home frontier sans garage l.jpg

SATELLITE security, CATV, and telephony… no free lunch

TERRESTRIAL

DIGITAL CABLE

DSL-TELCO

Connected home frontier sans garage

Peripherals

Digital photos

TV

TV

Gaming

Screen devices

Stereo


Home networks pc based service l.jpg

X* security, CATV, and telephony… no free lunch

Spkr

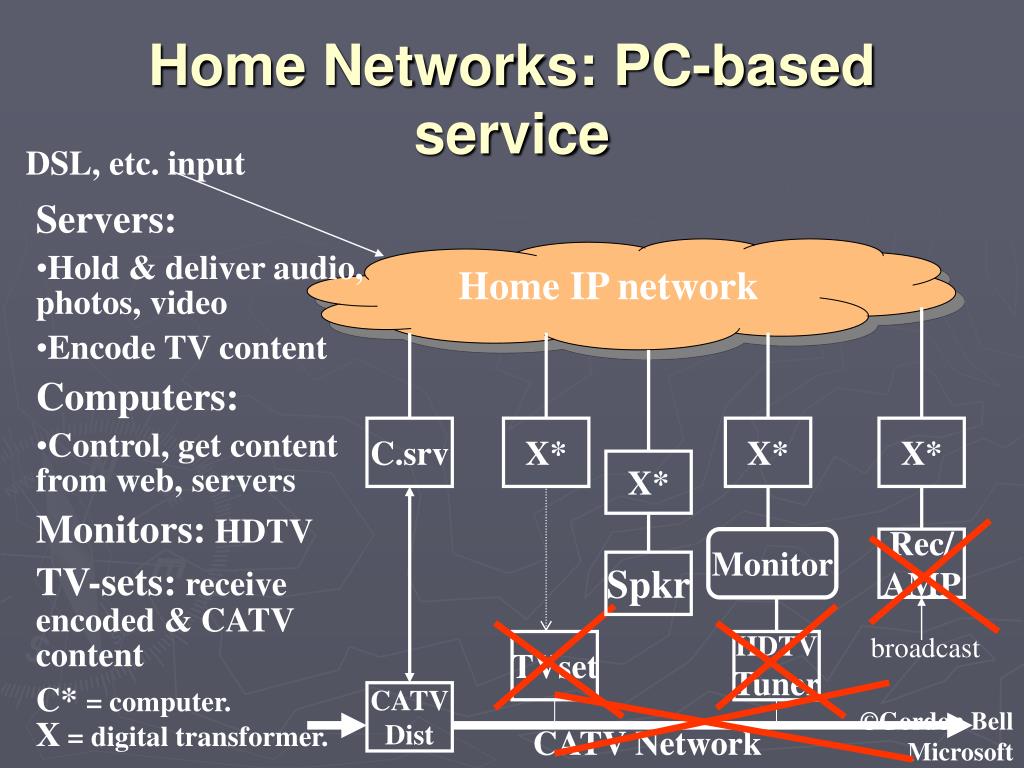

Home Networks: PC-based service

DSL, etc. input

  • Servers:

  • Hold & deliver audio, photos, video

  • Encode TV content

  • Computers:

  • Control, get content from web, servers

  • Monitors: HDTV

  • TV-sets: receive encoded & CATV content

  • C* = computer. X = digital transformer.

Home IP network

C.srv

X*

X*

X*

Monitor

Rec/AMP

broadcast

TVset

HDTVTuner

CATV

Dist

CATV Network






Pc entertainment appliance l.jpg

Provides a wide Centerrange of rich entertainments in your living room

PC Entertainment Appliance

alias: Gateway Server

alias: Media Center

alias: Media Server

  • Attractive, quiet, easy to install

  • Easy to use, just pick an entertainment task

  • Single remote control

  • Always on… ready to entertain

  • PC architecture inside (consumer transparent)

  • Only does entertainments, not general PC activities… realistic??

  • Seamlessly mixes TV and the Web

  • Incremental purchasing model eg. device bay

  • Technologies provide enhanced TV

    • Range of 1394/USB receiver modules for premium TV

  • Gateway server for the video home network

alias: eHome Appliance

Dave Marsh, Microsoft


Media center one h w for multiple functions l.jpg
Media Center CenterOne H/W for multiple functions

Reduces the number of devices, remotes and wires around the TV



Content for future home entertainment center content from nets and cyberall l.jpg
Content for future home entertainment center CenterContent from nets and CyberAll

  • TV and radio content (ala TiVo and rivo)… plus aggressive capture for future viewing (movies) and listening

  • WWW (pages, mail, etc.)

  • Personal Photos

  • Personal videos

  • Art (“TV-set” screen savers)

  • Internet radio and ripped CD audio

  • Virtual window (train ride, concerts, MTV)


Table of interactivity media and technology l.jpg

Utility/ CenterMedia

Ambiance (just being there)

Entertainment& Education

Communicate at a distance

Interaction

Text

Books >> ebooks; newspapers

Fax >> email; chat

Audio

CDs, radio>> Ripped CDs, MP3, Internet Radio

Internet Radio

Telephone >>IP telephony; voice chat

Live performances^>> Net jam sessions

Visual

Art, photos>> “TV Screen savers”… art, photos, posters, video

Web cams tele-places

Audio/Visual

MTV >>MTV (digital)

“discovery channel” >> tele-learning

Life-size videophone. Tele-meetings & tele-conferences

Games>> local & group games, Web

Table of Interactivity, Media, and Technology



Photos l.jpg
Photos Center


Slide27 l.jpg
Art Center


Caneel bay vacation jan 1998 l.jpg

Caneel Bay Vacation Jan. 1998 Center

Gordon, Gwen, Brig, Pam, Fiona, Bob, Laura and Kolbe






Slide33 l.jpg

Cyber All, a 1 Tbyte, lifetime PC: CenterCyberizing everything…I’ve written, said, presented (incl. video), photos of physical objects & a few things I’ve read, heard, seen


Imagine the killer app for the one tbyte lifetime pc l.jpg
Imagine the “killer app” for: CenterThe One Tbyte, Lifetime, PC

  • CyberAll convinces me of a lifetime memory!

  • Technology to support the vision:

    • Guarantee that data will live forever!

    • Low cost (to user) cyberization

    • A single index that includes mail, conversations, web accesses, and books!

    • E-book…e-magazines reach critical mass!

    • Telephony and audio capture are needed

    • Photo & video “index serving”

    • More meta-information … Office, photos

    • Lots of GUI to improve ease-of-use


Storing all we ve read heard seen l.jpg
Storing all we’ve read, heard, & seen Center

Human data-types /hr /day (/4yr) /lifetime

read text, few pictures 200 K 2 -10 M/G 60-300 G

speech text @120wpm 43 K 0.5 M/G 15 G

speech @1KBps 3.6 M 40 M/G 1.2 T

stills w/voice @100KB 200 K 2 M/G 60 G

video-like 50Kb/s POTS 22 M .25 G/T 25 T

video 200Kb/s VHS-lite 90 M 1 G/T 100 T

video 4.3Mb/s HDTV/DVD 1.8 G 20 G/T 1 P


Character of cyber all use l.jpg

User Context / Timelines Center

Personal

(including financial)

Professional (work related)

Archival

Working

Character of Cyber All Use




Wires and radio networks for in home l.jpg

Network Center

Scheme

Data-rate

Advantage

Disadvantage

CAT5+

4 Twisted pr.

1Gbps

Separate wiring; low cost; easy install. Telco compatible. “Fungible” wiring.

New wiring. Useful for audio and composite video. Inability to transmit CATV.

CATV

R6U Co-ax

1 GHz (150 6 MHz chs.)

Exists for TV sets; could also serve IP throughout the home

RF analog; no digital

Teleph.

2-4 Tel.

10 Mbps

Uses existing wiring

Questionable data-rate

Power

AC Power

?

Uses existing wiring

Unproven; safety

1394

 Everything

Distance, lack of protocols

802.11b

Radio LAN

11 Gbps

No wires

Crowded spectrum, speed

802.11a

Radio LAN

50 Gbps

Bluetoot

1. Mbps

“ Short distance, speed

RF

1 Mbps

“ Low speed

Fiber

1394, SPDIF etc

Speed.

Install. skill; lack of home net equipment

Wires and radio networks for in home



Slide41 l.jpg
Digital Rights Management… Centerunless MPAA provides a “reasonable” market for media, the whole world will become thieves.

  • Provide a “reasonable” market and industry for renting, owning, viewing, etc. content

  • Make it illegal to record video, police every hard drive, and prosecute users

  • Eliminate the “open video” interface and replace with DVI

Cableetc

Set-top

“O DVI

Monitor

Encoder



Put the set top and content at the head end or central office l.jpg
Put the set top and content at the head-end or central office

  • A 3.5 ft rack that inputs Gigabit Ethernet containing MPEG-2 (and its successors) digital video or IP and provides high-ingestion rate storage for four hours for 150 TV channels plus another 150 movies and generates up to 128 frequency agile 6-MHz carriers carrying a total of 1280 separate 3.85 Mbps MPEG-2 digital streams to individual subscribers.

  • The in-house set top (“transformer”) is 1 chip.


End bit l.jpg
End bit office


Gordon s very own vision for the evolution of home networks l.jpg
Gordon’s very own Vision for the evolution of Home Networks

  • We’re on a quest for cyberization

  • Three networks need to converge for:

    • computation,

    • communication and

    • entertainment

  • A look inside the home

  • A look at the black boxes

  • Integrating audio, photos, video and TV


Tools l.jpg
Tools Networks

  • Acrobat*, Paperport* 6, Omnipage 10

  • Indexing Service & Enfish (indexer/search)

  • Conversion of DEC 8” floppies

  • “Doubles” to reduce redundancies

    *Microsoft epaper can replace these!



ad
