Presentation Transcript
Industrial vision image acquisition l.jpg

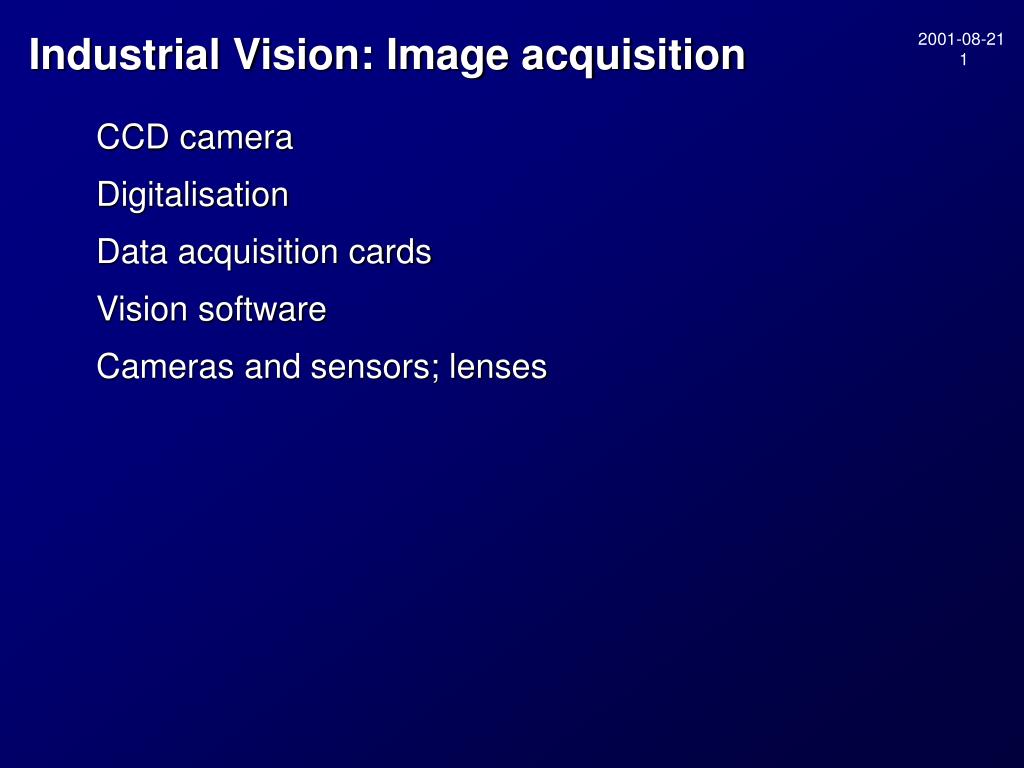

Industrial Vision: Image acquisition

CCD camera

Digitalisation

Data acquisition cards

Vision software

Cameras and sensors; lenses



Slide3 l.jpg

Image acquisition: CCD camera

CCD camera

CCD: Licht wordt in lading omgezet. CCD chip bevat aan elkaar geschakelde capaciteiten. Ladingen worden doorgeklokt naar buiten. ADC kan niet op de CCD chip, dus steeds een analoge uitgang.

CMOS: elk beeldelement bevat 1 fotodiode en 3 transistoren: een voor lading-spanningsconversie, twee voor adressering.


Slide4 l.jpg

Photon

Gates

Silicon

Charges

Potential

Well

Image acquisition: CCD sensor


Slide5 l.jpg

0...255

A

Volts

D

Volts

Greyvalue

0,7

8 Bit

0,348

brighter

Greyvalue

127

255

Image acquisition: digitalisation


Slide6 l.jpg

camera image

Pixel mask

8 bit grayscale digital image

Digitalisation

Pixel = Picture Element


Slide7 l.jpg

Digitalisation

Grayscale image

& numeric representation


Slide8 l.jpg

Video sources

The video source can be:

  • Video camera

  • Camcorder

  • Video recorder (VCR)

  • Television broadcasts

  • X-ray equipment

  • Scanning Electron Microscope (SEM)

  • CT scanner


Slide9 l.jpg

Signal types for Image acquisition boards

Composite video = signal containing bothvideo data (luminance + colour) and the timing (synchronisation) information. It is the standard which interconnects almost all video equipment (TVs, laserdisc, videorecorders, camcorders) at home.

It can be transported over RCA connector or SCART (=Peritel=Euro) - connector.

Examples of composite video standards:

  • RS-170:

    • used in North America and Japan

    • Monochrome signal

    • Spatial resolution: 640 pixels x 480 lines

    • Frequency: 60 fields/second (equivalent to 30 frames/second)

  • NTSC/RS-330

    • used in North America and Japan

    • Equivalent to RS-170 but colour information is superimposed on the monochrome signal.

    • NTSC = National Television System Committee


Slide10 l.jpg

Signal types for Image acquisition boards

More composite video standards:

  • CCIR

    • used in Northern Europe

    • Monochrome signal

    • Spatial resolution: 768 pixels x 576 lines

    • Frequency: 50 fields/second (equivalent to 25 frames/second)

    • CCIR = Comité Consultatif International Radio

  • PAL

    • used in Northern Europe

    • Equivalent to CCIR but colour information is superimposed on the monochrome signal.

    • PAL = Phase Alteration Line

  • SECAM

    • used in France, Russia and the Sovjet Republic States

    • Equivalent to CCIR but colour information is superimposed on the monochrome signal.

    • SECAM = Séquencial Couleur Avec Memoire


Slide11 l.jpg

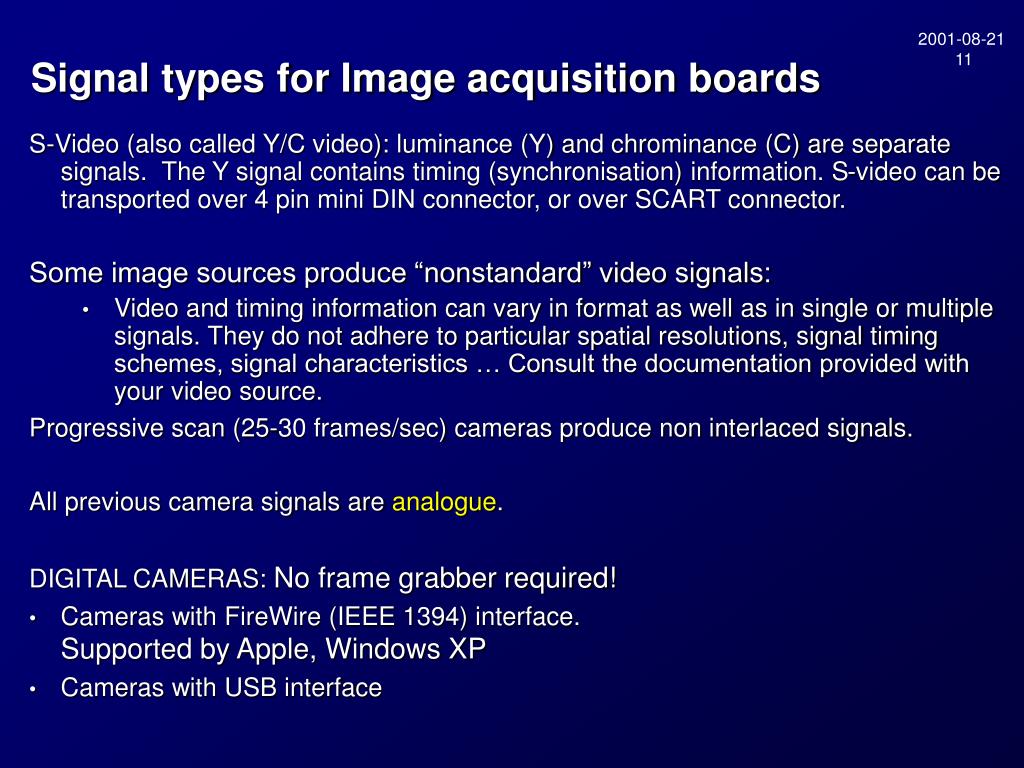

Signal types for Image acquisition boards

S-Video (also called Y/C video): luminance (Y) and chrominance (C) are separate signals. The Y signal contains timing (synchronisation) information. S-video can be transported over 4 pin mini DIN connector, or over SCART connector.

Some image sources produce “nonstandard” video signals:

  • Video and timing information can vary in format as well as in single or multiple signals. They do not adhere to particular spatial resolutions, signal timing schemes, signal characteristics … Consult the documentation provided with your video source.

    Progressive scan (25-30 frames/sec) cameras produce non interlaced signals.

    All previous camera signals are analogue.

    DIGITAL CAMERAS: No frame grabber required!

  • Cameras with FireWire (IEEE 1394) interface. Supported by Apple, Windows XP

  • Cameras with USB interface


  • Slide12 l.jpg

    Fuga

    Allegro


    Slide13 l.jpg

    Image acquisition boards

    • The video capture device is often called frame grabber card.

    • Frame grabber puts a pixel mask over the image: the card converts the analogue image (or images) supplied by a video source into a digital array (or arrays) of data points.

    • It is a plug in card (PCI) with AD convertor. The ADC must have video speed: 20 MHz or higher (30 or 25 video frames per second, 300 kB [640 x 480 x 8 bit] per frame.

    • Other features:

      • input multiplexer (to select one of the 4 inputs)

      • Colour notch filter = chrominance filter (to acquire monochrome signals from colour sources)

      • Programmable gain stage (to match the signal into the ADC input range)

      • Timing and acquisition control (to synchronise grabbing with sync pulses of incoming signal: PLL or Digital Clock Synchronisation)

      • Camera control stage (to send to the camera or to receive from the camera setup and control signals, e.g. horizontal and vertical sync signals, pixel clock and reset signals)

      • Most cards provide digital I/O for input or output operations, to communicate with external digital devices (e.g. industrial process). This saves a separate I/O board.



    Slide15 l.jpg

    Image acquisition boards (continued)

    • Plug-in cards (image grabber, frame grabber card) for analogue cameras

      • Are plugged in at a VME or PCI bus

      • Are delivered with Windows 98 or NT drivers

      • Accept cameras according to the EIA (30 frames/sec) or CCIR (25) standards

      • Good cards have their own processor (DMA data transfer to PC) and large RAM

      • Others (cheaper ones) use the PC processor

      • They accept the signals: S video, composite video TV or VCR signals (NTSC/PAL/Secam)

      • Some cards have camera control output


    Slide16 l.jpg

    Image acquisition - Cameras

    • Interface standards:

      • CCIR / RS-170 (B&W, 50-60 fields/sec.)

      • PAL / SECAM / NTSC (Colour)

      • Progressive scan (25-30 frames/sec.)

      • FireWire (IEEE 1394)

      • USB

    • Sensor technology:

      • CCD (Charge Coupled Device)

      • CMOS (Complementary Metal Oxide Semiconductor). A CMOS camera produces a 1000*1000 pixel image


    Slide17 l.jpg

    Spatial resolution

    • The number of rows (N) from a video source generally corresponds one-to-one with lines in the video image. The number of columns, however, depends on the nature of the electronics that is used to digitize the image. Different frame grabbers for the same video camera might produce M = 384, 512, or 768 columns (pixels) per line.

    • a CCIR / PAL image source can result in max 768 x 576 pixel image

    • a RS-170 / NTSC source can result in max 640 x 480 pixel image

    • Depending on video source or camera used, the spatial resolution can range from 256 x 256 up to 4096 x 4096.

    • Most applications use only the spatial resolution required. For fast image transfer and manipulation, often 512 x 512 is used. For more accurate image processing, 1024 x 1024 is common.

    • The pixel aspect ratio (pixel width : pixel height) can be different from 1:1, typical 4:3. Some frame grabbers don’t convert video data into square pixels but into rectangle ones. This creates the effect of a circle appearing ovular, and squares appearing as rectangles.


    Slide18 l.jpg

    520 rows max CCIR

    Spatial resolution

    • Example 768 x 512 (aspect ratio 3 : 2)

      Brightness resolution

    • Brightness resolution = bit depth resolution: number of gray levels (monochrome) or number of colours

    • RS-170 / NTSC image: 8 bits = 256 gray levels

    • A standard RS-170 image is 307 kB large: 640 x 480 x 8bit.

    768 pixels

    512 rows

    2

    3


    Slide19 l.jpg

    Interlaced / non interlaced formats

    • A video signal consists of a series of lines. Horizontal sync pulses separe the lines from each other.

    • All composite video sources (RS-170/NTSC, CCIR/PAL) and some nonstandard video sources transmit the lines in interlaced format: first the odd (first field), afterwards the even lines (second field).

    • Vertical sync pulses separate the fields from each other.

    • Some nonstandard video sources transmit the lines in non-interlaced format = progressive scan. Only one field, containing all the lines, is transmitted.

    • Progressive scan is recommended for fast moving images.

    • If one is planning to use images that have been scanned from an interlaced video source, it is important to know if the two half-images have been appropriately "shuffled" by the digitization hardware or if that should be implemented in software. Further, the analysis of moving objects requires special care with interlaced video to avoid "zigzag" edges.


    Slide20 l.jpg

    Field 1

    Field 2

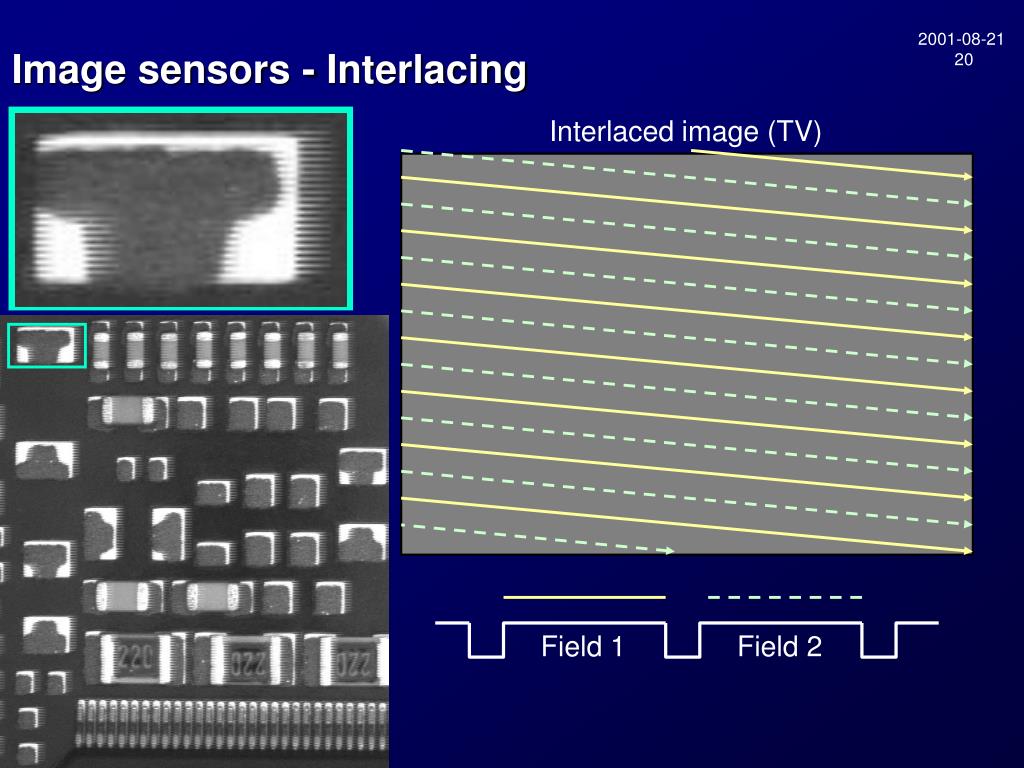

    Image sensors - Interlacing

    Interlaced image (TV)



    Slide22 l.jpg

    1

    1

    1

    -1

    -1

    1

    0

    1

    -1

    1

    1

    -1

    1

    0

    -1

    1

    0

    0

    9

    1

    -1

    1

    0

    -1

    1

    -1

    1

    -1

    1

    -1

    0

    -1

    -1

    -1

    -1

    1

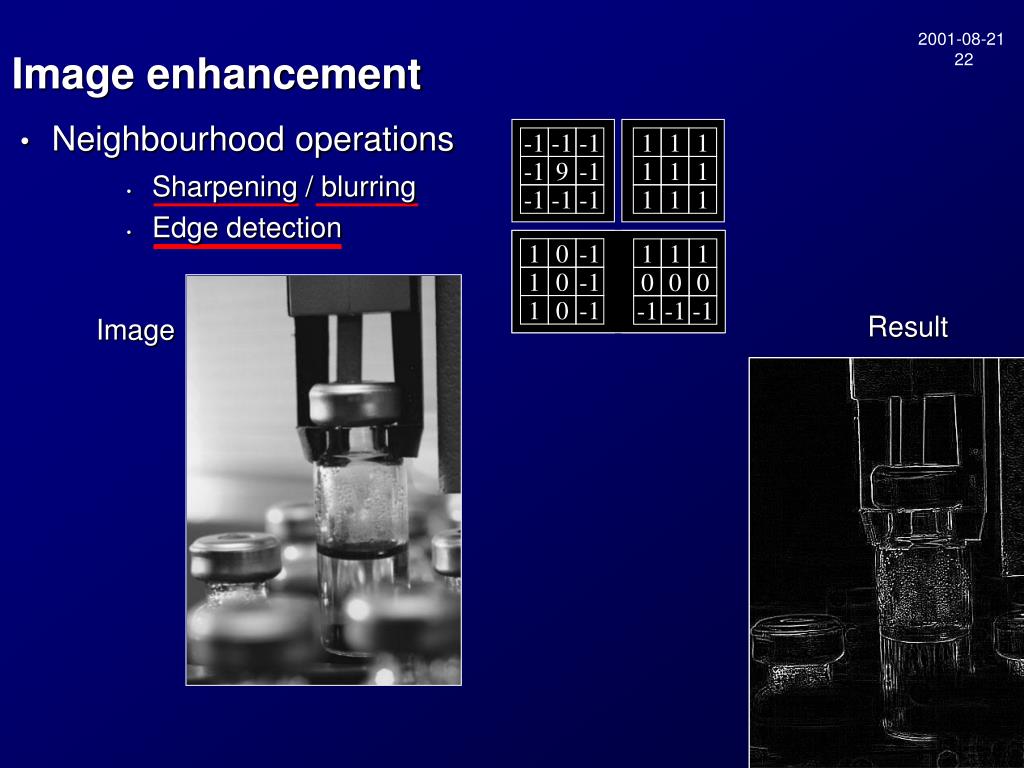

    Image enhancement

    • Neighbourhood operations

      • Sharpening / blurring

      • Edge detection

    Result



    Slide23 l.jpg

    Image enhancement

    • Contract enhancement

      • Thresholding

      • Histogram equalisation

  • See course Digital Image Processing, R. Catthoor


  • Image acquisition moving objects l.jpg
    Image acquisition: moving objects

    • Resolution calculation

      • Cd resolution = cross detection

      • Md resolution = moving detection

      • Example cd resolution:

        • Image width = 1900 mm

        • Required resolution = 0.25 mm

        • Number of pixels: 1900/0.25 = about 8000

        • This requires minimum 2 line scan CCD cameras

      • Example md resolution:

        • Required resolution = 0.25 mm (same as cd)

        • Object velocity = 1600 mm/sec

        • This requires 1600/0.25 = 6400 lines per second, or a camera with 6.4 kHz line scan frequency.


    Image acquisition cameras and sensors l.jpg

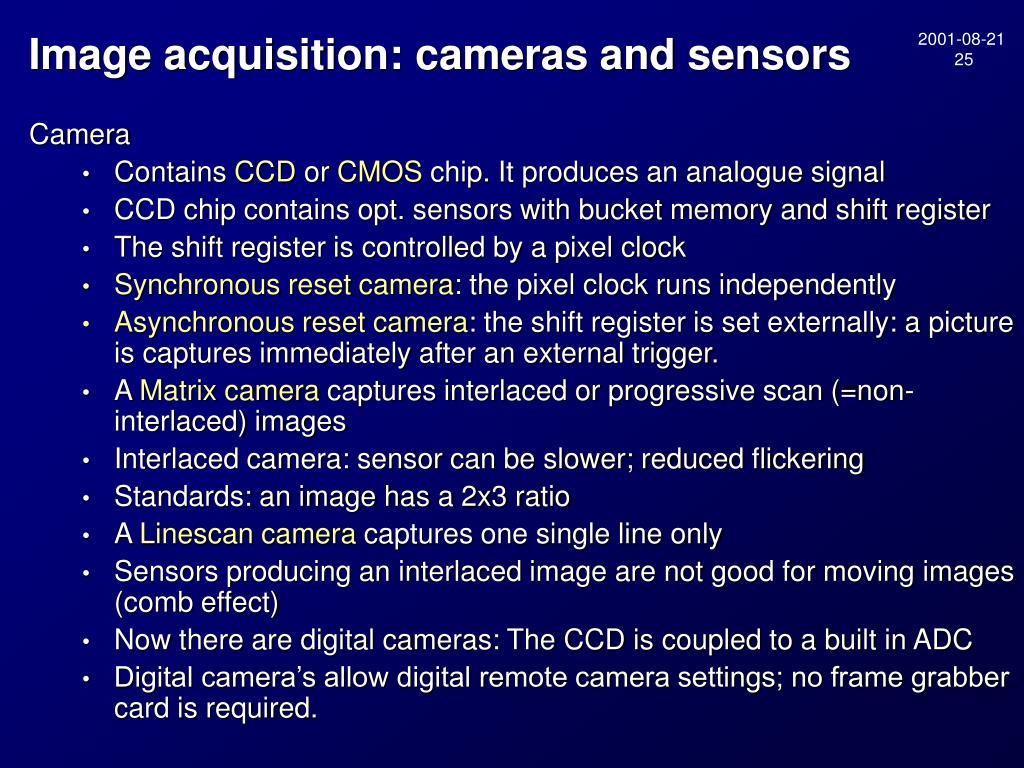

    Image acquisition: cameras and sensors

    Camera

    • Contains CCD or CMOS chip. It produces an analogue signal

    • CCD chip contains opt. sensors with bucket memory and shift register

    • The shift register is controlled by a pixel clock

    • Synchronous reset camera: the pixel clock runs independently

    • Asynchronous reset camera: the shift register is set externally: a picture is captures immediately after an external trigger.

    • A Matrix camera captures interlaced or progressive scan (=non-interlaced) images

    • Interlaced camera: sensor can be slower; reduced flickering

    • Standards: an image has a 2x3 ratio

    • A Linescan camera captures one single line only

    • Sensors producing an interlaced image are not good for moving images (comb effect)

    • Now there are digital cameras: The CCD is coupled to a built in ADC

    • Digital camera’s allow digital remote camera settings; no frame grabber card is required.


    Image acquisition cameras and sensors26 l.jpg
    Image acquisition: cameras and sensors

    CCD or CMOS

    • CCD chip bestaat uit lichtsensoren in de vorm van een emmertjes geheugen, en een shift register. Dit laatste wordt gecontroleerd door een pixel clock

    • Het licht wordt in lading omgezet. CCD chip bevat aan elkaar geschakelde capaciteiten. Ladingen worden door deze capaciteiten naar buiten geklokt. Is er 1 pixel stuk, dan is er geen informatie over de volledige lijn die erop volgt.

    • Een ADC kan niet op de CCD chip, dus steeds een analoge uitgang.

    • CMOS: elk beeldelement bevat 1 fotodiode en 3 transistoren: één voor lading-spanningsconversie, twee voor adressering. Bij CCD is de ganse cel beschikbaar voor belichting, dus 10x meer gevoelig dan CMOS. De donkerstroom is 10x hoger bij CMOS.

    • Elke lichtgevoelige cel is individueel uitleesbaar. Is er 1 pixel stuk, dan bijft de rest van de lijn intact.

    • Dynamisch bereik is hoger. Bij CCD is er bij overbelichting een “overlopen” van ladingen.

    • CMOS is sneller uit te lezen.


    Slide27 l.jpg

    CCD

    CMOS

    Image sensors - CCD versus CMOS


    Slide28 l.jpg

    Optics

    • Choices:

      • Magnification

      • Depth of field

      • Distance to object

      • Distance to image sensor

      • Light intensity

      • Optical resolution

      • Telecentric

    • Artefacts:

      • Added size

      • Added weight

      • Image distortion


    Image acquisition cameras and sensors29 l.jpg
    Image acquisition: cameras and sensors

    Lens

    • Choose a lens with right focus distance

    • A “telecentric objective” sees only the surface plane of a prismatic object

      Price

    • B/W Camera: 500 EUR

    • Frame Grabber card with software: 300 EUR
