Presentation Transcript


Arson awareness l.jpg

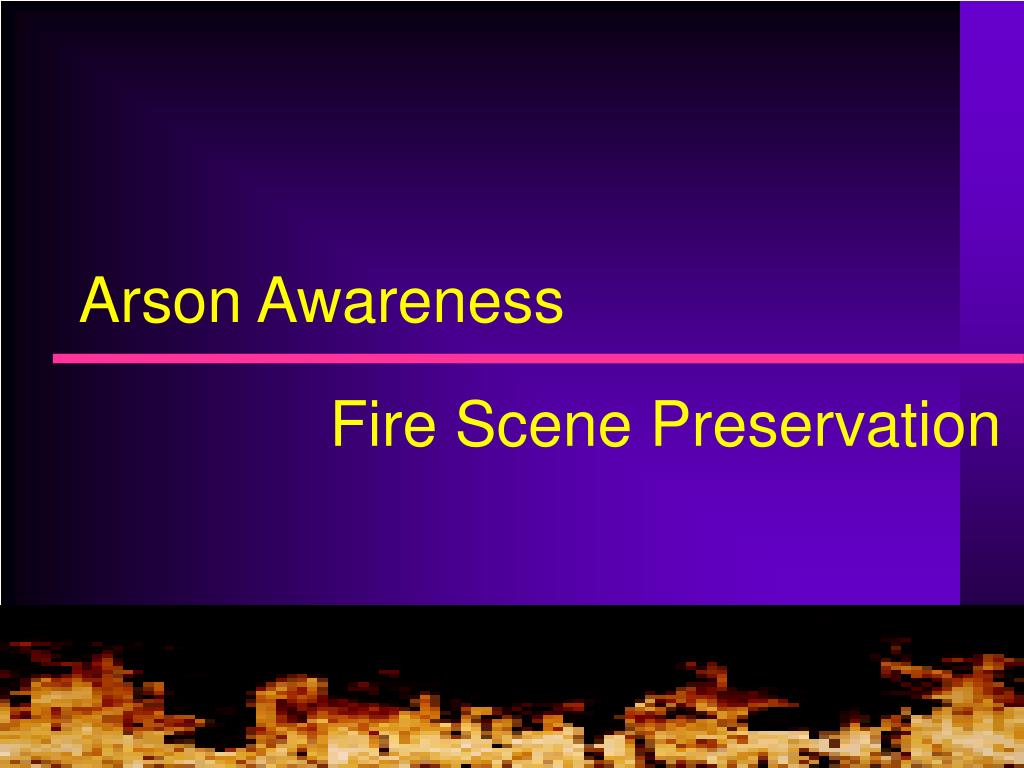

Arson Awareness

Fire Scene Preservation

City of Oswego Fire Department


Objectives l.jpg

Objectives

  • Identify and describe the importance of observations made prior to, during or after a fire

  • Describe the importance of preserving a fire scene for cause determination.

  • Describe methods of preserving fire scene evidence.

City of Oswego Fire Department


Fire behavior l.jpg

Fire Behavior

  • Fire behavior is predictable.

  • A normal fire follows a predictable path of fire progression.

    • Growth Stage

    • Free Burning

    • Decay

City of Oswego Fire Department


Fire behavior4 l.jpg

Fire Behavior

  • Normal Fire Patterns

    • One ignition source

    • Growth is upward and outward

    • ‘V’ patterns form

City of Oswego Fire Department


Fire behavior5 l.jpg

Fire Behavior

  • Abnormal fire growth or burn patterns may indicate non-accidental cause:

    • Unusually heavy destruction in area of origin.

    • Inverted ‘V’ patterns

    • Multiple areas of origin.

City of Oswego Fire Department


Observation skills l.jpg

Observation Skills

  • Cause determination is based on various types of evidence.

    • Burn patterns

    • Point of origin

    • Elimination of causes

    • Witness interviews

      • Occupants

      • Bystanders

      • Firefighters

City of Oswego Fire Department


Observation skills7 l.jpg

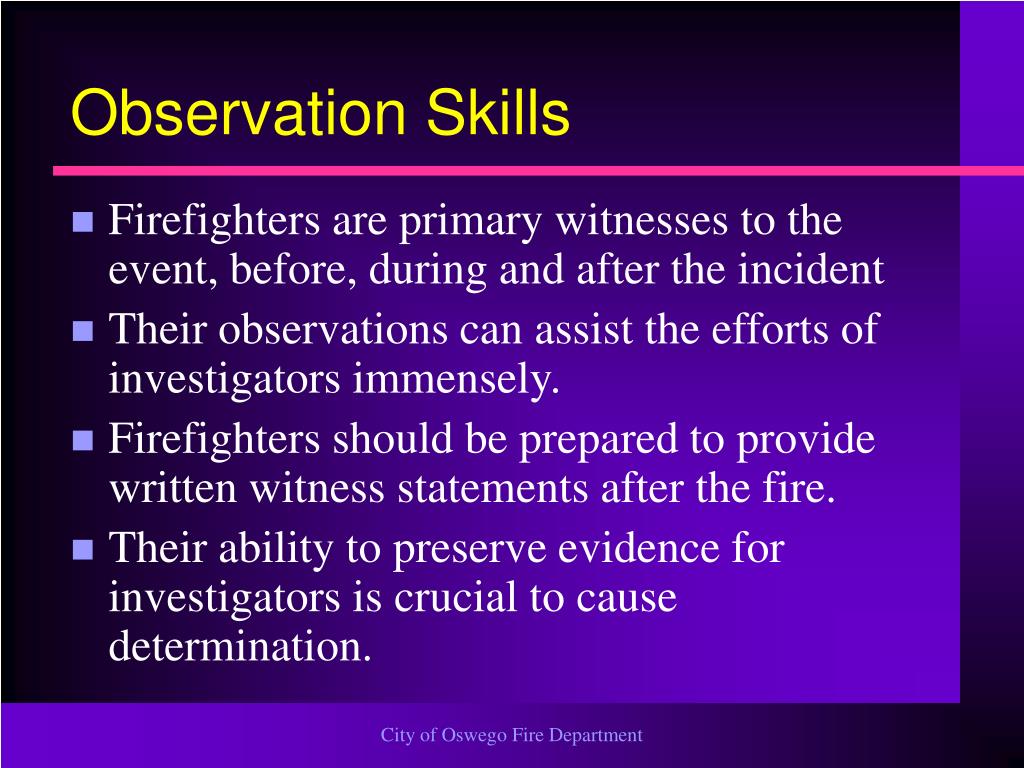

Observation Skills

  • Firefighters are primary witnesses to the event, before, during and after the incident

  • Their observations can assist the efforts of investigators immensely.

  • Firefighters should be prepared to provide written witness statements after the fire.

  • Their ability to preserve evidence for investigators is crucial to cause determination.

City of Oswego Fire Department


Environmental observations l.jpg

Environmental Observations

  • Wind direction and speed

  • Weather conditions

  • Neighborhood conditions

    • Real estate values

    • For sale signs

    • Problem areas

City of Oswego Fire Department


Observations enroute l.jpg

Observations Enroute

  • Note fire conditions reported from dispatch.

  • Vehicles or people leaving the scene

    • Normally people move toward the fire

  • Unusual circumstances or obstacles

    • Blocked access

City of Oswego Fire Department


Observations at the scene l.jpg

Observations at the Scene

  • Note time and fire conditions on arrival

  • Occupants clothing

  • Occupants behavior

    • Over curious

    • Indifferent

    • Too helpful

  • Bystanders (familiar faces?)

  • Location of fire

City of Oswego Fire Department


Observations at the scene11 l.jpg

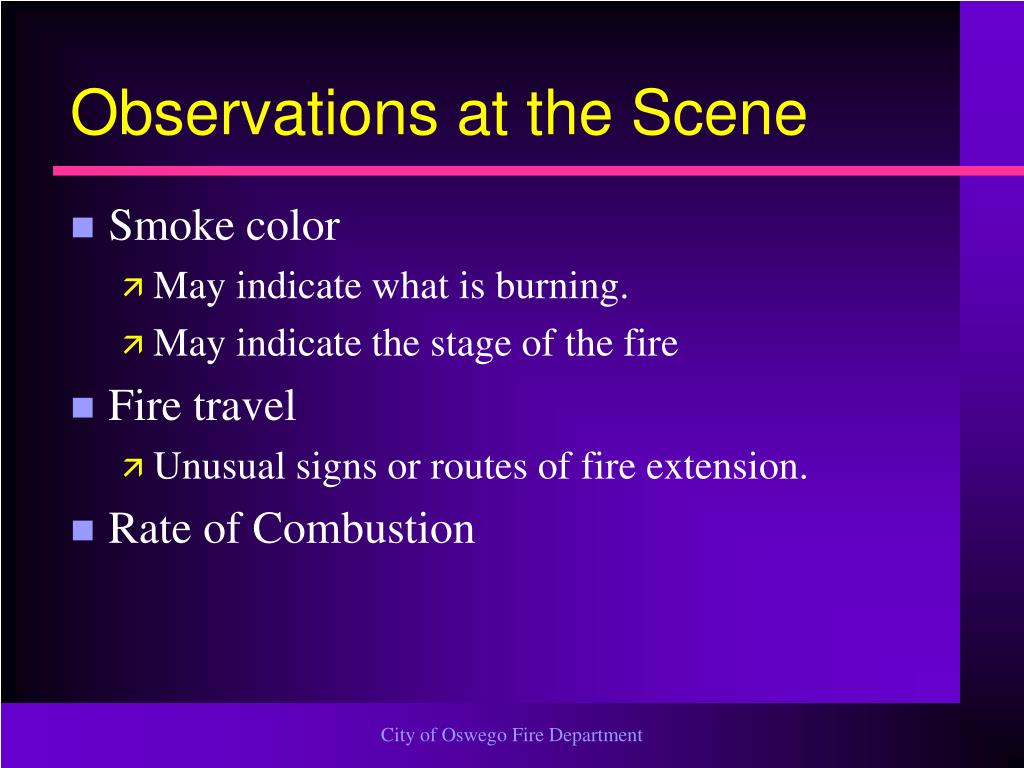

Observations at the Scene

  • Smoke color

    • May indicate what is burning.

    • May indicate the stage of the fire

  • Fire travel

    • Unusual signs or routes of fire extension.

  • Rate of Combustion

City of Oswego Fire Department


Observations at the scene12 l.jpg

Observations at the Scene

  • Exterior evidence

    • Tracks

    • Flammable liquid containers

    • Greatest damage may help locate area of origin

  • Area of origin

    • Follow damage from least burned area to the area of greatest damage.

    • Is ignition source readily identifiable?

City of Oswego Fire Department


Observations at the scene13 l.jpg

Observations at the Scene

  • Means of Entry

    • Were doors locked or unlocked?

    • Signs of force entry prior to arrival.

  • Condition of Windows

    • Open or closed.

    • Shades up or down

    • Broken

      • Is the glass inside or out

      • Smoke stained or not

City of Oswego Fire Department


Observations at the scene14 l.jpg

Observations at the Scene

  • Unusual odors

    • Petroleum or solvents

    • May prompt the taking of samples

    • Any containers on site, inside or out?

  • Difficulty of extinguishment

    • Did fire react normally when water was applied

    • Did fire reignite or flash back

City of Oswego Fire Department


Observations at the scene15 l.jpg

Observations at the Scene

  • Room Arrangement

    • Furnishings in place or absent

    • Correct items in the room

    • Do items appear to be substitutes?

    • Signs of burglary

    • Are valuables missing

  • What’s burning?

    • Can object be identified.

    • If not, eliminate other causes

City of Oswego Fire Department


Observations on arrival l.jpg

Observations on Arrival

  • Signs of fire spread by unusual methods:

    • Trailers

    • Out of place fuel sources.

    • Splash or pour patterns

    • Inverted ‘V’ or cone patterns

  • Did fire protection work?

    • Detection systems

    • Suppression systems

    • Did system control fire? If not, why not?

City of Oswego Fire Department


Observations at the scene17 l.jpg

Observations at the Scene

  • Incendiary devices:

    • Trailers

    • Fusees

    • Match books

    • Hypergolic chemical mixtures

City of Oswego Fire Department


Slide18 l.jpg

City of Oswego Fire Department


Observations on arrival19 l.jpg

Observations on Arrival

  • Depth of charring

    • Depends on type of wood and length of burn

    • May help indicate area of orign

    • May help determine length of time fire burned

  • Spalling

  • Annealing of springs

  • Beading on wiring

City of Oswego Fire Department


Observations on arrival20 l.jpg

Observations on Arrival

  • Burn Patterns:

    • ‘V’

    • Inverted ‘V’

    • Truncated cone

    • Hour glass

    • Lines of demarcation

    • Clean burn

    • Staining of glass

City of Oswego Fire Department


Slide21 l.jpg

‘V’ Patttern

City of Oswego Fire Department


Slide22 l.jpg

Origin and Cause often found at apex of ‘V’

City of Oswego Fire Department


Slide23 l.jpg

Area of Origin

City of Oswego Fire Department


Slide24 l.jpg

Point of Origin/

Source of Ignition

City of Oswego Fire Department


Slide25 l.jpg

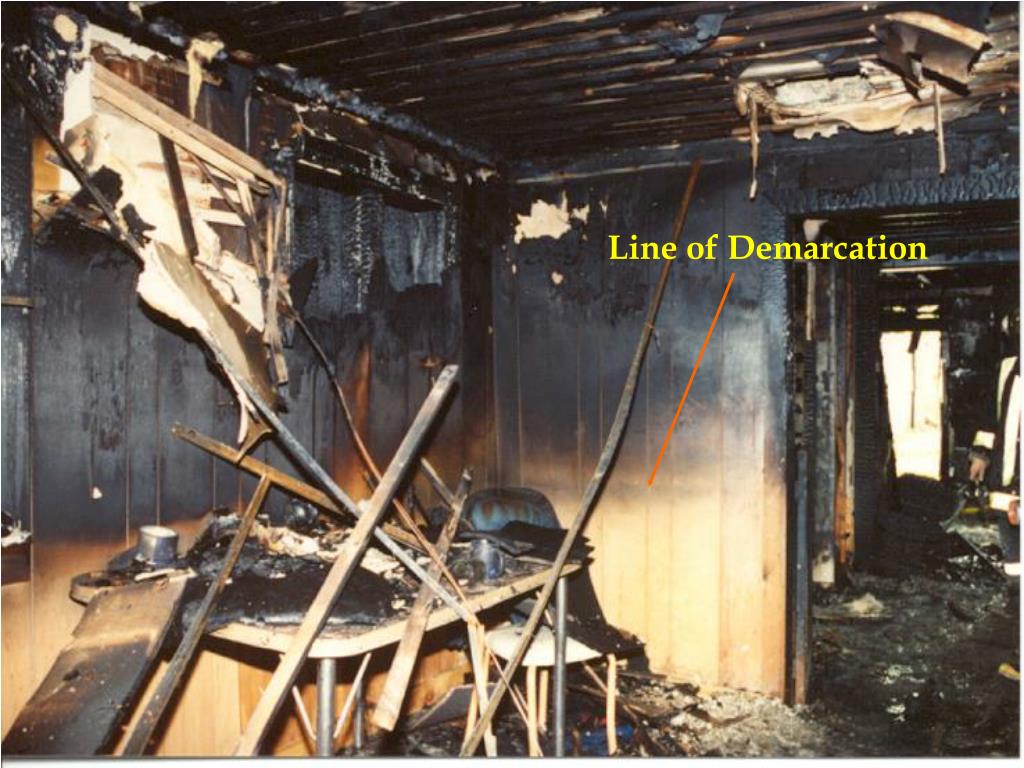

Line of Demarcation

City of Oswego Fire Department


Slide26 l.jpg

Clean Burn

City of Oswego Fire Department


Observations on arrival27 l.jpg

Observations on Arrival

  • Separate fires

    • May be caused by dropdown

    • May be evidence of set

  • Means of Entry

    • Doors locked or unlocked

    • Signs of forced entry prior to arrival

City of Oswego Fire Department


Slide28 l.jpg

City of Oswego Fire Department


Slide29 l.jpg

City of Oswego Fire Department


Observations on arrival30 l.jpg

Observations on Arrival

  • Indicators of the direction of fire spread

    • There may be more than one ‘V’ pattern

      • Look for lowest burn

    • Melted glass and light bulbs.

    • Different degrees of charring on furnishings

City of Oswego Fire Department


Preserving evidence l.jpg

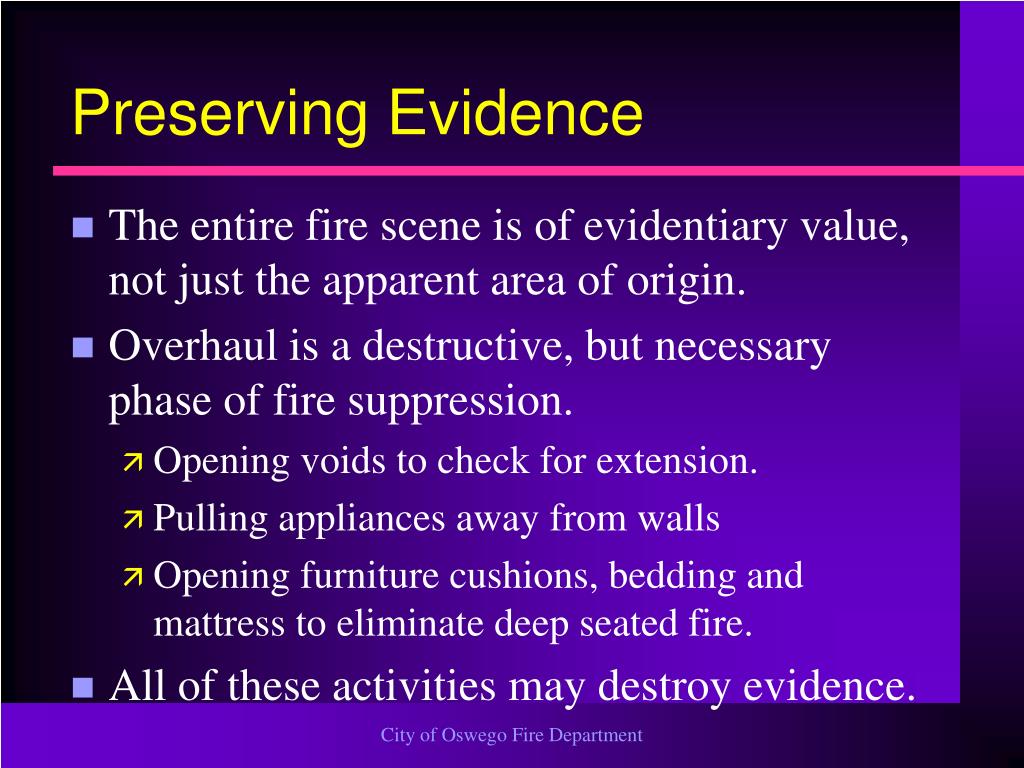

Preserving Evidence

  • The entire fire scene is of evidentiary value, not just the apparent area of origin.

  • Overhaul is a destructive, but necessary phase of fire suppression.

    • Opening voids to check for extension.

    • Pulling appliances away from walls

    • Opening furniture cushions, bedding and mattress to eliminate deep seated fire.

  • All of these activities may destroy evidence.

City of Oswego Fire Department


Preserving evidence32 l.jpg

Preserving Evidence

  • When conducting overhaul, be able to recognize evidence which may be of use to investigators.

  • Delay overhaul, if possible, until a fire investigator can assess the scene.

  • If overhaul cannot be delayed, attempt to keep damage to a minimum, and report observations to investigator ASAP.

City of Oswego Fire Department


Preserving evidence33 l.jpg

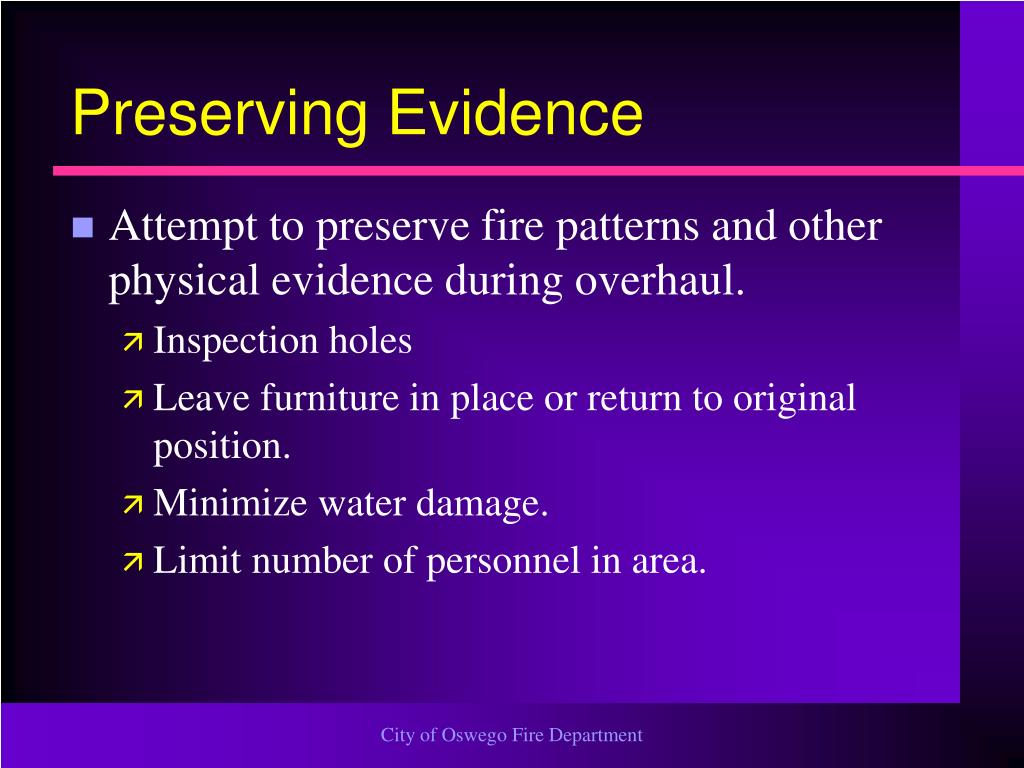

Preserving Evidence

  • Attempt to preserve fire patterns and other physical evidence during overhaul.

    • Inspection holes

    • Leave furniture in place or return to original position.

    • Minimize water damage.

    • Limit number of personnel in area.

City of Oswego Fire Department


Preserving evidence34 l.jpg

Preserving Evidence

  • NEVER move or dismantle evidence.

    • Destruction of context

    • Spoliation

City of Oswego Fire Department
