Arrc collision avoidance system

ARRC Collision Avoidance System

2005 ASME/IEEE Joint Rail Conference

March 16-18, 2005

Presented by

Chinnarao Mokkapati

Robert D. Pascoe

Union Switch & Signal Inc.


Arrc collision avoidance system

Alaska Rail Road Facts (2003 Data)

  • Employees

    • 722 Year-round

    • 10.8 average years of service

    • 43.2 average age

  • Operating Statistics

    • 446,162 Passenger ridership

    • 8,324,395 Freight tonnage

    • 102,292 Revenue car loads

  • Trains per day

    • 33 Freights

    • 14 Passenger - Summer

    • 1 Passenger - Winter

  • Operating Data

    • Miles of track

      • 466 main line

      • 59 branch line

      • 86 yards/sidings

      • 611 Total

  • Rolling Stock

    • 1,625 Freight cars

    • 42 Passenger cars

    • 60 Locomotives

  • Train Control

    • ~500 miles of DTC

    • ~30 miles of CTC


Arrc cas objectives

ARRC CAS Objectives

  • PREVENT TRAIN TO TRAIN COLLISIONS BY ENFORCEMENT OF AUTHORITY LIMITS

  • ENFORCE SPEED RESTRICTIONS

  • PROVIDE PROTECTION FOR ROADWAY WORKERS AND EQUIPMENT

  • IMPROVE EFFICIENCY OF OPERATIONS

  • INCREASE CAPACITY


Fra requirements

FRA Requirements

  • Generation of safe mandatory directives

  • Enforcement of authority limits

  • Enforcement of speed restrictions

  • Protection of Maintenance-of-Way workers and equipment

  • Rule 236 Subpart H compliance required

  • Performance Std: New system must be as safe or safer than the system being replaced

    • Operating conditions, parameters, constraints must be defined

    • Structured qualitative and quantitative assessment of safety (Base Case and New Case) required

      • Product Safety Plan or Safety Case


Arrc collision avoidance system

Some Definitions

CTC and DTC Operation


Arrc collision avoidance system

Some Definitions

Track Bulletins Used in System


Arrc collision avoidance system

Collision Avoidance System


Arrc collision avoidance system

Block 5

Block 9

(( ))

Existing

Comms

Block 6

Block 3

Block 7

Block 11

OSS

Dispatcher

Work

Stations

Servers

CAD

Vital

Independent

Check of

LOA, Bulletins

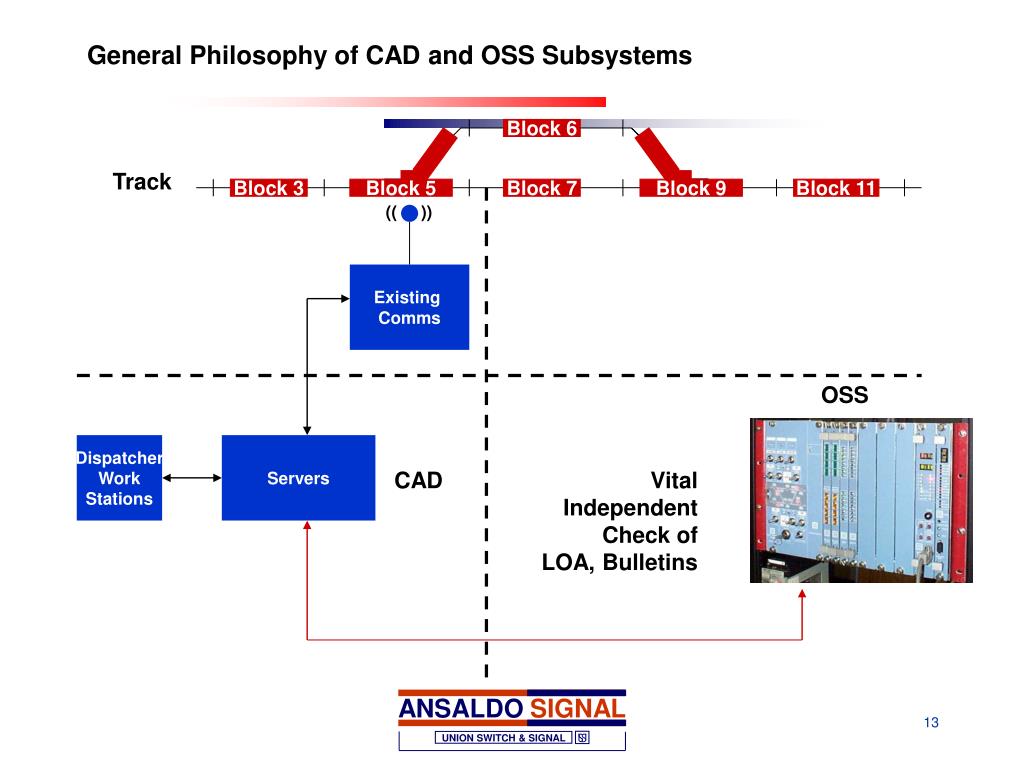

General Philosophy of CAD and OSS Subsystems

Track


Arrc collision avoidance system

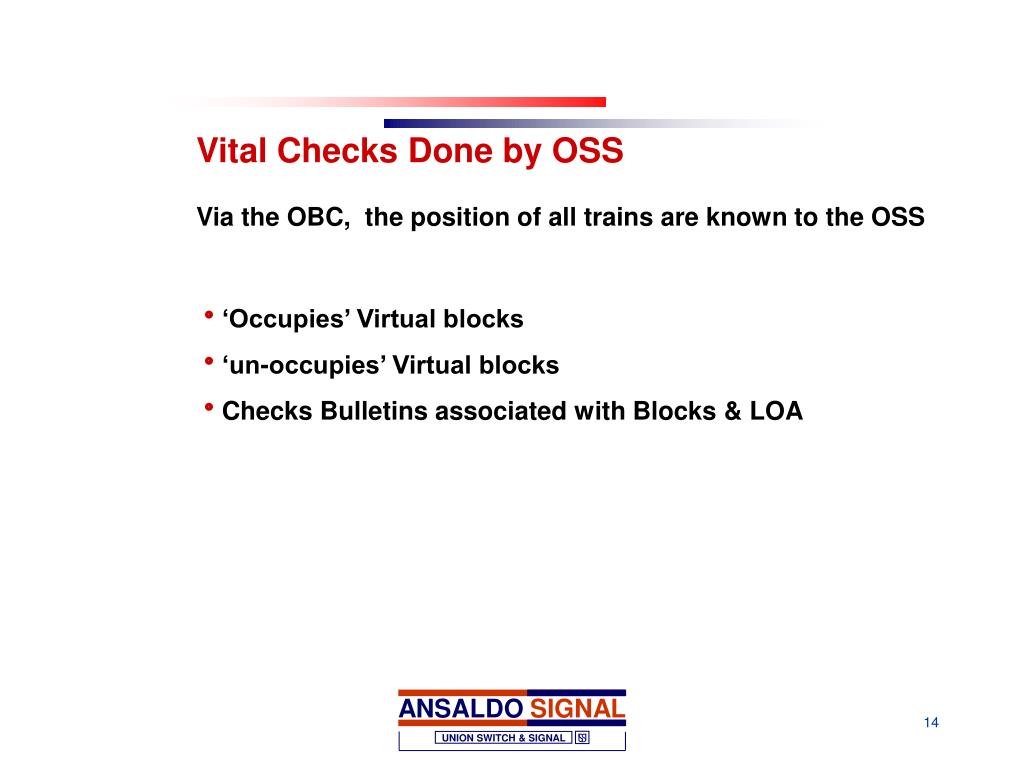

  • Vital Checks Done by OSS

  • Via the OBC, the position of all trains are known to the OSS

  • ‘Occupies’ Virtual blocks

  • ‘un-occupies’ Virtual blocks

  • Checks Bulletins associated with Blocks & LOA


Arrc collision avoidance system

Network

Interface

Adapter

CAD Subsystem

Ethernet Switch

Ethernet

RS423

Microlok II

Microlok II

RS423

HUB

RS423

RS423

RS423

Microlok II

Microlok II

OSS Hub Physical Architecture


Arrc collision avoidance system

Block 6

Block 1

Block 3

Block 5

Block 7

Block 9

Block 11

Block 13

S#7

S#5

Software in MicroLok II Units

North

  • Executive Software

  • Operating System

  • Application Processing

  • Serial Communications Control

  • Safety Diagnostics

  • User Interfaces

  • Event Logging

  • Application Data Tables

  • Track Sections defined as Virtual Blocks

  • Switch locations

  • Other identifiable points


Arrc collision avoidance system

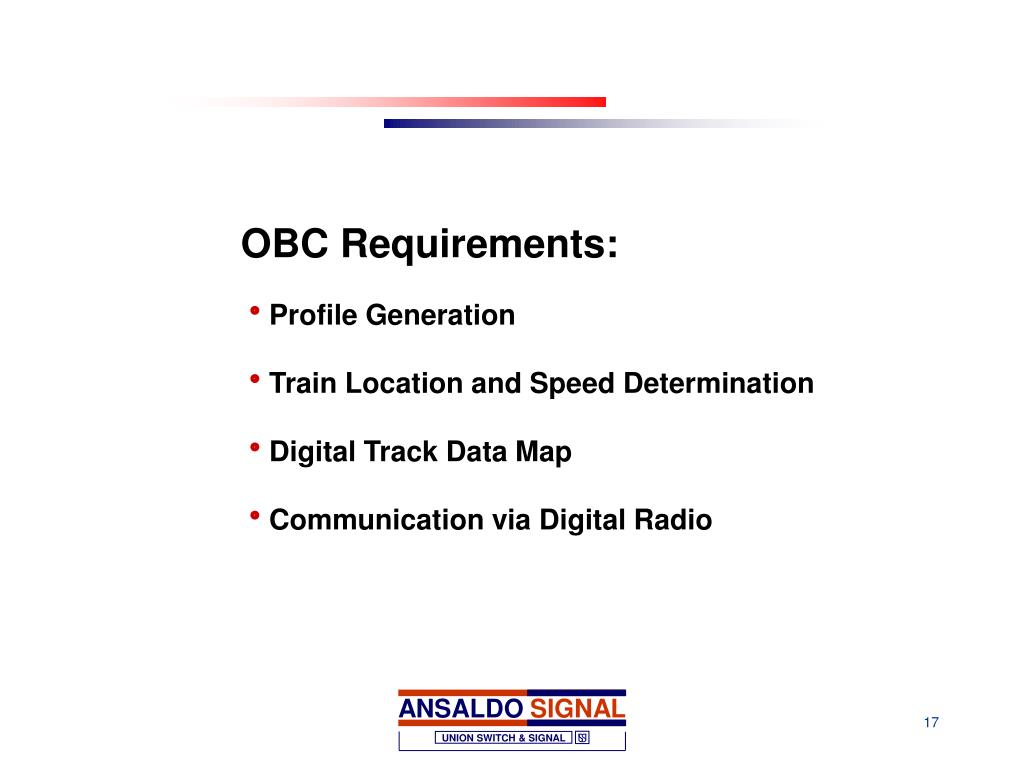

  • OBC Requirements:

  • Profile Generation

  • Train Location and Speed Determination

  • Digital Track Data Map

  • Communication via Digital Radio


Arrc collision avoidance system

LOCATION AND SPEED DETERMINATION

  • DGPS

  • Accelerometers

  • Tachometers

  • Digital Map

The result is that the OBC vitally

determines its location on the rails

and transmits its location to Central


Arrc collision avoidance system

New On Board Computer (OBC) - ATP


Arrc collision avoidance system

Existing Network Communication System


Arrc collision avoidance system

Communication Backbone


Arrc collision avoidance system

MONITORING DEVICES

Rail Integrity

Switch Position

Signal Aspect in CTC


Arrc collision avoidance system

Short Range

Data Radio

Locomotive

Broken rail

Device

Short Range

Data Radio

N

R

Locomotive

Device

Short Range

Data Radio

Aspect

Locomotive

Device

  • The Locomotive’s ATP Interrogates Three Wayside Devices

  • using a short range data radio:

  • A Rail Integrity Device

    • Broken Rail Detection

    • MicroTrax

  • A Switch Position Device

    • Normal or Reverse

  • A Wayside Signal Device

    • Aspect


  • Cas safety assurance

    CAS Safety Assurance

    • Safety resides in OSS and OBC, though CAD performs some safety-related functions

    • OSS is implemented on US&S MICROLOK II Platform

    • OBC implemented on US&S MICROCAB Platform

    • These platforms use a combination of Inherent Fail-Safety and Diversity & Self-Checking safety architectures

    • Certified by independent safety assessors

    • Extensive service history


    Cas safety assurance1

    CAS Safety Assurance

    • Compliance with FRA Rule 236 Subpart H

    • Risk analysis of CAD-only DTC/CTC Operation (Base Case)

    • Derive safety requirements for CAS

    • V&V of CAS design and operation

    • Risk analysis of CAS (CAS Case)

    • Risk assessment

      • Show CAS provides higher safety than CAD-only DTC/CTC operation


    Risk analysis

    Risk Analysis

    • Conduct Hazard Analyses

      • PHA

      • O&SHASSHA

    • Determine MTTHE using FFTA


    Derive safety requirements for cas

    Derive safety requirements for CAS

    • Potential hazards in Base Case

    • FFTA of CAS elements

    • CAS subsystem safety requirements


    V v of cas design and operation

    V&V of CAS design and operation

    • Normal operation

    • Systematic faults

    • Random hardware faults

    • Common Mode faults

    • External influences


    Risk analysis of cas cas case

    Risk analysis of CAS (CAS Case)

    • Conduct Hazard Analyses

      • PHA

      • O&SHASSHA

    • Determine MTTHE using FFTA


    Risk assessment

    Risk Assessment

    • Show CAS provides higher safety than CAD-only DTC/CTC operation

    • Submit PSP

      • 20 elements required per FRA Rule 236.907


    Project timeline

    4/16/2005

    -

    10/16/2005

    4/15/2006

    -

    10/15/2006

    2005Peak Season

    2006 Peak Season

    2005

    2006

    2007

    11 / 2005

    CAD SAT

    Complete

    06 / 2006

    Office Safety and OBC FAT

    4Q 2004

    System

    Definition

    Complete

    10 / 2006

    Office Safety and OBC

    SAT

    1 / 2006

    CAD Cutover

    complete

    2 / 2007

    Revenue Service

    Project Timeline


    Conclusions

    Conclusions

    • CAS is a practical, relatively inexpensive PTC System

    • Scalable for larger systems

    • Uses proven safety architectures

    • Credible, straight-forward safety proof
