Presentation Transcript
To contrast or not to contrast l.jpg

To Contrast or Not To Contrast

Cole Taylor, MD, HOIII


Introduction l.jpg
Introduction

  • Electromagnetic Radiation

    • Visible light, X-rays, radio waves in magnetic resonance imaging

  • Ultrasound

    • Pressure Waves

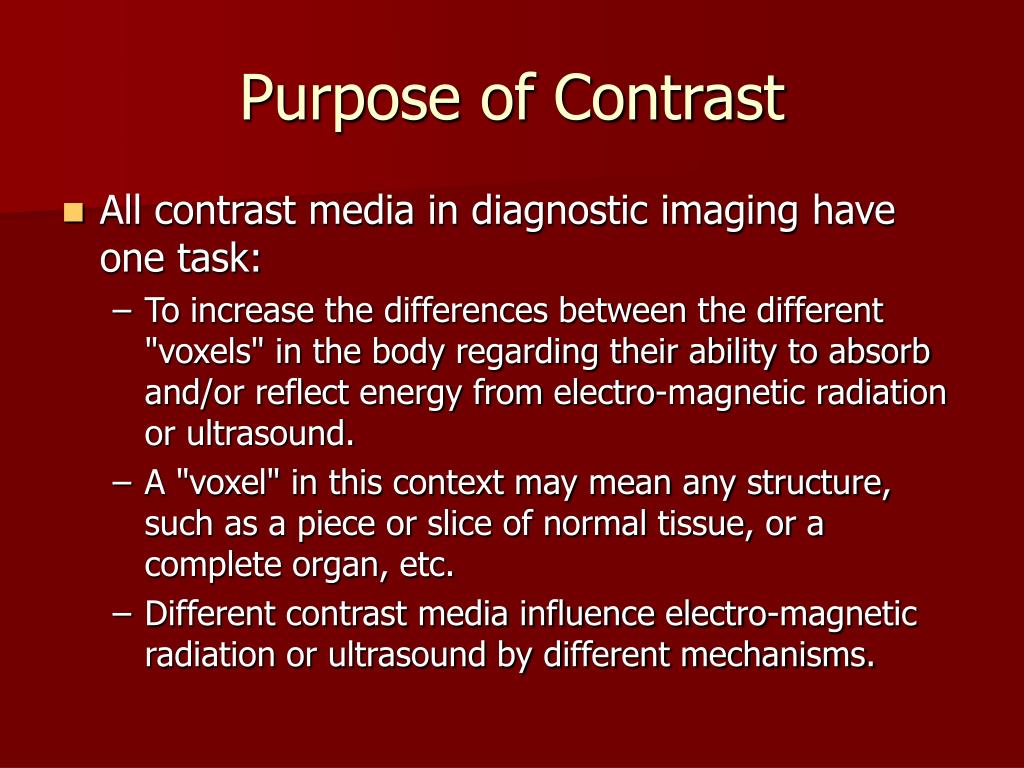

Purpose of contrast l.jpg
Purpose of Contrast

  • All contrast media in diagnostic imaging have one task:

    • To increase the differences between the different "voxels" in the body regarding their ability to absorb and/or reflect energy from electro-magnetic radiation or ultrasound.

    • A "voxel" in this context may mean any structure, such as a piece or slice of normal tissue, or a complete organ, etc.

    • Different contrast media influence electro-magnetic radiation or ultrasound by different mechanisms.



Contrast media l.jpg
Contrast Media

  • Negative Contrast Media

    • Air, CO2, gases

    • Attenuates X-Rays less than the soft tissues of the body (contain less per unit volume)


Positive contrast media l.jpg
Positive Contrast Media

  • Increased ability to attenuate X-Rays

  • Ex: Iodine and barium have higher atomic numbers than those elements of the soft tissue (hydrogen, carbon, nitrogen, oxygen)


More on contrast l.jpg
More on Contrast

  • Barium Sulfate

    • Large insoluble particles

    • Examination of upper and lower GI

    • Better coating properties than iodinated contrast

    • May cause chemical peritonitis if it escapes gut (DON’T USE WITH PERF)

    • Also may cause pulmonary edema if there is risk of aspiration


Use of contrast with gi imaging l.jpg
Use of Contrast With GI Imaging

  • Barium sulfate, the most common oral contrast agent, resembles a milk shake in appearance and consistency. The compound, available in various flavors, is prepared by mixing with water.

  • Gastrografin is a yellowish, water-based drink mixed with iodine. It can have a bitter taste.


Gastrografin l.jpg
Gastrografin

  • Use with Small Bowel Obstruction

    • Six randomized studies dealing with the therapeutic role of gastrografin were included in the review, water-soluble contrast did not reduce the need for surgical intervention

    • Meta-analysis of four of the included studies showed that water-soluble contrast did reduce hospital stay compared with placebo


Slide10 l.jpg

  • Iodine Contrast

    • Forms soluble compounds with low toxicity

    • The iodine density blocks the passage of the x-ray photons, causing the contrast to appear denser (white) on the CT images

  • Contrast media can be classified into ionic and nonionic media.


Mri contrast l.jpg
MRI Contrast

  • Since MRI is based on magnetization, not ionizing radiation, the intravenous contrast material must have magnetic properties different from that of the surrounding tissue. The most common agent used is gadolinium

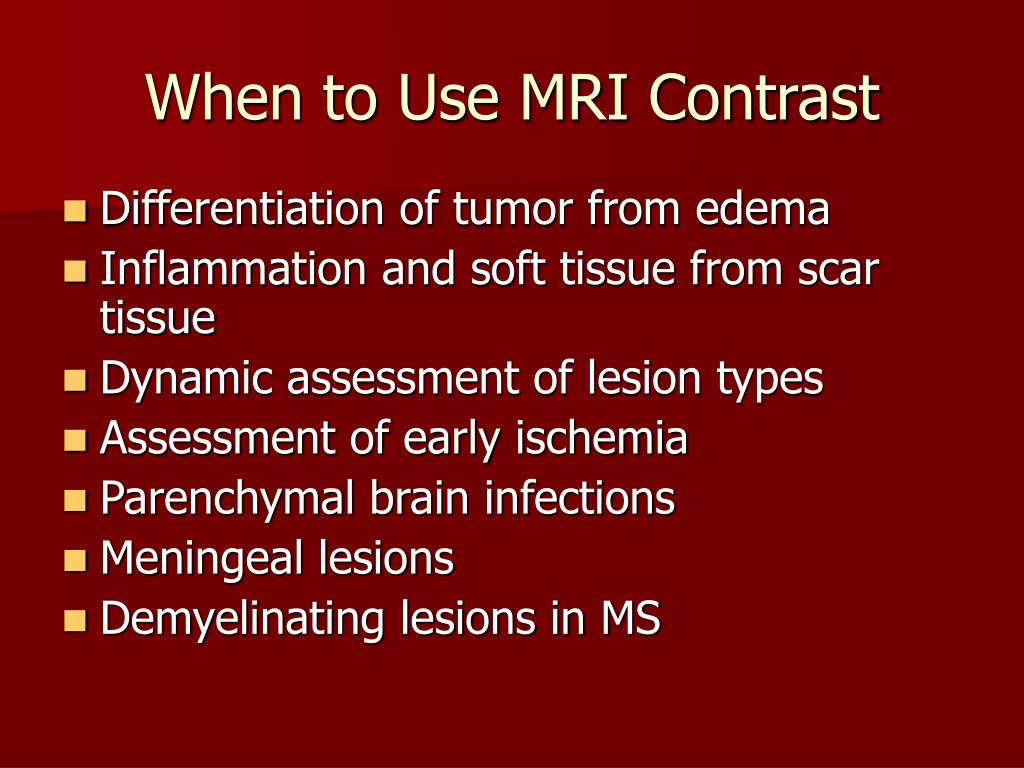

When to use mri contrast l.jpg
When to Use MRI Contrast

  • Differentiation of tumor from edema

  • Inflammation and soft tissue from scar tissue

  • Dynamic assessment of lesion types

  • Assessment of early ischemia

  • Parenchymal brain infections

  • Meningeal lesions

  • Demyelinating lesions in MS


Downside to gadolinium l.jpg
Downside to Gadolinium

  • 36 of 21,000 patients experienced significant adverse reactions

  • American Journal of Roentgenology, Vol 167, 847-849

  • However…lots of information on law suits is out there currently, affecting current use of gadolinium at UNMC.

  • 2006 – FDA releases warning - 25 cases of NSF/NFD in patients with kidney failure (Nephrogenic Systemic Fibrosis)


Time for the guidelines l.jpg
Time for the Guidelines

  • CT Head – almost always without contrast unless evaluating tumor (c and s)

  • CT Sinus – without

  • CT Maxillofacial – without

  • CT Orbits/Sella/Ear – without except for cellulitis, tumor, neuroma, cholesteatoma


Guidelines l.jpg
Guidelines

  • CT Abdomen – oral contrast for all indications except Kidney Stones, IV contrast when indicated below

    • Kidney Stones – without

    • Pancreas, Liver, Renal Mass, Adrenal Mass – With and Without

    • Abdominal Pain – with only

    • Appendicitis – with only

    • In general, order with pelvis as well


Guidelines16 l.jpg
Guidelines

  • CT Pelvis

    • Oral contrast for all indications except kidney stones

    • Fracture – without contrast


Guidelines17 l.jpg
Guidelines

  • CT Chest

    • Generally with contrast (PE, SOB, Pain, PNA, Tumor, Trauma, Pneumo)

    • COPD – without

    • Pulmonary Nodules (follow-up) – without

    • Interstitial Lung Disease – without

    • Bronchiectasis - without

  • CTA Chest – only done with contrast


Guidelines18 l.jpg
Guidelines

  • CT C-Spine, T-Spine, L-Spine

    • Generally done without (trauma, pain, fracture, weakness)

    • Tumor – with

    • Infection/Abscess - with

  • CT Extremity

    • Generally done without

    • Tumor/Infection/Abscess - with


Mri guidelines l.jpg
MRI Guidelines

  • MRI Brain

    • In general always with and without (HA, Trauma, MS changes, Dizzy, CVA, Weakness, Memory Loss)

  • MRI Sinus – with and without (tumor)

  • MRI Orbit/Sella/Ear – with and without


Guidelines20 l.jpg
Guidelines

  • MRI Abdomen (Including MRCP)

    • With and Without

    • Exception – Fetal MRI

  • MRI Pelvis

    • Bony exams – without

    • Soft tissue exams – with and without

  • MRI Cardiac – with and without

  • MRA Chest – with only


Guidelines21 l.jpg
Guidelines

  • MRI C, T, L Spine

    • Generally done without

    • Tumor, Infection/Abscess, Metastases, CA

      • With and Without

  • MRI Extremity

    • Generally done without

    • Tumor, Infection/Abscess, CA – with/without

    • To follow arthrogram - with


Conslusions l.jpg
Conslusions

  • Tumors always need contrast

  • MRI generally need contrast unless only evaluating bony structures

  • CT – tumor and infection always need contrast


Renal prophylaxis to prevent contrast induced nephropathy l.jpg
Renal Prophylaxis to Prevent Contrast Induced Nephropathy

  • Primary benefit in patients with creatinine > 1.5 or GFR < 60, particularly in diabetic patients

  • Optimal therapy remains uncertain

  • If possible, use MRI without gadolinium, CT without contrast, or Ultrasound

  • Avoid volume depletion and NSAIDs


Renal prophylaxis cont l.jpg
Renal Prophylaxis cont.

  • Isotonic IV fluids prior to and for several hours following administration of contrast

  • Uptodate current recs

    • Bolus of 3 mL/kg of isotonic bicarbonate for one hour prior to the procedure

    • Change to rate of 1 mL/kg per hour for six hours after the procedure

    • Solution can be prepared with 3 amps HCO3 (150 mL) in 850mL D5W
