San Jose State UniversityElectrical Engineering

EE-166

4 Bit Serial to Parallel Converter

Prof. David Parent, PhD

Members: Quang Ly

Derek Kwong

Hector Vidal


San jose state university electrical engineering2 l.jpg

San Jose State UniversityElectrical Engineering

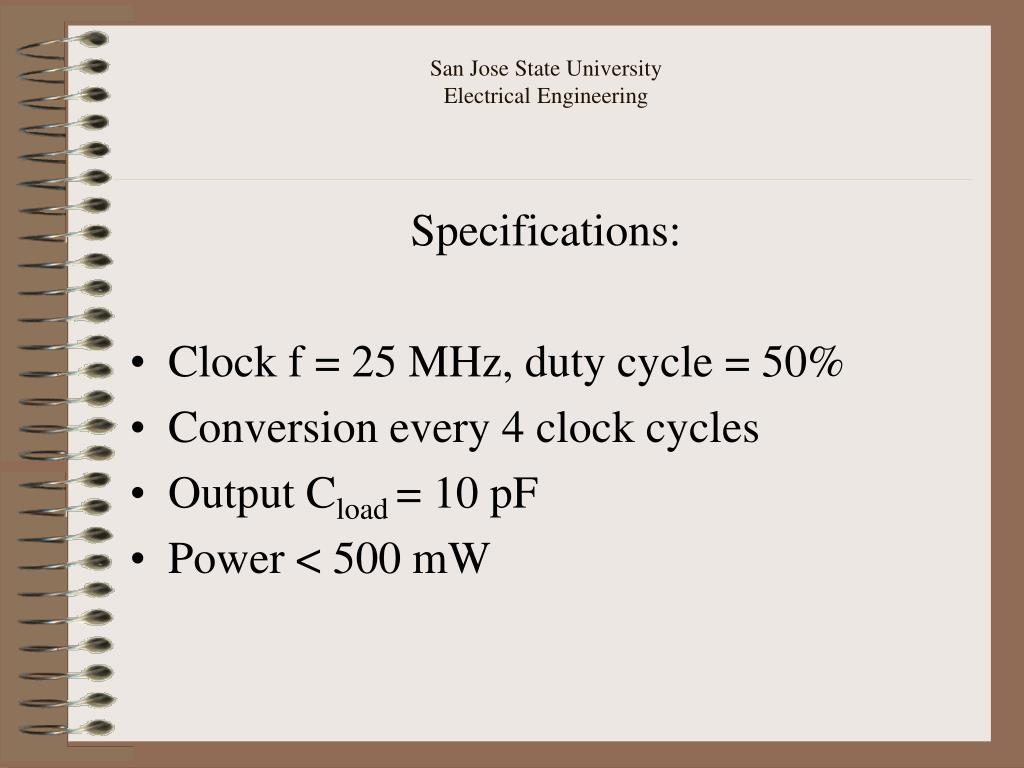

Specifications:

  • Clock f = 25 MHz, duty cycle = 50%

  • Conversion every 4 clock cycles

  • Output Cload = 10 pF

  • Power < 500 mW


San jose state university electrical engineering3 l.jpg

San Jose State UniversityElectrical Engineering

Block Diagram:


San jose state university electrical engineering d flip flop with reset schematic l.jpg

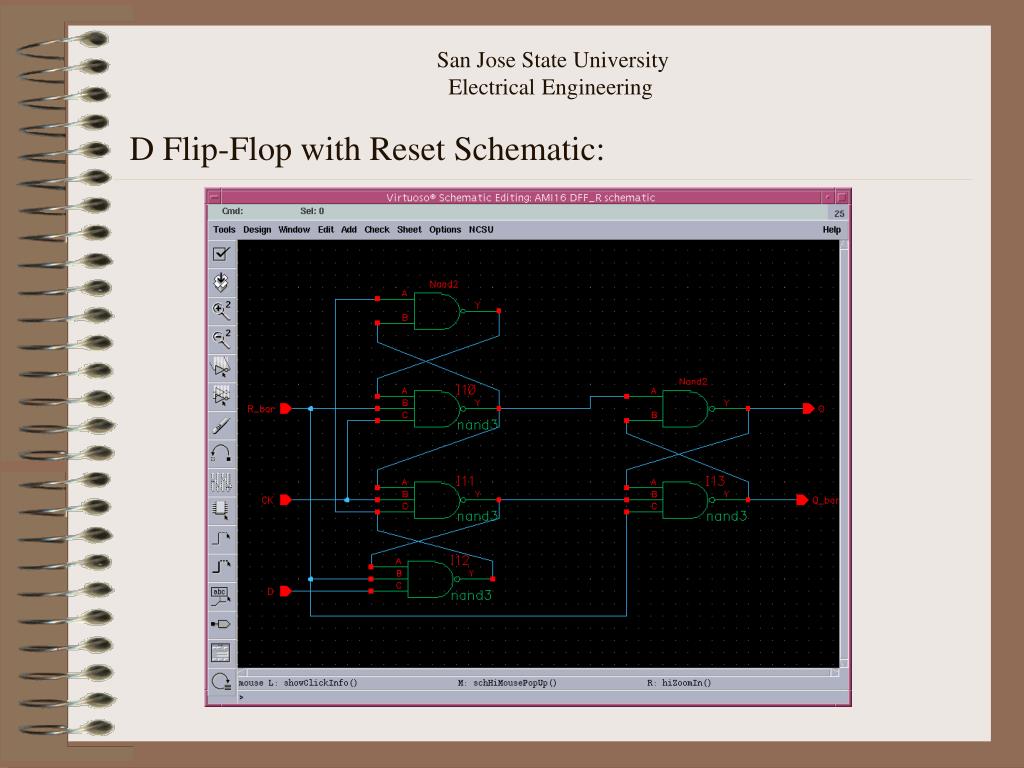

San Jose State University Electrical EngineeringD Flip-Flop with Reset Schematic:


San jose state university electrical engineering counter schematic l.jpg

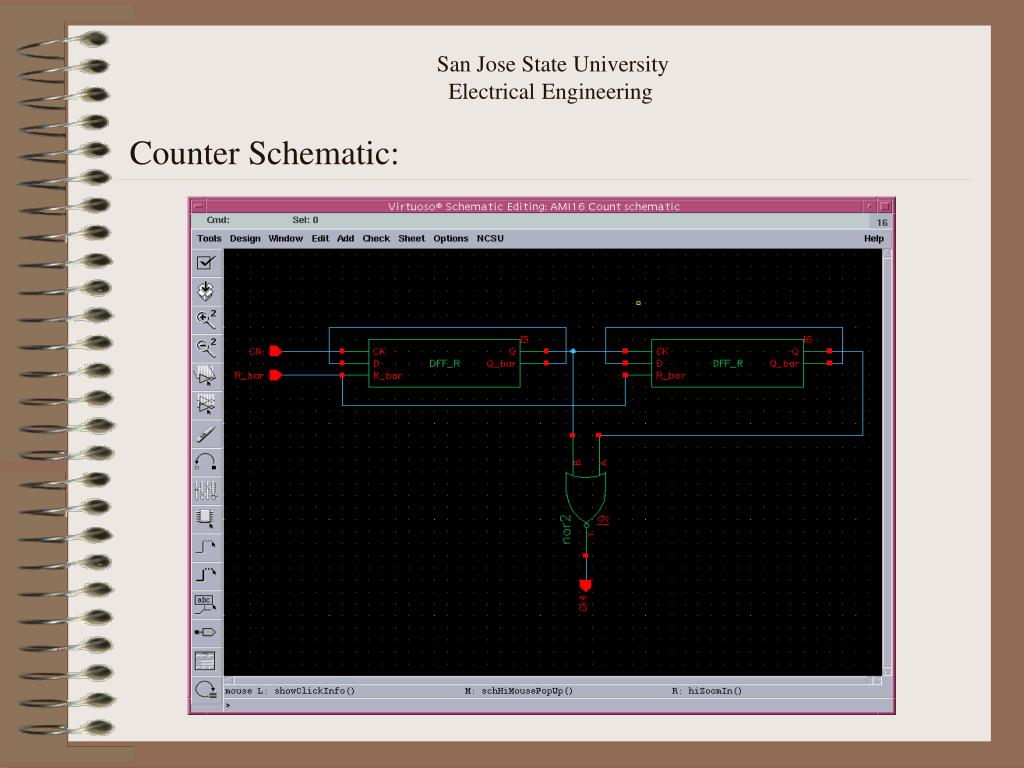

San Jose State University Electrical EngineeringCounter Schematic:


San jose state university electrical engineering serial to parallel schematic l.jpg

San Jose State University Electrical EngineeringSerial to Parallel Schematic:


San jose state university electrical engineering output buffer schematic l.jpg

San Jose State University Electrical EngineeringOutput Buffer Schematic:


San jose state university electrical engineering 4bit serial to parallel test bench schematic l.jpg

San Jose State University Electrical Engineering4bit Serial to Parallel Test Bench Schematic:


San jose state university electrical engineering simulation waveforms l.jpg

San Jose State University Electrical EngineeringSimulation waveforms:


San jose state university electrical engineering simulation waveforms10 l.jpg

San Jose State University Electrical EngineeringSimulation waveforms:


San jose state university electrical engineering simulation waveforms reset l.jpg

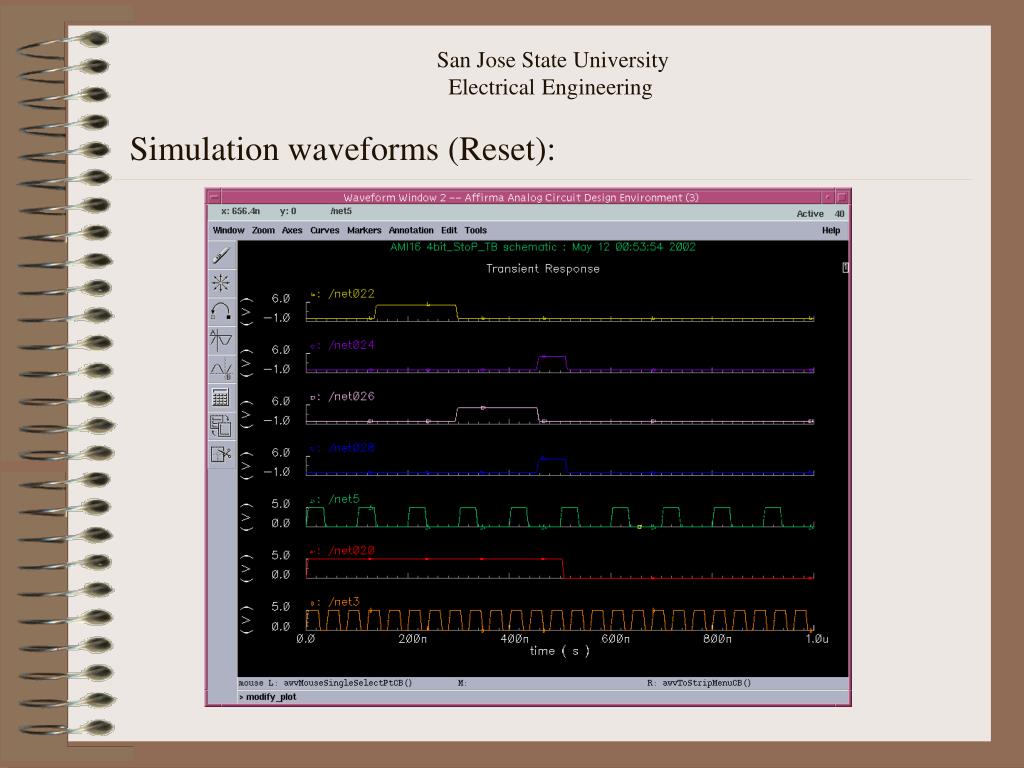

San Jose State University Electrical EngineeringSimulation waveforms (Reset):


San jose state university electrical engineering12 l.jpg

San Jose State University Electrical Engineering

Super Buffer Design:

  • Stage 1: Wp=250.4 mm, Wn= 90 mm

  • Stage 2: Wp= 89.2 mm, Wn= 32 mm

  • Stage 3: Wp= 32 mm, Wn= 11.6 mm

  • Stage 4: Wp= 11.6 mm, Wn= 4 mm

  • a= 2.88


San jose state university electrical engineering 4bit serial to parallel circuit layout l.jpg

San Jose State University Electrical Engineering4bit Serial to Parallel Circuit Layout:


San jose state university electrical engineering counter layout l.jpg

San Jose State University Electrical Engineering Counter Layout:


San jose state university electrical engineering d flip flop layout l.jpg

San Jose State University Electrical Engineering D Flip-Flop Layout:


San jose state university electrical engineering output buffer layout l.jpg

San Jose State University Electrical Engineering Output Buffer Layout:


San jose state university electrical engineering serial to parallel layout l.jpg

San Jose State University Electrical Engineering Serial to Parallel Layout:


San jose state university electrical engineering final product l.jpg

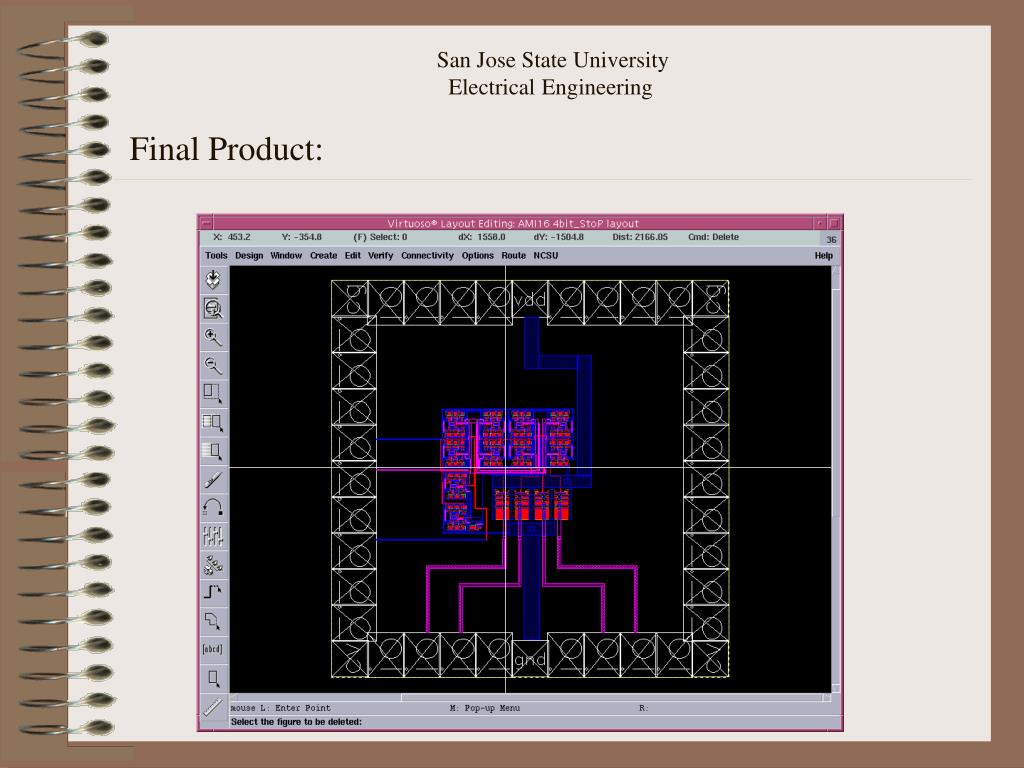

San Jose State University Electrical EngineeringFinal Product:


San jose state university electrical engineering super buffer layout l.jpg

San Jose State University Electrical Engineering Super Buffer Layout:


San jose state university electrical engineering20 l.jpg

San Jose State UniversityElectrical Engineering

Test results:

  • Rise time (tr) = 3.9 ns

  • Fall time (tf) = 4.05 ns

  • Total area = 22.5 mil2

  • Power < 350 mW

  • Peak current = 16.6 mA
