Newton’s Laws of Motion

  • We begin our discussion of dynamics (study of how forces produce motion in objects)

  • We’ll use kinematic quantities (displacement, velocity, acceleration) along with force & mass to analyze principles of dynamics

    • What is the relationship between motion and the forces that cause the motion?

  • Newton’s Laws of Motion (3 of them) describe the behavior of dynamical motion

    • Form the foundation of classical mechanics (or Newtonian mechanics) – the physics of “everyday life”

    • They are deterministic in nature


Newton s laws of motion1

Newton’s Laws of Motion

  • Concept of force: Push or pull experienced as a result of interaction between objects or between object and its environment

    • Contact forces (involves direct contact between objects)

    • Long-range forces (forces that act at a distance, e.g. gravity)

    • Weight (force of gravitational attraction that Earth exerts on an object)

  • Force is a vector quantity (has magnitude & direction)

  • SI unit of force: the Newton (N)

    • 1 N = 1 kgm/s2

  • Diagrams of forces acting on bodies: free-body diagrams

 Draw all the external forces acting on the hot dog cart


Newton s laws of motion2

“Normal” force ( to surface of contact)

Pulling force

Weight of cart

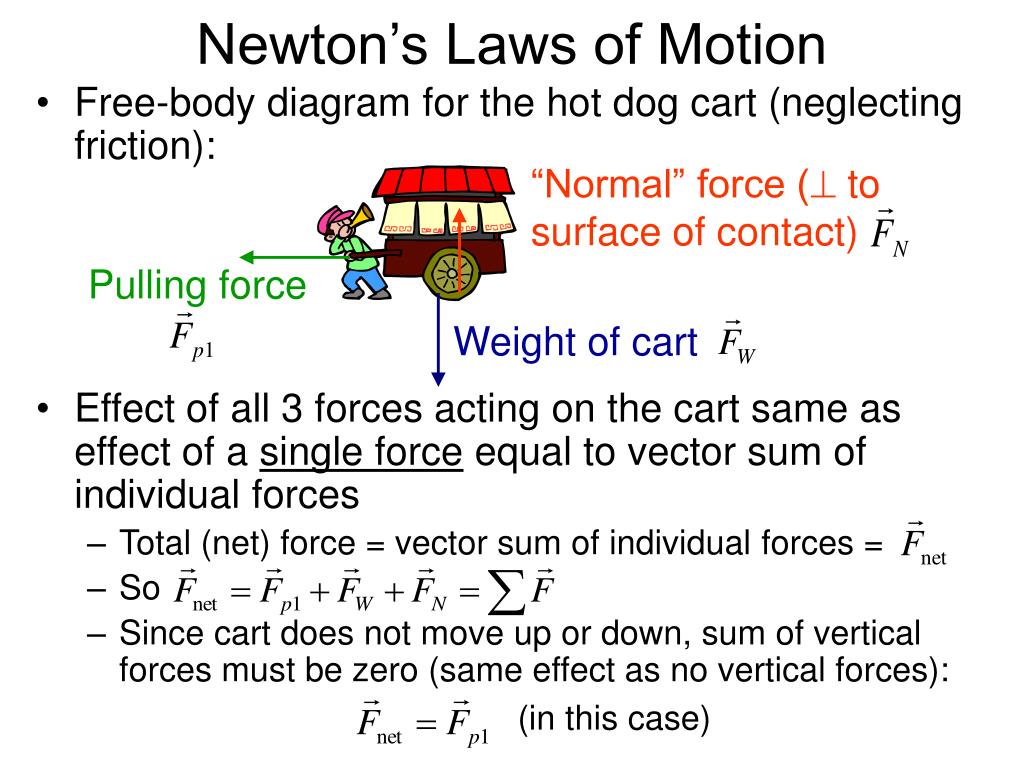

Newton’s Laws of Motion

  • Free-body diagram for the hot dog cart (neglecting friction):

  • Effect of all 3 forces acting on the cart same as effect of a single force equal to vector sum of individual forces

    • Total (net) force = vector sum of individual forces =

    • So

    • Since cart does not move up or down, sum of vertical forces must be zero (same effect as no vertical forces):

(in this case)


Newton s laws of motion3

y

Fp2y

x

Fp2x

Newton’s Laws of Motion

  • Suppose we add a 2nd pulling force:

    • Easier to add forces if we use the components of each force

    • Any force can be replaced by its component vectors, acting at the same point

  • Set up coordinate system & determine vector components:

q

q

= hot dog cart


Newton s laws of motion4

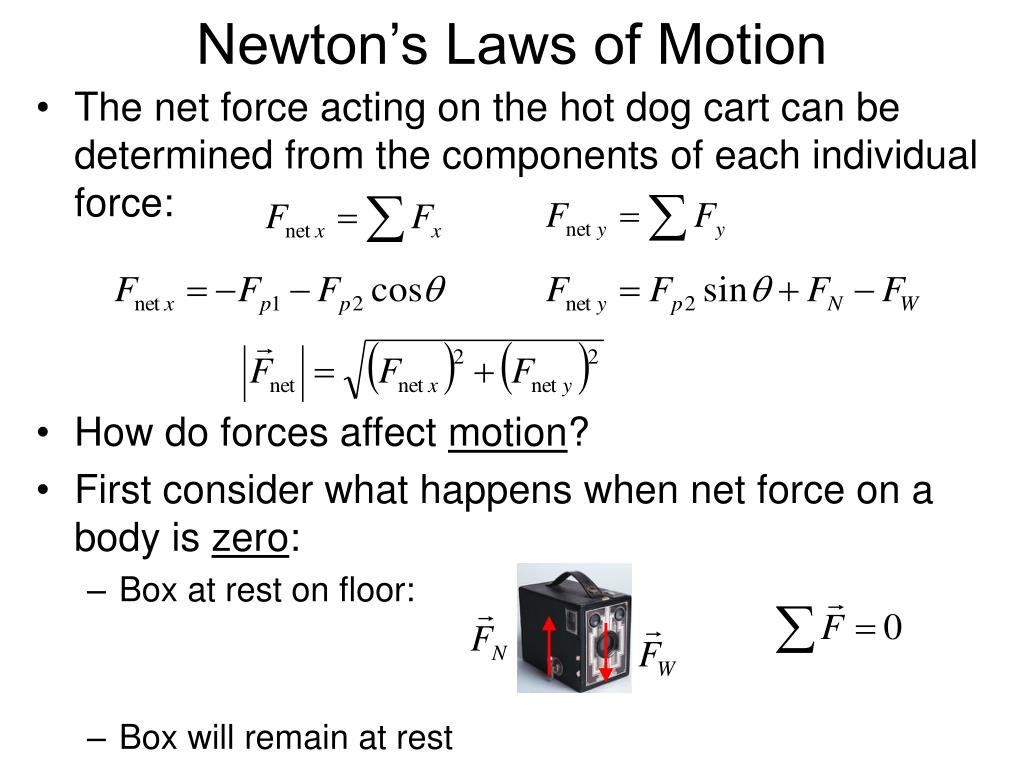

Newton’s Laws of Motion

  • The net force acting on the hot dog cart can be determined from the components of each individual force:

  • How do forces affect motion?

  • First consider what happens when net force on a body is zero:

    • Box at rest on floor:

    • Box will remain at rest


Newton s laws of motion5

v = const.

v = constant  a = 0

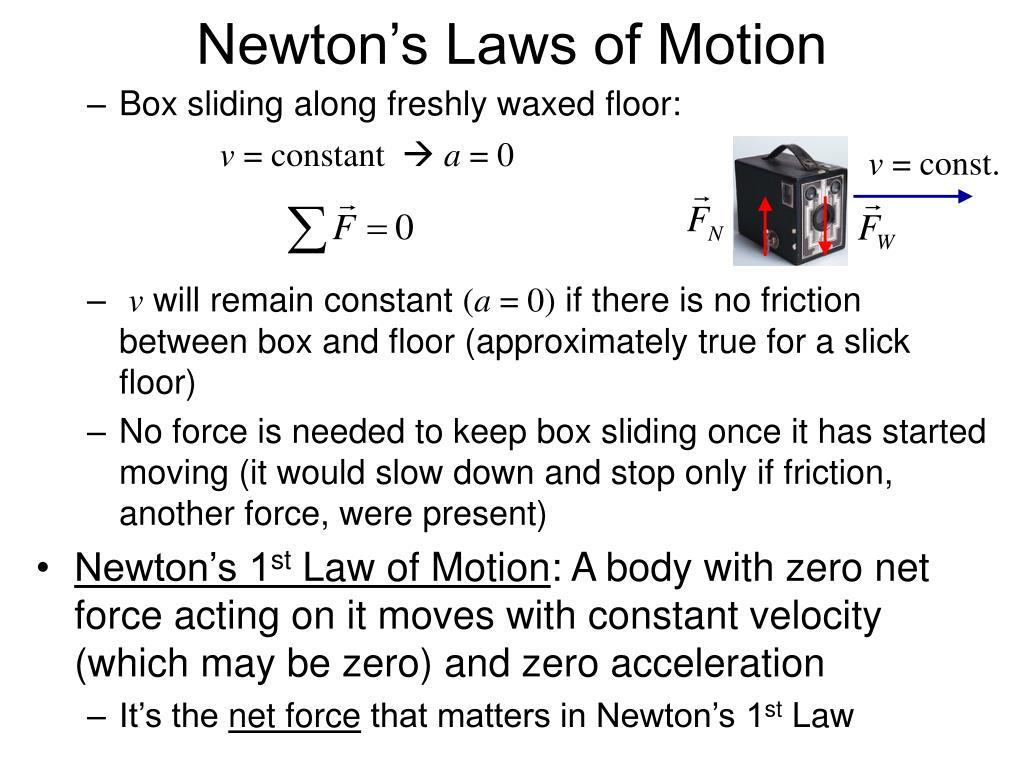

Newton’s Laws of Motion

  • Box sliding along freshly waxed floor:

  • v will remain constant (a = 0) if there is no friction between box and floor (approximately true for a slick floor)

  • No force is needed to keep box sliding once it has started moving (it would slow down and stop only if friction, another force, were present)

  • Newton’s 1st Law of Motion: A body with zero net force acting on it moves with constant velocity (which may be zero) and zero acceleration

    • It’s the net force that matters in Newton’s 1st Law


  • Newton s laws of motion6

    Newton’s Laws of Motion

    • Inertia is a property that indicates the tendency of a body to keep moving once it’s set in motion, or the tendency of a body at rest to remain at rest

      • For example, your inertia is what causes you to feel like you are being “pushed” against the side of your car when you exit quickly from the highway onto an exit ramp

    • When the net force on a body is zero, we say that the body is in equilibrium:

    • Newton’s 1st Law is valid only in an inertial reference frame, i.e. not a reference frame that is accelerating with respect to the earth

      • For example, an accelerating car does not form an inertial reference frame

    (Newton’s 1st Law)


    Newton s laws of motion7

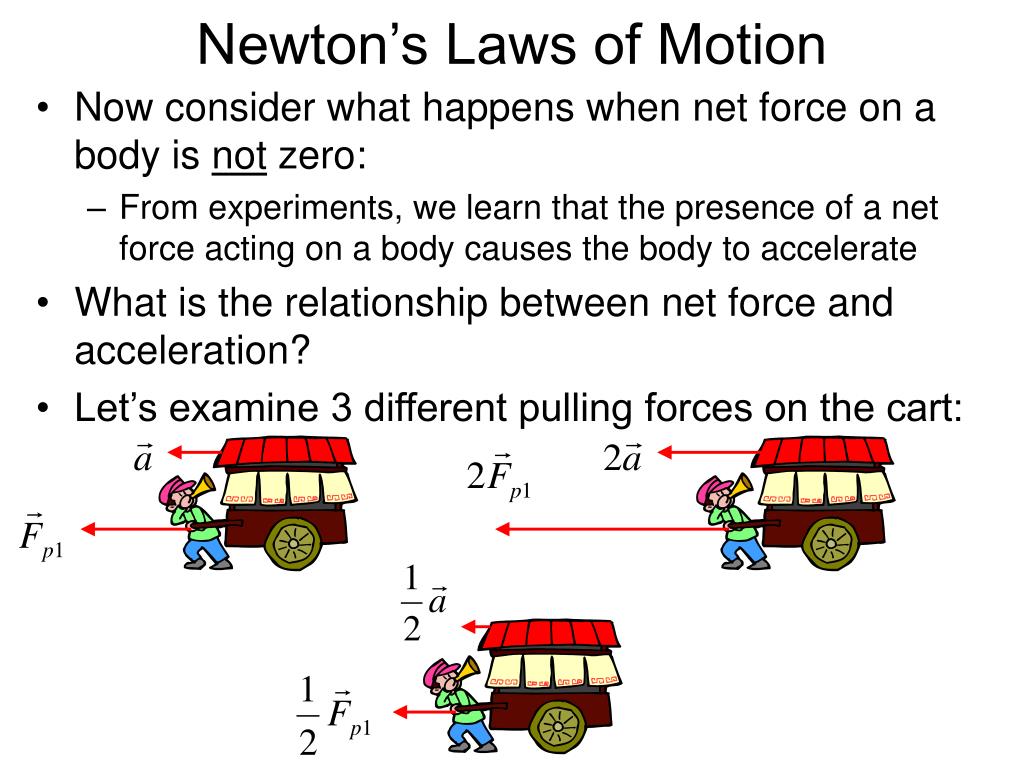

    Newton’s Laws of Motion

    • Now consider what happens when net force on a body is not zero:

      • From experiments, we learn that the presence of a net force acting on a body causes the body to accelerate

    • What is the relationship between net force and acceleration?

    • Let’s examine 3 different pulling forces on the cart:


    Newton s laws of motion8

    Newton’s Laws of Motion

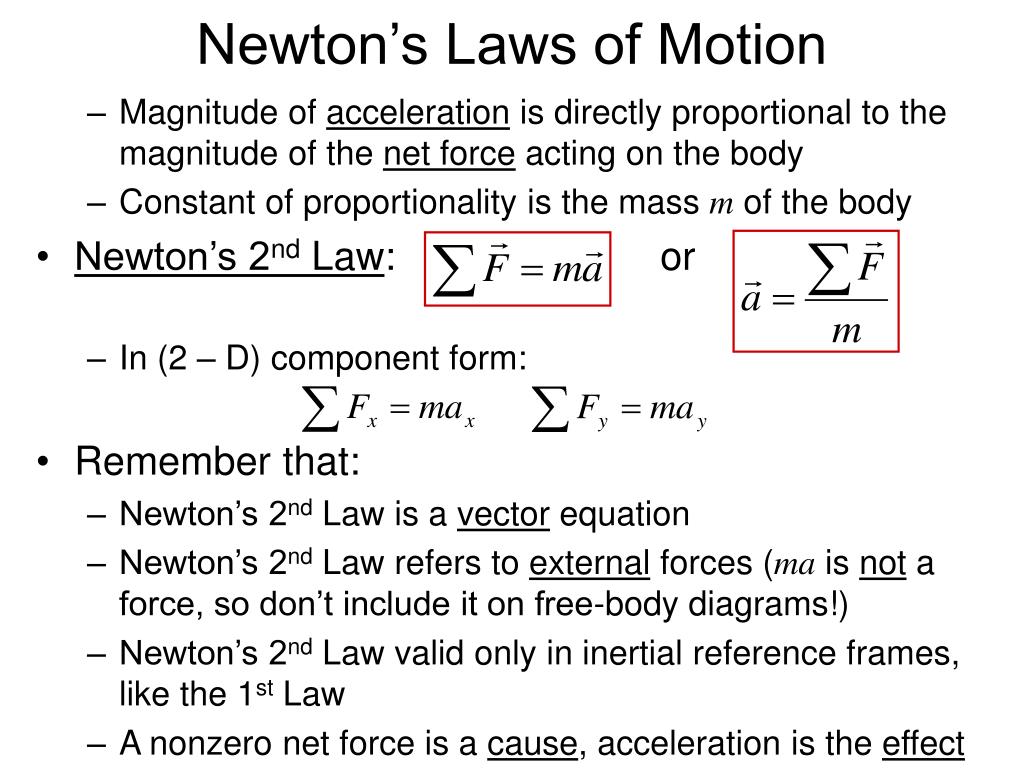

    • Magnitude of acceleration is directly proportional to the magnitude of the net force acting on the body

    • Constant of proportionality is the mass m of the body

  • Newton’s 2nd Law: or

    • In (2 – D) component form:

  • Remember that:

    • Newton’s 2nd Law is a vector equation

    • Newton’s 2nd Law refers to external forces (ma is not a force, so don’t include it on free-body diagrams!)

    • Newton’s 2nd Law valid only in inertial reference frames, like the 1st Law

    • A nonzero net force is a cause, acceleration is the effect


  • Newton s laws of motion

    CQ1: A 50-kg skydiver and a 100-kg skydiver open their parachutes and reach a constant velocity. The net force on the larger skydiver is:

    • equal to the net force on the smaller skydiver.

    • twice as great as the net force on the smaller skydiver.

    • four times as great as the net force on the smaller skydiver.

    • half as great as the net force on the smaller skydiver.


    Newton s laws of motion

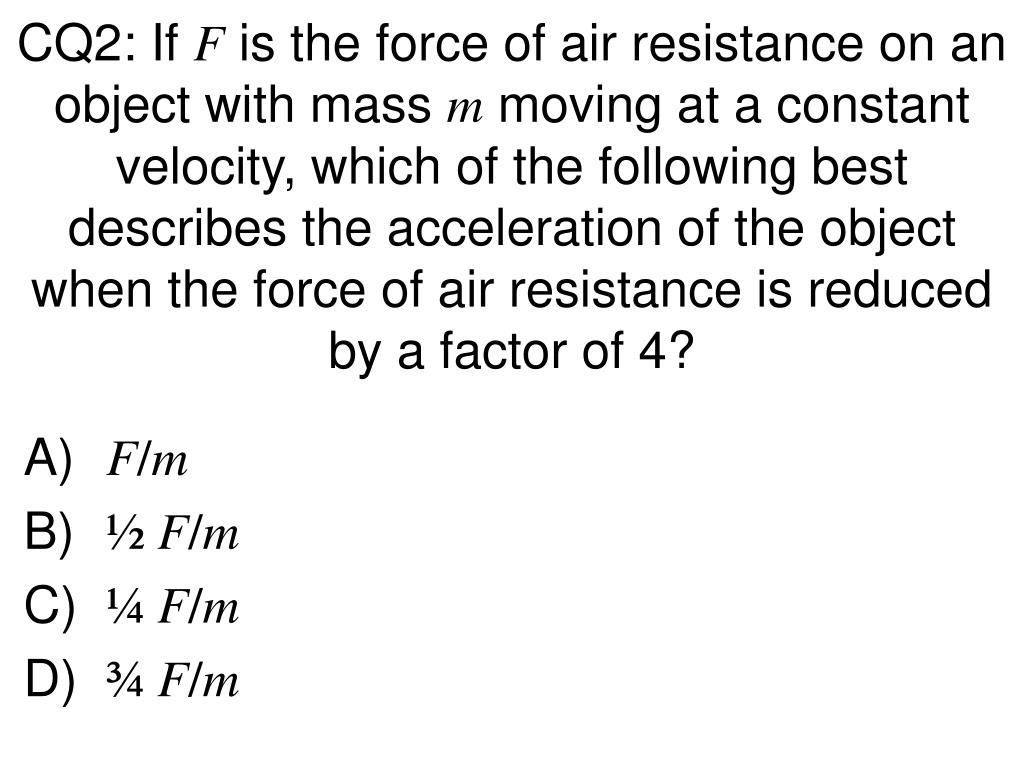

    CQ2: If F is the force of air resistance on an object with mass m moving at a constant velocity, which of the following best describes the acceleration of the object when the force of air resistance is reduced by a factor of 4?

    • F/m

    • ½ F/m

    • ¼ F/m

    • ¾ F/m


    Cq3 interactive example problem predict the satellite s motion

    CQ3: Interactive Example Problem: Predict the Satellite’s Motion

    Which animation correctly shows the motion of the satellite after the thruster force is applied?

    • Animation 1

    • Animation 2

    • Animation 3

    • Animation 4

    PHYSLET #8.2.2, Prentice Hall (2001)


    Weight

    Weight

    • We’ve already seen (from the hot dog cart example) that there is a force called weight that is exerted on bodies due to the gravitational pull of the earth

    • What is the magnitude of this force?

      • From Newton’s 2nd Law:

      • Gravitational forces accelerate bodies with constant magnitude a = g = 9.8 m/s2, so (with a downward direction)

    • Weight acts on a body all of the time

    • Magnitude of g can change, depending on the location (gmoon=1.62 m/s2, for example)


    Newton s third law

    Newton’s Third Law

    • Newton’s 3rd Law: When a force from object A is exerted on object B, B will exert a force on A that is equal in magnitude but opposite in direction to the force that A exerts on B:

      • If I push on a wall, the wall pushes back on me with a force that is equal to mine in magnitude but opposite in direction

      • Forces thus always come in pairs

      • Force pairs resulting from Newton’s 3rd Law are called action – reaction pairs and they never act on the same body


    Newton s laws of motion

    CQ4: A book is at rest on a horizontal table. What is the reaction force (as dictated by Newton’s 3rd law) to the weight of the book?

    • The force that the table exerts upward on the book.

    • The force that the book exerts downward on the table.

    • The force of gravity on the book.

    • The force of gravity that the book exerts on Earth.


    Problem solving strategy for newton s laws

    Problem-Solving Strategy for Newton’s Laws

    • Draw cartoon of physical situation & define your coordinate system

    • Draw free-body diagram of the object of interest

      • Draw force vectors for each external force acting on the object

      • NEVER include ma in a free-body diagram

    • Apply Newton’s Laws of motion as appropriate

    • Repeat steps 1 – 3 for multiple objects if necessary

    • Check your results – do they make sense?


    Example problem 4 31

    Example Problem #4.31

    A setup similar to the one shown at right is often used in hospitals to support and apply a traction force to an injured leg. (a) Determine the force of tension in the rope supporting the leg. (b) What is the traction force exerted on the leg? Assume the traction force is horizontal.

    • Solution (details given in class):

    • 78.4 N

    • 105 N


    Example problem 4 30

    Geometry:

    q

    q

    q

    90° - q

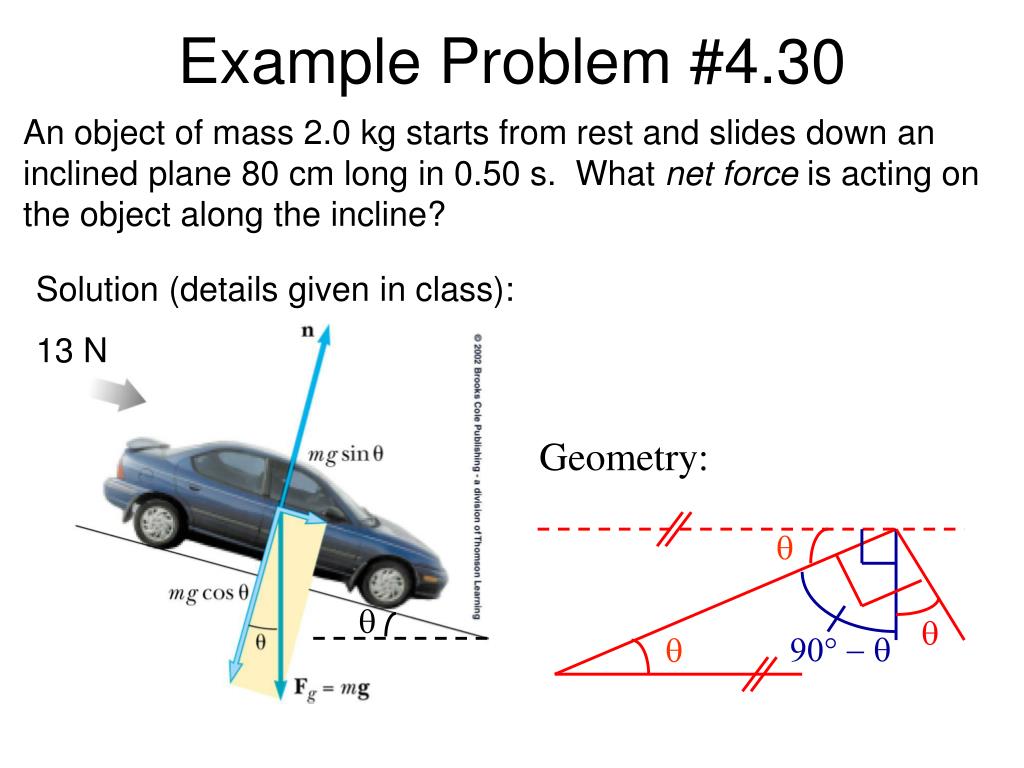

    Example Problem #4.30

    An object of mass 2.0 kg starts from rest and slides down an inclined plane 80 cm long in 0.50 s. What net force is acting on the object along the incline?

    Solution (details given in class):

    13 N

    q


    Example problem 4 36

    +x

    N

    T

    +y

    m2

    Free–body diagrams:

    m1

    T

    m1g

    m2g

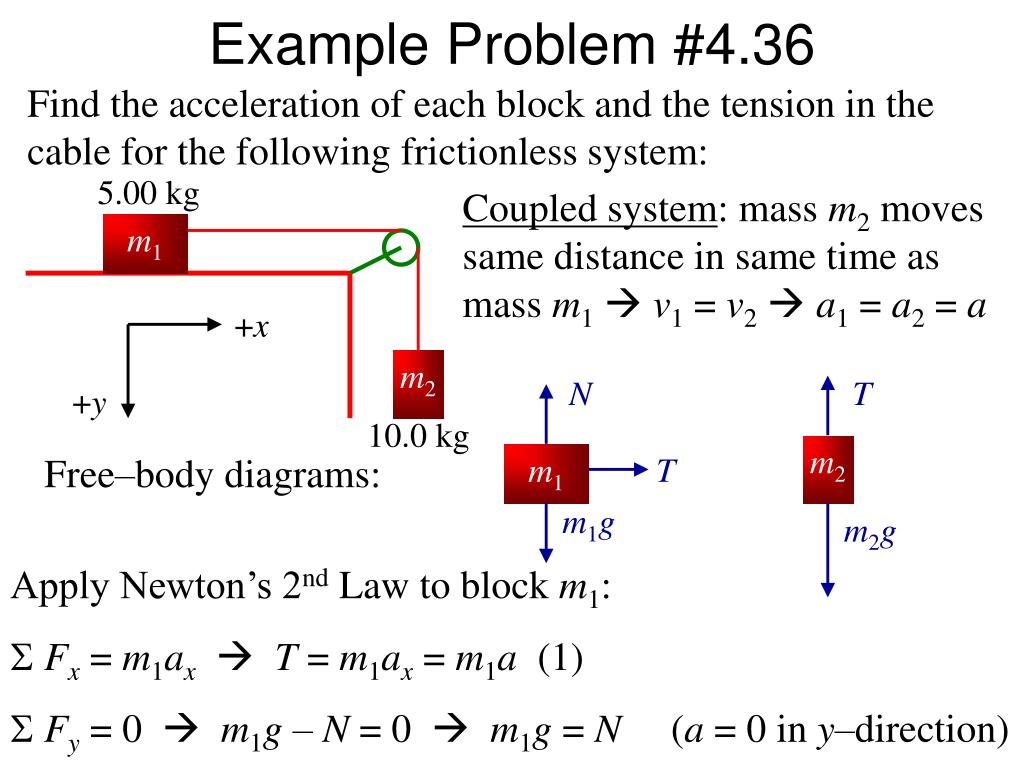

    Example Problem #4.36

    Find the acceleration of each block and the tension in the cable for the followingfrictionless system:

    5.00 kg

    Coupled system: mass m2 moves same distance in same time as mass m1 v1 = v2  a1 = a2 = a

    m1

    m2

    10.0 kg

    Apply Newton’s 2nd Law to block m1:

    S Fx = m1ax T = m1ax= m1a (1)

    SFy = 0  m1g – N = 0  m1g = N (a = 0 in y–direction)


    Example problem continued

    Example Problem (continued)

    Apply Newton’s 2nd Law to block m2:

    S Fy= m2ay = m2a

     m2g – T = m2a (2)

    Combining equations (1) and (2):

     m2g – m1a = m2a  a = [m2 / (m1 + m2)]g = 6.53 m/s2

    Using equation (1) and plugging in for a:

     T = m1a = 32.7 N

    (Note that this analysis will be useful for Experiment 5 in lab!)


    Cq5 interactive example problem rocket blasts off

    CQ5: Interactive Example Problem: Rocket Blasts Off

    What is the maximum height reached by the rocket?

    • 0 m

    • 240 m

    • 960 m

    • 2880 m

    • 3840 m

    ActivPhysics Problem #2.4, Pearson/Addison Wesley (1995–2007)


    Friction

    Friction

    N

    • Friction is a contact force between two surfaces that always opposes motion

    • The kind of friction that acts when a body slides over a surface is called the kinetic friction force (“kinetic” for motion)

      • The magnitude of is proportional to the magnitude of the normal force N:

      • Constant mk= coefficient of kinetic friction (depends on the two surfaces in contact)

    F

    is always  to

    f

    W


    Friction1

    N

    (1)

    (no pushing)

    W

    N

    F

    (2)

    (pushing but no sliding)

    fs

    W

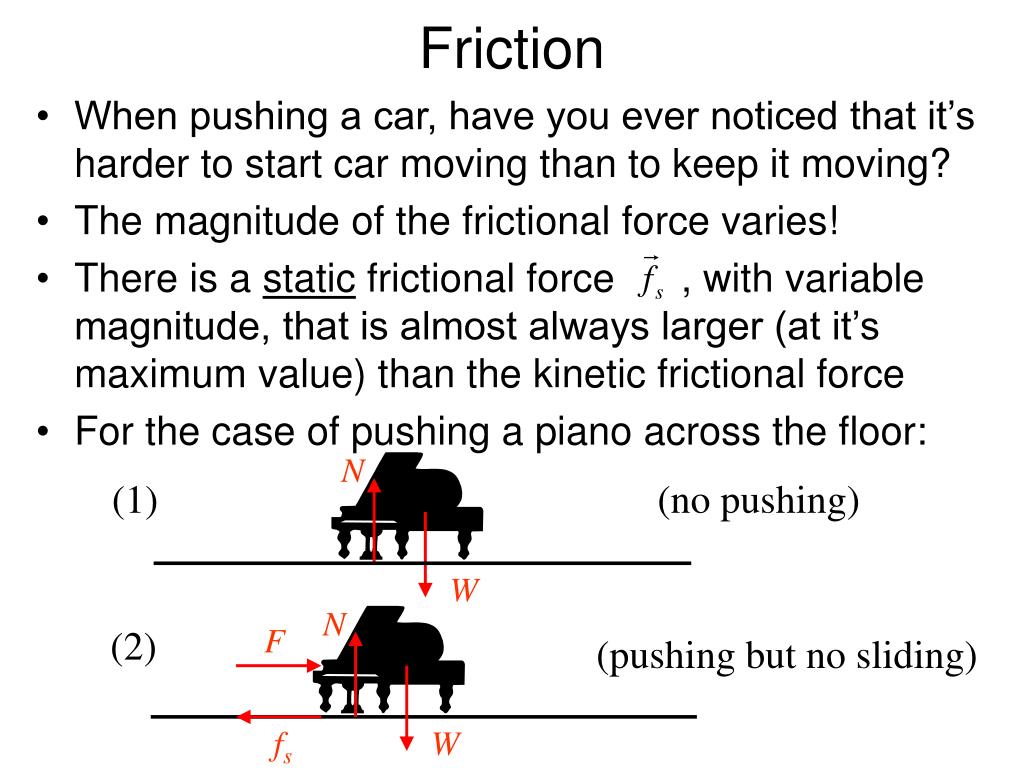

    Friction

    • When pushing a car, have you ever noticed that it’s harder to start car moving than to keep it moving?

    • The magnitude of the frictional force varies!

    • There is a static frictional force , with variable magnitude, that is almost always larger (at it’s maximum value) than the kinetic frictional force

    • For the case of pushing a piano across the floor:


    Friction2

    N

    F

    (3)

    (just about to slide)

    fs,max= fsmax. value

    fs,max

    W

    N

    F

    (4)

    (piano sliding)

    fk

    W

    Friction

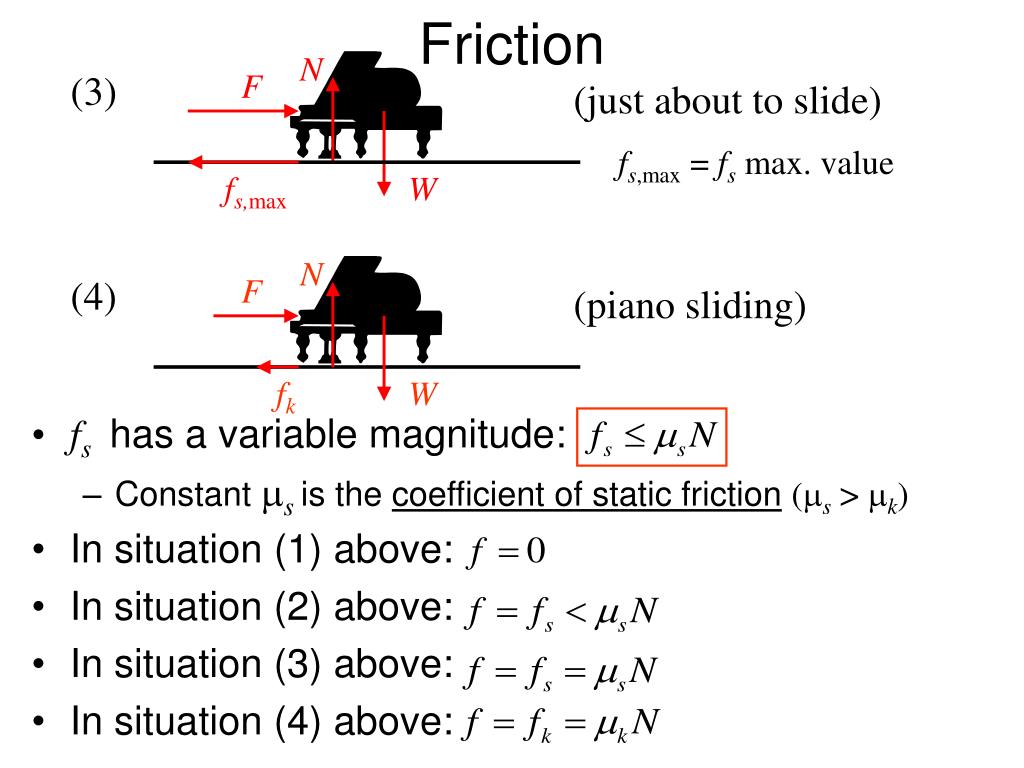

    • fs has a variable magnitude:

      • Constant ms is the coefficient of static friction(ms > mk)

    • In situation (1) above:

    • In situation (2) above:

    • In situation (3) above:

    • In situation (4) above:


    Friction3

    Friction

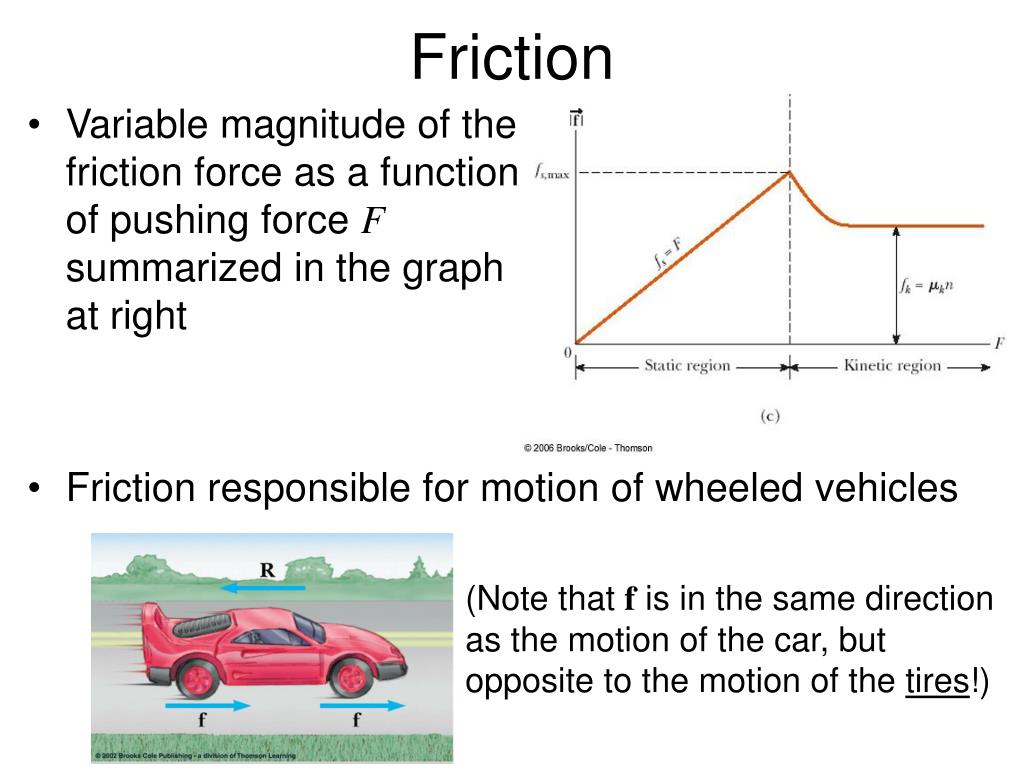

    • Variable magnitude of the friction force as a function of pushing force F summarized in the graph at right

    • Friction responsible for motion of wheeled vehicles

    (Note that f is in the same direction as the motion of the car, but opposite to the motion of the tires!)


    Newton s laws of motion

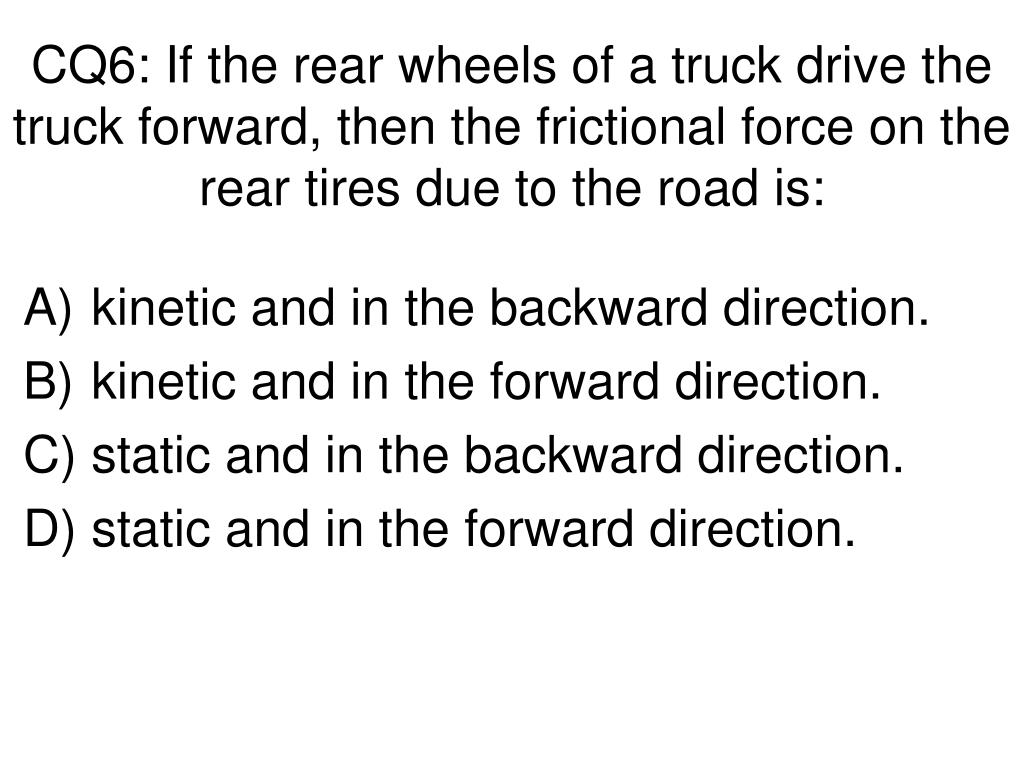

    CQ6: If the rear wheels of a truck drive the truck forward, then the frictional force on the rear tires due to the road is:

    • kinetic and in the backward direction.

    • kinetic and in the forward direction.

    • static and in the backward direction.

    • static and in the forward direction.


    Example problem 4 44

    Example Problem #4.44

    A crate of mass 45.0 kg is being transported on the flatbed of a pickup truck. The coefficient of static friction between the crate and the truck’s flatbed is 0.350, and the coefficient of kinetic friction is 0.320. (a) The truck accelerates forward on level ground. What is the maximum acceleration the truck can have so that the crate does not slide relative to the truck’s flatbed? (b) The truck barely exceeds this acceleration and then moves with constant acceleration, with the crate sliding along its bed. What is the acceleration of the crate relative to the ground?

    • Solution (details given in class):

    • 3.43 m/s2

    • 3.14 m/s2


    Example problem 4 69

    f2

    f1

    Example Problem #4.69

    Two boxes of fruit on a frictionless horizontal surface are connected by a light string (see figure below), where m1 = 10 kg and m2 = 20 kg. A force of 50 N is applied to the 20-kg box. (a) Determine the acceleration of each box and the tension in the string. (b) Repeat the problem for the case where the coefficient of kinetic friction between each box and the surface is 0.10.

    N2

    N1

    T

    T

    m1g

    Solution (details given in class):

    (a) a = 1.7 m/s2, T = 17 N

    (b) a = 0.69 m/s2, T = 17 N

    m2g

    ( f1and f2 = 0 in part a)


    Example problem 4 53

    T

    T

    N

    f

    m1g

    m2g

    Example Problem #4.53

    Find the acceleration reached by each of the two objects shown in the figure at right if the coefficient of kinetic friction between the 7.00-kg object and the plane is 0.250.

    +y

    +x

    Solution (details given in class):

    3.30 m/s2

    Incline with Friction Interactive
