Presentation Transcript


Biotechnology l.jpg

Biotechnology


Reading quiz l.jpg

Reading quiz

  • Identify the term that best represents each description

    • 1. When a bacteria is not affected by chemicals that interfere with its life processes

    • 2. A rod shaped bacterial cell

    • 3. Chemicals that interfere with bacteria’s life processes

    • 4. Substance discovered by Alexander Fleming that can be used to treat bacterial diseases

  • 5. Draw a picture of a typical bacterium and label with cell wall, pili, nucleoid region (genetic material)


What are common uses of biotechnology l.jpg

Identification (“DNA fingerprinting”)

What Are Common Uses of Biotechnology?

  • Diagnosing and treating genetic diseases

  • Genetically modifying organisms to make medicines or other useful products

  • - Human Growth Hormone

  • - Rice with added vitamins and minerals for use in third-world countries

- Human tissues grown in animal donors


Your health l.jpg

Your Health

  • Genetically Modified Organisms

    • Pesticide producing crops

    • Human organs in animals for transplants

  • Testing for and treating genetic diseases

    • Cancer

    • SCIDS

  • Making new or cheaper drugs

    • Insulin from bacteria

    • Antibiotics in milk


Genetic engineering l.jpg

Genetic Engineering

  • Selective breeding

    • Advantages?

    • Disadvantages?

  • Increasing variation

  • Induce mutations


Slide6 l.jpg

This is the Biotechnology Age

You have been born in it and will live during it

You must be informed in order to make

intelligent decisions

And… you deserve to be qualified to work in an exciting field - as scientists, technicians, receptionists, business execs, and artists

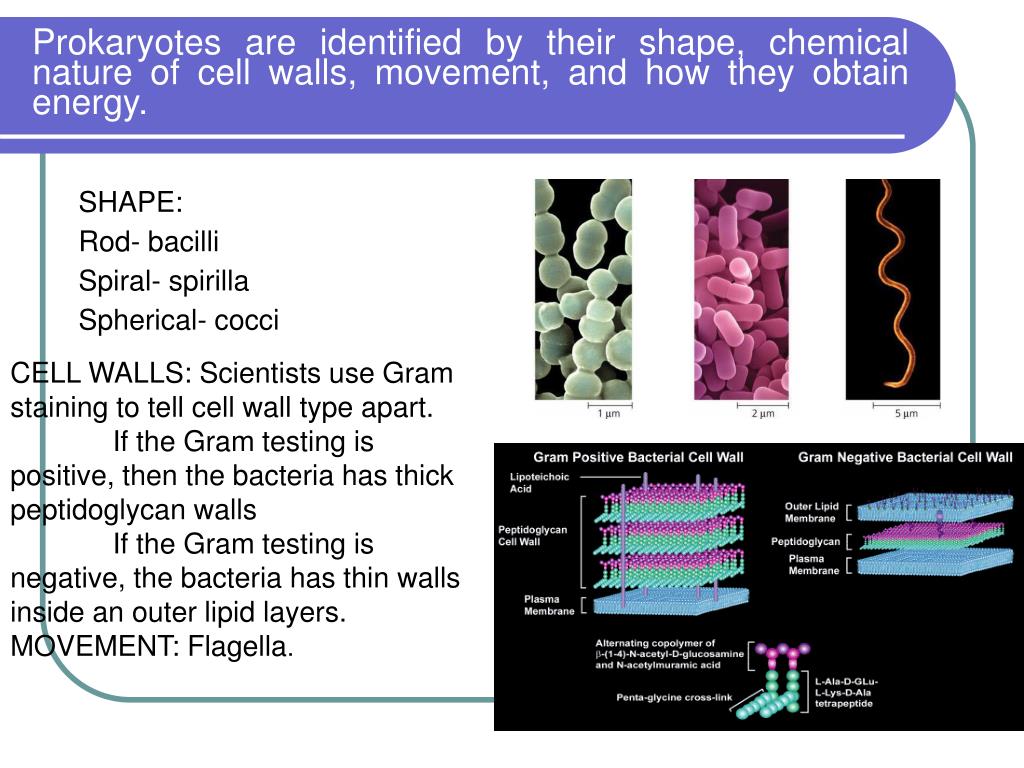

Slide9 l.jpg

Prokaryotes are identified by their shape, chemical nature of cell walls, movement, and how they obtain energy.

SHAPE:

Rod- bacilli

Spiral- spirilla

Spherical- cocci

CELL WALLS: Scientists use Gram staining to tell cell wall type apart.

If the Gram testing is positive, then the bacteria has thick peptidoglycan walls

If the Gram testing is negative, the bacteria has thin walls inside an outer lipid layers.

MOVEMENT: Flagella.


Metabolic diversity l.jpg

Metabolic Diversity

Identifies prokaryotes by how they obtain energy.

Heterotrophs

Chemoheterotrophs- consume organic molecules for energy and a supply of carbon.

Photoheterotrophs- use photosynthesis; need organic compound like a carbon source.

Autotrophs

Photoautotrophs- use photosynthesis EX: cyanobacteria-

Chemoautotrophs- make organic carbon molecules from CO2. They obtain energy directly from chemical reactions.

Releasing energy- by fermentation, cellular respiration, or both

Obligate aerobes- constantly need oxygen

Obligate anaerobes- live without oxgen

Facultative anaerobes- live with/without oxgen EX: E. coli


Life cycle l.jpg

Life Cycle

Bacteria can divide at high speeds, (every 20 min. )

Binary Fission- (asexual).

Conjugation- Bacteria exchange genetic info by forming a bridge between two of them. Different genes are transferred to each other to increase genetic diversity in bacteria populations.

Transformation-To be discussed later

Spore formation


Antibiotics and resistance l.jpg

Antibiotics and resistance

  • Alexander Fleming and Penicillin

  • Antibiotics

  • Antibiotic resistance


Bacteria s impact on life l.jpg

Bacteria’s impact on life

  • Pathogenic bacteria

  • Toxins

  • Biowarfare

  • Production of chemicals and foods

  • Mining, environmental use

  • Nitrogen fixation

  • Decomposers


What are the basic tools of biotechnology l.jpg

What Are The Basic Tools Of Biotechnology?

Micropipets

Gel boxes


Micropipets l.jpg

Used for accurately measuring very small amounts of fluids

Used in almost all biotechnology to measure

1 μL = .001 mL = .000001 L = 1 x 10^-6 L

2 mL = μ L = L

Micropipets

  • Pipet types

    • P-20 (2-20 μ L) P-200 (20-200 μ L) P-1000 (200-1000 μ L)


Reading quiz16 l.jpg

Reading quiz

  • Viruses contain a coat made up of ____ and their genetic material is _____

  • Lytic and lysogenic are examples of what?

  • How is HIV different than many other viruses?


The problem l.jpg

The problem…

  • A disease is causing large pale spots on the leaves of tobacco plants

  • 1892, Ivanovski identified the cause of the disease to be in the juice

  • 1897, Beijerinck suggested that tiny particles caused the disease, and named them viruses (Latin-poison)

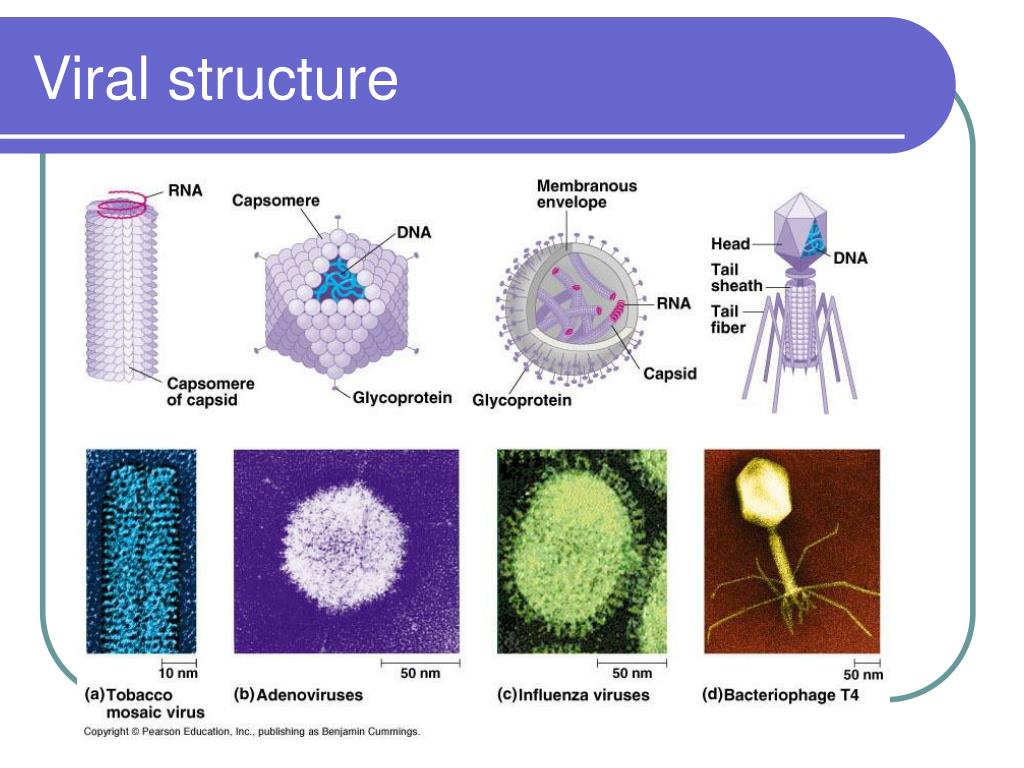

Viral structure l.jpg

Viral structure

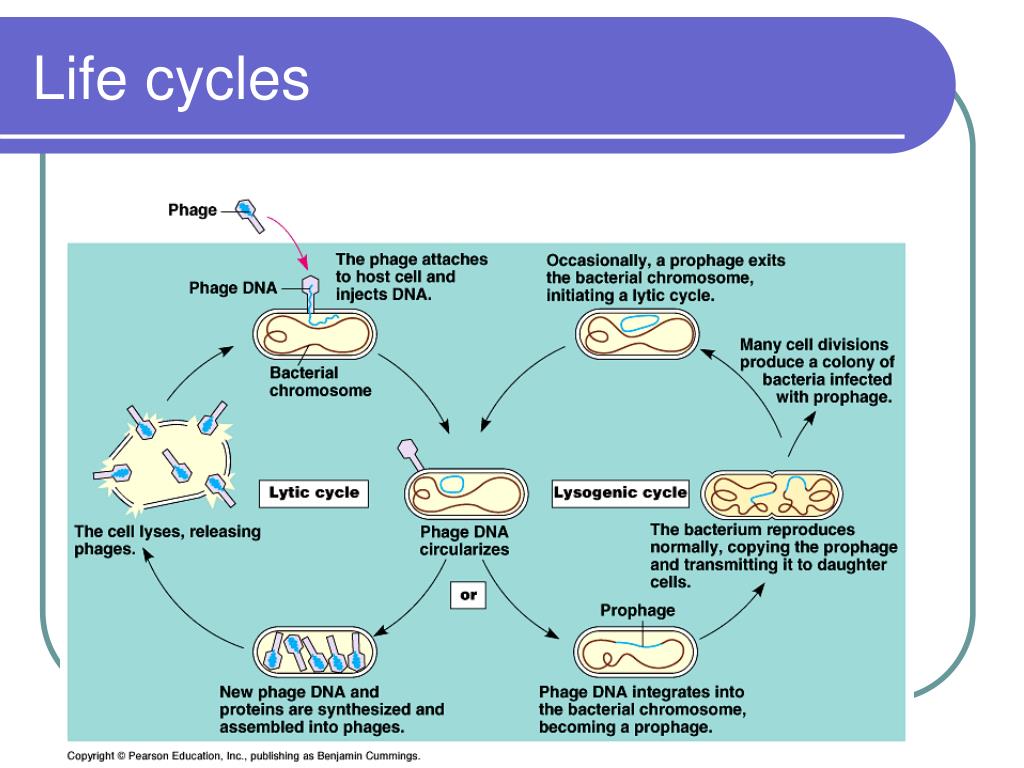

Life cycles l.jpg

Life cycles


Hiv and aids l.jpg

HIV and AIDS

  • HIV is the virus that can lead to AIDS

  • Transmission

  • Prevention

    • AVOID any of the forms of transmission!


Slide21 l.jpg

  • HIV mutates, evolves very rapidly

  • Evades defenses of the immune system

  • Destroys Helper T cells


Is it living l.jpg

Is it living?

  • Contains genetic material? YEP

  • Evolves? YEP

  • Interacts with other organisms? YEP (parasitic)

  • Metabolic activity? IN A HOST CELL

  • Reproduces? IN A HOST CELL

  • What do you think?


Reading quiz get sg 3 4c l.jpg

Reading quiz (get SG 3,4C)

  • Write the term that best represents each description

    • 1. Circular piece of DNA that replicates independently of the chromosome(s)

    • 2. Protein that can “cut” DNA at precise spots

    • 3. Purposeful manipulation of DNA

    • 4. Overhanging sequence of bases left after DNA is “cut”

    • 5. Substance that can be used to identify cells with our gene of interest


1 point each l.jpg

1. Circular piece of DNA that replicates independently of the chromosome(s)

2. Protein that can “cut” DNA at precise spots

3. Purposeful manipulation of DNA

4. Overhanging sequence of bases left after DNA is “cut”

5. Substance that can be used to identify cells with our gene of interest

Plasmid (vector okay)

Restriction enzyme

Genetic engineering

Sticky end

Antibiotic (tetracycline okay)

1 point each

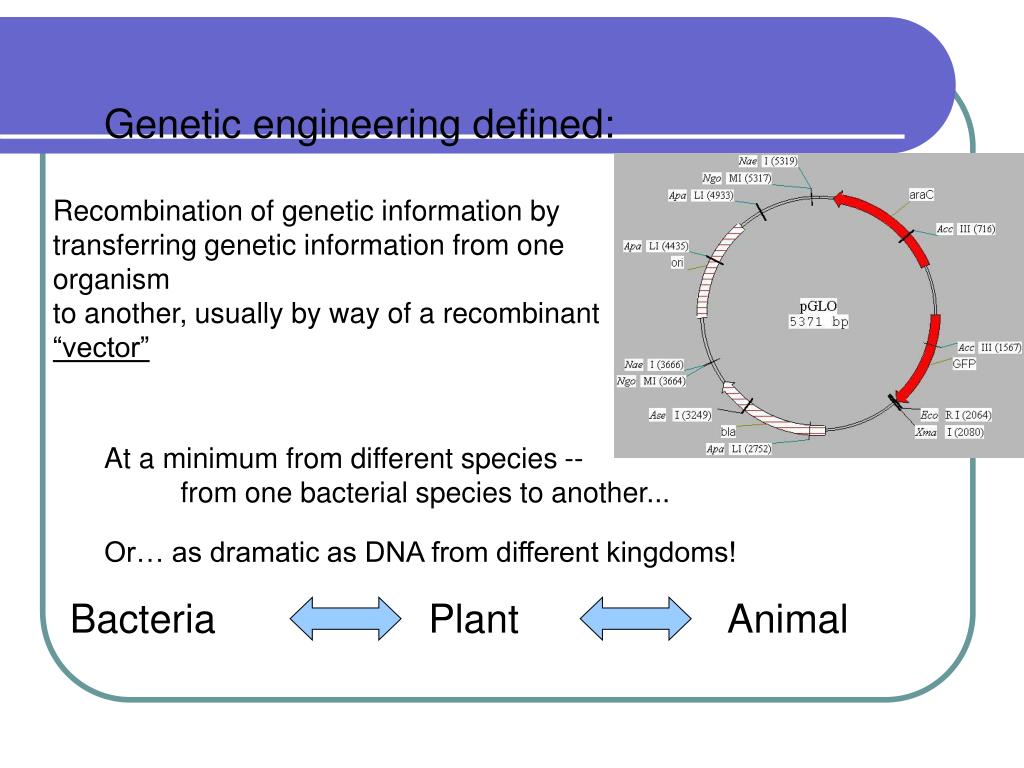

Slide25 l.jpg

Genetic engineering defined:

Recombination of genetic information by

transferring genetic information from one organism

to another, usually by way of a recombinant “vector”

At a minimum from different species --

from one bacterial species to another...

Or… as dramatic as DNA from different kingdoms!

Bacteria

Plant

Animal


Slide26 l.jpg

Uses in basic research

Simple:

- to produce multiple copies of DNA

- to produce multiple copies of a

protein

More complex:

- monitor spread of virus

infecting tobacco plants

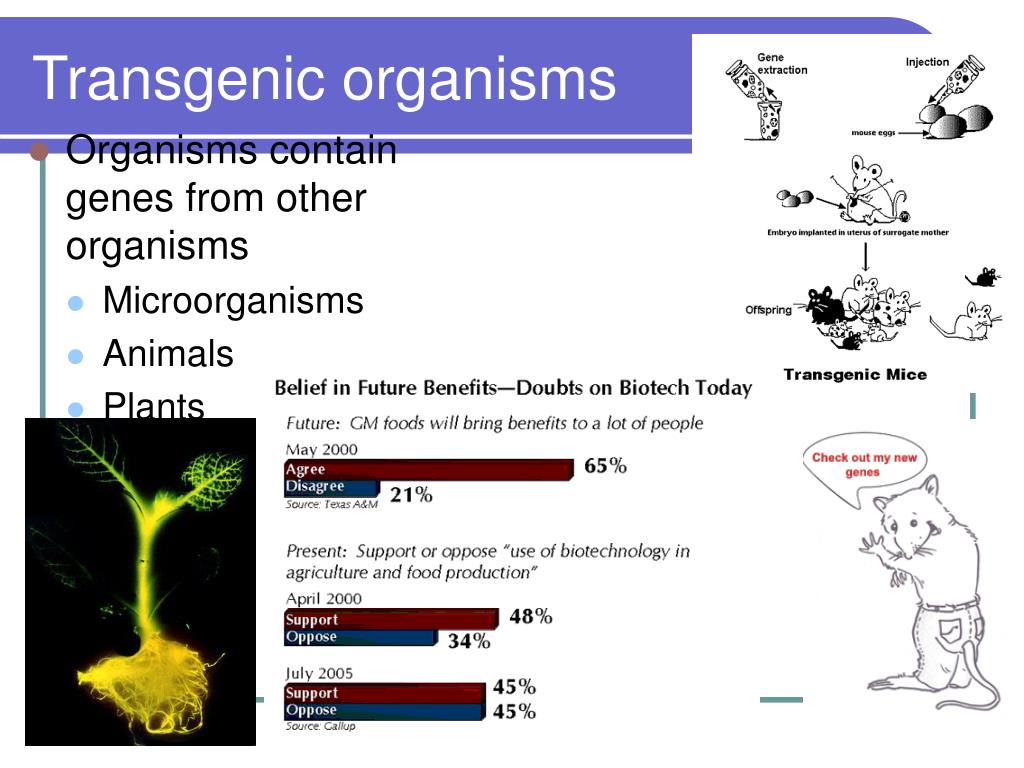

Transgenic organisms l.jpg

Transgenic organisms

  • Organisms contain genes from other organisms

    • Microorganisms

    • Animals

    • Plants

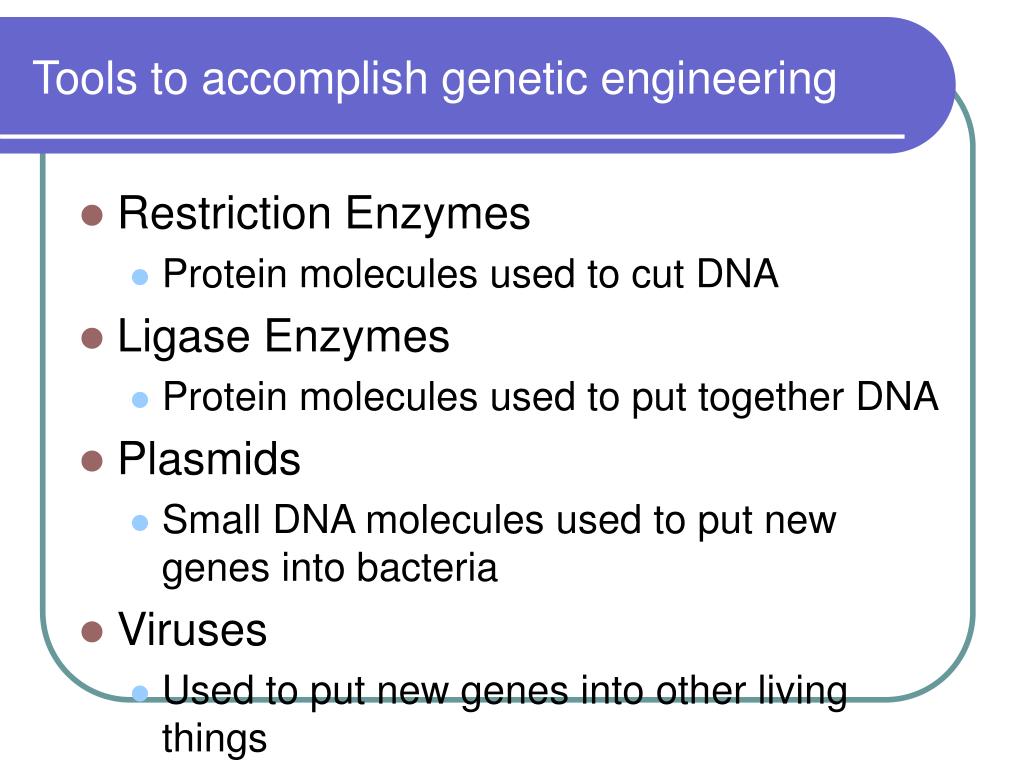

Tools to accomplish genetic engineering l.jpg

Restriction Enzymes

Protein molecules used to cut DNA

Ligase Enzymes

Protein molecules used to put together DNA

Plasmids

Small DNA molecules used to put new genes into bacteria

Viruses

Used to put new genes into other living things

Tools to accomplish genetic engineering


How is dna cut l.jpg

How is DNA cut?

  • DNA is cut using restriction enzymes.

    • Examples for different restriction enzymes:

      • Eco RI, Hind III

  • Restriction enzymes cut DNA at specific four or six-base-pair-sequences called restriction sites.

    • Examples for different restriction sites:

      • Eco RI at G AATT C

      • C TTAA G

      • Hind III at A AGCT T

      • T TCGA A

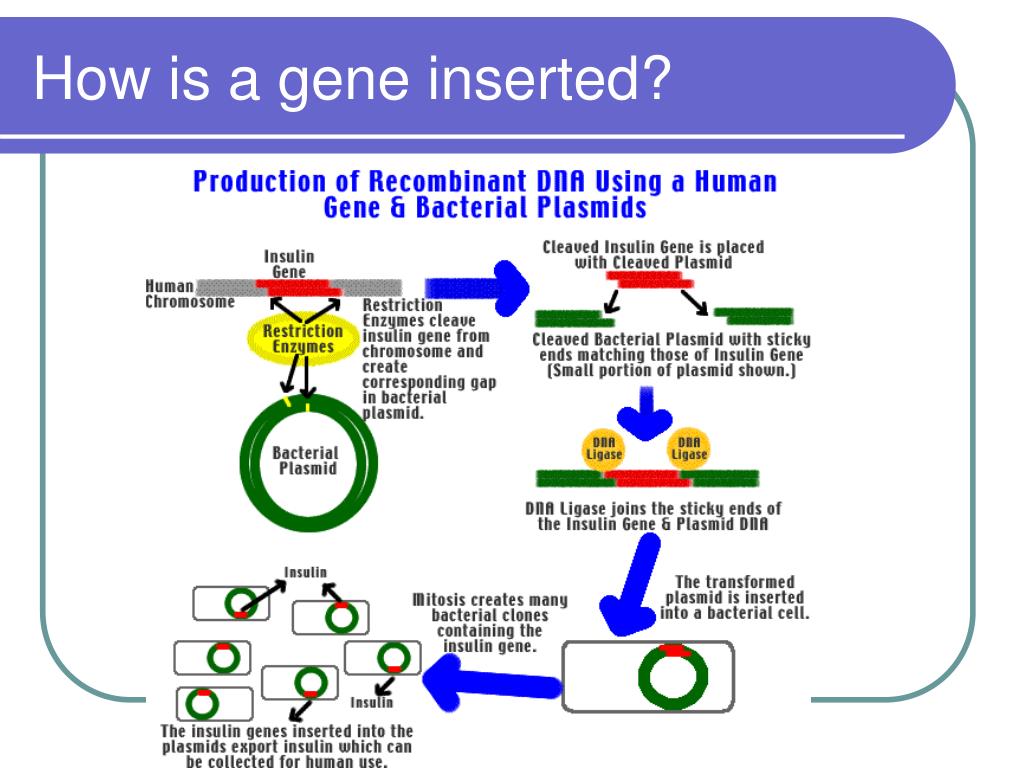

How is a gene inserted l.jpg

How is a gene inserted?


Gene therapy l.jpg

Gene therapy

  • 1. Identify gene

  • 2. Clone gene

  • 3. Replace the faulty or missing gene

  • 4. Result? The correct protein should eliminate cause of the disorder

    • Advantages

    • Disadvantages


Transformation l.jpg

Transformation

  • Griffith experiment

  • Outside DNA gets incorporated into bacteria

  • What you have: pGLO plasmid (outside DNA) and E. Coli (bacteria)


Transformation procedure l.jpg

How do you get pGLO into E. Coli?

How do you grow transformed E. Coli?

How do you identify transformed cells?

Compentency

CaCl2

Heat/ice shock

Spread E. Coli on petri dish with agar and incubate

Amp resistance

Arabinose

GFP protein

Transformation procedure

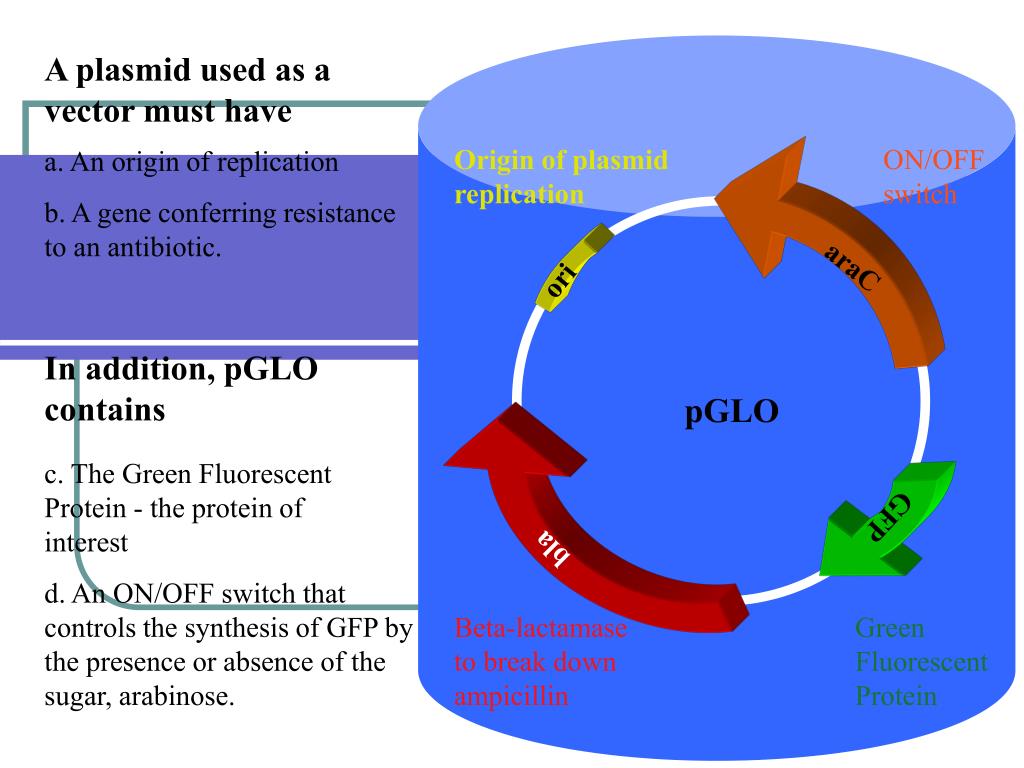

Slide34 l.jpg

A plasmid used as a vector must have

Origin of plasmid replication

ON/OFF switch

a. An origin of replication

b. A gene conferring resistance to an antibiotic.

araC

ori

In addition, pGLO contains

pGLO

c. The Green Fluorescent Protein - the protein of interest

GFP

bla

d. An ON/OFF switch that controls the synthesis of GFP by the presence or absence of the sugar, arabinose.

Beta-lactamase to break down ampicillin

Green Fluorescent Protein


Tranformation prelab l.jpg

Tranformation prelab

  • Read thoroughly through WB 204-206

  • Make notes on any procedures you don’t understand. Highlight important information

  • Use the background information to answer the following

    • What is the role of the following items in the transformation lab and identify each as a gene, protein, or other: Ampicillin, GFP, Ampicillin resistant gene, arabinose, pGLO plasmid, E. Coli,


Interpreting results l.jpg

Interpreting results

  • LB + DNA : Prediction, why?

  • LB + DNA + amp : Prediction, why?

  • LB + DNA + amp + arabinose : Prediction, why?

  • Satellite colonies


Lab report l.jpg

Lab report

  • Introduction

    • Purpose

    • Deduction

    • Background info

  • Materials/procedures

    • Include amounts

    • SUMMARIZE procedures (don’t copy from lab)

  • Results

    • Data table, picture, bar graph?, written paragraph

  • Analysis

    • Support/doesn’t support hypothesis? Interpret results from each petri dish. Difference between your results and class average? How can you improve the lab? Importance of lab?


Reciprocal teaching are viruses alive l.jpg

Reciprocal teaching: “Are viruses alive”

  • As we’ve done before, take turns reading through the article (rotate after each paragraph). Each person will have a different role

    • Summarizer: Summarizes EACH paragraph read

    • Predictor: Predict what will happen next

    • Connector: Discusses connections with class content/experiences/society

    • Questioner: Asks under and on the surface questions. Asks if anyone else has questions

  • Have your assignment sheet out. I will stamp WB 206 (transformation activity sheet) and give you a stamp for your RT read based on your discussion


Reading quiz get sg and transformation activity stamped and take out 207 l.jpg

Reading quiz (get SG and transformation activity stamped, and take out 207)

  • Write the term the best represents each description

    • 1. A weakened or killed pathogen

    • 2. A disease when the body launches an immune response against its own cells

    • 3. The first one was produced by Jenner using cowpox

    • 4. The body system HIV attacks


Antigen vs antibody l.jpg

Antigen vs. antibody


Vaccines l.jpg

Vaccines

  • A weakened or killed virus is injected into the individual

  • Elicits an immune response (antibodies)

  • Does not harm the individual


Gel boxes l.jpg

Used to separate chemicals like DNA based on size, charge, etc..

Used for identification/DNA fingerprinting, researching genes, etc..

Gel Boxes


Lab b analysis l.jpg

Lab B analysis

  • Voltage vs. current

  • When was electricity being conducted? Why?

  • Electricity allows electrolysis to occur

  • Role of phenol red?

  • Role of buffer?

  • Requirements for running DNA through a gel: Current and a stable pH


Slide45 l.jpg

Note bubbles and swirls of changing pH

H2O + NaCl + phenol red + TAE buffer


The principles of gel electrophoresis l.jpg

The Principles of Gel Electrophoresis

  • Charge of DNA: ____

  • If put into an electric field, it will move from the _____ to the ____ pole.

  • A gel serves as the porous matrix for the movement of the DNA molecule.

  • DNA is cut into fragments of different size.


Slide49 l.jpg

DNA GEL


Rflp dna fingerprinting protocol l.jpg

libproto

RFLP (DNA FINGERPRINTING) Protocol


Polymerase chain reaction pcr l.jpg

Polymerase Chain Reaction (PCR)

  • Purpose: Amplify DNA quickly

  • Applications: Acquire enough DNA to run a DNA fingerprint

  • Uses taq polymerase


Mammalian cloning l.jpg

Mammalian cloning

  • Nucleus of an organism’s egg is destroyed (lets say a sheep)

  • Nucleus is removed of a donor organism of the same species and put into the egg

  • That egg then develops into a clone of the donor’s DNA


Issues about cloning l.jpg

Issues about cloning

  • Cloning already happens in nature (identical twins, bacteria, asexual reproduction)

  • What are consequences of mammalian cloning?

  • How easy is it to do? Cloning the sheep Dolly took 277 attempts. What happens to unsuccessful eggs?

  • Currently, there is a ban on human cloning


  • Login
