The Complete A+ Guideto PC Repair 5/e

Chapter 12Windows XP and Vista

Chapter 12 objectives l.jpg

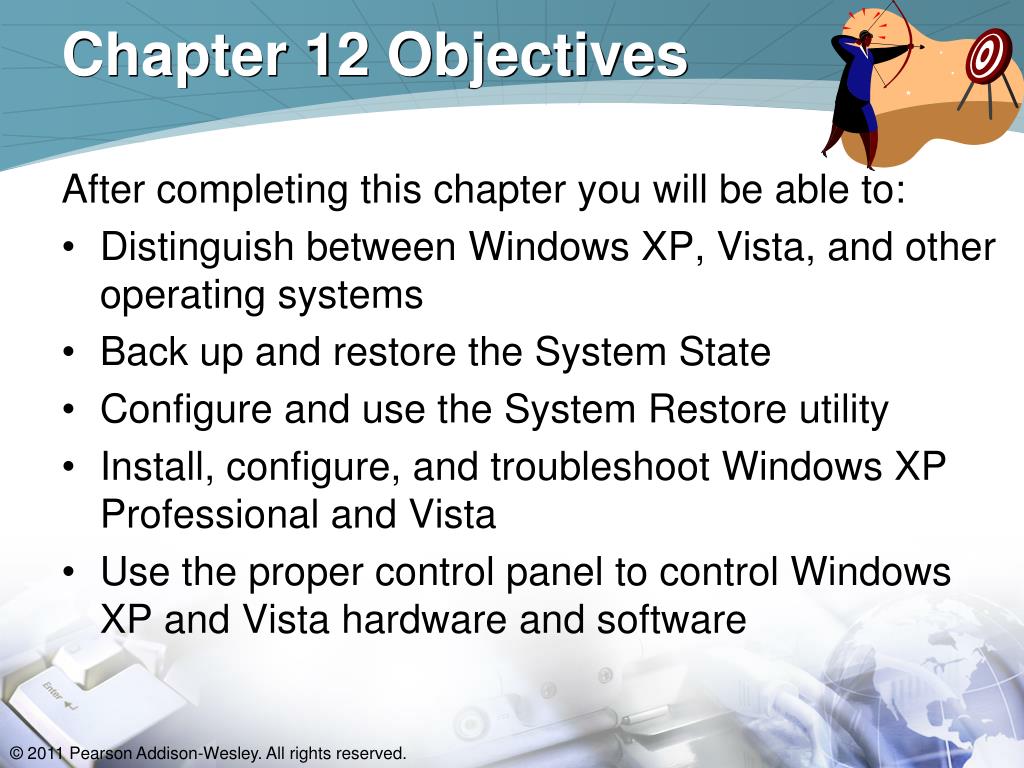

Chapter 12 Objectives

After completing this chapter you will be able to:

  • Distinguish between Windows XP, Vista, and other operating systems

  • Back up and restore the System State

  • Configure and use the System Restore utility

  • Install, configure, and troubleshoot Windows XP Professional and Vista

  • Use the proper control panel to control Windows XP and Vista hardware and software

Chapter 12 objectives cont l.jpg

Chapter 12 Objectives (cont.)

  • Install hardware and software on a Windows XP or Vista computer

  • Use the driver roll back feature

  • Use Windows XP and Vista’s Administrative tools including Microsoft Management console

  • Explain the boot process and troubleshoot boot problems including using various boot options

  • Define when to access and how to use Computer Management console, Task Manager, and Event Viewer

Windows xp professional overview l.jpg

Windows XP Professional Overview

  • Windows XP was originally a 32-bit operating system which became available in a 64-bit version.

  • Virtual Memory Manager (VMM) – handles allocation memory to applications.

    • A single block called a page or paging file is 4KB. The operating system swaps or pages the application to and from the temporary swap file as needed if enough RAM is not available to the application.

Windows versions l.jpg

Windows Versions

Windows xp professional and home l.jpg

Windows XP Professional andHome

Windows file protection l.jpg

Windows File Protection

  • WFP (Windows File Protection)is a Windows feature that protects system files.

  • WRP (Windows Resource Protector) is used in Vista and 7. It protects system files, registry keys and specific file types using ACLS (access control lists).

Windows vista overview l.jpg

Windows Vista Overview

  • Both 32- and 64-bit versions

  • Features

    • Windows Aero

      • Sidebar with gadgets

      • Live thumbnails show individual application documents

      • Transparent icons

      • Animations

      • Narrator text-to-speech

      • UAC (User Account Control) to warn of security risks

      • Startup Repair Tool (instead of Recovery Console)

Minimum requirements for aero l.jpg

Minimum Requirements for Aero

  • Vista Home Premium

  • 1GHz 32-bit processor

  • 1GB of RAM

  • 128MB graphics RAM

  • 32-bit color setting for graphics card

  • Windows theme set to Vista

  • Display color scheme set to Windows Aero

    • Appearance and Personalization control panel ► Personalization link ► Windows color option ► Enable transparency enabled

Vista versions l.jpg

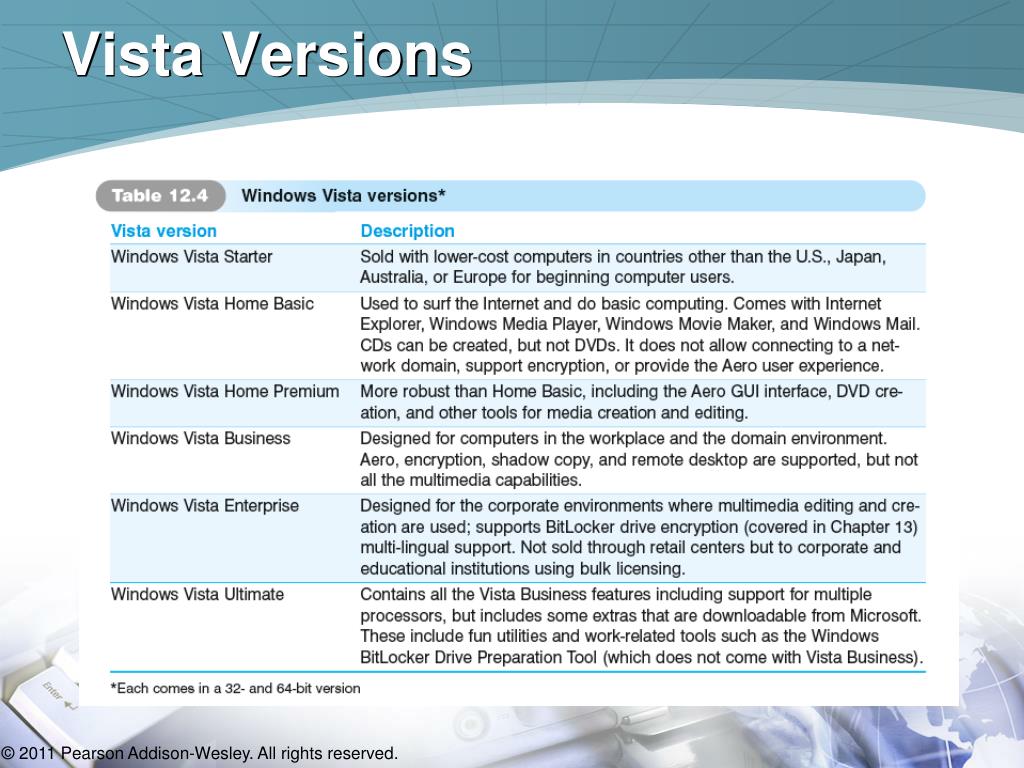

Vista Versions

32 and 64 bit vista versions l.jpg

32- and 64-bit Vista Versions

32-bit 64-bit

  • Only 64-bit CPU

  • 128GB+ RAM (Home Basic-8GB; Premium-16GB; Business, Enterprise, and Ultimate-128GB+)

  • 64-bits at a time

  • Only 64-bit drivers

  • 32- or 64-bit apps (no16-bit)

  • “Always on” DEP

  • 32- or 64-bit CPU

  • 4GB RAM max

  • 32-bits at a time

  • Must have 32-bit drivers

  • 32-bit apps (some 16-bit)

  • DEP prevents security attach using h/w and s/w technology

Windows xp basics l.jpg

Windows XP Basics

  • The first screen to appear when a Windows XP computer is booted is the welcome screen, which provides security and allows the user to login.

  • A user can log in to:

    • The local computer.

    • A workgroup (peer-to-peer network).

    • A domain ( a network with a server).

  • In XP, press CTRL+ALT+DEL twice to access the local Administrator login.

Pre installation of windows l.jpg

Pre-Installation of Windows

  • When upgrading Windows through an acceptable upgrade path, the user’s applications and data are preserved if the operating system is installed in the same folder as the original operating system.

  • A clean installation involves loading an operating system on a computer that does not already have one installed.

  • Dual-bootor multi-boot allow the user to boot from one of two or more installed operating systems.

  • Planning and preparation are key to a successful operating system install. Its important to be ready by having all the necessary hardware installed, drivers ready, any needed software applications, patches and upgrades, and an anti-virus program. It’s also necessary to make decisions about how the operating system will be installed and configured prior to installation such as what file system will be used and how the hard drive will be formatted.

Pre installation l.jpg


Vista in place upgrades l.jpg

Vista In-place Upgrades

  • Use Upgrade Advisor tool

  • Plug any devices that normally attach to the computer especially USB devices before starting Upgrade Advisor.

Vista home premium business and ultimate recommended hardware l.jpg

Vista Home Premium, Business, and Ultimate Recommended Hardware

Fat32 or ntfs l.jpg


  • Use the convertcommand to convert a non-partition to NTFS.

    • convert x: /fs:ntfs(where x:is the drive partition/volume to be converted to NTFS.

  • FAT32 partitions must be 32GB or less.

  • FAT16 partitions must be 4GB or less.

Viruses l.jpg


  • When installing a new operating system on a computer that already has an operating system loaded, it is a good time to run a virus scan with the latest virus scanning software version.

  • A virus is a program designed to modify the computer from the way it originally operated.

Common symptoms of a virus l.jpg

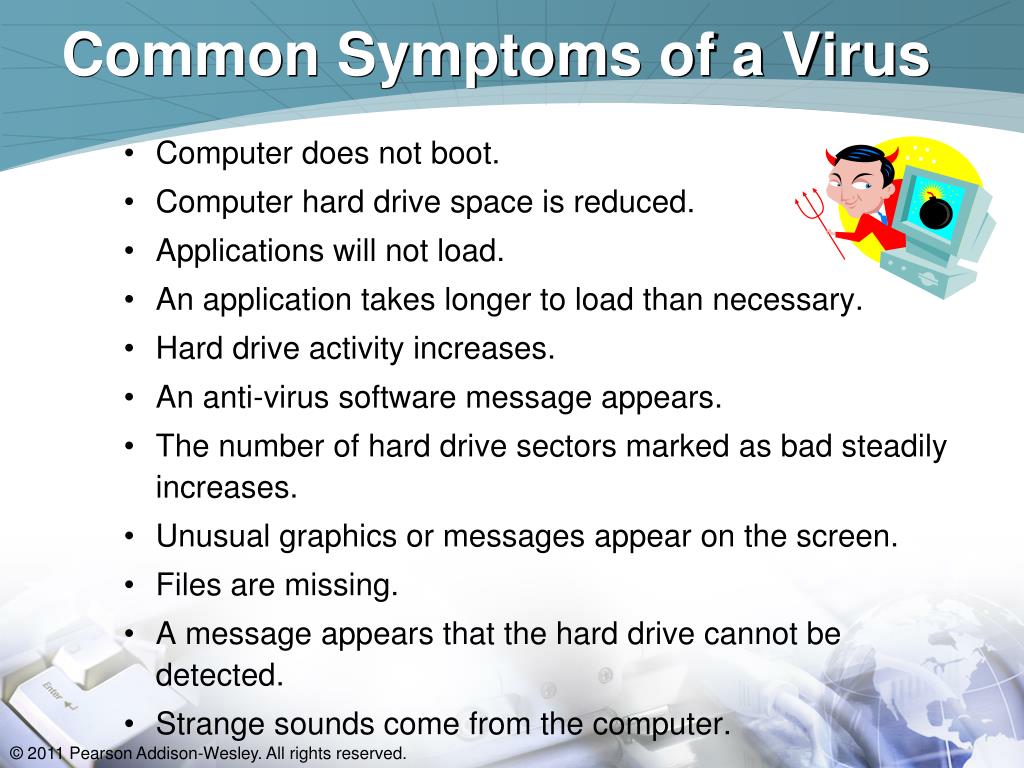

Common Symptoms of a Virus

  • Computer does not boot.

  • Computer hard drive space is reduced.

  • Applications will not load.

  • An application takes longer to load than necessary.

  • Hard drive activity increases.

  • An anti-virus software message appears.

  • The number of hard drive sectors marked as bad steadily increases.

  • Unusual graphics or messages appear on the screen.

  • Files are missing.

  • A message appears that the hard drive cannot be detected.

  • Strange sounds come from the computer.

Virus types l.jpg

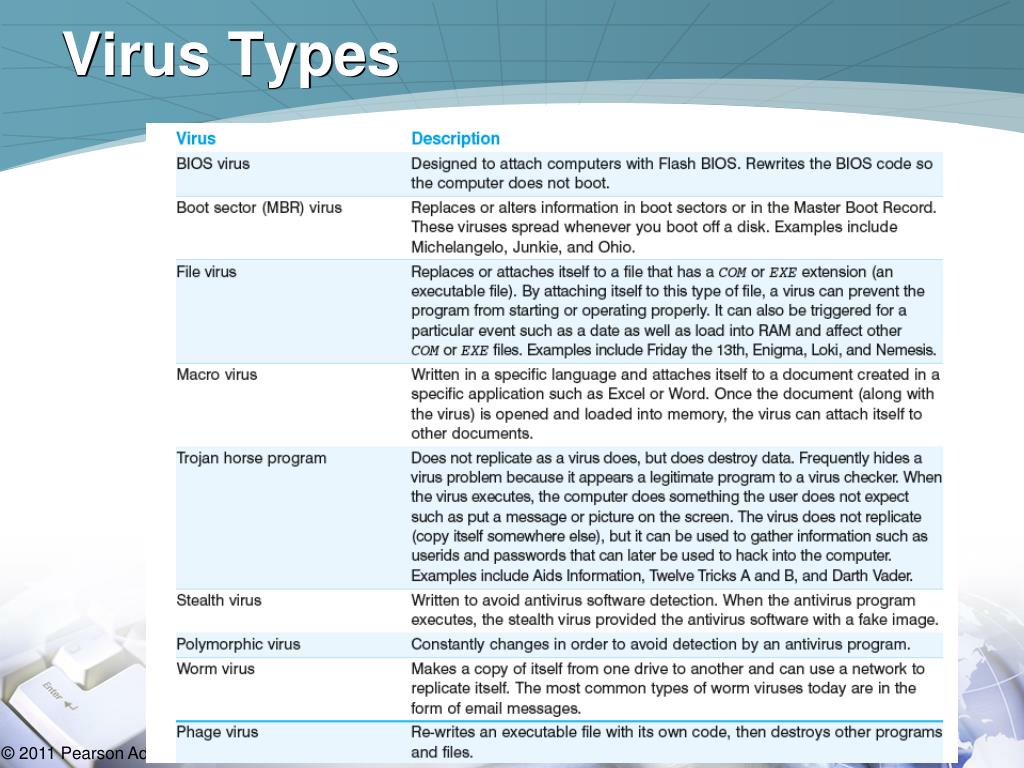

Virus Types

Installation upgrade of xp vista l.jpg

Installation/Upgrade of XP/Vista

  • Microsoft requires activation of the Windows XP operating system within 30 days.

    • Activation can be completed over the Internet or the phone.

    • Larger companies use a VLK (volume license key)

  • Companies using Vista must use a MAK (multiple activation key activated by phone or the Internet) or KMS (Key Management Service to register with a specific computer)

Corporate windows deployment l.jpg

Corporate Windows Deployment

  • Corporate computer installations are

  • much more involved than any other type of operating system deployment. There are three tools that can help with this.

    • Sysprep tool

    • Windows Vista/7 WDS (Windows Deployment Service)

    • Microsoft’s Setup Manager

    • Symantec’s Ghost program

  • SID (Security Identifier) – A unique number assigned to every Microsoft-based computer.

Verify the installation l.jpg

Verify the Installation

Power Mgmt

  • Re-initialize power management software



  • Check Device Manager

  • Check all applications


  • Re-enable the anti-virus software

Troubleshooting the windows installation l.jpg

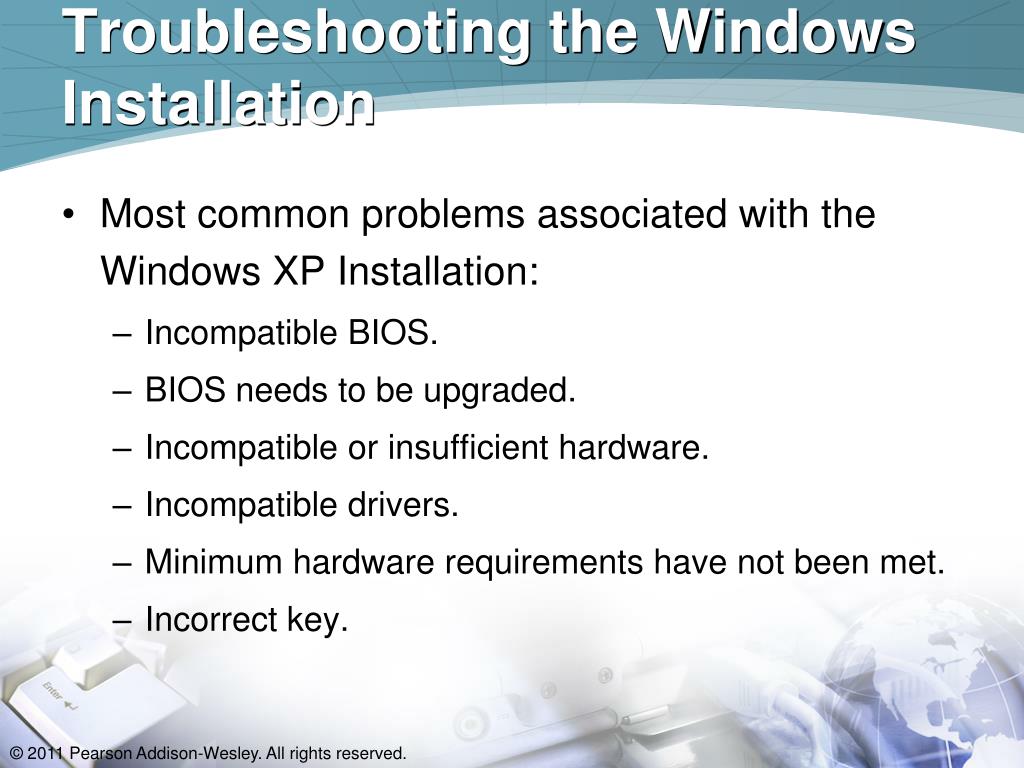

Troubleshooting the Windows Installation

  • Most common problems associated with the Windows XP Installation:

    • Incompatible BIOS.

    • BIOS needs to be upgraded.

    • Incompatible or insufficient hardware.

    • Incompatible drivers.

    • Minimum hardware requirements have not been met.

    • Incorrect key.

Dual booting windows l.jpg

Dual-Booting Windows

  • The older operating system should be installed first.

  • Each operating system should be installed on a separate partition/volume.

Reloading windows l.jpg

Reloading Windows

  • Re-installation (in-place upgrade or repair installation) – Reloading Windows as necessary.

  • Windows XP can be reloaded:

    • From within a booted XP environment.

    • By booting from the XP CD.

Reloading windows27 l.jpg

Reloading Windows

  • Re-installation (in-place upgrade or repair installation)

  • Reloading Windows as necessary.

  • Windows XP can be reloaded:

    • From within a booted XP environment.

    • By booting from the XP CD.

  • Windows Vista can be reloaded from original disc, HPA partition, option from Advanced Boot Options (F8 during startup).

Windows updates l.jpg

Windows Updates

Restoring the system state after a failure l.jpg

Restoring the System State After a Failure

  • To make a system operational again, you may have to restore both the registry and the system state (XP) after a failure.

  • Make backups often

    • Full version of the Backup tool is only available in Vista Business, Enterprise, or Ultimate

    • Software provided by the computer manufacturer

    • Software provided by a storage device manufacturer

Configuring windows overview l.jpg

Configuring Windows Overview

  • The control panel is the most common window used by technicians to configure various Windows components.

Steps to configure windows l.jpg

Steps to Configure Windows

Adding devices

Removing hardware components

Adding a printer

Installing/removing software

Adding devices l.jpg

Adding Devices

  • Device driver – software to allow the operating system to recognize and control a piece of hardware.

    • Requires administrator rights to install

    • Windows XP uses DRIVER.CAB

    • Windows Vista/7 uses driver packages stored in an indexed database and stored in the following folder by default: C:\Windows\system32\DriverStore\FileRepository

Adding devices33 l.jpg

Adding Devices

  • Digital signatures (driver signing) – Used by some Windows device drivers.

    • Digital signatures confirm the devices being installed are compatible with Windows and have not been changed.

    • Digital signatures are required for 64-bit kernel mode drivers in Windows Vista and 7.

  • Driver roll back – A feature in Windows which allows an older driver to be reinstalled if the new driver causes problems.

Adding devices34 l.jpg

Adding Devices

  • Successful installation of a device includes:

    • Using the most up-to-date driver

    • Following the directions provided by the device manufacturer

File signature verification options

System restore utility l.jpg

System Restore Utility

  • A program that makes an image, a restore point, of the registry and backs up certain system files.

    • Does not affect email or personal data

    • Similar to using the Last Known Good Configuration menu item available through Advanced Boot menu (F8 on boot up)

    • Use if the system has problems or you suspect the registry is corrupt

    • rstrui from a command prompt

    • Vista/7 use shadow copy which creates a block-level image of system files and applications

    • Backup media can be hard drive, Flash drive, CDs, DVDs, and server storage; it cannot be tape.

Adding a printer l.jpg

Adding a Printer

  • To install a printer under Windows XP, use the Add Printer wizard. A Windows XP print driver must be used to install the specific printer.

  • In Vista or 7, use the Printers link from the Hardware and Sound control panel.

Removing hardware devices l.jpg

Removing Hardware Devices

  • Windows normally detects when hardware has been removed and the operating system automatically removes the device’s driver.

    • If Windows does not detect the hardware removal, the drivers must be manually removed.

Installing removing software l.jpg

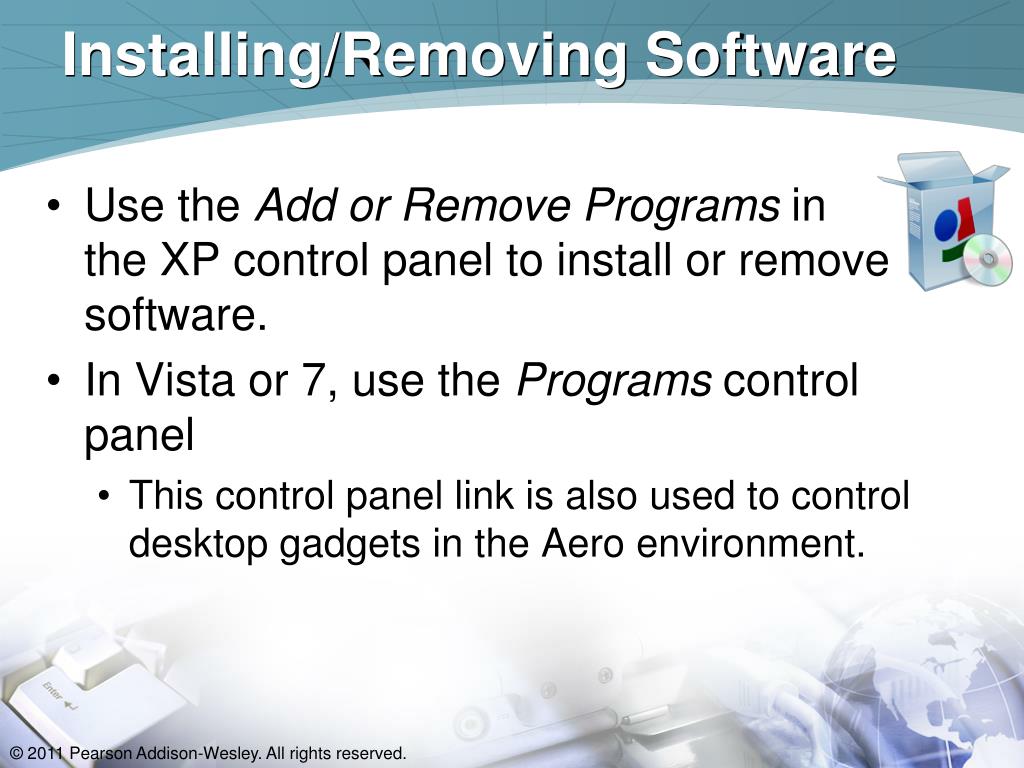

Installing/Removing Software

  • Use the Add or Remove Programs in the XP control panel to install or remove software.

  • In Vista or 7, use the Programs control panel

    • This control panel link is also used to control desktop gadgets in the Aero environment.

Microsoft management console l.jpg

Microsoft Management Console

  • Microsoft Management Console holds snap-ins or tools used to maintain the computer.

    • System Tools

    • Storage

    • Services and Applications

  • You must be a member of the Administrators group to perform any disk management tasks.

Microsoft management console system tools l.jpg

Microsoft Management Console: System Tools

  • Event Viewer – monitor events

  • Performance Logs and Alerts (XP)/Performance Monitor (Vista) – create logs about the computer performance and create alerts that notify you when a specific instance being monitored reaches a pre-defined threshold

  • Shared Folders – view shares, sessions, and open files

  • Local Users and Groups – create and manage accounts for those that use the computer or computer resources from a remote computer

  • Device Manager – view and manage hardware devices

Computer management from windows 7 l.jpg

Computer Management from Windows 7

Event viewer from windows 7 l.jpg

Event Viewer from Windows 7

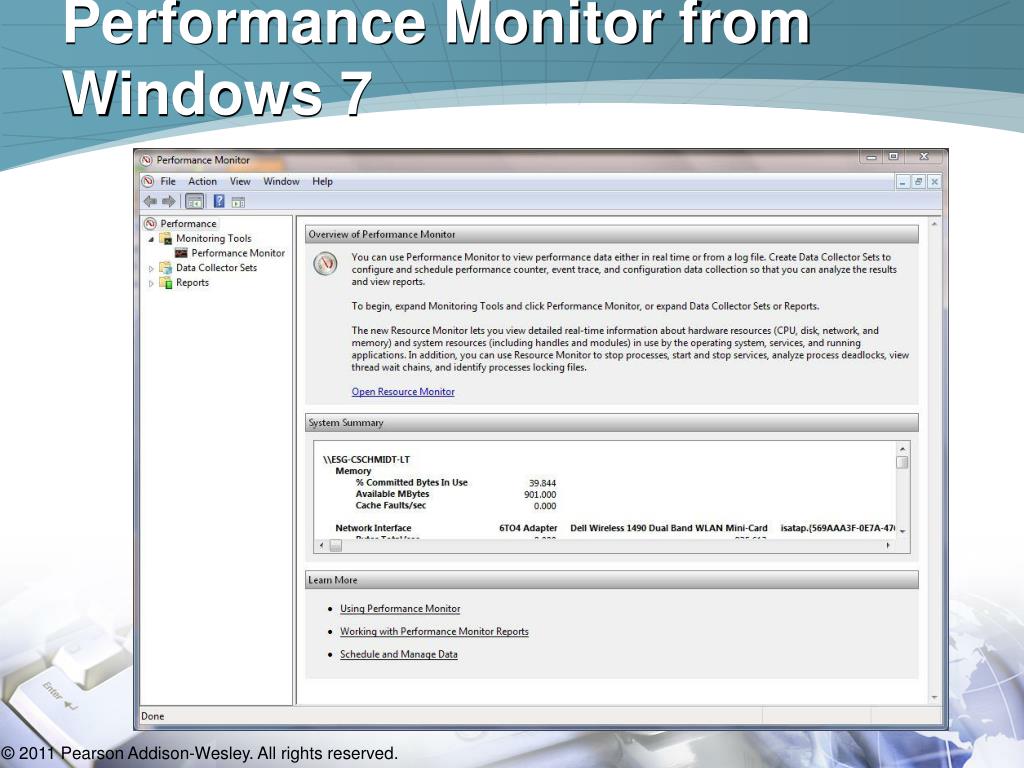

Performance monitor from windows 7 l.jpg

Performance Monitor from Windows 7

Shared folders from windows 7 l.jpg

Shared Folders from Windows 7

Local users and groups from windows 7 l.jpg

Local Users and Groups from Windows 7

Device manager from windows 7 l.jpg

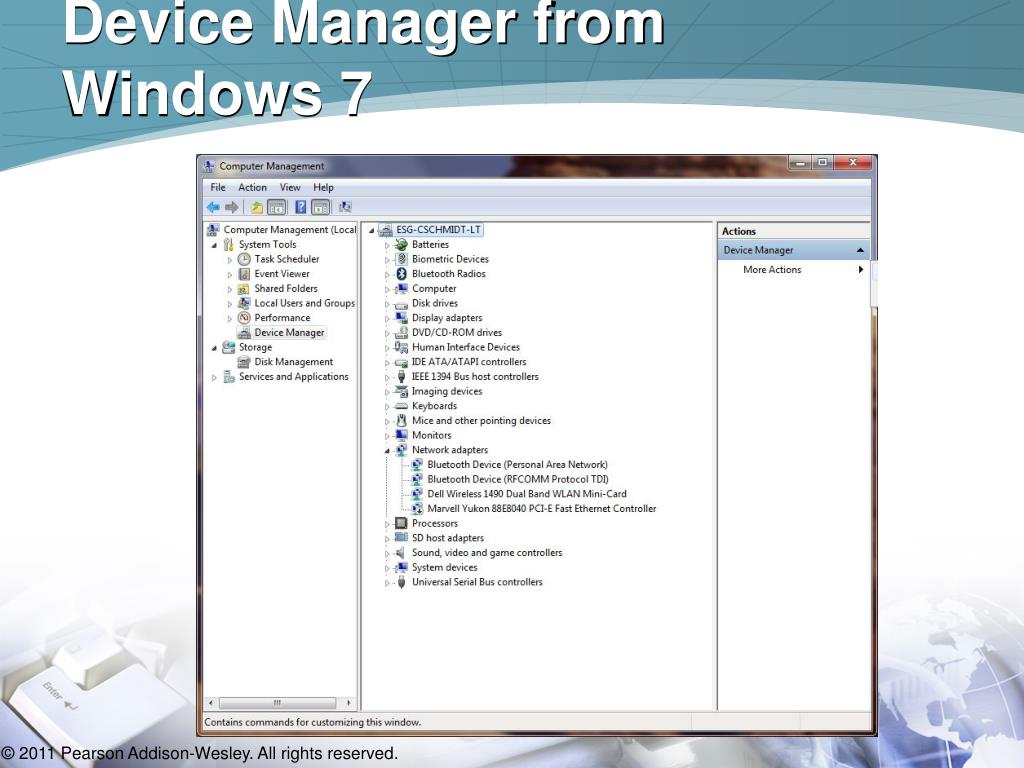

Device Manager from Windows 7

Uac user access control l.jpg

UAC (User Access Control)

  • Provides a heightened awareness to security issues

  • A message appears anytime something occurs that normally would require an administrator-level decision to make changes to the system.

    • Protects users from themselves as well as software that is trying to change the system

Permissions l.jpg


  • There are two types of permissions:

    • Shared folder permissions – Provide access to data across a network.

    • NTFS file/folder permissions – Provide tighter control than shared folder permissions.

      • These can only be used on NTFS partitions/volumes.

Shared folder permissions l.jpg

Shared Folder Permissions

  • To share a folder in XP: Explorer ►right-click on the folder ► Sharing and Security ► Sharing tab ► Share this folder

  • To share a folder in Vista/7

    • Use the Public folder (C:\Users\Public)

    • Explorer ► right-click on the folder ► Properties ► Sharing tab ► Advanced Sharing button ► enable the Share this folder checkbox

Share permissions l.jpg

Share Permissions

  • Sharing tab

Ntfs permissions l.jpg

NTFS Permissions

  • Security tab ► Advanced button

Ntfs permissions52 l.jpg

NTFS Permissions

The boot process l.jpg

The Boot Process

  • System partition (XP and lower) or system volume (Vista and 7) is the active drive partition that holds files needed to load the operating system.

    • Normally C:

  • Boot partition (XP and lower) or boot volume (Vista and 7) is the partition or logical drive where the bulk of the operating system files are located.

    • The boot and system partitions or the boot and system volumes can be the same partition/volume.

System startup files l.jpg

System/Startup Files

Overview of the boot process l.jpg

Overview of the Boot Process

The HAL (Hardware Abstraction Layer) is the layer between the operating system and hardware devices that allows Windows to run different hardware configurations and components without crashing the operating system.

Troubleshooting the boot process l.jpg

Troubleshooting the Boot Process

  • Many problems can cause Windows not to boot correctly.

    • Invalid partition table

    • Error loading operating system

    • Missing operating system

    • Boot: Couldn’t find NTLDR (XP or lower)

    • NTLDR is missing (XP or lower)

    • Windows has blocked some startup programs

    • The Windows boot configuration data file is missing required information (Vista or higher)

    • Windows could not start because the following file is missing or corrupt

Troubleshooting the boot process57 l.jpg

Troubleshooting the Boot Process

  • Hold down the Shift key during the logon process and keep it held down until desktop icons appear to disable startup programs.

  • Pressing F8 during the startup process brings up the Windows Advanced Boot Options menu used to troubleshoot Windows boot and operational problems.

Advanced boot options menu l.jpg

Advanced Boot Options Menu

Windows recovery environment winre l.jpg

Windows Recovery Environment (WinRE)

  • Used in Windows Vista and 7

  • Replaced the Recovery Console and ASR (Automated System Recovery that uses the Backup tool to backup important system files (not data files) used to start Windows XP)

  • Boot from the installation DVD, select the language parameters, click Repair your computer, select an operating system, click Next.

  • Some computers can access this from the Advanced Boot Options (F8 during startup)

Windows recovery environment winre60 l.jpg

Windows Recovery Environment (WinRE)

Bootrec exe command l.jpg


  • bootrec /FixMbr – Used to resolve MBR issues; writes a Windows Vista/7-compatible MBR to the system partition

  • bootrec /FixBoot – Used if the boot sector has been replaced with a non-Windows Vista or 7 boot sector, if the boot sector is corrupt, or if an earlier Windows version has been installed after Vista or 7.

Bootrec exe command62 l.jpg


  • bootrec /ScanOs – Used when Vista/7 has been isntalled and is not listed on the Boot Manager menu

  • bootrec /RebuildBcd – Used to rebuild the BCD file

System configuration utility l.jpg

System Configuration Utility

  • Used to disable startup programs and services

  • msconfig from a command prompt

Windows defender l.jpg

Windows Defender

  • Program in Windows Vista and 7 that runs in the background looking for spyware.

Troubleshooting a service that does not start l.jpg

Troubleshooting a Service That Does Not Start

Use the System Configuration Utility, Event Viewer, and the Services snap-in to troubleshoot services that do not start.

Shut down problems l.jpg

Shut Down Problems

  • Three things associated with Shut Down problems

Active services

Active applications

Active devices

Supporting windows remotely l.jpg

Supporting Windows Remotely

  • Remote Desktop and Remote Assistance can be used to access a Windows XP PC remotely.

    • Remote Desktop is disabled by default in Windows Vista or 7.

    • Remote Assistance displays a prompt asking permission for the computer to be viewed remotely.

      • In Vista or 7, Remote Assistance now supports computers that use NAT, but you may have to go into the Windows Firewall (or another vendor’s firewall) and configure it to allow Remote Assistance to work.

Preventive maintenance l.jpg

Preventive Maintenance

Avoiding burnout l.jpg

Avoiding Burnout

Questions l.jpg


  • Login
