Presentation Transcript

Functions l.jpg
FUNCTIONS

  • TO DETECT CHANGES AND FEEL SENSATIONS

  • TO INITIATE APPROPRIATE RESPONSES TO CHANGE

  • TO ORGANIZE INFORMATION FOR IMMEDIATE USE AND TO STORE IT FOR FUTURE USE


Divisions of the ns l.jpg
DIVISIONS OF THE NS

  • CNS

    INCLUDES BRAIN AND SPINAL CORD

  • PNS

    INCLUDES CRANIAL NERVES, SPINAL NERVES, AND THE AUTONOMIC NERVOUS SYSTEM (ANS)


Parts of a nerve cell l.jpg
PARTS OF A NERVE CELL

  • DENDRITES – TRANSMIT IMPULSES TOWARDS THE CELL BODY

  • CELL BODY – CONTAINS NUCLEUS

  • AXON – TRANSMIT IMPULSES AWAY FROM THE CELL BODY


Slide7 l.jpg


What s similar in the cns and the pns l.jpg
WHAT’S SIMILAR IN THE CNS AND THE PNS?

  • BOTH CONTAIN THE MYELIN SHEATH (A SHEATH THAT ELECTRICALLY INSULATES NEURONS FROM ONE ANOTHER)

  • THE MYELIN SHEATH ALLOWS SMOOTH NERVE IMPULSE TRANSMISSION FROM ONE NEURON TO ANOTHER


What s different in the cns and the pns l.jpg
WHAT’S DIFFERENT IN THE CNS AND THE PNS?

  • CNS

  • THE MYELIN SHEATH IS FORMED BY OLIGODENDROCYTES, A SPECIALIZED CELL THAT CANNOT REGENERATE

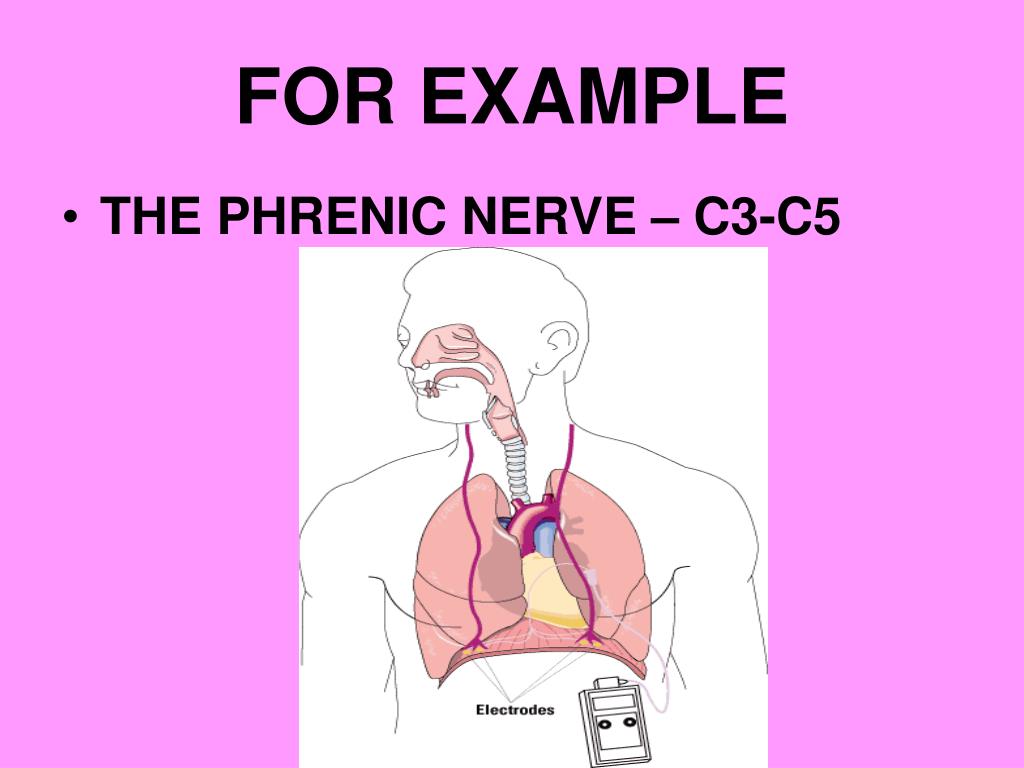

For example l.jpg
FOR EXAMPLE

  • THE PHRENIC NERVE – C3-C5


What s different in the cns and pns l.jpg
WHAT’S DIFFERENT IN THE CNS AND PNS?

  • PNS

  • THE MYELIN SHEATH IS MADE OF SCHWANN CELLS

  • THE NUCLEI ARE OUTSIDE OF THE MYELIN SHEATH AND CALLED A NEUROLEMMA

  • THESE CAN REGENERATE


The reflex arc l.jpg
THE REFLEX ARC

  • THE PATHWAY NERVE IMPUSLES TRAVEL WHEN A REFLEX IS ELICITED


5 essential parts to reflex l.jpg
5 ESSENTIAL PARTS TO REFLEX

  • RECEPTORS – DETECT STIMULUS AND GENERATE IMPULSE

  • SENSORY NEURON – CARRY IMPULSES TO THE CNS

  • CNS – CONTAINS 1 OR MORE SYNAPSES

  • MOTOR NEURON – CARRY IMPULSES FROM THE CNS TO THE EFFECTOR

  • EFFECTOR – PERFORMS ACTION


Stretch reflex l.jpg
STRETCH REFLEX

  • KEEPS OUR BODY UPRIGHT WITHOUT THINKING


Flexor reflex l.jpg
FLEXOR REFLEX

  • AKA WITHDRAWAL REFLEX

  • PREVENTS INJURY BY PULLING AWAY FROM A

    PAINFUL

    STIMULUS


Spinal cord l.jpg
SPINAL CORD

  • TRANSMITS MESSAGES TO AND FROM THE BRAIN

  • EXTENDS FROM THE

    FORAMEN MAGNUM

    TO L2

  • CALLED THE CAUDA

    EQUINA AFTER

    L2


Spinal cord20 l.jpg
SPINAL CORD

  • THE CENTER OF THE CORD CONTAINS GRAY MATTER THAT CARRIES MOTOR IMPULSES

  • THE EXTERNAL PORTION OF THE CORD CONTAINS WHITE MATTER THAT CARRIES SENSORY IMPULSES


Spinal cord21 l.jpg
SPINAL CORD

  • ASCENDING TRACTS CARRY SENSORY IMPULSES TO THE BRAIN (WHITE MATTER)

  • DESCENDING TRACTS CARRY MOTOR IMPULSES AWAY FROM THE BRAIN (GRAY MATTER)

  • THE CENTRAL CANAL CONTAINS CSF


Spinal nerves l.jpg
SPINAL NERVES

  • 31 PAIRS OF SPINAL

    NERVES

    8 CERVICAL

    12 THORACIC

    5 LUMBAR

    5 SACRAL

    1 COCCYGEAL


Spinal nerves23 l.jpg
SPINAL NERVES

  • EACH SPINAL NERVE HAS 2 ROOTS

  • THE DORSAL ROOT CARRIES IMPULSES IN TO THE CORD

  • THE VENTRAL ROOT CARRIES IMPULSES OUT OF THE CORD


Brain l.jpg
BRAIN

  • CEREBRUM – LARGEST PART OF THE BRAIN

  • THE TWO HEMISPHERES ARE CONNECTED BY THE CORPUS CALLOSUM THAT CONNECTS THE RIGHT AND LEFT HEMISPHERES

  • THERE IS A LATERAL VENTRICLE IN EACH HEMISPHERE


Cerebrum l.jpg
CEREBRUM

  • THE CEREBRAL CORTEX (SURFACE) IS FOLDED EXTENSIVELY WITH GYRI THAT ALLOWS MILLIONS MORE NEURONS


Cerebrum26 l.jpg
CEREBRUM

  • 4 LOBES

  • FRONTAL – MOTOR AREAS

  • PARIETAL – SENSORY AREAS

  • TEMPORAL – AUDITORY AND OLFACTORY AREAS

  • OCCIPITAL – VISUAL AREA


Slide28 l.jpg

  • PITUITARY – CONTROLS GROWTH

  • THALAMUS – INTEGRATES SENSATIONS

  • HYPOTHALAMUS – MANY FUNCTIONS

  • CEREBELLUM – COORDINATION, POSTURE, EQUILIBRIUM

  • VENTRICLES (4) – CONTAINS THE CHOROID PLEXUS THAT MAKES CSF


Brainstem l.jpg
BRAINSTEM

  • MIDBRAIN – VISUAL AND AUDITORY REFLEXES

  • PONS – 2 RESPIRATORY CENTERS FOR NORMAL BREATHING

  • MEDULLA OBLONGATA – REGULATES HEART RATE, BLOOD PRESSURE, AND RESPIRATION. ALSO A REFLEX CENTER FOR COUGHING, SNEEZING, SWALLOWING, VOMITING


Connective tissue membranes l.jpg
CONNECTIVE TISSUE MEMBRANES

  • COVER BRAIN AND SPINAL CORD

  • CALLED MENINGES

  • 3 LAYERS

  • DURA MATER – THICK OUTER LAYER

  • ARACHNOID MEMBRANE – MIDDLE LAYER

  • PIA MATER – INNERMOST LAYER

  • SUBARACHNOID SPACE – CONTAINS CSF


Slide32 l.jpg
CSF

  • CEREBROSPINAL FLUID

  • BRINGS NUTRIENTS TO CNS NEURONS AND REMOVES WASTES TO THE BLOOD

  • ACTS AS A CUSHION FOR CNS


Cranial nerves l.jpg
CRANIAL NERVES

  • 12 PAIRS

  • EMERGE FROM THE BRAIN STEM OR OTHER PARTS OF THE BRAIN


Slide34 l.jpg

CN I – OLFACTORY

CN II – OPTIC

CN III – OCULOMOTOR

CN IV – TROCHLEAR

CN V – TRIGEMINAL

CN VI – ABDUCENS

CN VII – FACIAL

CN VIII – ACOUSTIC

CN IX – GLOSSOPHARYNGEAL

CN X – VAGUS

CN XI – ACCESSORY

CN XII - HYPOGLOSSAL


Autonomic nervous system l.jpg
AUTONOMIC NERVOUS SYSTEM

  • PART OF THE PNS

  • 2 DIVISIONS

  • SYMPATHETIC

  • PARASYMPATHETIC

    THESE ARE INTEGRATED BY THE HYPOTHALAMUS


Slide36 l.jpg
