Presentation Transcript
Stored procedures l.jpg

Stored Procedures

Dr. Ralph D. Westfall

May, 2009

Getting database data l.jpg
Getting Database Data

  • when using a database, there are two places where a detailed request for data can be located

    • inside a program that is separate from the database

    • inside the database itself

  • a stored procedure is a previously created query or program in a database

Sql server stored procedures l.jpg
SQL Server Stored Procedures

  • precompiled in SQL Server so they run faster

  • can be reused to avoid recoding

  • make code simpler

    • like subprocedures do

  • better security

    • can give users access to data from stored procedures rather than to whole tables

Stored procedures4 l.jpg
Stored Procedures

  • code to manipulate database (retrieve data, add, change, delete) stored in database

    • like subroutine, can use in multiple programs (but not with Access database)

    • less storage: once instead of multiple copies

    • easier to update than multiple copies

    • stored queries run faster inside database

    • makes it easier to migrate applications to other platforms or scale up to larger volumes

Stored procedures with vb l.jpg
Stored Procedures with VB

  • create or open a Visual Basic project

  • Data>Add new Data Source to get an existing SQL Server database and select the tables that you will use

  • View>Server Explorer

    • expand the database you want, right-click Stored Procedures>Add New Stored Procedure

Configure stored procedure l.jpg

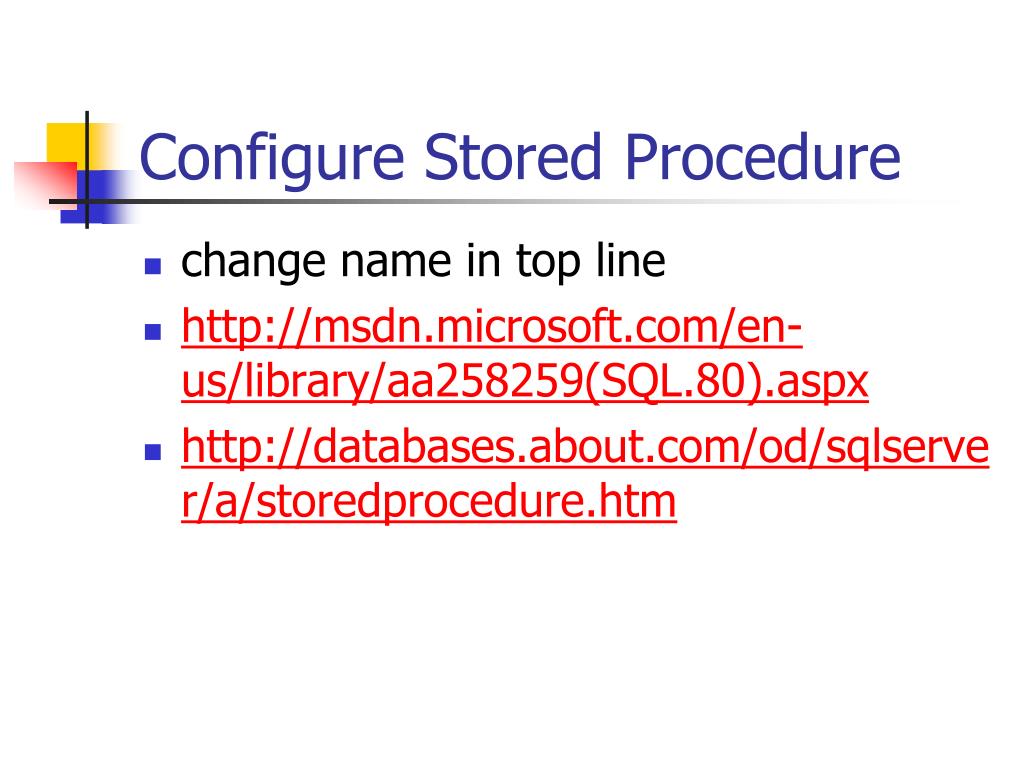

Configure Stored Procedure

  • change name in top line



Create stored procedure l.jpg
Create Stored Procedure

  • right-click Stored Procedures>New Stored Procedure

Stored procedures with vb11 l.jpg
Stored Procedures with VB

  • start SQL Server Management Studio Express

    • attach or create a database file

    • right-click database name>New Query

    • paste in a sample query (e.g., from link above) and modify it to match fields in this database)

    • run it to see results

Creating stored procedures l.jpg
Creating Stored Procedures

  • start SQL Server Management Studio

  • expand a database>expand Programmability>right-click Stored Procedures>New Stored Procedure

  • click Query in top menu>Specify Values for Template Parameters

  • replace values for ProcedureName, @Param[], Datatypes and Default Values

Complete stored procedure l.jpg
Complete Stored Procedure

  • replace SELECT statement with SQL code for the procedure

    • parameters usually are in WHERE clause WHERE [field] [compare] @[name] e.g., WHERE AGE= @age

  • use Query>Parse to verify syntax

  • click !Execute button to compile it

  • File>Save (rename it)>Save

Verify stored procedure l.jpg
Verify Stored Procedure

  • click Refresh icon in Object Explorer

  • expand [database name]> Programmability>Stored Procedures to verify that it's there

Test stored procedure l.jpg
Test Stored Procedure

  • click New Query and type the following:USE "database name"; 'within quotes GOEXECUTE [stored proc name] @[name] = [value], @[name2] = [value2];GO

    • ignore warnings

  • click !Execute button and verify results

Sample code l.jpg
Sample Code

  • uses Nations.mdf database from Classy Project

  • stored procedure is named dbo.GetByPopGolds

    SELECT * from nations2

    where Pop > @pop and Gold < @gold

Add procedure to code l.jpg
Add Procedure to Code

  • create a VB Project with a ListBox, two Textboxes and a Button

  • double click the Button to create a Sub and add code on following pages

Declarations l.jpg

Dim sqc As SqlCommand

Dim da As SqlDataAdapter

Dim ds As DataSet

Dim con As SqlConnection

Dim dr As DataRow

Dim output As String

Dim pads() As Integer = {4, 22, 3, 3, 3, 7, 15}

Dim padDirection() As String = {"L", "R", "L", "L", "L", "L", "R"}

Connection code l.jpg
Connection Code

ds = New DataSet

con = New SqlConnection

con.ConnectionString ="server=.\SQLEXPRESS;" _

& AttachDbFilename=[path]\Nations.mdf;" _

& "Integrated Security=True;"

Getting data l.jpg
Getting Data

sqc = New SqlCommand

sqc.CommandText = "Exec [dbo].[GetByPopGolds] " _

& TextBox1.Text & ", " & TextBox2.Text

sqc.Connection = con

da = New SqlDataAdapter

da.SelectCommand = sqc


ListBox1.Sorted = True

Load outputs l.jpg
Load Outputs

For Each dr In ds.Tables(0).Rows

output = ""

For i As Integer = 0 To 6

If padDirection(i) = "L" Then

output += CStr(dr(i)).PadLeft(pads(i)) & " "


output += CStr(dr(i)).PadRight(pads(i))

End If




Using optional parameters l.jpg
Using Optional Parameters

  • Optional Parameters in SQL Stored Procedures

    • create a stored procedure based on the code at the above web page

    • right click the stored procedure name> Execute Stored Procedure>either check Pass Null Value or input the desired criterion (don't do both!), OK and review output

Dynamic sql l.jpg
Dynamic SQL

  • include SQL code in parameters rather than just values

    • potential security risks (SQL injection)

  • potential to create more flexible stored procedures

    • more options

Microsoft access l.jpg
Microsoft Access

  • can create stored procedures in VB code


Creating a stored procedure l.jpg
Creating a Stored Procedure

  • download sample.mdb into the project folder

  • create a query using design view

    • can also use query from form or report

      • see Help on saving SQL statements as queries

  • use Save As to save query within the database with the name you give it

Additional activity l.jpg
Additional Activity

  • try to modify code to run the Query that you created in the database
