Presentation Transcript


Slide1 l.jpg

?


Oscillogram l.jpg

Oscillogram

consonant

consonant

vowel


Slide3 l.jpg

?


Spectrogram l.jpg

Spectrogram

release

burst

aspiration

vowel with low F1

silent gap


F1 rule l.jpg

F1 rule

  • F1 Rule: the frequency of F1 tends to decrease with increases in tongue height

  • /a/: F1 = 730 Hz

  • /æ/: F1 = 660 Hz

  • /o/: F1 = 570 Hz

  • /e/: F1 = 530 Hz

  • /I/: F1 = 390 Hz

  • /u/: F1 = 300 Hz

  • /i/: F1 = 270 Hz

low

high


Spectrogram6 l.jpg

Spectrogram

voiced stop

voiceless stop

high vowel: /i/, /u/?


Spectrogram7 l.jpg

Spectrogram

g o o d

voiced stop

voiceless stop

high vowel: /i/, /u/?

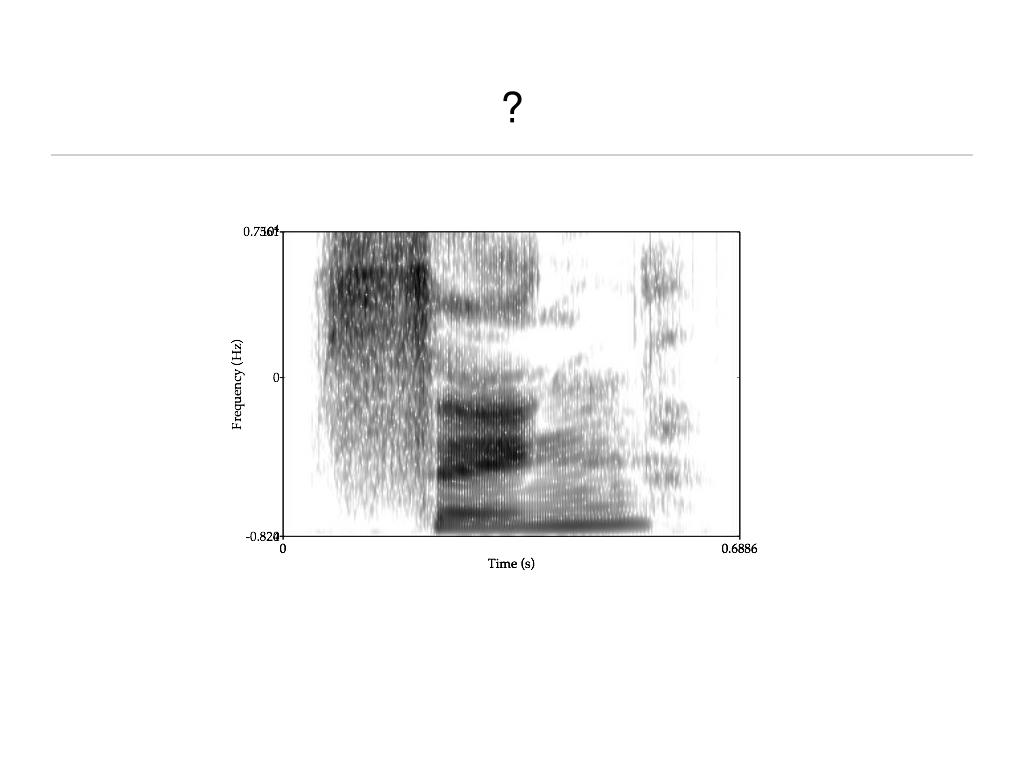

Slide8 l.jpg

?


Slide9 l.jpg

?

high intensity at

high frequency

antiformants

“white” noise

no release burst

low F1

high F2


F2 rule l.jpg

F2 rule

  • F2 Rule: the frequency of F2 tends to decrease with backward tongue position.

  • /æ/: F2 = 1720 Hz

  • /e/: F2 = 1840 Hz

  • /I/: F2 = 1990 Hz

  • /i/: F2 = 2290 Hz

  • /a/: F2 = 1090 Hz

  • /o/: F2 = 840 Hz

  • /u/: F2 = 870 Hz

front

back


Spetrogram l.jpg

Spetrogram

nasal /ŋ/

fricative /s/

high front vowel /i/


Slide12 l.jpg

?


Spectrogram13 l.jpg

Spectrogram

lie


Slide14 l.jpg

?


Spectrogram15 l.jpg

Spectrogram

buy


Spectrogram16 l.jpg

Spectrogram

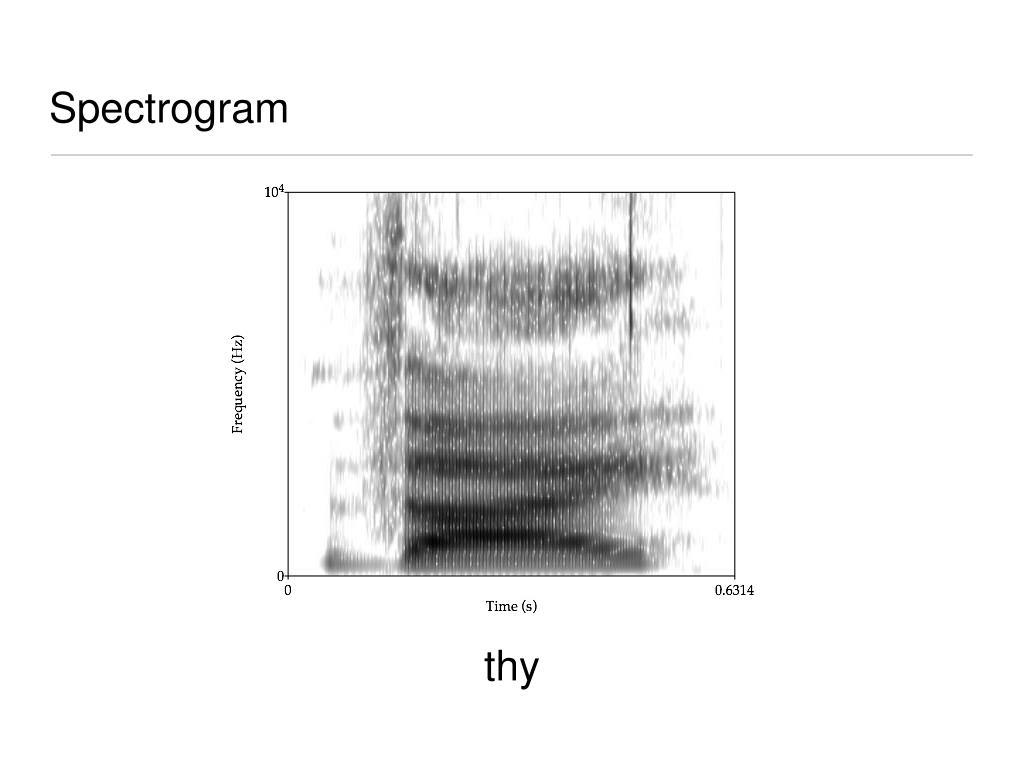

Spectrogram17 l.jpg

Spectrogram

thy


Spectrogram18 l.jpg

Spectrogram


Spectrogram19 l.jpg

Spectrogram

chin


Slide20 l.jpg

?


Short answer questions l.jpg

short answer questions

Which muscles close the jaw?


Short answer questions22 l.jpg

short answer questions

Which muscles close the jaw?

  • masseter

  • temporalis

  • medial pterygoid


Short answer questions23 l.jpg

short answer questions

What is shimmer?


Short answer questions24 l.jpg

short answer questions

What is shimmer?

  • Shimmer means the variability in the amplitude of vocal fold vibrations.


Systematic l.jpg

Systematic

feedback

resonator

brain

brainstem

muscle

cranial nerve

cerebellum


Systematic26 l.jpg

Systematic

stroke

Parkinson’s

Multiple sclerosis

ALS

hearing impairment

feedback

resonator

myo-pathies

brain

brainstem

muscle

cranial nerve

tumour

tumour

stroke

cleft palate

cerebellum

cerebellar disorder

multiple sclerosis


Dysarthria l.jpg

Dysarthria

  • a motor speech disorder

  • weakness, paralysis or loss of coordination

  • affects muscles important for respiration, phonation, or articulation

  • due to a neurological disorder

  • often associated with swallowing impairment (dysphagia)


Dysarthria28 l.jpg

Dysarthria

  • Dysarthria is a broad term:

  • upper motor neuron

    • spastic (e.g. due to multiple sclerosis)

    • hypokinetic (e.g. due to Parkinson’s disease)

    • hyperkinetic (e.g. due to Huntington’s disease)

    • ataxic (e.g. due to cerebellar disorder)

  • lower motor neuron

    • flaccid (e.g. damage of the cranial nerves)

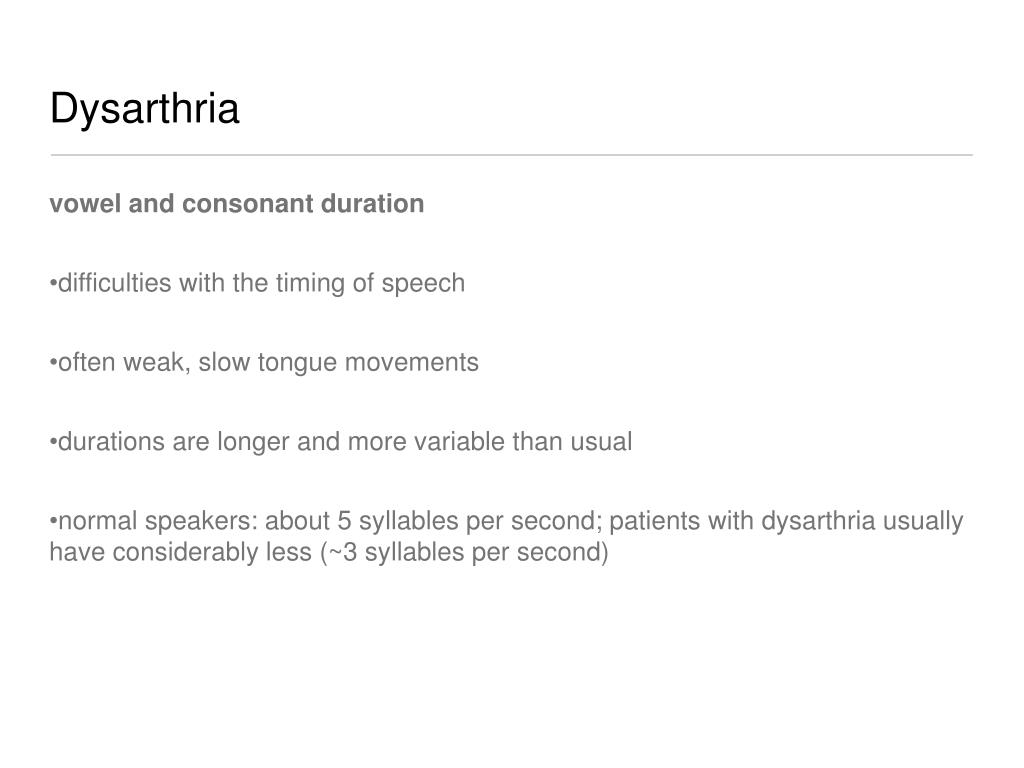

Dysarthria29 l.jpg

Dysarthria

vowel and consonant duration

  • difficulties with the timing of speech

  • often weak, slow tongue movements

  • durations are longer and more variable than usual

  • normal speakers: about 5 syllables per second; patients with dysarthria usually have considerably less (~3 syllables per second)


Dysarthria30 l.jpg

Dysarthria

Vowel formants

  • reduced tongue motion

  • the tongue positions of the non-neutral vowels are not reached

  • tongue position is closer to the neutral ə (schwa) vowel

  • reduced range of F1 and F2 frequencies

  • is perceived as a vowel distortion


Dysarthria31 l.jpg

Dysarthria

Formant transitions

  • slower tongue movement

  • slope index: measured in Hz per ms (frequency change over time)


Dysarthria32 l.jpg

Dysarthria

consonants

  • Fricatives and affricates are particularly difficult due to a lack of precise tongue control


Fricatives l.jpg

Fricatives

  • air is forced through a constriction

  • pressurized air becomes turbulent

  • turbulent air results in white noise (frication)

  • white noise contains all frequencies with an evenly distribution of intensity over frequencies.

thy


Affricates l.jpg

Affricates

  • one place of articulation in english: palatal

  • “ch”, “j”

  • combine the features of stops and fricatives: stop gap + frication noise

chin


Hearing impairment l.jpg

Hearing impairment

  • no acoustic feedback

  • most frequent: distortion of vowels

  • imprecise tongue position


Models of speech production l.jpg

Models of speech production

system


Models of speech production37 l.jpg

Models of speech production

system

model

articulation

phonation

respiration


Models of speech production38 l.jpg

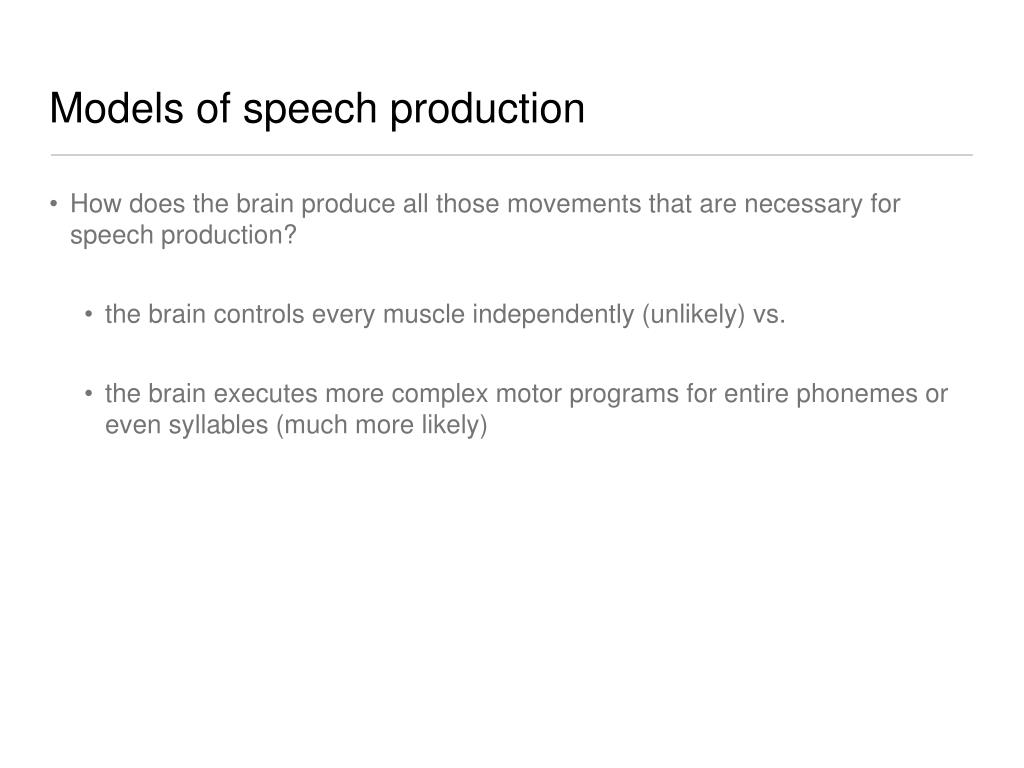

Models of speech production

  • How does the brain produce all those movements that are necessary for speech production?

    • the brain controls every muscle independently (unlikely) vs.

    • the brain executes more complex motor programs for entire phonemes or even syllables (much more likely)


Models of speech production39 l.jpg

Models of speech production

  • How can the brain adjust these motor programs if necessary (assimilation, coarticulation, speaking with a pen between the teeth)?

    • spatial target model: the brain executes motor programs that point to specific anatomical targets

    • acoustic target model: the brain executes motor programs that are optimized to produce certain acoustic features (F1, F2, etc.)


Models of speech production40 l.jpg

Models of speech production

  • How can the brain produce speech that fast?

    • motor programs control many muscles at once

    • connectionist models (spreading activation models, parallel-distributed processing models) emphasize parallel processing: different commands can be executed at the same time (essential for e.g. coarticulation)
