cs 3853 3851 computer architecture lecture 1 introduction

CS 3853/3851: Computer Architecture Lecture 1: Introduction

Daniel A. Jiménez

The University of Texas at San Antonio

http://www.cs.utsa.edu/~dj

http://www.cs.utsa.edu/~dj/cs3853

outline
Outline
  • Computer Science at a Crossroads
  • Computer Architecture v. Instruction Set Arch.
  • What Computer Architecture brings to table
crossroads conventional wisdom in comp arch
Crossroads: Conventional Wisdom in Comp. Arch
  • Old Conventional Wisdom: Power is free, Transistors expensive
  • New Conventional Wisdom: “Power wall” Power expensive, Xtors free (Can put more on chip than can afford to turn on)
  • Old CW: Sufficiently increasing Instruction Level Parallelism via compilers, innovation (Out-of-order, speculation, VLIW, …)
  • New CW: “ILP wall” law of diminishing returns on more HW for ILP
  • Old CW: Multiplies are slow, Memory access is fast
  • New CW: “Memory wall” Memory slow, multiplies fast(200 clock cycles to DRAM memory, 4 clocks for multiply)
  • Old CW: Uniprocessor performance 2X / 1.5 yrs
  • New CW: Power Wall + ILP Wall + Memory Wall = Brick Wall
    • Uniprocessor performance now 2X / 5(?) yrs

 Sea change in chip design: multiple “cores” (2X processors per chip / ~ 2 years)

      • More simpler processors are more power efficient
crossroads uniprocessor performance
Crossroads: Uniprocessor Performance

From Hennessy and Patterson, Computer Architecture: A Quantitative Approach, 4th edition, October, 2006

  • VAX : 25%/year 1978 to 1986
  • RISC + x86: 52%/year 1986 to 2002
  • RISC + x86: 18%/year 2002 to 2008

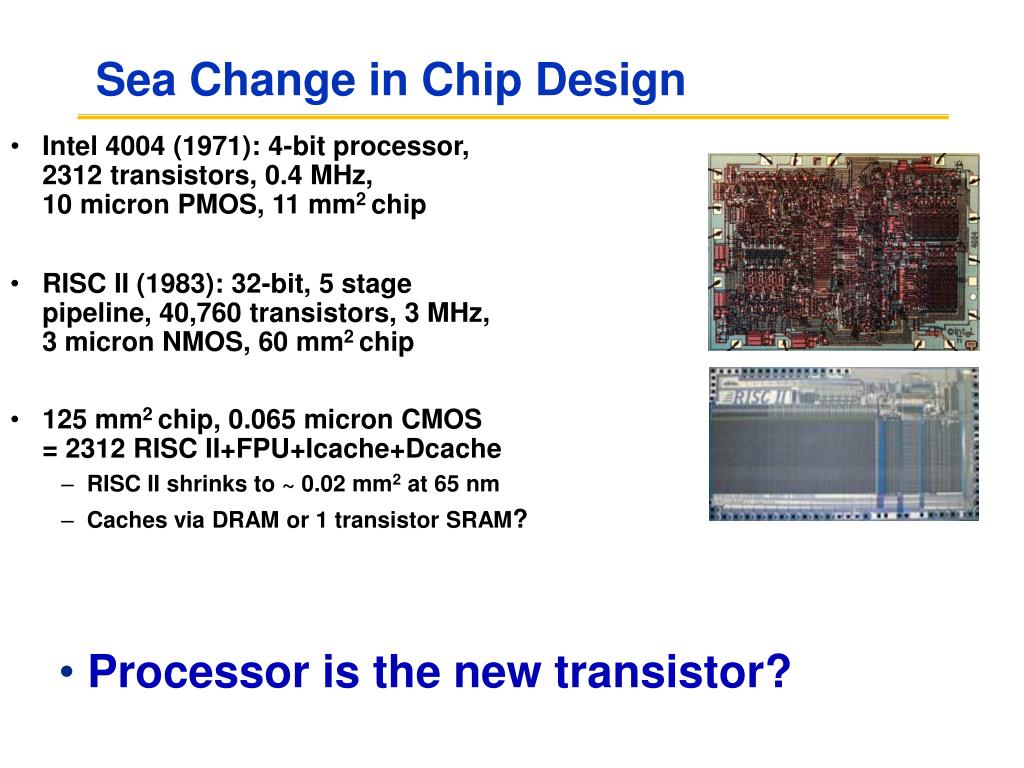

sea change in chip design
Sea Change in Chip Design
  • Intel 4004 (1971): 4-bit processor,2312 transistors, 0.4 MHz, 10 micron PMOS, 11 mm2 chip
  • RISC II (1983): 32-bit, 5 stage pipeline, 40,760 transistors, 3 MHz, 3 micron NMOS, 60 mm2 chip
  • 125 mm2 chip, 0.065 micron CMOS = 2312 RISC II+FPU+Icache+Dcache
    • RISC II shrinks to ~ 0.02 mm2 at 65 nm
    • Caches via DRAM or 1 transistor SRAM?
  • Processor is the new transistor?
problems with sea change
Problems with Sea Change
  • Algorithms, Programming Languages, Compilers, Operating Systems, Architectures, Libraries, … not ready to supply Thread Level Parallelism or Data Level Parallelism for 1000 CPUs / chip,
  • Architectures not ready for 1000 CPUs / chip
    • Unlike Instruction Level Parallelism, cannot be solved by just by computer architects and compiler writers alone, but also cannot be solved without participation of computer architects
instruction set architecture critical interface
Instruction Set Architecture: Critical Interface
  • Properties of a good abstraction
    • Lasts through many generations (portability)
    • Used in many different ways (generality)
    • Provides convenient functionality to higher levels
    • Permits an efficient implementation at lower levels

software

instruction set

hardware

example mips
Example: MIPS

r0

r1

°

°

°

r31

0

Programmable storage

2^32 x bytes

31 x 32-bit GPRs (R0=0)

32 x 32-bit FP regs (paired DP)

HI, LO, PC

Data types ?

Format ?

Addressing Modes?

PC

lo

hi

  • Arithmetic logical
  • Add, AddU, Sub, SubU, And, Or, Xor, Nor, SLT, SLTU,
  • AddI, AddIU, SLTI, SLTIU, AndI, OrI, XorI, LUI
  • SLL, SRL, SRA, SLLV, SRLV, SRAV
  • Memory Access
  • LB, LBU, LH, LHU, LW, LWL,LWR
  • SB, SH, SW, SWL, SWR
  • Control
  • J, JAL, JR, JALR
  • BEq, BNE, BLEZ,BGTZ,BLTZ,BGEZ,BLTZAL,BGEZAL

32-bit instructions on word boundary

instruction set architecture

SOFTWARE

Instruction Set Architecture

“... the attributes of a [computing] system as seen by the programmer, i.e. the conceptual structure and functional behavior, as distinct from the organization of the data flows and controls the logic design, and the physical implementation.” – Amdahl, Blaauw, and Brooks, 1964

-- Organization of Programmable

Storage

-- Data Types & Data Structures:

Encodings & Representations

-- Instruction Formats

-- Instruction (or Operation Code) Set

-- Modes of Addressing and Accessing Data Items and Instructions

-- Exceptional Conditions

isa vs computer architecture
ISA vs. Computer Architecture
  • Old definition of computer architecture = instruction set design
    • Other aspects of computer design called implementation
    • Insinuates implementation is uninteresting or less challenging
  • Our view is computer architecture >> ISA
  • Architect’s job much more than instruction set design; technical hurdles today more challenging than those in instruction set design
  • Since instruction set design not where action is, some conclude computer architecture (using old definition) is not where action is
    • We disagree on conclusion
    • Agree that ISA not where action is
comp arch is an integrated approach
Comp. Arch. is an Integrated Approach
  • What really matters is the functioning of the complete system
    • hardware, runtime system, compiler, operating system, and application
  • Computer architecture is not just about transistors, individual instructions, or particular implementations
    • E.g., Original RISC projects replaced complex instructions with a compiler + simple instructions
computer architecture is design and analysis
Computer Architecture is Design and Analysis
  • Architecture is an iterative process:
  • Searching the space of possible designs
  • At all levels of computer systems

Creativity

Cost /

Performance

Analysis

Good Ideas

Mediocre Ideas

Bad Ideas

cs 3853 3851 administrivia
CS 3853/3851 Administrivia

Instructor: Prof. Daniel A. Jiménez

Office: SB 4.01.58

Office Hours: By appointment

T. A: Zi Yan

Office: To be announced

Office Hours: To be announced

Class: Tuesday/Thursday 5:30pm to 6:45pm, BB 3.03.24

Text: Hennessy and Patterson, Computer Architecture: A Quantitative Approach, 4th Edition

Web page: http://www.cs.utsa.edu/~dj/cs3853

See web page for reading and homework assignments

cs 3853 3851 course focus
CS 3853/3851 Course Focus

Understanding the design techniques, machine structures, technology factors, evaluation methods that will determine the form of computers in 21st Century

Parallelism

Technology

Programming

Languages

Applications

Interface Design

(ISA)

Computer Architecture:

• Organization

• Hardware/Software Boundary

Compilers

Operating

Measurement & Evaluation

History

Systems

outline15
Outline
  • Computer Science at a Crossroads
  • Computer Architecture v. Instruction Set Arch.
  • What Computer Architecture brings to table
what computer architecture brings to table
What Computer Architecture brings to Table
  • Other fields often borrow ideas from architecture
  • Quantitative Principles of Design
    • Take Advantage of Parallelism
    • Principle of Locality
    • Focus on the Common Case
    • Amdahl’s Law
    • The Processor Performance Equation
  • Careful, quantitative comparisons
    • Define, quantity, and summarize relative performance
    • Define and quantity relative cost
    • Define and quantity dependability
    • Define and quantity power
  • Culture of anticipating and exploiting advances in technology
  • Culture of well-defined interfaces that are carefully implemented and thoroughly checked
1 taking advantage of parallelism
1) Taking Advantage of Parallelism
  • Increasing throughput of server computer via multiple processors or multiple disks
  • Detailed HW design
    • Carry lookahead adders uses parallelism to speed up computing sums from linear to logarithmic in number of bits per operand
    • Multiple memory banks searched in parallel in set-associative caches
  • Pipelining: overlap instruction execution to reduce the total time to complete an instruction sequence.
    • Not every instruction depends on immediate predecessor  executing instructions completely/partially in parallel possible
    • Classic 5-stage pipeline: 1) Instruction Fetch (Ifetch), 2) Register Read (Reg), 3) Execute (ALU), 4) Data Memory Access (Dmem), 5) Register Write (Reg)
pipelined instruction execution

Reg

Reg

Reg

Reg

Reg

Reg

Reg

Reg

Ifetch

Ifetch

Ifetch

Ifetch

DMem

DMem

DMem

DMem

ALU

ALU

ALU

ALU

Time (clock cycles)

Cycle 1

Cycle 2

Cycle 3

Cycle 4

Cycle 5

Cycle 6

Cycle 7

I

n

s

t

r.

O

r

d

e

r

Pipelined Instruction Execution
limits to pipelining

Reg

Reg

Reg

Reg

Reg

Reg

Reg

Reg

Ifetch

Ifetch

Ifetch

Ifetch

DMem

DMem

DMem

DMem

ALU

ALU

ALU

ALU

Limits to pipelining
  • Hazards prevent next instruction from executing during its designated clock cycle
    • Structural hazards: attempt to use the same hardware to do two different things at once
    • Data hazards: Instruction depends on result of prior instruction still in the pipeline
    • Control hazards: Caused by delay between the fetching of instructions and decisions about changes in control flow (branches and jumps).

Time (clock cycles)

I

n

s

t

r.

O

r

d

e

r

2 the principle of locality
2) The Principle of Locality
  • The Principle of Locality:
    • Program access a relatively small portion of the address space at any instant of time.
  • Two Different Types of Locality:
    • Temporal Locality (Locality in Time): If an item is referenced, it will tend to be referenced again soon (e.g., loops, reuse)
    • Spatial Locality (Locality in Space): If an item is referenced, items whose addresses are close by tend to be referenced soon (e.g., straight-line code, array access)
  • Last 30 years, HW relied on locality for memory perf.

MEM

P

$

levels of the memory hierarchy
Levels of the Memory Hierarchy

Capacity

Access Time

Cost

Staging

Xfer Unit

Upper Level

CPU Registers

100s Bytes

300 – 500 ps (0.3-0.5 ns)

Registers

prog./compiler

1-8 bytes

Instr. Operands

faster

L1 Cache

L1 and L2 Cache

10s-100s K Bytes

~1 ns - ~10 ns

$1000s/ GByte

cache cntl

32-64 bytes

Blocks

L2 Cache

cache cntl

64-128 bytes

Blocks

Main Memory

G Bytes

80ns- 200ns

~ $100/ GByte

Memory

OS

4K-8K bytes

Pages

Disk

10s T Bytes, 10 ms (10,000,000 ns)

~ $1 / GByte

Disk

user/operator

Mbytes

Files

Larger

Tape

infinite

sec-min

~$1 / GByte

Tape

Lower Level

3 focus on the common case
3) Focus on the Common Case
  • Common sense guides computer design
    • Since its engineering, common sense is valuable
  • In making a design trade-off, favor the frequent case over the infrequent case
    • E.g., Instruction fetch and decode unit used more frequently than multiplier, so optimize it 1st
    • E.g., If database server has 50 disks / processor, storage dependability dominates system dependability, so optimize it 1st
  • Frequent case is often simpler and can be done faster than the infrequent case
    • E.g., overflow is rare when adding 2 numbers, so improve performance by optimizing more common case of no overflow
    • May slow down overflow, but overall performance improved by optimizing for the normal case
  • What is frequent case and how much performance improved by making case faster => Amdahl’s Law

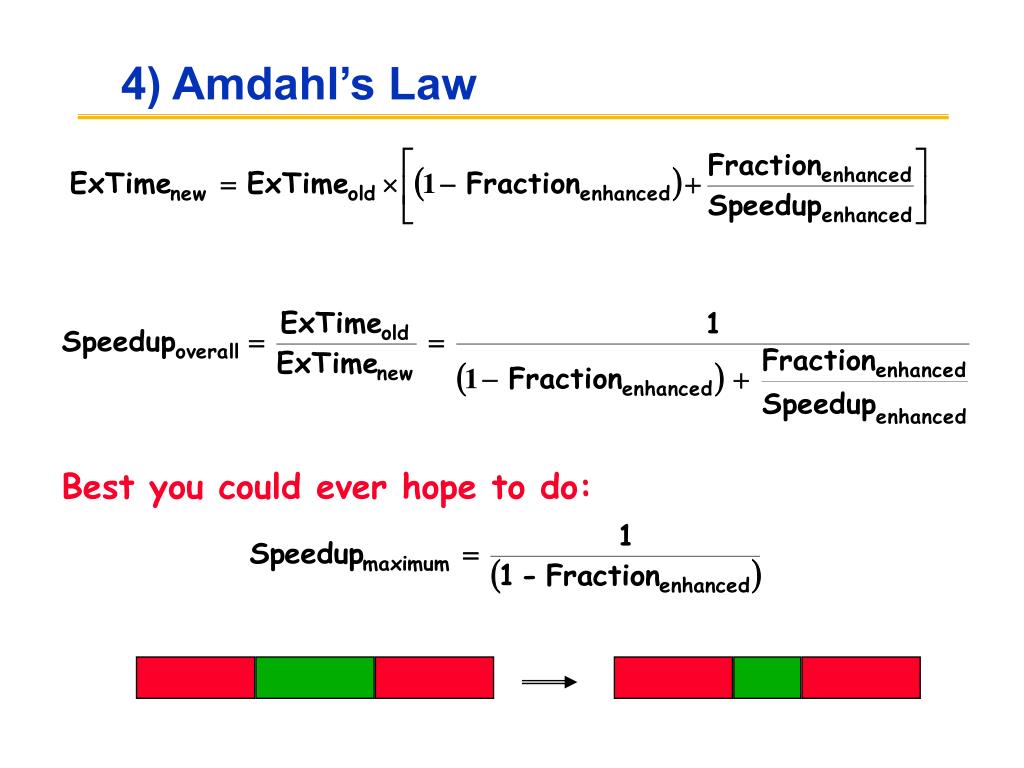

4 amdahl s law
4) Amdahl’s Law

Best you could ever hope to do:

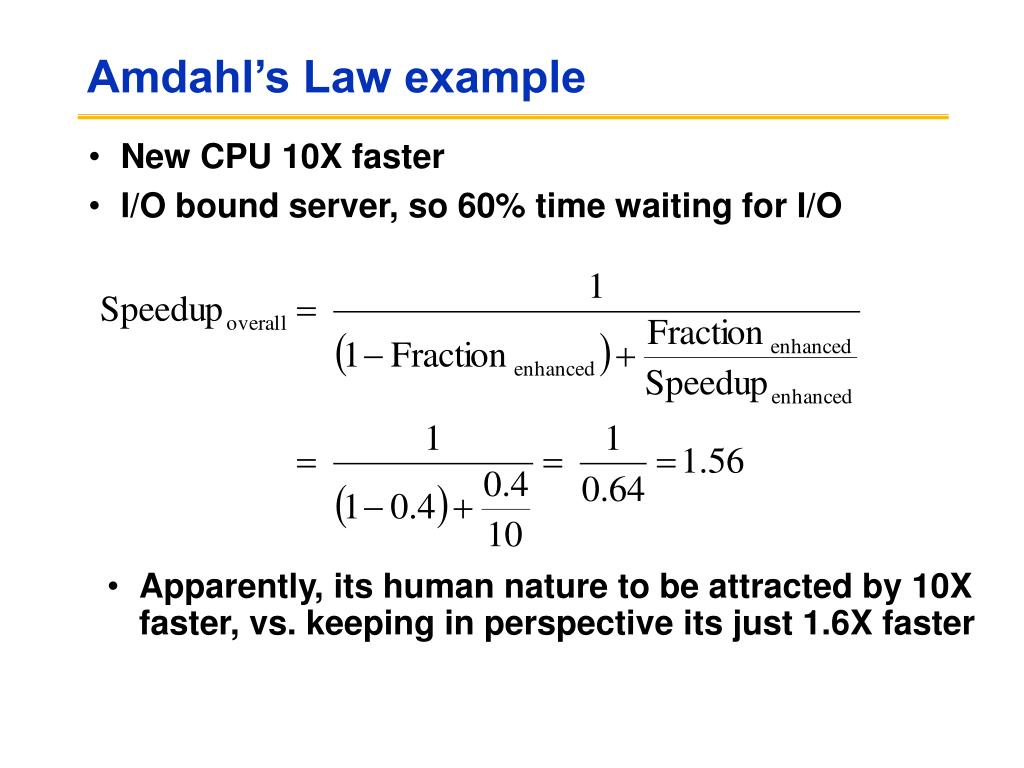

amdahl s law example
Amdahl’s Law example
  • New CPU 10X faster
  • I/O bound server, so 60% time waiting for I/O
  • Apparently, its human nature to be attracted by 10X faster, vs. keeping in perspective its just 1.6X faster
5 processor performance equation

CPU time = Seconds = Instructions x Cycles x Seconds

Program Program Instruction Cycle

CPI

5) Processor performance equation

inst count

Inst Count CPI Clock Rate

Program X

Compiler X (X)

Inst. Set. X X

Organization X X

Technology X

Cycle time

what s a clock cycle
What’s a Clock Cycle?
  • Old days: 10 levels of gates
  • Today: determined by numerous time-of-flight issues + gate delays
    • clock propagation, wire lengths, drivers

Latch

or

register

combinational

logic

and in conclusion
And in conclusion …
  • Computer Architecture >> instruction sets
  • Computer Architecture skill sets are different
    • 5 Quantitative principles of design
    • Quantitative approach to design
    • Solid interfaces that really work
    • Technology tracking and anticipation
  • CS 3853 to learn new skills
  • Computer Science at the crossroads from sequential to parallel computing
    • Salvation requires innovation in many fields, including computer architecture
  • Read Chapter 1, then Appendices A & B.
ad
